When Driving
Rear View Monitor
5. Once they are parallel, straighten the wheels and back your vehicle slow\
ly into the parking space. Continue checking the vehicle's surroundings and then sto\
p the vehicle
in the best possible position. (If the parking space has division lines\
, check whether the
vehicle width guide lines are parallel to them.)
(Display condition) (Vehicle condition)
6. When the shift lever is shifted from R to another shift lever position, \
the screen returns to the previous display.
NOTE
Because there may be a difference between the displayed image, such as indicated below,
and the actual conditions when parking, always verify the safety at the \
rear of the vehicle
and the surrounding area directly with your eyes.
 y In the image of the parking space (or garage) displayed below, even though the back end
and distance guide lines appear parallel in the monitor, they may not actually be parallel
on the ground.
 y When parking in a space with a division line on only one side of the par\
king space, the
division line and the vehicle width guide line may appear parallel on th\
e monitor, but they
may not actually be parallel on the ground.

$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–136
When Driving
Rear View Monitor
Variance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.
VarianceObject
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
Appears
farther than
actual
distanceAppears
closer than
actual
distance
Object at actual
position Object at actual position
Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.Object on screen
A AB
B
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–137
When Driving
Rear View Monitor
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a fl at surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
A
A
C B
CB
(Actual distance) B>C=A
Sensed distance on screen A>B>C (Screen display)
(Actual condition)
Picture Quality Adjustment
WARNING
Always adjust the picture quality of the rear view monitor while the vehicle is stopped: Do not adjust the picture quality of the rear view monitor while driving the vehicle.
Adjusting the picture quality of the rear view monitor such as brightness, contrast, color,
and tint while driving the vehicle is dangerous as it could distract your attention from the
vehicle operation which could lead to an accident.
Picture quality adjustment can be done while the shift lever is in rever\
se (R).
There are four settings which can be adjusted including, brightness, con\
trast, tint, and color.
When adjusting, pay suffi cient attention to the vehicle surroundings.
1. Select the
icon on the screen to display the tabs.
2. Select the desired tab item.
3. Adjust the brightness, contrast, tint, and color using the slider.
If you need to reset, press the reset button.
4. Select the
icon on the screen to close the tab.
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










4–138

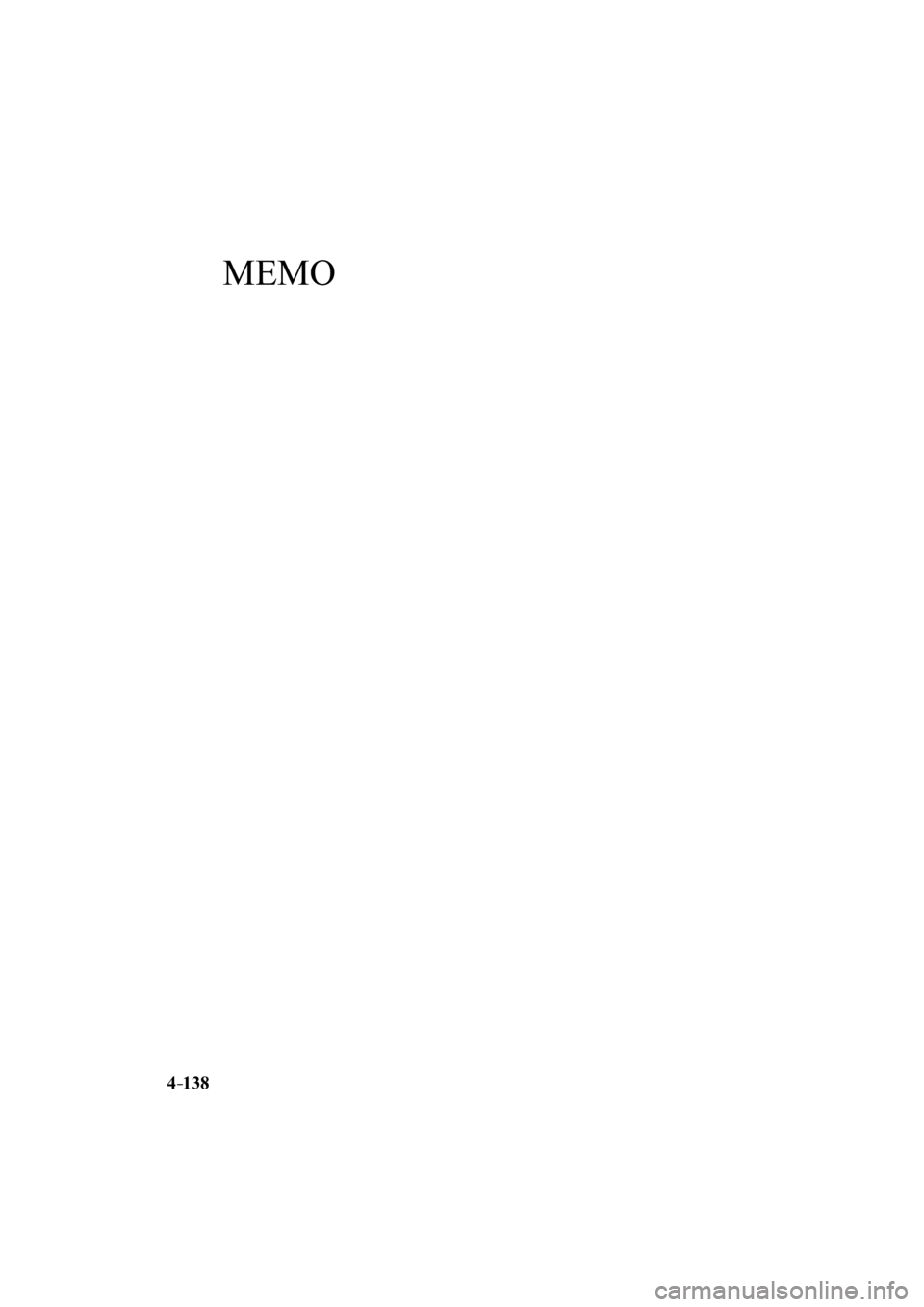

MEMO
$9@&)&"#@&EJUJPOJOEC


$9@&)&"#@&EJUJPOJOEC










*Some models.5–1
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.



Climate Control System..................................................................... 5-2
Operating Tips ............................................................................... 5-2
Vent Operation .............................................................................. 5-3
Manual Type ................................................................................. 5-5
Fully Automatic Type .................................................................. 5-10
Audio System .................................................................................... 5-14
Antenna ....................................................................................... 5-14
Operating Tips for Audio System ............................................... 5-14
Audio Set (Type A) ..................................................................... 5-22
Audio Set (Type B) ..................................................................... 5-34
Audio Control Switch Operation ................................................ 5-55
AUX/USB/iPod mode ................................................................. 5-57
Bluetooth
® ......................................................................................... 5-73
Bluetooth®* .................................................................................. 5-73
Bluetooth® Hands-Free (Type A)* ............................................... 5-95
Bluetooth® Hands-Free (Type B)* ............................................. 5-101
Bluetooth® Audio (Type A)* ...................................................... 5-111
Bluetooth® Audio (Type B)* ...................................................... 5-113
Troubleshooting* ....................................................................... 5-128
Interior Equipment ........................................................................ 5-131
Sunvisors ................................................................................... 5-131
Interior Lights ........................................................................... 5-131
Accessory Sockets .................................................................... 5-133
Cup Holder ................................................................................ 5-134
Bottle Holder ............................................................................. 5-135
Storage Compartments .............................................................. 5-135
