MAZDA MODEL CX-3 2017 Owner's Manual - RHD (UK, Australia) (in English)

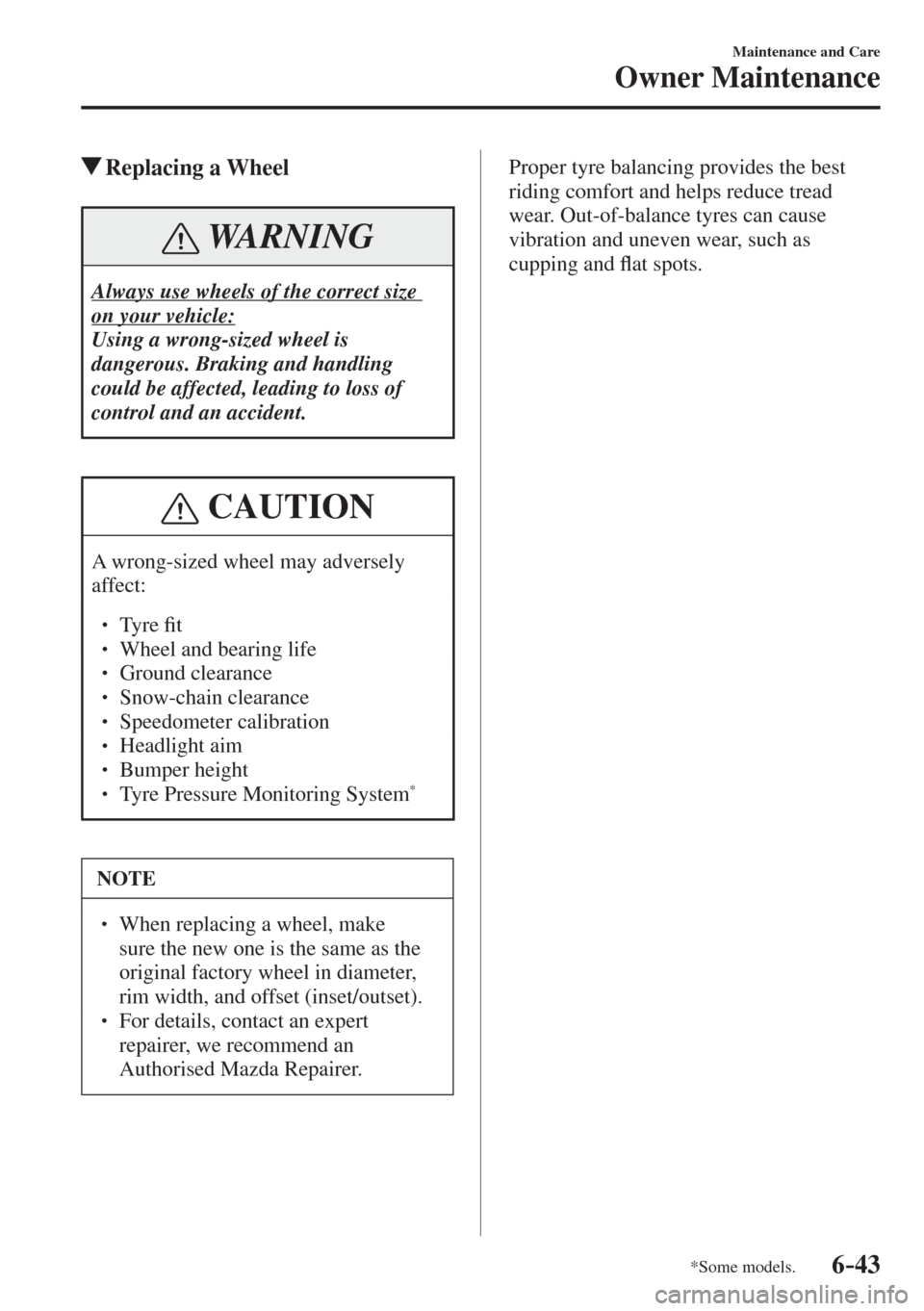

6–43
Maintenance and Care
Owner Maintenance
*Some models.
Replacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
A wrong-sized wheel may adversely
affect:

 Tyre ¿ t
 Wheel and bearing life
 Ground clearance
 Snow-chain clearance
 Speedometer calibration
 Headlight aim
 Bumper height
 Tyre Pressure Monitoring System *
NOTE

 When replacing a wheel, make
sure the new one is the same as the
original factory wheel in diameter,
rim width, and offset (inset/outset).
  For details, contact an expert
repairer, we recommend an
Authorised Mazda Repairer.
Proper tyre balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tyres can cause
vibration and uneven wear, such as
cupping and À at spots.

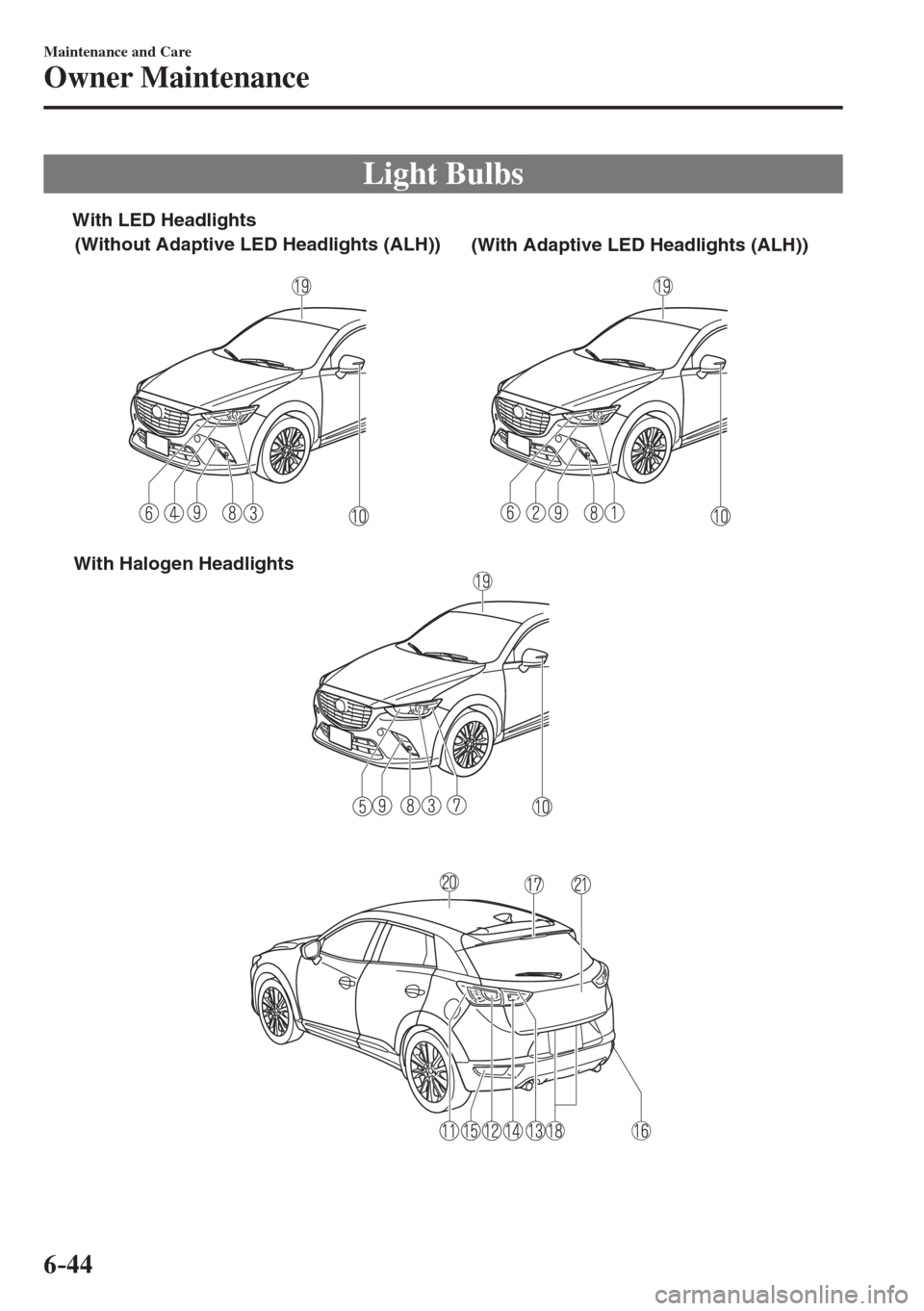

6–44
Maintenance and Care
Owner Maintenance
Light Bulbs

With Halogen Headlights
With LED Headlights
(Without Adaptive LED Headlights (ALH))
(With Adaptive LED Headlights (ALH))

6–45
Maintenance and Care
Owner Maintenance
*Some models.
Headlights (Low/High beam)

Headlights (Wide-range low beam)

Headlights (Low beam)

Headlights (High beam)

Headlights (High beam)/Running lights *

Running lights/Position lights

Position lights

Front fog lights *

Front direction indicator lights

Side direction indicator lights

Brake lights/Tail lights

Rear direction indicator lights

Tail lights *

Reverse lights

Rear fog light (Left-hand drive model) *

Rear fog light (Right-hand drive model) *

High-mount brake light

Number plate lights

Overhead lights (Front)/Map lights

Overhead lights (Rear)

Luggage compartment light

6–46
Maintenance and Care
Owner Maintenance
*Some models.
WARNING
Never touch the glass portion of a
halogen bulb with your bare hands
and always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurised gas. If one is broken, it will
explode and serious injuries could be
caused by the À ying glass.
If the glass portion is touched with bare
hands, body oil could cause the bulb to
overheat and explode when lit.

Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
CAUTION
When removing the lens or lamp unit
using a À athead screwdriver, make
sure that the À athead screwdriver does
not contact the interior terminal. If
the À athead screwdriver contacts the
terminal, a short circuit may occur.
NOTE
  To replace the bulb, contact an
expert repairer, we recommend an
Authorised Mazda Repairer.
  If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
  Use the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Replacing Exterior Light Bulbs
Headlights (With LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Headlights (With halogen headlights)
High-beam bulbs (With running lights)/
Running lights
*
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the bonnet.
3. Turn the cover anticlockwise and
remove it.

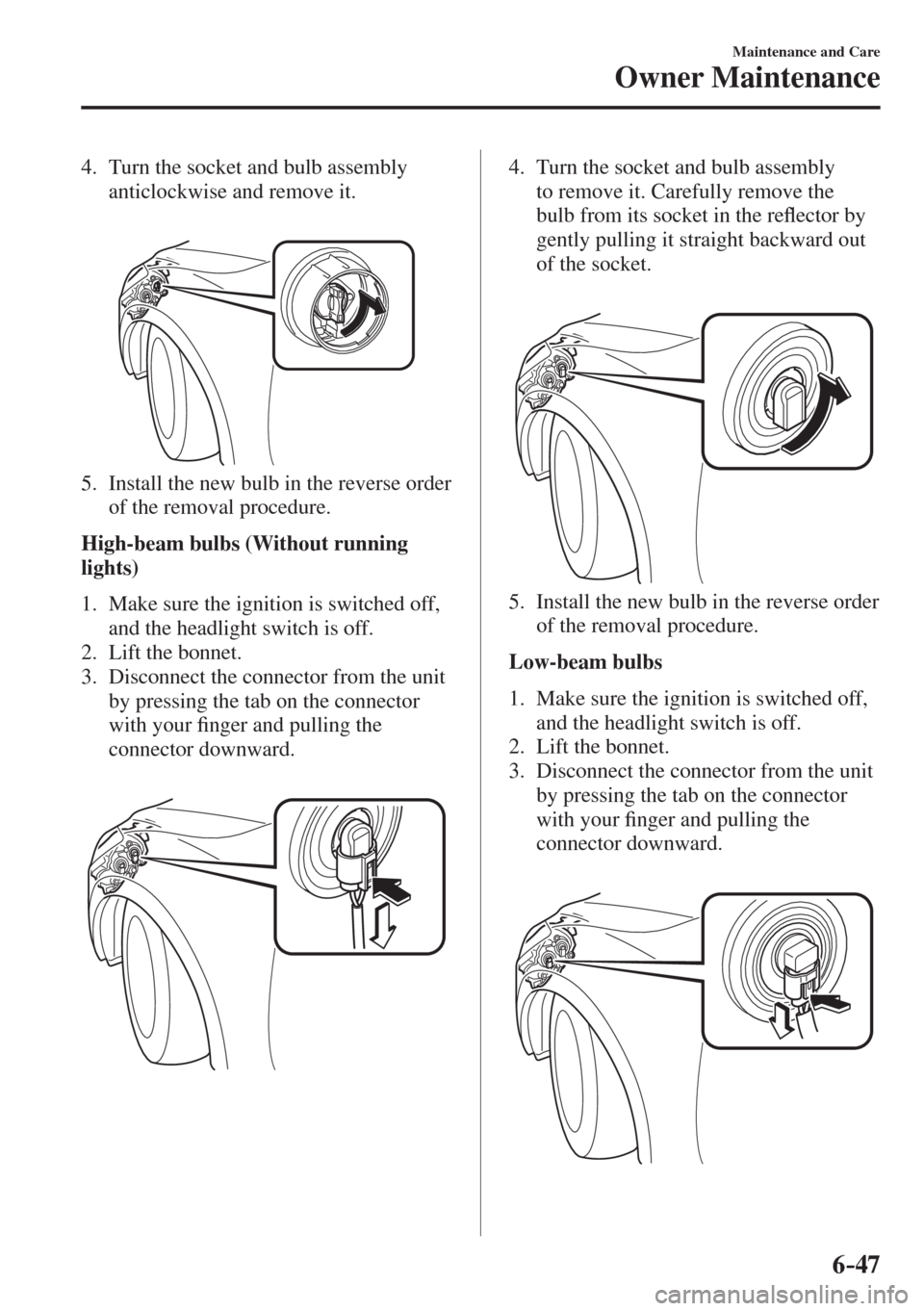

6–47
Maintenance and Care
Owner Maintenance
4. Turn the socket and bulb assembly
anticlockwise and remove it.



5. Install the new bulb in the reverse order
of the removal procedure.

High-beam bulbs (Without running
lights)

1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the bonnet.
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.


4. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reÀ ector by
gently pulling it straight backward out
of the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

Low-beam bulbs
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the bonnet.
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.

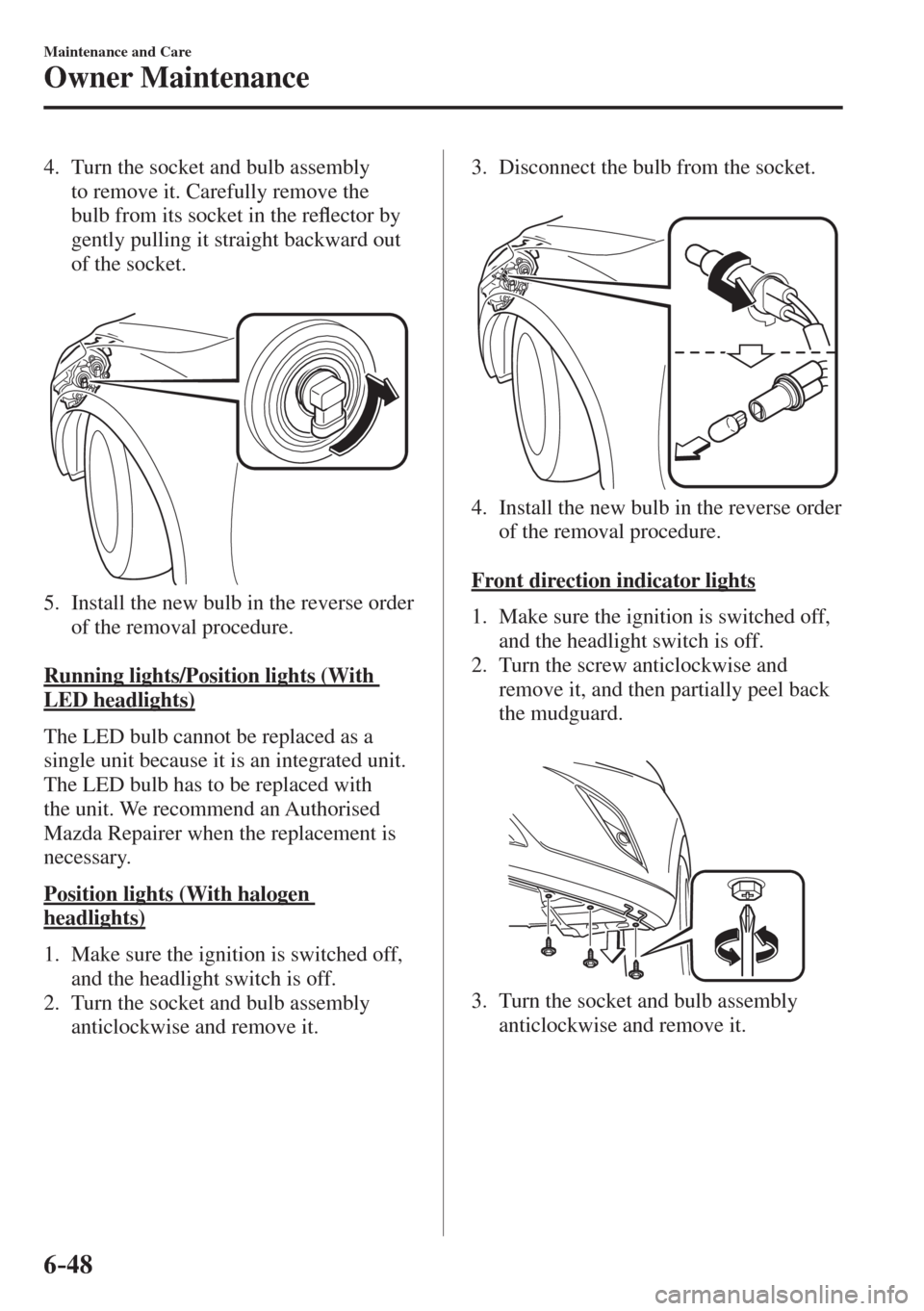

6–48
Maintenance and Care
Owner Maintenance
4. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reÀ ector by
gently pulling it straight backward out
of the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

Running lights/Position lights (With
LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Position lights (With halogen
headlights)
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the socket and bulb assembly
anticlockwise and remove it.
3. Disconnect the bulb from the socket.



4. Install the new bulb in the reverse order
of the removal procedure.

Front direction indicator lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the screw anticlockwise and
remove it, and then partially peel back
the mudguard.



3. Turn the socket and bulb assembly
anticlockwise and remove it.

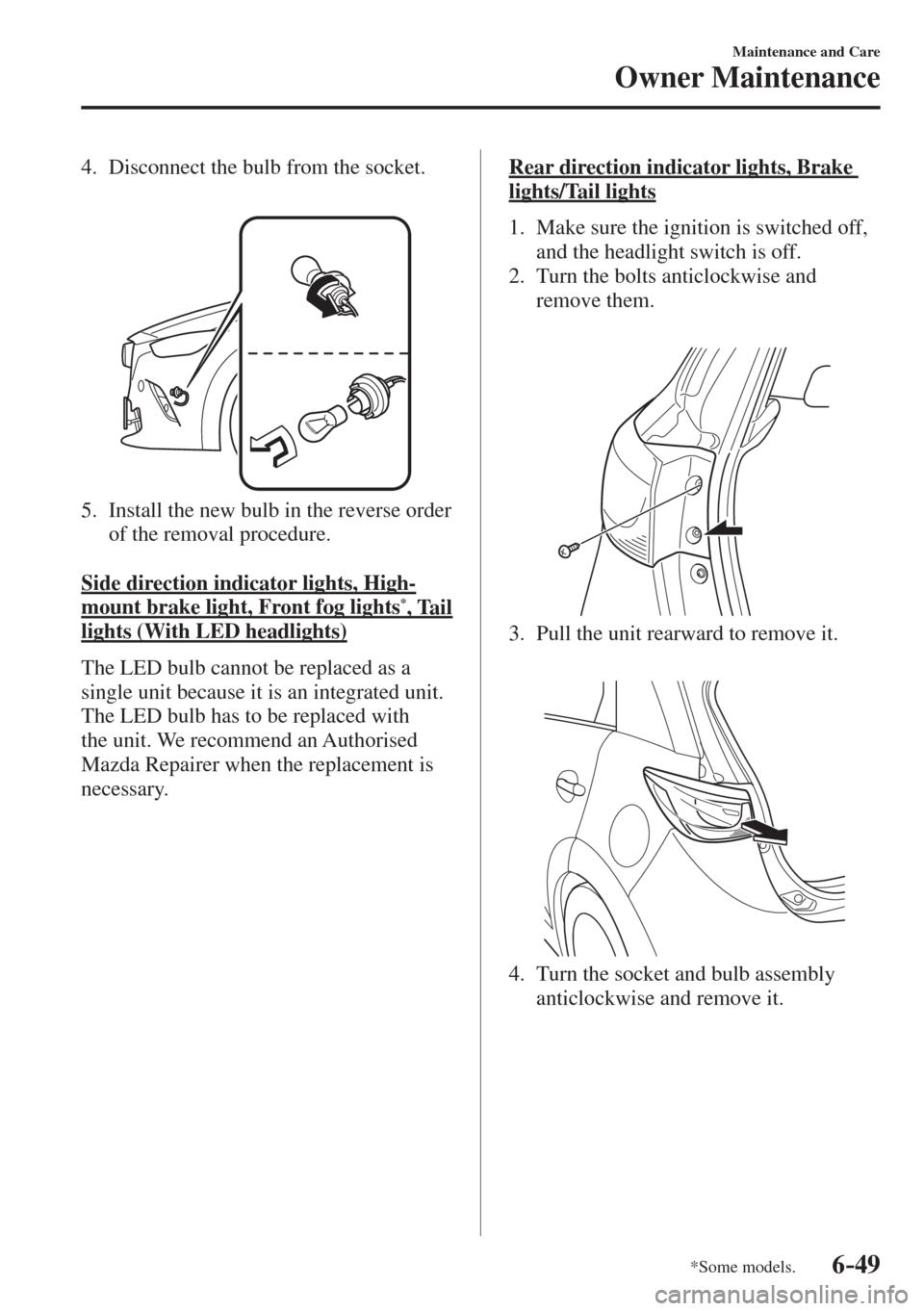

6–49
Maintenance and Care
Owner Maintenance
*Some models.
4. Disconnect the bulb from the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

Side direction indicator lights, High-
mount brake light, Front fog lights * , Tail
lights (With LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Rear direction indicator lights, Brake
lights/Tail lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the bolts anticlockwise and
remove them.



3. Pull the unit rearward to remove it.



4. Turn the socket and bulb assembly
anticlockwise and remove it.

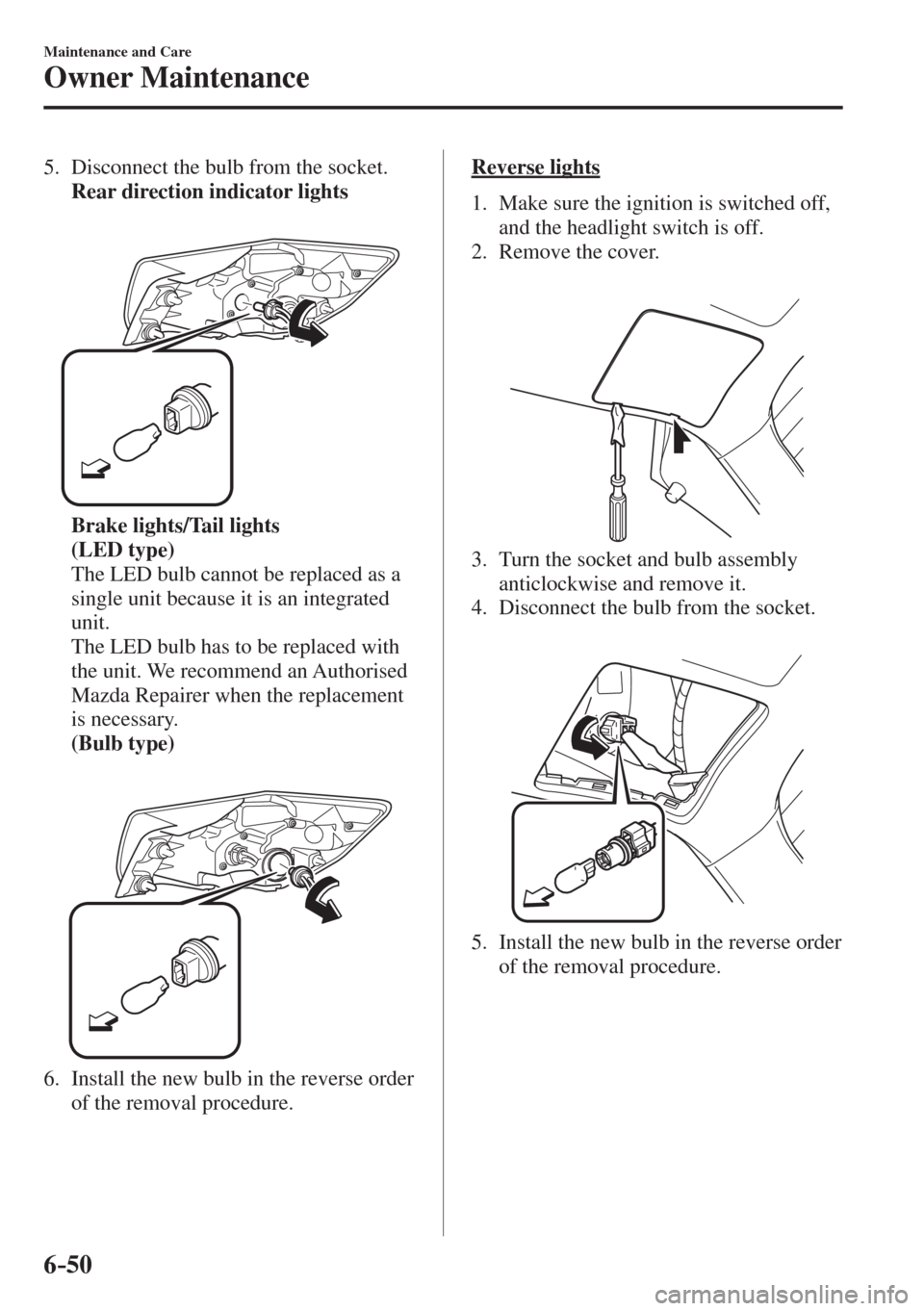

6–50
Maintenance and Care
Owner Maintenance
5. Disconnect the bulb from the socket.
Rear direction indicator lights



Brake lights/Tail lights
(LED type)
The LED bulb cannot be replaced as a
single unit because it is an integrated
unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement
is necessary.
(Bulb type)



6. Install the new bulb in the reverse order
of the removal procedure.

Reverse lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.



3. Turn the socket and bulb assembly
anticlockwise and remove it.
4. Disconnect the bulb from the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

6–51
Maintenance and Care
Owner Maintenance
*Some models.
Rear fog light *
1. Make sure the ignition is switched off
and the headlight switch is off.
2. Pull the centre of each plastic retainer
and remove the retainers.
3. Remove the cover.


Removal
Installation

4. Turn the socket and bulb assembly
anticlockwise and remove it.
5. Disconnect the bulb from the socket.



6. Install the new bulb in the reverse order
of the removal procedure.

Number plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.



3. Turn the socket and bulb assembly
anticlockwise and remove it.



4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of the removal procedure.

Replacing Interior Light Bulbs
Overhead lights (Front) /Map lights,
Overhead lights (Rear)
1. Wrap a small À athead screwdriver
with a soft cloth to prevent damage to
the lens, and then remove the lens by
carefully prying on the edge of the lens
with the À athead screwdriver.

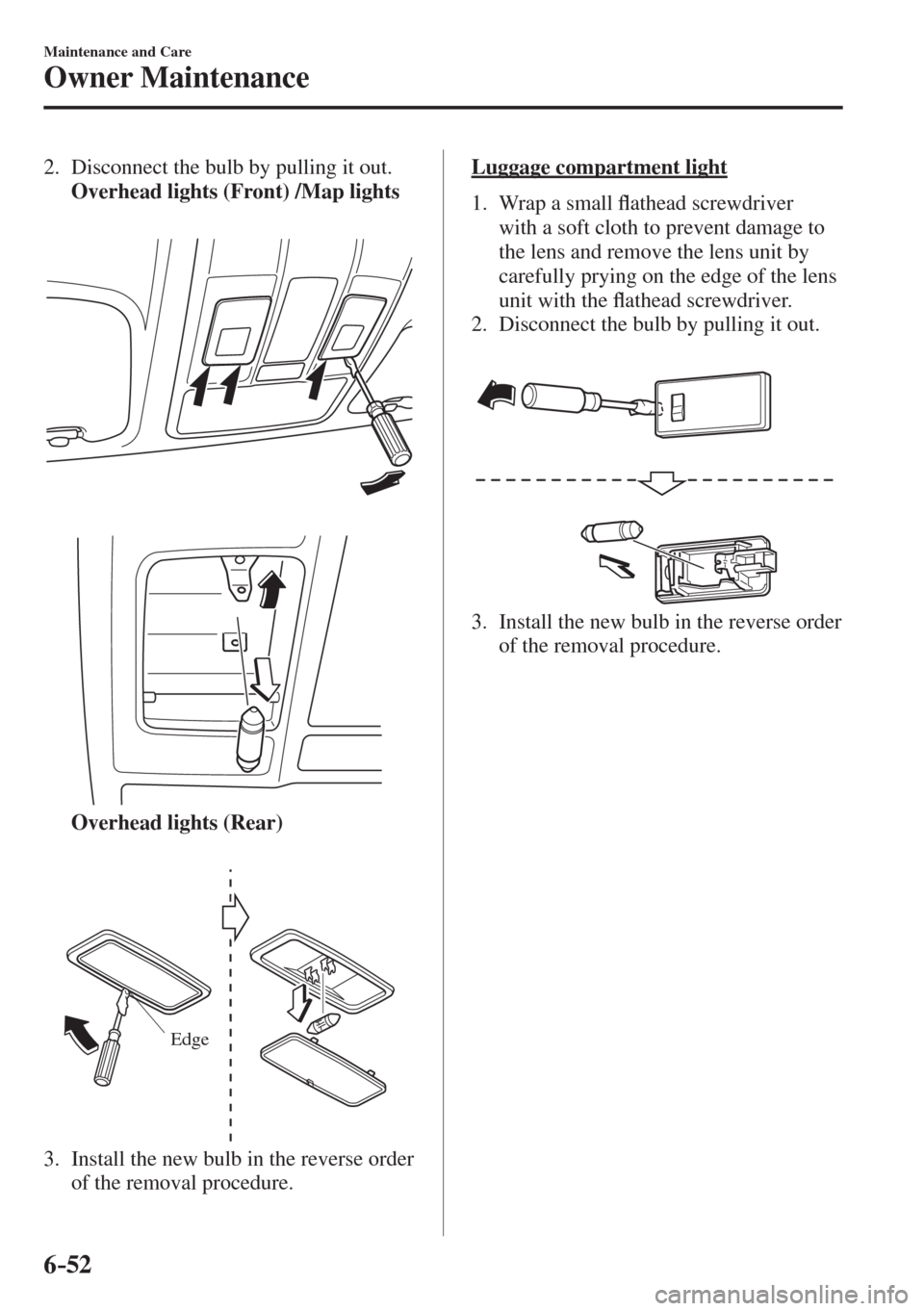

6–52
Maintenance and Care
Owner Maintenance
2. Disconnect the bulb by pulling it out.
Overhead lights (Front) /Map lights






Overhead lights (Rear)


Edge

3. Install the new bulb in the reverse order
of the removal procedure.

Luggage compartment light
1. Wrap a small À athead screwdriver
with a soft cloth to prevent damage to
the lens and remove the lens unit by
carefully prying on the edge of the lens
unit with the À athead screwdriver.
2. Disconnect the bulb by pulling it out.



3. Install the new bulb in the reverse order
of the removal procedure.
