MAZDA MODEL CX-3 2017 Owner's Manual - RHD (UK, Australia) (in English)

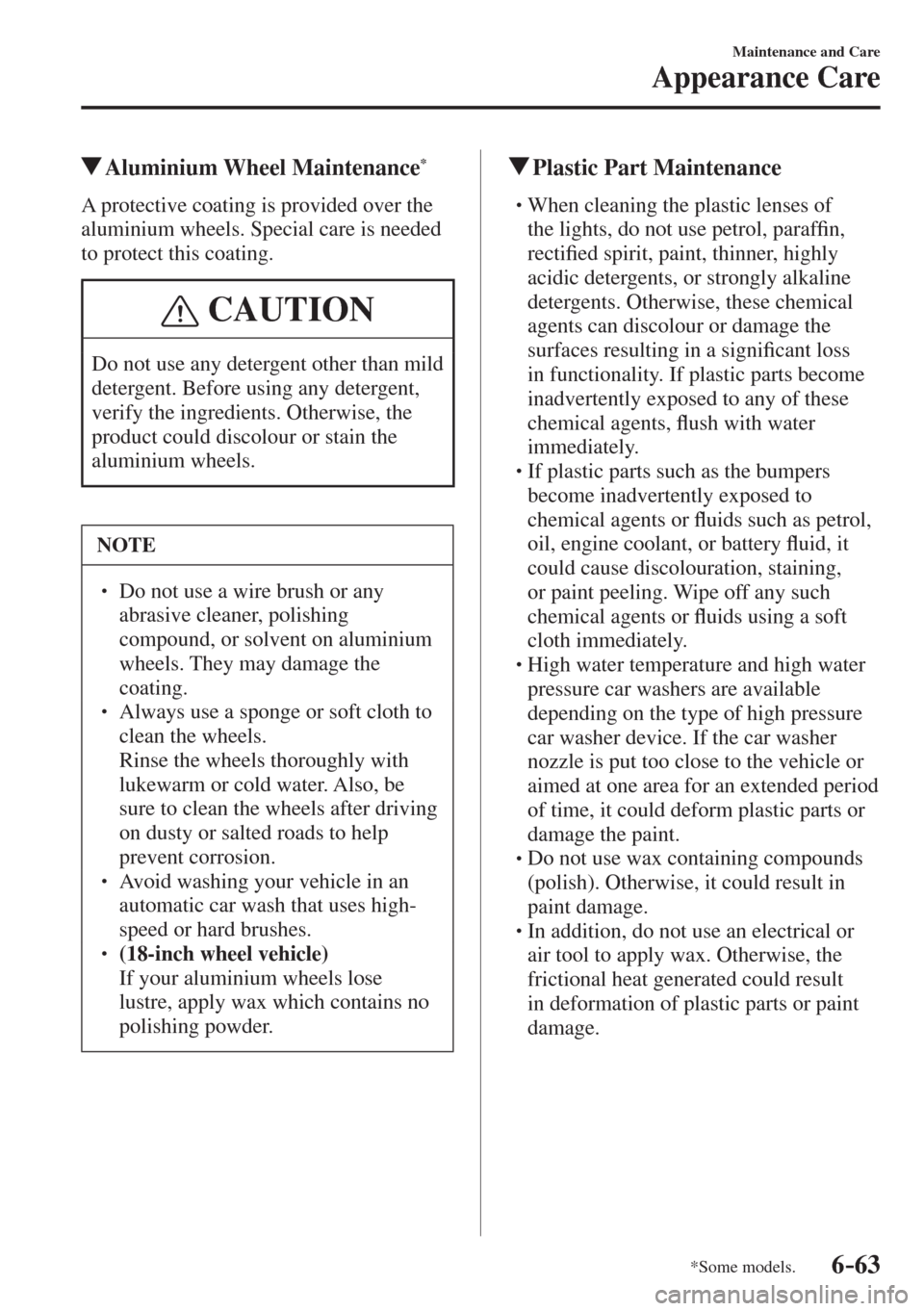

6–63
Maintenance and Care
Appearance Care
*Some models.
Aluminium Wheel Maintenance *
A protective coating is provided over the
aluminium wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than mild
detergent. Before using any detergent,
verify the ingredients. Otherwise, the
product could discolour or stain the
aluminium wheels.
NOTE
  Do not use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminium
wheels. They may damage the
coating.
  Always use a sponge or soft cloth to
clean the wheels.
 Rinse the wheels thoroughly with
lukewarm or cold water. Also, be
sure to clean the wheels after driving
on dusty or salted roads to help
prevent corrosion.
  Avoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
  (18-inch wheel vehicle)  If your aluminium wheels lose
lustre, apply wax which contains no
polishing powder.
Plastic Part Maintenance













 When cleaning the plastic lenses of
the lights, do not use petrol, paraf¿ n,
recti¿ ed spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolour or damage the
surfaces resulting in a signi¿ cant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, À ush with water
immediately.



 If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or À uids such as petrol,
oil, engine coolant, or battery À uid, it
could cause discolouration, staining,
or paint peeling. Wipe off any such
chemical agents or À uids using a soft
cloth immediately.



 High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.



 Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.



 In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result
in deformation of plastic parts or paint
damage.

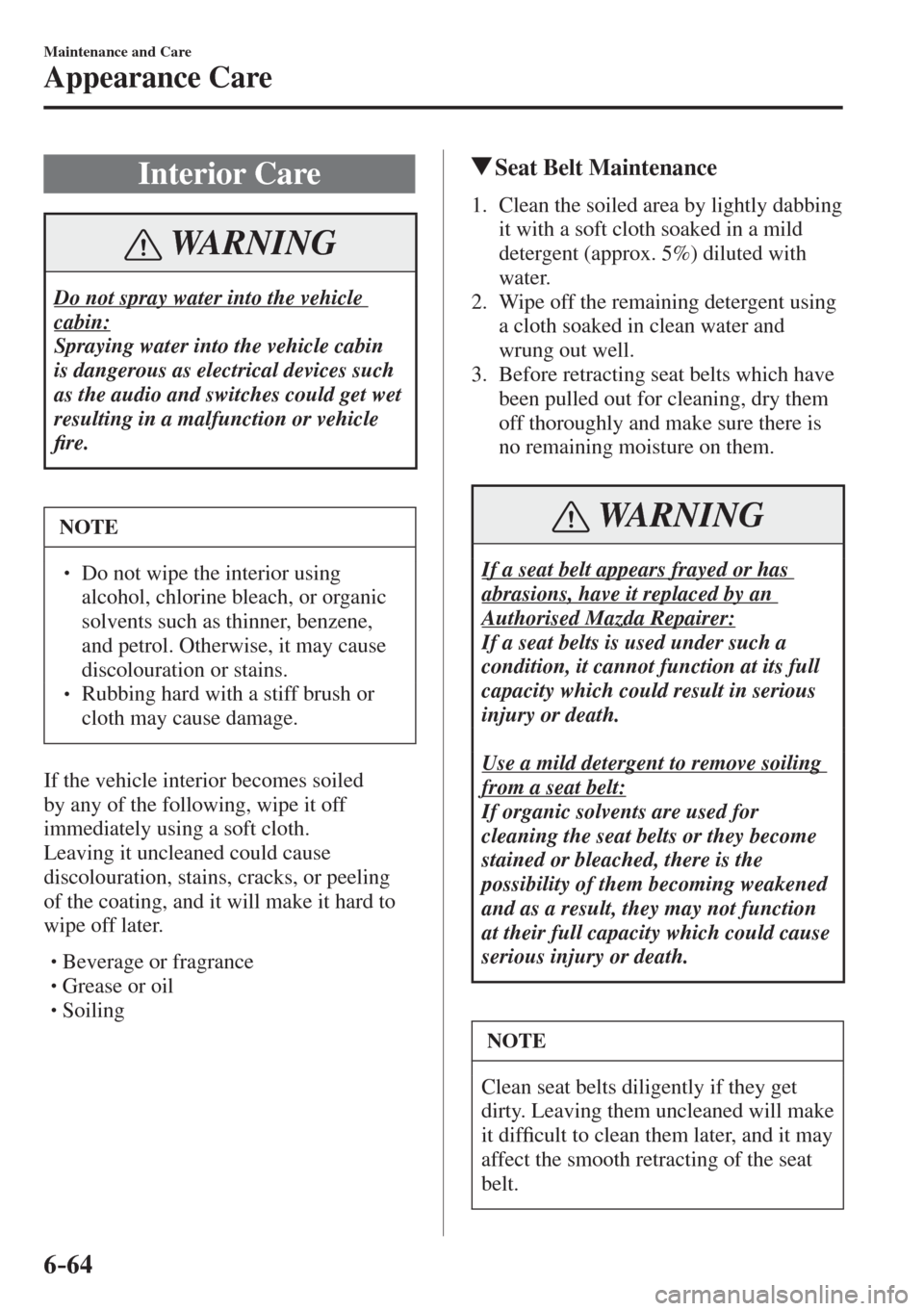

6–64
Maintenance and Care
Appearance Care
Interior Care
WARNING
Do not spray water into the vehicle
cabin:
Spraying water into the vehicle cabin
is dangerous as electrical devices such
as the audio and switches could get wet
resulting in a malfunction or vehicle
¿ re.
NOTE

 Do not wipe the interior using
alcohol, chlorine bleach, or organic
solvents such as thinner, benzene,
and petrol. Otherwise, it may cause
discolouration or stains.
  Rubbing hard with a stiff brush or
cloth may cause damage.
If the vehicle interior becomes soiled
by any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discolouration, stains, cracks, or peeling
of the coating, and it will make it hard to
wipe off later.



 Beverage or fragrance



 Grease or oil



 Soiling
Seat Belt Maintenance
1. Clean the soiled area by lightly dabbing
it with a soft cloth soaked in a mild
detergent (approx. 5%) diluted with
water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
3. Before retracting seat belts which have
been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.

WARNING
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorised Mazda Repairer:
If a seat belts is used under such a
condition, it cannot function at its full
capacity which could result in serious
injury or death.

Use a mild detergent to remove soiling
from a seat belt:
If organic solvents are used for
cleaning the seat belts or they become
stained or bleached, there is the
possibility of them becoming weakened
and as a result, they may not function
at their full capacity which could cause
serious injury or death.
NOTE
Clean seat belts diligently if they get
dirty. Leaving them uncleaned will make
it dif¿ cult to clean them later, and it may
affect the smooth retracting of the seat
belt.

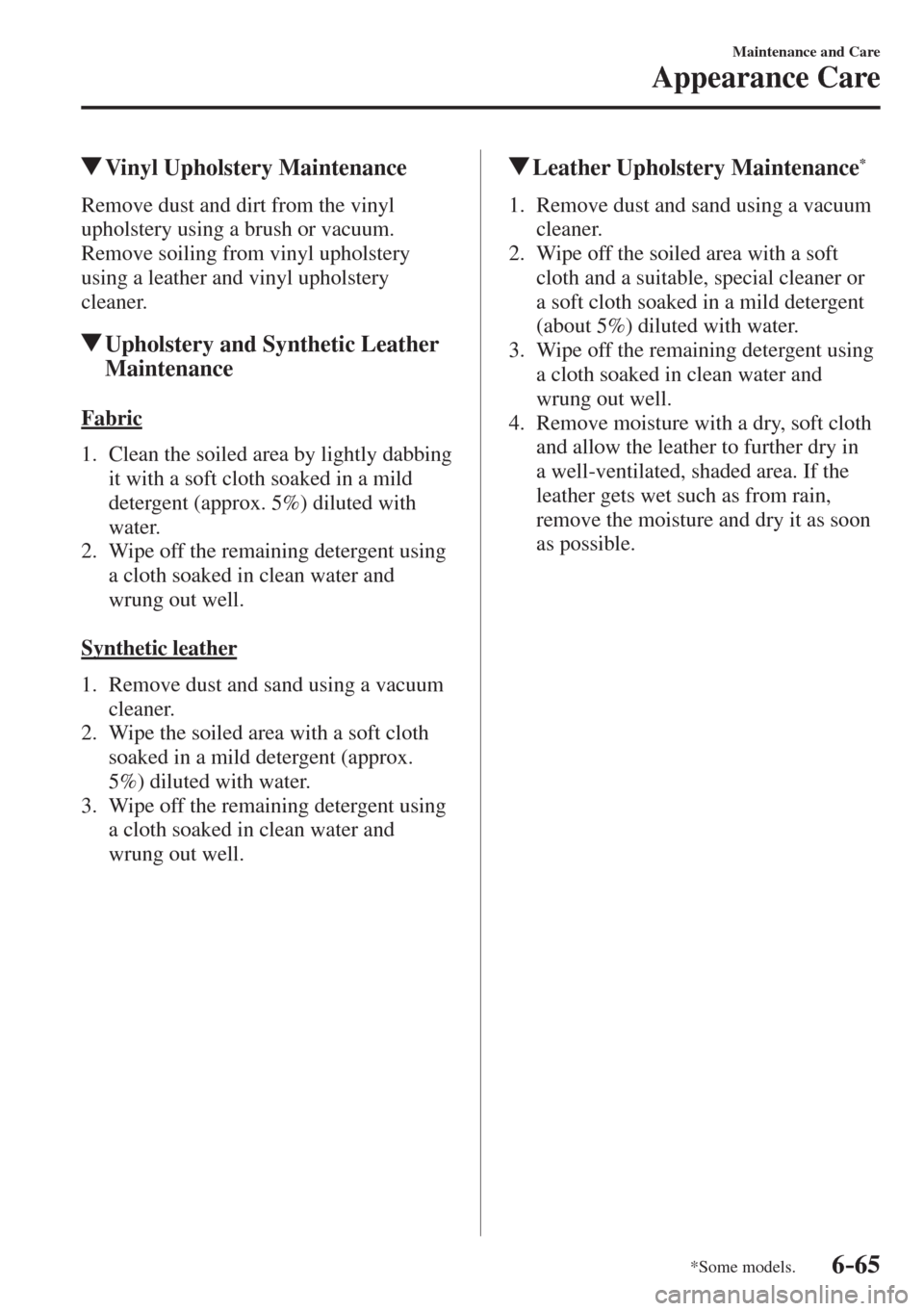

6–65
Maintenance and Care
Appearance Care
*Some models.
Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from vinyl upholstery
using a leather and vinyl upholstery
cleaner.
Upholstery and Synthetic Leather
Maintenance
F a b r i c
1. Clean the soiled area by lightly dabbing
it with a soft cloth soaked in a mild
detergent (approx. 5%) diluted with
water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.

Synthetic leather
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
3. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.

Leather Upholstery Maintenance *
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe off the soiled area with a soft
cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.
3. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
4. Remove moisture with a dry, soft cloth
and allow the leather to further dry in
a well-ventilated, shaded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.

6–66
Maintenance and Care
Appearance Care
*Some models.

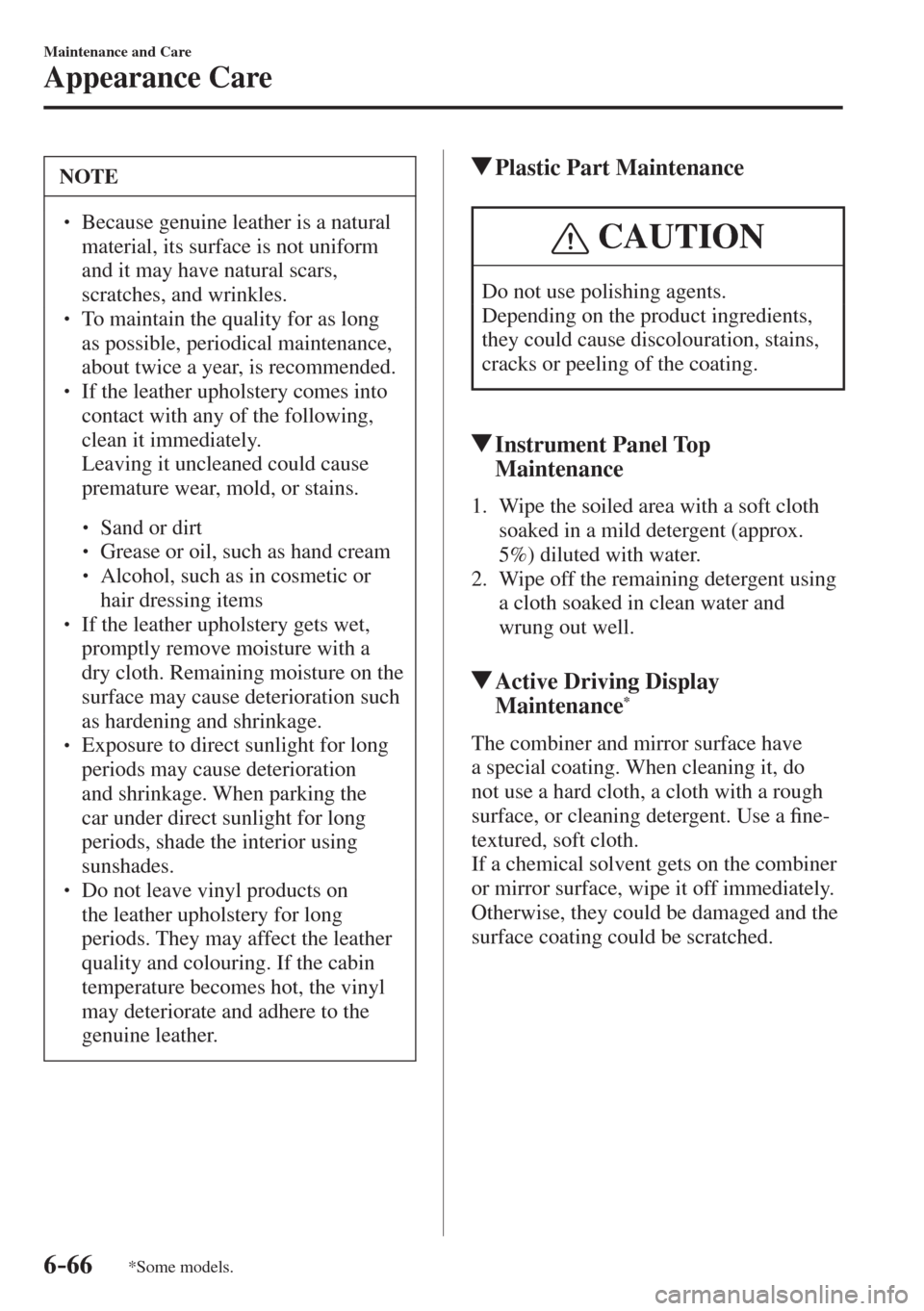

NOTE
  Because genuine leather is a natural
material, its surface is not uniform
and it may have natural scars,
scratches, and wrinkles.
  To maintain the quality for as long
as possible, periodical maintenance,
about twice a year, is recommended.
  If the leather upholstery comes into
contact with any of the following,
clean it immediately.
 Leaving it uncleaned could cause
premature wear, mold, or stains.



 Sand or dirt



 Grease or oil, such as hand cream



 Alcohol, such as in cosmetic or
hair dressing items


 If the leather upholstery gets wet,
promptly remove moisture with a
dry cloth. Remaining moisture on the
surface may cause deterioration such
as hardening and shrinkage.
  Exposure to direct sunlight for long
periods may cause deterioration
and shrinkage. When parking the
car under direct sunlight for long
periods, shade the interior using
sunshades.
  Do not leave vinyl products on
the leather upholstery for long
periods. They may affect the leather
quality and colouring. If the cabin
temperature becomes hot, the vinyl
may deteriorate and adhere to the
genuine leather.
Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discolouration, stains,
cracks or peeling of the coating.
Instrument Panel Top
Maintenance
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.

Active Driving Display
Maintenance *
The combiner and mirror surface have
a special coating. When cleaning it, do
not use a hard cloth, a cloth with a rough
surface, or cleaning detergent. Use a ¿ ne-
textured, soft cloth.
If a chemical solvent gets on the combiner
or mirror surface, wipe it off immediately.
Otherwise, they could be damaged and the
surface coating could be scratched.

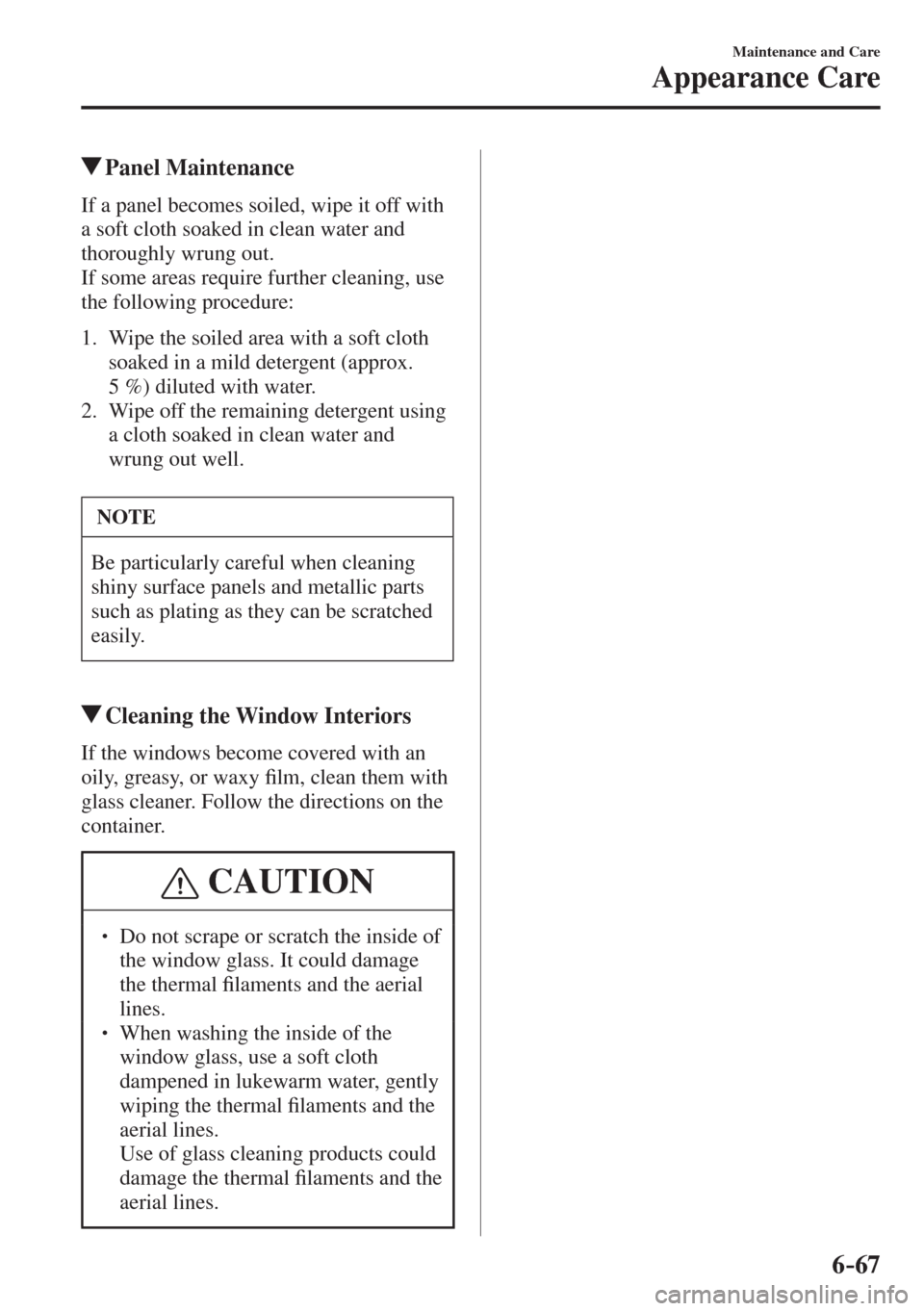

6–67
Maintenance and Care
Appearance Care
Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:

1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.

NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy ¿ lm, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION
  Do not scrape or scratch the inside of
the window glass. It could damage
the thermal ¿ laments and the aerial
lines.
  When washing the inside of the
window glass, use a soft cloth
dampened in lukewarm water, gently
wiping the thermal ¿ laments and the
aerial lines.
 Use of glass cleaning products could
damage the thermal ¿ laments and the
aerial lines.

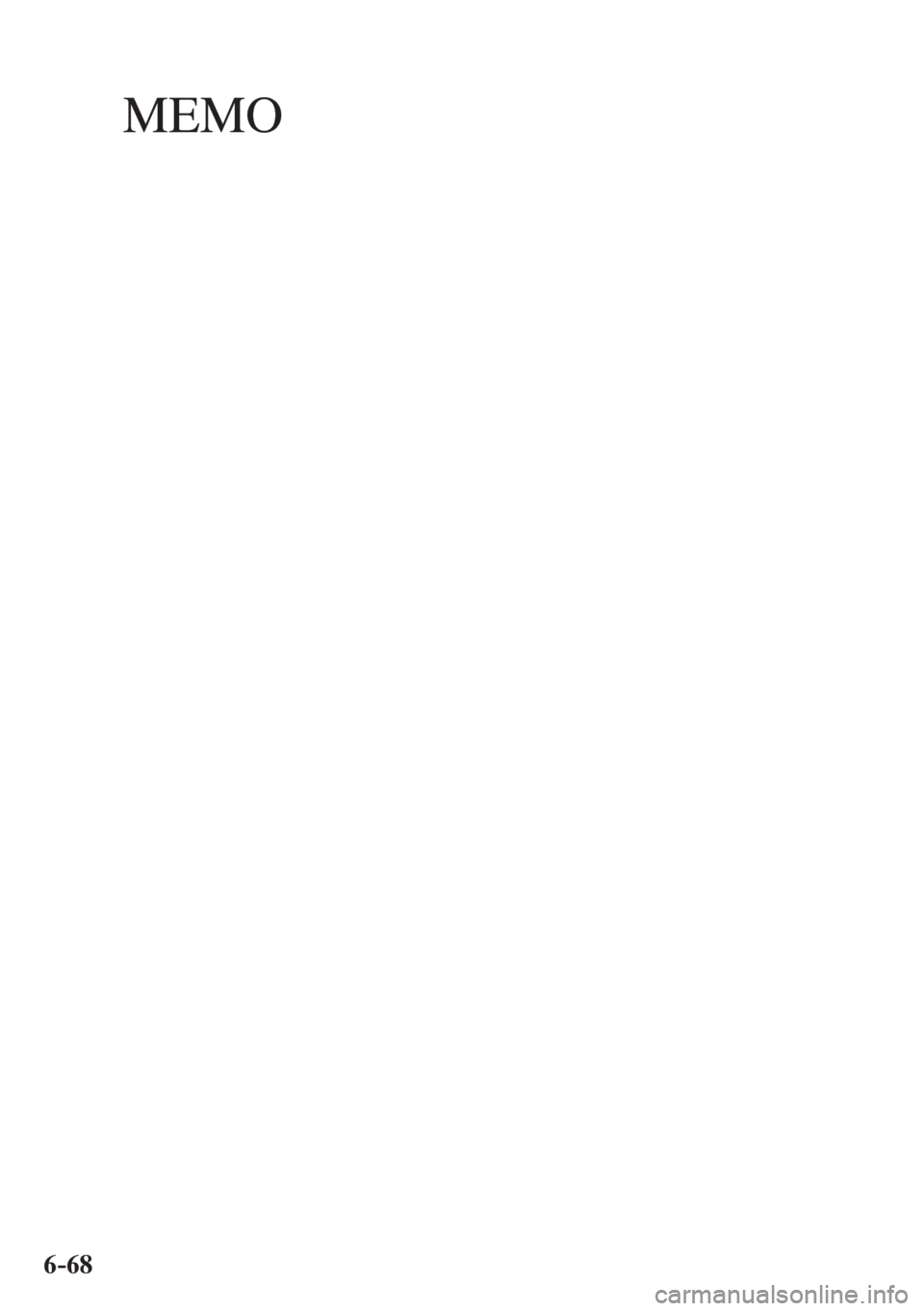

MEMO
6–68

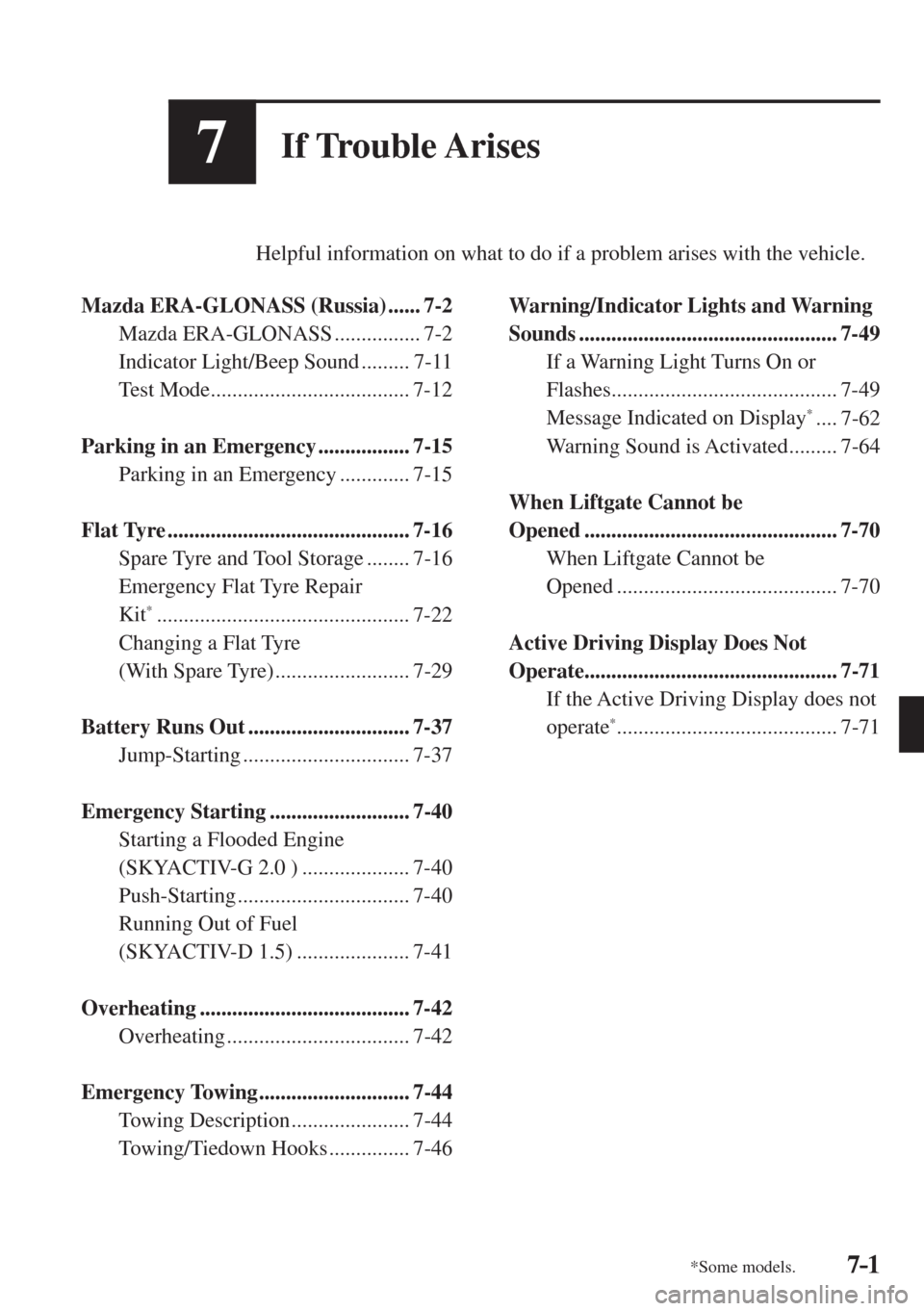

7–1*Some models.7–1
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.

Mazda ERA-GLONASS (Russia) ...... 7-2
Mazda ERA-GLONASS ................ 7-2
Indicator Light/Beep Sound ......... 7-11
Test Mode ..................................... 7-12

Parking in an Emergency ................. 7-15
Parking in an Emergency ............. 7-15

Flat Tyre ............................................. 7-16
Spare Tyre and Tool Storage ........ 7-16
Emergency Flat Tyre Repair
Kit
* ............................................... 7-22
Changing a Flat Tyre
(With Spare Tyre) ......................... 7-29

Battery Runs Out .............................. 7-37
Jump-Starting ............................... 7-37

Emergency Starting .......................... 7-40
Starting a Flooded Engine
(SKYACTIV-G 2.0 ) .................... 7-40
Push-Starting ................................ 7-40
Running Out of Fuel
(SKYACTIV-D 1.5) ..................... 7-41

Overheating ....................................... 7-42
Overheating .................................. 7-42

Emergency Towing ............................ 7-44
Towing Description ...................... 7-44
Towing/Tiedown Hooks ............... 7-46
Warning/Indicator Lights and Warning
Sounds ................................................ 7-49
If a Warning Light Turns On or
Flashes .......................................... 7-49
Message Indicated on Display
* .... 7-62
Warning Sound is Activated ......... 7-64

When Liftgate Cannot be
Opened ............................................... 7-70
When Liftgate Cannot be
Opened ......................................... 7-70

Active Driving Display Does Not
Operate ............................................... 7-71
If the Active Driving Display does not
operate
* ......................................... 7-71

7–2
If Trouble Arises
Mazda ERA-GLONASS (Russia)
Mazda ERA-GLONASS
The Mazda ERA-GLONASS is available only in Russia.
When an emergency situation such as an accident or sudden illness occurs, the Mazda ERA-
GLONASS dials the call centre automatically or the user can make a call to the call centre
manually to enable a voice call.
The system operates automatically when the vehicle receives an impact of a certain level or
more in a collision, or it can be operated manually using the Mazda ERA-GLONASS switch
if an emergency situation arises such as sudden illness.
The call centre operator con¿ rms the status via the voice call, con¿ rms the vehicle's position
information using the GPS/GLONASS
*1 , and calls the police or emergency services.
*1 GPS/GLONASS, short for “Global Positioning System/Global Navigation Satellite
System”, is a system that obtains the vehicle's current location by receiving radio waves
emitted from the GPS/GLONASS (operated by the Russian Federation) satellites to the
ground.


Status information
Emergency vehicle Dial &
Position
information
Position Satellite
Mobile phone
base station
Emergency situation occursCall centre
Police and emergency
services

7–3
If Trouble Arises
Mazda ERA-GLONASS (Russia)
Component Parts of Mazda ERA-GLONASS
Speaker, Aerial Mazda
ERA-GLONASS
switch
Micro
phone
WARNING
When using the Mazda ERA-GLONASS, keep medical devices such as an implanted
heart pacemaker or de¿ brillator about 22 cm (8.7 in) or more away from the vehicle's
aerial:
Otherwise, the operation of the medical device may be affected by radio waves.

7–4
If Trouble Arises
Mazda ERA-GLONASS (Russia)
Flow of Mazda ERA-GLONASS

Automatic call
User statusMazda ERA-GLONASSCall centre/
Police/
Emergency
services Manual call
Emergency situation arises
such as collision or sudden
illnessAutomatic call made
due to vehicle
receiving impact of
certain level or more
Vehicle information,
position information,
other
Status
information
Police and
emergency services
Emergency vehicle RescueStatus confirmation/report by voice callManual call made
by userMazda
ERA-GLONASS
switch
