If Trouble Arises
Parking in an Emergency
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.




The hazard warning lights warn other
drivers that your vehicle is a traf¿ c hazard
and that they must take extreme caution
when near it.



Depress the hazard warning À asher and
all the direction indicators will À ash. The
hazard warning indicator lights in the
instrument cluster À ash simultaneously.
NOTE

 The direction indicators do not work
when the hazard warning lights are
on.
  Check local regulations about the use
of hazard warning lights while the
vehicle is being towed to verify that
it is not in violation of the law.

7–16
If Trouble Arises
Flat Tyre

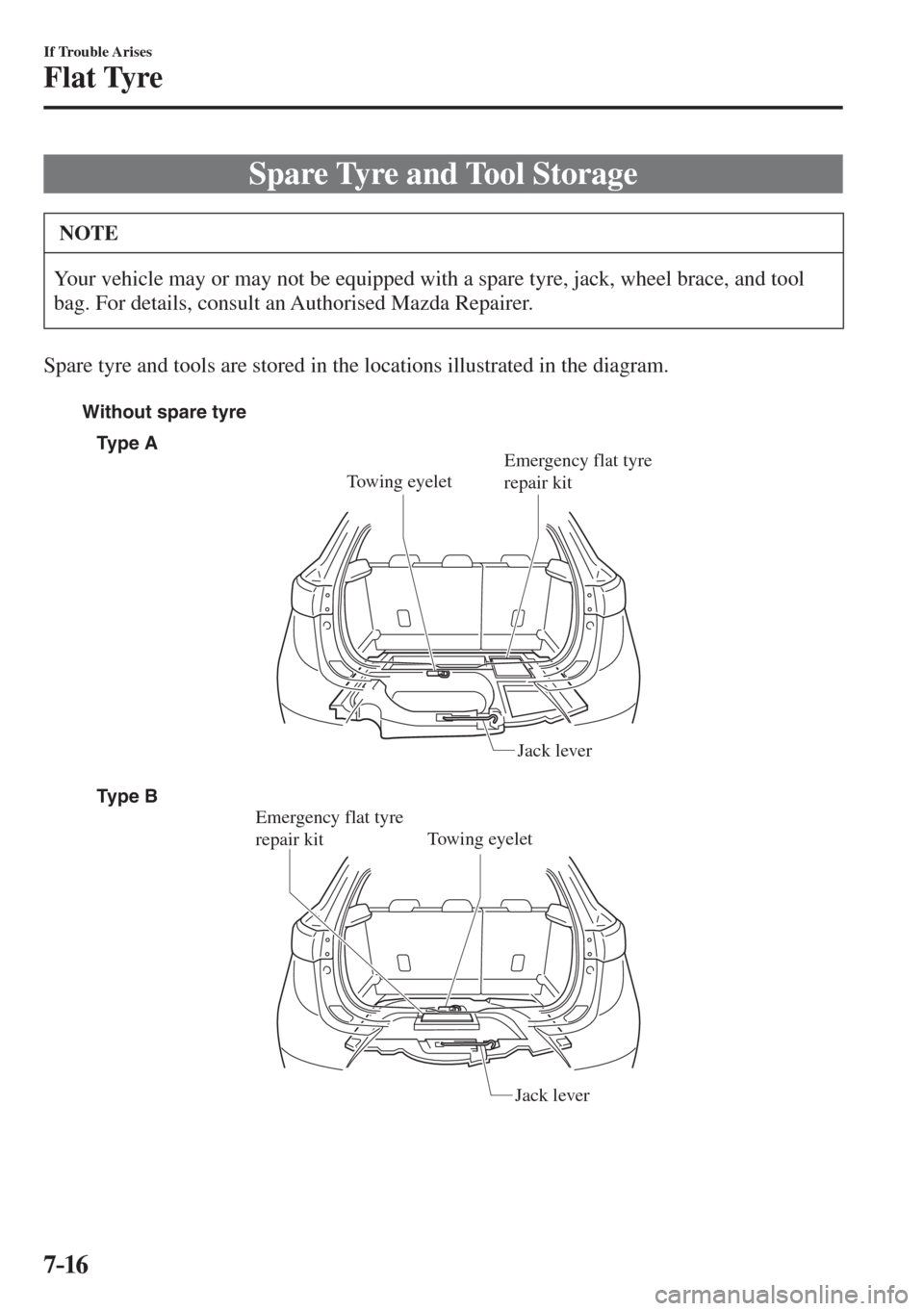

S p a r e T y r e a n d T o o l S t o r a g e
NOTE
Your vehicle may or may not be equipped with a spare tyre, jack, wheel brace, and tool
bag. For details, consult an Authorised Mazda Repairer.
Spare tyre and tools are stored in the locations illustrated in the diagram.

Type A
Towing eyelet
Towing eyelet Type B Without spare tyre
Emergency flat tyre
repair kit
Jack lever
Jack lever
Emergency flat tyre
repair kit

7–17
If Trouble Arises
Flat Tyre

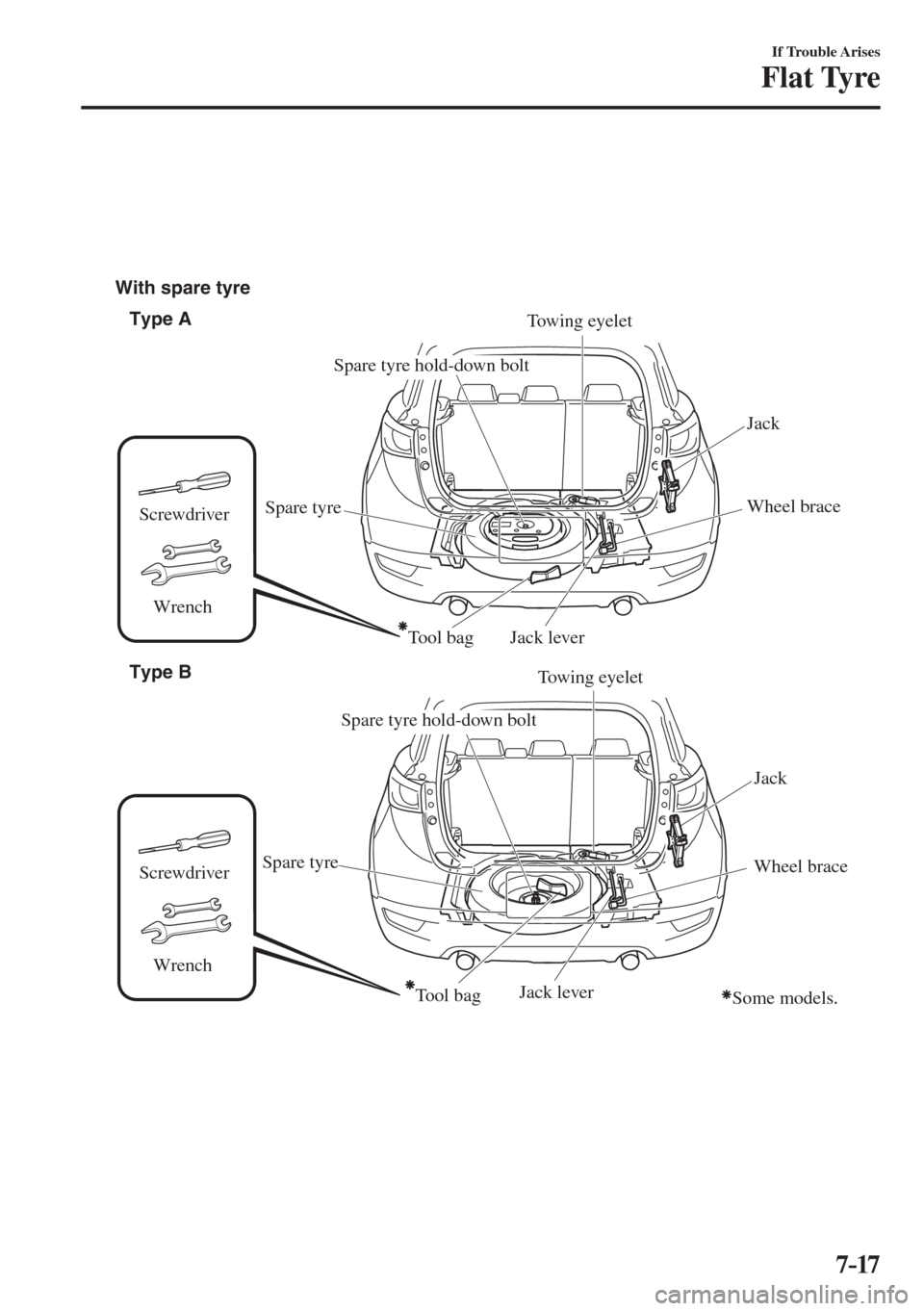

Type A
Type B With spare tyre
Jack
Jack lever Spare tyreWheel brace
Spare tyre hold-down bolt
Towing eyelet
Tool bag
Screwdriver
Wrench
Screwdriver
Wrench
Some models.
Jack
Jack lever Spare tyre
Wheel brace
Spare tyre hold-down bolt
Tool bag
Towing eyelet

7–18
If Trouble Arises
Flat Tyre
*Some models.
Jack *

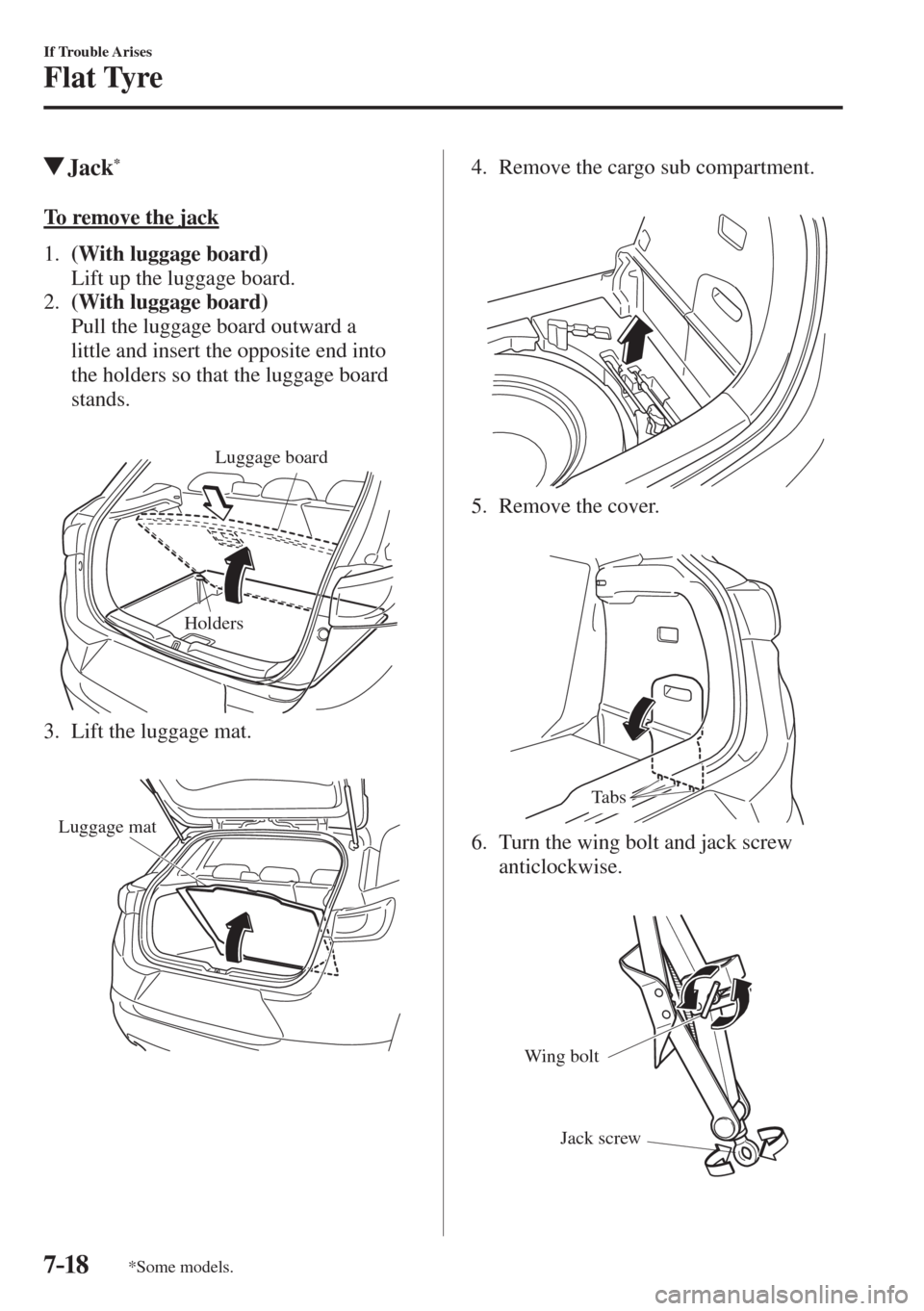

To remove the jack
1 . (With luggage board)
Lift up the luggage board.
2. (With luggage board)
Pull the luggage board outward a
little and insert the opposite end into
the holders so that the luggage board
stands.


Luggage board
Holders

3. Lift the luggage mat.


Luggage mat
4. Remove the cargo sub compartment.



5. Remove the cover.


Tabs
6. Turn the wing bolt and jack screw
anticlockwise.


Wing bolt
Jack screw

7–19
If Trouble Arises
Flat Tyre
*Some models.

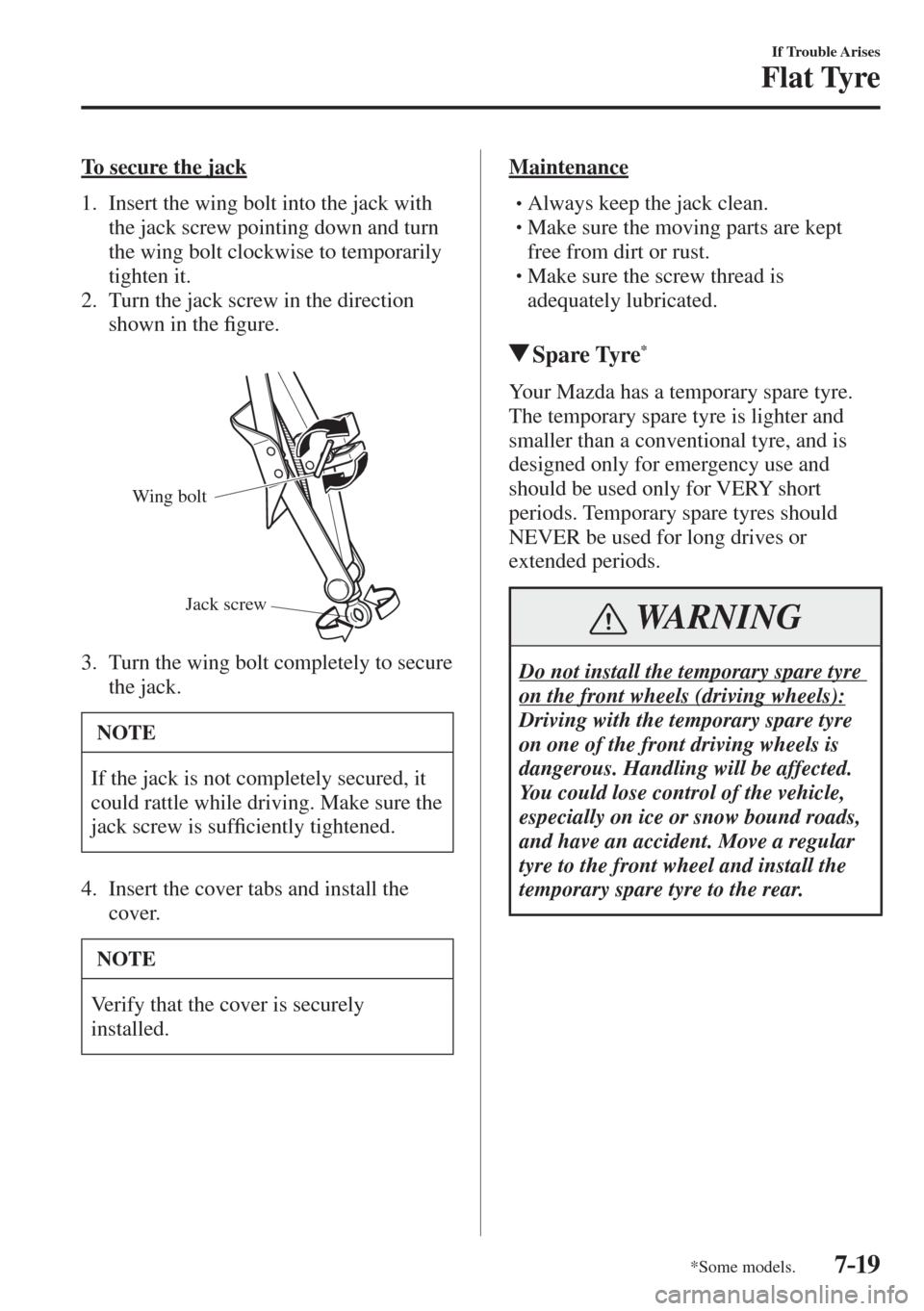

To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing down and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction
shown in the ¿ gure.


Wing bolt
Jack screw

3. Turn the wing bolt completely to secure
the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure the
jack screw is suf¿ ciently tightened.
4. Insert the cover tabs and install the
cover.
NOTE
Verify that the cover is securely
installed.
M a i n t e n a n c e





 Always keep the jack clean.



 Make sure the moving parts are kept
free from dirt or rust.



 Make sure the screw thread is
adequately lubricated.

Spare Tyre *
Your Mazda has a temporary spare tyre.
The temporary spare tyre is lighter and
smaller than a conventional tyre, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tyres should
NEVER be used for long drives or
extended periods.
WARNING
Do not install the temporary spare tyre
on the front wheels (driving wheels):
Driving with the temporary spare tyre
on one of the front driving wheels is
dangerous. Handling will be affected.
You could lose control of the vehicle,
especially on ice or snow bound roads,
and have an accident. Move a regular
tyre to the front wheel and install the
temporary spare tyre to the rear.

7–20
If Trouble Arises
Flat Tyre

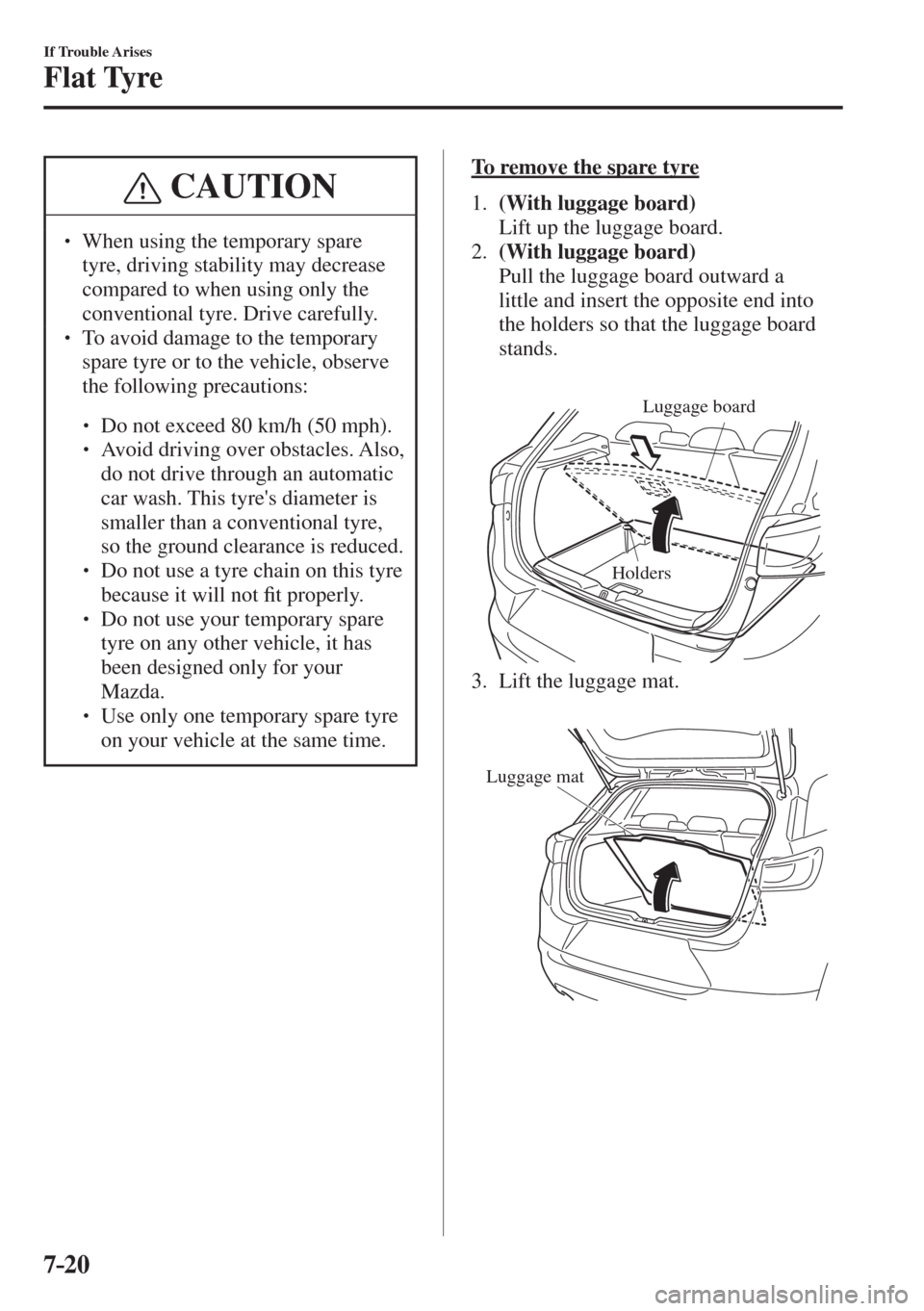

CAUTION
  When using the temporary spare
tyre, driving stability may decrease
compared to when using only the
conventional tyre. Drive carefully.
  To avoid damage to the temporary
spare tyre or to the vehicle, observe
the following precautions:



 Do not exceed 80 km/h (50 mph).



 Avoid driving over obstacles. Also,
do not drive through an automatic
car wash. This tyre's diameter is
smaller than a conventional tyre,
so the ground clearance is reduced.



 Do not use a tyre chain on this tyre
because it will not ¿ t properly.




 Do not use your temporary spare
tyre on any other vehicle, it has
been designed only for your
Mazda.



 Use only one temporary spare tyre
on your vehicle at the same time.
To remove the spare tyre
1 . (With luggage board)
Lift up the luggage board.
2. (With luggage board)
Pull the luggage board outward a
little and insert the opposite end into
the holders so that the luggage board
stands.


Luggage board
Holders

3. Lift the luggage mat.


Luggage mat

7–21
If Trouble Arises
Flat Tyre

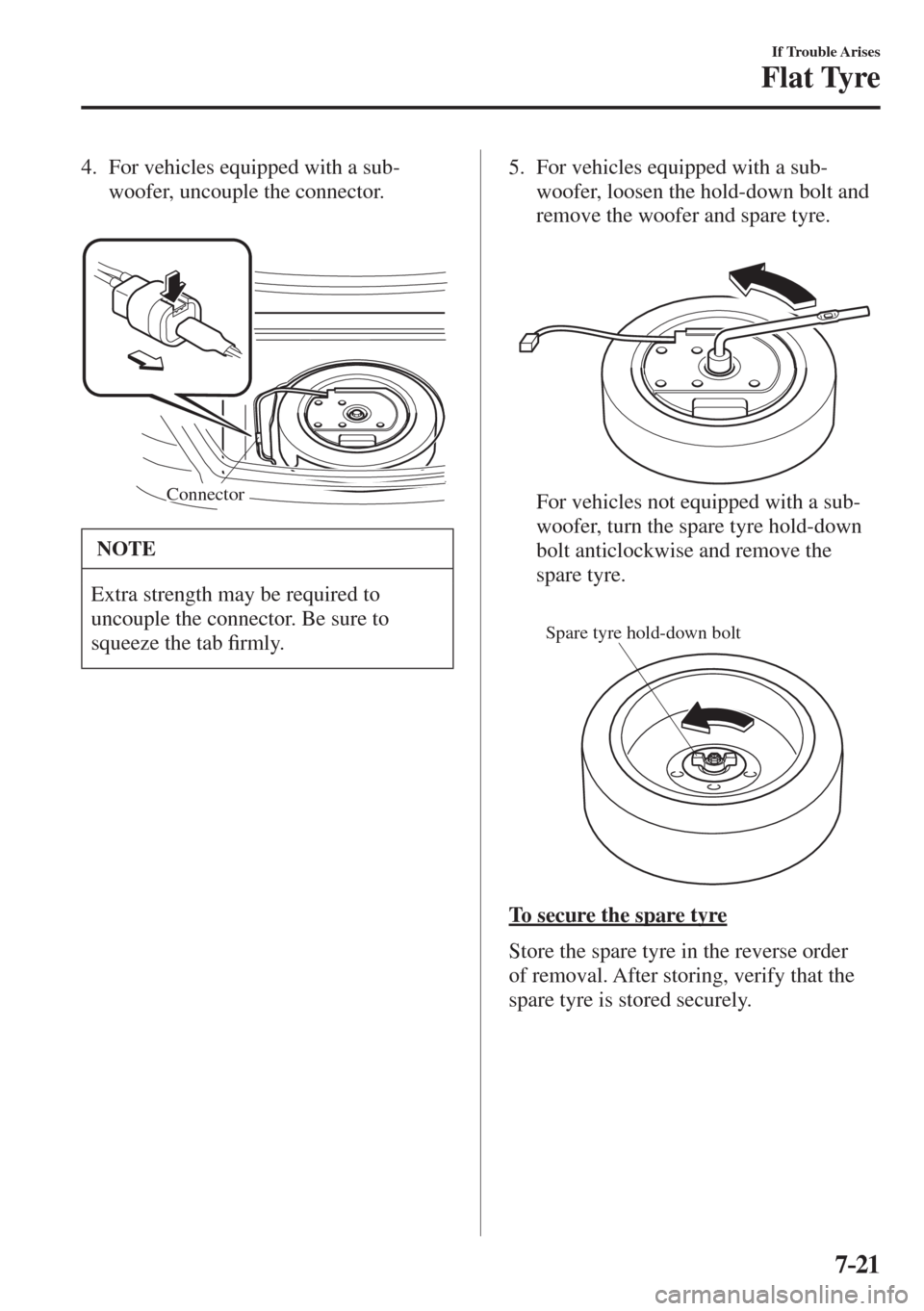

4. For vehicles equipped with a sub-
woofer, uncouple the connector.


Connector
NOTE
Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab ¿ rmly.
5. For vehicles equipped with a sub-
woofer, loosen the hold-down bolt and
remove the woofer and spare tyre.



For vehicles not equipped with a sub-
woofer, turn the spare tyre hold-down
bolt anticlockwise and remove the
spare tyre.


Spare tyre hold-down bolt

To secure the spare tyre
Store the spare tyre in the reverse order
of removal. After storing, verify that the
spare tyre is stored securely.

7–22
If Trouble Arises
Flat Tyre
*Some models.
Emergency Flat Tyre
Repair Kit
*
The emergency À at tyre repair kit included
with your Mazda is for a temporary repair
of a slightly damaged À at tyre resulting
from running over nails or similar sharp
objects on the road surface.
Perform the emergency À at tyre repair
without removing the nail or similar sharp
object which punctured the tyre.
NOTE
Your vehicle is not equipped with a
spare tyre. In the event of a À at tyre,
use the emergency À at tyre repair kit
to repair the tyre temporarily. When
doing the repair, refer to the instructions
included in the emergency À at tyre
repair kit. If an emergency repair was
performed on a À at tyre using the
emergency À at tyre repair kit, have
an expert repairer, we recommend an
Authorised Mazda Repairer, repair or
replace the tyre as soon as possible.
About the Emergency Flat Tyre
Repair Kit

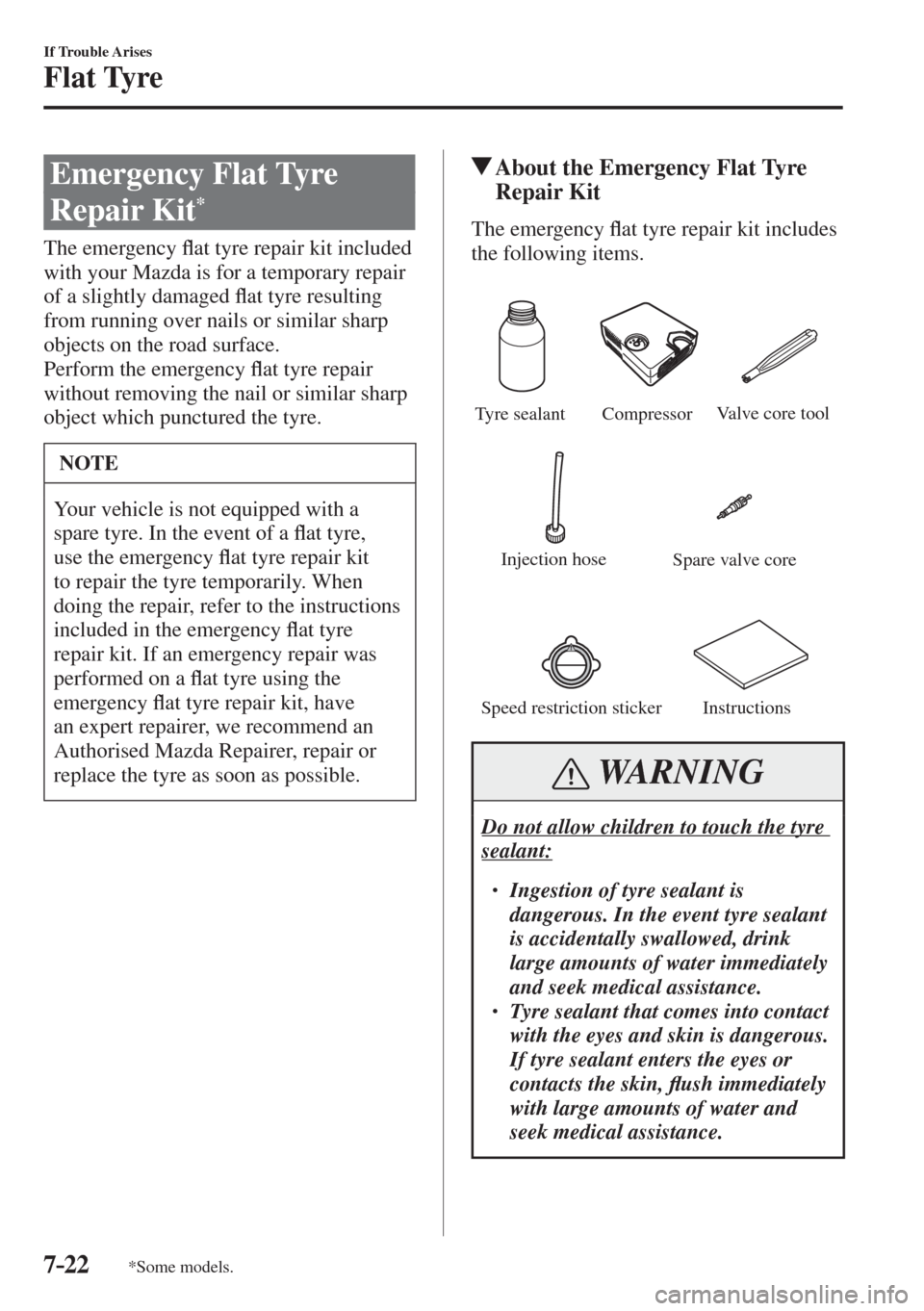

The emergency À at tyre repair kit includes
the following items.


Tyre sealant
Injection hoseCompressorValve core tool
Spare valve core
Speed restriction sticker Instructions

WARNING
Do not allow children to touch the tyre
sealant:

 Ingestion of tyre sealant is
dangerous. In the event tyre sealant
is accidentally swallowed, drink
large amounts of water immediately
and seek medical assistance.
  Tyre sealant that comes into contact
with the eyes and skin is dangerous.
If tyre sealant enters the eyes or
contacts the skin, À ush immediately
with large amounts of water and
seek medical assistance.

7–23
If Trouble Arises
Flat Tyre

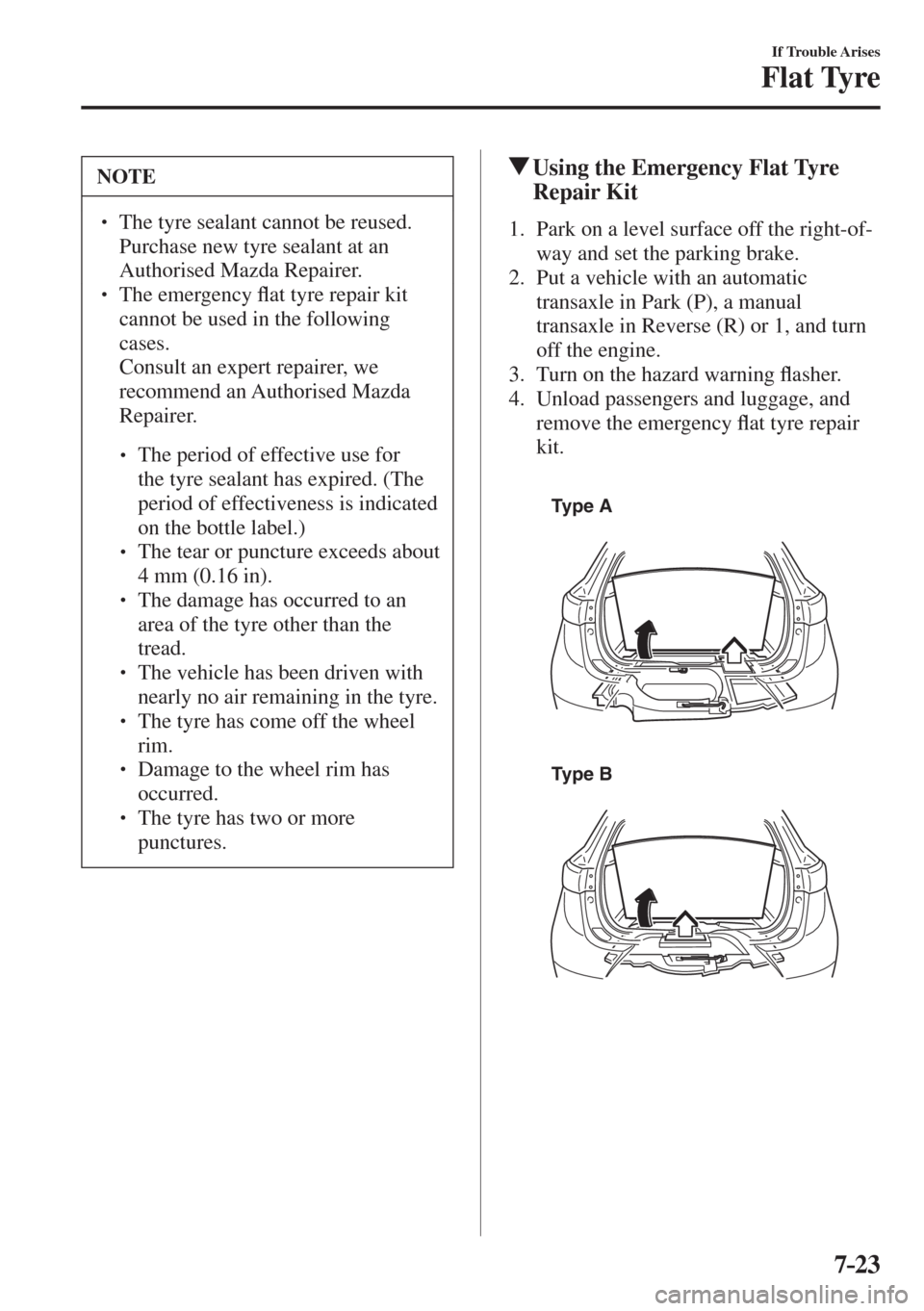

NOTE
  The tyre sealant cannot be reused.
Purchase new tyre sealant at an
Authorised Mazda Repairer.
  The emergency À at tyre repair kit
cannot be used in the following
cases.
 Consult an expert repairer, we
recommend an Authorised Mazda
Repairer.



 The period of effective use for
the tyre sealant has expired. (The
period of effectiveness is indicated
on the bottle label.)



 The tear or puncture exceeds about
4 mm (0.16 in).



 The damage has occurred to an
area of the tyre other than the
tread.



 The vehicle has been driven with
nearly no air remaining in the tyre.



 The tyre has come off the wheel
rim.



 Damage to the wheel rim has
occurred.



 The tyre has two or more
punctures.
Using the Emergency Flat Tyre
Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning À asher.
4. Unload passengers and luggage, and
remove the emergency À at tyre repair
kit.


Type A



Type B

7–24
If Trouble Arises
Flat Tyre

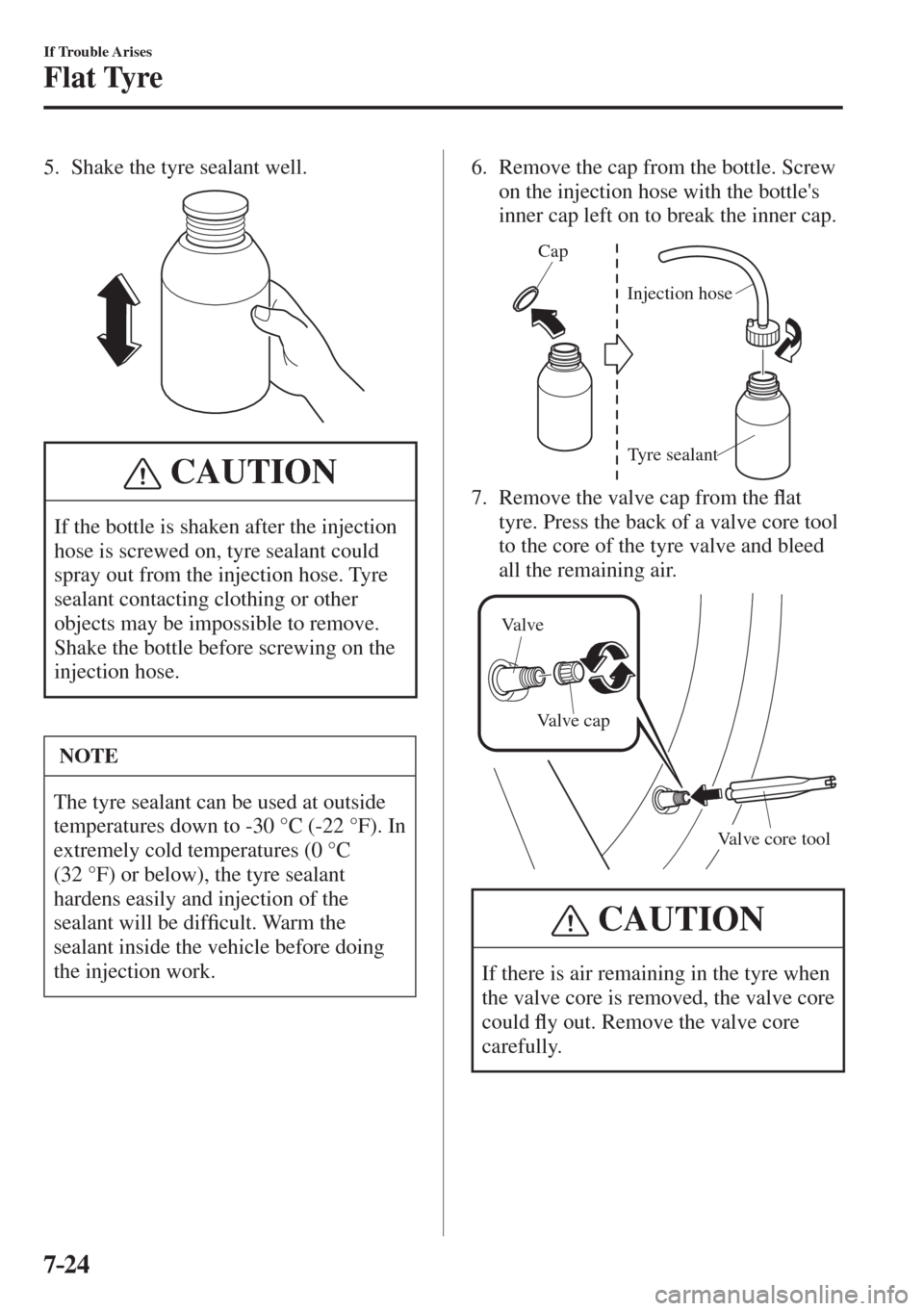

5. Shake the tyre sealant well.


CAUTION
If the bottle is shaken after the injection
hose is screwed on, tyre sealant could
spray out from the injection hose. Tyre
sealant contacting clothing or other
objects may be impossible to remove.
Shake the bottle before screwing on the
injection hose.
NOTE
The tyre sealant can be used at outside
temperatures down to -30 °C (-22 °F). In
extremely cold temperatures (0 °C
(32 °F) or below), the tyre sealant
hardens easily and injection of the
sealant will be dif¿ cult. Warm the
sealant inside the vehicle before doing
the injection work. 6. Remove the cap from the bottle. Screw
on the injection hose with the bottle's
inner cap left on to break the inner cap.

Cap
Injection hose
Tyre sealant

7. Remove the valve cap from the À at
tyre. Press the back of a valve core tool
to the core of the tyre valve and bleed
all the remaining air.

Valve core tool Valve
Valve cap

CAUTION
If there is air remaining in the tyre when
the valve core is removed, the valve core
could À y out. Remove the valve core
carefully.
