MAZDA MODEL CX-3 2017 Owner's Manual - RHD (UK, Australia) (in English)

7–65
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.

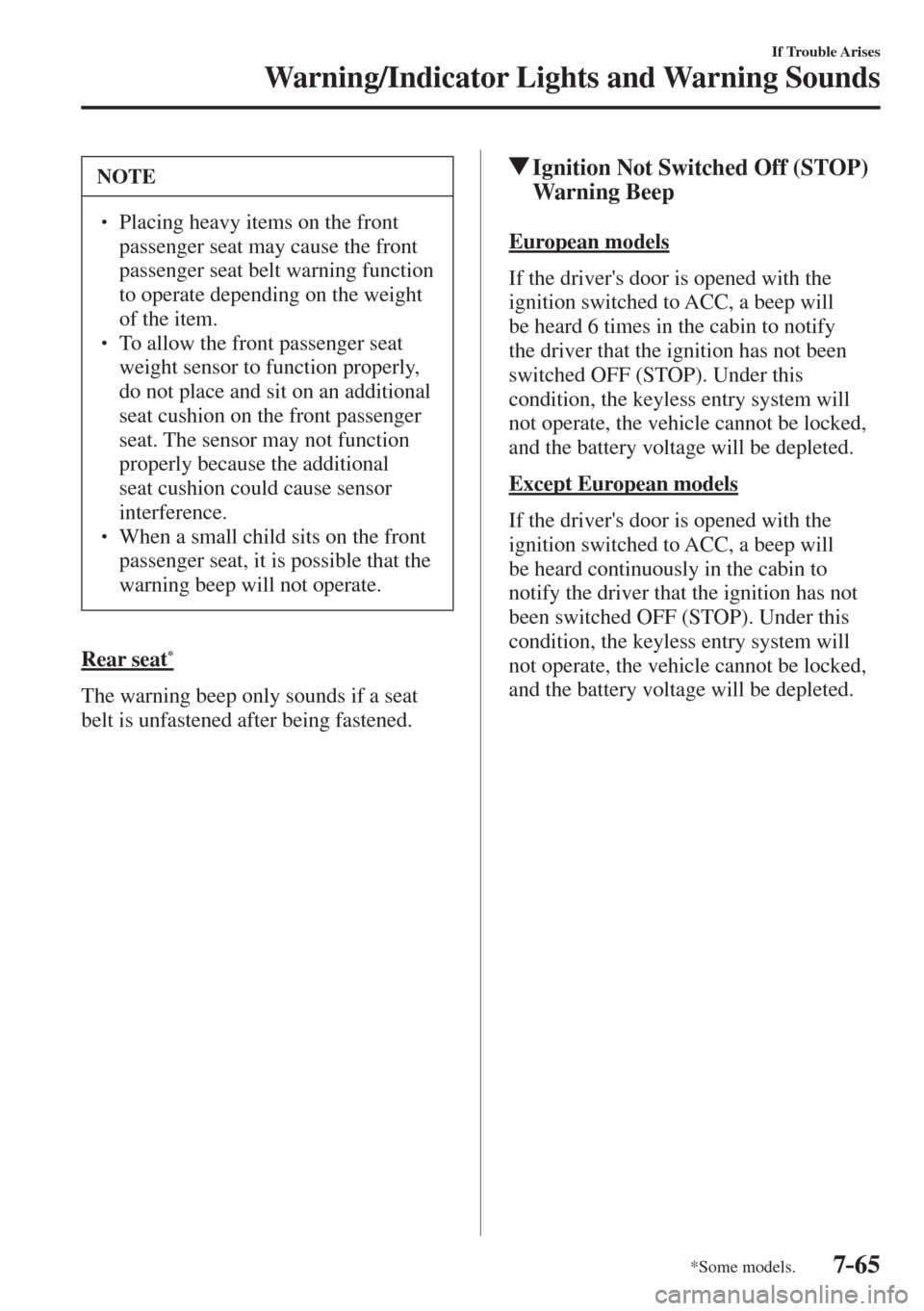

NOTE
  Placing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function
to operate depending on the weight
of the item.
  To allow the front passenger seat
weight sensor to function properly,
do not place and sit on an additional
seat cushion on the front passenger
seat. The sensor may not function
properly because the additional
seat cushion could cause sensor
interference.
  When a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
Rear seat
*
The warning beep only sounds if a seat
belt is unfastened after being fastened.
Ignition Not Switched Off (STOP)
Warning Beep
E u r o p e a n m o d e l s
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard 6 times in the cabin to notify
the driver that the ignition has not been
switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
Except European models
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.

7–66
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

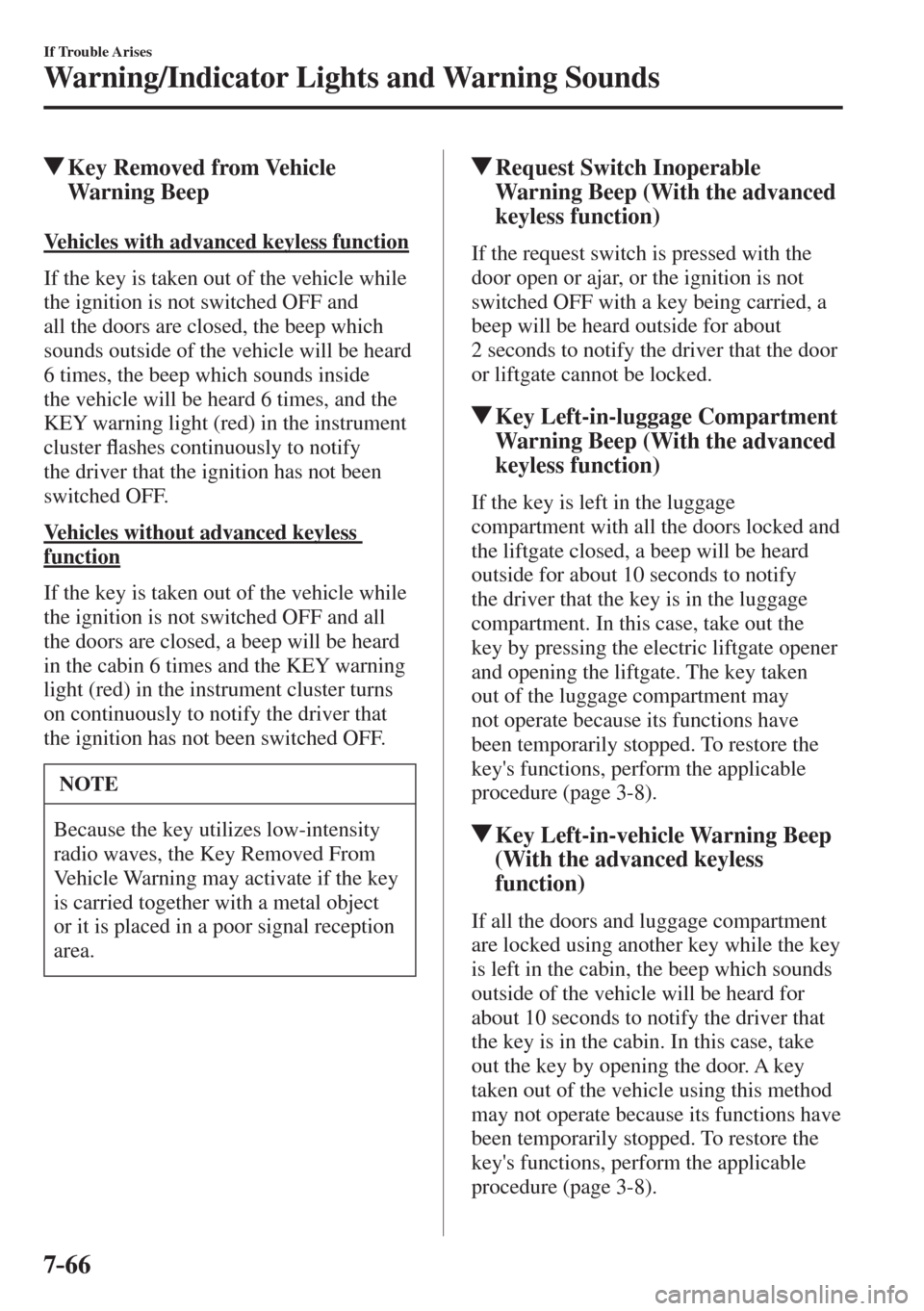

Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless function
If the key is taken out of the vehicle while
the ignition is not switched OFF and
all the doors are closed, the beep which
sounds outside of the vehicle will be heard
6 times, the beep which sounds inside
the vehicle will be heard 6 times, and the
KEY warning light (red) in the instrument
cluster À ashes continuously to notify
the driver that the ignition has not been
switched OFF.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle while
the ignition is not switched OFF and all
the doors are closed, a beep will be heard
in the cabin 6 times and the KEY warning
light (red) in the instrument cluster turns
on continuously to notify the driver that
the ignition has not been switched OFF.
NOTE
Because the key utilizes low-intensity
radio waves, the Key Removed From
Vehicle Warning may activate if the key
is carried together with a metal object
or it is placed in a poor signal reception
area.
Request Switch Inoperable
Warning Beep (With the advanced
keyless function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried, a
beep will be heard outside for about
2 seconds to notify the driver that the door
or liftgate cannot be locked.
Key Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all the doors locked and
the liftgate closed, a beep will be heard
outside for about 10 seconds to notify
the driver that the key is in the luggage
compartment. In this case, take out the
key by pressing the electric liftgate opener
and opening the liftgate. The key taken
out of the luggage compartment may
not operate because its functions have
been temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-8 ).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage compartment
are locked using another key while the key
is left in the cabin, the beep which sounds
outside of the vehicle will be heard for
about 10 seconds to notify the driver that
the key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this method
may not operate because its functions have
been temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-8 ).

7–67
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Electronic Steering Lock Warning
Beep
The warning beep operates if the steering
wheel is not unlocked after the push button
start is pressed. (page 4-4 )
i-stop Warning Beep *
















 If the driver's door is opened while
engine idling is stopped, the warning
sound operates to notify the driver that
engine idling is stopped. It stops when
the driver's door is closed.



 The warning sound operates if the
following operations are performed
while the engine idling is stopped. In
such cases, the engine does not restart
automatically to ensure safety. Start the
engine using the normal method.



 (European model)
 The driver's seat belt is unfastened and
the driver's door is opened.



 (Except European model)



 (Manual transaxle)
 With the shift lever in a position other
than neutral, the driver's seat belt is
unfastened and the driver's door is
opened.



 (Automatic transaxle)
 With the selector lever in the D or
M (not in second gear ¿ xed mode)
position, the driver's seat belt is
unfastened and the driver's door is
opened.



Vehicle Speed Alarm *
The vehicle speed alarm function is
designed to alarm the driver via a single
beep sound and a warning indication in the
instrument cluster that the previously set
vehicle speed has been exceeded.
You can change the vehicle speed setting
at which the warning is triggered.
Refer to Trip Computer and INFO Switch
on page 4-30 .
120 km/h Warning Beep *
If the vehicle speed exceeds 120 km/h, a
chime sounds for 5 seconds.
Outside Temperature Warning
Beep *
Warns the driver of the possibility of icy
roads when the outside temperature is low.
If the outside temperature is lower than
about 4 °C (39 °F) , a beep sound is heard
once and the outside temperature display
À ashes for about ten seconds.
Refer to Outside Temperature Display on
page 4-29 .
Ty r e I nÀ ation Pressure Warning
Beep *
The warning beep sound will be heard
for about 3 seconds when there is any
abnormality in tyre inÀ ation pressures
(page 4-198 ).
Power Steering Warning Buzzer
If the power steering system has
a malfunction, the power steering
malfunction light turns on or À ashes and
the buzzer operates at the same time.
Refer to Warning Lights on page 4-36 .

7–68
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.

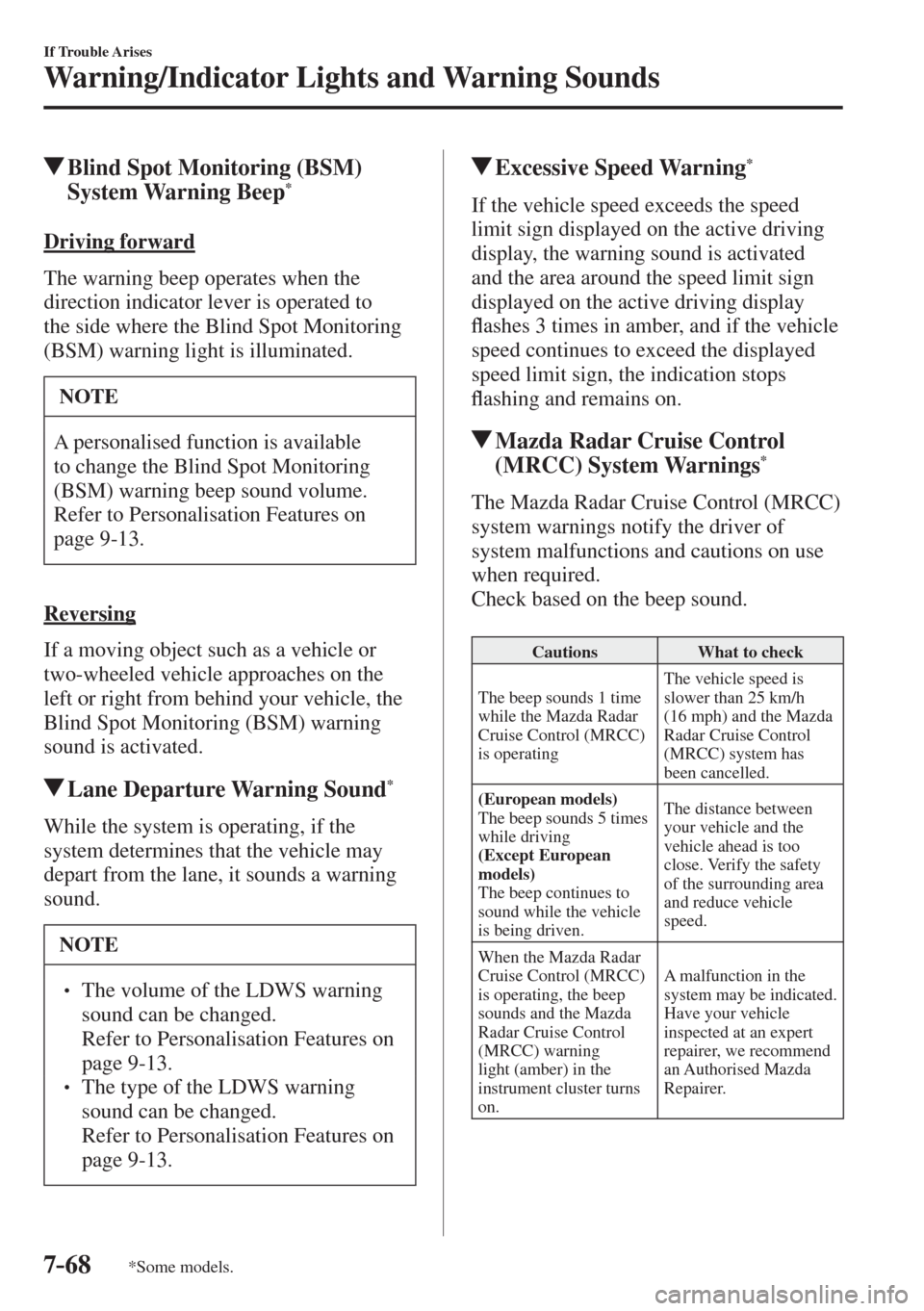

Blind Spot Monitoring (BSM)
System Warning Beep *
D r i v i n g f o r w a r d
The warning beep operates when the
direction indicator lever is operated to
the side where the Blind Spot Monitoring
(BSM) warning light is illuminated.
NOTE
A personalised function is available
to change the Blind Spot Monitoring
(BSM) warning beep sound volume.
Refer to Personalisation Features on
page 9-13 .
Reversing
If a moving object such as a vehicle or
two-wheeled vehicle approaches on the
left or right from behind your vehicle, the
Blind Spot Monitoring (BSM) warning
sound is activated.
Lane Departure Warning Sound *
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
  The volume of the LDWS warning
sound can be changed.
 Refer to Personalisation Features on
page 9-13 .
  The type of the LDWS warning
sound can be changed.
 Refer to Personalisation Features on
page 9-13 .
Excessive Speed Warning *
If the vehicle speed exceeds the speed
limit sign displayed on the active driving
display, the warning sound is activated
and the area around the speed limit sign
displayed on the active driving display
À ashes 3 times in amber, and if the vehicle
speed continues to exceed the displayed
speed limit sign, the indication stops
À ashing and remains on.
Mazda Radar Cruise Control
(MRCC) System Warnings *
The Mazda Radar Cruise Control (MRCC)
system warnings notify the driver of
system malfunctions and cautions on use
when required.
Check based on the beep sound.

Cautions What to check
The beep sounds 1 time
while the Mazda Radar
Cruise Control (MRCC)
is operating The vehicle speed is
slower than 25 km/h
(16 mph) and the Mazda
Radar Cruise Control
(MRCC) system has
been cancelled.
(European models)
The beep sounds 5 times
while driving
(Except European
models)
The beep continues to
sound while the vehicle
is being driven. The distance between
your vehicle and the
vehicle ahead is too
close. Verify the safety
of the surrounding area
and reduce vehicle
speed.
When the Mazda Radar
Cruise Control (MRCC)
is operating, the beep
sounds and the Mazda
Radar Cruise Control
(MRCC) warning
light (amber) in the
instrument cluster turns
on. A malfunction in the
system may be indicated.
Have your vehicle
inspected at an expert
repairer, we recommend
an Authorised Mazda
Repairer.

7–69
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.

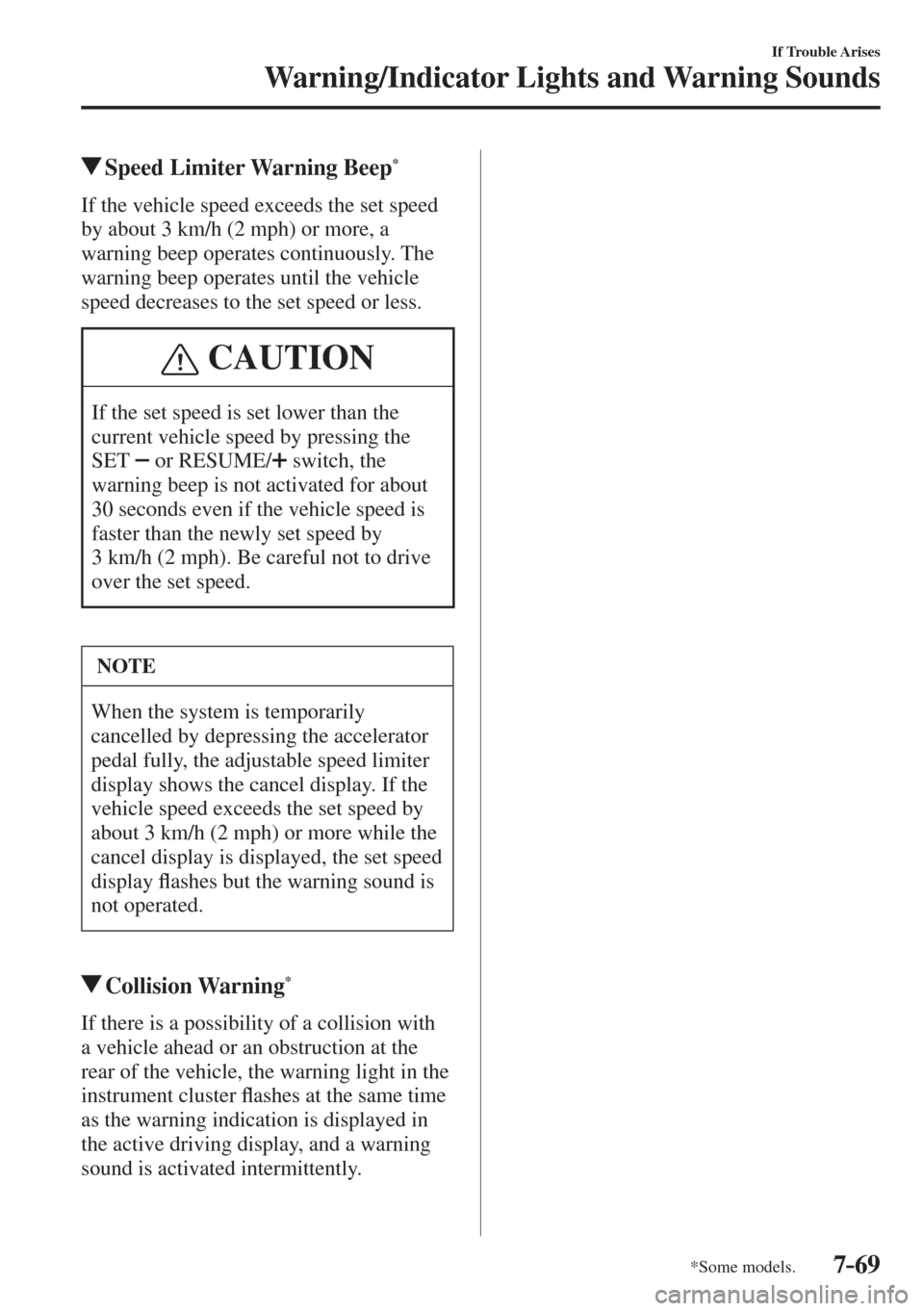

Speed Limiter Warning Beep *
If the vehicle speed exceeds the set speed
by about 3 km/h (2 mph) or more, a
warning beep operates continuously. The
warning beep operates until the vehicle
speed decreases to the set speed or less.
CAUTION
If the set speed is set lower than the
current vehicle speed by pressing the
SET
or RESUME/ switch, the
warning beep is not activated for about
30 seconds even if the vehicle speed is
faster than the newly set speed by
3 km/h (2 mph). Be careful not to drive
over the set speed.
NOTE
When the system is temporarily
cancelled by depressing the accelerator
pedal fully, the adjustable speed limiter
display shows the cancel display. If the
vehicle speed exceeds the set speed by
about 3 km/h (2 mph) or more while the
cancel display is displayed, the set speed
display À ashes but the warning sound is
not operated.
Collision Warning *
If there is a possibility of a collision with
a vehicle ahead or an obstruction at the
rear of the vehicle, the warning light in the
instrument cluster À ashes at the same time
as the warning indication is displayed in
the active driving display, and a warning
sound is activated intermittently.

7–70
If Trouble Arises

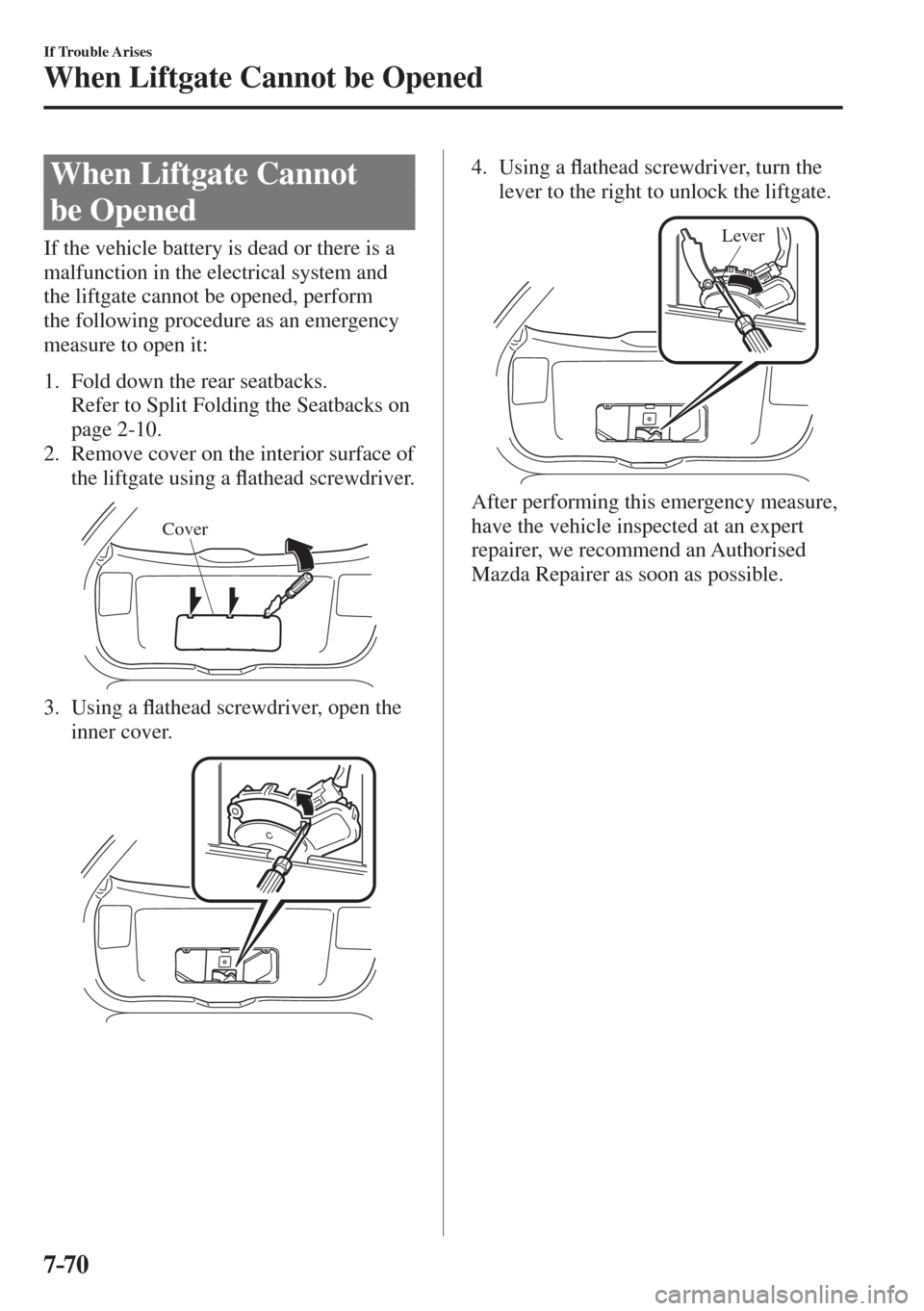

When Liftgate Cannot be Opened
When Liftgate Cannot
be Opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate cannot be opened, perform
the following procedure as an emergency
measure to open it:

1. Fold down the rear seatbacks.
Refer to Split Folding the Seatbacks on
page 2-10 .
2. Remove cover on the interior surface of
the liftgate using a À athead screwdriver.

Cover

3. Using a À athead screwdriver, open the
inner cover.

4. Using a À athead screwdriver, turn the
lever to the right to unlock the liftgate.

Lever

After performing this emergency measure,
have the vehicle inspected at an expert
repairer, we recommend an Authorised
Mazda Repairer as soon as possible.

7–71
If Trouble Arises
Active Driving Display Does Not Operate
*Some models.
If the Active Driving Display does not operate *
If the active driving display does not operate, switch the ignition off and then restart the
engine. If the active driving display does not operate even with the engine restarted, have
the vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.

MEMO
7–72

8–1 8–1

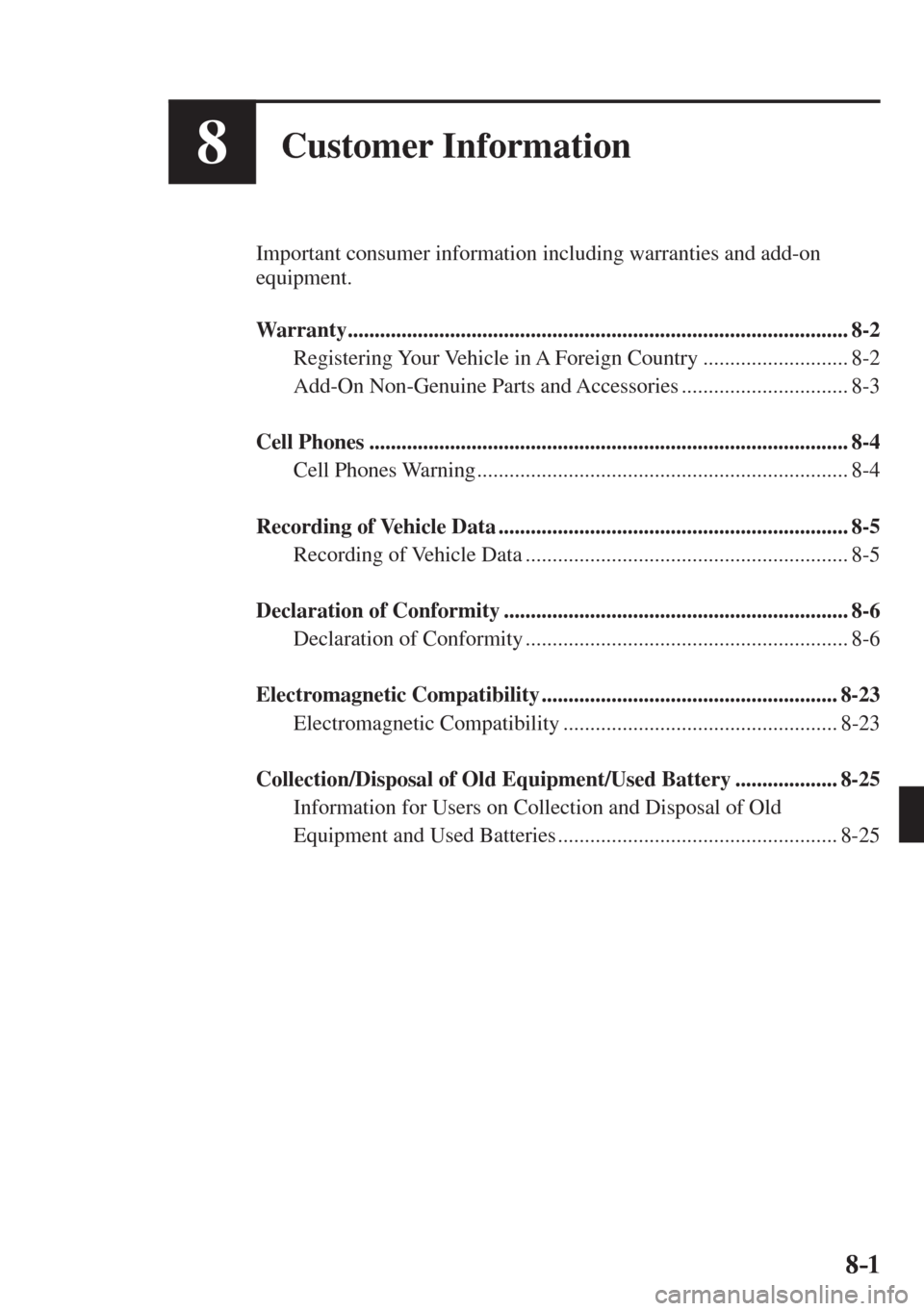

8Customer Information
Important consumer information including warranties and add-on
equipment.

Warranty ............................................................................................. 8-2
Registering Your Vehicle in A Foreign Country ........................... 8-2
Add-On Non-Genuine Parts and Accessories ............................... 8-3

Cell Phones ......................................................................................... 8-4
Cell Phones Warning ..................................................................... 8-4

Recording of Vehicle Data ................................................................. 8-5
Recording of Vehicle Data ............................................................ 8-5

Declaration of Conformity ................................................................ 8-6
Declaration of Conformity ............................................................ 8-6

Electromagnetic Compatibility ....................................................... 8-23
Electromagnetic Compatibility ................................................... 8-23

Collection/Disposal of Old Equipment/Used Battery ................... 8-25
Information for Users on Collection and Disposal of Old
Equipment and Used Batteries .................................................... 8-25

8–2
Customer Information
Warranty
Registering Your Vehicle in A Foreign Country
Registering your vehicle in a foreign country may be problematic depending on whether it
meets the speci¿ c emission and safety standards of the country in which the vehicle will be
driven. Consequently, your vehicle may require modi¿ cations at personal expense in order
to meet the regulations.
In addition, you should be aware of the following issues:
Satisfactory vehicle servicing may be dif¿ cult or impossible in another country.

The fuel speci¿ ed for your vehicle may be unavailable.

Parts, servicing techniques, and tools necessary to maintain and repair your vehicle may be
unavailable.

There might not be an Authorised Mazda Dealer in the country you plan to take your
vehicle.

The Mazda warranty is valid only in certain countries.
