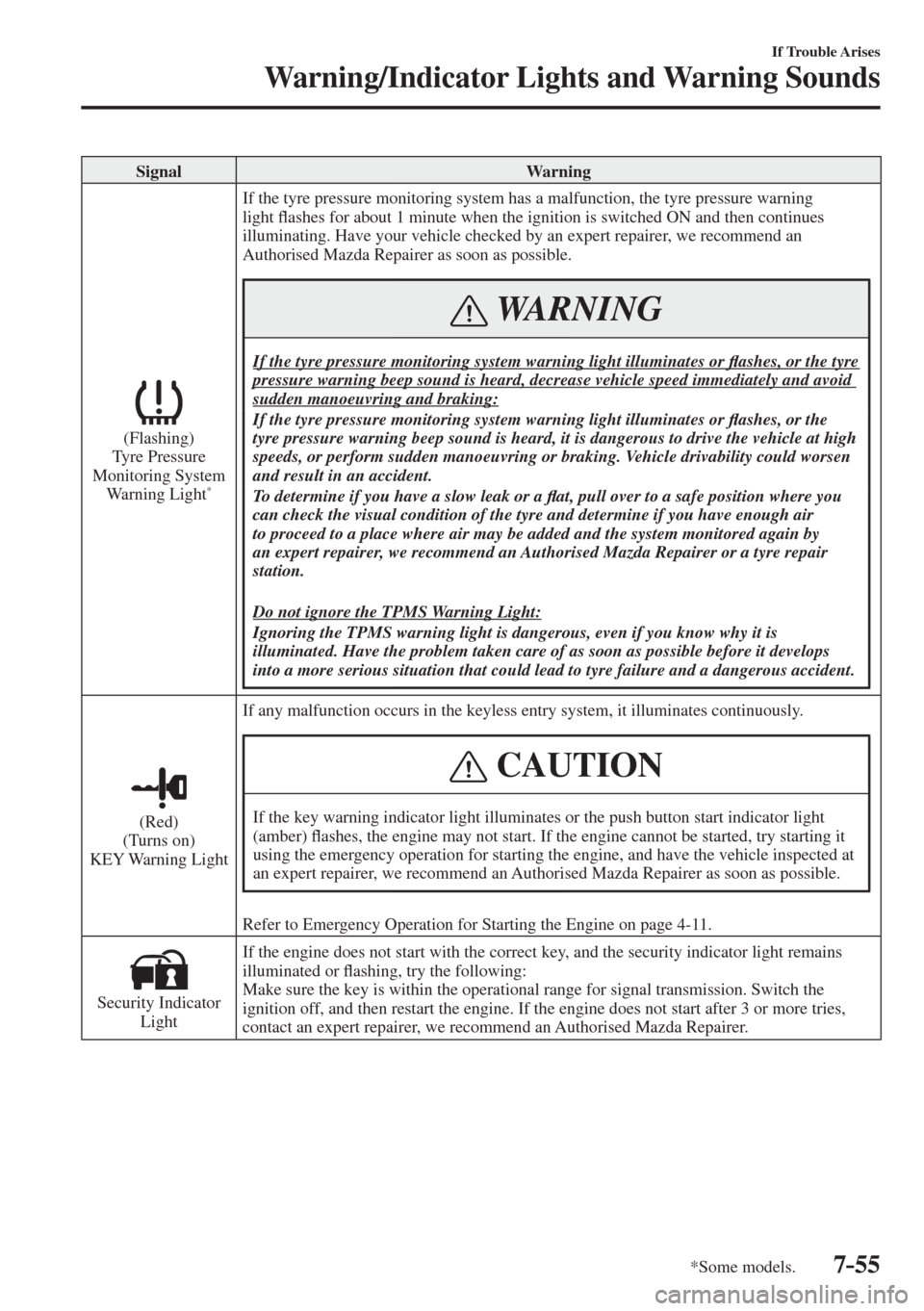

7–55
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Flashing)
Tyre Pressure
Monitoring System
Warning Light
* If the tyre pressure monitoring system has a malfunction, the tyre pressure warning
light À ashes for about 1 minute when the ignition is switched ON and then continues
illuminating. Have your vehicle checked by an expert repairer, we recommend an
Authorised Mazda Repairer as soon as possible.
WARNING
If the tyre pressure monitoring system warning light illuminates or À ashes, or the tyre
pressure warning beep sound is heard, decrease vehicle speed immediately and avoid
sudden manoeuvring and braking:
If the tyre pressure monitoring system warning light illuminates or À ashes, or the
tyre pressure warning beep sound is heard, it is dangerous to drive the vehicle at high
speeds, or perform sudden manoeuvring or braking. Vehicle drivability could worsen
and result in an accident.
To determine if you have a slow leak or a À at, pull over to a safe position where you
can check the visual condition of the tyre and determine if you have enough air
to proceed to a place where air may be added and the system monitored again by
an expert repairer, we recommend an Authorised Mazda Repairer or a tyre repair
station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is
illuminated. Have the problem taken care of as soon as possible before it develops
into a more serious situation that could lead to tyre failure and a dangerous accident.
(Red)
(Turns on)
KEY Warning Light If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber) À ashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected at
an expert repairer, we recommend an Authorised Mazda Repairer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-11 .
Security Indicator
Light If the engine does not start with the correct key, and the security indicator light remains
illuminated or À ashing, try the following:
Make sure the key is within the operational range for signal transmission. Switch the
ignition off, and then restart the engine. If the engine does not start after 3 or more tries,
contact an expert repairer, we recommend an Authorised Mazda Repairer.
Page 652 of 723

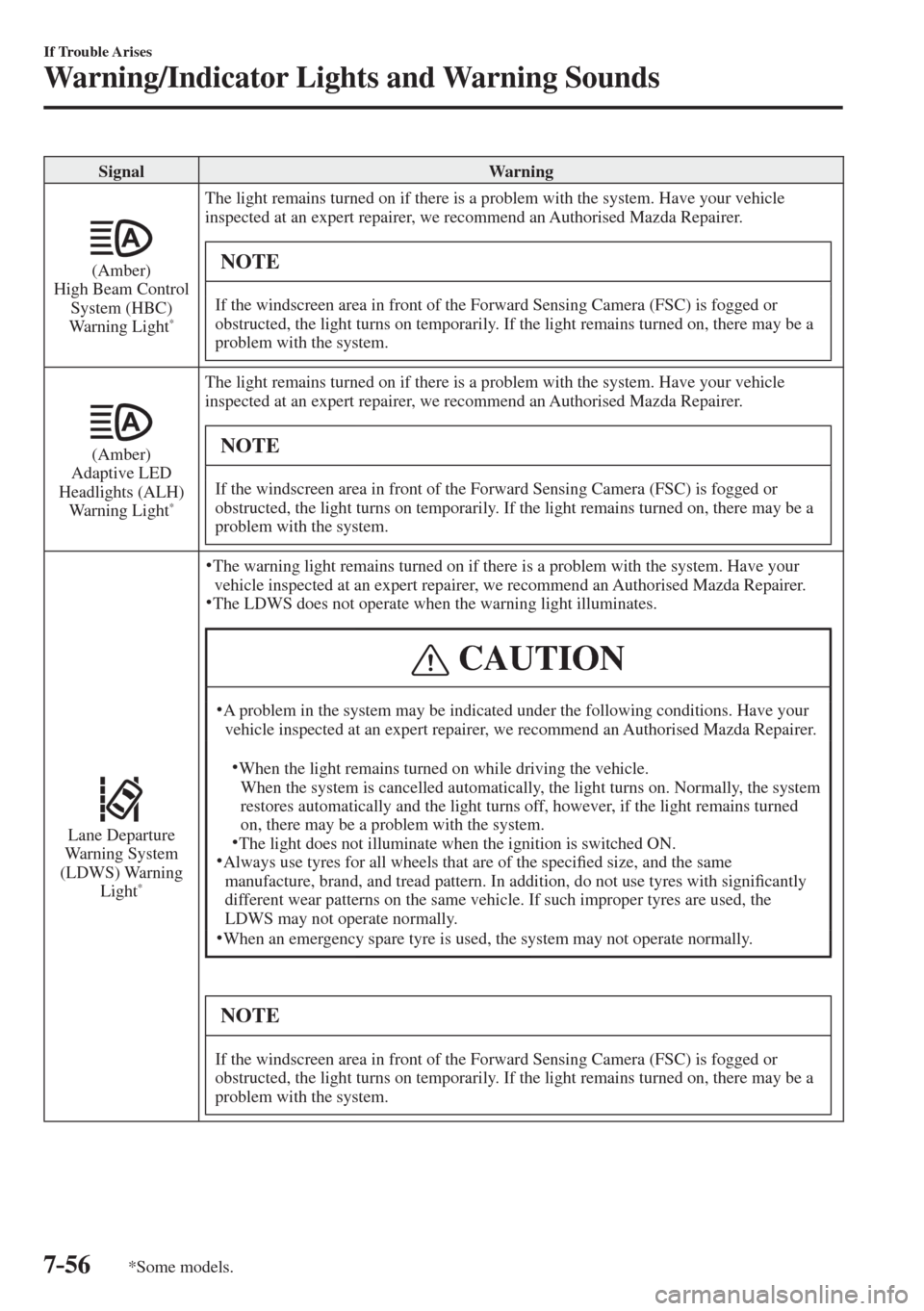

7–56
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Amber)
High Beam Control
System (HBC)
Warning Light
* The light remains turned on if there is a problem with the system. Have your vehicle
inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
(Amber)
Adaptive LED
Headlights (ALH)
Warning Light
* The light remains turned on if there is a problem with the system. Have your vehicle
inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
Lane Departure
Warning System
(LDWS) Warning
Light
*
The warning light remains turned on if there is a problem with the system. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
The LDWS does not operate when the warning light illuminates.
CAUTION
A problem in the system may be indicated under the following conditions. Have your
vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
When the light remains turned on while driving the vehicle.
When the system is cancelled automatically, the light turns on. Normally, the system
restores automatically and the light turns off, however, if the light remains turned
on, there may be a problem with the system.
The light does not illuminate when the ignition is switched ON.
Always use tyres for all wheels that are of the speci ¿ ed size, and the same
manufacture, brand, and tread pattern. In addition, do not use tyres with signi ¿ cantly
different wear patterns on the same vehicle. If such improper tyres are used, the
LDWS may not operate normally.
When an emergency spare tyre is used, the system may not operate normally.
NOTE
If the windscreen area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
Page 653 of 723

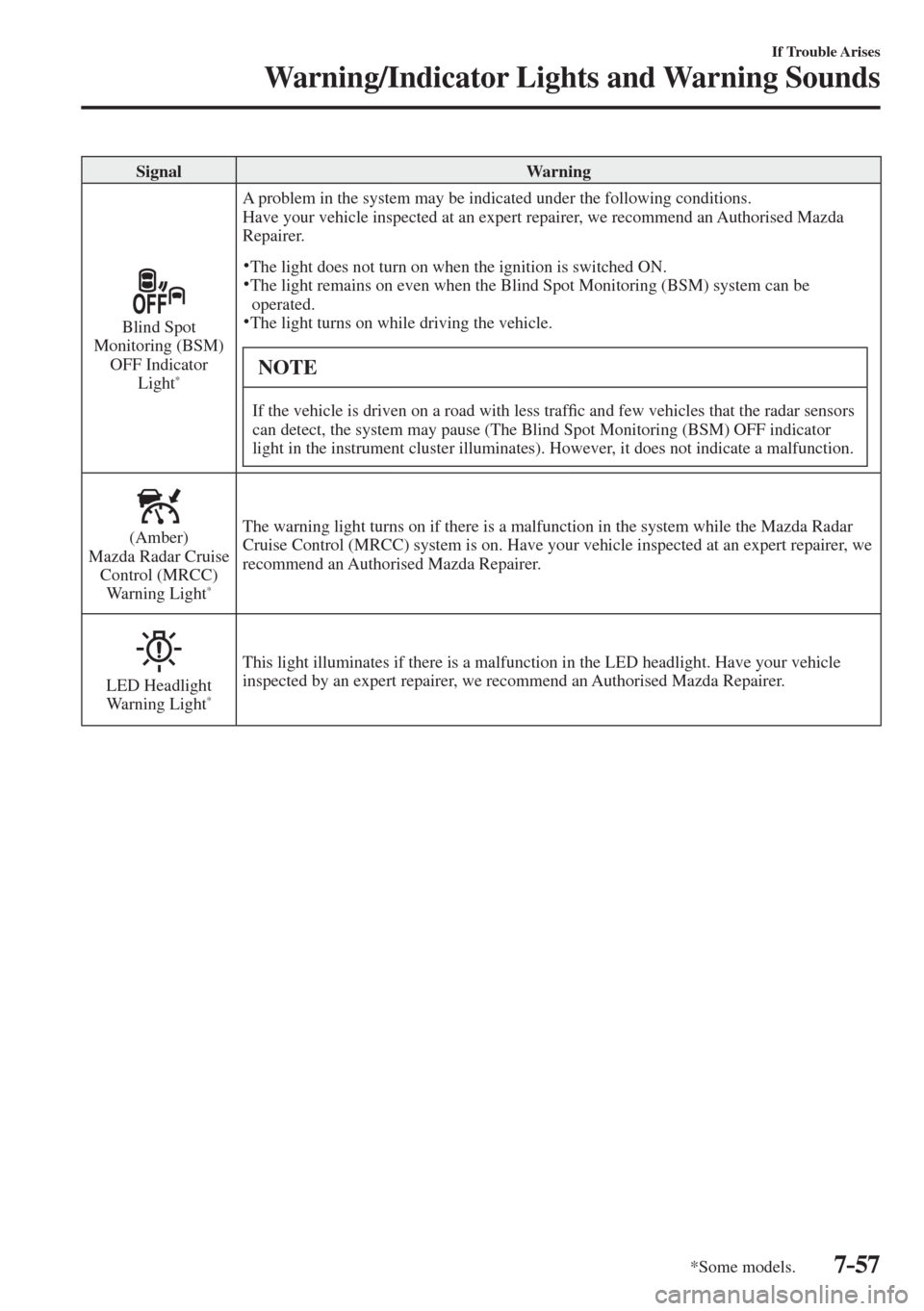

7–57
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
Blind Spot
Monitoring (BSM)
OFF Indicator
Light
* A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an expert repairer, we recommend an Authorised Mazda
Repairer.
The light does not turn on when the ignition is switched ON.
The light remains on even when the Blind Spot Monitoring (BSM) system can be
operated.
The light turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traf ¿ c and few vehicles that the radar sensors
can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF indicator
light in the instrument cluster illuminates). However, it does not indicate a malfunction.
(Amber)
Mazda Radar Cruise
Control (MRCC)
Warning Light
* The warning light turns on if there is a malfunction in the system while the Mazda Radar
Cruise Control (MRCC) system is on. Have your vehicle inspected at an expert repairer, we
recommend an Authorised Mazda Repairer.
LED Headlight
Warning Light
* This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an expert repairer, we recommend an Authorised Mazda Repairer.
Page 654 of 723

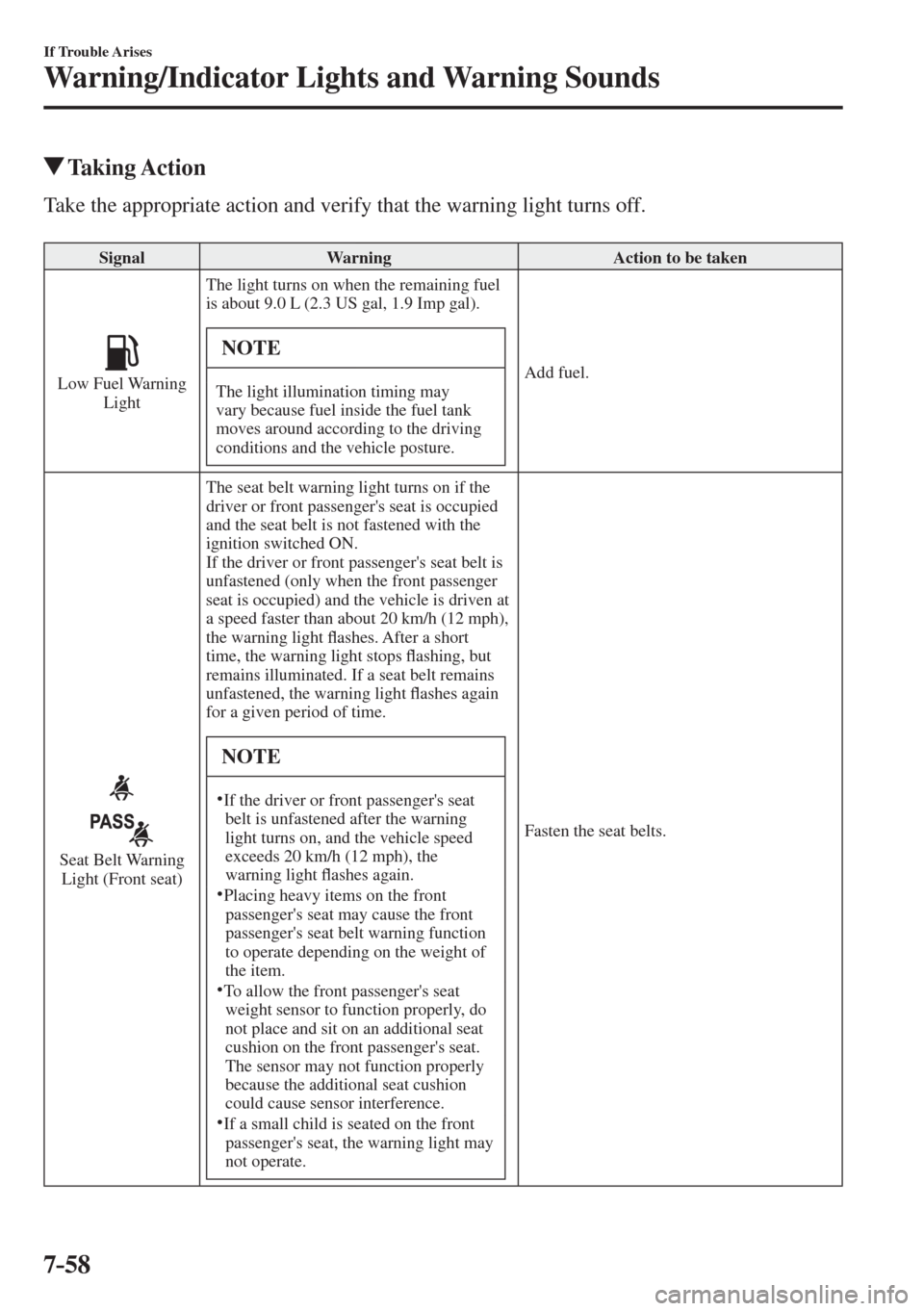

7–58
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Taking Action
Take the appropriate action and verify that the warning light turns off.
Signal Warning Action to be taken
Low Fuel Warning
Light The light turns on when the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal). NOTE
The light illumination timing may
vary because fuel inside the fuel tank
moves around according to the driving
conditions and the vehicle posture. Add fuel.
Seat Belt Warning
Light (Front seat) The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the
ignition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger
seat is occupied) and the vehicle is driven at
a speed faster than about 20 km/h (12 mph),
the warning light À ashes. After a short
time, the warning light stops À ashing, but
remains illuminated. If a seat belt remains
unfastened, the warning light À ashes again
for a given period of time.
NOTE
If the driver or front passenger's seat
belt is unfastened after the warning
light turns on, and the vehicle speed
exceeds 20 km/h (12 mph), the
warning light À ashes again.
Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function
to operate depending on the weight of
the item.
To allow the front passenger's seat
weight sensor to function properly, do
not place and sit on an additional seat
cushion on the front passenger's seat.
The sensor may not function properly
because the additional seat cushion
could cause sensor interference.
If a small child is seated on the front
passenger's seat, the warning light may
not operate. Fasten the seat belts.
Page 655 of 723

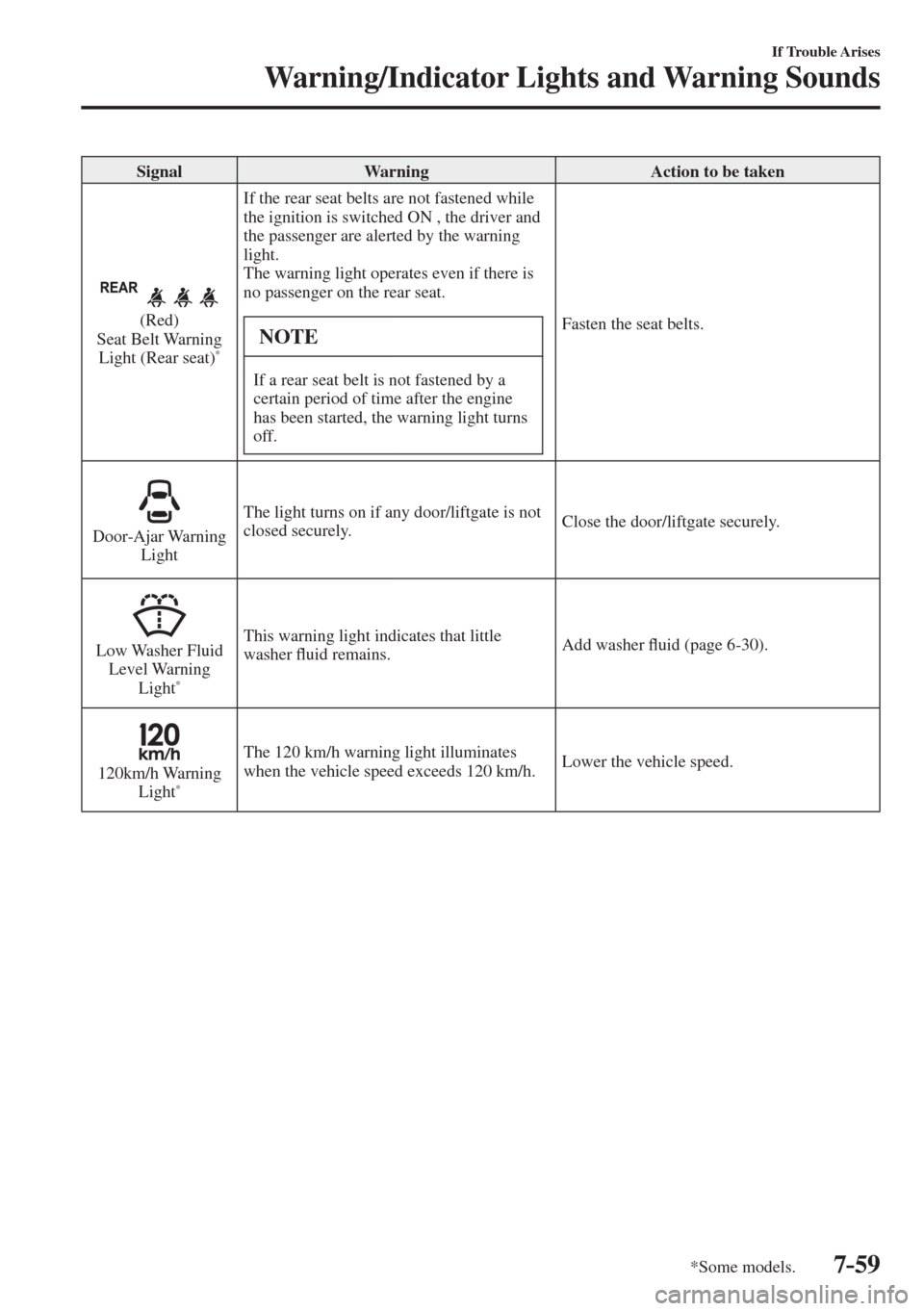

7–59
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning Action to be taken
(Red)
Seat Belt Warning
Light (Rear seat)
* If the rear seat belts are not fastened while
the ignition is switched ON , the driver and
the passenger are alerted by the warning
light.
The warning light operates even if there is
no passenger on the rear seat. NOTE
If a rear seat belt is not fastened by a
certain period of time after the engine
has been started, the warning light turns
off. Fasten the seat belts.
Door-Ajar Warning
Light The light turns on if any door/liftgate is not
closed securely. Close the door/liftgate securely.
Low Washer Fluid
Level Warning
Light
* This warning light indicates that little
washer À uid remains. Add washer À uid (page 6-30 ).
120km/h Warning
Light
* The 120 km/h warning light illuminates
when the vehicle speed exceeds 120 km/h. Lower the vehicle speed.
Page 656 of 723

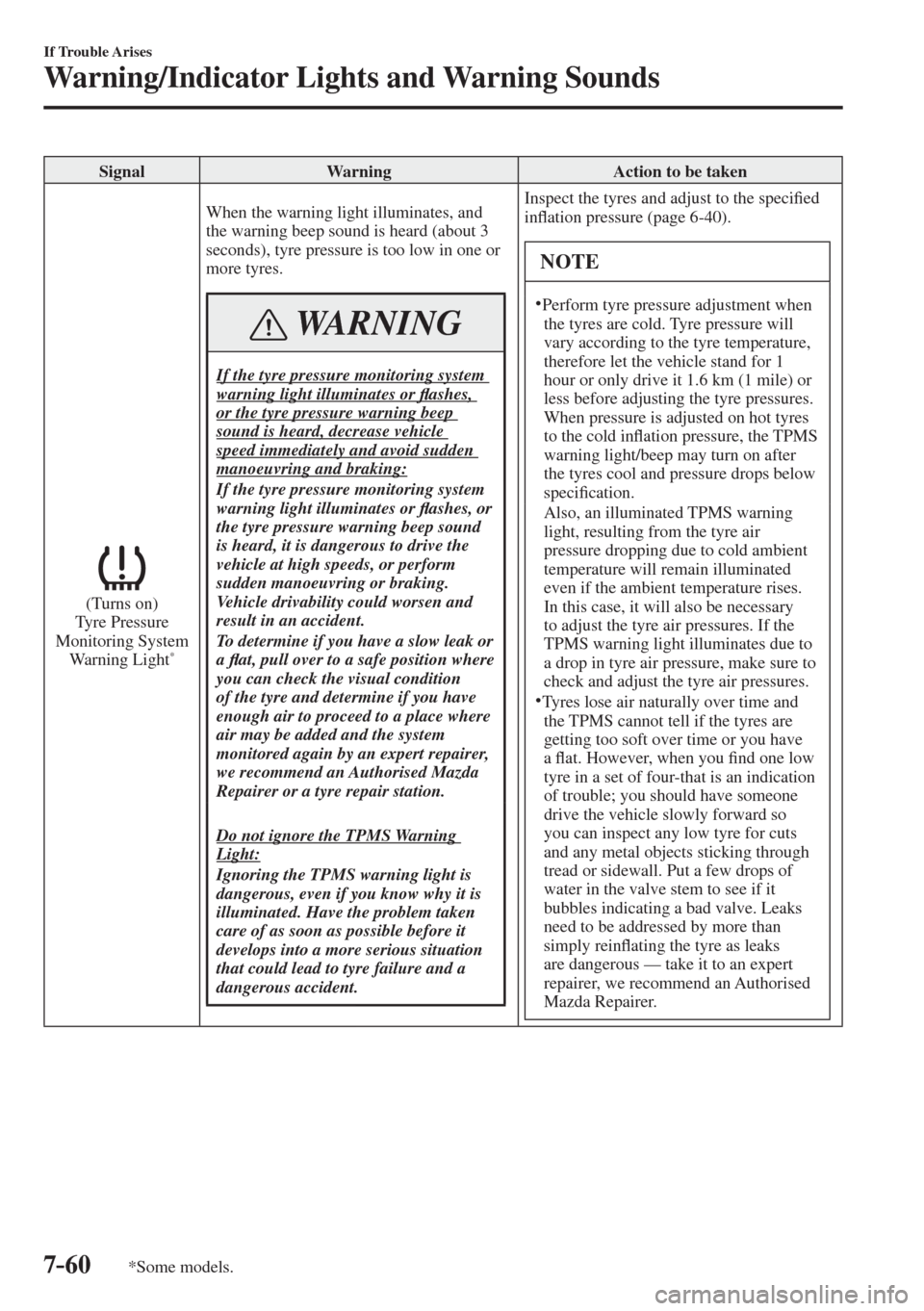

7–60
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning Action to be taken
(Turns on)
Tyre Pressure
Monitoring System
Warning Light
* When the warning light illuminates, and
the warning beep sound is heard (about 3
seconds), tyre pressure is too low in one or
more tyres.
WARNING
If the tyre pressure monitoring system
warning light illuminates or À ashes,
or the tyre pressure warning beep
sound is heard, decrease vehicle
speed immediately and avoid sudden
manoeuvring and braking:
If the tyre pressure monitoring system
warning light illuminates or À ashes, or
the tyre pressure warning beep sound
is heard, it is dangerous to drive the
vehicle at high speeds, or perform
sudden manoeuvring or braking.
Vehicle drivability could worsen and
result in an accident.
To determine if you have a slow leak or
a À at, pull over to a safe position where
you can check the visual condition
of the tyre and determine if you have
enough air to proceed to a place where
air may be added and the system
monitored again by an expert repairer,
we recommend an Authorised Mazda
Repairer or a tyre repair station.
Do not ignore the TPMS Warning
Light:
Ignoring the TPMS warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious situation
that could lead to tyre failure and a
dangerous accident. Inspect the tyres and adjust to the speci ¿ ed
in À ation pressure (page 6-40 ).
NOTE
Perform tyre pressure adjustment when
the tyres are cold. Tyre pressure will
vary according to the tyre temperature,
therefore let the vehicle stand for 1
hour or only drive it 1.6 km (1 mile) or
less before adjusting the tyre pressures.
When pressure is adjusted on hot tyres
to the cold in À ation pressure, the TPMS
warning light/beep may turn on after
the tyres cool and pressure drops below
speci ¿ cation.
Also, an illuminated TPMS warning
light, resulting from the tyre air
pressure dropping due to cold ambient
temperature will remain illuminated
even if the ambient temperature rises.
In this case, it will also be necessary
to adjust the tyre air pressures. If the
TPMS warning light illuminates due to
a drop in tyre air pressure, make sure to
check and adjust the tyre air pressures.
Tyres lose air naturally over time and
the TPMS cannot tell if the tyres are
getting too soft over time or you have
a À at. However, when you ¿ nd one low
tyre in a set of four-that is an indication
of trouble; you should have someone
drive the vehicle slowly forward so
you can inspect any low tyre for cuts
and any metal objects sticking through
tread or sidewall. Put a few drops of
water in the valve stem to see if it
bubbles indicating a bad valve. Leaks
need to be addressed by more than
simply rein À ating the tyre as leaks
are dangerous — take it to an expert
repairer, we recommend an Authorised
Mazda Repairer.
Page 657 of 723

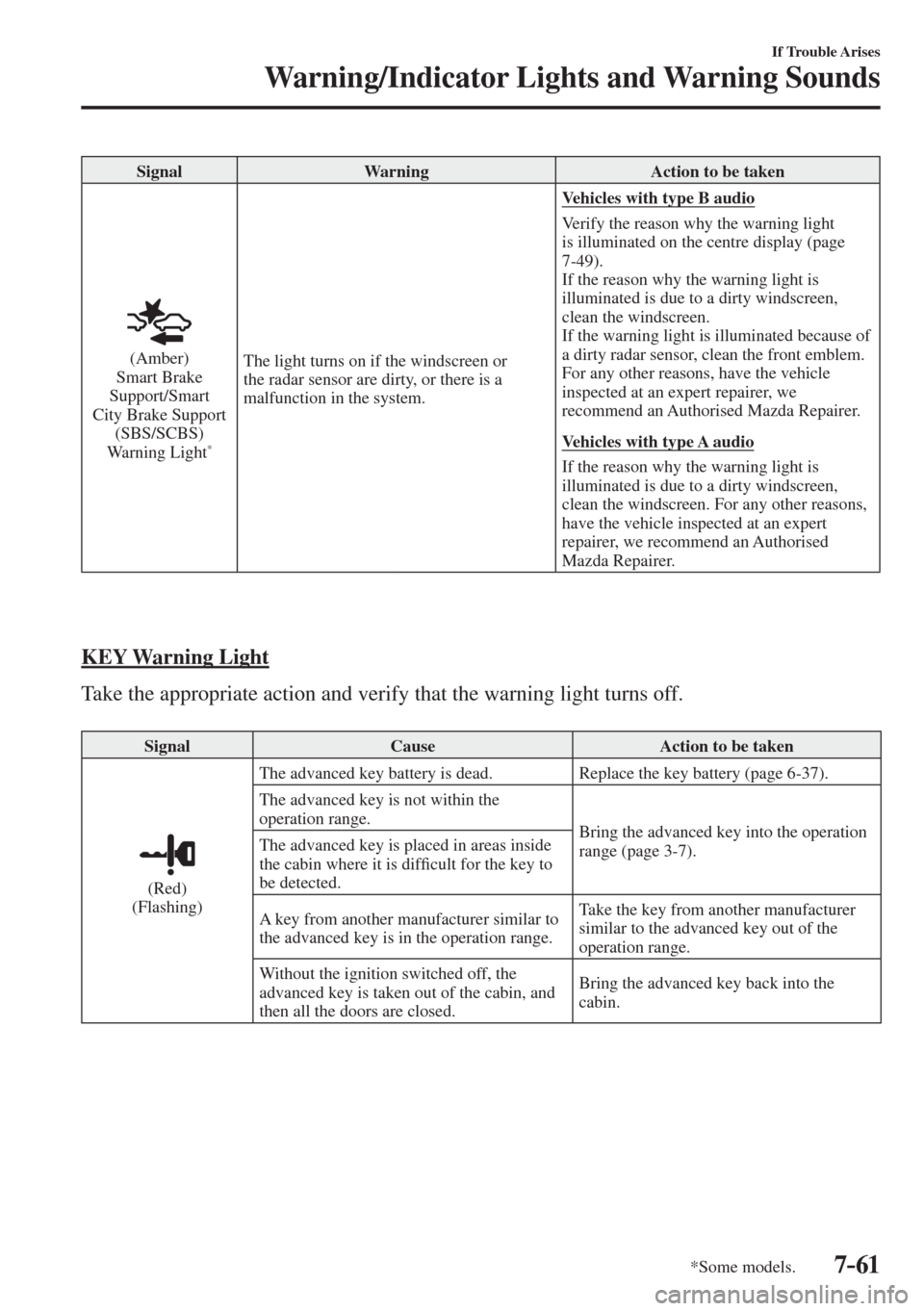

7–61
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning Action to be taken
(Amber)
Smart Brake
Support/Smart
City Brake Support
(SBS/SCBS)
Warning Light
* The light turns on if the windscreen or
the radar sensor are dirty, or there is a
malfunction in the system.
Vehicles with type B audio
Verify the reason why the warning light
is illuminated on the centre display (page
7-49 ).
If the reason why the warning light is
illuminated is due to a dirty windscreen,
clean the windscreen.
If the warning light is illuminated because of
a dirty radar sensor, clean the front emblem.
For any other reasons, have the vehicle
inspected at an expert repairer, we
recommend an Authorised Mazda Repairer.
Vehicles with type A audio
If the reason why the warning light is
illuminated is due to a dirty windscreen,
clean the windscreen. For any other reasons,
have the vehicle inspected at an expert
repairer, we recommend an Authorised
Mazda Repairer.
KEY Warning Light
Take the appropriate action and verify that the warning light turns off.
Signal Cause Action to be taken
(Red)
(Flashing) The advanced key battery is dead. Replace the key battery (page 6-37 ).
The advanced key is not within the
operation range.
Bring the advanced key into the operation
range (page 3-7 ). The advanced key is placed in areas inside
the cabin where it is dif ¿ cult for the key to
be detected.
A key from another manufacturer similar to
the advanced key is in the operation range. Take the key from another manufacturer
similar to the advanced key out of the
operation range.
Without the ignition switched off, the
advanced key is taken out of the cabin, and
then all the doors are closed. Bring the advanced key back into the
cabin.
Page 658 of 723
7–62
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Message Indicated on Display *
If a message is displayed in the centre display (Type B audio), take appropriate action (in a
calm manner) according to the displayed message.
(Display example)
Stop Vehicle in Safe Place Immediately
If the following messages are displayed in the centre display (Type B audio), a vehicle
system may be malfunctioning. Stop the vehicle in a safe place and contact an Authorised
Mazda Repairer.
Display Indicated Condition
Displays if the engine coolant temperature has
increased excessively.
Displays if the charging system has a malfunction.
Page 659 of 723
7–63
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Verify Display Content
Displays in the following cases:
Display Indicated Condition/Action to be taken
The following message is displayed when the
temperature around the centre display is high.
Lowering the temperature in the cabin or the
temperature around the centre display by avoiding
direct sunlight is recommended.
Page 660 of 723
7–64
If Trouble Arises
Warning/Indicator Lights and Warning Sounds

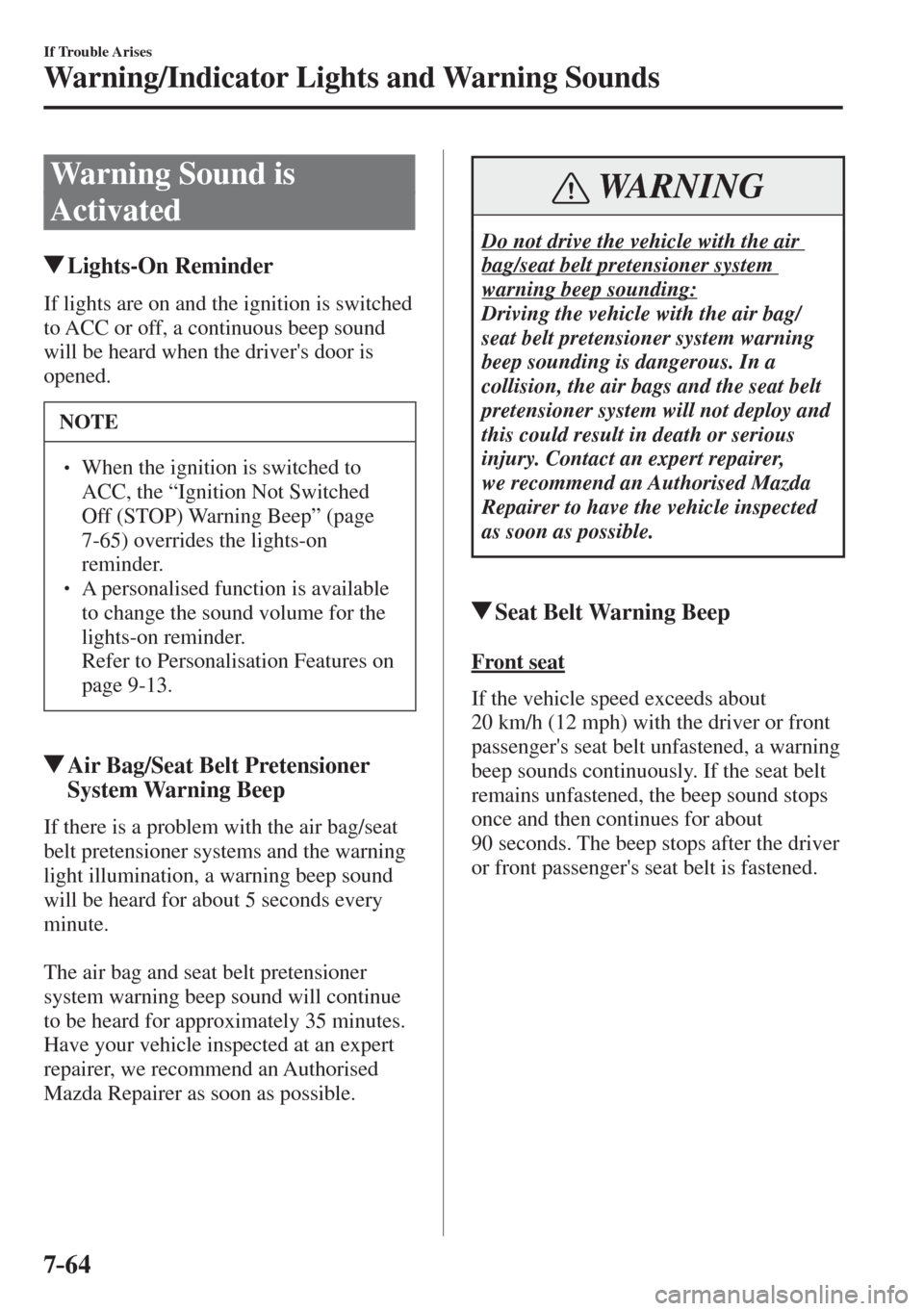

Warning Sound is
Activated
Lights-On Reminder
If lights are on and the ignition is switched
to ACC or off, a continuous beep sound
will be heard when the driver's door is
opened.
NOTE
When the ignition is switched to
ACC, the “Ignition Not Switched
Off (STOP) Warning Beep” (page
7-65 ) overrides the lights-on
reminder.
A personalised function is available
to change the sound volume for the
lights-on reminder.
Refer to Personalisation Features on
page 9-13 .
Air Bag/Seat Belt Pretensioner
System Warning Beep
If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an expert
repairer, we recommend an Authorised
Mazda Repairer as soon as possible.
WARNING
Do not drive the vehicle with the air
bag/seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
seat belt pretensioner system warning
beep sounding is dangerous. In a
collision, the air bags and the seat belt
pretensioner system will not deploy and
this could result in death or serious
injury. Contact an expert repairer,
we recommend an Authorised Mazda
Repairer to have the vehicle inspected
as soon as possible.
Seat Belt Warning Beep
F r o n t s e a t
If the vehicle speed exceeds about
20 km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about
90 seconds. The beep stops after the driver
or front passenger's seat belt is fastened.
