7–25
If Trouble Arises
Flat Tyre

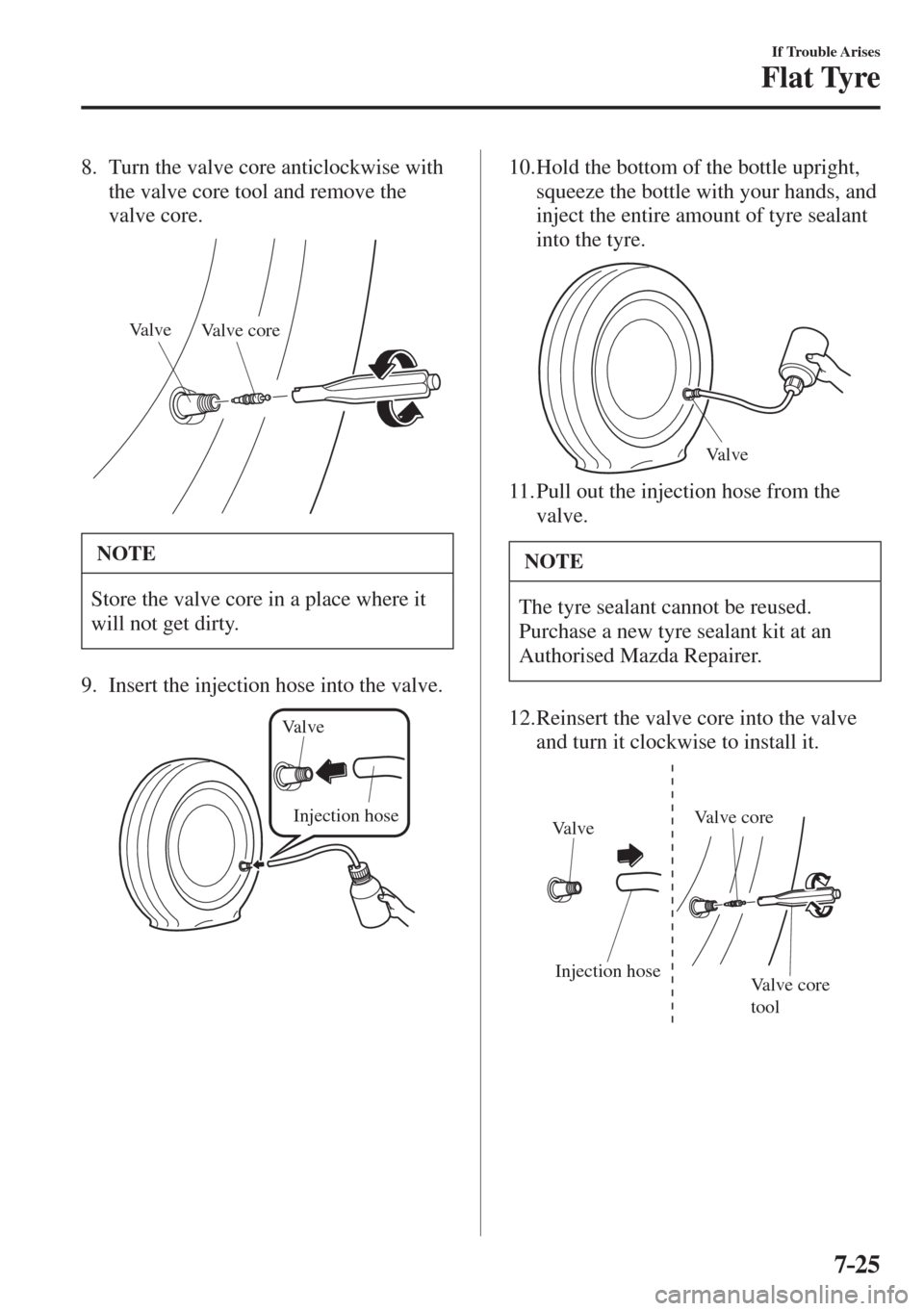

8. Turn the valve core anticlockwise with
the valve core tool and remove the
valve core.

Valve
Valve core

NOTE
Store the valve core in a place where it
will not get dirty.
9. Insert the injection hose into the valve.

Valve
Injection hose
10. Hold the bottom of the bottle upright,
squeeze the bottle with your hands, and
inject the entire amount of tyre sealant
into the tyre.

Valve
11. Pull out the injection hose from the
valve.
NOTE
The tyre sealant cannot be reused.
Purchase a new tyre sealant kit at an
Authorised Mazda Repairer.
12. Reinsert the valve core into the valve
and turn it clockwise to install it.

Injection hose
Valve core
tool Valve
Valve core

7–26
If Trouble Arises
Flat Tyre
NOTE
Do not throw away the empty tyre
sealant bottle after use. Return the empty
tyre sealant bottle to an Authorised
Mazda Repairer when replacing the tyre.
The empty tyre sealant bottle will need
to be used to extract and dispose of the
used sealant from the tyre.
13. After that, install the injection hose to
the tab of the bottle to prevent leakage
of any remaining sealant.

Ta b

14. Attach the vehicle speed restriction
sticker in a place where the driver can
easily see it.


WARNING
Do not attach the vehicle speed
restriction sticker to the instrument
panel, as it would obstruct vision of
areas such as warning light indicators
or the speedometer:
Attaching the vehicle speed restriction
sticker to the steering wheel pad is
dangerous. The sticker could interfere
with air bag inÀ ation and cause serious
injury.
15. Install the compressor hose to the tyre
valve.

Valve
Compressor hose

16. Insert the compressor plug into the
interior accessory socket and switch the
ignition to ACC.

Compressor
Compressor plug

7–27
If Trouble Arises
Flat Tyre

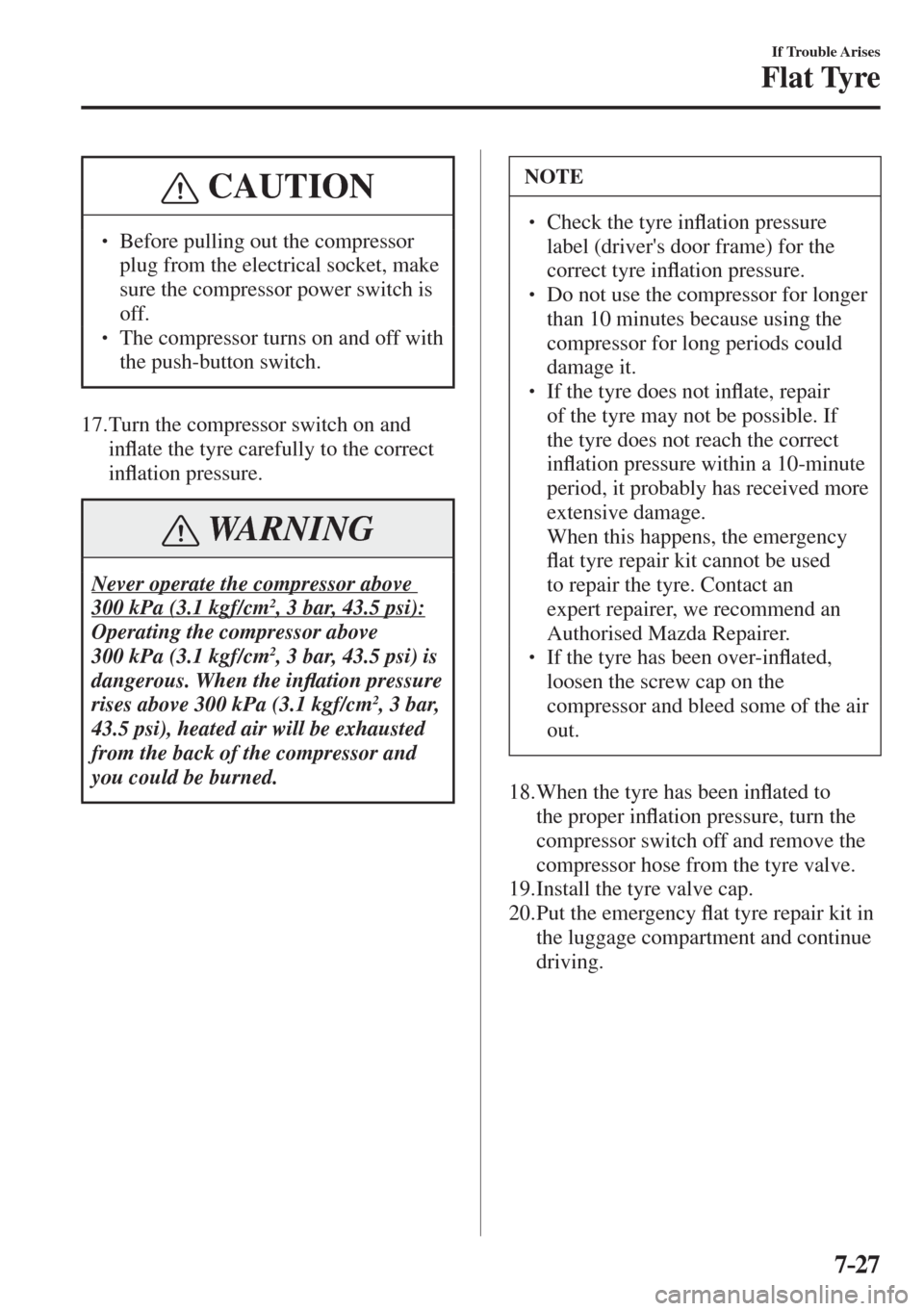

CAUTION
  Before pulling out the compressor
plug from the electrical socket, make
sure the compressor power switch is
off.
  The compressor turns on and off with
the push-button switch.
17. Turn the compressor switch on and
inÀ ate the tyre carefully to the correct
inÀ ation pressure.
WARNING
Never operate the compressor above
300 kPa (3.1 kgf/cm 2 , 3 bar, 43.5 psi):
Operating the compressor above
300 kPa (3.1 kgf/cm
2 , 3 bar, 43.5 psi) is
dangerous. When the inÀ ation pressure
rises above 300 kPa (3.1 kgf/cm
2 , 3 bar,
43.5 psi), heated air will be exhausted
from the back of the compressor and
you could be burned.
NOTE
  Check the tyre inÀ ation pressure
label (driver's door frame) for the
correct tyre inÀ ation pressure.

 Do not use the compressor for longer
than 10 minutes because using the
compressor for long periods could
damage it.
  If the tyre does not inÀ ate, repair
of the tyre may not be possible. If
the tyre does not reach the correct
inÀ ation pressure within a 10-minute
period, it probably has received more
extensive damage.
 When this happens, the emergency
À at tyre repair kit cannot be used
to repair the tyre. Contact an
expert repairer, we recommend an
Authorised Mazda Repairer.
  If the tyre has been over-inÀ ated,
loosen the screw cap on the
compressor and bleed some of the air
out.
18. When the tyre has been inÀ ated to
the proper inÀ ation pressure, turn the
compressor switch off and remove the
compressor hose from the tyre valve.
19. Install the tyre valve cap.
20. Put the emergency À at tyre repair kit in
the luggage compartment and continue
driving.

7–28
If Trouble Arises
Flat Tyre

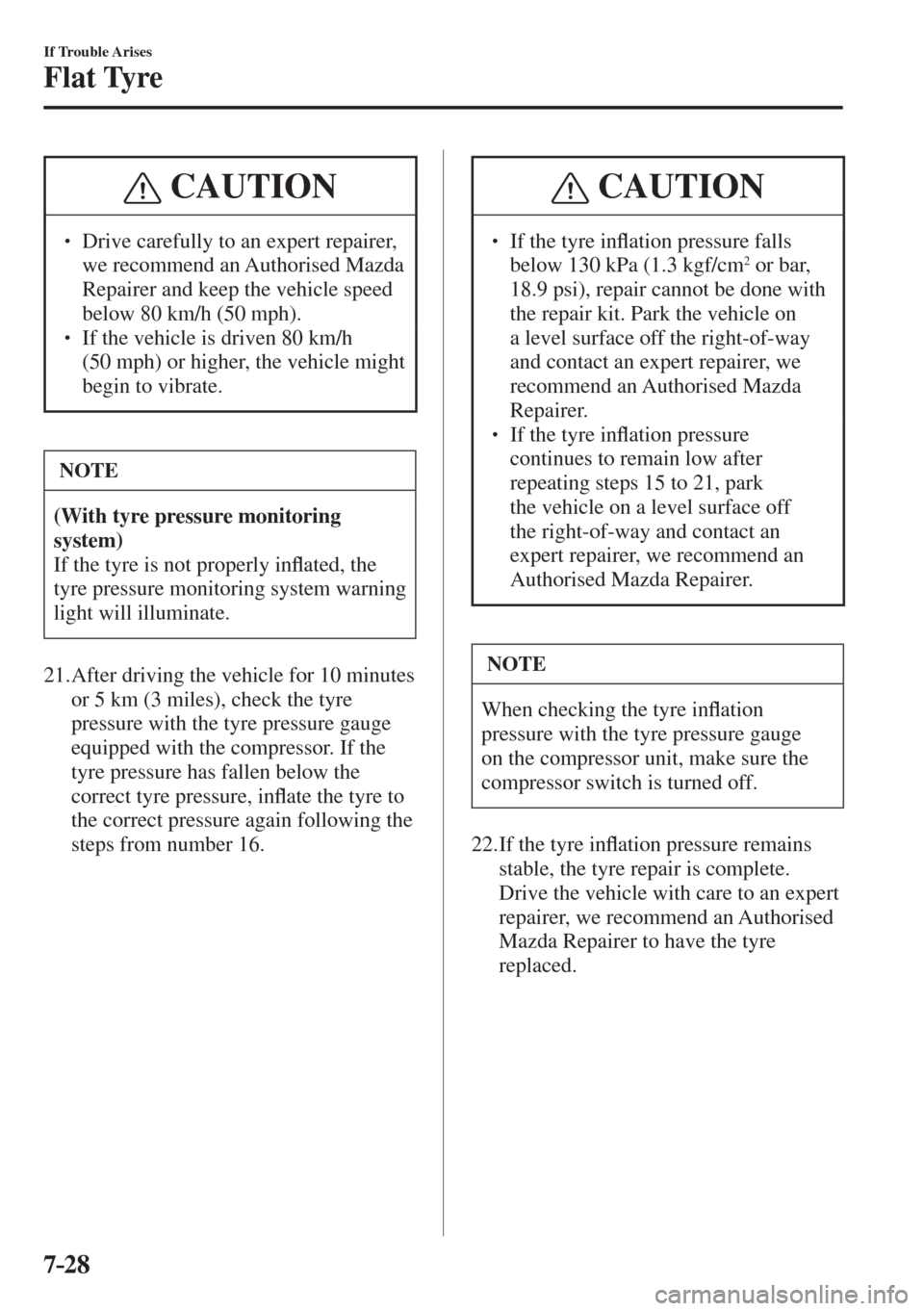

CAUTION
  Drive carefully to an expert repairer,
we recommend an Authorised Mazda
Repairer and keep the vehicle speed
below 80 km/h (50 mph).
  If the vehicle is driven 80 km/h
(50 mph) or higher, the vehicle might
begin to vibrate.
NOTE
(With tyre pressure monitoring
system)
If the tyre is not properly inÀ ated, the
tyre pressure monitoring system warning
light will illuminate.
21. After driving the vehicle for 10 minutes
or 5 km (3 miles), check the tyre
pressure with the tyre pressure gauge
equipped with the compressor. If the
tyre pressure has fallen below the
correct tyre pressure, inÀ ate the tyre to
the correct pressure again following the
steps from number 16.
CAUTION
  If the tyre inÀ ation pressure falls
below 130 kPa (1.3 kgf/cm 2 or bar,
18.9 psi), repair cannot be done with
the repair kit. Park the vehicle on
a level surface off the right-of-way
and contact an expert repairer, we
recommend an Authorised Mazda
Repairer.
  If the tyre inÀ ation pressure
continues to remain low after
repeating steps 15 to 21, park
the vehicle on a level surface off
the right-of-way and contact an
expert repairer, we recommend an
Authorised Mazda Repairer.
NOTE
When checking the tyre inÀ ation
pressure with the tyre pressure gauge
on the compressor unit, make sure the
compressor switch is turned off.
22. If the tyre inÀ ation pressure remains
stable, the tyre repair is complete.
Drive the vehicle with care to an expert
repairer, we recommend an Authorised
Mazda Repairer to have the tyre
replaced.

7–29
If Trouble Arises
Flat Tyre

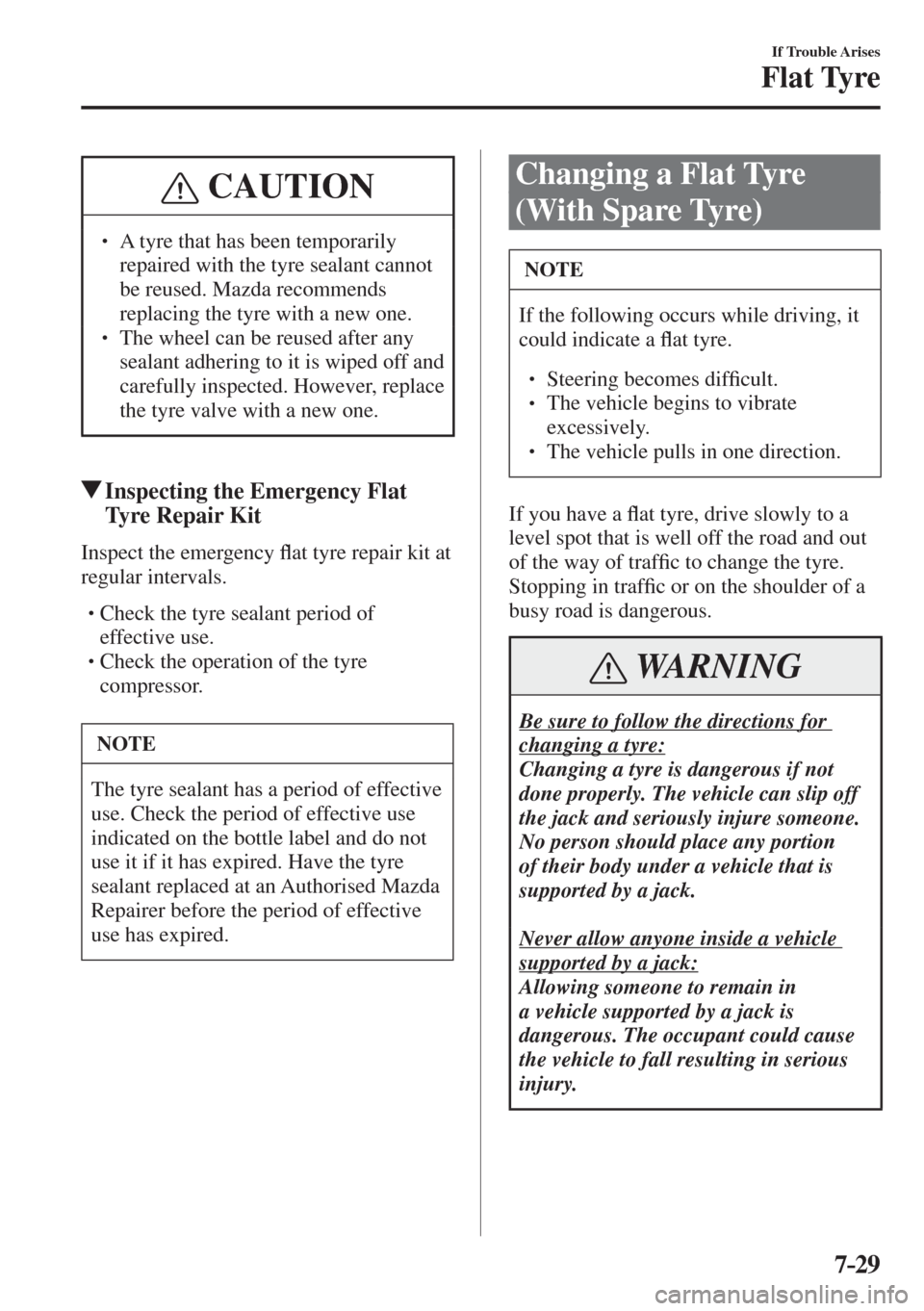

CAUTION
  A tyre that has been temporarily
repaired with the tyre sealant cannot
be reused. Mazda recommends
replacing the tyre with a new one.
  The wheel can be reused after any
sealant adhering to it is wiped off and
carefully inspected. However, replace
the tyre valve with a new one.
Inspecting the Emergency Flat
Tyre Repair Kit
Inspect the emergency À at tyre repair kit at
regular intervals.



 Check the tyre sealant period of
effective use.



 Check the operation of the tyre
compressor.

NOTE
The tyre sealant has a period of effective
use. Check the period of effective use
indicated on the bottle label and do not
use it if it has expired. Have the tyre
sealant replaced at an Authorised Mazda
Repairer before the period of effective
use has expired.
Changing a Flat Tyre
(With Spare Tyre)
NOTE
If the following occurs while driving, it
could indicate a À at tyre.


 Steering becomes dif¿ cult.
 The vehicle begins to vibrate
excessively.
  The vehicle pulls in one direction.
If you have a À at tyre, drive slowly to a
level spot that is well off the road and out
of the way of traf¿ c to change the tyre.
Stopping in traf¿ c or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tyre:
Changing a tyre is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.

Never allow anyone inside a vehicle
supported by a jack:
Allowing someone to remain in
a vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.

7–30
If Trouble Arises
Flat Tyre
NOTE
Make sure the jack is well lubricated
before using it.
1. Park on a hard, level surface off the
right-of-way and ¿ rmly set the parking
brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning À asher.
4. Have everyone get out of the vehicle
and away from the vehicle and traf¿ c.
5. Remove the jack, tool, and spare tyre
(page 7-16 ).
6. Block the wheel diagonally opposite
the À at tyre. When blocking a wheel,
place a tyre block both in front and
behind the tyre.


NOTE
When blocking a tyre, use rocks or
wood blocks of suf¿ cient size if possible
to hold the tyre in place.
Removing a Flat Tyre
WARNING
When jacking-up a vehicle, always
shift the shift lever to 1st or R (manual
transaxle vehicle) or shift the selector
lever to P (automatic transaxle vehicle),
apply the parking brake, and place
wheel blocks in the position diagonally
opposed to the jack:
Changing a À at tyre without using
wheel blocks is dangerous because the
vehicle may move and fall off the jack
even with the shift lever in 1st or R,
or the select lever is in P, which could
result in an accident.
1. If your vehicle is equipped with a
wheel cover, pry off the wheel cover
with the bevelled end of the jack lever.



NOTE
Force the end of the jack lever ¿ rmly
between wheel and cover, or removal
will be dif¿ cult.

7–31
If Trouble Arises
Flat Tyre

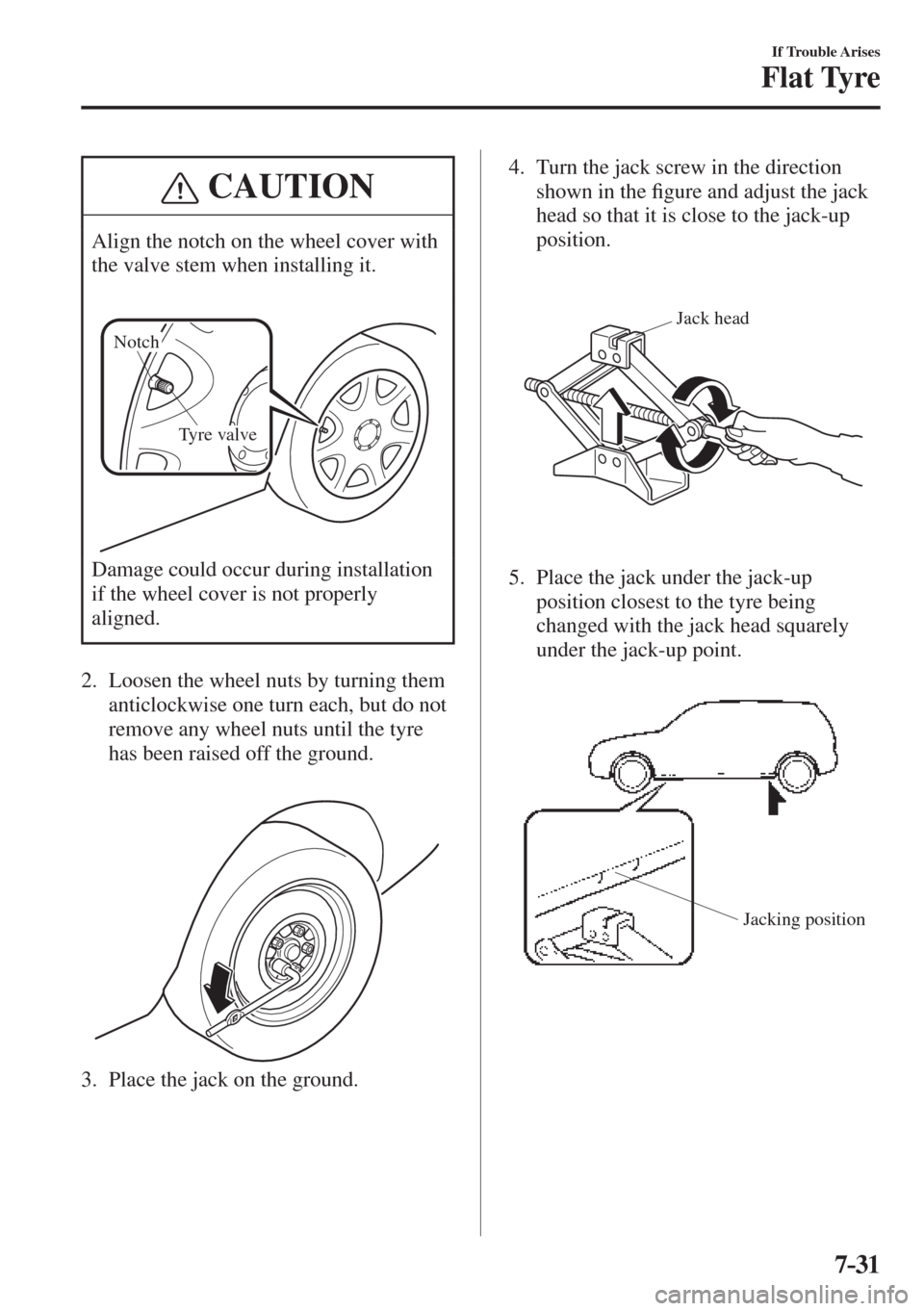

CAUTION
Align the notch on the wheel cover with
the valve stem when installing it.

Tyre valve Notch

Damage could occur during installation
if the wheel cover is not properly
aligned.
2. Loosen the wheel nuts by turning them
anticlockwise one turn each, but do not
remove any wheel nuts until the tyre
has been raised off the ground.



3. Place the jack on the ground. 4. Turn the jack screw in the direction
shown in the ¿ gure and adjust the jack
head so that it is close to the jack-up
position.


Jack head

5. Place the jack under the jack-up
position closest to the tyre being
changed with the jack head squarely
under the jack-up point.


Jacking position

7–32
If Trouble Arises
Flat Tyre
6. Continue raising the jack head
gradually by rotating the screw with
your hand until the jack head is inserted
into the jack-up position.


Tyre blocks
Jacking position

WARNING
Use only the front and rear jacking
positions recommended in this manual:
Attempting to jack the vehicle
in positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended in
this manual.



Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it could
deform the vehicle body or the vehicle
could fall off the jack resulting in an
accident.

Use only the jack provided with your
Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.

Never place objects under the jack:
Jacking the vehicle with an object
under the jack is dangerous. The
jack could slip and someone could be
seriously injured by the jack or the
falling vehicle.

7–33
If Trouble Arises
Flat Tyre

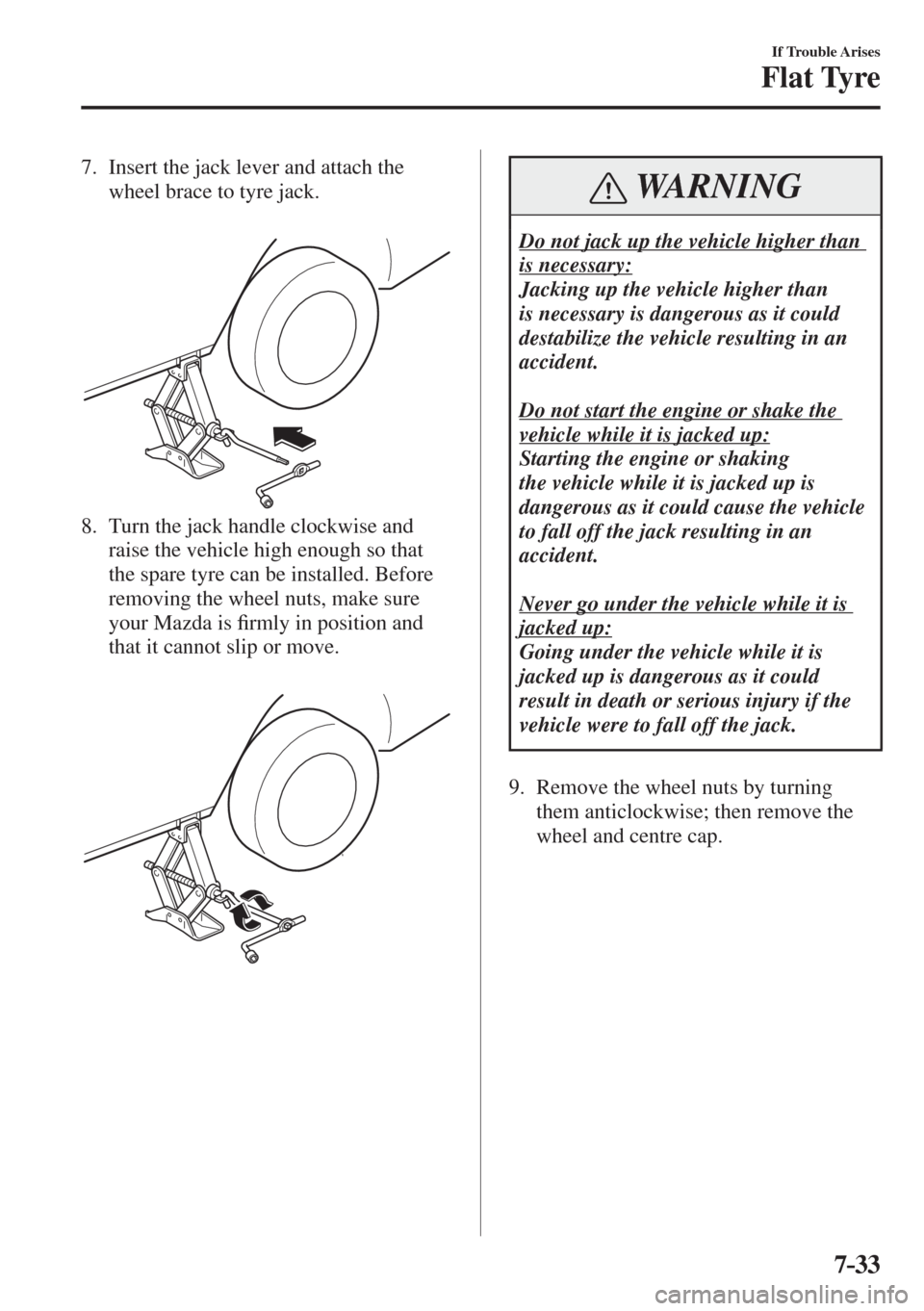

7. Insert the jack lever and attach the
wheel brace to tyre jack.



8. Turn the jack handle clockwise and
raise the vehicle high enough so that
the spare tyre can be installed. Before
removing the wheel nuts, make sure
your Mazda is ¿ rmly in position and
that it cannot slip or move.



WARNING
Do not jack up the vehicle higher than
is necessary:
Jacking up the vehicle higher than
is necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.

Do not start the engine or shake the
vehicle while it is jacked up:
Starting the engine or shaking
the vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.

Never go under the vehicle while it is
jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if the
vehicle were to fall off the jack.
9. Remove the wheel nuts by turning
them anticlockwise; then remove the
wheel and centre cap.

7–34
If Trouble Arises
Flat Tyre
Mounting the Spare Tyre

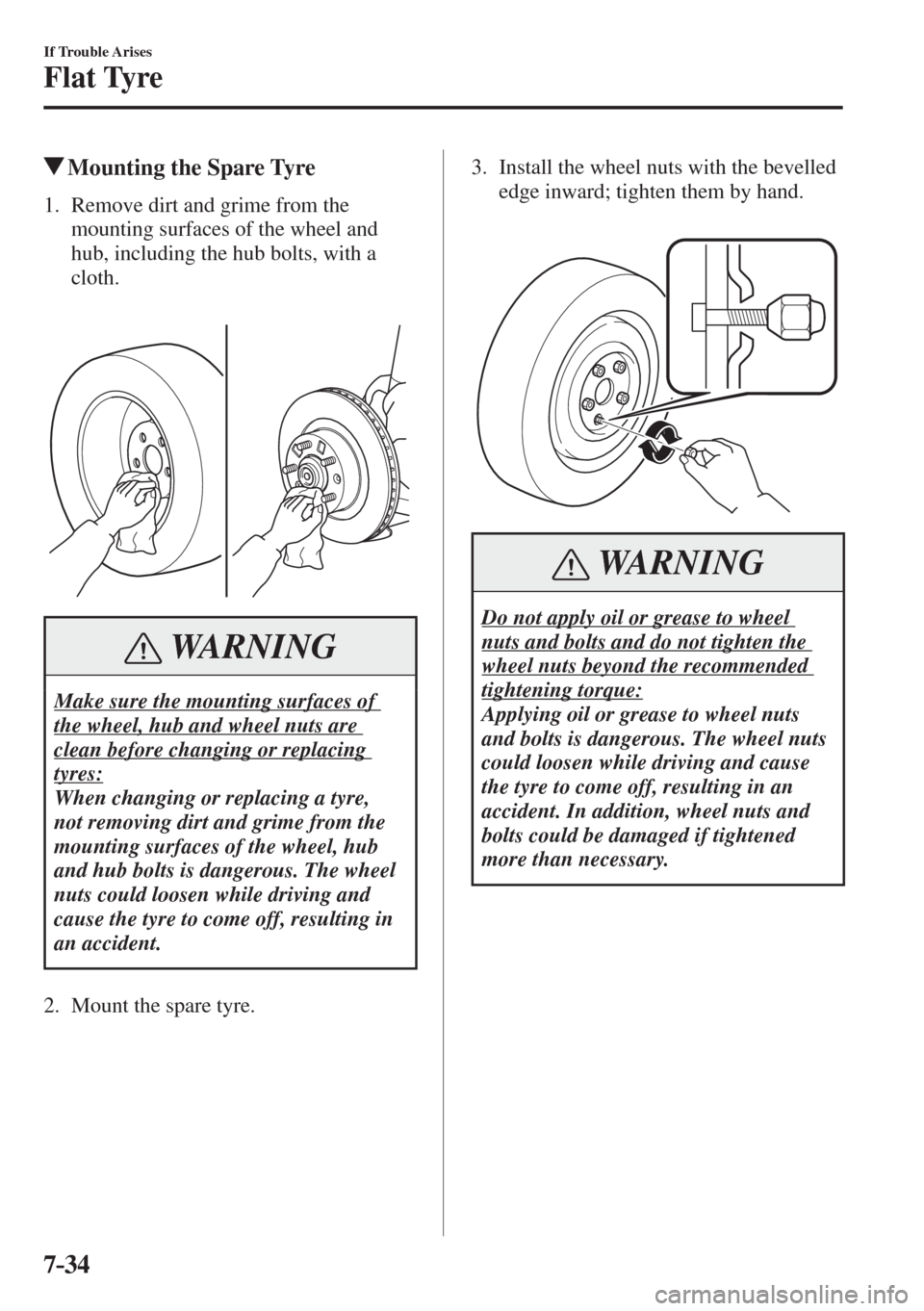

1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.



WARNING
Make sure the mounting surfaces of
the wheel, hub and wheel nuts are
clean before changing or replacing
tyres:
When changing or replacing a tyre,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The wheel
nuts could loosen while driving and
cause the tyre to come off, resulting in
an accident.
2. Mount the spare tyre. 3. Install the wheel nuts with the bevelled
edge inward; tighten them by hand.



WARNING
Do not apply oil or grease to wheel
nuts and bolts and do not tighten the
wheel nuts beyond the recommended
tightening torque:
Applying oil or grease to wheel nuts
and bolts is dangerous. The wheel nuts
could loosen while driving and cause
the tyre to come off, resulting in an
accident. In addition, wheel nuts and
bolts could be damaged if tightened
more than necessary.
