MAZDA MODEL CX-30 2019 Owners Manual (in English)

Warning Sound is
Activated
▼Lights-On Reminder
If the ignition is switched OFF with the
exterior lights turned on and the
driver’s door is opened, a sound is
activated.
Operate the headlight switch to turn
off the exterior lights.
NOTE
xWhen the ignition is switched to
ACC, the “Ignition Not Switched
Off
(STOP) Warning Beep” (page 7-67)
overrides the lights-on reminder.
xA personalised function is available
to change the sound volume for the
lights-on reminder.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Seat Belt Warning Beep
Front seat
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a
warning beep sounds continuously. If
the seat belt remains unfastened, the
beep sound stops once and then
continues for about 90 seconds. The
beep stops after the driver or front
passenger's seat belt is fastened.
NOTE
xPlacing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function
to operate depending on the weight
of the item.
xTo allow the front passenger seat
weight sensor to function properly,
do not place and sit on an additional
seat cushion on the front passenger
seat. The sensor may not function
properly because the additional seat
cushion could cause sensor
interference.
xWhen a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
Rear seat
The warning beep only sounds if a seat
belt is unfastened after being fastened.
▼Ignition Not Switched Off (STOP)
Warning Beep
European models
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard 6 times in the cabin to notify
the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be
locked, and the battery voltage will be
depleted.
Except European models
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has
not been switched OFF (STOP). Under
this condition, the keyless entry system
will not operate, the vehicle cannot be
locked, and the battery voltage will be
depleted.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-67

▼Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless
function
If the key is taken out of the vehicle
while the ignition is switched to ACC
or ON, and all the doors are closed, a
sound is activated 6 times outside of
the vehicle and a sound is activated 1
time in the vehicle.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle
while the ignition is switched to ACC
or ON, and all the doors are closed, a
sound is activated 1 time in the
vehicle.
NOTE
Make sure that you leave the vehicle
while carrying the key, or switch the
ignition OFF.
▼Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)
A warning beep is activated to notify
the driver that the doors are not locked
when all of the following conditions
are met:
xThe ignition is switched OFF.xAll the doors and liftgate are not fully
closed.
xThe lock is operated 3 times within 5
seconds.
Check the ignition and whether the
doors and liftgate are open or closed,
and then operate the lock again.
▼Liftgate Door-lock Switch
Inoperable Warning Beep
When the door-lock switch on the
liftgate is pressed under any of the
following conditions, a warning sound
is activated.
xA transmitter is not being carried.xThe ignition is switched to a position
other than OFF.
xAny door is open.xLiftgate is automatically operating.*
Make sure that none of the above
conditions are present, and then press
the door-lock switch again.
▼Key Left-in-luggage compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all the doors locked
and the liftgate closed, a beep will be
heard outside for about 10 seconds to
notify the driver that the key is in the
luggage compartment. In this case,
take out the key by pressing the electric
liftgate opener and opening the
liftgate. The key taken out of the
luggage compartment may not operate
because its functions have been
temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-8).
▼Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage
compartment are locked using another
key while the key is left in the cabin,
the beep which sounds outside of the
vehicle will be heard for about 10
seconds to notify the driver that the
key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this
method may not operate because its
functions have been temporarily
stopped. To restore the key's functions,
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-68*Some models.

perform the applicable procedure
(page 3-8).
▼Power Liftgate Warning Beep*
If system operation precautions are
necessary, the driver is notified by the
warning sound.
Warning beep What to check
The beep sounds 3
timesThe conditions re-
quired for the power
liftgate to operate have
not been met, such as
an object being stuck
in the liftgate.
The beep sound con-
tinuesThe vehicle is being
driven with the liftgate
open. Stop the vehicle
and close the liftgate.
▼Low Fuel Warning Beep
When the low fuel warning light
flashes, a warning beep is activated
once at the same time.
▼Electronic Steering Lock Warning
Beep
The warning beep operates if the
steering wheel is not unlocked after the
push button start is pressed. (page
4-4)
▼Brake System Warning Beep (With
M Hybrid)
A warning beep is activated if a
problem with the brake system occurs
and the brakes may not work as
intended. Decelerate the vehicle while
checking the safety of the surrounding
area, and park the vehicle in a safe
place. After stopping the vehicle,
contact an expert repairer (we
recommend an Authorised Mazda
Repairer).
▼Brake Override Warning Beep
A warning beep is activated when the
accelerator pedal and brake pedal are
depressed at the same time while
driving. Only depress the brake pedal.
▼Vehicle Problem Warning Beep
If any of the following problems occur,
a warning beep is activated. Check the
information regarding the warning
indication in the instrument cluster or
on the centre display.
xAutomatic transmission problemxIncrease in automatic transmission
internal temperature
xM Hybrid problemxBrake fluid amount decreasexEngine oil level sensor problemxElectric Parking Brake (EPB) problemxEngine hydraulic pressure decreasexEngine coolant temperature increasexEngine system problem
▼Shift Position Warning Beep
A sound is activated when the push
button start is pressed while the
selector lever is in a position other
than P, and the ignition is switched to
ACC. Check the selector lever
position.
▼Ignition Not Off Reminder
Warning Beep (With M Hybrid)
A warning beep is activated
continuously if the driver's door is
opened with the selector lever in a
position other than the P or N
position. Shift the selector lever to the
P or N position, or close the driver's
door.
▼i-stop Warning Beep*
xIf the driver's door is opened while
engine idling is stopped, the warning
sound operates to notify the driver
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-69

that engine idling is stopped. It stops
when the driver's door is closed.
x(European model)
The warning sound operates if the
following operations are performed
while the engine idling is stopped. In
such cases, the engine does not
restart automatically to ensure safety.
Start the engine using the normal
method.
(With M Hybrid)
x(Manual transmission)
With the shift lever in a position
other than neutral, the driver's
door is opened.
x(Automatic transmission)
With the selector lever in the D or
M (not in second gear
fixed mode)
position, the driver's seat belt is
unfastened and the driver's door is
opened.
(Without M Hybrid)
x(Manual transmission)
With the shift lever in a position
other than neutral, the driver's seat
belt is unfastened and the driver's
door is opened.
x(Automatic transmission)
With the selector lever in the D or
M (not in second gear fixed mode)
position, the driver's seat belt is
unfastened and the driver's door is
opened.
▼Electric Parking Brake (EPB)
Warning Beep
The warning buzzer is activated under
the following conditions:
xThe vehicle is driven with the parking
brake applied.
xThe Electric Parking Brake (EPB)
switch is pulled while the vehicle is
driven.
xYou attempt to start driving the
vehicle while the conditions for
releasing the Electric Parking Brake
(EPB) automatically have not been
met.
▼AUTOHOLD Warning Beep
Message is displayed and beep sound
is activated simultaneously for about 5
seconds when using AUTOHOLD
function or when AUTOHOLD switch
is operated.
Because a problem with AUTOHOLD
function has occurred, AUTOHOLD
function does not operate even if
AUTOHOLD switch is operated.

If the message is displayed and the
beep sound is activated
simultaneously, have your vehicle
inspected at an expert repairer (we
recommend an Authorised Mazda
Repairer).
▼Outside Temperature Warning
Beep*
Warns the driver of the possibility of icy
roads when the outside temperature is
low.
If the outside temperature is lower
than about 4 °C (39 °F) , a beep sound
is heard once and the outside
temperature display
flashes for about
10 seconds.
Refer to Outside Temperature Display
on page 4-28.
▼Vehicle Speed Alarm*
The vehicle speed alarm function is
designed to alarm the driver via a
single beep sound and a warning
indication in the instrument cluster
that the previously set vehicle speed
has been exceeded.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-70*Some models.

You can change the vehicle speed
setting at which the warning is
triggered.
▼120 km/h Warning Beep*
If the vehicle speed exceeds 120
km/h, a chime sounds for 5 seconds.
▼Blind Spot Monitoring (BSM)
Warn in g Beep*
The Blind Spot Monitoring (BSM)
warning beep operates when the
direction indicator lever is operated to
the side where the Blind Spot
Monitoring (BSM) warning light is
illuminated.
▼Front Cross Traffic Alert (FCTA)
Warn in g Beep*
The Front Cross Traffic Alert (FCTA)
warning beep is activated if there is a
possibility of collision with a vehicle
approaching from the front on the left
and right sides of the vehicle.
▼Rear Cross Traffic Alert (RCTA)
Warn in g Beep*
The Rear Cross Traffic Alert (RCTA)
warning beep is activated if there is a
possibility of collision with a vehicle
approaching from the rear on the left
and right sides of the vehicle.
▼Lane Departure Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a
warning sound.
NOTE
The volume of the Lane Departure
Warning System (LDWS) warning
sound can be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
▼Mazda Radar Cruise Control
(MRCC) System Warnings*
The Mazda Radar Cruise Control
(MRCC) system warnings notify the
driver of system malfunctions and
cautions on use when required.
Check based on the beep sound.
Warning beep type Notification content
The beep sounds 1
time while the Mazda
Radar Cruise Control
(MRCC) is operatingThe vehicle speed is
slower than 25 km/h
(16 mph) and the
Mazda Radar Cruise
Control (MRCC) sys-
tem has been cancel-
led.
The beep sounds in-
termittently while the
Mazda Radar Cruse
Control (MRCC) is op-
erating.The distance between
your vehicle and the
vehicle ahead is too
close. Check the safety
of the surrounding
area and reduce vehi-
cle speed.
▼Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) System
Warnings
*
The Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) system warnings notify
the driver of system malfunctions and
cautions on use when required.
Check based on the beep sound.
Warning beep type Notification content
The beep sounds 1
time while the Mazda
Radar Cruise Control
with Stop & Go func-
tion (MRCC with Stop
& Go function) is op-
eratingIf a malfunction occurs
in the system, make
sure that the Mazda
Radar Cruise Control
with Stop & Go func-
tion (MRCC with Stop
& Go function) has
been cancelled.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-71

Warning beep type Notification content
The beep sounds in-
termittently while the
Mazda Radar Cruise
Control with Stop &
Go function (MRCC
with Stop & Go func-
tion) is operating.The distance between
your vehicle and the
vehicle ahead is too
close. Check the safety
of the surrounding
area and reduce vehi-
cle speed.
▼Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed in the active driving
display/instrument cluster, the area
around the speed limit sign flashes in
amber and the warning sound is
activated at the same time. If the
vehicle speed continues to exceed the
displayed speed limit sign, the
indication stops flashing and remains
on.
▼Speed Limiter Warning Beep*
If the vehicle speed exceeds the set
speed by about 5 km/h (3 mph) or
more, a warning beep operates
continuously. The warning beep
operates until the vehicle speed
decreases to the set speed or less.
CAUTION

If the set speed is set lower than the
current vehicle speed by pressing the
RES switch down (SET-) the warning
beep is not activated for about 30
seconds even if the vehicle speed is
faster than the newly set speed by 5
km/h (3 mph). Be careful not to drive
over the set speed.
NOTE
When the system is temporarily
cancelled by depressing the accelerator
pedal fully, the ISA/ASL display shows
the cancel display. Even if the vehicle
speed exceeds the set speed by about
5 km/h (3 mph) or more while the
cancel display is displayed, the warning
sound is not operated.
▼Collision warning*
If there is a possibility of a collision
with a vehicle ahead or an obstruction
at the rear of the vehicle, a warning
sound is activated intermittently at the
same time as the warning indications
are displayed in the instrument cluster
or active driving display.
▼Door-ajar Warning Beep
A warning beep is actived if the vehicle
is driven with any door or liftgate ajar.
Drive the vehicle after closing the
doors and liftgate.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-72*Some models.

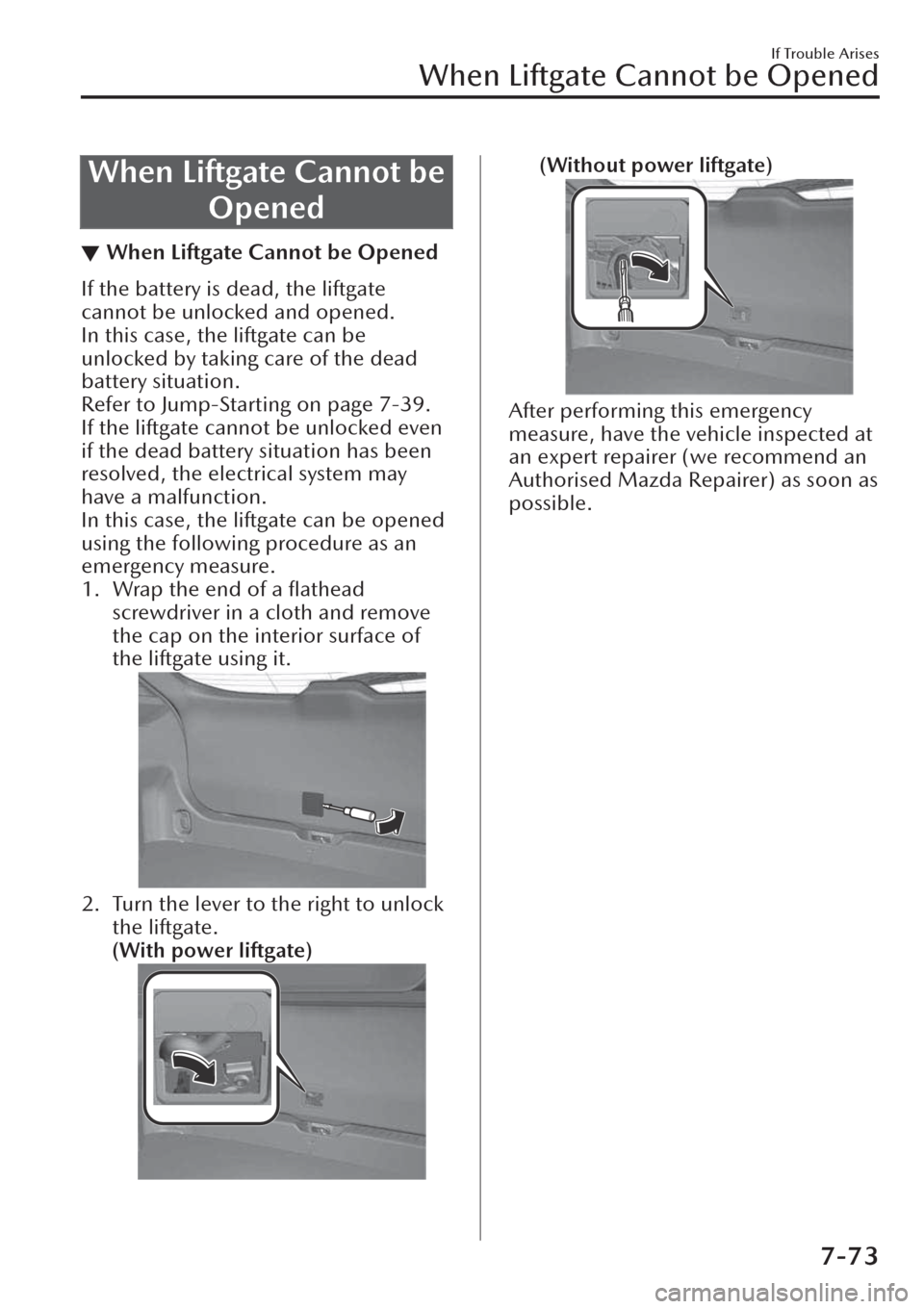

When Liftgate Cannot be
Opened
▼When Liftgate Cannot be Opened
If the battery is dead, the liftgate
cannot be unlocked and opened.
In this case, the liftgate can be
unlocked by taking care of the dead
battery situation.
Refer to Jump-Starting on page 7-39.
If the liftgate cannot be unlocked even
if the dead battery situation has been
resolved, the electrical system may
have a malfunction.
In this case, the liftgate can be opened
using the following procedure as an
emergency measure.
1. Wrap the end of a
flathead
screwdriver in a cloth and remove
the cap on the interior surface of
the liftgate using it.
2. Turn the lever to the right to unlock
the liftgate.
(With power liftgate)
(Without power liftgate)
After performing this emergency
measure, have the vehicle inspected at
an expert repairer (we recommend an
Authorised Mazda Repairer) as soon as
possible.
If Trouble Arises
When Liftgate Cannot be Opened
7-73

If the Active Driving
Display Does Not
Operate
▼If the Active Driving Display Does
Not Operate
If the active driving display does not
operate, switch the ignition off and
then restart the engine. If the active
driving display does not operate even
with the engine restarted, have the
vehicle inspected at an expert repairer
(we recommend an Authorised
Mazda Repairer).
If Trouble Arises
Active Driving Display Does Not Operate
7-74

Windscreen Wipers
Operate at High Speed
▼Windscreen Wipers Operate at
High Speed
The windscreen wipers may operate at
high speed if there is a problem with
the wiper control. If the windscreen
wipers operate at high speed
regardless of the wiper switch
operation, have your vehicle inspected
by an expert repairer (we recommend
an Authorised Mazda Repairer).
If Trouble Arises
Windscreen Wipers Operate at High Speed
7-75

MEMO
7-76
