Interior Equipment (View D)
▼Interior Equipment (View D)
ƒPush knob........................................................................................ page 2-13
„Head restraint................................................................................... page 2-15
…Child safety lock................................................................................page 3-20
†Rear coat hook..................................................................................page 5-39
‡Overhead light (rear)......................................................................... page 5-33
ˆDoor-lock knob................................................................................ page 3-19
‰Power window switch........................................................................ page 3-41
ŠAssist grip......................................................................................... page 5-38
‹Centre console..................................................................................page 5-40
ŒAccessory socket............................................................................... page 5-35
External input terminal.......................................................................page 5-13
ŽBottle holder.....................................................................................page 5-38
Rear seat.......................................................................................... page 2-13
Cup holder....................................................................................... page 5-36
‘Armrest............................................................................................ page 2-15
’ISOFIX lower anchors........................................................................ page 2-42
“Seat belt........................................................................................... page 2-20
Pictorial Index
Interior Overview (Left-Hand Drive Model)
1-6The equipment and installation position varies by vehicle

Interior Equipment (View D)
▼Interior Equipment (View D)
ƒAssist grip......................................................................................... page 5-38
„Power window switch........................................................................ page 3-41
…Door-lock knob................................................................................ page 3-19
†Overhead light (rear)......................................................................... page 5-33
‡Rear coat hook..................................................................................page 5-39
ˆCup holder....................................................................................... page 5-36
‰Child safety lock................................................................................page 3-20
ŠHead restraint................................................................................... page 2-15
‹Push knob........................................................................................ page 2-13
ŒSeat belt........................................................................................... page 2-20
ISOFIX lower anchors........................................................................ page 2-42
ŽArmrest............................................................................................ page 2-15
Rear seat.......................................................................................... page 2-13
Bottle holder.....................................................................................page 5-38
‘Centre console..................................................................................page 5-40
’Accessory socket............................................................................... page 5-35
“External input terminal.......................................................................page 5-13
Pictorial Index
Interior Overview (Right-Hand Drive Model)
1-12The equipment and installation position varies by vehicle

Child-Restraint
Precautions
▼Child-Restraint Precautions
Mazda strongly urges the use of
child-restraint systems for children
small enough to use them.
Mazda recommends use of a Mazda
genuine child-restraint system or one
that complies with the UN-R
*1 44 or
UN-R 129 regulation. If you would like
to purchase a Mazda genuine
child-restraint system, please contact
an Authorised Mazda Repairer.
Check your local and state or
provincial laws for specific
requirements regarding the safety of
children riding in your vehicle.
*1 UN-R stands for United Nations
Regulation.

Whatever child-restraint system you
consider, please pick the appropriate
one for the age and size of the child,
obey the law and follow the
instructions that come with the
individual child-restraint system.

A child who has outgrown
child-restraint systems should sit in the
rear and use seat belts.

The child-restraint system should be
installed on the rear seat.
Statistics confirm that the rear seat is
the best place for all children up to 12
years of age-the more so with a
supplementary restraint system (air
bags).

A rear-facing child-restraint system
should NEVER be used in the front
passenger seat with the air bag system
activated. The front passenger's seat is
also the least preferred seat for other
child-restraint systems.

For some models, we have provided a
deactivation switch that will disable
front passenger air bag inflation. Do
not switch off the front passenger air
bag without reading the “Front
Passenger Air Bag Deactivation Switch”
(page 2-51).
WARNING
Use the correct size child-restraint
system:
For effective protection in vehicle
accidents and sudden stops, a child
must be properly restrained using a
seat belt or child-restraint system
depending on age and size. If not, the
child could be seriously injured or even
killed in an accident.
Follow the manufacturer's
instructions and always keep the
child-restraint system buckled down:
An unsecured child-restraint system is
dangerous. In a sudden stop or a
collision it could move causing serious
injury or death to the child or other
occupants. Make sure any
child-restraint system is properly
secured in place according to the
child-restraint system manufacturer's
instructions. When not in use, remove
it from the vehicle or fasten it with a
seat belt, or latch it down to BOTH
ISOFIX anchors, and attach the
corresponding tether anchor.
Essential Safety Equipment
Child Restraint
2-27

Use the tether and tether anchor only
for a child-restraint system:
Child-restraint system anchorages are
designed to withstand only those loads
imposed by correctly installed
child-restraint systems. Under no
circumstances are they to be used for
adult seat belts, harnesses, or for
attaching other items or equipment to
the vehicle.
Always remove the head restraint and
install child-restraint system (except
when installing a booster seat):
Installing a child-restraint system
without removing the head restraint is
dangerous. The child-restraint system
cannot be installed correctly which
may result in death or injury to the
child in a collision.
CAUTION
A seat belt or child-restraint system can
become very hot in a closed vehicle
during warm weather. To avoid burning
yourself or a child, check them before
you or your child touches them.
NOTE
Your Mazda is equipped with ISOFIX
anchors for attachment of ISOFIX
child-restraint systems on the rear
seats. When using these anchors to
secure a child-restraint system, refer to
“Using ISOFIX Anchor” (page 2-42).
Essential Safety Equipment
Child Restraint
2-30

xDue to variations in the design of
child-restraint systems, vehicle seats
and seat belts, all child-restraint
systems may not fit all seating
positions. Before purchasing a
child-restraint system, it should be
tested in the specific vehicle seating
position (or positions) where it is
intended to be used. If a previously
purchased child-restraint system
does not fit, you may need to
purchase a different one that will.
Baby seat
Equal to Group 0 and 0+ of the
UN-R
44 and
UN-R 129 regulation.
(Europe)
Recommended child-restraint system:
Britax Römer BABY-SAFE PLUS and
ISOFIX BASE

Child seat
Equal to Group 1 of the UN-R 44 and
UN-R 129 regulation.
(Europe)
Recommended child-restraint system:
Britax Römer Duo Plus

Junior seat
Equal to Group 2 and 3 of the UN-R
44 and
UN-R 129 regulation.
(Europe)
Recommended child-restraint system:
Britax Römer KidFix XP OEM

1. Full booster seat
2. Booster seat

When using a booster seat, always
install the vehicle head restraint to the
seat where the booster seat is installed.
(Other countries)
Please comply with the legal
regulations concerning the use of
child-restraint systems in your country.
Essential Safety Equipment
Child Restraint
2-32

Child-Restraint System Suitability for Various Seat
Positions Table
▼Child-Restraint System Suitability for Various Seat Positions Table
(Europe and countries conforming to the UN-R 16 regulation)
Provided information in the table shows your child-restraint system suitability for
various seating position. For installation suitability of other manufacturer
child-restraint system, carefully consult the manufacturer's instructions which
accompany the child-restraint system.
When installing a child-restraint system, the following points must be observed:
xAlways remove the head restraint before installing a child-restraint system.
However, when installing a booster seat, always install the vehicle head restraint to
the seat where the booster seat is installed. In addition, always use a tether strap
and attach it securely. Refer to Head Restraints on page 2-15.
xWhen installing a child-restraint system to the front passenger seat, adjust the seat
slide position as far back as possible. Adjust the seat bottom (height adjustable
seat bottom) to the highest position so that the seat belt can securely fasten the
child-restraint system.
Refer to Adjusting the Front Passenger's Seat on page 2-12.
xWhen it is difficult to install a child-restraint system to the front passenger seat, or
the seat belt cannot be secured to the child-restraint system, perform the
following operations to adjust the seat holding the child-restraint system so that
the seat belt can be secured completely to it.
xMove the seat forward or back.xMove the seatback forward or back.xMove the seat upward or downward. (Vehicles with height adjustment function)xWhen installing a child-restraint system to the rear seat, adjust the front seat
position so that the front seat does not contact the child-restraint system.
Refer to Adjusting the Driver's Seat on page 2-4.
Refer to Adjusting the Front Passenger's Seat on page 2-12.
xA child-restraint system with a support leg cannot be installed on the rear centre
seat position.
xWhen installing a child-restraint system equipped with a tether, remove the head
restraint.
Refer to Head Restraints on page 2-15.
xAn i-Size child-restraint system refers to a child-restraint system which has
acquired i-Size category certification for the UN-R 129 regulation.
When installing a child-restraint system to the rear seat, refer to the child-restraint
system manufacturer's instructions and the Using ISOFIX Anchor on page 2-42.
Essential Safety Equipment
Child Restraint
2-36

Seating posi-
tionPassenger
Rear (Left) Rear (Centre) Rear (Right)
Airbag activat-
edAirbag de-acti-
vated
Largest suitable
booster
fixture
(B3)No No Yes (IUF) No Yes (IUF)
Non i-size com-
patible with a
support leg
(Yes/No)Ye s
*1Ye s Ye s N o Ye s
Lower ISOFIX
anchorages but
without Top
Tether (Yes/No)No No No No No
U = Suitable for “universal” category restraints approved for use in this mass group.
UF = Suitable for forward-facing “universal” category restraints approved for use in this mass group.
IUF = Suitable for ISOFIX forward child restraints systems of universal category approved for use in the
mass group.
L = Suitable for particular child restraints given on attached list. These restraints may be of the “specific
vehicle”, “restricted” or “semi-universal” categories.
IL = Suitable for particular ISOFIX child restraint systems (CRS) given in the attached list. These ISOFIX CRS
are those of the “specific vehicle”, “restricted” or “semi-universal” categories.
i-U = Suitable for i-Size “universal” Child Restraint Systems forward and rearward facing.
i-UF = Suitable for forward-facing i-Size “universal” Child Restraint Systems only.
Yes = Child-restraint system can be secured on the seat.
No = Child-restraint system cannot be secured on the seat, or there is no fixture.
X = Child-restraint system cannot be installed.
*1 Child restraint system can only be installed in the forward-facing position.
A Mazda genuine child-restraint system can be installed. Regarding child-restraint systems which can be
installed, refer to the accessories catalog.
Taiwan
ISOFIX anchor-secured child-restraint systems
Mass groupSize
ClassFixtureSeat Positions
Vehicle ISOFIX po-
sitions
Rear seat (centre)Front passenger
seat (outboard)
Rear seat (out-
board)
CarrycotFISO/L1 X X X
GISO/L2 X X X
(1) X X X
Essential Safety Equipment
Child Restraint
2-38

Mass groupSize
ClassFixtureSeat Positions
Vehicle ISOFIX po-
sitions
Rear seat (centre)Front passenger
seat (outboard)
Rear seat (out-
board)
GROUP 0 Up to 10
kg (up to 22 lb)E ISO/R1 IL X X
(1) X X X
GROUP 0+ Up to
13 kg (up to 29 lb)E ISO/R1 IL X X
D ISO/R2 IL X X
C ISO/R3 IL X X
(1) X X X
GROUP 1 9 kg Š
18 kg (20 lb Š 40
lb)D ISO/R2 IL X X
C ISO/R3 IL X X
B ISO/F2 IUF X X
B1 ISO/F2X IUF X X
A ISO/F3 IUF X X
(1) X X X
GROUP 2 15 kg Š
25 kg (33 lb Š 55
lb)(1) X X X
GROUP 3 22 kg Š
36 kg (48 lb Š 79
lb)(1) X X X
(1) For the CRS which do not carry the ISO/XX size class identification (A to G), for the applicable mass
group, the car manufacturer shall indicate the vehicle specific ISOFIX child-restraint system(s)
recommended for each position.
Key of letters to be inserted in the above table:
IUF = suitable for ISOFIX forward child-restraints systems of universal category approved for use in this
mass group.
IL = suitable for particular ISOFIX child-restraint systems (CRS).
These ISOFIX CRS are those of the “specific vehicle”, “restricted” or “semi-universal” categories.
A Mazda genuine child-restraint system can be installed. Regarding child-restraint systems which can be
installed, refer to the accessories catalog.
X = ISOFIX position not suitable for ISOFIX child-restraint systems in this mass group and/or this size
class.
Essential Safety Equipment
Child Restraint
2-39

i-Size child-restraint systems
An i-Size child-restraint system can be installed to the
specified seat as follows:
Front passenger seat Rear seat (outboard) Rear seat (centre)
i-Size child-restraint sys-
temsXXX
Key of letters to be inserted in the above table:
X = Seating position not suitable for i-Size “universal” child-restraint systems.
Seat belt-secured child-restraint systems
System group Age group Weight groupChild-restraint
system typeFront pas-
senger
seatRear seat
(out-
board)Rear seat
(centre)
GROUP 0Up to about 9
months oldUp to 10 kg (up
to 22 lb)Baby seat X U U
GROUP 0+Up to about 2
years oldUp to 13 kg (up
to 29 lb)Baby seat X U U
GROUP 1About 8 months
to 4 years old9 kgŠ 18 kg
(20 lbŠ 40 lb)Child seat X U U
GROUP 2About 3 to 7
years old15 kgŠ 25 kg
(33 lbŠ 55 lb)Junior seat X U U
GROUP 3About 6 to 12
years old22 kgŠ 36 kg
(48 lbŠ 79 lb)Junior seat X U U
Key of letters to be inserted in the above table:
U = Suitable for “universal” category restraints approved for use in this mass group.
UF = Suitable for forward-facing “universal” category restraints approved for use in this mass group.
X = Seat position not suitable for children in this mass group.
(Other countries)
xRegarding child-restraint systems which can be installed to your Mazda, consult an
expert repairer (we recommend an Authorised Mazda Repairer).
xA child-restraint system with a support leg cannot be installed on the rear centre
seat position.
xPlease comply with the legal regulations concerning the use of child-restraint
systems in your country.
xFor the CRS which do not carry the ISO/XX size class identification (A to G), for
the applicable mass group, the child seat manufacturer shall indicate the vehicle
specific ISOFIX child-restraint systems recommended for each position.
Essential Safety Equipment
Child Restraint
2-40

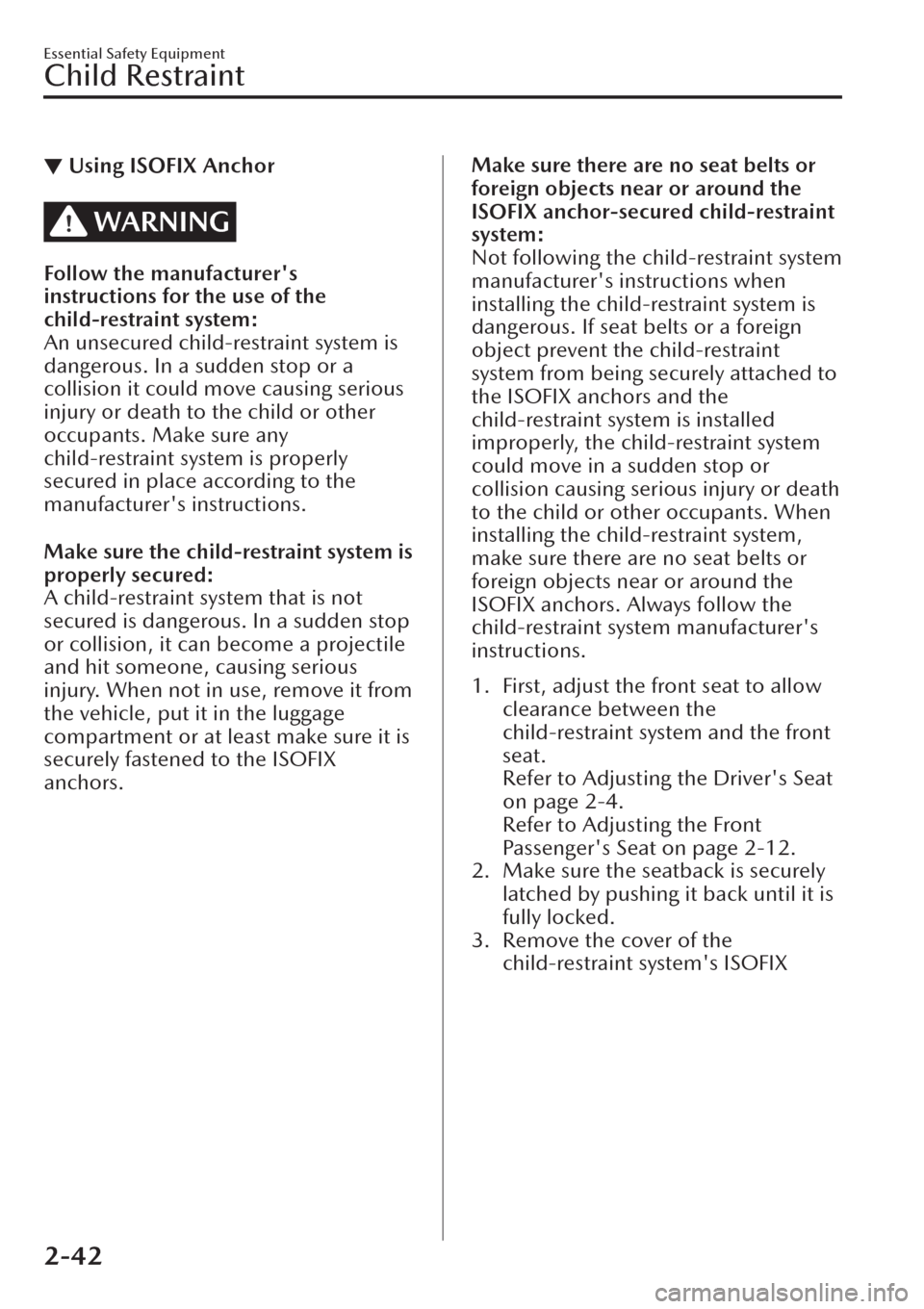

▼Using ISOFIX Anchor
WARNING
Follow the manufacturer's
instructions for the use of the
child-restraint system:
An unsecured child-restraint system is
dangerous. In a sudden stop or a
collision it could move causing serious
injury or death to the child or other
occupants. Make sure any
child-restraint system is properly
secured in place according to the
manufacturer's instructions.
Make sure the child-restraint system is
properly secured:
A child-restraint system that is not
secured is dangerous. In a sudden stop
or collision, it can become a projectile
and hit someone, causing serious
injury. When not in use, remove it from
the vehicle, put it in the luggage
compartment or at least make sure it is
securely fastened to the ISOFIX
anchors.
Make sure there are no seat belts or
foreign objects near or around the
ISOFIX anchor-secured child-restraint
system:
Not following the child-restraint system
manufacturer's instructions when
installing the child-restraint system is
dangerous. If seat belts or a foreign
object prevent the child-restraint
system from being securely attached to
the ISOFIX anchors and the
child-restraint system is installed
improperly, the child-restraint system
could move in a sudden stop or
collision causing serious injury or death
to the child or other occupants. When
installing the child-restraint system,
make sure there are no seat belts or
foreign objects near or around the
ISOFIX anchors. Always follow the
child-restraint system manufacturer's
instructions.
1. First, adjust the front seat to allow
clearance between the
child-restraint system and the front
seat.
Refer to Adjusting the Driver's Seat
on page 2-4.
Refer to Adjusting the Front
Passenger's Seat on page 2-12.
2. Make sure the seatback is securely
latched by pushing it back until it is
fully locked.
3. Remove the cover of the
child-restraint system's ISOFIX
Essential Safety Equipment
Child Restraint
2-42
