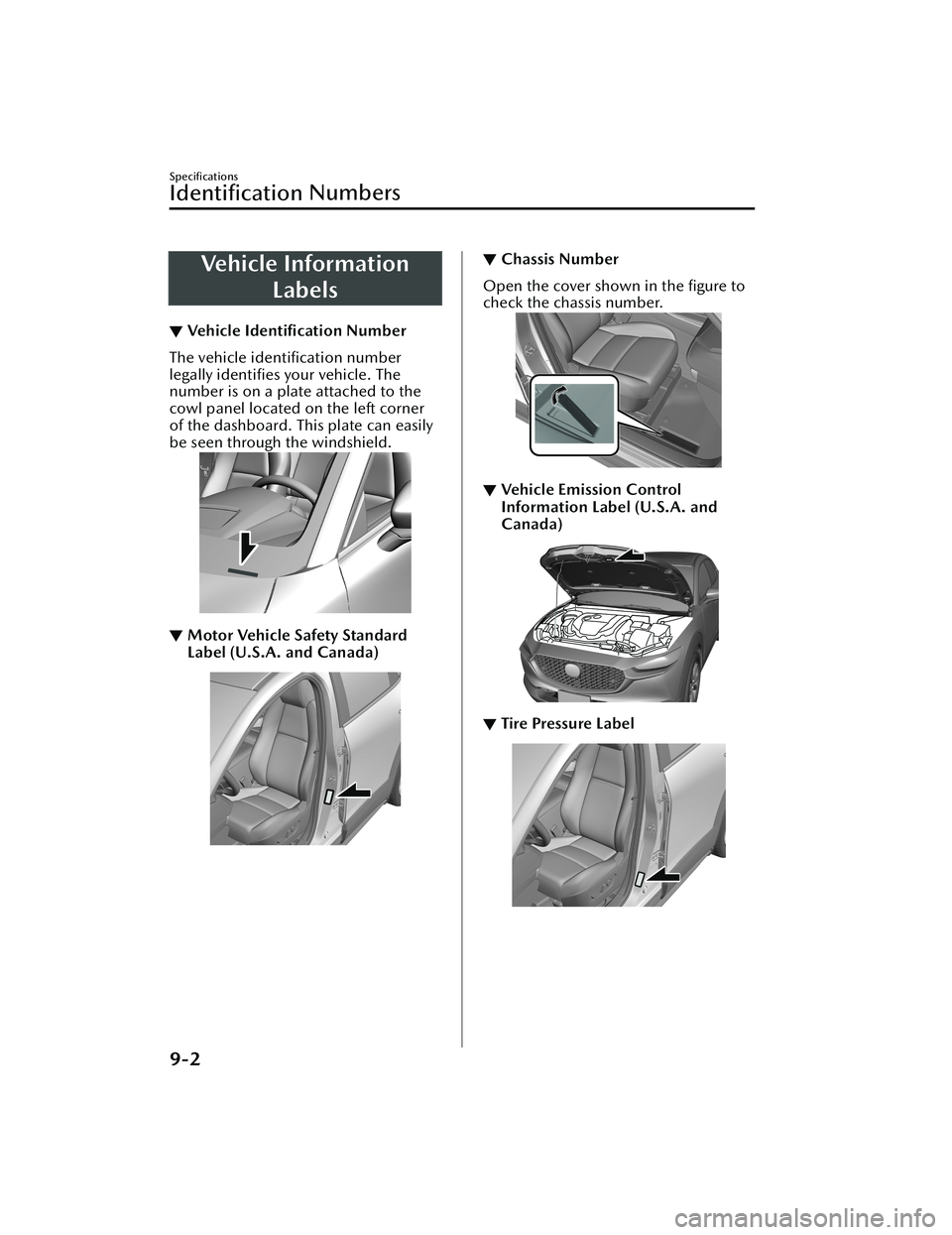

Vehicle InformationLabels
▼Ve h i c l e
Identification Number
The vehicle identification number
legally identifies your vehicle. The
number is on a plate attached to the
cowl panel located on the left corner
of the dashboard. This plate can easily
be seen through the windshield.
▼Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification
Numbers
9-2
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

▼Engine Number
1. Forward
Specifications
Identification
Numbers
9-3
CX-30_8HG6-EA-19I_Edition1_new
2019-6-13 18:45:11

Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression ratio 13.0
▼Electrical System
Item
Classification
Battery
*112V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*2PE5R-18-110 or PE5S-18-110
*1 Check the battery installed on the vehicle and us e a battery with an equal or higher performance.
However, the performance of the battery may vary even among the same battery types, consult an
Authorized Mazda Dealer for replacement.
*2 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate
coating on the iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-15.
Coolant FL-22 type
Manual transmission oil Mazda Long Life Gear Oil G7
Automatic transmission fluid Mazda Genuine ATF FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
Specifications
Specifications
9-4
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYAC-
TIV-G 2.0
With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYAC-
TIV-G 2.5 With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
Coolant Manual transmission
6.2 L (6.6 US qt, 5.5 Imp qt)
Automatic
transmis-
sion SKYAC-
TIV-G 2.0
U.S.A. and Canada 6.5 L (6.9 US qt, 5.7 Imp qt)
Mexico
6.7 L (7.1 US qt, 5.9 Imp qt)
SKYAC-
TIV-G 2.5 U.S.A. and
Canada With Cylin-
der Deacti-
vation
6.5 L (6.9 US qt, 5.7 Imp qt)
Without
Cylinder
Deactiva-
tion 6.6 L (7.0 US qt, 5.8 Imp qt)
Mexico 6.8 L (7.2 US qt, 6.0 Imp qt)
Manual transmission oil 1.70 L (1.80 US qt, 1.50 Imp qt)
Automatic
transmission
fluid SKYACTIV-G 2.0
7.6 L (8.0 US qt, 6.7 Imp qt)
SKYAC-
TIV-G 2.5 With Cylinder Deactivation
7.9 L (8.3 US qt, 7.0 Imp qt)
Without Cylinder Deactivation 7.6 L (8.0 US qt, 6.7 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank FWD
51.0 L (13.5 US gal, 11.2 Imp
gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp
gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,395 mm (173.0 in)
Overall width 1,795 mm (70.7 in)
Overall height
*1U.S.A. and Canada Type A 1,579 mm (62.2 in)
Type B
1,567 mm (61.7 in)
Mexico 1,562 mm (61.5 in)
Specifications
Specifications
9-5
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

ItemVehicle specification
Front tread 1,563 mm (61.5 in)
Rear tread 1,563 mm (61.5 in)
Wheelbase 2,653 mm (104.4 in)
*1 The overall height is categorized according to the antenna type as follows:
Ty p e A
1. Antenna
Ty p e B
Except above.

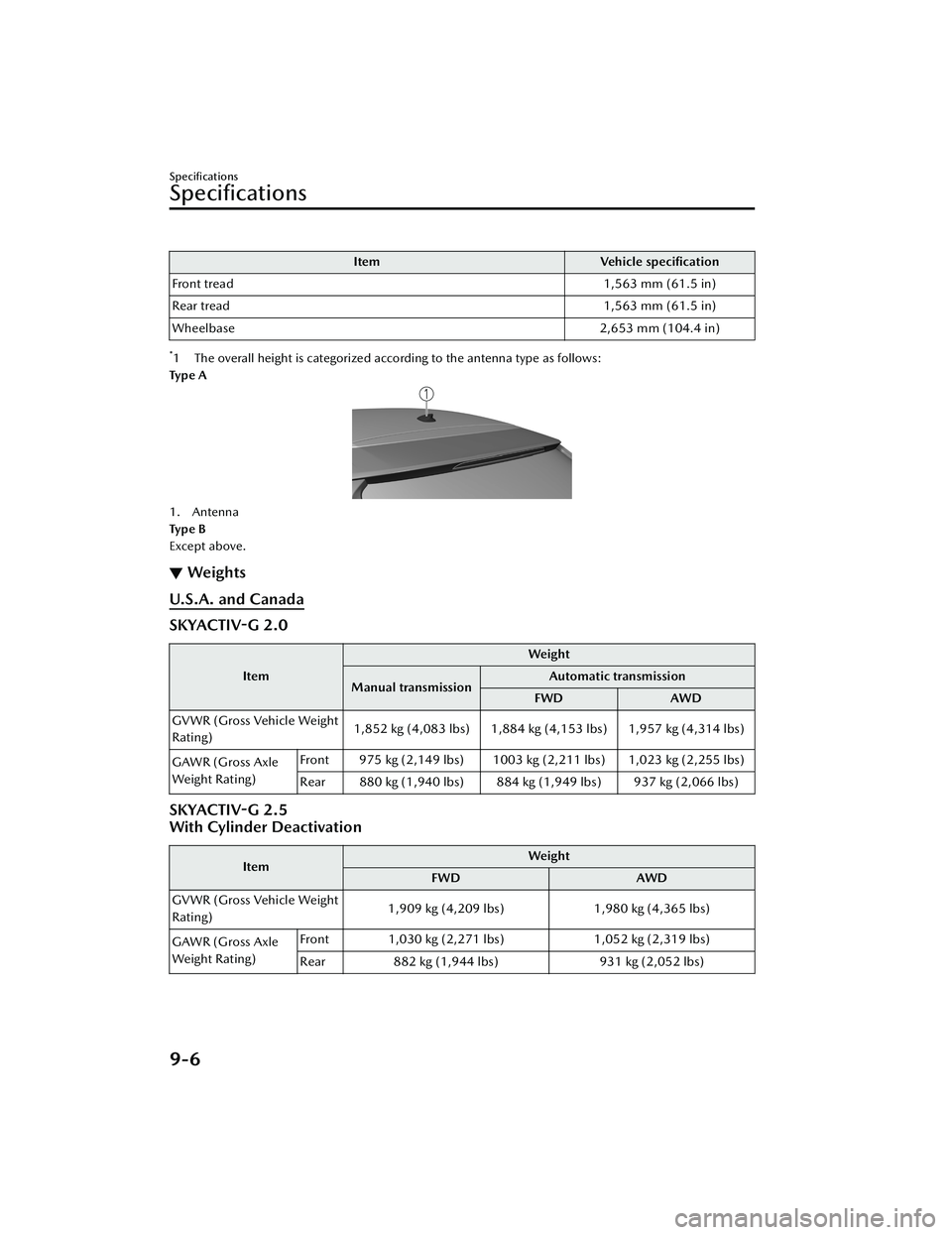

▼ Weights
U.S.A. and Canada
SKYACTIV-G 2.0
Item Weight
Manual transmission Automatic transmission
FWD AWD
GVWR (Gross Vehicle Weight
Rating) 1,852 kg (4,083 lbs) 1,884 kg (4,153 lbs) 1,957 kg (4,314 lbs)
GAWR (Gross Axle
Weight Rating) Front 975 kg (2,149 lbs) 1003 kg (2,211 lbs) 1,023 kg (2,255 lbs)
Rear 880 kg (1,940 lbs) 884 kg (1,949 lbs) 937 kg (2,066 lbs)
SKYACTIV-G 2.5
With Cylinder Deactivation
Item
Weight
FWD AWD
GVWR (Gross Vehicle Weight
Rating) 1,909 kg (4,209 lbs)
1,980 kg (4,365 lbs)
GAWR (Gross Axle
Weight Rating) Front 1,030 kg (2,271 lbs)
1,052 kg (2,319 lbs)
Rear 882 kg (1,944 lbs) 931 kg (2,052 lbs)
Specifications
Specifications
9-6
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

Without Cylinder Deactivation
ItemWeight
FWD AWD
16 inch wheel vehicle 18 inch wheel vehicle
GVWR (Gross Vehicle Weight
Rating) 1,900 kg (4,189 lbs) 1,921 kg (4,235 lbs) 1,971 kg (4,345 lbs)
GAWR (Gross Axle
Weigh t Rat ing) Front 1,020 kg (2,249 lbs) 1,021 kg (2,251 lbs) 1,044 kg (2,302 lbs)
Rear 883 kg (1,947 lbs) 903 kg (1,991 lbs) 930 kg (2,050 lbs)
Mexico
Item
Weight
GVW (Gross Vehicle Weight) 1,939 kg (4,275 lbs)
▼Air Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the en-
gine compartment. Check the label before recharging the refrigerant.
Refer to Operating Tips on page 5-2.
Item
Specification
Refrigerant Type HFC134a (R-134a)
▼Light Bulbs
Exterior light/Interior light
All the light bulbs are the LED type.
The LED bulb cannot be replaced. We recommend an Authorized Mazda Dealer
when the replacement is necessary.
▼
Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for
tire size and inflation pressure.
Refer to Tire Pressure Label on page 9-2.Refer to Tire Inflation Pressure on page 6-28.
Specifications
Specifications
9-7
CX-30_8HG6-EA-19I_Edition1_new 2019-6-13 18:45:11

Standard tire
(U.S.A. and Canada)
Tire sizeInflation pressure
Front Rear
215/65R16 98H 250 kPa (36 psi)250 kPa (36 psi)
215/55R18 95H 250 kPa (36 psi)250 kPa (36 psi)
(Mexico)
Tire size Inflation pressure
Front Rear
215/65R16 98H 250 kPa (2.5 bar, 36 psi) 250 kPa (2.5 bar, 36 psi)
215/55R18 95H 250 kPa (2.5 bar, 36 psi) 250 kPa (2.5 bar, 36 psi)
Temporary spare tire
(U.S.A. and Canada)
Tire size Inflation pressure
T135/80D17 103M 420 kPa (60 psi)
(Mexico)
Tire sizeInflation pressure
185/65R16 93M
* １320 kPa (3.2 bar, 46 psi)
195/55R17 92M
*2320 kPa (3.2 bar, 46 psi)
*1SKYACTIV-G 2.0*2 SKYACTIV-G 2.5
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12
―14 kgf·m, 80―108 ft·lbf)
▼Fuses
Refer to Fuses on page 6-32.
