qIf the antilock brake system
(ABS) warning light illuminates
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the
battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it
is the result of the weak battery and does not
indicate an ABS malfunction.
Recharge the battery.
qIf the brake system warning light
and the ABS warning light
illuminate simultaneously
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qIf the charging system warning
light illuminates
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-25
CX-5_8CA5-EA-11L_Edition3 Page409
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (417,1)
qIgnition Not Switched Off
(STOP) Warning Beep
If the driver's door is opened while the
ignition is switched to ACC, a continuous
beep sound will be heard and the KEY
warning light (red) flashes to notify the
driver that the ignition has not been
switched off (STOP). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
qKey Removed from Vehicle
Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the key has been
removed. The KEY warning light (red)
will stop flashing when the key is back
inside the vehicle:
The ignition has not been switched off
and all the doors are closed after
removing the key from the vehicle. (A
beep sound will be heard 6 times.)
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
qRequest Switch Inoperable
Warning Beep (With the
advanced keyless function)
If the request switch is pressed under the
following conditions while the key is
being carried, a beep will be heard for
about 2 seconds to indicate that the front
doors and the liftgate can not be locked.
lA door or the liftgate is open (door ajar
included).
lThe ignition has not been switched to
off.
qKey Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all doors locked and
the liftgate closed, a beep sound is heard
for about 10 seconds to remind the driver
the key has been left in the luggage
compartment. If this happens, open the
liftgate by pressing the electric liftgate
opener and remove the key. A key
removed from the luggage compartment
may not function because its functions
may have been temporarily suspended. To
restore the key function, perform the
applicable procedure (page 3-7).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-33
CX-5_8CA5-EA-11L_Edition3 Page417
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (418,1)
qKey Left-in-vehicle Warning Beep
(With the advanced keyless function)
When any door is opened from the
outside while the key is inside the vehicle,
the closed doors are locked and all the
doors are automatically unlocked by
closing the open door. The beep sound is
heard for about 10 seconds to notify the
driver that the key has been left in the
vehicle.
If this happens, the doors and the liftgate
lock but the functions of the key left in the
vehicle cabin may be temporarily
suspended.
Perform the following procedure to
restore the functions of the key (page 3-7).
qTire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds when there is any
abnormality in tire inflation pressures
(page 4-71).
qBlind Spot Monitoring (BSM)
System Warning Beepí
The warning beep operates when the turn
signal lever is operated to the side where
the BSM warning light is illuminated.
NOTE
A personalized function is available to change
the BSM warning beep sound volume. Refer to
Personalization Features on page 9-9.
7-34
If Trouble Arises
íSome models.
Warning/Indicator Lights and Warning Sounds
CX-5_8CA5-EA-11L_Edition3 Page418
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (419,1)

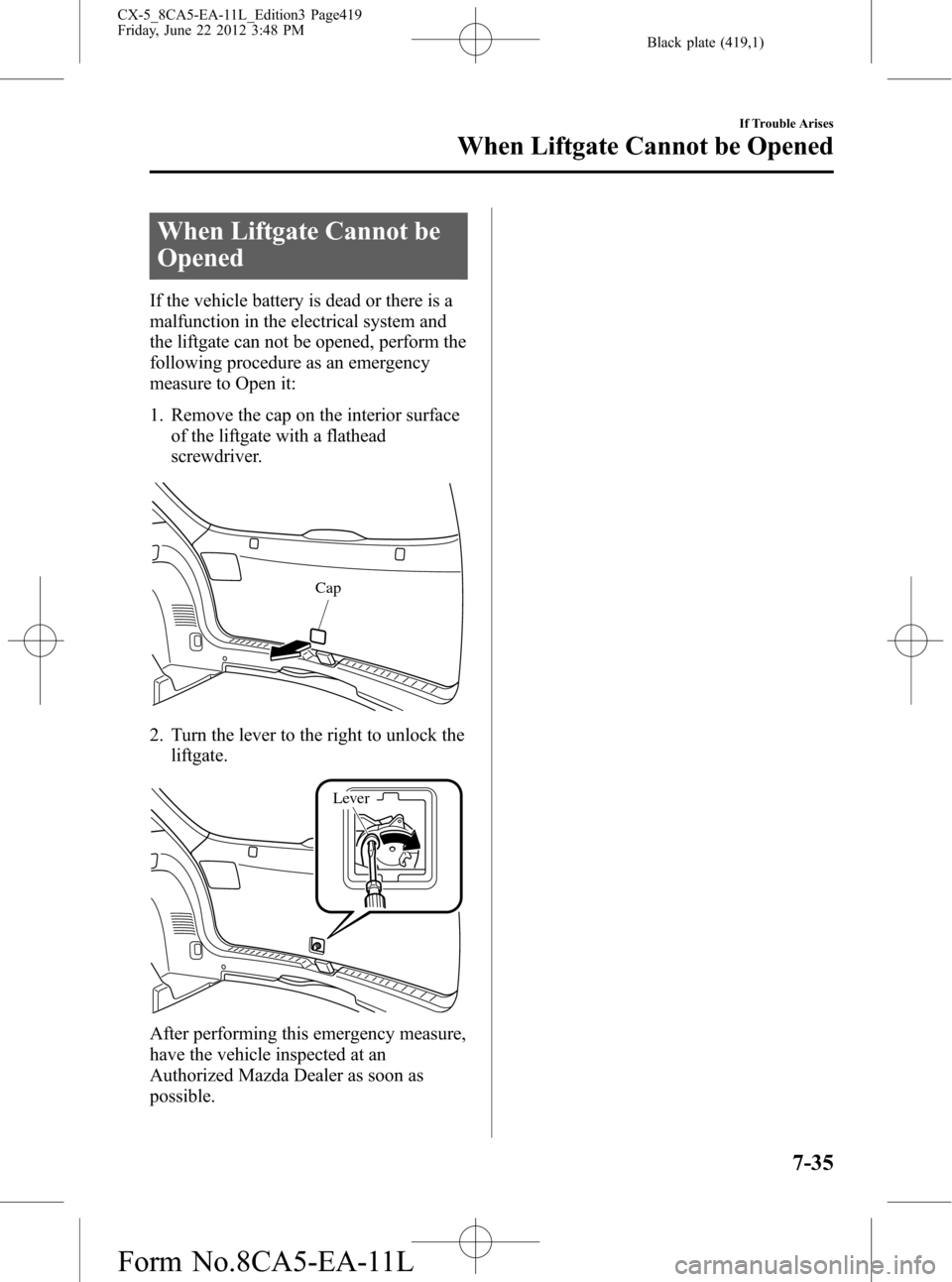

When Liftgate Cannot be
Opened
If the vehicle battery is dead or there is a
malfunction in the electrical system and
the liftgate can not be opened, perform the
following procedure as an emergency
measure to Open it:
1. Remove the cap on the interior surface
of the liftgate with a flathead
screwdriver.
Cap
2. Turn the lever to the right to unlock the
liftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
If Trouble Arises
When Liftgate Cannot be Opened
7-35
CX-5_8CA5-EA-11L_Edition3 Page419
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (479,1)
Personalization Features
For vehicles with audio (On-screen function type), the following function settings can be changed by the customer.
For vehicles without audio (On-screen function type), the following function settings can be changed at an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Items in which the function setting can be changed differ depending on the market and specification.
Item Feature Factory Setting Available Settings
Power door lock
*1Changes the auto lock/unlock function setting
for all the doors according to the vehicle speed,
the vehicle power supply condition, and the
selector lever positionLock: Driving,
Unlock: IGN OffOff/Lock When
Driving/Lock: Shift
From P, Unlock: In
P/Lock When Shifting
Out Of P
Keyless entry systemThe method for unlocking the doors using the
transmitter can be changed
*3Once: Driver's,
Twice: All DoorsTouch Once: All Doors
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed60 seconds 30 seconds/90 seconds
Advanced keyless
entry systemThe volume of the answer-back beep during
advanced keyless entry system operation can be
changed
*3Medium Off/Low/High
The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be changedOff On
The method for unlocking the doors using the
request switch can be changed
*3Once: Driver's,
Twice: All DoorsTouch Once: All Doors
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed60 seconds 30 seconds/90 seconds
Illumination entryThe time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar)30 minutes 60 minutes/10 minutes
The time required for the interior lamp to turn
off automatically after all doors are closed can
be changed15 seconds7.5 seconds/30
seconds/60 seconds
Lane-change signal
(Smart turn)The smart turn function can be changed Off On
Auto-wiper control The auto-wiper control function can be changedOn
(Rain Sensing)Off (Intermittent)
Personalization Features
9-9
CX-5_8CA5-EA-11L_Edition3 Page479
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (480,1)
Item Feature Factory Setting Available Settings
Auto headlight off
*2The time required for headlights to turn off
after ignition is switched off can be changed30 seconds0 seconds/60
seconds/90
seconds/120 seconds
Auto-light controlThe headlight illumination on/off timing based
on surrounding lightness/darkness can be
changedMediumLight/Medium
Light/Medium
Dark/Dark
For the function setting procedure, Refer to Setup on page 5-55.
*1 Setting changes using the door-lock switch can also be done. Refer to Auto Lock/Unlock Function on page
3-15.
*2 If the setting is changed to 0 seconds, the following operation is performed according to the headlight switch
position:
lAtposition: Headlights turn off immediately after the ignition is switched off.lAt any position other than: Headlights do not turn off after the ignition is switched off.
*3 Settings can be changed using the transmitter button. For the changing procedure, Refer to Locking, Unlocking
with Request Switch (With the advanced keyless function) on page 3-12.
The following“Personalization Features”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Turn indicatorThe turn indicator beep volume level can be
changedHigh Low
Lights-on reminderThe volume of the lights-on reminder warning
alarm can be changedHigh Low/Off
Blind Spot
Monitoring (BSM)
systemThe volume of the BSM warning beep can be
changedHigh Low/Off
Daytime running
lightsThe function of the daytime running lights can
be changedOn Off
9-10
Personalization Features
CX-5_8CA5-EA-11L_Edition3 Page480
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (482,1)
A
Accessory Socket .............................. 5-99
Adaptive Front Lighting System
(AFS) ................................................ 4-44
Add-On Non-Genuine Parts and
Accessories ....................................... 8-20
Advanced Key
Operational range ....................... 3-10
Advanced Keyless Entry System ........ 3-9
Air Bag Systems ............................... 2-38
All-Wheel Drive
(AWD) Operation ............................. 4-65
Ambient Temperature Display .......... 4-12
Antilock Brake System (ABS) .......... 4-62
Audio Control Switch
Adjusting the Volume ................ 5-57
Mute Switch ............................... 5-57
Seek Switch ................................ 5-57
Audio System
Antenna ...................................... 5-13
Audio Control Switch ................ 5-56
Audio Set (Type A) .................... 5-25
Audio Set (Type B) .................... 5-35
AUX/USB/iPod mode ................ 5-58
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-44
Automatic Transaxle
Driving tips ................................ 4-39
Manual shift mode ..................... 4-36
Shift-lock override ..................... 4-35
Shift-lock system ....................... 4-35
Transaxle ranges ........................ 4-34
B
Battery ............................................... 6-31
Maintenance ............................... 6-32
Specifications ............................... 9-4
B
Battery runs out ................................. 7-14
Jump-Starting ............................. 7-14
Beep Sounds
Air bag/front seat belt pretensioner
system warning .......................... 7-32
Blind spot monitoring
(BSM) system warning .............. 7-34
Ignition not switched off
(STOP) warning ......................... 7-33
Key left-in-luggage compartment
warning ...................................... 7-33
Key left-in-vehicle warning ....... 7-34
Key removed from vehicle
warning ...................................... 7-33
Lights-on reminder ..................... 7-32
Request switch inoperable
warning ...................................... 7-33
Seat belt warning ........................ 7-32
Tire inflation pressure warning ... 7-34
Blind Spot Monitoring
(BSM) System .................................. 4-75
BSM OFF switch ....................... 4-78
BSM warning light ..................... 4-77
Care of radar sensors .................. 4-78
Bluetooth® ....................................... 5-77
Bluetooth® Audio ...................... 5-88
Bluetooth® Hands-Free ............. 5-83
Troubleshooting ......................... 5-91
Body Lubrication .............................. 6-27
Bottle Holder ................................... 5-102
Brakes
Brakes assist ............................... 4-59
Foot brake .................................. 4-57
Pad wear indicator ...................... 4-59
Parking brake ............................. 4-58
Break-In ............................................ 3-39
10-2
Index
CX-5_8CA5-EA-11L_Edition3 Page482
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (483,1)
C
Capacities ............................................ 9-5
Carbon Monoxide ............................. 3-23
Cargo Securing Loops .................... 5-103
Cell Phones ....................................... 8-21
Center Console ................................ 5-103
Child Restraint
Child-restraint system installation
position ...................................... 2-27
Installing child-restraint
systems ....................................... 2-28
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-18
Climate Control System ...................... 5-2
Fully Automatic Type .................. 5-9
Gas specifications ........................ 9-6
Manual Type ................................ 5-5
Operating Tips .............................. 5-2
Vent Operation ............................. 5-3
Clock ................................................. 5-98
Cruise Control ................................... 4-68
Cup Holder ...................................... 5-101
Customer Assistance ........................... 8-2
D
Dashboard Illumination .................... 4-11
Daytime Running Lights ................... 4-45
Defroster
Mirror ......................................... 4-52
Rear window .............................. 4-51
Dimensions ......................................... 9-5
Door Locks ....................................... 3-11
Driving In Flooded Area ................... 3-43
Driving on Uneven Road .................. 3-44
D
Driving Tips ...................................... 3-39
Automatic transaxle ................... 4-39
Break-in ..................................... 3-39
Driving in flooded area .............. 3-43
Driving on uneven road ............. 3-44
Floor mat .................................... 3-40
Hazardous driving ...................... 3-40
Money-saving suggestions ......... 3-39
Overloading ............................... 3-43
Rocking the vehicle .................... 3-41
Winter driving ............................ 3-41
Dynamic Stability Control (DSC) ..... 4-64
E
Emergency Starting
Push-Starting .............................. 7-17
Starting a Flooded Engine .......... 7-17
Emergency Towing
Tiedown Hooks .......................... 7-21
Towing Description .................... 7-20
Emission Control System .................. 3-22
Engine
Coolant ....................................... 6-23
Engine Compartment
Overview .................................... 6-20
Exhaust gas ................................ 3-23
Hood release .............................. 6-18
Oil .............................................. 6-21
Starting ......................................... 4-3
Essential information .......................... 6-2
Event Data Recorder ......................... 8-22
Exhaust Gas ...................................... 3-23
Index
10-3
CX-5_8CA5-EA-11L_Edition3 Page483
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L

Black plate (486,1)
P
Parking Brake ................................... 4-58
Personalization Features ..................... 9-9
Power Steering .................................. 4-67
Power Windows ................................ 3-30
R
Rear Coat Hooks ............................. 5-104
Rear Door Child Safety Locks .......... 3-18
Rear Seat ............................................. 2-7
Rear View Monitor ........................... 4-79
Rear Window Defroster .................... 4-51
Rear Window Washer ....................... 4-51
Rear Window Wiper .......................... 4-51
Rearview Mirror ................................ 3-28
Recommended Oil ............................ 6-21
Recreational Towing ......................... 7-23
Registering Your Vehicle in A Foreign
Country ............................................. 8-19
Replacement
Electrical battery ......................... 6-33
Fuse ............................................ 6-49
Light Bulbs ................................ 6-40
Tires ........................................... 6-37
Wheel ......................................... 6-38
Wiper .......................................... 6-27
Rocking the Vehicle .......................... 3-41
S
Safety Defects, Reporting ................. 8-15
Satellite Radio ................................... 5-44
Scheduled Maintenance ...................... 6-4
S
Seat Belt System
3-point type ................................ 2-16
Automatic locking ...................... 2-15
Emergency locking .................... 2-15
Extender ..................................... 2-20
Pregnant women ........................ 2-15
Seats
Front seat ...................................... 2-4
Head restraint ............................. 2-11
Rear seat ....................................... 2-7
Seat warmer .................................. 2-6
Security System
Immobilizer system .................... 3-35
Theft-deterrent system ............... 3-37
Service Publications .......................... 8-49
Spare Tire ............................................ 7-5
Specifications ...................................... 9-4
Speedometer ...................................... 4-10
SRS Air Bags
Driver and front passenger occupant
classification system .................. 2-53
How the SRS air bags work ....... 2-46
Limitations to SRS air bag ......... 2-51
Monitoring ................................. 2-59
SRS air bag deployment
criteria ........................................ 2-50
Supplemental restraint system
components ................................ 2-45
Starting the Engine .............................. 4-3
Steering Wheel .................................. 3-26
Horn ........................................... 4-52
Storage Compartments .................... 5-102
Cargo securing loops ................ 5-103
Center console .......................... 5-103
Glove compartment .................. 5-103
Luggage Compartment ............. 5-104
Overhead console ..................... 5-102
Rear coat hooks ........................ 5-104
10-6
Index
CX-5_8CA5-EA-11L_Edition3 Page486
Friday, June 22 2012 3:48 PM
Form No.8CA5-EA-11L
