Black plate (365,1)
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight back out of the
socket.
7. Install the new bulb in the reverse order
of the removal procedure.
Side-turn signal lights
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
Brake lights/Taillights, Rear turn signal
lights, Rear side-marker lights,
Taillights (Liftgate side), Reverse lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover with a cloth-
wrapped flathead screwdriver to the
cover.Brake lights/Taillights, Rear turn signal
lights, Rear side-marker lights
Taillights (Liftgate side), Reverse lights
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Maintenance and Care
Owner Maintenance
6-45
CX-5_8CA5-EA-11L_Edition3 Page365
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (366,1)
Brake lights/Taillights
Rear turn signal lights
Rear side-marker lights
Taillights (Liftgate side)
Reverse lights
5. Install the new bulb in the reverse order
of the removal procedure.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
6-46
Maintenance and Care
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page366
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (367,1)

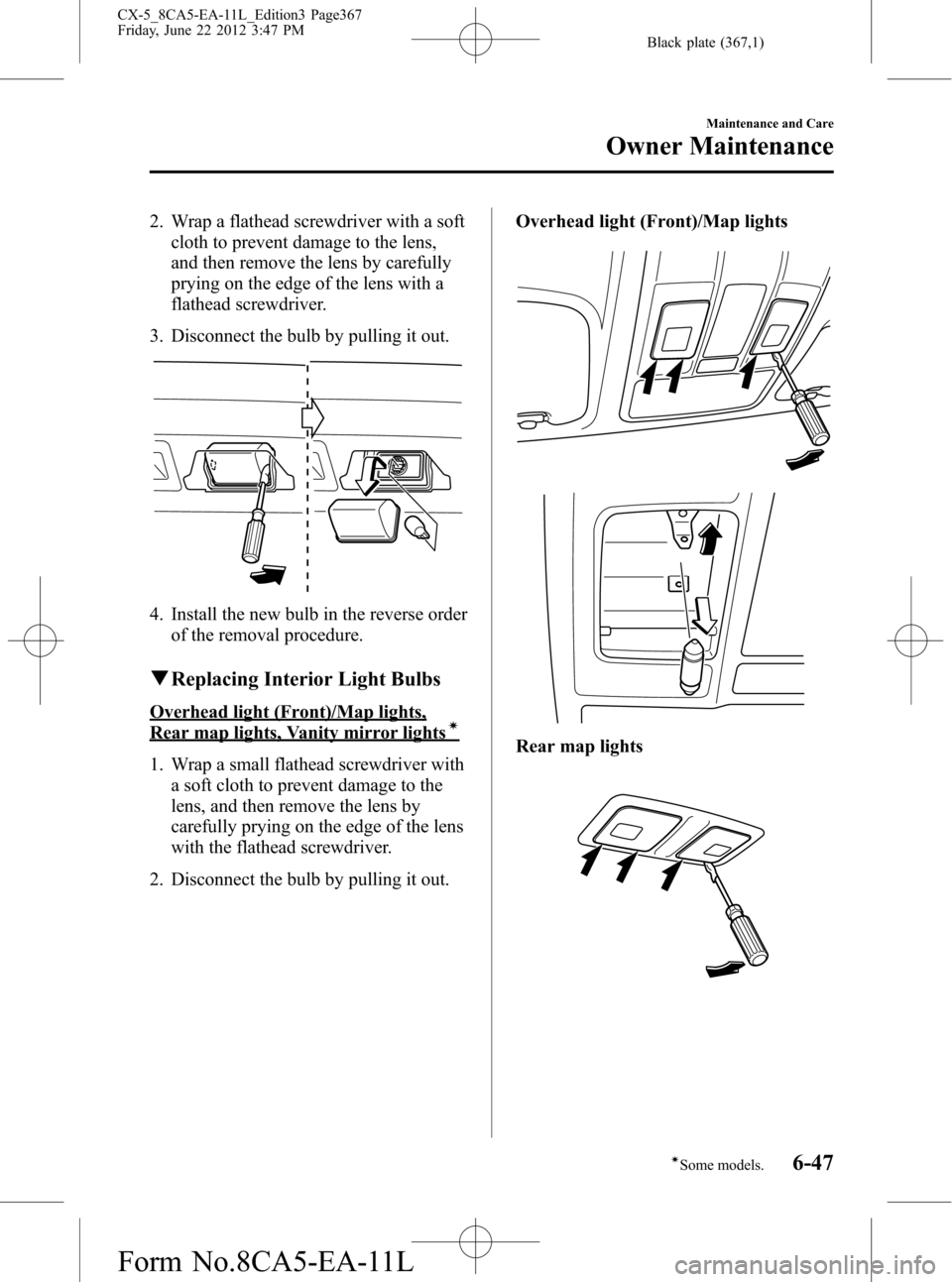

2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of the removal procedure.
qReplacing Interior Light Bulbs
Overhead light (Front)/Map lights,
Rear map lights, Vanity mirror lightsí
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.Overhead light (Front)/Map lightsRear map lights
Maintenance and Care
Owner Maintenance
6-47íSome models. CX-5_8CA5-EA-11L_Edition3 Page367
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (368,1)

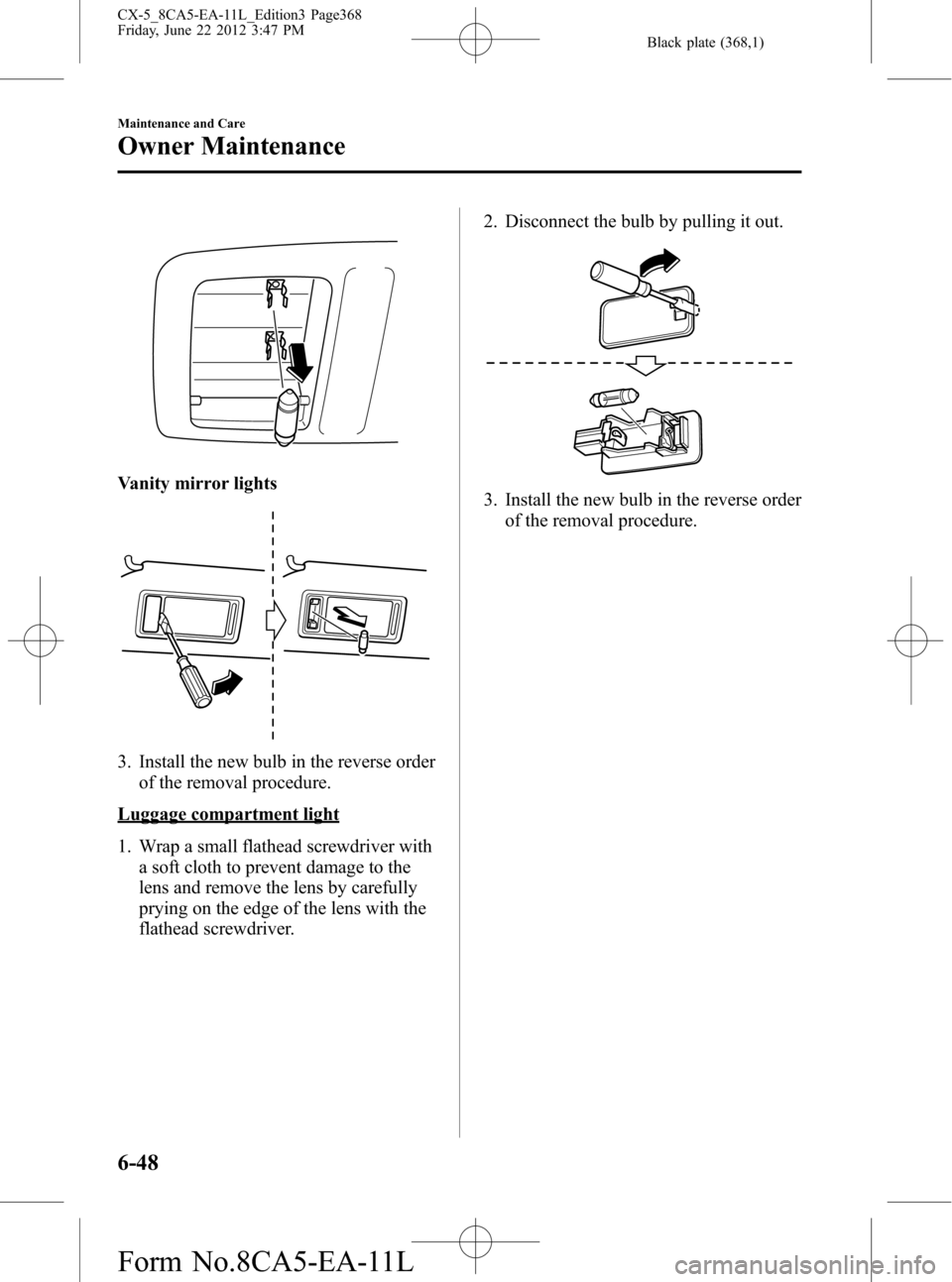

Vanity mirror lights
3. Install the new bulb in the reverse order
of the removal procedure.
Luggage compartment light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of the removal procedure.
6-48
Maintenance and Care
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page368
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (369,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
NormalBlown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
Maintenance and Care
Owner Maintenance
6-49
CX-5_8CA5-EA-11L_Edition3 Page369
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (370,1)
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that
it is securely installed.
6-50
Maintenance and Care
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page370
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (372,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 DCDC REG――
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG1 15 A For protection of various circuits
23H/L LOW L
HID L15 A Headlight (LH)
*1, Headlight low beam (LH)*2
24 H/L LOW R 15 A Headlight low beam (RH)*2
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 A Engine control system
28 AT 15 A Transaxle control system
29 H/CLEAN――
30 A/C 7.5 A Air conditioner
31 AT PUMP――
32 STOP 10 A Brake lights
33 R.WIPER 15 A Rear window wiper
34 H/L HI 20 A Headlight high beam
*2
35 HID R 15 A Headlight (RH)*1
36 FOG 15 A Fog lightsí
377.5 A Engine control system
38 AUDIO2 7.5 A Audio system
39―― ―
40 METER2――
41 METER1 10 A Instrument cluster
42 SRS1 7.5 A Air bag
43 BOSE 25 A Bose
®Sound System-equipped model
44 AUDIO1 15 A Audio system
45 ABS/DSC S 30 A ABS, Dynamic stability control system
46 FUEL PUMP 15 A Fuel system
47 FUEL WARM――
48 TAIL 15 A Taillights, License plate lights
49―― ―
50 HAZARD 25 AHazard warning flashers, Turn signal lights, Parking lights
(Front side-marker lights)
51 DRL 15 A Daytime running lights
í
52 R.OUTLET2 15 A Accessory sockets
6-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page372
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (373,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
53 HORN 15 A Horn
54 ROOM 15 A Overhead light
*1 With xenon fusion headlights
*2 With halogen headlights
Fuse block (Left side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
í
2 P.WINDOW3――
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5 SRS2/ESCL 15 A Seat weight sensor
í
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmerí
8 SUNROOF 10 A Moonroofí
9 F.OUTLET 15 A Accessory sockets
10 MIRROR 7.5 A Power control mirror
11 R.OUTLET1――
12―― ―
Maintenance and Care
Owner Maintenance
6-53íSome models. CX-5_8CA5-EA-11L_Edition3 Page373
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (378,1)
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
When using a high water pressure car
wash
High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts,
and allow water to penetrate the interior.
Keep a sufficient space (30 cm or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.2. Use a good grade of natural wax for
metallic, mica, and solid colors.
3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and similar
materials will usually also take off the wax.
Rewax these areas even if the rest of the
vehicle does not need it.
qRepairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced,
make sure the body shop applies
anti-corrosion materials to all parts,
both repaired and new. This will
prevent them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
6-58
Maintenance and Care
Appearance Care
CX-5_8CA5-EA-11L_Edition3 Page378
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L

Black plate (379,1)

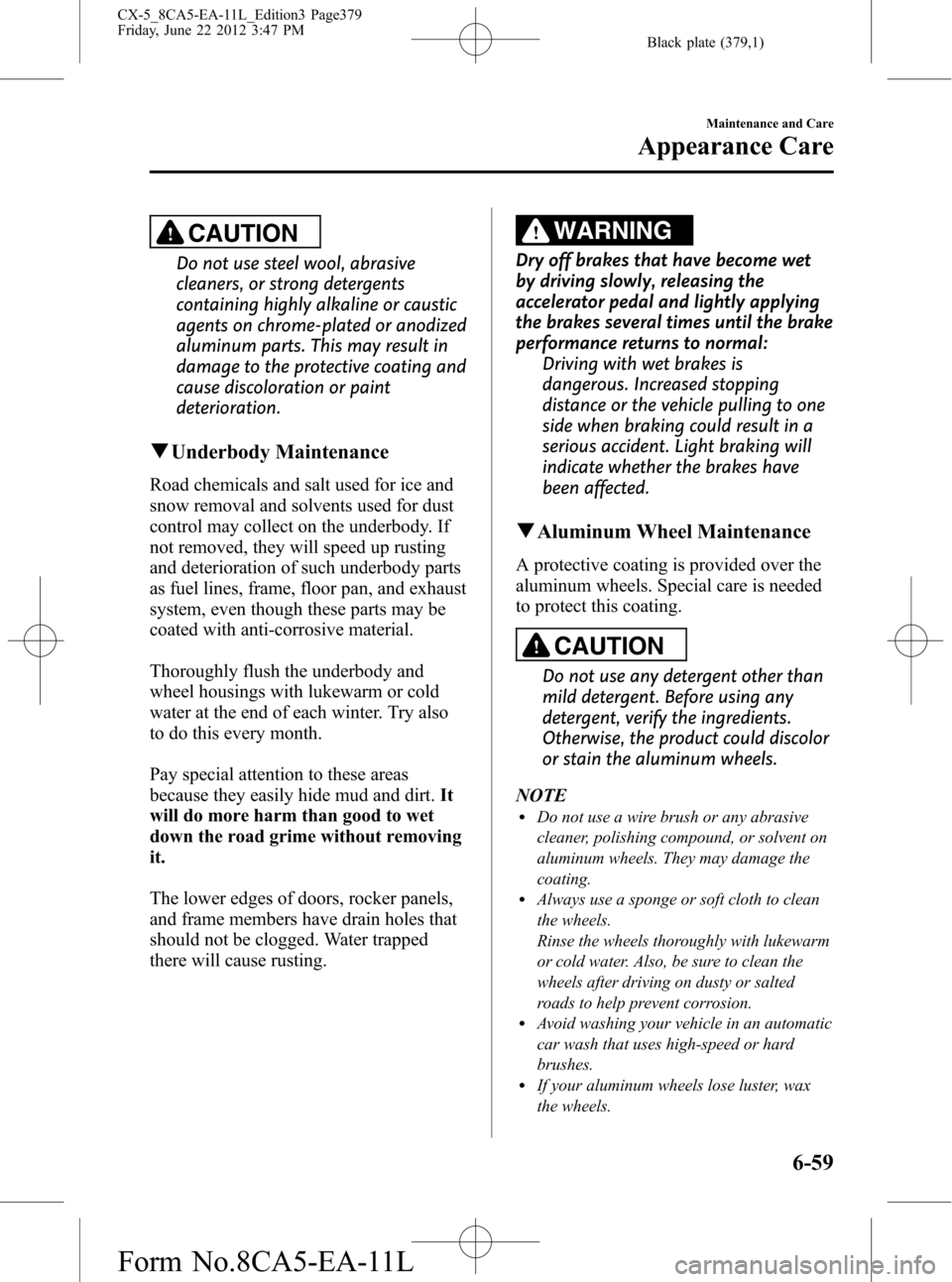

CAUTION
Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating and
cause discoloration or paint
deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt.It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.
NOTE
lDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
Maintenance and Care
Appearance Care
6-59
CX-5_8CA5-EA-11L_Edition3 Page379
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L
