Page 227 of 488

Black plate (227,1)
Antennaí
qType A
The antenna is incorporated into the
window glass.
CAUTION
When washing the inside of the
window which has an antenna, use a
soft cloth dampened in lukewarm
water, gently wiping the antenna
lines.
Use of glass cleaning products could
damage the antenna.
qType B
Operating Tips for Audio
System
WARNING
Always adjust the audio while the
vehicle is stopped:
Do not adjust the audio control
switches while driving the vehicle.
Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the
vehicle operation which could lead to
a serious accident.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
For the purposes of safe driving,
adjust the audio volume to a level
that allows you to hear sounds
outside of the vehicle including car
horns and particularly emergency
vehicle sirens.
NOTE
lTo prevent the battery from being
discharged, do not leave the audio system
on for a long period of time when the
engine is not running.
lIf a cellular phone or CB radio is used in
or near the vehicle, it could cause noise to
occur from the audio system, however, this
does not indicate that the system has been
damaged.
Interior Features
Audio System
5-13íSome models. CX-5_8CA5-EA-11L_Edition3 Page227
Friday, June 22 2012 3:46 PM
Form No.8CA5-EA-11L
Page 234 of 488

Black plate (234,1)
Multi-session
A session is the complete amount of data
recorded from the beginning to the end of
a single period of CD-ROM, CD-R/CD-
RW data recording. Multi-session refers to
the existence of data from two or more
sessions on a single disc.
Sampling
Refers to the process of encoding analog
audio data at regular intervals and
converting it to digital data. The sampling
rate refers to the number of times a
sample is taken in one second and is
expressed in Hz units. Increasing the
sampling rate improves the sound quality
but also increases the data size.
Bit rate
Refers to the volume of data per second,
expressed in bps (bits per second).
Generally, the larger the number of the
transfer bit rate when compressing an
MP3 file, the more information regarding
musical reproduction it carries, and
therefore the better the sound quality.
Packet writing
A general term for the method, similar to
that used for floppy discs or hard drives,
of recording the required file in a single
increment on a CD-R and similar.
ID3 Tag
ID3 tag is a method for storing
information related to the music in an
MP3 file. Information such as track, artist
and album name can be stored. This
content can be freely edited using ID3
editing function software.VBR
Abbreviation for Variable Bit Rate. While
CBR (Constant Bit Rate) is generally
used, VBR varies the bit rate for audio
compression according to compression
conditions and this allows for
compression with preference given to
sound quality.
qOperating Tips for WMA
WMA is short for Windows Media Audio
and is the audio compression format used
by Microsoft.
Audio data can be created and stored at a
higher compression ratio than MP3.
* Microsoft and Windows Media are
registered trademarks of Microsoft
Corporation U.S. in the United States
and other countries.
Playable WMA files are as follows:
Item Content
Audio Type Type A Type B
SpecificationWindows
Media Audio
Version 7.0,
8.0, 9.0
(standard), 10.0
(standard)Ver 9.0
standard (L1)
Sampling rate 32/44.1/48 kHz
Bit rate 32―320 kbps
CAUTION
This unit plays files with the (.wma)
file extension as a WMA file. Do not
use the WMA file extension for files
other than WMA files. Otherwise, it
could result in noise or a
malfunction.
5-20
Interior Features
Audio System
CX-5_8CA5-EA-11L_Edition3 Page234
Friday, June 22 2012 3:46 PM
Form No.8CA5-EA-11L
Page 236 of 488

Black plate (236,1)
qOperating Tips for USB memory
This unit supports playback of MP3/
WMA/AAC files recorded to USB
memory.
NOTE
lMusic data (MP3/WMA/AAC (.m4a)
format) stored in a USB mass-storage class
compliant device (such as USB flash
memory) can be played.
lPlayback may not possible depending on
the type and condition of the USB flash
memory even if the audio file complies with
the standard above.
lA copyright protected WMA/AAC file
cannot be played in this unit.
lThe order of the music data stored in the
device may differ from the playback order.
lTo prevent loss or damage of stored data,
we recommend that you always back up
your data.
lIf a device exceeds the maximum electric
current value of 500mA, if may not operate
and recharge when connected.
lInsert or pull out the USB memory without
accessing the USB memory (while in FM/
AM radio or CD mode).
lIf access to the data in the device is
restricted because it is password protected,
the device will no operate.
Playable MP3 file specifications
Playable MP3 files are as follows:
Item Content
SpecificationMPEG1 AUDIO LAYER III
MPEG2 AUDIO LAYER III
MPEG2.5
Sampling rate44.1/48/32 kHz (MPEG1)
22.05/24/16 kHz (MPEG2)
11.025/12/8 kHz (MPEG2.5)
Bit rate32―320 kbps (MPEG1)
8―160 kbps (MPEG2)
8―160 kbps (MPEG2.5)
CAUTION
This unit plays files with the file
extension (mp3) as an MP3 file. Do
not use the MP3 file extension for
files other than MP3 files. Otherwise,
it could result in noise or a
malfunction.
lMP3 files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.
lThe file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension“
.mp3”to the end of the file name, and
then write it to the memory.
Playable WMA file specification
Playable WMA files are as follows:
Item Content
Audio Type Type A Type B
SpecificationWindows
Media Audio
Version 7.0,
8.0, 9.0
(standard)Windows
Media Audio
Version 9.0
(standard)
Sampling rate8/11.025 kHz
(LOW)
16/22.05 kHz
(MID)
44.1/48/32 kHz
(HI)22.05 kHz
(MID)
44.1/48/32 kHz
(HI)
Bit rate 32―320 kbps
CAUTION
This unit plays files with the file
extension (wma) as a WMA file. Do
not use the WMA file extension for
files other than WMA files.
Otherwise, it could result in noise or
a malfunction.
5-22
Interior Features
Audio System
CX-5_8CA5-EA-11L_Edition3 Page236
Friday, June 22 2012 3:46 PM
Form No.8CA5-EA-11L
Page 296 of 488

Black plate (296,1)
NOTElThe Bluetooth®Hands-Free system is
operable several seconds after the ignition
is switched to ACC or ON (requires less
than 15 seconds).
lWhen operating the audio unit or the A/C
while using Bluetooth®Hands-Free, the
beep sounds or voice guidance (audio unit)/
cannot be heard.
Tutorial
The tutorial explains how to use
Bluetooth
®Hands-Free.
To activate the tutorial, do the following:
1. Press the talk button.
2.Prompt:“Ready”
3.Say:[Beep]“Tutorial”
4. Follow the prompts to receive the
appropriate voice guidance
instructions.
Commands useable anytime during
voice recognition
“Help”,“Go Back”,“Cancel”,“Display
OFF/Display ON”are commands which
can be used at anytime during voice
recognition.
Help function use
The help function informs the user of all
the available voice commands under the
current conditions.
1.Say:[Beep]“Help”
2. Follow the prompts to receive the
appropriate voice guidance
instructions.
Returning to previous operation
This command is for returning to the
previous operation while in the voice
recognition mode.Say: [Beep]“Go Back”
Cancel
The Bluetooth
®Hands-Free system
transitions to standby status if the
following operation is performed while
the system is activating.
Say: [Beep]“Cancel”
Display OFF/Display ON
The audio unit display can be switched
off/on by voice recognition operation.
Say:[Beep]“Display OFF”(or“Display
ON”)
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:
lThe Hands-free system cannot perform
voice recognition while voice guidance
or a beep sound is operating. Wait until
the voice guidance or the beep sound is
finished before saying your commands.
lDialects or different wording other than
Hands-Free prompts cannot be
recognized by voice recognition. Speak
in the wording specified by the voice
commands.
lIt is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
lDo not speak too slow or too loud.lSpeak clearly, without pausing between
words or numbers.
lClose the windows and/or the
moonroof to reduce loud noises from
outside the vehicle, or turn down the
airflow of the air-conditioning system
while Bluetooth
®Hands-Free is being
used.
lMake sure the vents are not directing
air towards the microphone.
5-82
Interior Features
Bluetooth®
CX-5_8CA5-EA-11L_Edition3 Page296
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L
Page 347 of 488

Black plate (347,1)
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Wiper Blades
CAUTION
ØHot waxes applied by automatic
car washers have been known to
affect the wiper's ability to clean
windows.
ØTo prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with
a hand or other object.
ØIf the rain sensor is struck with
a hand or other object from
inside the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When
washing or servicing your Mazda,
make sure the wiper lever is in the
OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Maintenance and Care
Owner Maintenance
6-27
CX-5_8CA5-EA-11L_Edition3 Page347
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L
Page 349 of 488

Black plate (349,1)

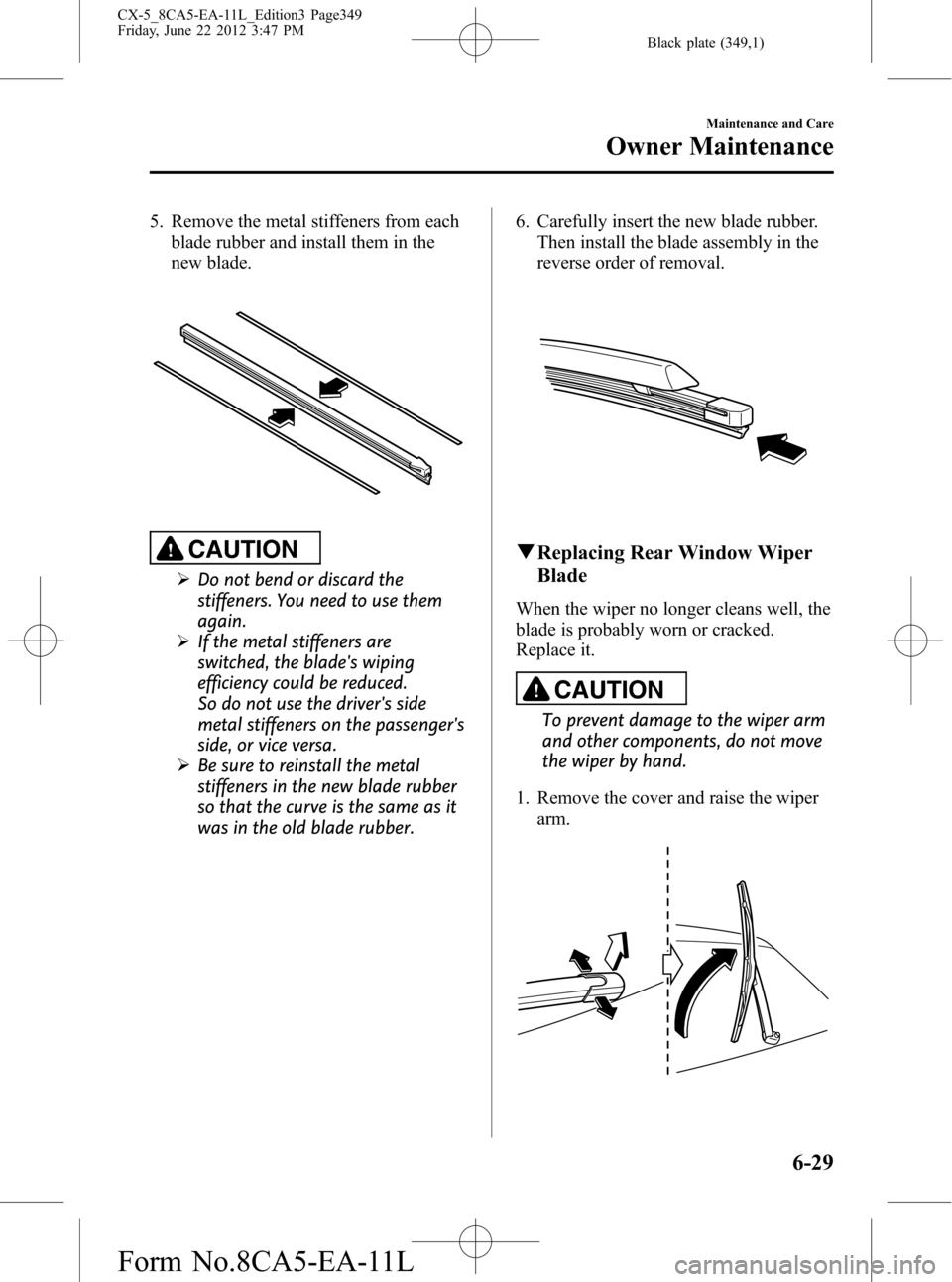

5. Remove the metal stiffeners from each
blade rubber and install them in the
new blade.
CAUTION
ØDo not bend or discard the
stiffeners. You need to use them
again.
ØIf the metal stiffeners are
switched, the blade's wiping
efficiency could be reduced.
So do not use the driver's side
metal stiffeners on the passenger's
side, or vice versa.
ØBe sure to reinstall the metal
stiffeners in the new blade rubber
so that the curve is the same as it
was in the old blade rubber.6. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
qReplacing Rear Window Wiper
Blade
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm
and other components, do not move
the wiper by hand.
1. Remove the cover and raise the wiper
arm.
Maintenance and Care
Owner Maintenance
6-29
CX-5_8CA5-EA-11L_Edition3 Page349
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L
Page 350 of 488

Black plate (350,1)
2. Firmly rotate the wiper blade to the
right until it unlocks, then remove the
blade.
CAUTION
To prevent damage to the rear
window, do not let the wiper arm fall
on it.
3. Pull down the blade rubber and slide it
out of the blade holder.
4. Remove the metal stiffeners from the
blade rubber and install them in the
new blade.
CAUTION
Do not bend or discard the stiffeners.
You need to use them again.
5. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
6-30
Maintenance and Care
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page350
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L
Page 371 of 488

Black plate (371,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 ADD FAN GE 30 A Cooling fan
2 IG2 30 A For protection of various circuits
3 INJECTOR 30 A Engine control system
4 FAN DE――
5 P.WINDOW1 30 A Power windows
6―― ―
7 ADD FAN DE――
8 EVVT 20 A Engine control system
9 DEFOG 40 A Rear window defroster
10 DCDC DE――
11 FAN GE 30 A Cooling fan
12―― ―
13―― ―
14―― ―
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17
50 A For protection of various circuits
Maintenance and Care
Owner Maintenance
6-51
CX-5_8CA5-EA-11L_Edition3 Page371
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L
Page 372 of 488

Black plate (372,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 DCDC REG――
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG1 15 A For protection of various circuits
23H/L LOW L
HID L15 A Headlight (LH)
*1, Headlight low beam (LH)*2
24 H/L LOW R 15 A Headlight low beam (RH)*2
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 A Engine control system
28 AT 15 A Transaxle control system
29 H/CLEAN――
30 A/C 7.5 A Air conditioner
31 AT PUMP――
32 STOP 10 A Brake lights
33 R.WIPER 15 A Rear window wiper
34 H/L HI 20 A Headlight high beam
*2
35 HID R 15 A Headlight (RH)*1
36 FOG 15 A Fog lightsí
377.5 A Engine control system
38 AUDIO2 7.5 A Audio system
39―― ―
40 METER2――
41 METER1 10 A Instrument cluster
42 SRS1 7.5 A Air bag
43 BOSE 25 A Bose
®Sound System-equipped model
44 AUDIO1 15 A Audio system
45 ABS/DSC S 30 A ABS, Dynamic stability control system
46 FUEL PUMP 15 A Fuel system
47 FUEL WARM――
48 TAIL 15 A Taillights, License plate lights
49―― ―
50 HAZARD 25 AHazard warning flashers, Turn signal lights, Parking lights
(Front side-marker lights)
51 DRL 15 A Daytime running lights
í
52 R.OUTLET2 15 A Accessory sockets
6-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-5_8CA5-EA-11L_Edition3 Page372
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L
Page 373 of 488

Black plate (373,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
53 HORN 15 A Horn
54 ROOM 15 A Overhead light
*1 With xenon fusion headlights
*2 With halogen headlights
Fuse block (Left side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
í
2 P.WINDOW3――
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5 SRS2/ESCL 15 A Seat weight sensor
í
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmerí
8 SUNROOF 10 A Moonroofí
9 F.OUTLET 15 A Accessory sockets
10 MIRROR 7.5 A Power control mirror
11 R.OUTLET1――
12―― ―
Maintenance and Care
Owner Maintenance
6-53íSome models. CX-5_8CA5-EA-11L_Edition3 Page373
Friday, June 22 2012 3:47 PM
Form No.8CA5-EA-11L
