Clock
The time is displayed when the ignition is
switched to ACC or ON.
With Fully Automatic Type Climate
Control System
Clock
With Manual Type Climate Control
System
Clock
Time setting
1. Switch the ignition ACC or ON.
2. Adjust the time using the time setting
buttons (
,).
The hours advance while the time
setting button (
) is pressed.
The minutes advance while the time
setting button (
) is pressed.
Time resetting
1. Switch the ignition to ACC or ON.
2. Press the :00 button.
3. When the button is pressed, the time
will be reset as follows:
(Example)
12:01―12:29→12:00
12:30―12:59→1:00
NOTE
When the :00 button is pressed, the seconds
will start at“00”.
Interior Features
Interior Equipment
5-113
CX-5_8CT5-EA-12K_Edition1 Page351
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (352,1)
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.
Center, Rear
The accessory sockets can be used
regardless of whether the ignition is on or
off.
5-114
Interior Features
Interior Equipment
CX-5_8CT5-EA-12K_Edition1 Page352
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (353,1)
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØDo not insert the cigarette
lighter into the accessory
socket.
ØNoise may occur on the audio
playback depending on the device
connected to the accessory socket.
ØDepending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord through
the cutout of the console and insert the
plug into the accessory socket.
Plug
Interior Features
Interior Equipment
5-115
CX-5_8CT5-EA-12K_Edition1 Page353
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (354,1)
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
qFront
qRearí
The rear cup holder is on the rear center
armrest.
5-116
Interior Features
íSome models.
Interior Equipment
CX-5_8CT5-EA-12K_Edition1 Page354
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (355,1)
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
Interior Features
Interior Equipment
5-117
CX-5_8CT5-EA-12K_Edition1 Page355
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (356,1)
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
qCenter Console
To open, pull the release latch.
Storage tray
The storage tray can be removed.
Storage tray
qCargo Securing Loops
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
5-118
Interior Features
Interior Equipment
CX-5_8CT5-EA-12K_Edition1 Page356
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (357,1)
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
qLuggage Compartment
Golf bags can be carried in the luggage
compartment.
Up to four golf bags can be carried in the
luggage compartment.Place each of the first three golf bags into
the luggage compartment with the bottom
of each bag pointed to the right, and then
set the top of each bag so that it is pointed
to the left.Place the fourth golf bag with its top
pointed to the left, and then set the bottom
of the bag so that it is pointed to the right.
Interior Features
Interior Equipment
5-119
CX-5_8CT5-EA-12K_Edition1 Page357
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (358,1)

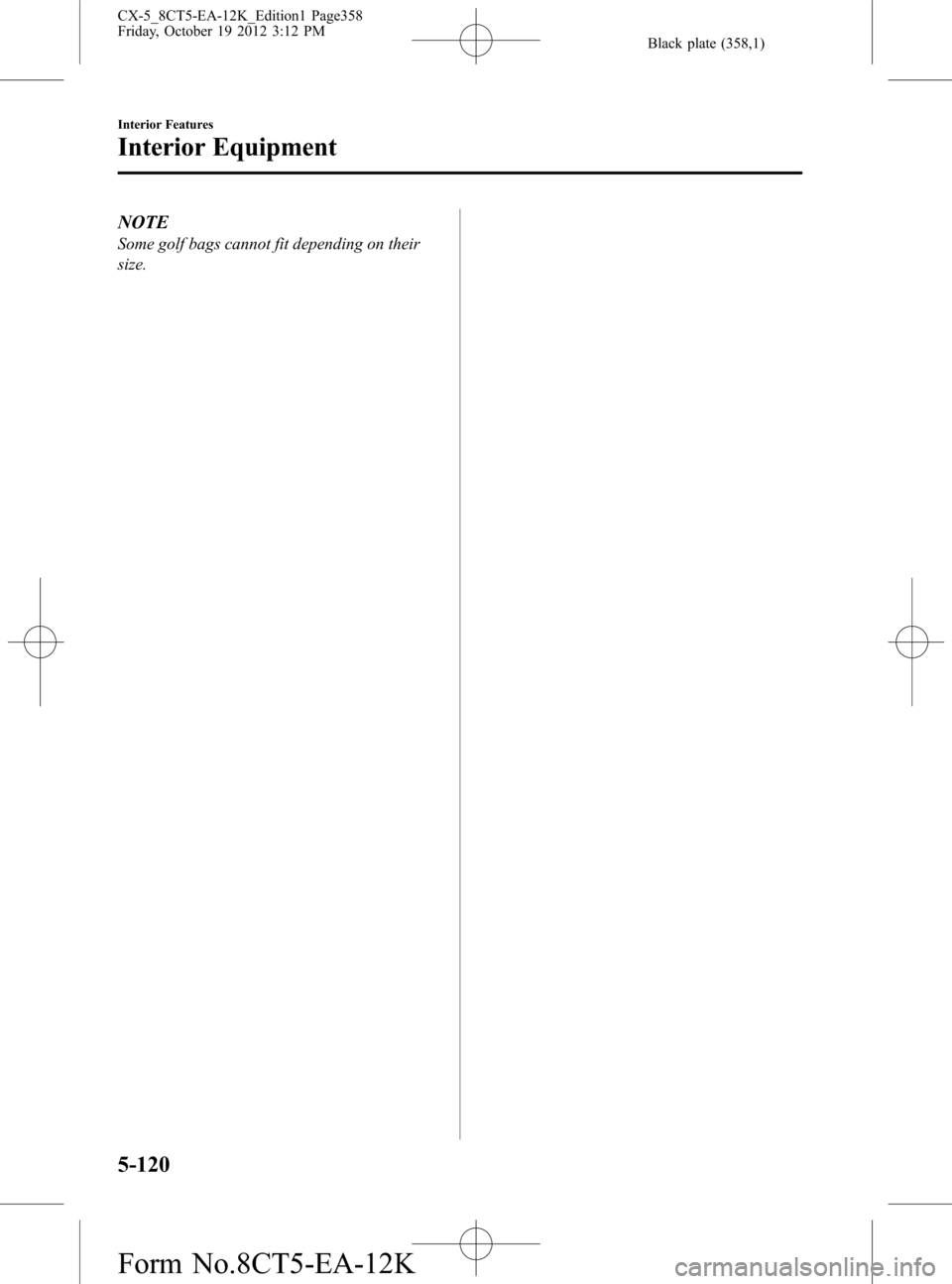

NOTE
Some golf bags cannot fit depending on their
size.
5-120
Interior Features
Interior Equipment
CX-5_8CT5-EA-12K_Edition1 Page358
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (359,1)
6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information ................................................................... 6-2
Introduction ............................................................................... 6-2
Scheduled Maintenance ................................................................ 6-4
Scheduled Maintenance (U.S.A., Canada, and Puerto Rico) .... 6-4
Scheduled Maintenance (Mexico) ............................................. 6-9
Owner Maintenance ................................................................... 6-16
Owner Maintenance Precautions ............................................. 6-16
Hood ....................................................................................... 6-18
Engine Compartment Overview .............................................. 6-20
Engine Oil ............................................................................... 6-21
Engine Coolant ....................................................................... 6-23
Brake/Clutch Fluid .................................................................. 6-25
Washer Fluid ........................................................................... 6-26
Body Lubrication .................................................................... 6-27
Wiper Blades ........................................................................... 6-27
Battery ..................................................................................... 6-31
Replace Electrical Battery ....................................................... 6-33
Tires ........................................................................................ 6-35
Light Bulbs ............................................................................. 6-40
Fuses ....................................................................................... 6-49
Appearance Care ........................................................................ 6-56
Exterior Care ........................................................................... 6-56
Interior Care ............................................................................ 6-61
6-1
CX-5_8CT5-EA-12K_Edition1 Page359
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (360,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in
this manual. As part of this you must keep your maintenance records, receipts, repair orders
and any other documents as evidence this maintenance was performed. You must present
these documents, should any warranty coverage disagreement occur. Failure to do so can
result in your warranty being voided either in whole or in part.
This evidence may consist of the following:
lThe Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
lOriginal copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
lFor self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany
this statement.
NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location other than an
Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials must meet Mazda
standards for durability and performance as described in this manual.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
