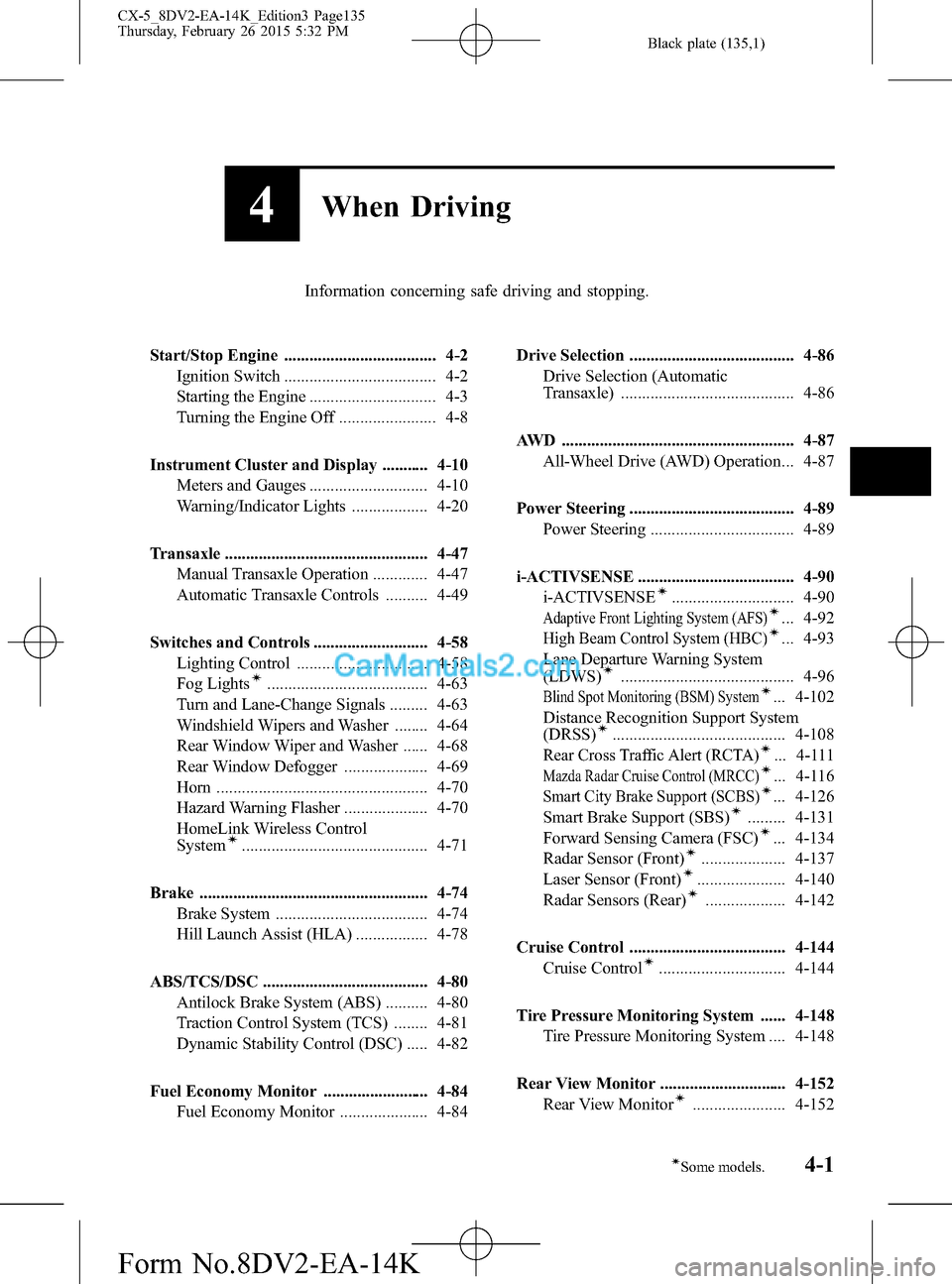

Black plate (135,1)
4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine .................................... 4-2
Ignition Switch .................................... 4-2
Starting the Engine .............................. 4-3
Turning the Engine Off ....................... 4-8
Instrument Cluster and Display ........... 4-10
Meters and Gauges ............................ 4-10
Warning/Indicator Lights .................. 4-20
Transaxle ................................................ 4-47
Manual Transaxle Operation ............. 4-47
Automatic Transaxle Controls .......... 4-49
Switches and Controls ........................... 4-58
Lighting Control ............................... 4-58
Fog Lights
í...................................... 4-63
Turn and Lane-Change Signals ......... 4-63
Windshield Wipers and Washer ........ 4-64
Rear Window Wiper and Washer ...... 4-68
Rear Window Defogger .................... 4-69
Horn .................................................. 4-70
Hazard Warning Flasher .................... 4-70
HomeLink Wireless Control
System
í............................................ 4-71
Brake ...................................................... 4-74
Brake System .................................... 4-74
Hill Launch Assist (HLA) ................. 4-78
ABS/TCS/DSC ....................................... 4-80
Antilock Brake System (ABS) .......... 4-80
Traction Control System (TCS) ........ 4-81
Dynamic Stability Control (DSC) ..... 4-82
Fuel Economy Monitor ......................... 4-84
Fuel Economy Monitor ..................... 4-84Drive Selection ....................................... 4-86
Drive Selection (Automatic
Transaxle) ......................................... 4-86
AWD ....................................................... 4-87
All-Wheel Drive (AWD) Operation... 4-87
Power Steering ....................................... 4-89
Power Steering .................................. 4-89
i-ACTIVSENSE ..................................... 4-90
i-ACTIVSENSE
í............................. 4-90
Adaptive Front Lighting System (AFS)í... 4-92
High Beam Control System (HBC)í... 4-93
Lane Departure Warning System
(LDWS)
í......................................... 4-96
Blind Spot Monitoring (BSM) Systemí... 4-102
Distance Recognition Support System
(DRSS)
í......................................... 4-108
Rear Cross Traffic Alert (RCTA)í... 4-111
Mazda Radar Cruise Control (MRCC)í... 4-116
Smart City Brake Support (SCBS)í... 4-126
Smart Brake Support (SBS)í......... 4-131
Forward Sensing Camera (FSC)í... 4-134
Radar Sensor (Front)í.................... 4-137
Laser Sensor (Front)í..................... 4-140
Radar Sensors (Rear)í................... 4-142
Cruise Control ..................................... 4-144
Cruise Control
í.............................. 4-144
Tire Pressure Monitoring System ...... 4-148
Tire Pressure Monitoring System .... 4-148
Rear View Monitor .............................. 4-152
Rear View Monitor
í...................... 4-152
4-1íSome models.
CX-5_8DV2-EA-14K_Edition3 Page135
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (136,1)
Ignition Switch
qPush Button Start Positions
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.
Indicator light
Push button start
NOTElThe engine starts by pressing the push
button start while depressing the clutch
pedal (manual transaxle) or the brake
pedal (automatic transaxle). To switch the
ignition position, press the push button start
without depressing the pedal.
lDo not leave the ignition switched ON
while the engine is not running. Doing so
could result in the battery going dead. If the
ignition is left in ACC (For automatic
transaxle, the shift lever is in the P position,
and the ignition is in ACC), the ignition
switches off automatically after about 25
minutes.
Off
The power supply to electrical devices
turns off and the push button start
indicator light (amber) also turns off.
WARNING
Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the shift lever is
in P (automatic transaxle) or in 1st gear
or R (manual transaxle):
Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the shift
lever to P (automatic transaxle) or to
1st gear or R (manual transaxle) is
dangerous. Unexpected vehicle
movement could occur which could
result in an accident.
In addition, if your intention is to
leave the vehicle for even a short
period, it is important to switch the
ignition off, as leaving it in another
position will disable some of the
vehicle's security systems and run the
battery down.
ACC (Accessory)
Some electrical accessories will operate
and the indicator light (amber)
illuminates.
NOTE
The keyless entry system does not function
while the push button start has been pressed to
ACC, and the doors will not lock/unlock even
if they have been locked manually.
4-2
When Driving
Start/Stop Engine
CX-5_8DV2-EA-14K_Edition3 Page136
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (137,1)
ON
This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-20).
NOTE
When the push button start is pressed to ON,
the sound of the fuel pump motor operating
near the fuel tank can be heard. This does not
indicate an abnormality.
Starting the Engine
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your
physician if radio waves from the key
will affect the device.
When Driving
Start/Stop Engine
4-3
CX-5_8DV2-EA-14K_Edition3 Page137
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (138,1)
NOTElThe key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.
lThe engine can be started when the push
button start is pressed from off, ACC, or
ON.
lThe push button start system functions
(function which can start the engine by only
carrying the key) can be deactivated to
prevent any possible adverse effect on a
user wearing a pacemaker or other medical
device. If the system is deactivated, you will
be unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button start
system functions have been deactivated, you
can start the engine by following the
procedure indicated when the key battery
goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-6.
lAfter starting a cold engine, the engine
speed increases and a whining sound from
the engine compartment can be heard.
This is for improved exhaust gas
purification and does not indicate defect of
the parts.
lEngine-starting is controlled by the spark
ignition system.
This system meets all Canadian
Interference-Causing Equipment Standard
requirements regulating the impulse
electrical field strength of radio noise.
1. Make sure you are carrying the key.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Continue to press the brake pedal
firmly until the engine has completely
started.5.(Manual transaxle)
Continue to press the clutch pedal
firmly until the engine has completely
started.
(Automatic transaxle)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transaxle)
The starter will not operate if the clutch pedal
is not depressed sufficiently.
(Automatic transaxle)
The starter will not operate if the shift lever is
not in P or N and the brake pedal is not
depressed sufficiently.
6. Verify that the KEY indicator light
(green) (if equipped) in the instrument
cluster and the push button start
indicator light (green) illuminate.
Indicator light
Push button start
4-4
When Driving
Start/Stop Engine
CX-5_8DV2-EA-14K_Edition3 Page138
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (139,1)
NOTElIf the push button start indicator light
(green) flashes, make sure that the key is
being carried (for vehicles with a type A
meter (page 4-20), messages are displayed
in the instrument cluster).
lIf the push button start indicator light
(green) flashes with the key being carried,
touch the key to the push button start and
start the engine (for vehicles with a type A
meter (page 4-20), messages are displayed
in the instrument cluster). Refer to Engine
Start Function When Key Battery is Dead
on page 4-6.
CAUTION
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system and the
inability to start the engine or switch
the ignition to ACC or ON (for
vehicles with a type A meter (page
4-20), messages are displayed in the
instrument cluster). Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.NOTE
lUnder the following conditions, the KEY
warning light (red) flashes after the push
button start is pressed to inform the driver
that the push button start will not switch to
ACC even if it is pressed from off (for
vehicles with a type A meter (page 4-20),
messages are displayed in the instrument
cluster).
lThe key battery is dead.lThe key is out of operational range.lThe key is placed in areas where it is
difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer similar
to the key is in the operational range.
l(Forced engine starting method)
If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) flashes, this could indicate that the
engine may not start using the usual
starting method (for vehicles with a type A
meter, messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda Dealer
as soon as possible. If this occurs, the
engine can be force-started. Press and hold
the push button start until the engine starts.
Other procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
lWhen the engine is force-started, the KEY
warning light (red) (if equipped) remains
illuminated and the push button start
indicator light (amber) remains flashing.
l(Automatic transaxle)
When the shift lever is in the neutral (N)
position, the KEY indicator light (green) (if
equipped) and the push button start
indicator light (green) do not illuminate.
When Driving
Start/Stop Engine
4-5
CX-5_8DV2-EA-14K_Edition3 Page139
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (140,1)
7. Press the push button start after both
the KEY indicator light (green) (if
equipped) in the instrument cluster and
the push button start indicator light
(green) illuminate.
NOTE
lAfter starting the engine, the push button
start indicator light (amber) turn off and
the ignition is in the ON position.
lAfter pressing the push button start and
before the engine starts, the operation
sound of the fuel pump motor from near the
fuel tank can be heard, however, this does
not indicate a malfunction.
8. After starting the engine, let it idle for
about ten seconds.
NOTE
lWhether the engine is cold or warm, it
should be started without the use of the
accelerator.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-17).
qEngine Start Function When Key
Battery is Dead
CAUTION
When starting the engine by holding
the transmitter over the push button
start due to a dead key battery or a
malfunctioning key, be careful not to
allow the following.
Otherwise the signal from the key
will not be received correctly and the
engine may not start.
ØMetal parts of other keys or metal
objects touch the key.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key.
ØDevices for electronic purchases, or
security passage which touch or
come near the key.
If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Depress the brake pedal firmly.
4-6
When Driving
Start/Stop Engine
CX-5_8DV2-EA-14K_Edition3 Page140
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (141,1)
2.(Manual transaxle)
Continue to depress the clutch pedal
firmly until the engine has completely
started.
3. Verify that the push button start
indicator light (green) flashes.
NOTE
The push button start indicator light (green)
will flash even if the push button start is
pressed before depressing the brake pedal
(automatic transaxle) or the clutch pedal
(manual transaxle). If the clutch pedal is
depressed (manual transaxle) or the brake
pedal is depressed (automatic transaxle) under
this condition, the engine can be started by
resuming the procedure following this.
4. Touch the push button start using the
backside of the key (as shown) while
the push button start indicator light
(green) flashes.
Key
Indicator light
Push button start
NOTE
When touching the push button start using the
backside of the key as shown in the
illustration, touch the push button start with
the lock switch side of the key facing up.
5. Verify that the push button start
indicator light (green) turns on.6. Press the push button start to start the
engine.
NOTE
lThe engine cannot be started unless the
clutch pedal is fully depressed (manual
transaxle) or the brake pedal is fully
depressed (automatic transaxle).
lIf there is a malfunction with the push
button start function, the push button start
indicator light (amber) flashes. In this case,
the engine may start, however, have the
vehicle checked at an Authorized Mazda
Dealer as soon as possible.
lIf the push button start indicator light
(green) does not illuminate, perform the
operation from the beginning again. If it
does not illuminate, have the vehicle
checked at an Authorized Mazda Dealer.
lTo switch the ignition position without
starting the engine, perform the following
operations after the push button start
indicator light (green) turns on.
1. Release the brake pedal (automatic
transaxle) or the clutch pedal (manual
transaxle).
2. Press the push button start to switch the
ignition position. The ignition switches
in the order of ACC, ON, and off each
time the push button start is pressed. To
switch the ignition position again,
perform the operation from the
beginning.
When Driving
Start/Stop Engine
4-7
CX-5_8DV2-EA-14K_Edition3 Page141
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (142,1)
qEmergency Operation for
Starting the Engine
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this could
indicate that the engine may not start
using the usual starting method (for
vehicles with a type A meter, messages
are displayed in the instrument cluster).
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs, the engine can be
force-started. Press and hold the push
button start until the engine starts. Other
procedures necessary for starting the
engine such as having the key in the
cabin, and depressing the clutch pedal
(manual transaxle) or the brake pedal
(automatic transaxle) are required.
Turning the Engine Off
WARNING
Do not stop the engine while the
vehicle is moving:
Stopping the engine while the vehicle
is moving for any reason other than
in an emergency is dangerous.
Stopping the engine while the vehicle
is moving will result in reduced
braking ability due to the loss of
power braking, which could cause an
accident and serious injury.
1. Stop the vehicle completely.
2.(Manual transaxle)
Shift into neutral.
(Automatic transaxle)
Shift the shift lever to the P position.
3. Press the push button start to turn off
the engine. The ignition position is off.
CAUTION
When leaving the vehicle, make sure
the push button start is pressed to
off.
4-8
When Driving
Start/Stop Engine
CX-5_8DV2-EA-14K_Edition3 Page142
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (143,1)
NOTElThe cooling fan in the engine compartment
could turn on for a few minutes after the
ignition is switched from ON to OFF,
whether or not the A/C is on or off, to cool
the engine compartment quickly.
lIf the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the key
becomes unusable.
Refer to Key Battery Replacement on page
6-39.
(Vehicle equipped with Type A
*1
instrument cluster)
A message is indicated in the display of the
instrument cluster.
*1 Refer to Type A on page 4-20.
(Vehicle equipped with Type B
*2
instrument cluster)
The KEY indicator light (green) flashes for
approximately 30 seconds.
*2 Refer to Type B on page 4-24.
l(Automatic transaxle)
If the engine is turned off while the shift
lever is in a position other than P, the
ignition switches to ACC.
qEmergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the
engine off immediately. The ignition
switches to ACC.
When Driving
Start/Stop Engine
4-9
CX-5_8DV2-EA-14K_Edition3 Page143
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (162,1)
When the light is flashing
The light flashes if the electric parking
brake has a malfunction.
If the light remains flashing even if the
electric parking brake switch is operated,
consult an Authorized Mazda Dealer as
soon as possible.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light simultaneously. The
problem is likely to be the electronic
brake force distribution system.
4-28
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page162
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
