Black plate (163,1)
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qElectric Parking Brake Warning
Light
This warning light stays on for a few
seconds when the ignition is switched
ON.
The warning light illuminates when the
system has a malfunction. Have your
vehicle inspected at an Authorized Mazda
Dealer.
qBrake Pedal Operation Demand
Indicator Light (Type B)
This indicator light stays on for a few
seconds when the ignition is switched
ON.
The light turns on when the electric
parking brake is released using the electric
parking brake switch without depressing
the brake pedal.
qCharging System Warning
Indication/Warning Light
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
When Driving
Instrument Cluster and Display
4-29
CX-5_8DV2-EA-14K_Edition3 Page163
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (164,1)
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qEngine Oil Warning Indication/
Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.
This warning light indicates low engine
oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-28).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light.
If the light remains illuminated even
though the oil level is normal or after
adding oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
qCheck Engine Light
This indicator light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
4-30
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page164
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (167,1)
When“4WD system malfunction”is
indicated
Contact an Authorized Mazda Dealer.
When“4WD system high-load”is
indicated
Park the vehicle in a safe place. After a
few moments, if the indication disappears,
you can resume driving. If the indication
does not disappear, contact an Authorized
Mazda Dealer.
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.
The warning light will illuminate or flash
under the following conditions:
lIlluminates when there is an
abnormality with the AWD system.
lIlluminates if there is too much
difference in tire radius between the
front and rear wheels.
lFlashes when the differential oil
temperature is abnormally high.
lFlashes when there is a continuous
large difference between front and rear
wheel rotation, such as when trying to
pull away from an icy surface or when
trying to remove the vehicle from mud,
sand or similar conditions.
When illuminated
If the AWD warning light illuminates,
contact an Authorized Mazda Dealer.
When flashing
Park the vehicle in a safe place. After a
few moments, if the warning light stops
flashing, you can resume driving. If the
light does not stop flashing, contact an
Authorized Mazda Dealer.
qAutomatic Transaxle Warning
Indication/Warning Light
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.
Type A/Type B
The light/indication illuminates when the
transaxle has a problem.
CAUTION
If the automatic transaxle warning
light/warning indication illuminates,
the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult
an Authorized Mazda Dealer as soon
as possible.
qPower Steering Malfunction
Warning Indication/Indicator Light
Type B
This indicator light illuminates when the
ignition is switched ON, and turns off
when the engine is started.
When Driving
Instrument Cluster and Display
4-33
CX-5_8DV2-EA-14K_Edition3 Page167
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (168,1)
Type A/Type B
The power steering malfunction indicator
light/warning indication illuminates or
flashes if there is a malfunction with the
power steering while the engine is
running.
If the indicator light/warning indication
illuminates or flashes, park the vehicle in
a safe place immediately and stop the
engine.
If the indicator light/warning indication
does not turn off even if the engine is
restarted afterwards, consult an
Authorized Mazda Dealer.
NOTE
lIf the indicator light/warning indication
illuminates or flashes, the power steering
will not operate normally. If this happens,
the steering wheel can still be operated,
however, the operation may feel heavy
compared to normal, and the steering
wheel could vibrate when turning.
lRepeatedly jerking the steering wheel left
and right while the vehicle is stopped or
moving extremely slowly will cause the
power steering system to go into protective
mode which will make the steering feel
heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and
wait several minutes for the system to
return to normal.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
operate in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
4-34
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page168
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (174,1)
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
Type B
This indicator has two colors.
KEY Warning Light (Red)
When illuminated
If any malfunction occurs in the keyless
entry system, it illuminates continuously.
CAUTION
If the key warning indicator light
illuminates or the push button start
indicator light (amber) flashes, the
engine may not start. If the engine
cannot be started, try starting it
using the emergency operation for
starting the engine, and have the
vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
When flashing
lUnder the following conditions, the
KEY warning light (red) flashes to
notify the driver that the ignition
cannot be switched from off.
lThe key battery is dead.lThe key is not within operational
range.
lThe key is placed in areas where it is
difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer
similar to the key is in the
operational range.
lUnder the following conditions, the
KEY warning light (red) will flash
continuously when the ignition has not
been switched off to notify the driver
that the key has been removed from the
vehicle. The KEY warning light (red)
will stop flashing when the key is back
inside the vehicle:
The ignition has not been switched off
and all the doors and the liftgate are
closed after removing the key from the
vehicle.
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
KEY Indicator Light (Green)
When illuminated
When the brake pedal is depressed with
an automatic transaxle or the clutch pedal
is depressed with a manual transaxle, the
system confirms that the correct key is
inside the vehicle, the KEY indicator light
(green) illuminates, and the engine can be
started (page 4-3).
When flashing
When the ignition is switched from ON to
off, the KEY indicator light (green)
flashes for approximately 30 seconds
indicating that the remaining battery
power is low. Replace with a new battery
before the key becomes unusable.
Refer to Key Battery Replacement on
page 6-39.
4-40
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page174
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

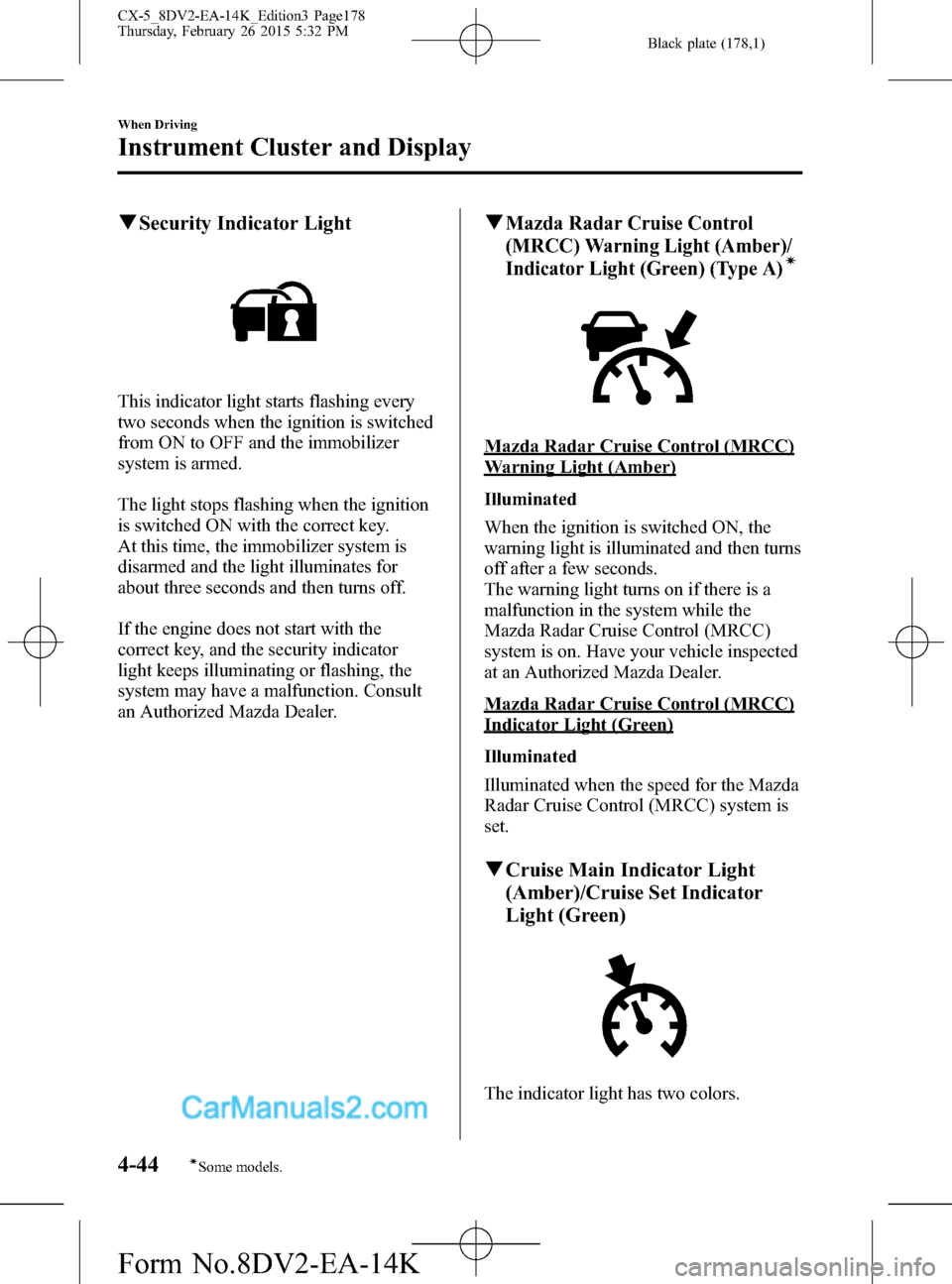

Black plate (178,1)
qSecurity Indicator Light
This indicator light starts flashing every
two seconds when the ignition is switched
from ON to OFF and the immobilizer
system is armed.
The light stops flashing when the ignition
is switched ON with the correct key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about three seconds and then turns off.
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qMazda Radar Cruise Control
(MRCC) Warning Light (Amber)/
Indicator Light (Green) (Type A)
í
Mazda Radar Cruise Control (MRCC)
Warning Light (Amber)
Illuminated
When the ignition is switched ON, the
warning light is illuminated and then turns
off after a few seconds.
The warning light turns on if there is a
malfunction in the system while the
Mazda Radar Cruise Control (MRCC)
system is on. Have your vehicle inspected
at an Authorized Mazda Dealer.
Mazda Radar Cruise Control (MRCC)
Indicator Light (Green)
Illuminated
Illuminated when the speed for the Mazda
Radar Cruise Control (MRCC) system is
set.
qCruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
The indicator light has two colors.
4-44
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page178
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (184,1)
qWarning Light
A system malfunction or operation
conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page
4-20.
qTransaxle Ranges
lThe shift position indicator light in the
instrument cluster illuminates.
Refer to Warning/Indicator Lights on
page 4-20.
lThe shift lever must be in P or N to
operate the starter.
P (Park)
P locks the transaxle and prevents the
front wheels from rotating.
WARNING
Always set the shift lever to P and set
the parking brake:
Only setting the shift lever to the P
position without using the parking
brake to hold the vehicle is
dangerous. If P fails to hold, the
vehicle could move and cause an
accident.
CAUTION
ØShifting into P, N or R while the
vehicle is moving can damage
your transaxle.
ØShifting into a driving gear or
reverse when the engine is running
faster than idle can damage the
transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 3-43).
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
If the engine is running faster than idle,
do not shift from N or P into a driving
gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move
suddenly, causing an accident or
serious injury.
Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which
could lead to an accident or serious
injury.
CAUTION
Do not shift into N when driving the
vehicle. Doing so can cause transaxle
damage.
NOTE
Apply the parking brake or depress the brake
pedal before moving the shift lever from N to
prevent the vehicle from moving unexpectedly.
4-50
When Driving
Transaxle
CX-5_8DV2-EA-14K_Edition3 Page184
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (185,1)
D (Drive)
D is the normal driving position. From a
stop, the transaxle will automatically shift
through a 6-gear sequence.
M (Manual)
M is the manual shift mode position.
Gears can be shifted up or down by
operating the shift lever.
Refer to Manual Shift Mode on page
4-52.
qActive Adaptive Shift (AAS)
Active Adaptive Shift (AAS)
automatically controls the transaxle shift
points to best suit the road conditions and
driver input. This improves driving feel.
The transaxle may switch to AAS mode
when driving up and down slopes,
cornering, driving at high elevations, or
depressing the accelerator pedal quickly
while the shift lever is in the D position.
Depending on the road and driving
conditions/vehicle operations, gear
shifting could be delayed or not occur,
however, this does not indicate a problem
because the AAS mode will maintain the
optimum gear position.
qShift-Lock System
The shift-lock system prevents shifting
out of P unless the brake pedal is
depressed.
To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Press and hold the lock-release button.
4. Move the selector lever.NOTE
lWhen the ignition is switched to ACC or the
ignition is switched off, the selector lever
cannot be shifted from P.
lThe ignition cannot be switched to OFF if
the selector lever is not in P.
qShift-Lock Override
If the selector lever will not move from P
using the proper shift procedure, continue
to hold down the pedal.
1. Remove the shift-lock override cover
using a cloth-wrapped flat head
screwdriver.
2. Insert a screwdriver and push it down.
Cover
3. Press and hold the lock-release button.
4. Move the selector lever.
5. Take the vehicle to an Authorized
Mazda Dealer to have the system
checked.
When Driving
Transaxle
4-51
CX-5_8DV2-EA-14K_Edition3 Page185
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (190,1)
Recommendations for shifting (U.S.A. and Canada)
Upshifting
For normal acceleration and cruising, we recommend these shift points.
Gear Vehicle speed*1
M1 to M2 24 km/h (15 mph)
M2 to M3 40 km/h (25 mph)
M3 to M4 65 km/h (40 mph)
M4 to M5 73 km/h (45 mph)
M5 to M6 81 km/h (50 mph)
*1: Always observe local speed limit regulations.
Downshifting
When you must slow down in heavy traffic or on a steepupgrade, downshift before the
engine starts to overwork. This gives better acceleration when you need more speed.
On a steepdowngrade, downshifting helps maintain safe speed and prolongs brake life.
qDriving Tips
WARNING
Do not allow the vehicle to move in
reverse on an up-slope while the
selector lever is in a forward gear
position, or move forward on a down-
slope while the selector lever is in the
reverse position:
Otherwise, the engine will stop,
causing the loss of the power brake
and power steering functions, and
make it difficult to control the vehicle
which could result in an accident.
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transaxle will
shift to a lower gear, depending on vehicle
speed.NOTE
The accelerator pedal feels heavy as it is being
depressed, but then lightens as it is fully
depressed. This change in pedal force aids the
engine control system in determining how
much the accelerator pedal has been
depressed for performing kickdown, and
functions to control whether or not kickdown
should be performed.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
load weight and grade steepness.
3. Release the brake pedal while
gradually accelerating.
4-56
When Driving
Transaxle
CX-5_8DV2-EA-14K_Edition3 Page190
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (213,1)
WARNING
Do not rely completely on Hill Launch
Assist (HLA):
Hill Launch Assist (HLA) is an
auxiliary device for accelerating from
a stop on a slope. The system only
operates for about two seconds and
therefore, relying only on the system,
when accelerating from a stop is
dangerous because the vehicle may
move (roll) unexpectedly and cause
an accident.
The vehicle could roll depending on
the vehicle's load or if it is towing
something. In addition, for vehicles
with a manual transaxle, the vehicle
could still roll depending on how the
clutch pedal or the accelerator pedal
is operated.
Always confirm the safety around the
vehicle before starting to drive the
vehicle.NOTE
lHill Launch Assist (HLA) does not operate
on a gentle slope. In addition, the gradient
of the slope on which the system will
operate changes depending on the vehicle's
load.
lHill Launch Assist (HLA) does not operate
if the parking brake is applied, the vehicle
has not stopped completely, or the clutch
pedal is released.
lWhile Hill Launch Assist (HLA) is
operating, the brake pedal may feel stiff
and vibrate, however, this does not indicate
a malfunction.
lHill Launch Assist (HLA) does not operate
while the TCS/DSC indicator light is
illuminated.
Refer to Warning/Indicator Lights on page
4-20.
lHill Launch Assist (HLA) does not turn off
even if the TCS OFF switch is pressed to
turn off the TCS.
When Driving
Brake
4-79
CX-5_8DV2-EA-14K_Edition3 Page213
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
