Interior Equipment (View D)
ƒCentre console.................................................................................................... page 5-149
„ External input terminal........................................ ..................................................page 5-17
… Accessory socket............................................... ................................................. page 5-144
† Rear map lights.................................................................................................. page 5-142
‡ Door-lock knob..................................................................................................... page 3-18
ˆ Power window switch.................................................................................. page 3-40, 3-41
‰ Rear coat hooks.................................................................................................. page 5-152
Š Bottle holder....................................................................................................... page 5-148
‹ Child safety locks............................................. ..................................................... page 3-18
ΠUSB power outlet............................................................................................... page 5-146
 Head restraint........................................................................................................ page 2-1 5
Ž Lever.............................................................................................................. page 2-9, 2 -13
 Seat belt...................................................... ........................................................... page 2-17
 ISOFIX anchors.................................................................................................... page 2-39
‘ Armrest box........................................................................................................ page 5-149
’ Seat warmer switches........................................... ................................................. page 2-14
“ Cup holder.......................................................................................................... page 5-147
” Armrest........................................................ ..........................................................page 2-15
• Rear seat...................................................... ............................................................ page 2-9
Pictorial Index
Interior Overview (Right-Hand Drive Model)
1-10The equipment and installatio n position varies by vehicle
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

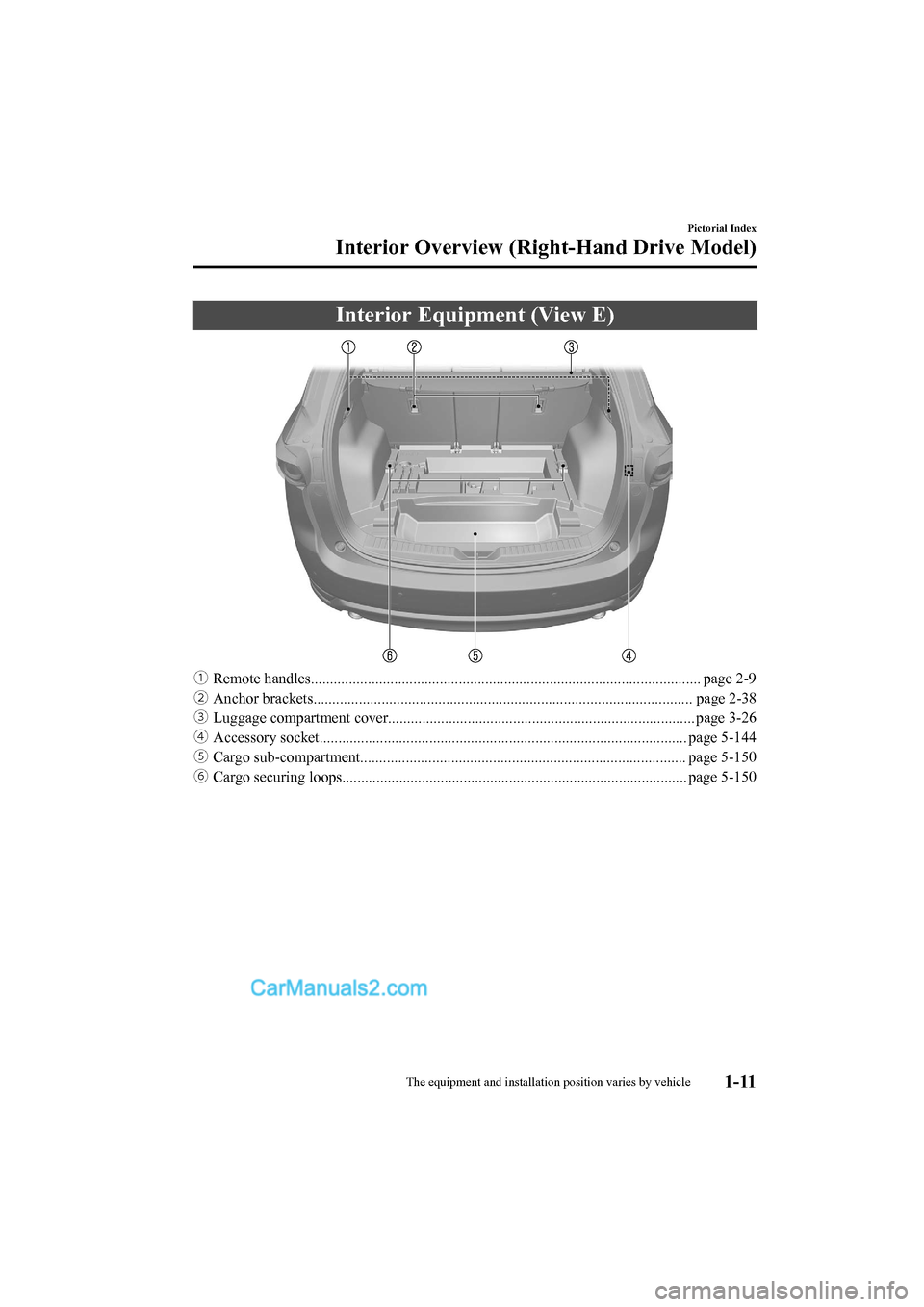

Interior Equipment (View E)
ƒRemote handles....................................................................................................... page 2-9
„ Anchor brackets................................................ .................................................... page 2-38
… Luggage compartment cover...................................... ........................................... page 3-26
† Accessory socket............................................... .................................................. page 5-144
‡ Cargo sub-compartment. ......................................... ............................................ page 5-150
ˆ Cargo securing loops........................................................................................... page 5-150
Pictorial Index
Interior Overview (Rig ht-Hand Drive Model)
The equipment and installatio n position varies by vehicle1-11
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Front
ƒWindscreen wiper blades........................................ ...............................................page 6-33
„ Sunroof........................................................ .......................................................... page 3-44
… Window......................................................... ........................................................ page 3-40
† Fuel-filler flap............................................... ........................................................ page 3-33
‡ Request switch ......................................................................................................page 3-11
ˆ Door.......................................................................................................................pag e 3-10
Pictorial Index
Exterior Overview
1-12The equipment and installation position varies by vehicle
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

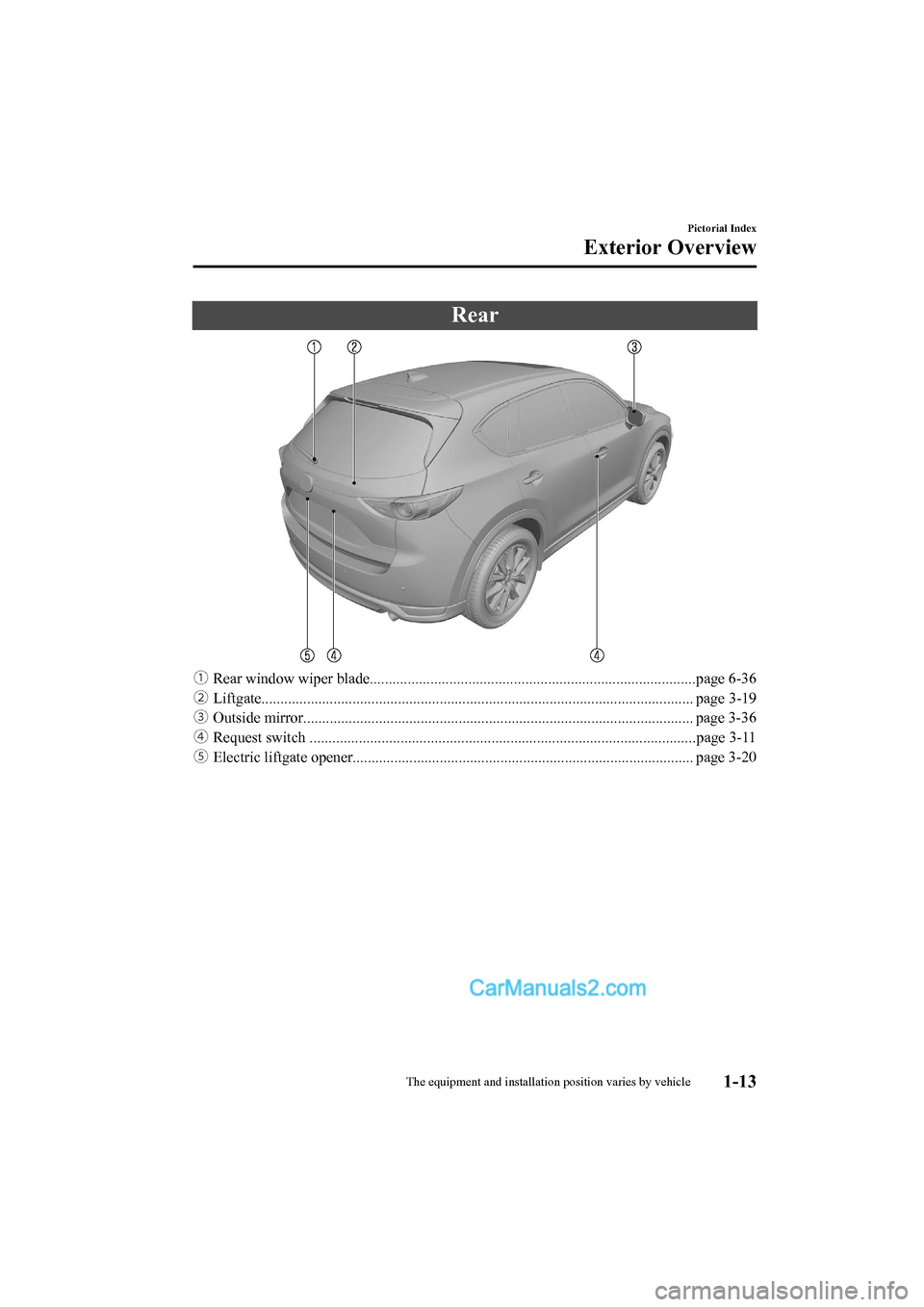

Rear
ƒRear window wiper blade........................................ ..............................................page 6-36
„ Liftgate.................................................................................................................. page 3-19
… Outside mirror....................................................................................................... page 3-36
† Request switch ......................................................................................................page 3-11
‡ Electric liftgate opener....................................... ................................................... page 3-20
Pictorial Index
Exterior Overview
The equipment and installation position varies by vehicle1-13
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

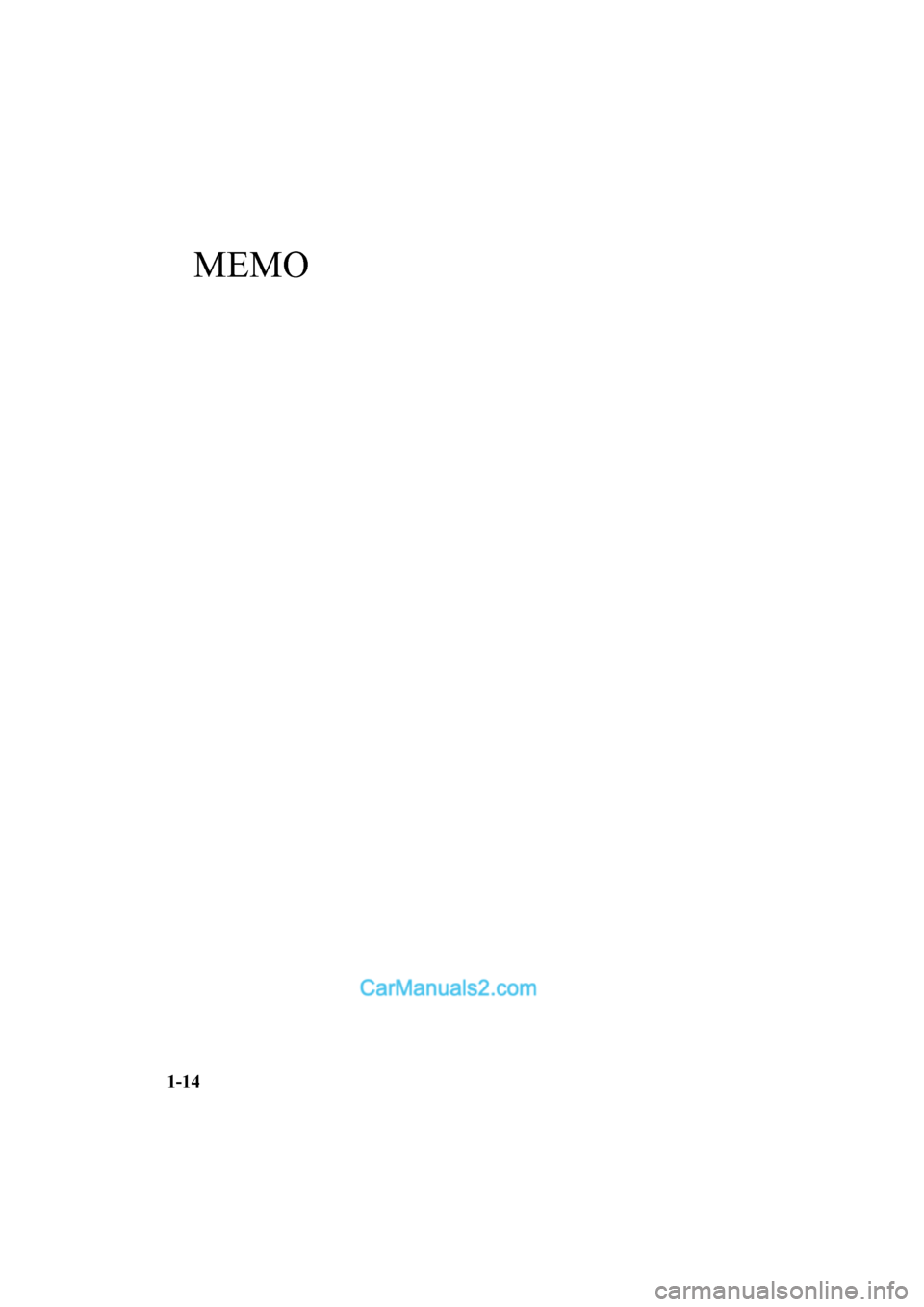

MEMO
1-14
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2

2Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats.................................................... 2-2 Seat Precautions............................2-2
Front Seat......................................2-5
Rear Seat.......................................2-9
Head Restraints...........................2-15
Seat Belt Systems...... ....................... 2-17
Seat Belt Precautions.................. 2-17
Seat Belt......................................2-20
Seat Belt Warning Systems.........2-21
Seat Belt Pretensioner and Load
Limiting Systems........................ 2-21
Child Restraint................................ 2-24 Child-Restraint Precautions........ 2-24
Child-Restraint System
Installation.................................. 2-29
Child-Restraint System Suitability
for Various Seat Positions
Table........................................... 2-34
Installing Child-Restraint
Systems....................................... 2-38
SRS Air Bags....................................2-41
Supplementary Restraint System
(SRS) Precautions.......................2-41
Supplementary Restraint System
Components................................ 2-48
How the SRS Air Bags Work..... 2-50
SRS Air Bag Deployment
Criteria........................................ 2-54
Limitations to SRS Air Bag........2-56
Front Passenger Occupant
Classification System
*................2-58
Constant Monitoring...................2-63
*Some models.2-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Seat Precautions
WA R N I N G
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop
or collision, the seat or seatback could move, causing injury. Make sure the adjustable
components of the seat are locked in place by attempting to slide the seat forward and
backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's
hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can a llow passengers to be ejected or thrown around
and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After
adjusting the seatback at any time, even when there are no other passengers, rock the
seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts
is dangerous. The front seats contain air bag components essential to the supplementary
restraint system. Such modifications could damage the supplementary restraint system and
result in serious injury. Consult an Authorised Mazda Repairer if there is any need to remove or
reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as se at cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to
inflate the air bags, could
damage the front seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have an
Authorised Mazda Repairer inspect the front seat s, front seat belt pretensioners and air bags
after a collision.
Essential Safety Equipment
Seats
2-2
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not get
the full protection from seat belts. During sudden braking or a collision, you can slide under
the lap belt and suffer serious internal injuri es. For maximum protection, sit well back and
upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, wh ich could result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fly around and become projectiles that may hit and injure
passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.
Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on
the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or
even a minor collision, a child not in a proper seat or child-restraint system and seat belt could
be thrown forward, back or even out of the vehi cle resulting in serious injuries or death. The
child in the baggage area could be thrown into other occupants and cause serious injury.
CAUTION
 When operating a seat, be careful not to put yo ur hands or fingers near the moving parts of
the seat or on the side trim to prevent injury.
 When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo.
Essential Safety Equipment
Seats
2-3
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

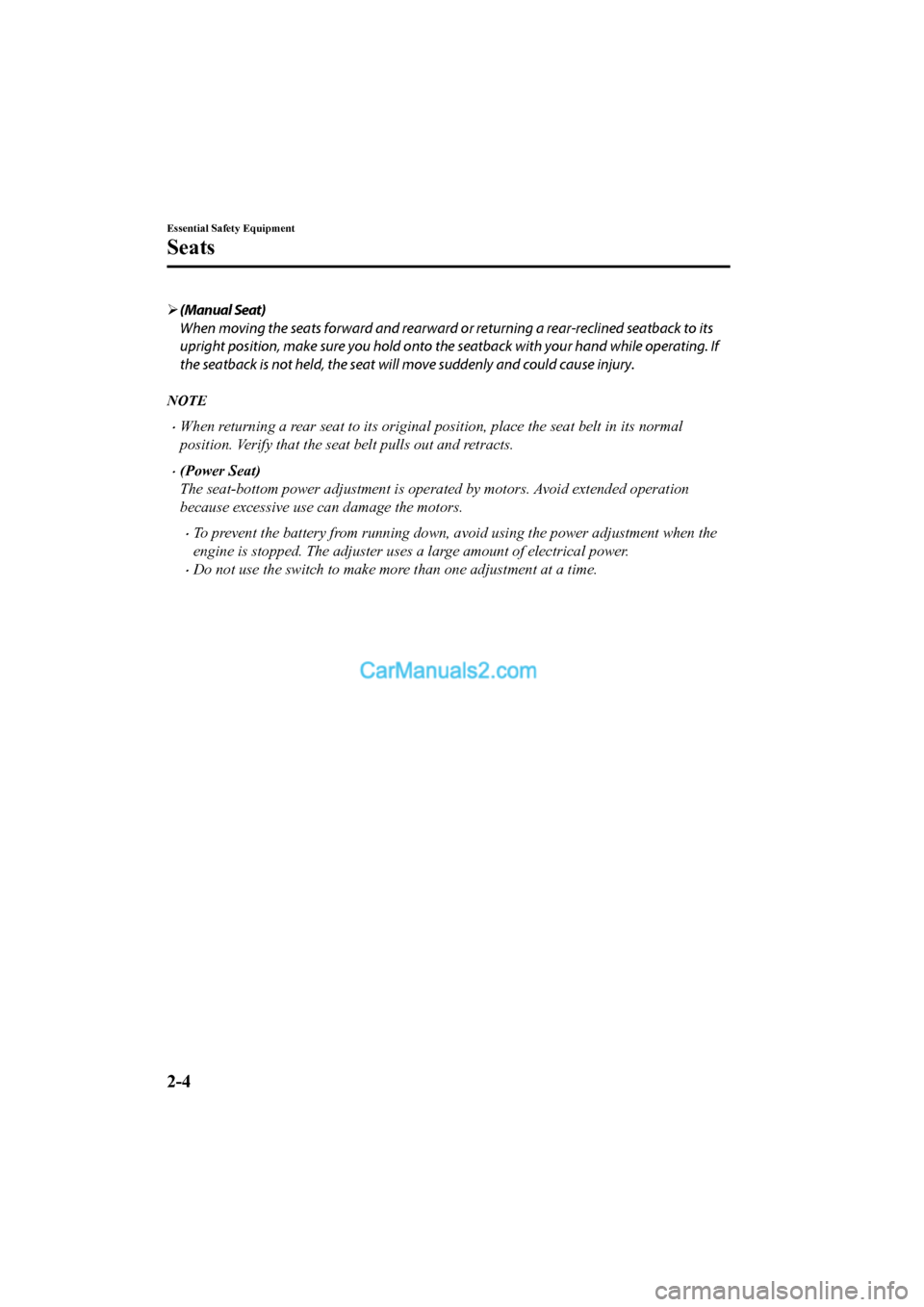

(Manual Seat)
When moving the seats forward and rearward or returning a rear-reclined seatback to its
upright position, make sure you hold onto the seatback with your hand while operating. If
the seatback is not held, the seat will move suddenly and could cause injury.
NOTE
•When returning a rear seat to its original position, place the seat belt in its normal
position. Verify that the seat belt pulls out and retracts.
•(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended operation
because excessive use can damage the motors.
•To prevent the battery from running down, avoid using the power adjustment when the
engine is stopped. The adjuster uses a large amount of electrical power.
•Do not use the switch to make more than one adjustment at a time.
Essential Safety Equipment
Seats
2-4
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

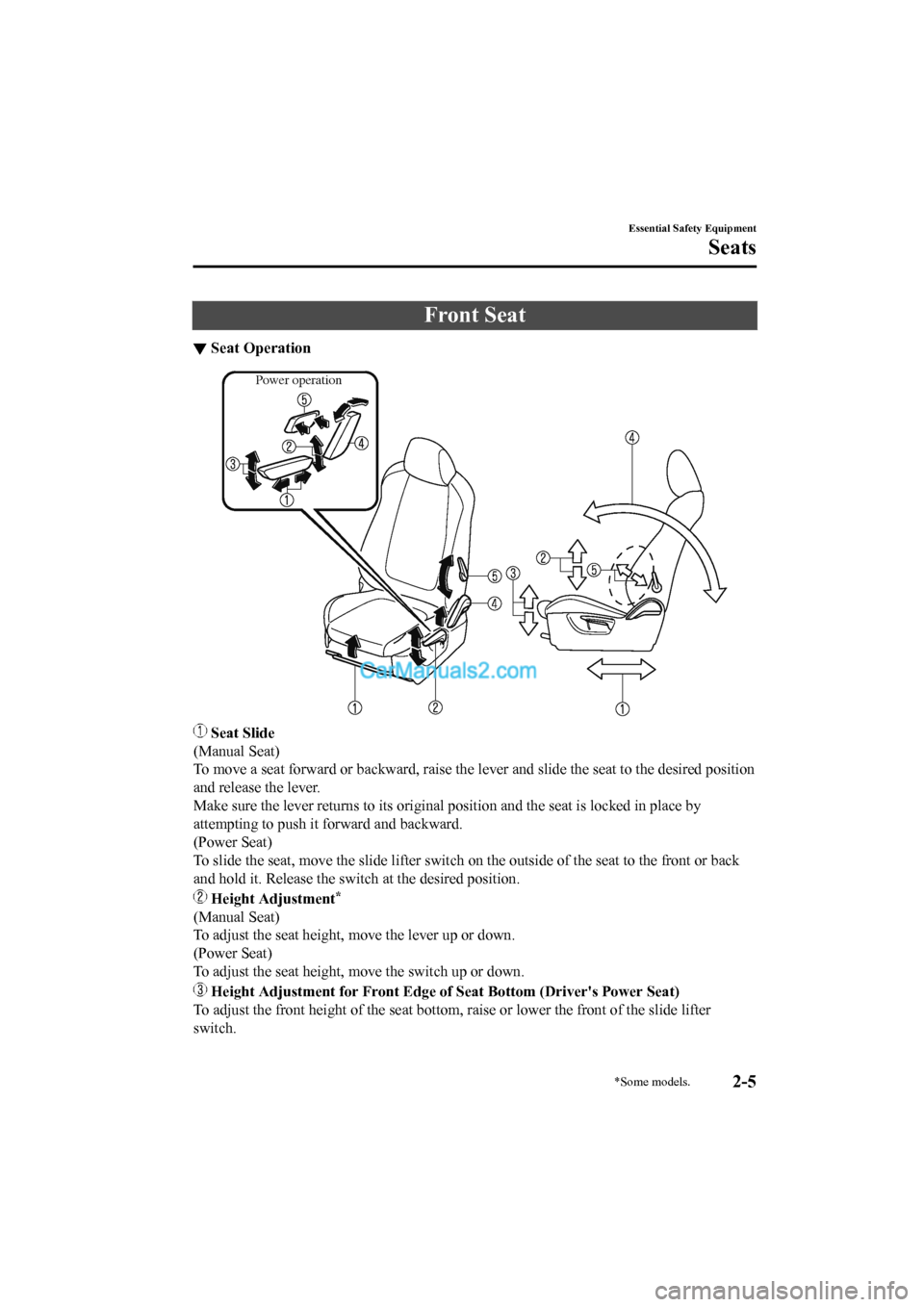

Front Seat
▼Seat Operation
Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide t he seat to the desired position
and release the lever.
Make sure the lever returns to i ts original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the sw itch at the desired position.
Height Adjustment*
(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the switch up or down.
Height Adjustment for Front Edg e of Seat Bottom (Driver's Power Seat)
To adjust the front height of the seat bottom, raise or lower t he front of the slide lifter
switch.
Essential Safety Equipment
Seats
*Some models.2-5
