▼Operating Tips for AAC
AAC stands for Advanced Audio Coding,
which is standardised
voice compression
established by the ISO
*1 working group
(MPEG). Audio data can be created and
stored at a higher compression ratio than
MP3.
This unit plays files with the extensions
(.aac/.m4a/.wav
*2) as the AAC files.
CAUTION
Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognise the file correctly
resulting in noise or a malfunction.
•AAC files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.
•The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.aac”,
“.m4a”, or “.wav
*2” to the end of the file
name, and then write it to the disc/
memory.
*1 International Organisation for
Standardisation
*2 Type B
▼ Operating Tips for OGG
OGG is the audio compression format for
Xiph. Org Foundation.
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays files with the extension
(.ogg) as OGG files.

CAUTION
Do not use an audio file extension on files
other than audio files.
In addition, do not
change the audio file extension. Otherwise,
the unit will not recognise the file correctly
resulting in noise or a malfunction.
•OGG files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.
•The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.ogg”
to the end of the f ile name, and then
write it to the memory.
▼ Operating Tips for DVD Player
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the DVD or
optical components (pri
sm and lens) in the
DVD player may become clouded with
condensation. At thi s time, the DVD will
eject immediately when placed in the unit.
A clouded DVD can be corrected simply
by wiping it with a s oft cloth. Clouded
optical components will clear naturally in
about an hour. Wait for normal operation
to return before attempting to use the unit.
Handling the DVD player
The following precau tions should be
observed.
Interior Features
Appendix
5-136
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•Do not use deformed or cracked DVDs.
The disc may not eject resulting in a
malfunction.
•Do not use non-conventional discs such
as heart-shaped, etc. The disc may not
eject resulting in a malfunction.
•If the memory portion of the DVD is
transparent or translucent, do not use the
disc.
Transparent
•A new DVD may have rough edges on
its inner and outer perimeters. If a disc
with rough edges is used, proper setting
will not be possible and the DVD player
will not play the DVD. In addition, the
disc may not eject resulting in a
malfunction. Remove the rough edges in
advance by using a ball-point pen or
pencil as shown below. To remove the
rough edges, rub the side of the pen or
pencil against the inner and outer
perimeter of the DVD.
•When driving over uneven surfaces, the
sound may jump.
•DVDs bearing the logo shown in the
illustration or DVD-R/DVD
R/
DVD-RW/DVD
RW written with
video data (DVD-Video/DVD-VR file)
can be played.
•Use discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system
may not operate properly.
Interior Features
Appendix
5-137
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•Be sure never to touch the signal surface
when handling the DVDs. Pick up a
DVD by grasping the outer edge or the
edge of the hole and the outer edge.
•Do not stick paper or tape on the DVD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.
•Dust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the DVD should
become soiled, gently wipe it with a soft
cloth from the centre of the DVD to the
edge.
•Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the DVD and must not be used.
Anything that can damage, warp, or fog
plastic should never be used to clean
DVDs.
•The DVD player ejects the DVD if the
DVD is inserted upside down. Also dirty
and/or defective DVDs may be ejected.
•Do not insert cleani ng discs in the DVD
player.
•Do not insert any disc with a peel-off
seal affixed to it.
•This unit may not be able to play certain
DVD-R/DVD
R/DVD-RW/DVD
RWs made using a computer or DVD
recorder due to disc characteristics,
scratches, smudges, dirt, etc., or due to
dust or condensation on the lens inside
the unit.
•Storing DVDs in the vehicle exposed to
direct sunlight or high temperature may
damage the DVD-R/DVD
R/
DVD-RW/DVD
RWs, and make them
unplayable.
•This unit may not be able to play certain
discs made using a computer due to the
application (writing software) setting
used. (For details, consult the store
where the application was purchased.)
•Completely read the instruction manual
and cautions for DVD-R/DVD
R/
DVD-RW/DVD
RW s .
•Do not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the
edges of the DVD label. Also, do not
use discs with a commercially-available
DVD-R label affixed. The disc may not
eject resulting in a malfunction.
•The conditions in w hich a DVD video
can be played may be pre-determined
depending on the inte ntions of the disc
software creator. Functions may not
operate as the user intends because this
DVD player operates according to the
design intentions of the software creator.
Always refer to the instructions
accompanying the disc to be played.
•Manufactured under license by Dolby
Labouratories, Inc.. Dolby and the
double-D symbol are trademarks of
Dolby Labouratories.
Interior Features
Appendix
5-138
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

NOTE
•Video data (DVD-Video/DVD-VR files)
written to DVD/DVD-R/DVD
R/
DVD-RW/DVD
RW can be played.
•This unit is compatible for playback of
dual-layer DVD/DVD-R.
•Regional number for this unit is [2] or
[3] (regional number depends on
market).
•DVD-Video/DVD-VR files written under
specifications other than the indicated
specification may not play normally or
files or folder names may not display
correctly.

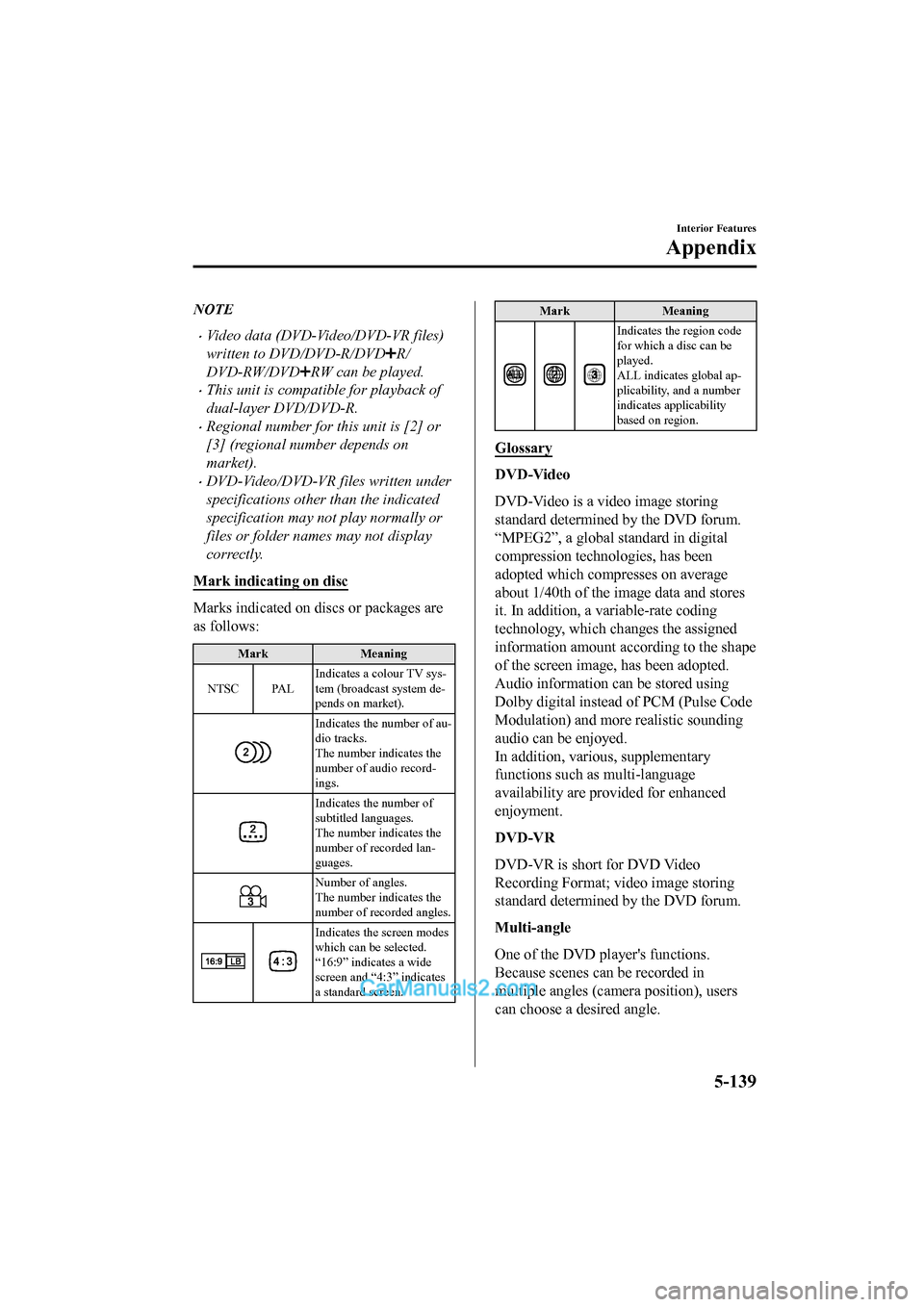

Mark indicating on disc
Marks indicated on discs or packages are
as follows:
Mark Meaning
NTSC PAL Indicates a colour TV sys-
tem (broadcast system de-
pends on market).
Indicates the number of au-
dio tracks.
The number indicates the
number of audio record-
ings.
Indicates the number of
subtitled languages.
The number indicates the
number of recorded lan-
guages.
Number of angles.
The number indicates the
number of recorded angles.
Indicates the screen modes
which can be selected.
“16:9” indicates a wide
screen and “4:3” indicates
a standard screen.
Mark
Meaning
Indicates the region code
for which a disc can be
played.
ALL indicates global ap-
plicability, and a number
indicates applicability
based on region.
Glossary
DVD-Video
DVD-Video is a video image storing
standard determined by the DVD forum.
“MPEG2”, a global standard in digital
compression technologies, has been
adopted which compresses on average
about 1/40th of the image data and stores
it. In addition, a variable-rate coding
technology, which changes the assigned
information amount according to the shape
of the screen image, has been adopted.
Audio information can be stored using
Dolby digital instead of PCM (Pulse Code
Modulation) and more realistic sounding
audio can be enjoyed.
In addition, various, supplementary
functions such as multi-language
availability are provided for enhanced
enjoyment.
DVD-VR
DVD-VR is short for DVD Video
Recording Format; video image storing
standard determined by the DVD forum.
Multi-angle
One of the DVD player's functions.
Because scenes can be recorded in
multiple angles (camera position), users
can choose a desired angle.
Interior Features
Appendix
5-139
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Multi-language
As a function of the DVD player, audio or
subtitles for the same video images can be
stored in multiple languages and the
language can be selected freely.Region code
DVD players and discs are assigned codes
for each market region and only discs
manufactured for that specific region can
be played.
A disc cannot be played if the region code
assigned to the player is not indicated on
the disc.
In addition, even if a region code is not
indicated on the disc, disc playback may
be prohibited depending on the region. In
this case, a disc ma y not be playable in
this DVD player.
▼ Operating Tips for USB device
This unit plays audio files as follows:
Extension Playback with this unit
.mp3 MP3
.wma WMA
.aac AAC
.m4a
.wav
*1WAV
.ogg
*1OGG
CAUTION
Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognise the file correctly
resulting in noise or a malfunction.
NOTE
•Playback may not be possible depending
on the type and condition of the USB
flash memory even if the audio file
complies with the standard.
•A copyright protected WMA/AAC file
cannot be played in this unit.
Interior Features
Appendix
5-140
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•(Type B)
If a file name in the USB memory is too
long, it could cause operation problems
such as not being able to playback the
song.
(Recommended: Within 80 characters)
•The order of the music data stored in the
device may differ from the playback
order.

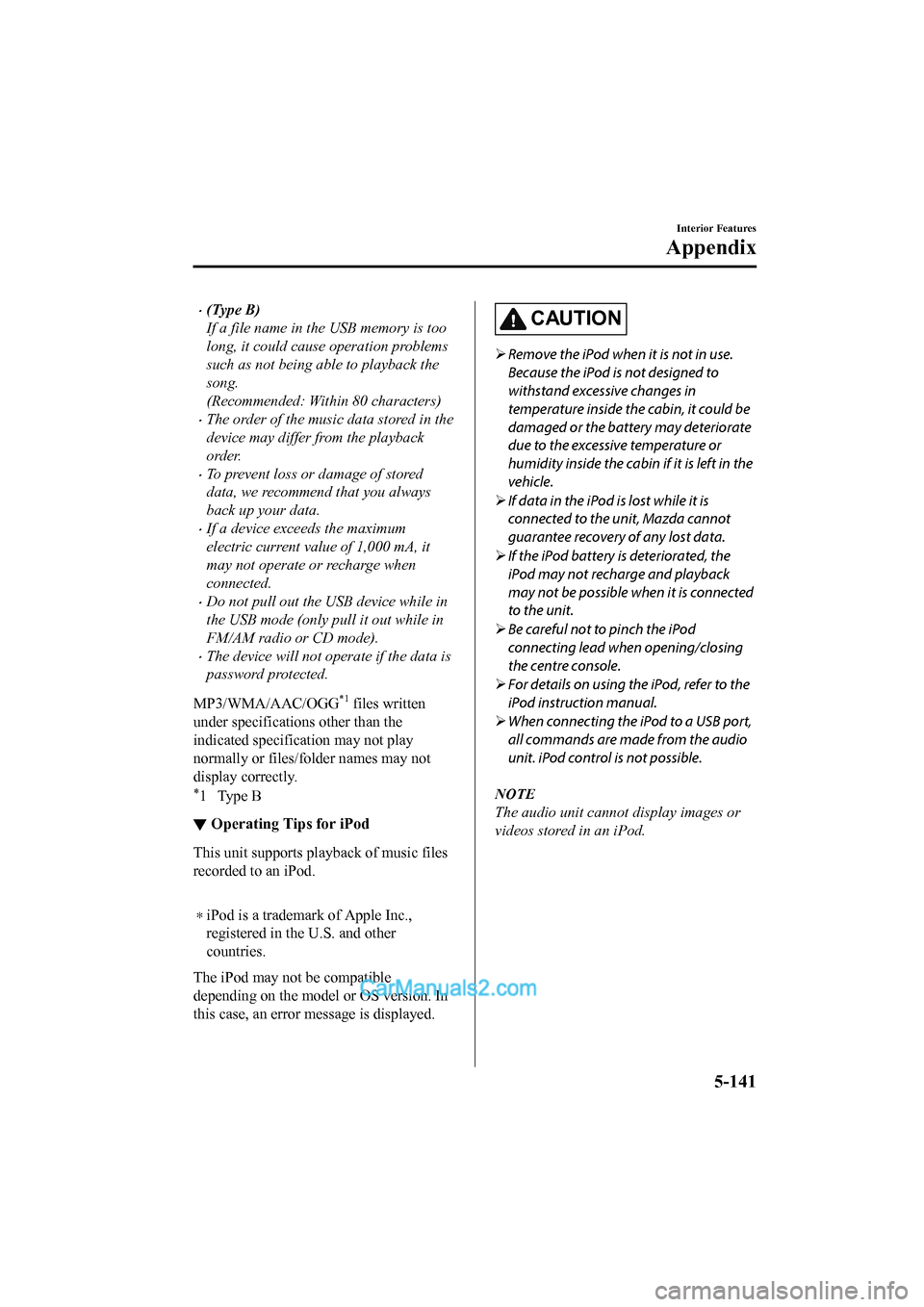

•To prevent loss or damage of stored
data, we recommend that you always
back up your data.
•If a device exceeds the maximum
electric current value of 1,000 mA, it
may not operate or recharge when
connected.
•Do not pull out the USB device while in
the USB mode (only pull it out while in
FM/AM radio or CD mode).
•The device will not operate if the data is
password protected.
MP3/WMA/AAC/OGG
*1 files written
under specifications other than the
indicated specification may not play
normally or files/fo lder names may not
display correctly.
*1Type B
▼ Operating Tips for iPod
This unit supports playback of music files
recorded to an iPod.

∗ iPod is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
The iPod may not be compatible
depending on the model or OS version. In
this case, an error message is displayed.
CAUTION
Remove the iPod when it is not in use.
Because the iPod is not designed to
withstand excessive changes in
temperature inside the cabin, it could be
damaged or the battery may deteriorate
due to the excessive temperature or
humidity inside the cabin if it is left in the
vehicle.
 If data in the iPod is lost while it is
connected to the unit, Mazda cannot
guarantee recovery of any lost data.
 If the iPod battery is deteriorated, the
iPod may not recharge and playback
may not be possible when it is connected
to the unit.
 Be careful not to pinch the iPod
connecting lead when opening/closing
the centre console.
 For details on using the iPod, refer to the
iPod instruction manual.
 When connecting the iPod to a USB port,
all commands are made from the audio
unit. iPod control is not possible.
NOTE
The audio unit cannot display images or
videos stored in an iPod.
Interior Features
Appendix
5-141
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

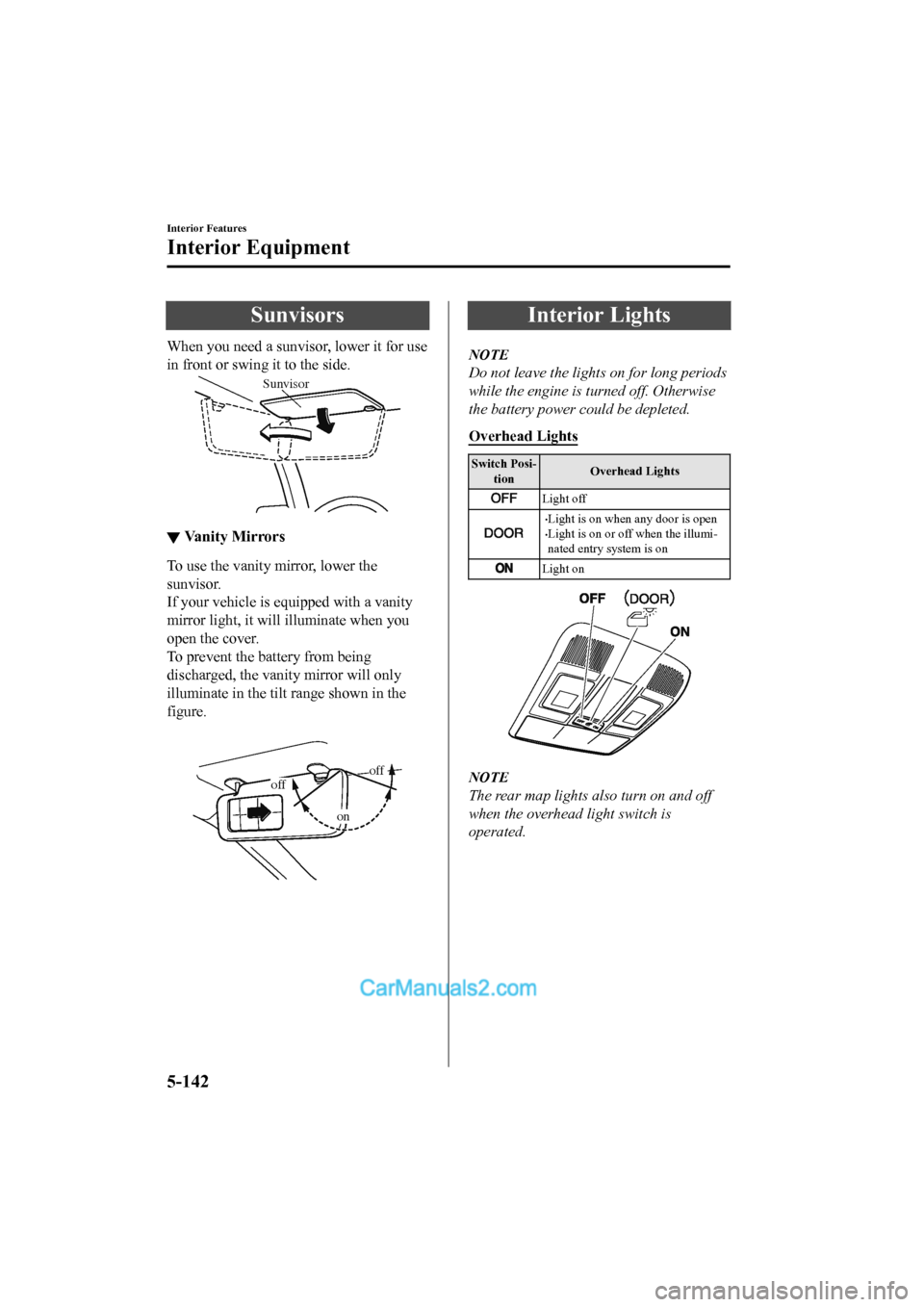

Sunvisors
When you need a sunvisor, lower it for use
in front or swing it to the side.
Sunvisor
▼Va n i t y M i r r o r s
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will
illuminate when you
open the cover.
To prevent the battery from being
discharged, the vanity mirror will only
illuminate in the ti lt range shown in the
figure.

offoff
on
Interior Lights
NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.
Overhead Lights
Switch Posi-
tion Overhead Lights
Light off
•Light is on when a
ny door is open•Light is on or off when the illumi-
nated entry system is on
Light on
NOTE
The rear map lights also turn on and off
when the overhead light switch is
operated.
Interior Features
Interior Equipment
5-142
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Front Map Lights
When the overhead light switch is in the
door or off position, press the lens to
illuminate the front map lights, and then
press the lens again to turn them off.
NOTE
The front map lights will not turn off even
if the lens is pressed in the following
cases:
•The overhead light switch is in the ON
position.
•The overhead light switch is in the door
position with the door open.
•The illuminated entry system is on.
Rear Map Lights
When the overhead light switch is in the
door or off position, press the lens to
illuminate a rear map light, and then press
the lens again to turn it off.
NOTE
•Once the rear map lights have been
turned off, they wi ll turn on and off
depending on the position to which the
overhead light is switched.
•The rear map lights will not turn off
even if the lens is pressed in the
following cases:
•The overhead light switch is ON.
•The overhead light switch is in the
door position with the door open.
•The illuminated entry system is on.
Luggage Compartment Lights
Switch Posi- tion Luggage Compartment Light
Light off
Light on when the liftgate is open
Interior Features
Interior Equipment
5-143
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Illuminated Entry System
The overhead lights turn on when any of
the following operations is done with the
overhead light switch in the DOOR
position.
•The driver's door i
s unlocked with the
ignition is switched OFF.
•The ignition is switched OFF with all
doors closed.
NOTE
•The illumination time differs depending
on the operation.
•Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.
•The operation of the illuminated entry
system can be changed.
Refer to Personalisation Features on
page 9-12.
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON.
Front
Centre
Rear

Interior Features
Interior Equipment
5-144
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

CAUTION
To prevent accessory socket damage or
electrical failure, pay attention to the
following:
 Do not use accessories that require
more than 120 W (DC 12 V, 10 A).
 Do not use accessories that are not
genuine Mazda accessories or the
equivalent.
 Close the cover when the accessory
socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.
 Correctly insert the plug into the
accessory socket.
 Do not insert the cigarette lighter into
the accessory socket.
 Noise may occur on the audio playback
depending on the device connected to
the accessory socket.
 Depending on the device connected to
the accessory socket, the vehicle's
electrical system may be affected, which
could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem is
resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition
off. If the problem
is not resolved, consult an expert
repairer, we recommend an Authorised
Mazda Repairer.
NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.
Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord through the cutout of the console and insert the
plug into the accessory socket.
Plug
Interior Features
Interior Equipment
5-145
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
