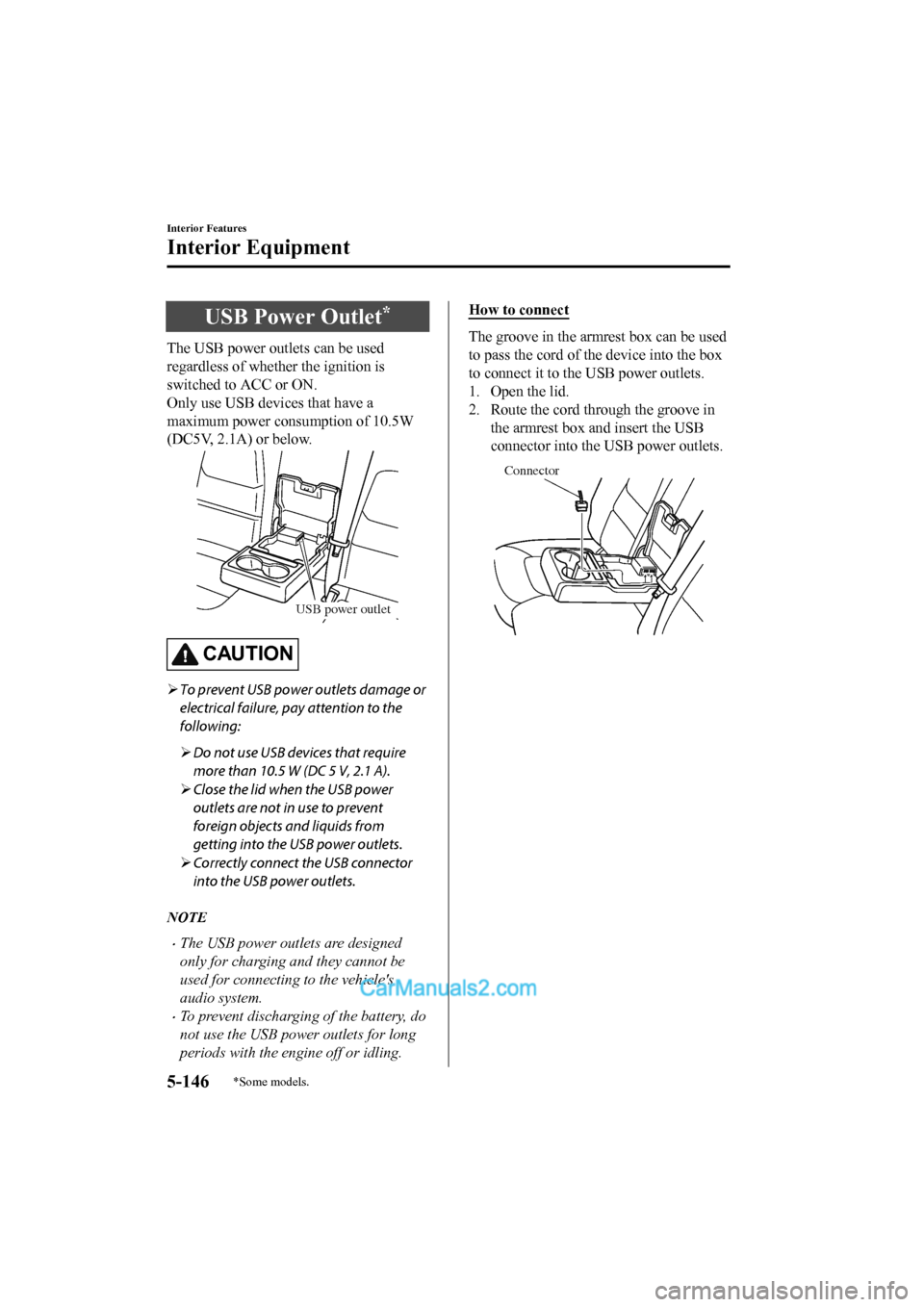

USB Power Outlet*
The USB power outlets can be used
regardless of whether the ignition is
switched to ACC or ON.
Only use USB devices that have a
maximum power consumption of 10.5W
(DC5V, 2.1A) or below.
USB power outlet
CAUTION
To prevent USB power outlets damage or
electrical failure, pay attention to the
following:
 Do not use USB devices that require
more than 10.5 W (DC 5 V, 2.1 A).
 Close the lid when the USB power
outlets are not in use to prevent
foreign objects and liquids from
getting into the USB power outlets.
 Correctly connect the USB connector
into the USB power outlets.
NOTE
•The USB power outlets are designed
only for charging and they cannot be
used for connecting to the vehicle's
audio system.
•To prevent discharging of the battery, do
not use the USB power outlets for long
periods with the engine off or idling.
How to connect
The groove in the armrest box can be used
to pass the cord of the device into the box
to connect it to the U SB power outlets.
1. Open the lid.
2. Route the cord through the groove in
the armrest box and insert the USB
connector into the USB power outlets.
Connector
Interior Features
Interior Equipment
5-146*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

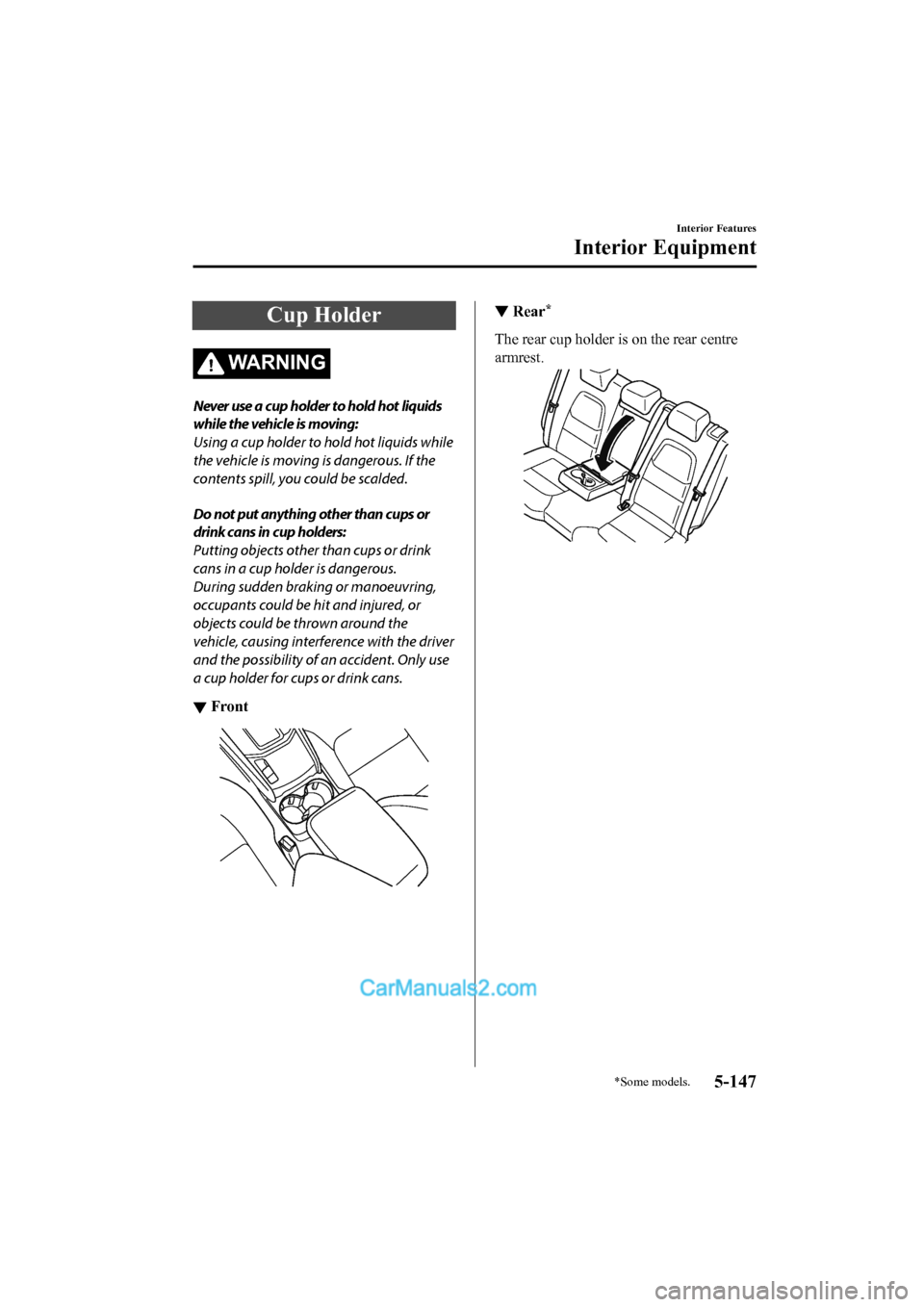

Cup Holder
WA R N I N G
Never use a cup holder to hold hot liquids
while the vehicle is moving:
Using a cup holder to hold hot liquids while
the vehicle is moving is dangerous. If the
contents spill, you could be scalded.
Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups or drink
cans in a cup holder is dangerous.
During sudden braking or manoeuvring,
occupants could be hit and injured, or
objects could be thrown around the
vehicle, causing interference with the driver
and the possibility of an accident. Only use
a cup holder for cups or drink cans.
▼Front
▼
Rear*
The rear cup holder is on the rear centre
armrest.
Interior Features
Interior Equipment
*Some models.5-147
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

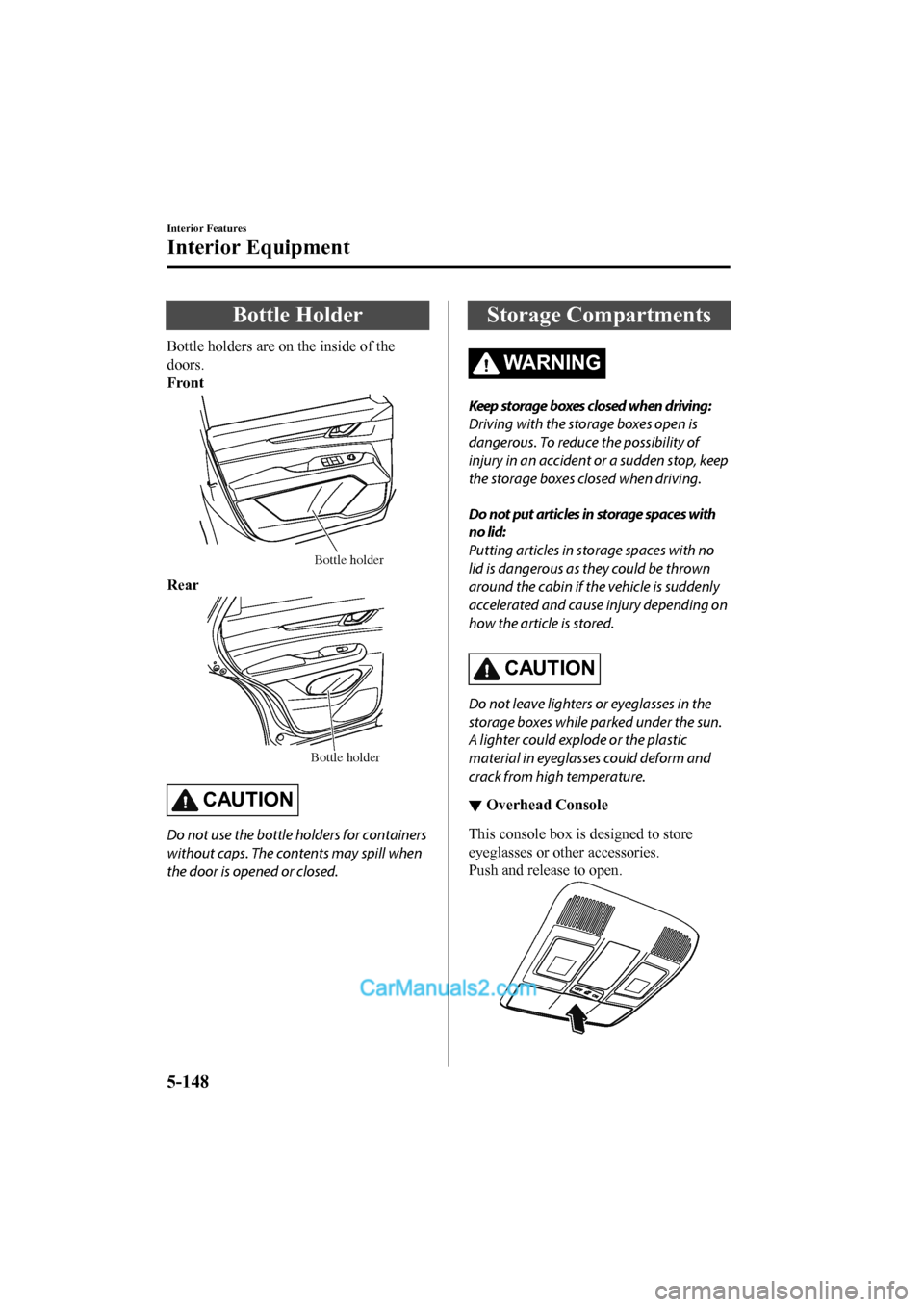

Bottle Holder
Bottle holders are on the inside of the
doors.
Front
Bottle holder
Rear
Bottle holder
CAUTION
Do not use the bottle holders for containers
without caps. The contents may spill when
the door is opened or closed.
Storage Compartments
WA R N I N G
Keep storage boxes closed when driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop, keep
the storage boxes closed when driving.
Do not put articles in storage spaces with
no lid:
Putting articles in storage spaces with no
lid is dangerous as they could be thrown
around the cabin if the vehicle is suddenly
accelerated and cause injury depending on
how the article is stored.
CAUTION
Do not leave lighters or eyeglasses in the
storage boxes while parked under the sun.
A lighter could explode or the plastic
material in eyeglasses could deform and
crack from high temperature.
▼Overhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
Interior Features
Interior Equipment
5-148
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

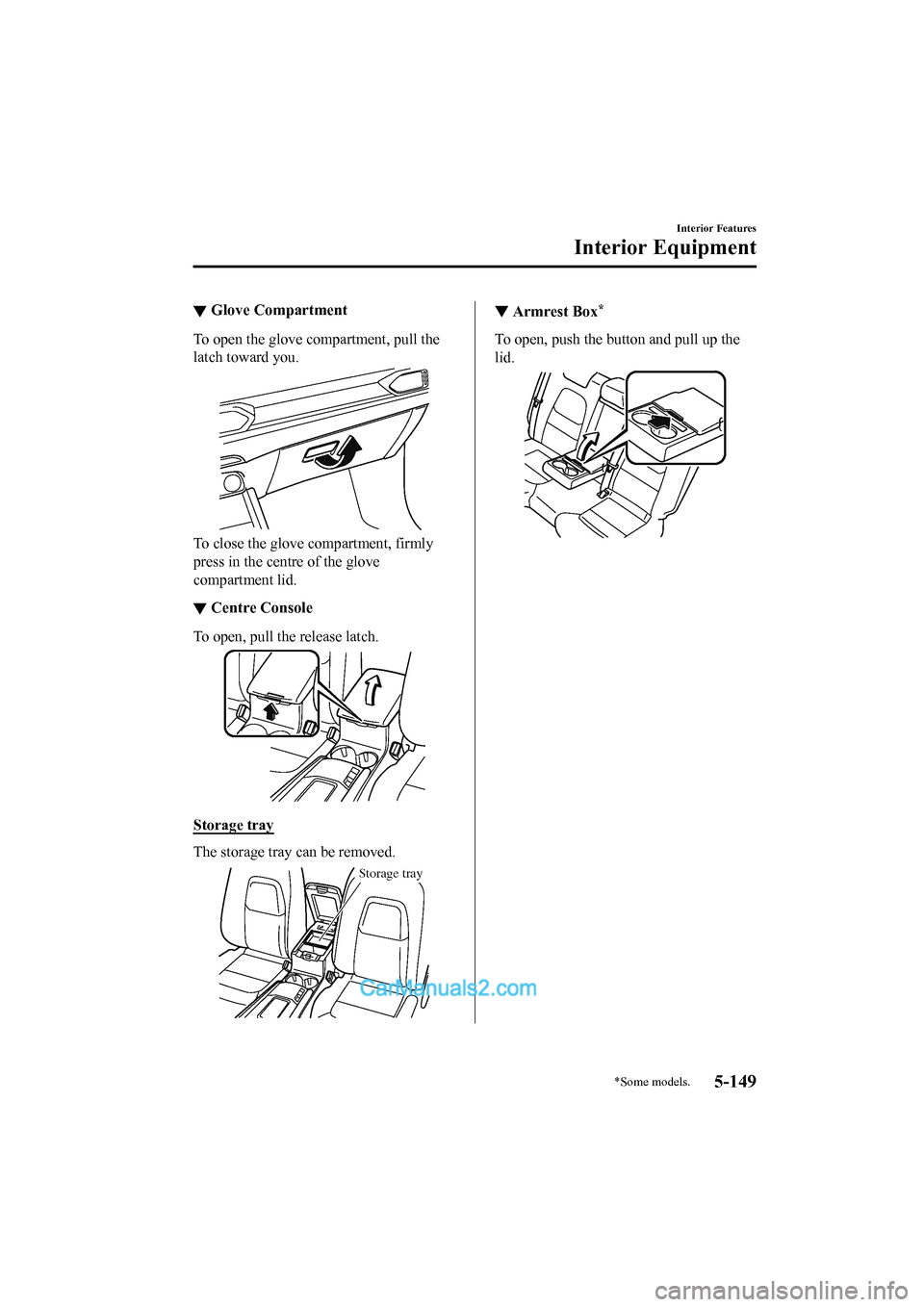

▼Glove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the centre of the glove
compartment lid.
▼Centre Console
To open, pull the release latch.
Storage tray
The storage tray can be removed.
Storage tray
▼
Armrest Box*
To open, push the button and pull up the
lid.
Interior Features
Interior Equipment
*Some models.5-149
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Luggage Compartment
Cargo Securing Loops
WA R N I N G
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as
it could move or be crushed during sudden
braking or a collision and cause injury.
Use the loops in the luggage compartment to secure cargo with a rope or net. The tensile
strength of the loops is 196 N (20 kgf, 44 lbf). Do not apply excessive force to the loops as
it will damage them.
Cargo Sub-Compartment
Centre cargo sub-compartment*
Raise the luggage board to put small items in the cargo sub-com partment.
Luggage board
Interior Features
Interior Equipment
5-150*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Side cargo sub-compartment
Open the cover to put small items in the cargo sub-compartment.
NOTE
Loading golf bags
(Some golf bags may not fit using the following methods depending on their sizes.)
Up to four golf bags can be carried in the luggage compartment.
(With luggage compartment cover)
When loading four golf bags, remove the luggage compartment cover and store it in the
cargo sub-compartment.
Refer to Luggage Compartment Cover on page 3-26.
For vehicles with a spare tyre, up to three golf bags can be carried in the luggage
compartment because there is no space to store the luggage compartment cover.

Bottom: Place the first and second golf bags in the luggage compartment with the bottoms
pointed to the right.
Top: Place the third golf bag with its bottom pointed to the left and the fourth golf bag with
its bottom pointed to the right in the luggage compartment.
The arrows indicate the bottoms of the golf bags.To p
Bottom
The illustration shows the loading of four golf bags.
Interior Features
Interior Equipment
5-151
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

▼Rear Coat Hooks
WA R N I N G
Never hang heavy or sharp objects on the
assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist grips
or coat hooks is dangerous as they can fly
off
and hit an occupant in the cabin if a
curtain air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grip s without hangers.
Coat hook
Removable Ashtray*
The removable ashtray can be fixed and
used in either of the front cup holders.
WA R N I N G
Only use the removable ashtray in its fixed
position, and make sure it is completely
inserted:
Using an ashtray removed from its fixed
position or not completely inserted is
dangerous. Cigarettes could roll around or
spill out of the ashtray into the vehicle and
start a
fire. Moreover, cigarette stubs will
not extinguish themselves completely even
if the ashtray lid is closed.
CAUTION
Do not use the ashtray for rubbish. You
might start a fire.
To use the ashtray, insert it straight into the
cup holder.
To remove the ashtray, pull it upward.

Interior Features
Interior Equipment
5-152*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information........................6-2 Introduction.................................. 6-2
Scheduled Maintenance.................... 6-3 Scheduled Maintenance................ 6-3
Maintenance Monitor................. 6-17
Owner Maintenance........................ 6-20 Owner Maintenance
Precautions................................. 6-20
Bonnet........................ .................6-22
Engine Compartment
Overview.................................... 6-24
Engine Oil...................................6-25
Engine Coolant........................... 6-29
Brake/Clutch Fluid ..................... 6-31
Window and Headlight Washer
Fluid............................................6-32
Body Lubrication...... .................. 6-32
Wiper Blades.............................. 6-33
Battery........................................ 6-38
Key Battery Replacement........... 6-41
Tyres........................................... 6-43
Light Bulbs................................. 6-47
Fuses........................................... 6-54
Appearance Care............................. 6-61
Exterior Care.............................. 6-61
Interior Care................................6-66
6-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing a tyre, or doing some
kind of maintenance such as car washing.
In particular, wear thick work gloves such as cotton gloves when touching areas that are
difficult to see while inspecting or working on your vehicle. D oing inspections or
procedures with your bare hands could cause injury.

If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified technician perform the work, we recommend an Auth orised Mazda Repairer.

Authorised Mazda technicians and genuine Mazda parts are dedica ted to your vehicle.
Without this expertise and the parts that have been designed an d made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may r esult in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an expert repair er, we recommend an
Authorised Mazda Repairer.

The owner should retain evidence that proper maintenance has be en performed as
prescribed.

A claim against a warranty wil l not qualify if it results from lack of maintenance and not
from defective material or authorised workmanship.

The malfunction diagnosis connector is designed exclusively for connecting the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction diagnosis devices
for servicing. If any device other than the malfunction diagnos is device is connected, it may
affect the vehicle's electrical d evices or lead to damage such as battery depletion.
Malfunction
diagnosis
connector
Maintenance and Care
Essential Information
6-2
2017-6-7 7:51:19Form No. CX-5 8FY4-EE-17E+L_Edition2

Scheduled Maintenance
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
Emission control and related systems
The ignition and fuel systems are highly important to the emission control system and to
efficient engine operation. Do not tamper with them.
All inspections and adjustments m ust be made by an expert repairer, we recommend an
Authorised Mazda Repairer.
▼ Europe
My Mazda Service
The maintenance monito
r alerts regarding the next maintenance due. The next mainte-
nance is due at least every 20,000 km or 12 months after the re spective last mainte-
nance.
Maintenance 1st 2nd 3rd 4th 5th 6th 7th 8th 9th10th 11th 12th
SKYACTIV-G 2.0, AND SKYACTIV-G 2.5
Spark plugs
*1Replace every 120,000 km (75,000 miles).
Air filter
*2RRRR
Fuel lines and hoses IIIIII
Evaporative system (if installed) III I
Engine oil & filter
*3*4RRRRRRRRRRRR
SKYACTIV-D 2.2
Engine oil & filter Except Uk-
raine
*3*4*6RRRRRRRRRRRR
Ukraine
*5*6Replace every 10,000 km (6, 250 miles) or 12 months.
Fuel lines and hoses Except Uk-
raine
IIIIII
Ukraine IIIIIIIIIIII
Fuel filter RRR R
Fuel injection system
*7IIII
Fuel system (Drain water)
*8
Air filter*2CCRCCRCCRCCR
SKYACTIV-G 2.0, SKYACTIV-G 2.5, AND SKYACTIV-D 2.2
Drive belts
*9IIII
Cooling system IIIIII
