sensor MAZDA MODEL CX-5 2017 - RHD (UK, Australia) (in English) Manual Online

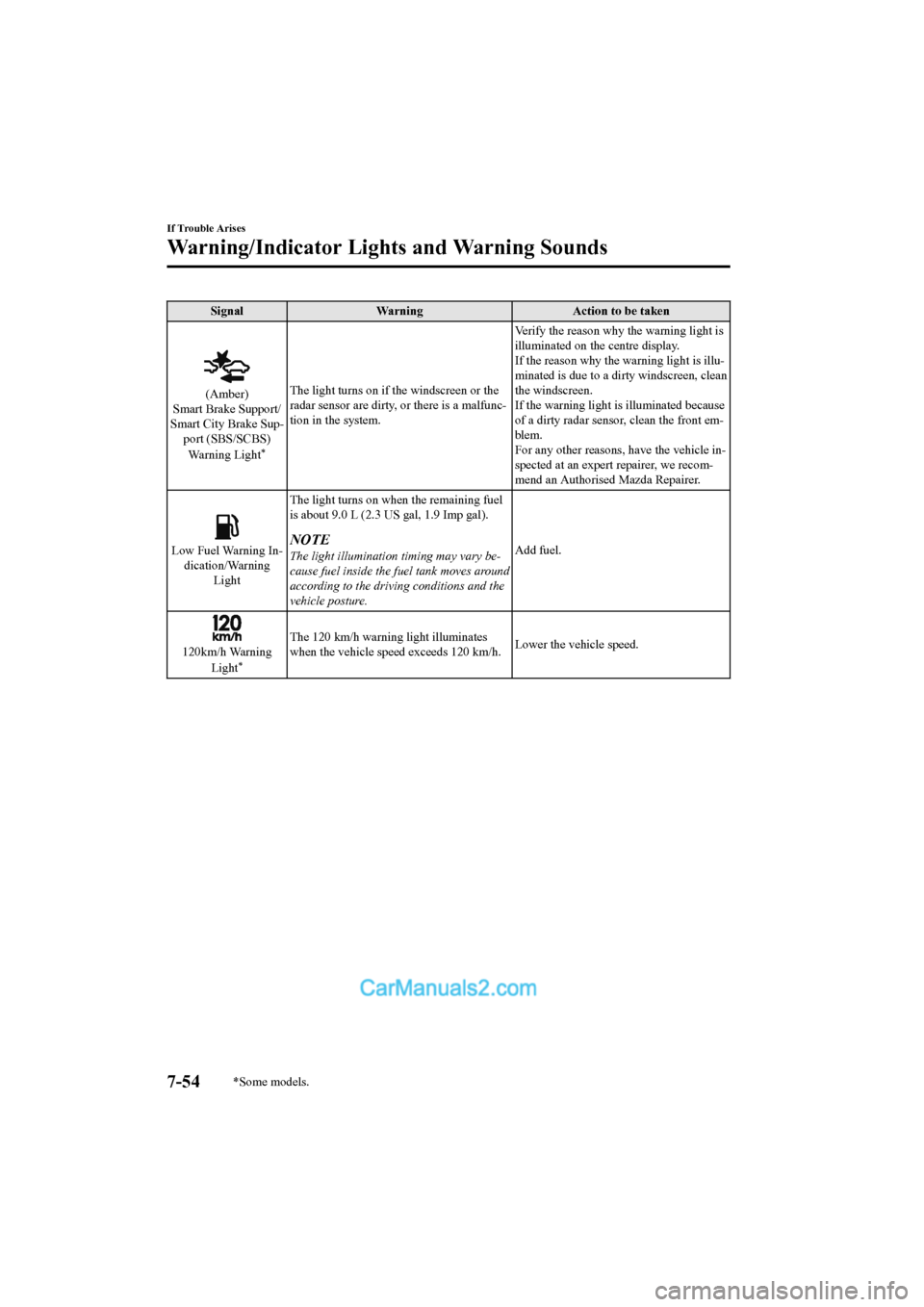

SignalWarning Action to be taken
(Amber)
Smart Brake Support/
Smart City Brake Sup-
port (SBS/SCBS)
Warning Light
*
The light turns on if the windscreen or the
radar sensor are dirty, or there is a malfunc-
tion in the system. Verify the reason why the warning light is
illuminated on the centre display.
If the reason why the
warning light is illu-
minated is due to a dirty windscreen, clean
the windscreen.
If the warning light is illuminated because
of a dirty radar sensor, clean the front em-
blem.
For any other reasons, have the vehicle in-
spected at an expert repairer, we recom-
mend an Authorised Mazda Repairer.
Low Fuel Warning In- dication/Warning
Light The light turns on when the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal).NOTE
The light illumination timing may vary be-
cause fuel inside the fuel tank moves around
according to the driving conditions and the
vehicle posture.
Add fuel.
120km/h Warning
Light*
The 120 km/h warning light illuminates
when the vehicle speed exceeds 120 km/h. Lower the vehicle speed.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-54*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Action to be taken
Seat Belt Warning
Light (Front seat) The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig-
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and the vehicle is driven at
a speed faster than abo
ut 20 km/h (12 mph),
the warning light flashes. After a short time,
the warning light stops flashing, but re-
mains illuminated. If a seat belt remains un-
fastened, the warning light flashes again for
a given period of time.
NOTE
•If the driver or front passenger's seat belt
is unfastened after th e warning light turns
on, and the vehicle speed exceeds 20 km/h
(12 mph), the warning light flashes again.
•Placing heavy items on the front passeng-
er's seat may cause the front passenger's
seat belt warning function to operate de-
pending on the weight of the item.
•To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor may
not function properly because the addi-
tional seat cushion could cause sensor in-
terference.
•If a small child is seated on the front pas-
senger's seat, the warning light may not
operate. Fasten the seat belts.
(Red)
Seat Belt Warning
Light (Rear seat)
*
If the rear seat belts are not fastened while
the ignition is switched ON , the driver and
the passenger are alerted by the warning
light.
The warning light opera tes even if there is
no passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a cer-
tain period of time after the engine has
been started, the warning light turns off. Fasten the seat belts.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-55
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

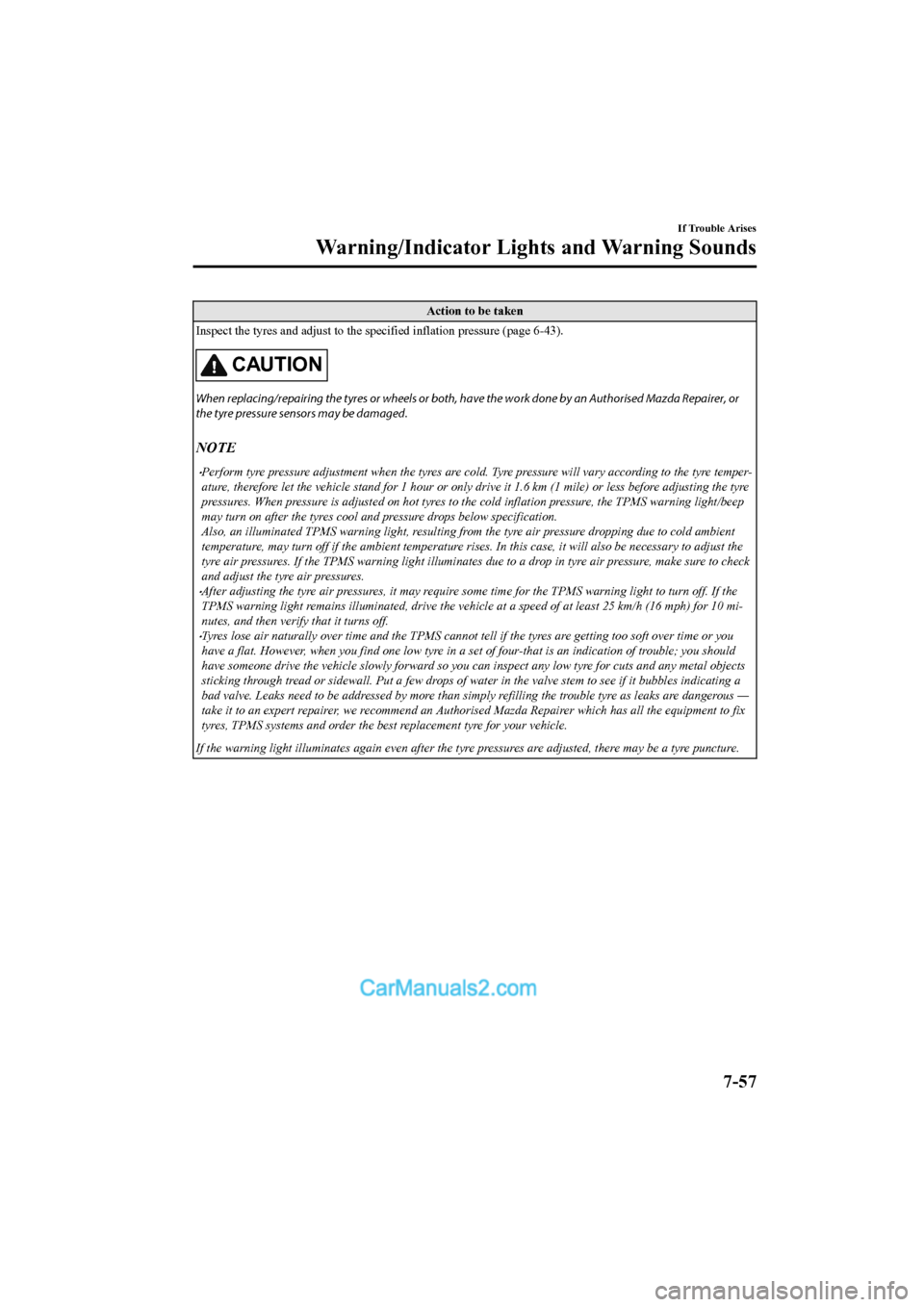

Action to be taken
Inspect the tyres and adjust to the specified inflation pressur e (page 6-43).
CAUTION
When replacing/repairing the tyres or wheels or both, have the work done by an Authorised Mazda Repairer, or
the tyre pressure sensors may be damaged.
NOTE
•Perform tyre pressure adjustment when the tyres are cold. Tyre pressure will vary according to the tyre temper-
ature, therefore let the vehicle stand for 1 hour or only drive it 1.6 km (1 mile) or less before adjusting the tyre
pressures. When pressure is adjusted on hot tyres to the cold inflation pressure, the TPMS warning light/beep
may turn on after the tyres cool and pressure drops below specification.
Also, an illuminated TPMS warning light, resulting from th e tyre air pressure dropping due to cold ambient
temperature, may turn off if the ambien t temperature rises. In this case, it will also be necessary to adjust the
tyre air pressures. If the TPMS warn ing light illuminates due to a drop in tyre air pressure, make sure to check
and adjust the tyre air pressures.
•After adjusting the tyre air pressures, it may require some time for the TPMS warning light to turn off. If the
TPMS warning light remains illuminated, drive the vehicle at a speed of at least 25 km/h (16 mph) for 10 mi-
nutes, and then verify that it turns off.
•Tyres lose air naturally over time and the TPMS cannot tell if the tyres are getting too soft over time or you
have a flat. However, when you find one low tyre in a se t of four-that is an indication of trouble; you should
have someone drive the vehicle slowly forward so you can inspect any low tyre for cuts and any metal objects
sticking through tread or sidewall. Pu t a few drops of water in the valve stem to see if it bubbles indicating a
bad valve. Leaks need to be addresse d by more than simply refilling the trouble tyre as leaks are dangerous ―
take it to an expert repairer, we recommend an Authoris ed Mazda Repairer which has all the equipment to fix
tyres, TPMS systems and order the best replacement tyre for your vehicle.
If the warning light illuminates again even after the tyre pressures are adju sted, there may be a tyre puncture.

If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-57
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

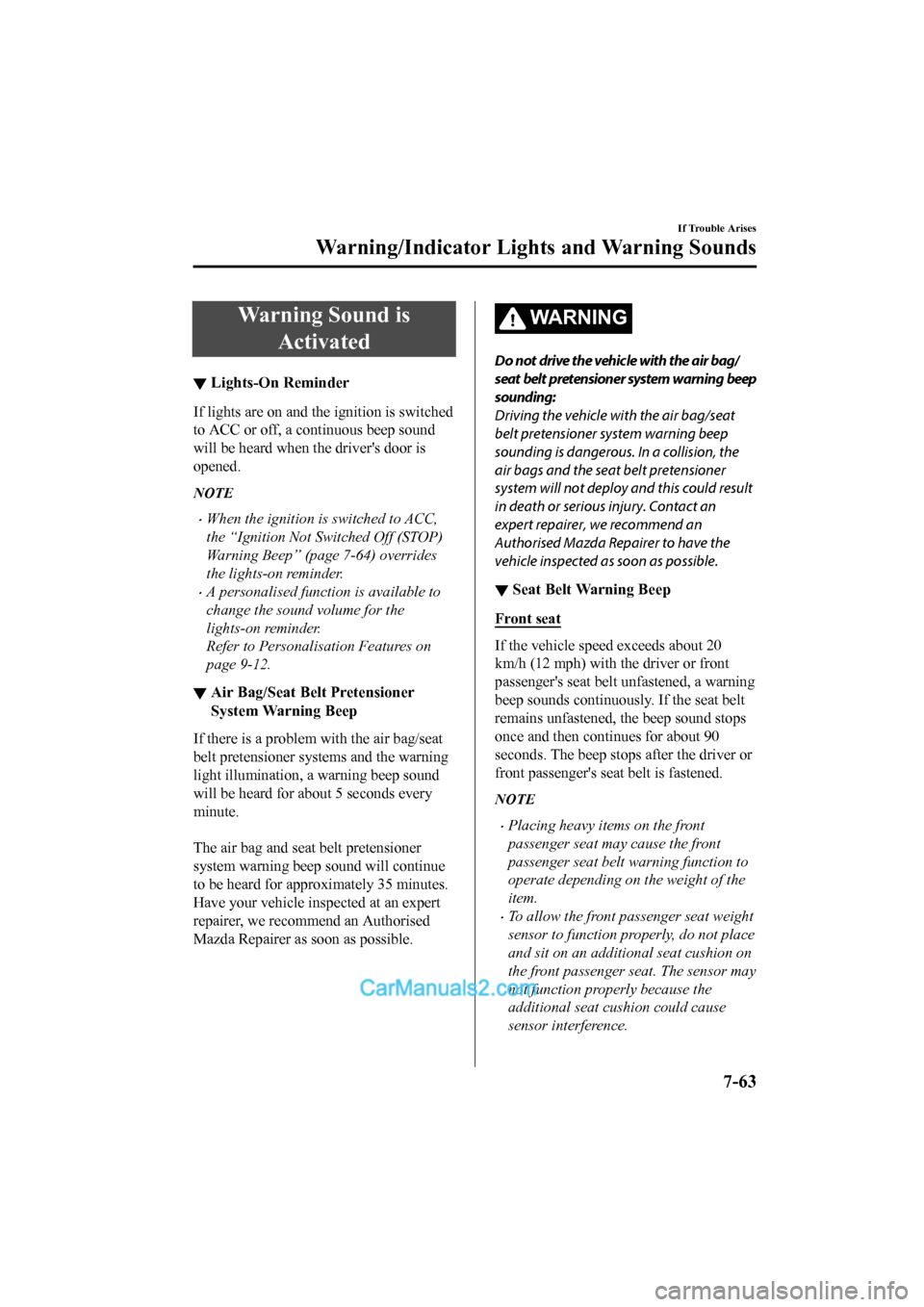

Warning Sound isActivated
▼Lights-On Reminder
If lights are on and the ignition is switched
to ACC or off, a continuous beep sound
will be heard when the driver's door is
opened.
NOTE
•When the ignition is
switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page 7-64) overrides
the lights-on reminder.
•A personalised function is available to
change the sound volume for the
lights-on reminder.
Refer to Personalisation Features on
page 9-12.
▼ Air Bag/Seat Belt Pretensioner
System Warning Beep
If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.

The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an expert
repairer, we recommend an Authorised
Mazda Repairer as soon as possible.
WA R N I N G
Do not drive the vehicle with the air bag/
seat belt pretensioner system warning beep
sounding:
Driving the vehicle with the air bag/seat
belt pretensioner system warning beep
sounding is dangerous. In a collision, the
air bags and the seat belt pretensioner
system will not deploy and this could result
in death or serious injury. Contact an
expert repairer, we recommend an
Authorised Mazda Repairer to have the
vehicle inspected as soon as possible.
▼Seat Belt Warning Beep
Front seat
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
front passenger's seat belt is fastened.
NOTE
•Placing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function to
operate depending on the weight of the
item.
•To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger seat. The sensor may
not function properly because the
additional seat cushion could cause
sensor interference.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-63
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

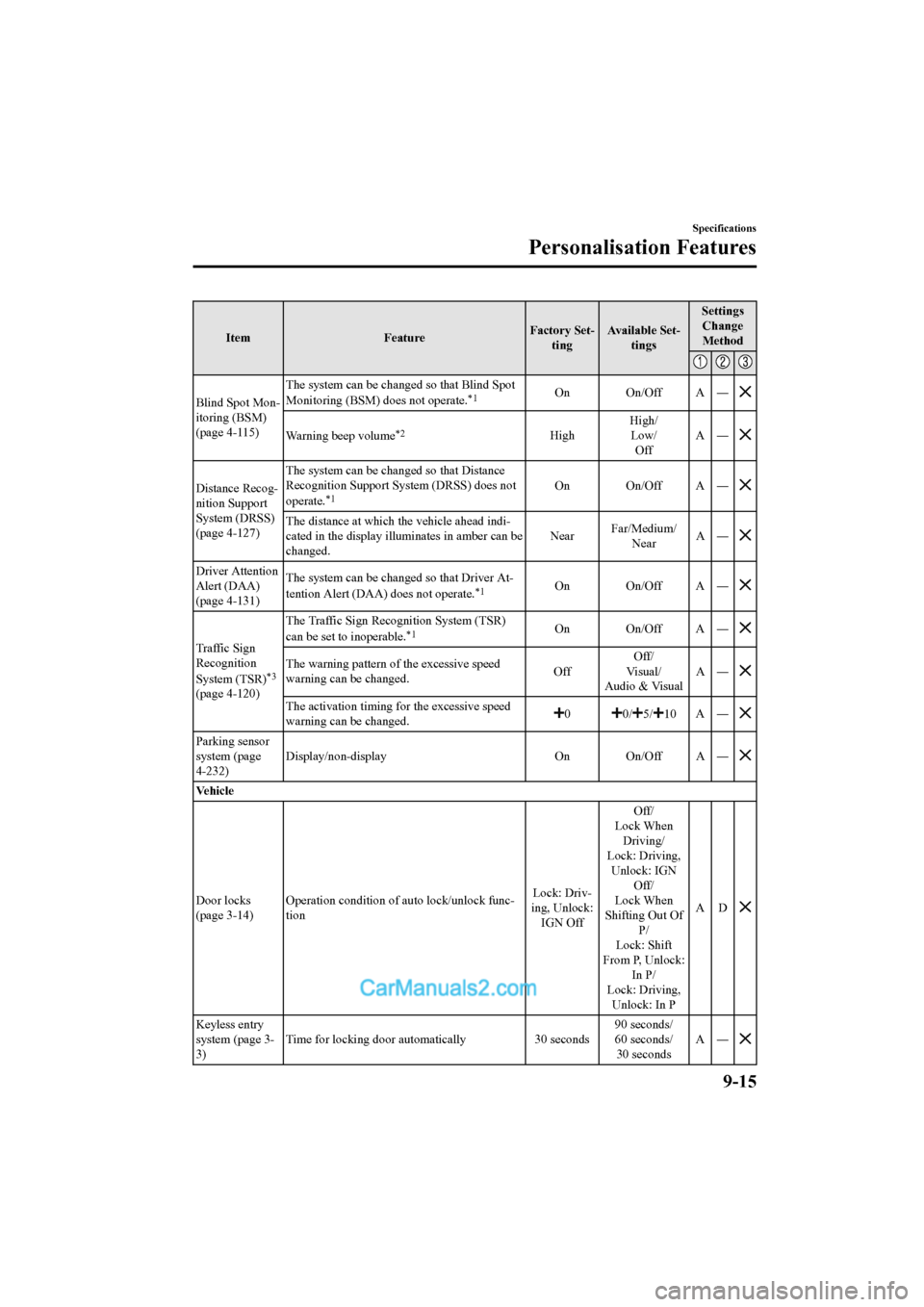

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method
Blind Spot Mon-
itoring (BSM)
(page 4-115) The system can be changed so that Blind Spot
Monitoring (BSM) does not operate.*1On On/Off A ―
Warning beep volume*2High
High/
Low/ Off A―
Distance Recog-
nition Support
System (DRSS)
(page 4-127) The system can be changed so that Distance
Recognition Support System (DRSS) does not
operate.*1On On/Off A ―
The distance at which the vehicle ahead indi-
cated in the display illuminates in amber can be
changed.
Near
Far/Medium/
Near A―
Driver Attention
Alert (DAA)
(page 4-131) The system can be changed so that Driver At-
tention Alert (DAA) does not operate.
*1On On/Off A ―
Traffic Sign
Recognition
System (TSR)
*3
(page 4-120)The Traffic Sign Recognition System (TSR)
can be set to inoperable.
*1On On/Off A ―
The warning pattern of the excessive speed
warning can be changed.
OffOff/
Vi s u a l /
Audio & Visual A―
The activation timing for the excessive speed
warning can be changed.00/5/10
A―
Parking sensor
system (page
4-232) Display/non-display
On On/Off A ―
Ve h i c l e
Door locks
(page 3-14)Operation condition of auto lock/unlock func-
tion Lock: Driv-
ing, Unlock: IGN Off Off/
Lock When Driving/
Lock: Driving, Unlock: IGN Off/
Lock When
Shifting Out Of P/
Lock: Shift
From P, Unlock: In P/
Lock: Driving, Unlock: In P AD
Keyless entry
system (page 3-
3)
Time for locking door automatically
30 seconds90 seconds/
60 seconds/
30 seconds A―
Specifications
Personalisation Features
9-15
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

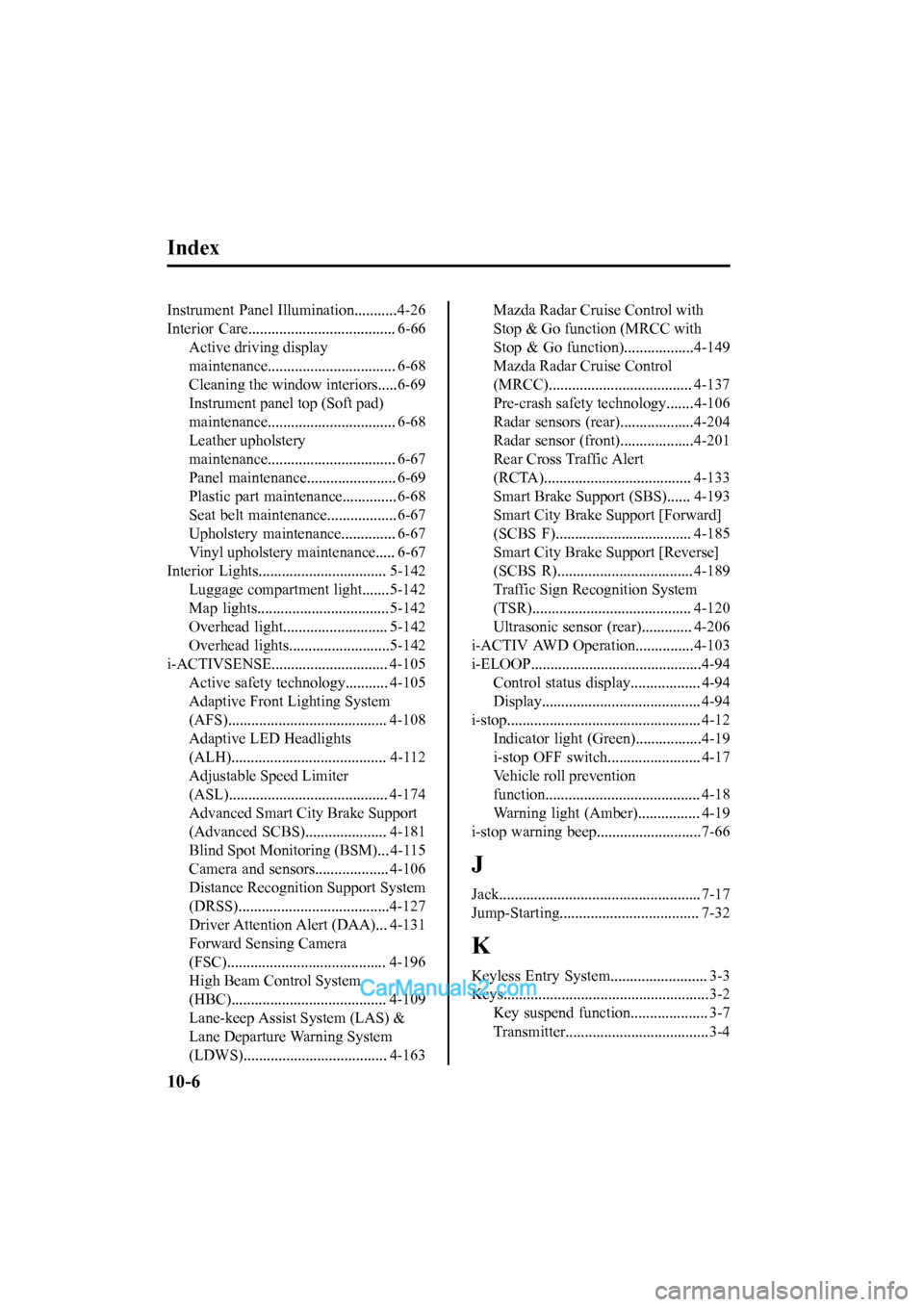

Index
Instrument Panel Illumination...........4-26
Interior Care...................................... 6-66Active driving display
maintenance................................. 6-68
Cleaning the window interiors.....6-69
Instrument panel top (Soft pad)
maintenance................................. 6-68
Leather upholstery
maintenance................................. 6-67
Panel maintenance....................... 6-69
Plastic part maintenance.............. 6-68
Seat belt maintenance..................6-67
Upholstery maintena nce.............. 6-67
Vinyl upholstery maintenance..... 6-67
Interior Lights................................. 5-142 Luggage compartment light.......5-142
Map lights..................................5-142
Overhead light........................... 5-142
Overhead lights..........................5-142
i-ACTIVSENSE.............................. 4-105 Active safety techno logy........... 4-105
Adaptive Front Lighting System
(AFS)......................................... 4-108
Adaptive LED Headlights
(ALH)........................................ 4-112
Adjustable Speed Limiter
(ASL)......................................... 4-174
Advanced Smart City Brake Support
(Advanced SCBS)..................... 4-181
Blind Spot Monitoring (BSM)... 4-115
Camera and sensors................... 4-106
Distance Recognition Support System
(DRSS).......................................4-127
Driver Attention Alert (DAA)... 4-131
Forward Sensing Camera
(FSC)......................................... 4-196
High Beam Control System
(HBC)........................................ 4-109
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)..................................... 4-163Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)..................4-149
Mazda Radar Cruise Control
(MRCC)..................................... 4-137
Pre-crash safety technology.......4-106
Radar sensors (rear)...................4-204
Radar sensor (front)...................4-201
Rear Cross Traffic Alert
(RCTA)...................................... 4-133
Smart Brake Suppor t (SBS)...... 4-193
Smart City Brake Support [Forward]
(SCBS F)................................... 4-185
Smart City Brake Support [Reverse]
(SCBS R)................................... 4-189
Traffic Sign Recognition System
(TSR)......................................... 4-120
Ultrasonic sensor (rear)............. 4-206
i-ACTIV AWD Operation...............4-103
i-ELOOP............................................4-94
Control status display.................. 4-94
Display......................................... 4-94
i-stop.................................................. 4-12 Indicator light (Green).................4-19
i-stop OFF switch........................ 4-17
Vehicle roll prevention
function........................................ 4-18
Warning light (Amber)................ 4-19
i-stop warning beep...........................7-66
J
Jack.................................................... 7-17
Jump-Starting.................................... 7-32
K
Keyless Entry System......................... 3-3
Keys.....................................................3-2 Key suspend function.................... 3-7
Transmitter..................................... 3-4
10-6
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

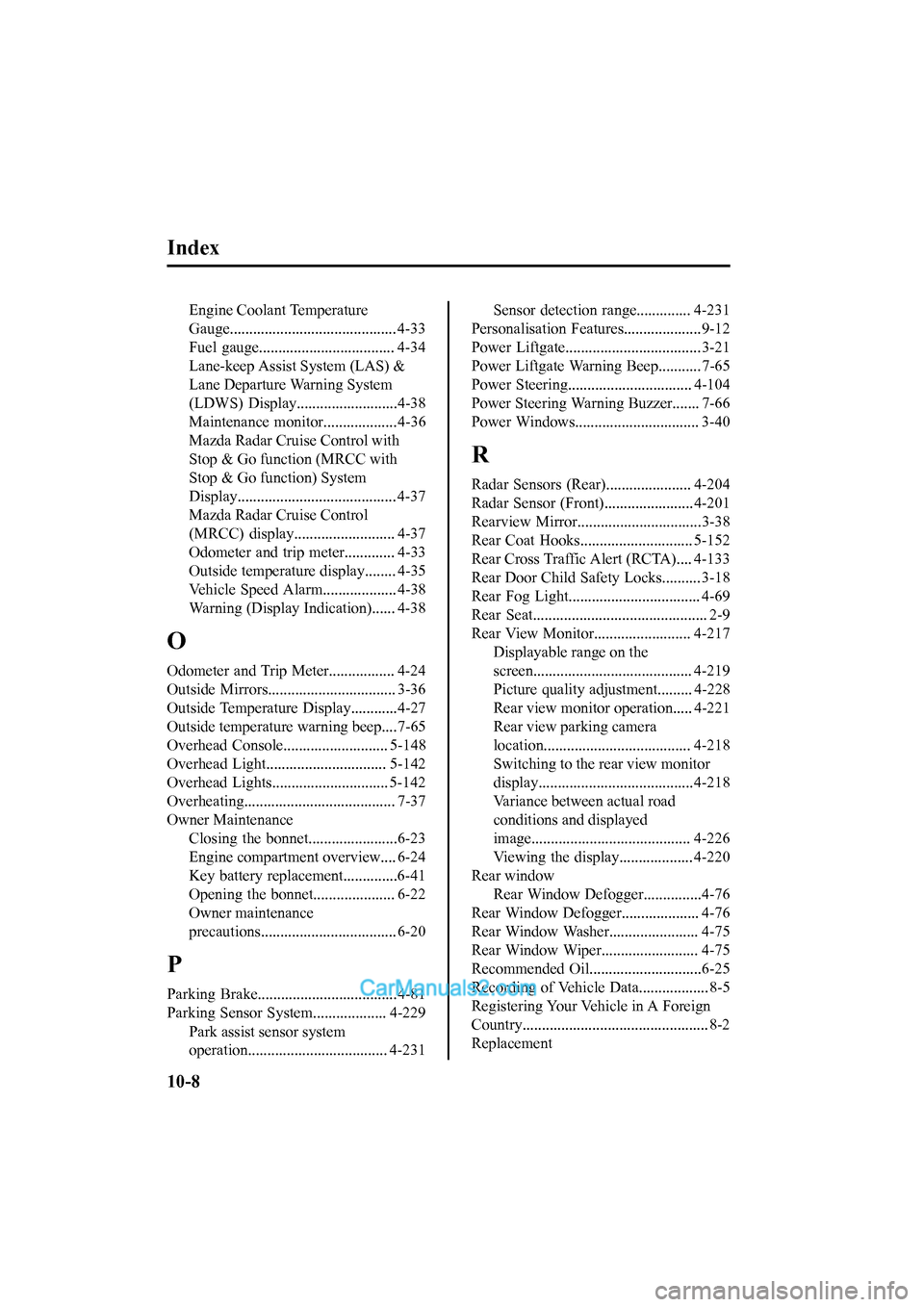

Index
Engine Coolant Temperature
Gauge........................................... 4-33
Fuel gauge................................... 4-34
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Display..........................4-38
Maintenance monitor...................4-36
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) System
Display......................................... 4-37
Mazda Radar Cruise Control
(MRCC) display.......................... 4-37
Odometer and trip meter............. 4-33
Outside temperatur e display........ 4-35
Vehicle Speed Alarm................... 4-38
Warning (Display Indication)...... 4-38
O
Odometer and Trip Meter................. 4-24
Outside Mirrors................................. 3-36
Outside Temperature Display............4-27
Outside temperature warning beep....7-65
Overhead Console........................... 5-148
Overhead Light............................... 5-142
Overhead Lights......... ..................... 5-142
Overheating....................................... 7-37
Owner Maintenance Closing the bonnet.......................6-23
Engine compartment overview.... 6-24
Key battery replacement..............6-41
Opening the bonnet..................... 6-22
Owner maintenance
precautions................................... 6-20
P
Parking Brake....................................4-81
Parking Sensor System................... 4-229
Park assist sensor system
operation.................................... 4-231
Sensor detection range.............. 4-231
Personalisation Features.................... 9-12
Power Liftgate................................... 3-21
Power Liftgate Warning Beep........... 7-65
Power Steering................................ 4-104
Power Steering Warning Buzzer....... 7-66
Power Windows................................ 3-40
R
Radar Sensors (Rear)...................... 4-204
Radar Sensor (Front).......................4-201
Rearview Mirror................................3-38
Rear Coat Hooks......... .................... 5-152
Rear Cross Traffic Alert (RCTA).... 4-133
Rear Door Child Safet y Locks.......... 3-18
Rear Fog Light.................................. 4-69
Rear Seat............................................. 2-9
Rear View Monitor......................... 4-217 Displayable range on the
screen......................................... 4-219
Picture quality adjustment......... 4-228
Rear view monitor operation..... 4-221
Rear view parking camera
location...................................... 4-218
Switching to the rear view monitor
display........................................4-218
Variance between actual road
conditions and displayed
image......................................... 4-226
Viewing the display................... 4-220
Rear window Rear Window Defogge r...............4-76
Rear Window Defogger.................... 4-76
Rear Window Washer... .................... 4-75
Rear Window Wiper......................... 4-75
Recommended Oil.............................6-25
Recording of Vehicle Data.................. 8-5
Registering Your Vehicle in A Foreign
Country................................................ 8-2
Replacement
10-8
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

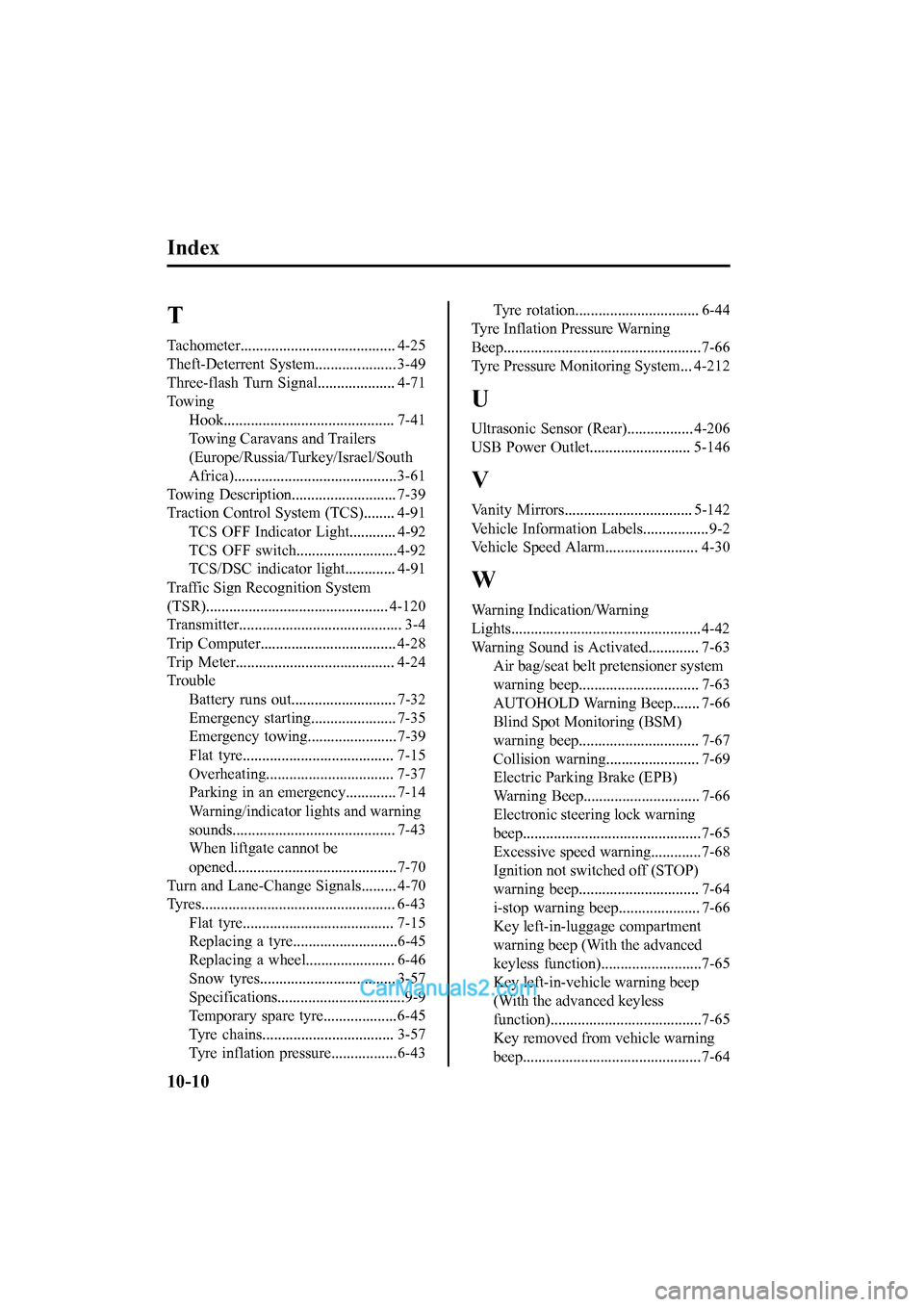

Index
T
Tachometer........................................ 4-25
Theft-Deterrent System..................... 3-49
Three-flash Turn Signal.................... 4-71
To w i n gHook.............. .............................. 7-41
Towing Caravans and Trailers
(Europe/Russia/Turkey/Israel/South
Africa)..........................................3-61
Towing Description........................... 7-39
Traction Control System (TCS)........ 4-91
TCS OFF Indicator Light............ 4-92
TCS OFF switch..........................4-92
TCS/DSC indicator light............. 4-91
Traffic Sign Recognition System
(TSR)............................................... 4-120
Transmitter.......................................... 3-4
Trip Computer................................... 4-28
Trip Meter......................................... 4-24
Trouble Battery runs out........................... 7-32
Emergency starting...................... 7-35
Emergency towing....................... 7-39
Flat tyre....................................... 7-15
Overheating................................. 7-37
Parking in an emergency............. 7-14
Warning/indicator lights and warning
sounds.......................................... 7-43
When liftgate cannot be
opened..........................................7-70
Turn and Lane-Change Signals......... 4-70
Tyres.................................................. 6-43
Flat tyre....................................... 7-15
Replacing a tyre...........................6-45
Replacing a wheel....................... 6-46
Snow tyres................................... 3-57
Specifications.................................9-9
Temporary spare tyre...................6-45
Tyre chains.................................. 3-57
Tyre inflation pressure.................6-43
Tyre rotation................................ 6-44
Tyre Inflation Pressure Warning
Beep...................................................7-66
Tyre Pressure Monitoring System... 4-212
U
Ultrasonic Sensor (Rear)................. 4-206
USB Power Outlet.......................... 5-146
V
Vanity Mirrors................................. 5-142
Vehicle Information Labels................. 9-2
Vehicle Speed Alarm........................ 4-30
W
Warning Indication/Warning
Lights.................................................4-42
Warning Sound is Activated............. 7-63 Air bag/seat belt pr etensioner system
warning beep............................... 7-63
AUTOHOLD Warning Beep....... 7-66
Blind Spot Monitoring (BSM)
warning beep............................... 7-67
Collision warning...... .................. 7-69
Electric Parking Brake (EPB)
Warning Beep.............................. 7-66
Electronic steering lock warning
beep..............................................7-65
Excessive speed warning.............7-68
Ignition not switched off (STOP)
warning beep............................... 7-64
i-stop warning beep..................... 7-66
Key left-in-luggage compartment
warning beep (With the advanced
keyless function)..........................7-65
Key left-in-vehicle warning beep
(With the advanced keyless
function).......................................7-65
Key removed from vehicle warning
beep..............................................7-64
10-10
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
