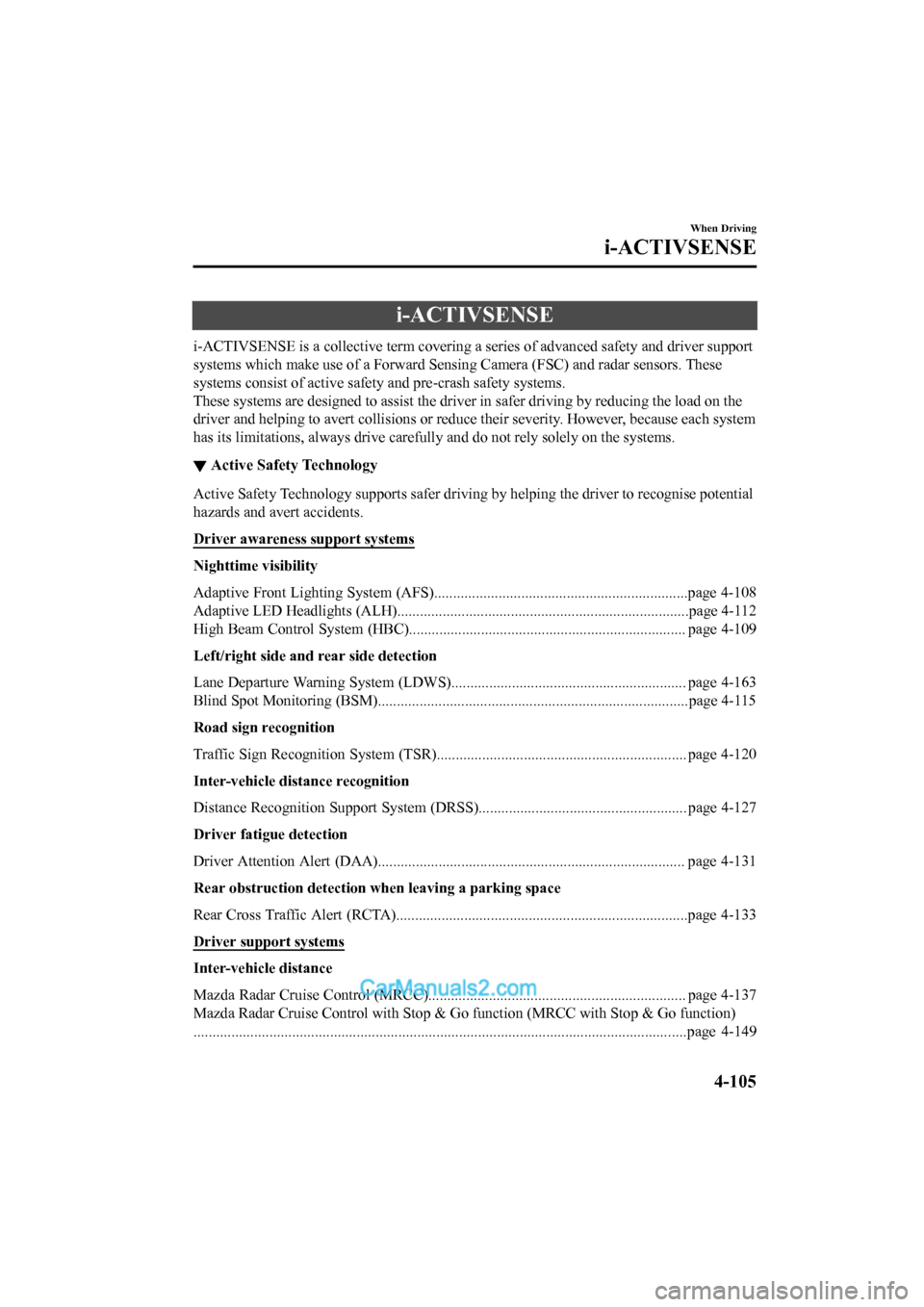

i-ACTIVSENSE
i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors. These
systems consist of active safety and pre-crash safety systems.
These systems are designed to assist the driver in safer drivin g by reducing the load on the
driver and helping to avert collisions or reduce their severity . However, because each system
has its limitations, always drive carefully and do not rely sol ely on the systems.
▼Active Safety Technology
Active Safety Technology supports safer driving by helping the
driver to recognise potential
hazards and avert accidents.
Driver awareness support systems
Nighttime visibility
Adaptive Front Lighting Sy stem (AFS)...................................................................page 4-108
Adaptive LED Headlights (ALH).............................................................................page 4-112
High Beam Control System (HBC)................................. ........................................ page 4-109
Left/right side and rear side detection
Lane Departure Warning System (LDWS)........................... ................................... page 4-163
Blind Spot Monitoring (BSM)..................................................................................page 4-115
Road sign recognition
Traffic Sign Recognition Sys tem (TSR).................................................................. page 4-120
Inter-vehicle distance recognition
Distance Recognition Support System (DRSS)....................................................... page 4-127
Driver fatigue detection
Driver Attention Alert (DAA)................................... .............................................. page 4-131
Rear obstruction detection wh en leaving a parking space
Rear Cross Traffic Alert (RCTA)................................ .............................................page 4-133
Driver support systems
Inter-vehicle distance
Mazda Radar Cruise Control (MRCC).............................. ...................................... page 4-137
Mazda Radar Cruise Control with Stop & Go function (MRCC with S top & Go function)
.............................................................................................................................. ....page 4-149
When Driving
i-ACTIVSENSE
4-105
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Lane departure
Lane-keep Assist System (LAS).............................................................................. page 4-163
Speed control
Adjustable Speed Limiter (ASL)............................................................................. page 4-174
▼Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in
averting collisions or reduce
their severity in situations where they cannot be avoided.
Collision damage reduction in low vehicle speed range
Forward driving
Smart City Brake Support [Forward] (SCBS F).................... ..................................page 4-185
Advanced Smart City Brake S upport (Advanced SCBS).............. .......................... page 4-181
Reverse driving
Smart City Brake Support [Reverse] (SCBS R).................... .................................. page 4-189
Collision damage reduction in medium/high speed range
Smart Brake Support (SBS)..................................................................................... page 4-193
▼Camera and Sensors
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) detects lane indications and r
ecognises headlights, tail
lights and city lights during nighttime driving. In addition, i t also detects the vehicle ahead,
pedestrians, or obstructions. The following systems also use th e Forward Sensing Camera
(FSC).
•High Beam Control System (HBC)
•Adaptive LED Headlights (ALH)
•Driver Attention Alert (DAA)
•Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS)
•Traffic Sign Recognition System (TSR)
•Advanced Smart City Brake Support (Advanced SCBS)
•Smart City Brake Support [Forward] (SCBS F)
•Smart Brake Support (SBS)
•Mazda Radar Cruise Control with S top & Go function (MRCC with Stop & Go function)
The Forward Sensing Camera (FSC) is installed at the top of the windscreen near the
rearview mirror.
Refer to Forward Sensing Camera (FSC) on page 4-196.
When Driving
i-ACTIVSENSE
4-106
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Radar sensor (front)
The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead
sent from the radar sensor. The following systems also use the radar sensor (front).
•Mazda Radar Cruise Control with Stop & Go function (MRCC with S top & Go function)
•Mazda Radar Cruise Control (MRCC)
•Distance Recognition Support System (DRSS)
•Smart Brake Support (SBS)
The radar sensor (front) is mount ed behind the radiator grille.
Refer to Radar Sensor (Front) on page 4-201.
Radar sensors (rear)
The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensors. The following
systems also use the radar sensors (rear).
•Blind Spot Monitoring (BSM)
•Rear Cross Traffic Alert (RCTA)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Refer to Radar Sensors (Rear) on page 4-204.
Ultrasonic sensors (rear)
The ultrasonic sensors (rear) function by detecting the ultraso nic waves reflected off
obstructions at the rear sent fro m the ultrasonic sensors. The following systems also use the
ultrasonic sensors (rear).
•Smart City Brake Support [Reverse] (SCBS R)
The ultrasonic sensors (rear) are mounted in the rear bumper.
Refer to Ultrasonic Sensors (Rear) on page 4-206.
When Driving
i-ACTIVSENSE
4-107
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

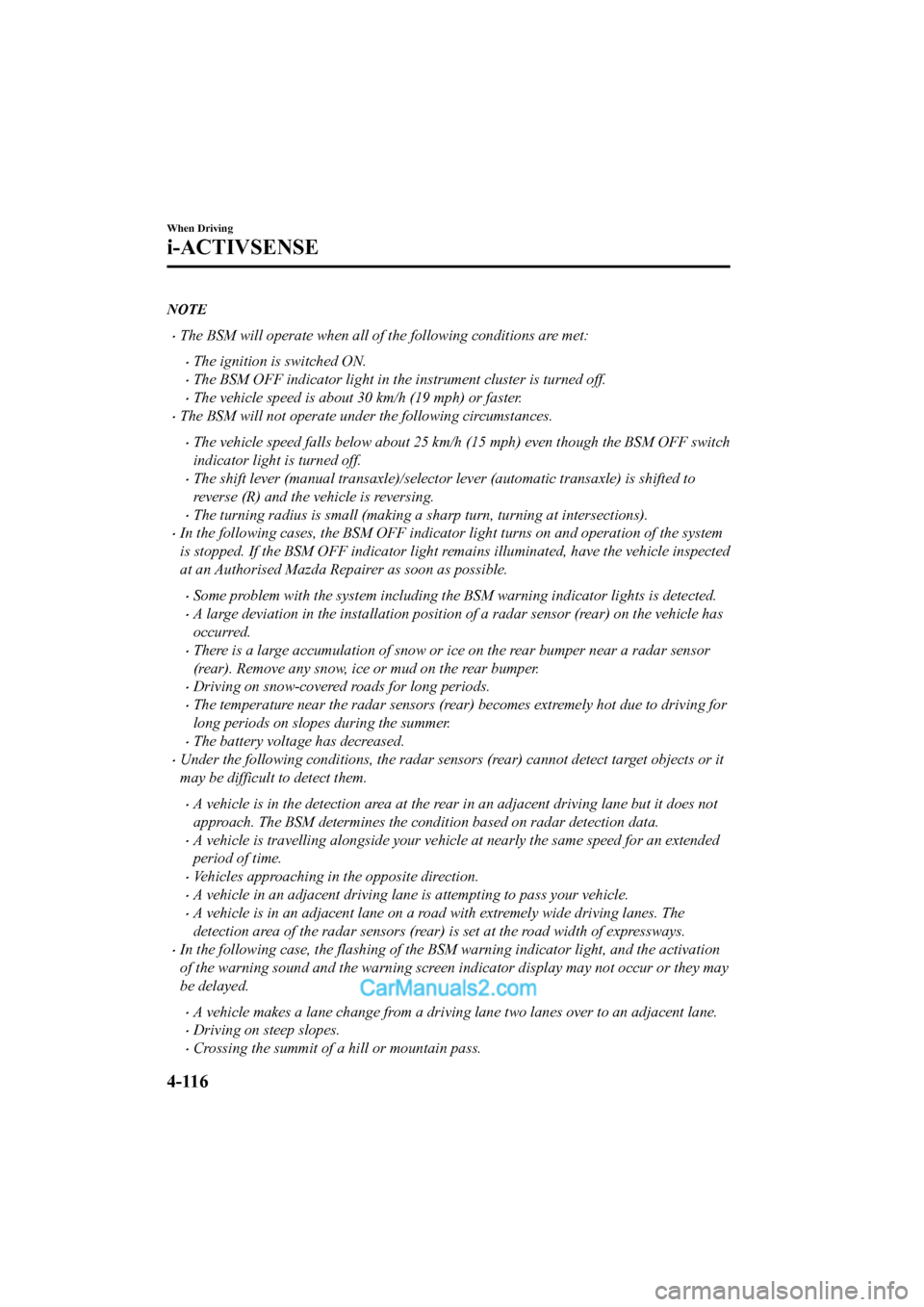

NOTE
•The BSM will operate when all of the following conditions are met:
•The ignition is switched ON.
•The BSM OFF indicator light in the instrument cluster is turned off.
•The vehicle speed is about 30 km/h (19 mph) or faster.
•The BSM will not operate under the following circumstances.
•The vehicle speed falls below about 25 km/h (15 mph) even though the BSM OFF switch
indicator light is turned off.
•The shift lever (manual transaxle)/selector lever (automatic transaxle) is shifted to
reverse (R) and the vehicle is reversing.
•The turning radius is small (making a sharp turn, turning at intersections).
•In the following cases, the BSM OFF indicator light turns on and operation of the system
is stopped. If the BSM OFF indicator light re mains illuminated, have the vehicle inspected
at an Authorised Mazda Repairer as soon as possible.
•Some problem with the system including the BSM warning indicator lights is detected.
•A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
•There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear). Remove any snow, ice or mud on the rear bumper.
•Driving on snow-covered roads for long periods.
•The temperature near the radar sensors (rear) becomes extremely hot due to driving for
long periods on slopes during the summer.
•The battery voltage has decreased.
•Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
•A vehicle is in the detection area at the rear in an adjacent driving lane but it does not
approach. The BSM determines the condition based on radar detection data.
•A vehicle is travelling alongside your vehicle at nearly the same speed for an extended
period of time.
•Vehicles approaching in the opposite direction.
•A vehicle in an adjacent driving lane is attempting to pass your vehicle.
•A vehicle is in an adjacent lane on a road with extremely wide driving lanes. The
detection area of the radar sensors (rear) is set at the road width of expressways.
•In the following case, the flashing of the BS M warning indicator light, and the activation
of the warning sound and the warning screen indicator display may not occur or they may
be delayed.
•A vehicle makes a lane change from a driving lane two lanes over to an adjacent lane.
•Driving on steep slopes.
•Crossing the summit of a hill or mountain pass.
When Driving
i-ACTIVSENSE
4-116
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

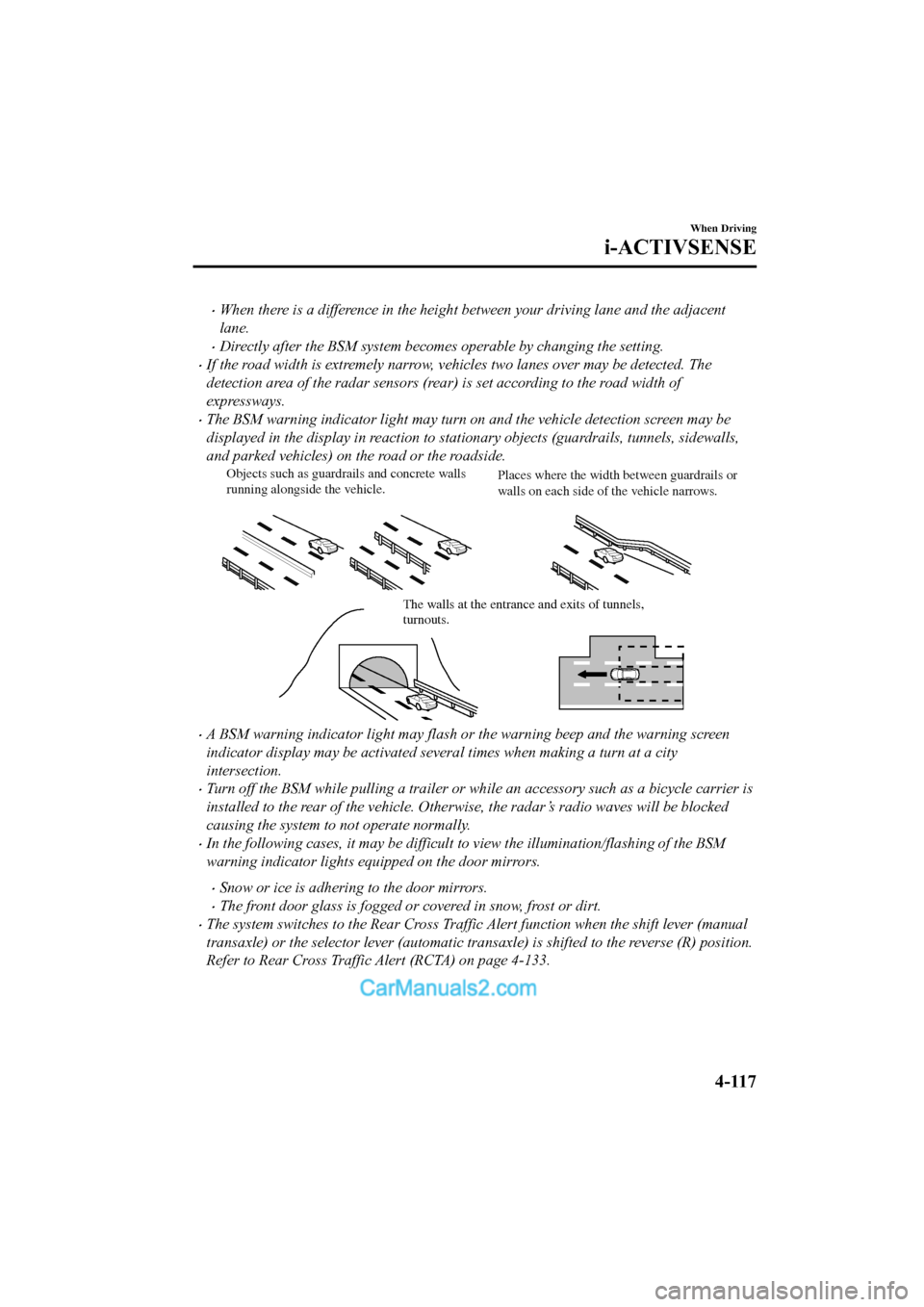

•When there is a difference in the height between your driving lane and the adjacent
lane.
•Directly after the BSM system becomes operable by changing the setting.
•If the road width is extremely narrow, vehicles two lanes over may be detected. The
detection area of the radar sensors (rear) is set according to the road width of
expressways.
•The BSM warning indicator light may turn on and the vehicle detection screen may be
displayed in the display in reaction to stationary objects (guardrails, tunnels, sidewalls,
and parked vehicles) on the road or the roadside.
Objects such as guardrails and concrete walls
running alongside the vehicle. Places where the width between guardrails or
walls on each side of the vehicle narrows.
The walls at the entrance and exits of tunnels,
turnouts.
•A BSM warning indicator light may flash or the warning beep and the warning screen
indicator display may be activated several times when making a turn at a city
intersection.
•Turn off the BSM while pulling a trailer or wh
ile an accessory such as a bicycle carrier is
installed to the rear of the vehicle. Otherwise, the radar’s radio waves will be blocked
causing the system to not operate normally.
•In the following cases, it may be difficult to view the illumination/flashing of the BSM
warning indicator lights equipped on the door mirrors.
•Snow or ice is adhering to the door mirrors.
•The front door glass is fogged or covered in snow, frost or dirt.
•The system switches to the Rear Cross Traffi c Alert function when the shift lever (manual
transaxle) or the selector lever (automatic transaxle) is shifted to the reverse (R) position.
Refer to Rear Cross Traffic Alert (RCTA) on page 4-133.
When Driving
i-ACTIVSENSE
4-117
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

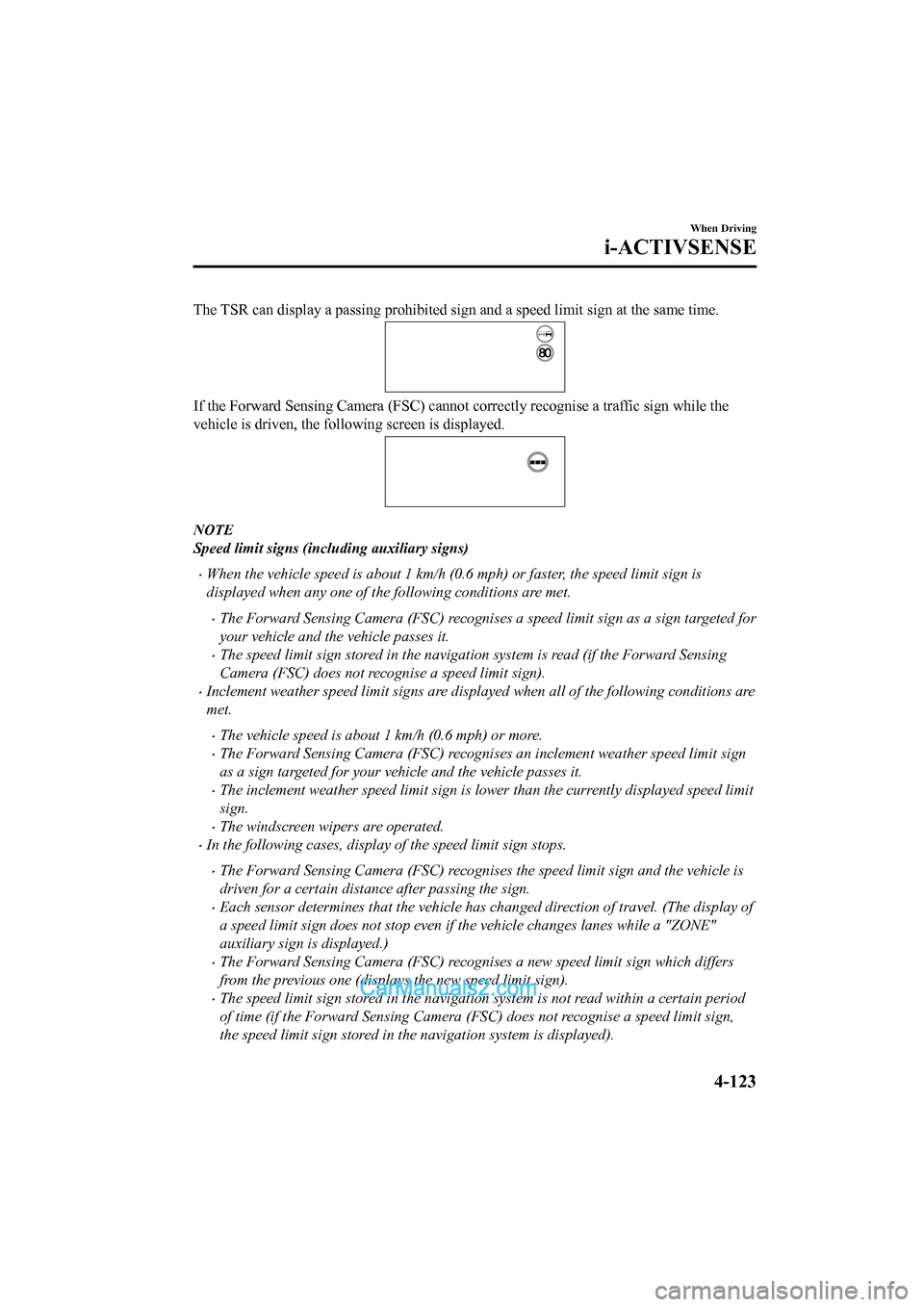

The TSR can display a passing prohibited sign and a speed limit sign at the same time.
If the Forward Sensing Camera (FSC) cannot correctly recognise a traffic sign while the
vehicle is driven, the following screen is displayed.
NOTE
Speed limit signs (including auxiliary signs)
•When the vehicle speed is about 1 km/h (0.6 mph) or faster, the speed limit sign is
displayed when any one of the following conditions are met.
•The Forward Sensing Camera (FSC) recognises a speed limit sign as a sign targeted for
your vehicle and the vehicle passes it.
•The speed limit sign stored in the navigation system is read (if the Forward Sensing
Camera (FSC) does not recognise a speed limit sign).
•Inclement weather speed limit signs are displayed when all of the following conditions are
met.
•The vehicle speed is about 1 km/h (0.6 mph) or more.
•The Forward Sensing Camera (FSC) recognises an inclement weather speed limit sign
as a sign targeted for your vehicle and the vehicle passes it.
•The inclement weather speed li mit sign is lower than the currently displayed speed limit
sign.
•The windscreen wipers are operated.
•In the following cases, display of the speed limit sign stops.
•The Forward Sensing Camera (FSC) recognises the speed limit sign and the vehicle is
driven for a certain distance after passing the sign.
•Each sensor determines that the vehicle has changed direction of travel. (The display of
a speed limit sign does not stop even if th e vehicle changes lanes while a "ZONE"
auxiliary sign is displayed.)
•The Forward Sensing Camera (FSC) recognises a new speed limit sign which differs
from the previous one (displ ays the new speed limit sign).
•The speed limit sign stored in the navigation system is not read within a certain period
of time (if the Forward Sensing Camera (FSC) does not recognise a speed limit sign,
the speed limit sign stored in the navigation system is displayed).
When Driving
i-ACTIVSENSE
4-123
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

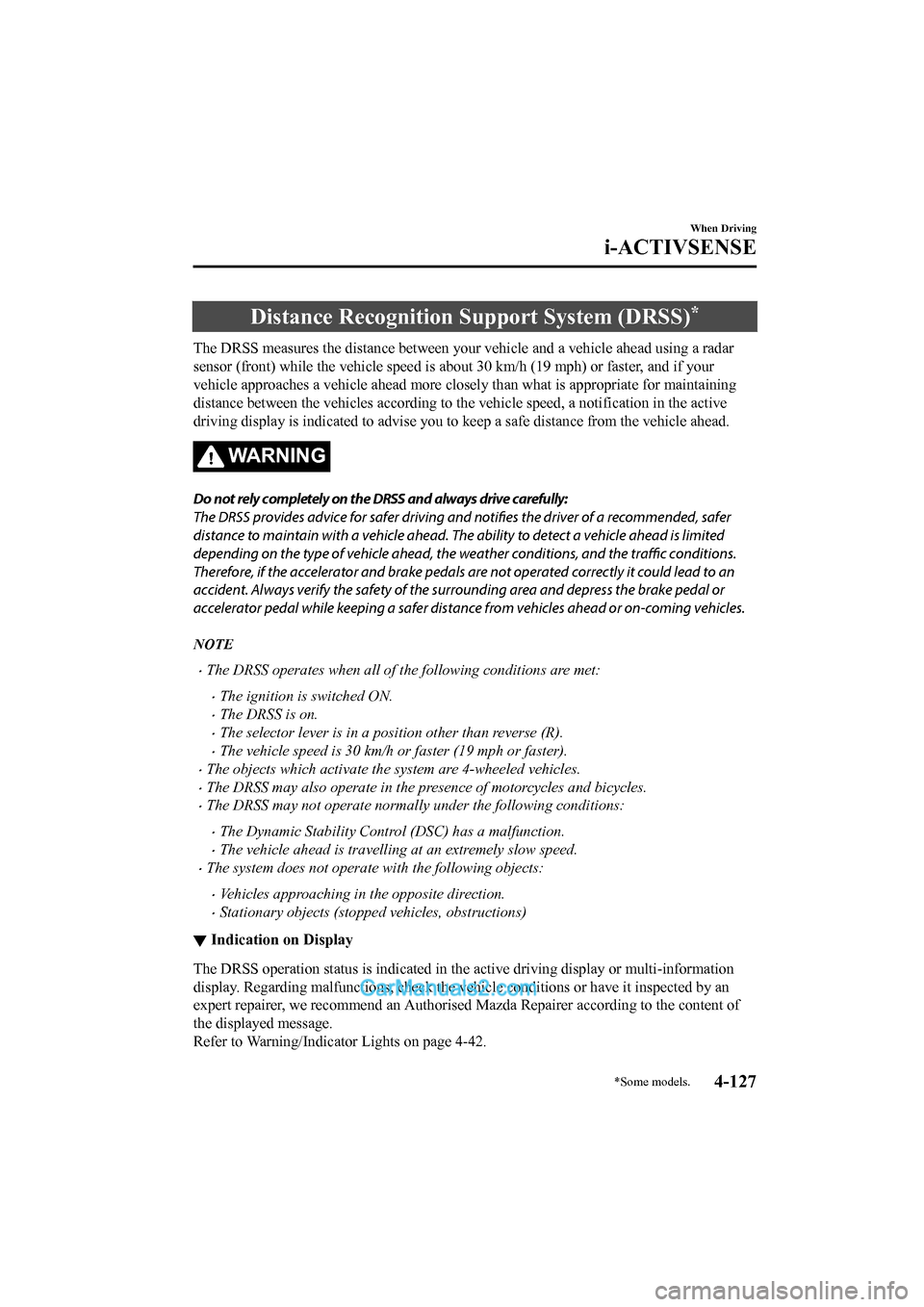

Distance Recognition Support System (DRSS)*
The DRSS measures the distance between your vehicle and a vehicle ahead using a radar
sensor (front) while the vehicle speed is about 30 km/h (19 mph) or faster, and if your
vehicle approaches a vehicle ahead more closely than what is ap propriate for maintaining
distance between the vehicles according to the vehicle speed, a notification in the active
driving display is indicated to advise you to keep a safe dista nce from the vehicle ahead.
WA R N I N G
Do not rely completely on the DRSS and always drive carefully:
The DRSS provides advice for safer driving and
notifies the driver of a recommended, safer
distance to maintain with a vehicle ahead. The ability to detect a vehicle ahead is limited
depending on the type of vehicle ahead, the weather conditions, and the traffic conditions.
Therefore, if the accelerator and brake pedals ar e not operated correctly it could lead to an
accident. Always verify the safety of the su rrounding area and depress the brake pedal or
accelerator pedal while keeping a safer distance from vehicles ahead or on-coming vehicles.
NOTE
•The DRSS operates when all of the following conditions are met:
•The ignition is switched ON.
•The DRSS is on.
•The selector lever is in a position other than reverse (R).
•The vehicle speed is 30 km/h or faster (19 mph or faster).
•The objects which activate the system are 4-wheeled vehicles.
•The DRSS may also operate in the presence of motorcycles and bicycles.
•The DRSS may not operate normally under the following conditions:
•The Dynamic Stability Control (DSC) has a malfunction.
•The vehicle ahead is travelling at an extremely slow speed.
•The system does not operate with the following objects:
•Vehicles approaching in the opposite direction.
•Stationary objects (stopped vehicles, obstructions)
▼Indication on Display
The DRSS operation status is indi
cated in the active driving display or multi-information
display. Regarding malfunctions, check the vehicle conditions o r have it inspected by an
expert repairer, we recommend an Authorised Mazda Repairer acco rding to the content of
the displayed message.
Refer to Warning/Indicator Lights on page 4-42.
When Driving
i-ACTIVSENSE
*Some models.4-127
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

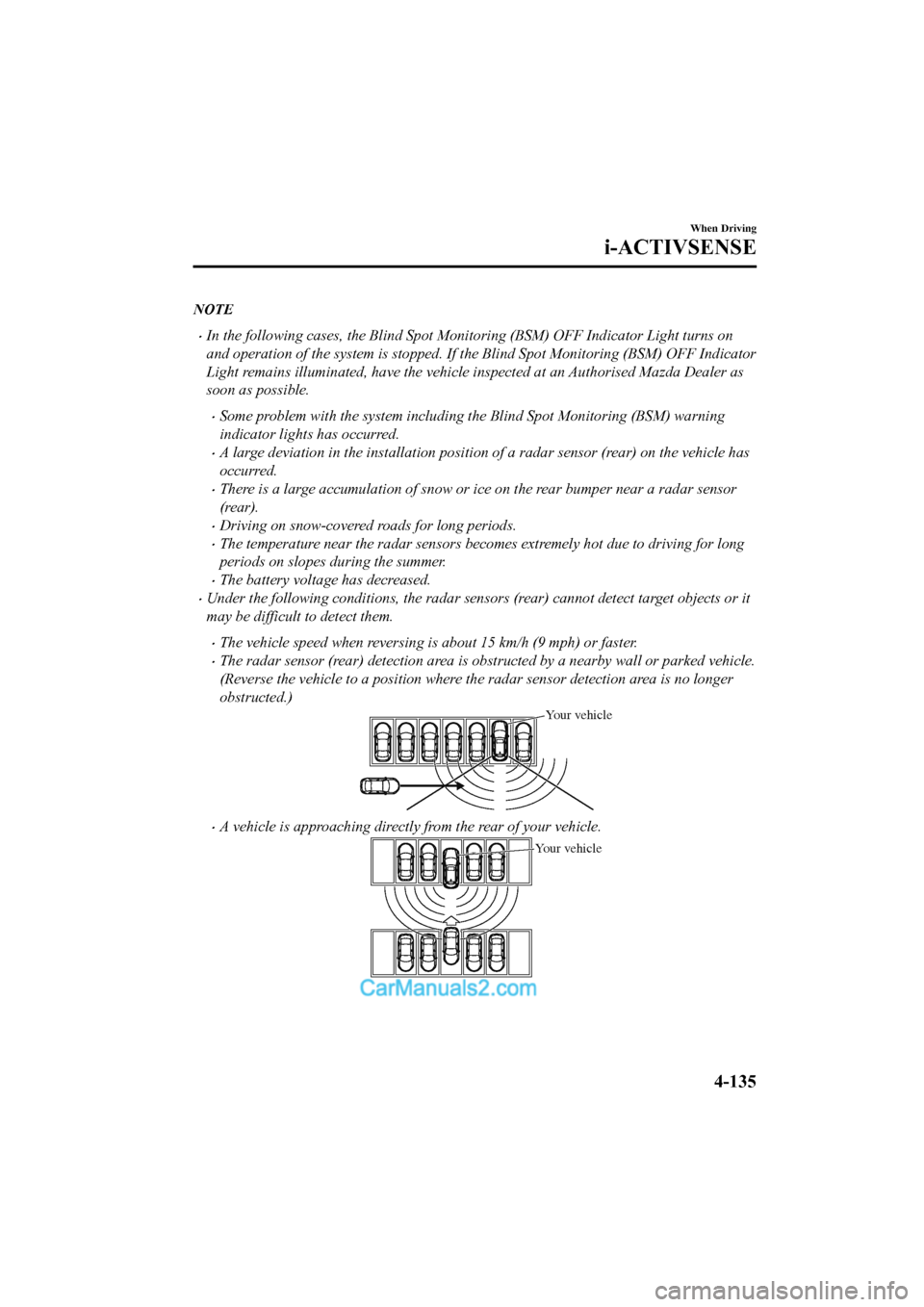

NOTE
•In the following cases, the Blind Spot Monitoring (BSM) OFF Indicator Light turns on
and operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF Indicator
Light remains illuminated, have the vehicle inspected at an Authorised Mazda Dealer as
soon as possible.
•Some problem with the system including the Blind Spot Monitoring (BSM) warning
indicator lights has occurred.
•A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
•There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear).
•Driving on snow-covered roads for long periods.
•The temperature near the radar sensors becomes extremely hot due to driving for long
periods on slopes during the summer.
•The battery voltage has decreased.
•Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
•The vehicle speed when reversing is about 15 km/h (9 mph) or faster.
•The radar sensor (rear) detection area is obstructed by a nearby wall or parked vehicle.
(Reverse the vehicle to a position where the radar sensor detection area is no longer
obstructed.)
Your vehicle
•A vehicle is approaching directly from the rear of your vehicle.
Your vehicle
When Driving
i-ACTIVSENSE
4-135
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

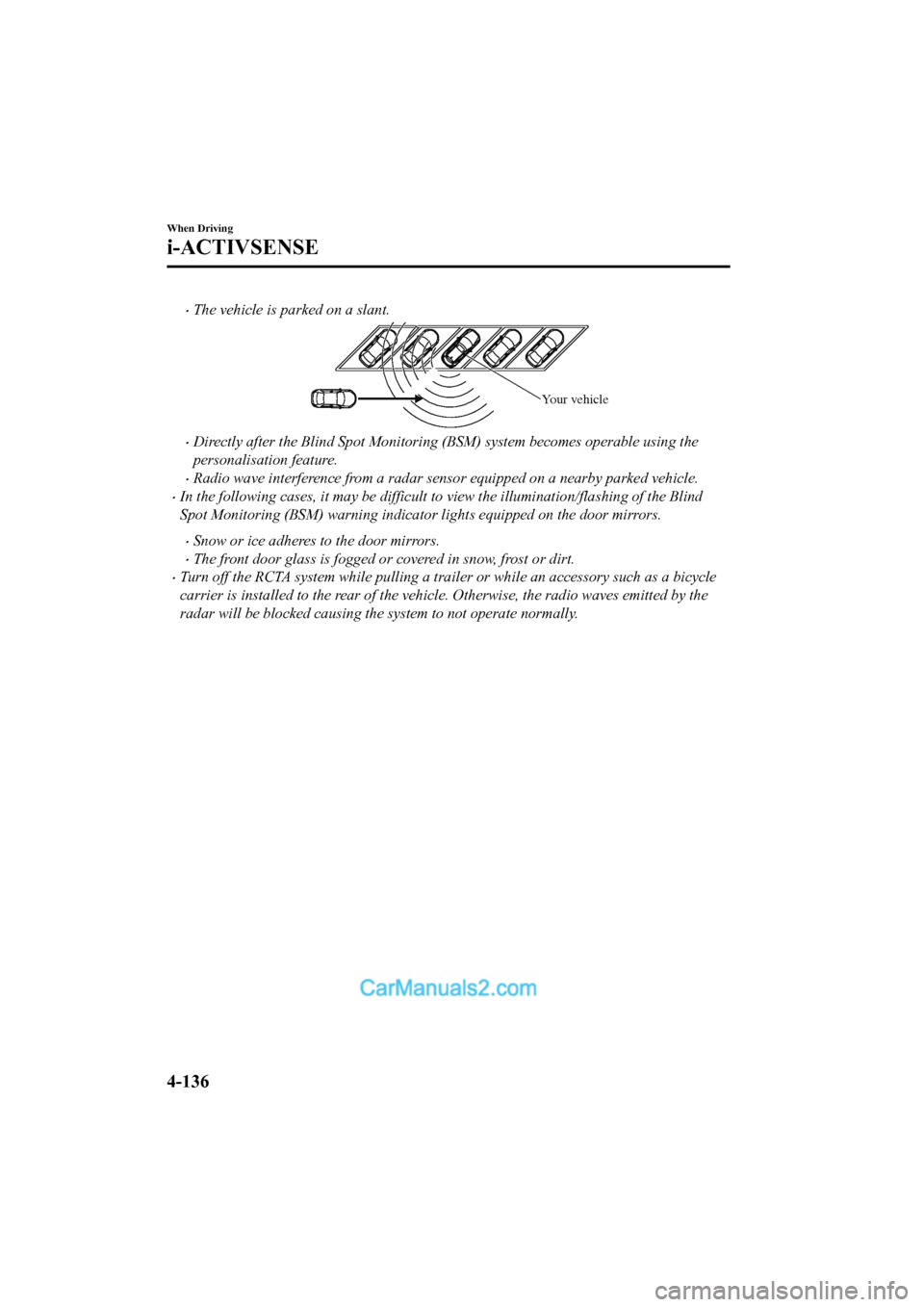

•The vehicle is parked on a slant.
Your vehicle
•Directly after the Blind Spot Monitoring (BSM) system becomes operable using the
personalisation feature.
•Radio wave interference from a radar sensor equipped on a nearby parked vehicle.
•In the following cases, it may be difficult to view the illumination/flashing of the Blind
Spot Monitoring (BSM) warning indicator lights equipped on the door mirrors.
•Snow or ice adheres to the door mirrors.
•The front door glass is fogged or covered in snow, frost or dirt.
•Turn off the RCTA system while pulling a trailer or while an accessory such as a bicycle
carrier is installed to the rear of the vehicl e. Otherwise, the radio waves emitted by the
radar will be blocked causing the system to not operate normally.
When Driving
i-ACTIVSENSE
4-136
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

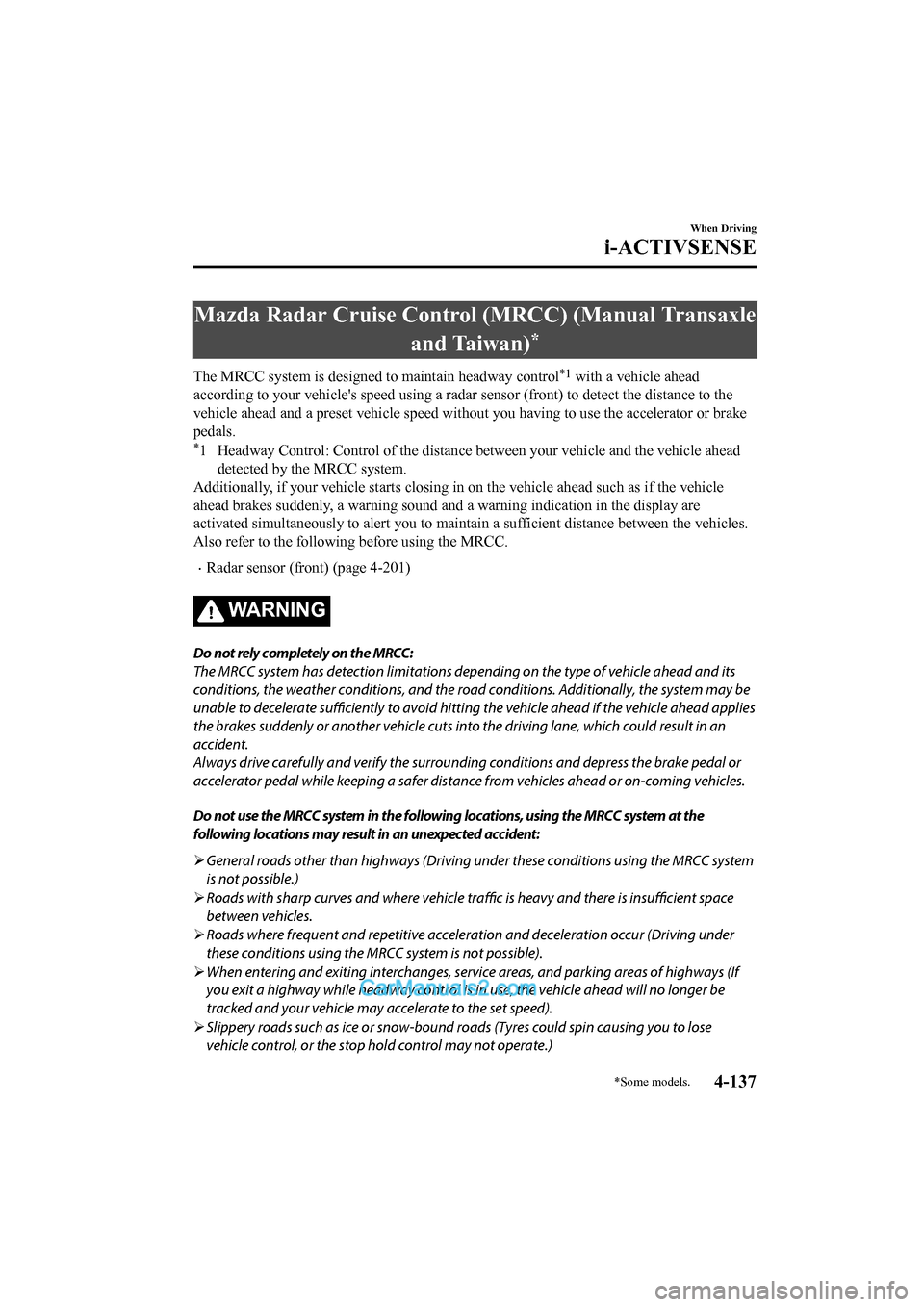

Mazda Radar Cruise Control (MRCC) (Manual Transaxleand Taiwan)
*
The MRCC system is designed to maintain headway control*1 with a vehicle ahead
according to your vehic le's speed using a radar sensor (front) to detect the distance to the
vehicle ahead and a preset vehicle speed without you having to use the accelerator or brake
pedals.
*1 Headway Control: Control of the distance between your vehicle and the vehicle ahead
detected by the MRCC system.
Additionally, if your vehicle s tarts closing in on the vehicle ahead such as if the vehicle
ahead brakes suddenly, a warning sound and a warning indication in the display are
activated simultaneously to alert you to maintain a sufficient distance between the vehicles.
Also refer to the following before using the MRCC.
•Radar sensor (front) (page 4-201)
WA R N I N G
Do not rely completely on the MRCC:
The MRCC system has detection limitations depe nding on the type of vehicle ahead and its
conditions, the weather conditions, and the road conditions. Additionally, the system may be
unable to decelerate sufficiently to avoid hittin g the vehicle ahead if the vehicle ahead applies
the brakes suddenly or another vehicle cuts into the driving lane, which could result in an
accident.
Always drive carefully and verify the surrounding conditions and depress the brake pedal or
accelerator pedal while keeping a safer distance from vehicles ahead or on-coming vehicles.
Do not use the MRCC system in the following locations, using the MRCC system at the
following locations may result in an unexpected accident:
 General roads other than highways (Driving under these conditions using the MRCC system
is not possible.)
 Roads with sharp curves and where vehicle tr affic is heavy and there is insufficient space
between vehicles.
 Roads where frequent and repetitive accelerati on and deceleration occur (Driving under
these conditions using the MRCC system is not possible).
 When entering and exiting interchanges, servic e areas, and parking areas of highways (If
you exit a highway while headway control is in use, the vehicle ahead will no longer be
tracked and your vehicle may a ccelerate to the set speed).
 Slippery roads such as ice or snow-bound roads (Tyres could spin causing you to lose
vehicle control, or the stop hold control may not operate.)
When Driving
i-ACTIVSENSE
*Some models.4-137
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
