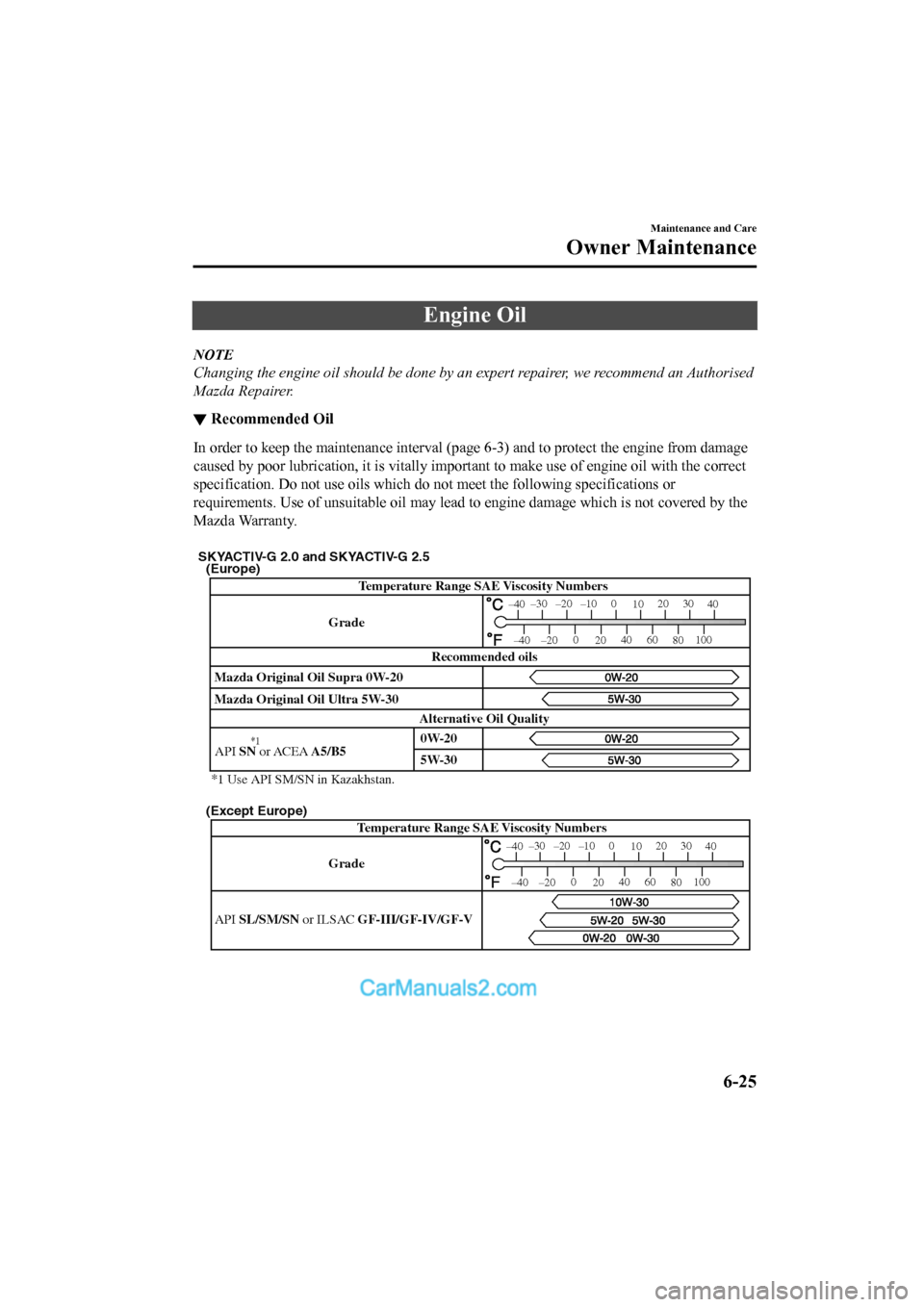

Engine Oil
NOTE
Changing the engine oil should be done by an expert repairer, we recommend an Authorised
Mazda Repairer.
▼Recommended Oil
In order to keep the maintenance interval (page 6-3) and to protect the engine from damage
caused by poor lubrication, it is vitally important to make use
of engine oil with the correct
specification. Do not use oils which do not meet the following specifications or
requirements. Use of unsuitable o il may lead to engine damage which is not covered by the
Mazda Warranty.

Temperature Range SAE Viscosity Numbers
Mazda Original Oil Ultra 5W-30 API SN or ACEA A5/B5
Mazda Original Oil Supra 0W-20
Alternative Oil QualityRecommended oils
(Europe)
(Except Europe)
–30 –20 –10 0
1020 30
40
–200
20 40
60 80100
–40
–40
Grade Grade
Temperature Range SAE Viscosity Numbers
API SL/SM/SN or ILSAC GF-III/GF-IV/GF-V
–30 –20 –10 0 1020 30
40
–200
20 40
60 80100
–40
–40
SKYACTIV-G 2.0 and SKYACTIV-G 2.5
5W-30 0W-20
*1 Use API SM/SN in Kazakhstan.
*1
Maintenance and Care
Owner Maintenance
6-25
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

(Europe)
(Except Europe)
GradeTe m
perature Range SAE Viscosity Numbers
ACEA C3
–30 –20 –10 0 1020 30
40
–200
20 40
60 80100
–40
–40

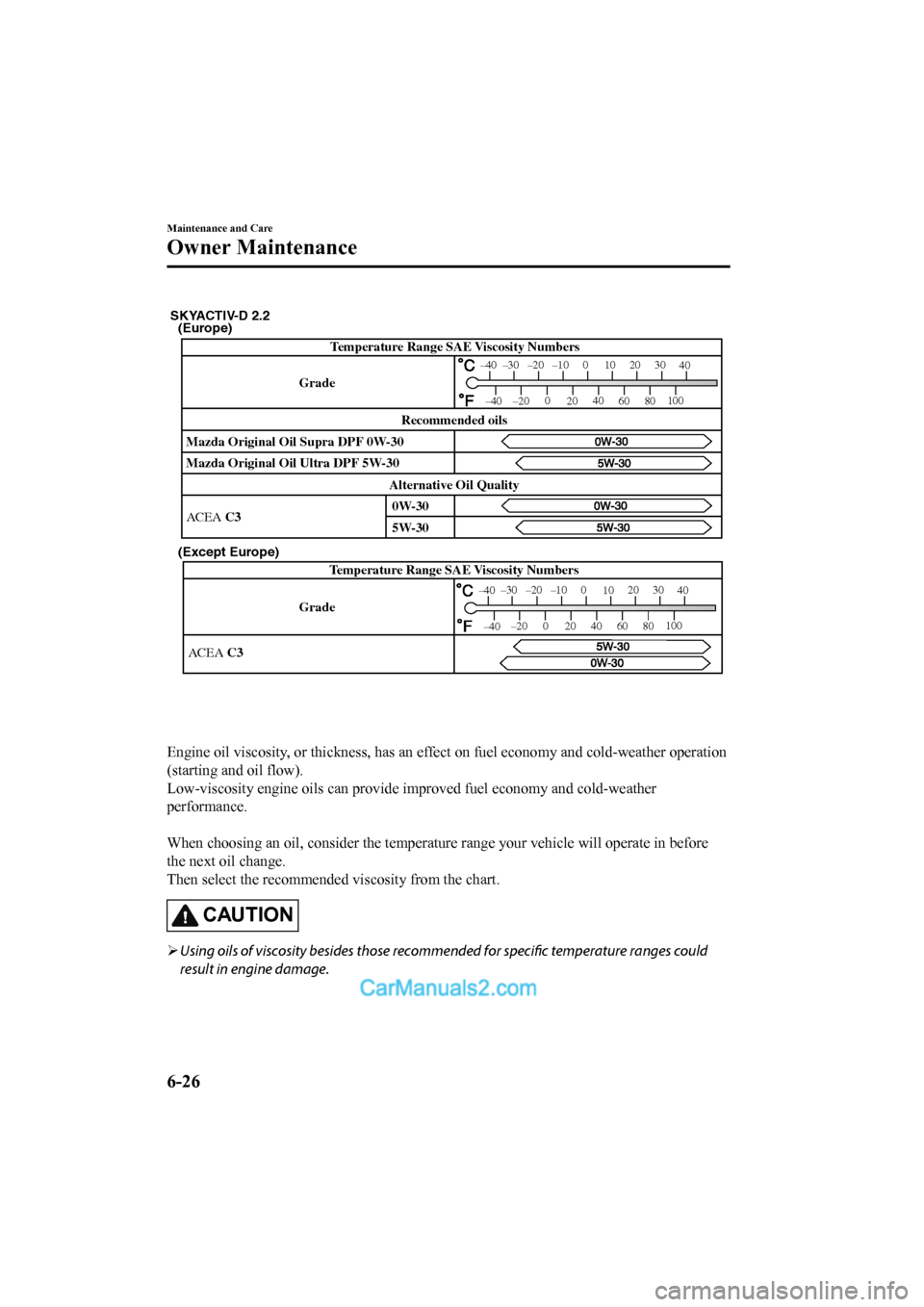

SKYACTIV-D 2.2
Te m perature Range SAE Viscosity Numbers
Grade
Mazda Original Oil Ultra DPF 5W -30
Mazda Original Oil Supra DPF 0W
-30
Alternati ve Oil Quality
Recommended oils
–30 –20 –10 0
1020 30
40
–200
20 40
60 80100
–40
–40
ACEA C3 5W-30
0W
-30
Engine oil viscosity, or thickness, has an effect on fuel econo my and cold-weather operation
(starting and oil flow).
Low-viscosity engine oils can pr ovide improved fuel economy and cold-weather
performance.

When choosing an oil, consider the temperature range your vehic le will operate in before
the next oil change.
Then select the recommended viscosity from the chart.
CAUTION
 Using oils of viscosity besides those recom mended for specific temperature ranges could
result in engine damage.
