Auto-wiper control*
When the wiper lever is in the AUTO
position, the rain sensor senses the amount
of rainfall on the windshield and turns the
wipers on or off automatically
(off―intermittent ―low speed―high
speed).

The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).

Higher sensitivity
Less sensitivitySwitch
Center
position
CAUTION
 Do not shade the rain sensor by adhering
a sticker or a label on the windshield.
Otherwise the rain sensor will not
operate correctly.
When the ignition is switched ON and
the wiper lever is in the AUTO position,
the windshield wi pers may operate
automatically in the following cases:
 The area of the windshield above the
rain sensor is touched or wiped with a
cloth.
 The windshield or the rain sensor area
in the cabin is hit.
When the ignition is switched ON and
the wiper lever is in the AUTO position,
do not touch the windshield or the
windshield wipers Otherwise, the
windshield wipers will operate
automatically which could catch your fingers or damage the windshield wipers.
When removing ice or snow, or cleaning
the windshield, always make sure the
wiper lever is in the OFF position.
When Driving
Switches and Controls
*Some models.4-81
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

ï‚·The brake pedal response may change, sound may occur from the brakes, or the brake
pedal could vibrate from the operation of the AUTOHOLD function. However, this does
not indicate a malfunction.

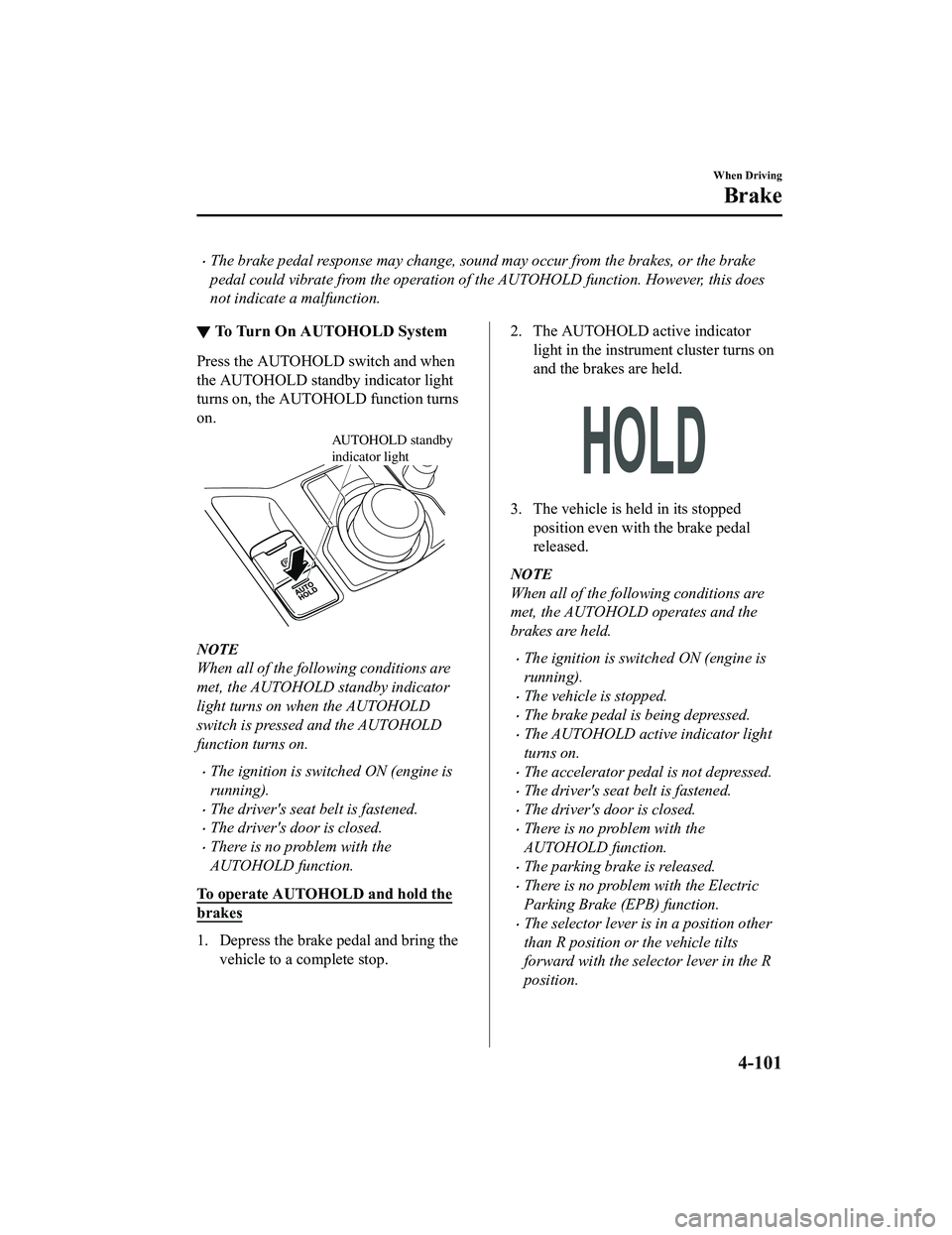

â–¼To Tu r n O n A U T O H O L D S y s t e m
Press the AUTOHOLD
switch and when
the AUTOHOLD standby indicator light
turns on, the AUTOHOLD function turns
on.
AUTOHOLD standby
indicator light
NOTE
When all of the following conditions are
met, the AUTOHOLD standby indicator
light turns on when the AUTOHOLD
switch is pressed and the AUTOHOLD
function turns on.
ï‚·The ignition is switched ON (engine is
running).
ï‚·The driver's seat belt is fastened.
ï‚·The driver's door is closed.
ï‚·There is no problem with the
AUTOHOLD function.
To operate AUTOHOLD and hold the
brakes
1. Depress the brake pedal and bring the vehicle to a complete stop.
2. The AUTOHOLD active indicatorlight in the instrument cluster turns on
and the brakes are held.
3. The vehicle is held in its stoppedposition even with the brake pedal
released.
NOTE
When all of the following conditions are
met, the AUTOHOLD operates and the
brakes are held.
ï‚·The ignition is swit ched ON (engine is
running).
ï‚·The vehicle is stopped.
ï‚·The brake pedal is being depressed.
ï‚·The AUTOHOLD active indicator light
turns on.
ï‚·The accelerator pedal is not depressed.
ï‚·The driver's seat belt is fastened.
ï‚·The driver's door is closed.
ï‚·There is no problem with the
AUTOHOLD function.
ï‚·The parking brake is released.
ï‚·There is no problem with the Electric
Parking Brake (EPB) function.
ï‚·The selector lever is in a position other
than R position or the vehicle tilts
forward with the selector lever in the R
position.
When Driving
Brake
4-101
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Antilock Brake System(ABS)
The ABS control unit continuously
monitors the speed of each wheel. If one
wheel is about to lock up, the ABS
responds by automatically releasing and
reapplying that wheel's brake.

The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal ABS system operation. Continue
to depress the brake pedal without
pumping the brakes.

The warning light turns on when the
system has a malfunction.
Contact an Authorized Mazda Dealer and
Have Vehicle Inspected on page 7-25.
WARNING
Do not rely on ABS as a substitute for safe
driving:
The ABS cannot compensate for unsafe
and reckless driving, excessive speed,
tailgating (following another vehicle too
closely), driving on ice and snow, and
hydroplaning (reduced tire friction and
road contact because of water on the road
surface). You can still have an accident.
NOTE
ï‚·Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
ï‚·The sound of the ABS operating may be
heard when starting the engine or
immediately after starting the vehicle,
however, it does not indicate a
malfunction.
When Driving
ABS/TCS/DSC/Off-Road Traction Assist
4-105
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Mazda intelligent DriveSelect (Mi-Drive)
â–¼Mazda intelligent Drive Select
(Mi-Drive)
Mi-drive is a system
that switches the
drive modes depending on the driving
conditions, road conditions and vehicle
conditions.
The mode can be switched from normal to
sport or off-road.
Sport mode
*
This mode enhances vehicle
responsiveness when the accelerator pedal
is depressed.
This provides additional quick
acceleration which may be needed to
safely make maneuvers such as lane
changes, merging onto freeways, or
passing other vehicles.
Off-road mode
*
This mode helps prevent drive-wheel
spinning during off-road driving and
improves driv ing performance.
And this mode also assists in freeing tires
that are stuck.
Use this mode to drive the vehicle on
slippery roads such as muddy, sandy, or
deep-snowy roads.
Warnings and cautions when using
Mi-Drive
WARNING
 Do not rely completely on the Mi-Drive
system.
 Vehicle stability is limited even when
Mi-drive is activated.
Always drive the vehicle safely. Do not
drive the vehicle recklessly, otherwise it
may result in an accident.
 Do not drive the vehicle on paved roads
while the Off-road mode is operating.
Otherwise, it could negatively affect the
drivetrain parts which could result in an
accident.
CAUTION
Do not use the sport mode when driving
on slippery roads such as wet or
snow-covered roads. It may cause tire
slipping.
 Heed the following cautions so that the
system can operate normally.
 Always use tires of the specified size,
same manufacturer, brand, and
pattern (tread pattern) for the front
and rear wheels.
 Do not use tires with significantly
different wear patterns on the same
vehicle.
 Drive carefully when using tire chains.
Because the diameter of the tires differs,
the system may not operate normally.
 If the vehicle is driven continuously with
the Off-road mode on, the AWD warning
light may
flash.
When Driving
Mazda intelligent Driv e Select (Mi-Drive)
*Some models.4 - 111
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Blind Spot Monitoring (BSM)*
The BSM is designed to assist the driver in checking the area to the rear of the vehicle on
both sides during lane changes by notifying the driver of the presence of vehicles
approaching from the rear in an adjacent lane.
The BSM detects vehicles approaching from the rear while traveling in the forward
direction at a speed of 10 km/h (6.3 mph) or faster and notifies the driver by turning on the
BSM warning indicator light and displaying th e vehicle detection screen (vehicles with
instrument cluster (Type A/B) and active driving display).
If the turn signal lever is operated to si gnal a turn in the direction in which the BSM
warning indicator light is illuminated while the approaching vehicle is detected, the BSM
notifies the driver of possible danger by tu rning on the BSM warning indicator light, and by
activating the warning sound and the warning screen indicator display (vehicles with
instrument cluster (Type A/B) and active driving display).
The detection area on this system covers the driving lanes on both sides of the vehicle and
from the rear part of the front doors to about 50 m (164 ft) behind the vehicle.
Detection areas
Your vehicle
WA R N I N G
Always check the surrounding area visually before making an actual lane change:
The system is only designed to assist you in checking for vehicles at your rear when making a
lane change. Due to certain limitations with
the operation of this system, the BSM warning
indicator light, the warning sound and the warn ing screen indicator display may not activate
or they might be delayed even though a vehicle is in an adjacent driving lane. Always make it
your responsibility as a driver to check the rear.
When Driving
i-ACTIVSENSE
4-124*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Stop sign
40
Sign recognized and
displayed at same time
Active driving display indication
WA R N I N G
Always check the traffic signs visually while driving.
The TSR helps prevent the driver from overlookin g traffic signs and provides support for safer
driving. Depending on the weather conditions or problems with traffic signs, a traffic sign
may not be recognized or a traffic sign different from the actual traffic sign may be displayed.
Always make it your responsibility as a driver to check the actual traffic signs. Otherwise, it
could result in an accident.
NOTE
ï‚·The TSR does not operate if there is a malfunction in the Forward Sensing Camera (FSC).
ï‚·Under the following conditions, the TSR may not operate normally.
ï‚·An object placed on the dashboard is reflected in the windshield and picked up by the
camera.
ï‚·Heavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is tilted.
ï‚·The tire pressures are not adjusted to the specified pressure.
ï‚·Tires other than standard tires are equipped.
ï‚·The vehicle is driven on the ramp and surrounding area to or from a rest area or a
tollgate on a highway.
ï‚·When surrounding brightness suddenly changes such as when entering or exiting a
tunnel.
When Driving
i-ACTIVSENSE
4-130
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

The RCTA warning indication in the 360° view monitor also synchronizes with the
Blind Spot Monitoring (BSM) warning indicator light on the door mirrors.
With 360° view monitor
Without 360°
view monitor
Mazda Connect (Type A) Mazda Connect (Type B)
WA R N I N G
Always check the surrounding area visually before actually putting the vehicle in reverse:
The system is only designed to assist you in ch ecking for vehicles at the rear when putting the
vehicle in reverse. Due to certain limitations wi th the operation of this system, the Blind Spot
Monitoring (BSM) warning indicator lights may not flash or it might be delayed even though
a vehicle is behind your vehicle. Always make it your responsibility as a driver to check the
rear.
NOTE
ï‚·In the following cases, the Blind Spot Monitoring (BSM) OFF indicator light turns on and
operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF indicator
light remains illuminated, have the vehicle inspected at an Authorized Mazda Dealer as
soon as possible.
ï‚·Some problem with the system including the Blind Spot Monitoring (BSM) warning
indicator lights has occurred.
ï‚·A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
ï‚·There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear).
When Driving
i-ACTIVSENSE
4-142
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Advanced Smart City Brake Support (Advanced SCBS)*
The Advanced SCBS alerts the driver of a possible collision using the display and a warning
sound when the Forward Sensing Camera (FSC) detects a vehicle ahead or pedestrian and
determines that a collision with the object is unavoidable while the vehicle is driven at a
vehicle speed of about 4 to 80 km/h (2 to 50 m ph) if the object is a vehicle ahead and about
10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian. In addition, the system reduces
damage in the event of a collision by operating the brake control (Advanced SCBS brake)
when the system determines that a collision is unavoidable. In addition, when the driver
depresses the brake pedal, the brakes are appl ied firmly and quickly to assist. (Brake Assist
(Advanced SCBS brake assist))

Forward Sensing
Camera (FSC)
WA R N I N G
Do not rely completely on the Advanced SCBS system:
 The Advanced SCBS system is only designed to reduce damage in the event of a collision.
Over reliance on the system leading to the accelerator pedal or brake pedal being
mistakenly operated could result in an accident.
 The Advanced SCBS system operates in respo nse to a vehicle ahead or a pedestrian. The
system does not operate in response to obstru ctions such as a wall, 2-wheeled vehicles, or
animals.
When Driving
i-ACTIVSENSE
4-190*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Smart City Brake Support [Forward] (SCBS F)*
The SCBS F system alerts the driver of a possible collision using an indication in the
display and a warning sound when the Forward Sensing Camera (FSC) detects a vehicle
ahead and determines that a collision with a vehicle ahead is unavoidable while the vehicle
is being driven at a vehicle speed of about 4 to 80 km/h (2 to 50 mph). In addition, the
system reduces damage in the event of a collis ion by operating the brake control (Smart City
Brake Support (SCBS) brake) when the system determines that a collision is unavoidable
while the vehicle is being driven at a vehicle speed of about 4 to 30 km/h (2 to 18 mph). It
may also be possible to avoid a collision if the relative speed between your vehicle and the
vehicle in front of you is less than about 20 km/h (12 mph). In addition, when the driver
depresses the brake pedal while the system is in the operation range at about 4 to 30 km/h (2
to 18 mph), the brakes are applied firmly and quickly to assist. (Brake Assist (Smart City
Brake Support (SCBS) brake assist))

Forward Sensing
Camera (FSC)
WARNING
Do not rely completely on the SCBS F system:
 The SCBS F system is only designed to reduce damage in the event of a collision. Over
reliance on the system leading to the accele rator pedal or brake pedal being mistakenly
operated could result in an accident.
 The SCBS F is a system which operates in resp onse to a vehicle ahead. The system may not
be able to detect or react to 2-wheeled vehicles or pedestrians.
When Driving
i-ACTIVSENSE
*Some models.4-193
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

The front doors or the liftgate is not fully closed.
 The vehicle is on a road incline.
 The door mirrors are retracted.
 Do not hit the front/rear camera, front bump er, and door mirrors forcefully. The camera
position or installation angle may shift.
 The cameras are of a waterproof structure. Do not disassemble, modify, or remove a
camera.
 The camera cover is made of hard plastic, therefore do not apply oil film remover, organic
solvents, wax, or coating agents. If any such agent gets on the camera cover, wipe it off
using a soft cloth immediately.
 Do not rub the camera lens forcefully, or clean it with an abrasive or hard brush. Otherwise,
it could scratch the camera lens and negatively affect the images.
 Consult an Authorized Mazda Dealer for repair , painting, or replacement of the front/rear
camera, front bumper and door mirrors.
 Heed the following cautions to assure that the 360°View Monitor operates normally.
 Do not modify the vehicle suspensions or lower/raise the vehicle body, or both.
 Always use wheels of the specified type and size for the front and rear wheels. Consult an
Authorized Mazda Dealer for tire replacement.
 When the display is cold, images may leave trails or the screen might be darker than usual,
making it difficult to check the vehicle surroundi ngs. Always confirm the safety at the front
and around the vehicle visually when driving.
 The method for parking/stopping the vehicle using the 360°View Monitor differs depending
on the road circumstances/conditions and th e vehicle conditions. When and how much you
turn the steering wheel will differ depending on the situation, therefore always check the
vehicle surroundings directly with your eyes while using the system.
Also, before using the system, always make su re that the vehicle can be parked/stopped in
the parking/stopping space.
NOTE
ï‚·If there are water droplets, snow, or mud on the camera lens, wipe it off using a soft cloth.
If the camera lens is especially dirt y, wash it off with mild detergent.
ï‚·If the area where the camera is installed, such as the liftgate or door mirrors, has been
damaged in a vehicle accident, the camera (position, installation angle) may have shifted.
Always consult an Authorized Mazda Dealer to have the vehicle inspected.
ï‚·If the camera is subjected to excessive changes in temperature such as by pouring hot
water on the camera during cold weather, the 360°View Monitor may not operate
normally.
ï‚·If the battery voltage is low, the screen mi ght be temporarily difficult to view, however,
this does not indicate a problem.
When Driving
i-ACTIVSENSE
4-204
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
