Lighting Control
qHeadlights
CAUTION
(With AUTO position)
ØDo not shade the light sensor by adhering a sticker or a label on the windshield.
Otherwise the light sensor will not operate correctly.
Light sensor
ØThe light sensor also works as a rain sensor for the auto-wiper control. Keep
hands and scrapers clear of the windshield when the wiper lever is in the AUTO
position and the ignition is switched ON as fingers could be pinched or the wipers
and wiper blades damaged when the wipers activate automatically. If you are
going to clean the windshield, be sure the wipers are turned off completely - this is
particularly important when clearing ice and snow - when it is particularly
tempting to leave the engine running.
NOTE
lIf the light switch is left on, the lights will automatically switch off approximately 30 seconds after
switching the ignition to ACC or switching the ignition off.
lTo prevent discharging the battery, do not leave the lights on while the engine is off unless safety
requires them.
(With AUTO position)lThe headlights, other exterior lights and dashboard illumination may not turn off
immediately even if the surrounding area becomes well-lit because the light sensor
determines that it is nighttime if the surrounding area is continuously dark for several
minutes such as inside long tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the light turns off if the light switch is turned to the OFF position.
lThe timing for turning on the headlights, other exterior lights and dashboard
illumination can be delayed by adjusting the sensitivity of the light sensor. Consult an
Authorized Mazda Dealer regarding sensor adjustment.
5-62
Driving Your Mazda
Switches and Controls
CX-7_8CG3-EA-11J_Edition1 Page222
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (223,1)
lThe sensitivity of the AUTO lights may be changed by an Authorized Mazda Dealer.lInstrument panel illumination can be adjusted by rotating the knob in the instrument
cluster. Also, day/night mode can be changed by pressing the knob.
To adjust the brightness of the dashboard illumination:
Refer to Dashboard Illumination on page 5-43.
AUTO (Auto-light control)
When the headlight switch is in the AUTO position and the ignition is switched ON, the
light sensor senses the surrounding lightness or darkness and automatically turns on or off
the headlights, other exterior lights and dashboard illumination (see chart above).
Type A (Without AUTO position)
Turn the headlight switch to turn the headlights, other exterior lights and dashboard
illumination on or off.
Ignition switched ON
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff On On
Ignition switched OFF
Switch Position
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff On On
Driving Your Mazda
Switches and Controls
5-63
CX-7_8CG3-EA-11J_Edition1 Page223
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (224,1)
Type B (With AUTO position)
Turn the headlight switch to turn the headlights, other exterior lights and dashboard
illumination on or off.
Ignition switched ON
Switch Position
Headlights Off
AutoOff On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff On On
Ignition switched OFF
Switch Position
Headlights Off Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff Off On On
Type C (Daytime Running Lights with AUTO position)
NOTE
The Daytime Running Lights turn off when the parking brake is applied.
5-64
Driving Your Mazda
Switches and Controls
CX-7_8CG3-EA-11J_Edition1 Page224
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (225,1)
The daytime running lights automatically turn on when the ignition is switched ON.
Turn the headlight switch to turn the headlights, other exterior lights and dashboard
illumination on or off.
Ignition switched ON
Switch Position
Headlights On*1
Auto*2
On*1On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff On On
Ignition switched OFF
Switch Position
Headlights Off Off Off On
Taillights
Parking lights
License lights
Side-marker lights
Dashboard illuminationOff Off On On
*1 Daytime running lights on
*2 The headlight and other light settings switch automatically depending on the surrounding brightness detected
by the sensor.
Driving Your Mazda
Switches and Controls
5-65
CX-7_8CG3-EA-11J_Edition1 Page225
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (226,1)
Xenon fusion headlight bulbsí
The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourself:
Replacing the xenon fusion bulbs yourself is dangerous. Because the xenon fusion
bulbs require high voltage, you could receive an electric shock if the bulbs are
handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is
necessary.
NOTE
If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is
necessary. Consult an Authorized Mazda Dealer.
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The lever will return to
the normal position when released.
OFF
Flashing
5-66
Driving Your Mazda
íSome models.
Switches and Controls
CX-7_8CG3-EA-11J_Edition1 Page226
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (227,1)

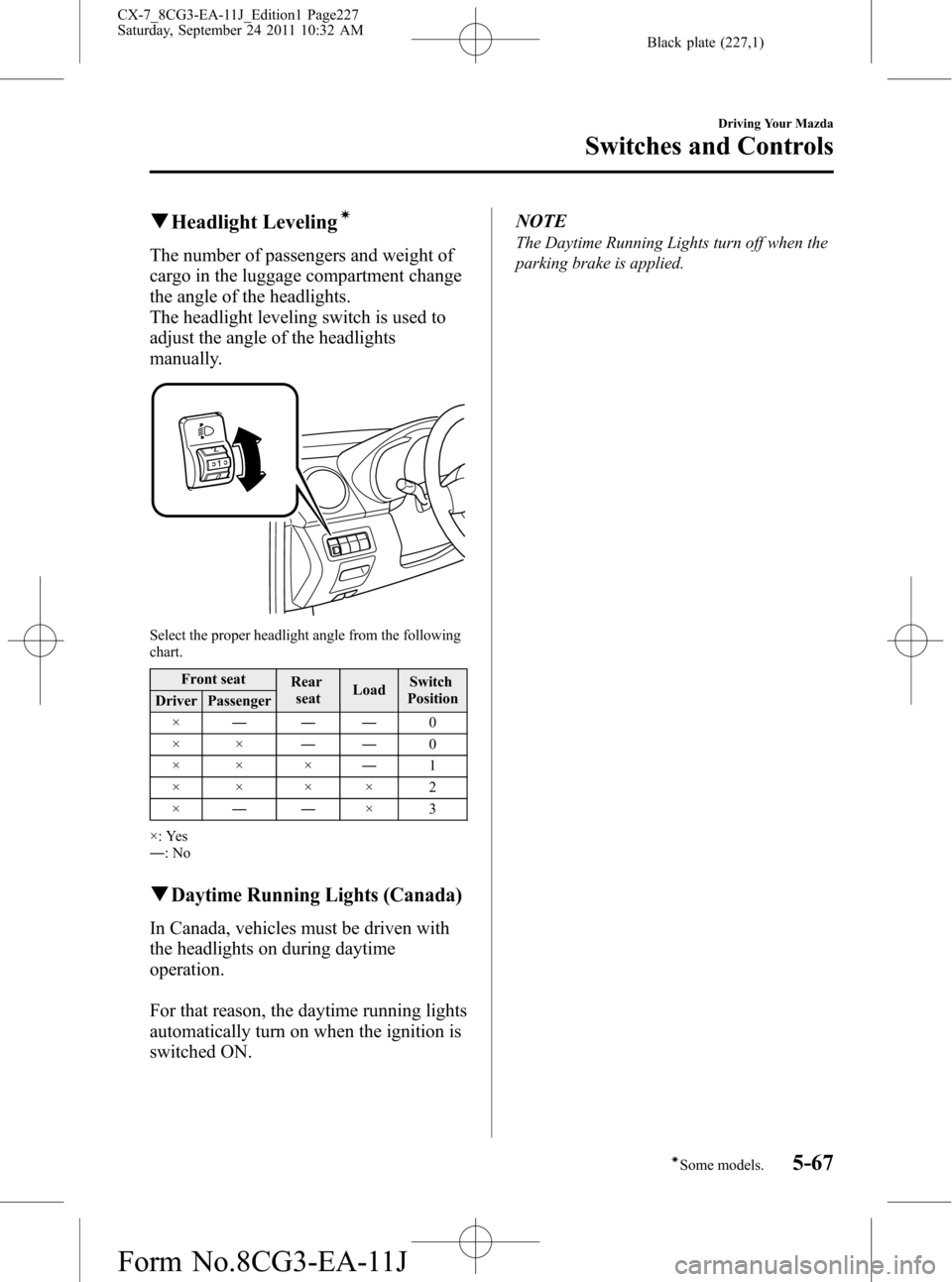

qHeadlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The headlight leveling switch is used to
adjust the angle of the headlights
manually.
Select the proper headlight angle from the following
chart.
Front seat
Rear
seatLoadSwitch
Position
Driver Passenger
×―――0
××――0
×× ×―1
×× ×× 2
×――×3
×: Yes
―:No
qDaytime Running Lights (Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition is
switched ON.NOTE
The Daytime Running Lights turn off when the
parking brake is applied.
Driving Your Mazda
Switches and Controls
5-67íSome models. CX-7_8CG3-EA-11J_Edition1 Page227
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (228,1)
Turn and Lane-Change
Signals
Turn Signals
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turn Right lane change
Left lane changeOFF
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without flashing
or if it flashes abnormally, one of the turn
signal bulbs may be burned out.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
or OFF
position.
NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.
5-68
Driving Your Mazda
íSome models.
Switches and Controls
CX-7_8CG3-EA-11J_Edition1 Page228
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (229,1)
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:
Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.NOTE
Because heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.
qWindshield Wipers
Turn the wipers on by pressing the lever
up or down.
With INT position
Switch
PositionWiper operation
Single wipe cycle (mist)
Intermittent
Low speed
High speed
Driving Your Mazda
Switches and Controls
5-69
CX-7_8CG3-EA-11J_Edition1 Page229
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J

Black plate (230,1)
With AUTO position
Switch
PositionWiper operation
Single wipe cycle (mist)
Auto control
Low speed
High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.
INT ring
AUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wipers on or off automatically
(off―intermittent―low speed―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch downward for higher
sensitivity (faster response) or rotate it
upward for less sensitivity (slower
response).
Higher sensitivity
Less sensitivity
Switch
Center
position
5-70
Driving Your Mazda
Switches and Controls
CX-7_8CG3-EA-11J_Edition1 Page230
Saturday, September 24 2011 10:32 AM
Form No.8CG3-EA-11J
