Black plate (381,1)

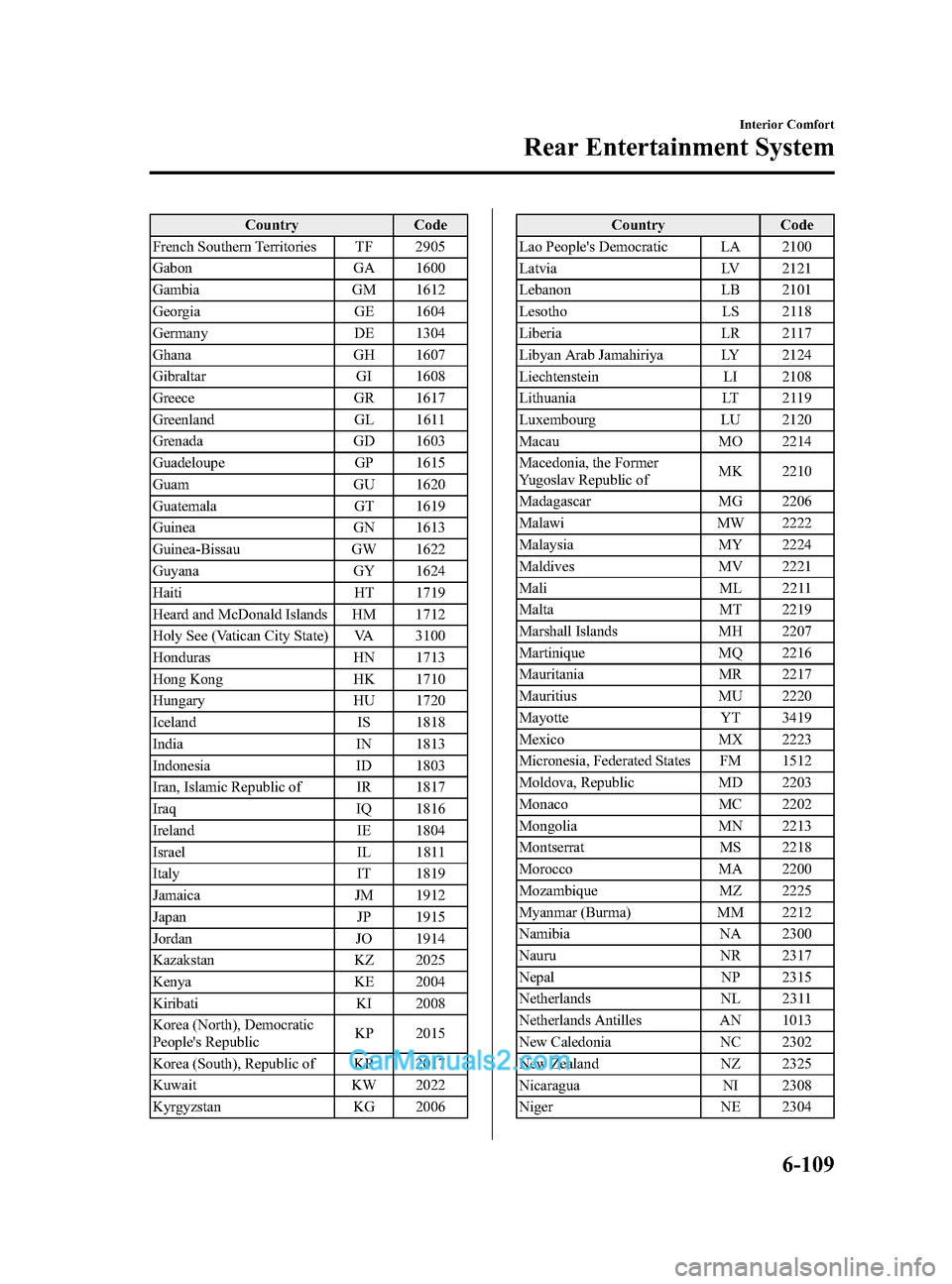

CountryCode
French Southern Territories TF 2905
Gabon GA 1600
Gambia GM 1612
Georgia GE 1604
Germany DE 1304
Ghana GH 1607
Gibraltar GI 1608
Greece GR 1617
Greenland GL 1611
Grenada GD 1603
Guadeloupe GP 1615
Guam GU 1620
Guatemala GT 1619
Guinea GN 1613
Guinea-Bissau GW 1622
Guyana GY 1624
Haiti HT 1719
Heard and McDonald Islands HM 1712
Holy See (Vatican City State) VA 3100
Honduras HN 1713
Hong Kong HK 1710
Hungary HU 1720
Iceland IS 1818
India IN 1813
Indonesia ID 1803
Iran, Islamic Republic of IR 1817
Iraq IQ 1816
Ireland IE 1804
Israel IL 1811
Italy IT 1819
Jamaica JM 1912
Japan JP 1915
Jordan JO 1914
Kazakstan KZ 2025
Kenya KE 2004
Kiribati KI 2008
Korea (North), Democratic
People's Republic KP 2015
Korea (South), Republic of KR 2017
Kuwait KW 2022
Kyrgyzstan KG 2006 Country
Code
Lao People's Democratic LA 2100
Latvia LV 2121
Lebanon LB 2101
Lesotho LS 2118
Liberia LR 2117
Libyan Arab Jamahiriya LY 2124
Liechtenstein LI 2108
Lithuania LT 2119
Luxembourg LU 2120
Macau MO 2214
Macedonia, the Former
Yugoslav Republic of MK 2210
Madagascar MG 2206
Malawi MW 2222
Malaysia MY 2224
Maldives MV 2221
Mali ML 2211
Malta MT 2219
Marshall Islands MH 2207
Martinique MQ 2216
Mauritania MR 2217
Mauritius MU 2220
Mayotte YT 3419
Mexico MX 2223
Micronesia, Federated States FM 1512
Moldova, Republic MD 2203
Monaco MC 2202
Mongolia MN 2213
Montserrat MS 2218
Morocco MA 2200
Mozambique MZ 2225
Myanmar (Burma) MM 2212
Namibia NA 2300
Nauru NR 2317
Nepal NP 2315
Netherlands NL 2311
Netherlands Antilles AN 1013
New Caledonia NC 2302
New Zealand NZ 2325
Nicaragua NI 2308
Niger NE 2304
Interior Comfort
Rear Entertainment System
6-109
CX-9_8DA3-EA-13G_Edition2 Page381
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 382 of 600

Black plate (382,1)
CountryCode
Nigeria NG 2306
Niue NU 2320
Norfolk Island NF 2305
Northern Mariana Islands MP 2215
Norway NO 2314
Oman OM 2412
Pakistan PK 2510
Palau PW 2522
Palestinian Territory,
Occupied PS 2518
Panama PA 2500
Papua New Guinea PG 2506
Paraguay PY 2524
Peru PE 2504
Philippines PH 2507
Pitcairn PN 2513
Poland PL 2511
Portugal PT 2519
Puerto Rico PR 2517
Qatar QA 2600
Reunion RE 2704
Romania RO 2714
Russian Federation RU 2720
Rwanda RW 2722
Saint Helena SH 2807
Saint Kitts and KN 2013
Saint Lucia LC 2102
Saint Pierre and Miquelon PM 2512
Saint Vincent and the
Grenadines VC 3102
Samoa WS 3218
San Marino SM 2812
Sao Tome and Principe ST 2819
Saudi Arabia SA 2800
Senegal SN 2813
Seychelles SC 2802
Sierra Leone SL 2811
Singapore SG 2806
Slovakia (Slovak Republic) SK 2810
Slovenia SI 2808
Solomon Islands SB 2801
Somalia SO 2814 Country
Code
South Africa ZA 3500
South Georgia and the South
Sandwich Islands GS 1618
Spain ES 1418
Sri Lanka LK 2110
Sudan SD 2803
Suriname SR 2817
Svalbard and Jan Mayen
Islands SJ 2809
Swaziland SZ 2825
Sweden SE 2804
Switzerland CH 1207
Syrian Arab Republic SY 2824
Taiwan, Province of China TW 2922
Tajikistan TJ 2909
Tanzania, United Republic TZ 2925
Thailand TH 2907
Togo TG 2906
Tokelau TK 2910
Tonga TO 2914
Trinidad and Tobago TT 2919
Tunisia TN 2913
Turkey TR 2917
Turkmenistan TM 2912
Turks and Caicos Islands TC 2902
Tuvalu TV 2921
Uganda UG 3006
Ukraine UA 3000
United Arab Emirates AE 1004
United Kingdom GB 1601
United States US 3018
United States Minor Outlying
Islands UM 3012
Uruguay UY 3024
Uzbekistan UZ 3025
Vanuatu VU 3120
Vatican City State See Holy
See VA 3100
Venezuela VE 3104
Viet Nam VN 3113
Virgin Islands, British VG 3106
Virgin Islands, U.S. VI 3108
6-110
Interior Comfort
Rear Entertainment System
CX-9_8DA3-EA-13G_Edition2 Page382
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 383 of 600

Black plate (383,1)

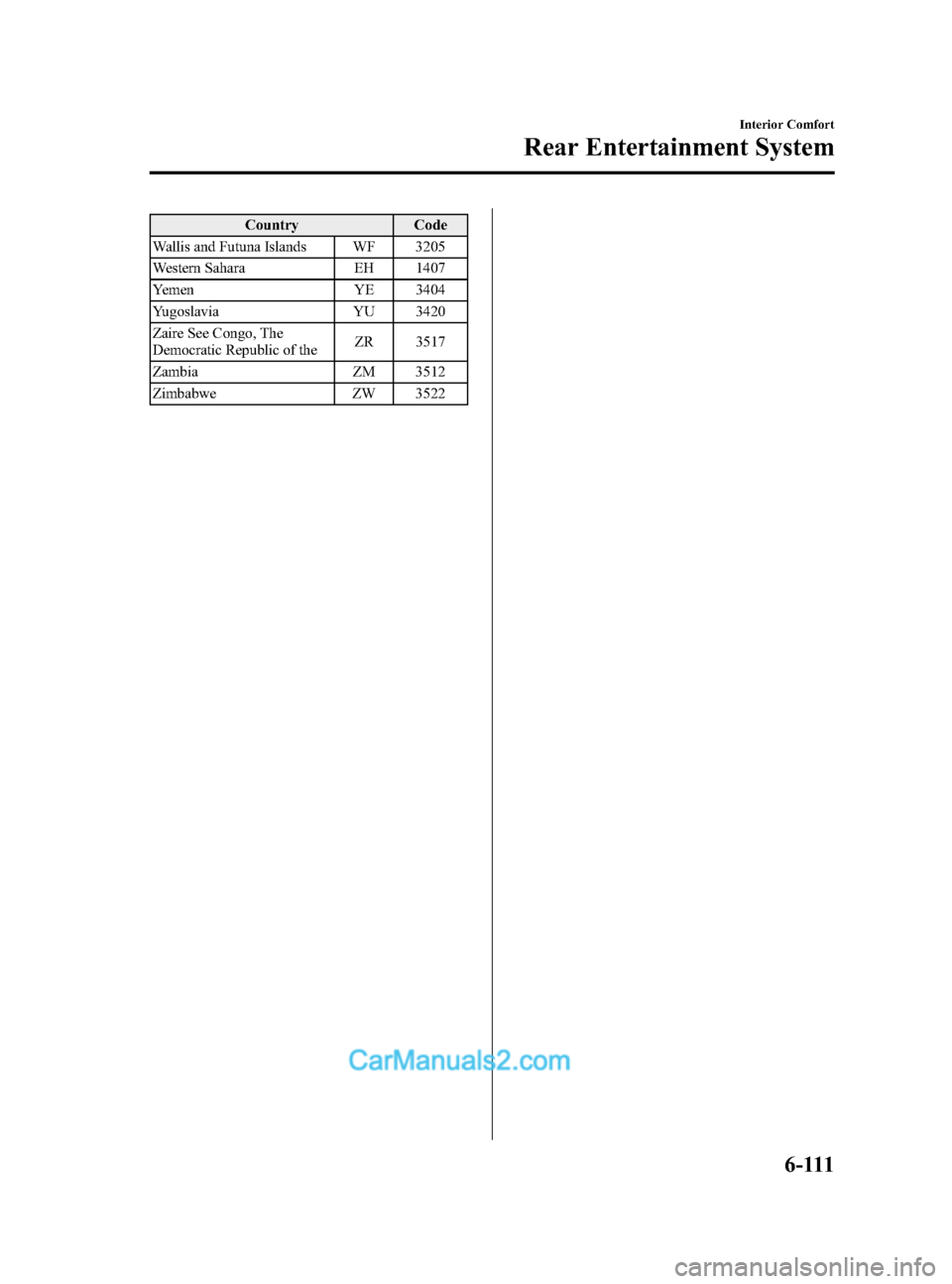

CountryCode
Wallis and Futuna Islands WF 3205
Western Sahara EH 1407
Yemen YE 3404
Yugoslavia YU 3420
Zaire See Congo, The
Democratic Republic of the ZR 3517
Zambia ZM 3512
Zimbabwe ZW 3522
Interior Comfort
Rear Entertainment System
6-111
CX-9_8DA3-EA-13G_Edition2 Page383
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 384 of 600

Black plate (384,1)
Error Message
qMessage
Disc mode error message
Use of Non-supported Disc
An error message is displayed if a non-
supported DVD-ROM disc, a non-
supported disc format or a disc (PAL,
other) with a different image signal
encoding is read.
If the disc content cannot be read:
An error message is displayed if the disc
cannot be read due to scratches or the
content cannot be read.
Incorrect region code
An error message is displayed if a disc
other than one with region code 1 or
including region 1 is inserted.
High temperature malfunction
If the temperature surrounding the DVD
player area exceeds 88°C (190°F), the
DVD player operation is stopped to
protect the unit. When the temperature
decreases to 70°C (158°F) or less, the
protective circuit function is cleared and
the operation is restored.
6-112
Interior Comfort
Rear Entertainment System
CX-9_8DA3-EA-13G_Edition2 Page384
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 385 of 600

Black plate (385,1)
System errors (Common to each mode)
Power malfunction
An error message is displayed if the
power supply to the rear entertainment
system drops (About 9.5 V or less), and
the power is turned off.
The power is restored when the power
supply to the rear entertainment system is
10 V or more.
High temperature malfunction
If the temperature around the LCD area
exceeds 95°C (203°F), the power supply
is turned off to protect the LCD.
When the temperature around the LCD
area is 85°C (185°F) or less, the
protective circuit function is cleared and
the operation is restored.
Interior Comfort
Rear Entertainment System
6-113
CX-9_8DA3-EA-13G_Edition2 Page385
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 386 of 600

Black plate (386,1)
Symptoms and Actions
If any malfunction is suspected, verify the following before requesting a repair.
If the problem cannot be solved after performing the procedure, have the system inspected
at an Authorized Mazda Dealer.
Some functions are not available depending on the disc. Read the instruction manual
attached to the disc before operating.
SymptomCause Action
System
cannot be
turned on The ignition is switched off.
Switch the ignition to ACC or ON.
The remote controller batteries are
weak. Replace the batteries with new ones.
Refer to Remote Controller on page 6-81.
Remote controller batteries poles are
pointed in the wrong direction. Install the batteries in the correct direction.
Refer to Remote Controller on page 6-81.
The vehicle battery is weak. Recharge or replace the vehicle battery.
The cabin temperature
(Rear Entertainment System unit tem-
perature) is high. Retry after the temperature has lowered.
cannot be
displayed The ignition is switched off.
Switch the ignition to ACC or ON.
No disc is inserted. Insert a disc.
An invalid disc is inserted. Insert a disc which can be played by this unit.
Refer to Operating Tips for Disc on page 6-66.
The wrong mode has been selected. Select the correct mode by pressing the SOURCE button.
Refer to Mode on page 6-87.
Disc cannot
be played No disc is inserted.
Insert a disc.
Disc is inserted upside down. Insert the disc with the label-side up.
Parent lock level is set. Clear or change the parent lock level.
Sound
cannot be
output The ignition is switched off.
Switch the ignition to ACC or ON.
Volume is too low. Adjust the volume.
The audio unit is not set in the Rear
Entertainment System mode. Set the audio unit in the Rear Entertainment System mode.
Refer to Sound Output on page 6-83.
An invalid disc has been inserted. Insert a disc which can be played by this unit.
Refer to Operating Tips for Disc on page 6-66.
No disc is inserted. Insert a disc.
Disc is inserted upside down. Insert the disc with the label-side up.
Playback has been paused. Cancel the pause.
The playback is in slow, fast-forward, or
reverse mode. Select normal playback.
Refer to Basic Operation on page 6-88.
Audio is not
output from
vehicle's
speakers or
headphones DTS format language is selected and
played back.
(The vehicle speakers and wireless
headphones cannot playback DTS for-
mat language)
Select audio other than DTS format.
and/or sound
is distorted. The disc is dirty.
Clean the signal surface of the disc.
The disc has a scratch. Replace the disc with another one.
Dew condensation on the disc Clear the dew condensation.
6-114
Interior Comfort
Rear Entertainment System
CX-9_8DA3-EA-13G_Edition2 Page386
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 387 of 600

Black plate (387,1)
SymptomCause Action
There are
subtle spots
or
luminescent
spots on the
screen. The LCD is high tech equipment with a
99.99% effective sensor resolution.
However, please be aware that 0.01%
pixel failure or pixel continuous
illuminated pixels may exist.
―
Subtitles
cannot be
changed Other languages are not recorded on the
disc.
Check the available language in the instruction manual
accompanying the disc.
Display
angle cannot
be changed Multiple angles are not recorded on the
disc.
Check the available angle in the instruction manual
accompanying the disc.
Remote
controller is
inoperable The remote controller is not pointed
toward the receiver on the unit.
Point the remote controller toward the receiver on the unit.
The receiver is near the disc slot.
There is an obstruction between the
remote controller and the unit. Operate the remote controller avoiding the obstruction so
that the signal reaches the receiver on the unit. The
receiver is near the disc slot.
The remote controller batteries are
weak. Replace the batteries with new ones.
Refer to Remote Controller on page 6-81.
Remote controller batteries poles are
pointed in the wrong direction. Install the batteries in the correct direction.
Refer to Remote Controller on page 6-81.
No audio
output from the
headphones. No power to the headphones. Turn on the power to the headphones.
The headphones' optical receiver is not
pointed towards the main unit's
transmitter.
Point the headphones' optical receiver towards the main
unit's transmitter. The main unit's transmitter is located
near the disc insertion area.
There is an obstruction between the
headphones and the main unit. Avoid the obstruction.
The headphones' batteries are depleted. Replace the batteries with new ones.
The headphones' batteries have not been
correctly inserted in the
/directions. Insert the batteries correctly.
The headphones are exposed to direct
sunlight. Use the headphones while avoiding direct sunlight.
Power turns off automatically. If there is no sound for 3 minutes or longer, or if the
headphones are continuously used for 4 hours, there is a
function which automatically turns the power off. Turn the
power to headphones back on.
The
headphones'
optical
reception
range is too
narrow. The headphones' batteries are weak. Replace the batteries with new ones.
There is
excessive
noise in the
headphone
audio The headphones' batteries are weak. Replace the batteries with new ones.
Interior Comfort
Rear Entertainment System
6-115
CX-9_8DA3-EA-13G_Edition2 Page387
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 388 of 600

Black plate (388,1)
Bluetooth®
Bluetooth®Hands-Free outline
When a Bluetooth
®device (mobile phone) is connected to the vehicle's Hands-Free unit
via radio wave transmission, a call can be made or received by pressing the talk button,
pick-up button, hang-up button, or voice command on the steering wheel, or by operating
the panel. For example, even if a device (mobile phone) is in your coat pocket, a call can
be made without taking the device (mobile phone) out and operating it directly.
Bluetooth®audio outline
When a portable audio unit equipped with the Bluetooth
®communication function is
programmed to the Bluetooth®unit, you can listen to music recorded on the programmed
portable audio device from the vehicle's speakers. It is not necessary to connect the
portable audio device to the vehicle's external input terminal. After programming, operate
the vehicle audio control panel to play/stop the audio.
Applicable Bluetooth
®specification
Ver. 2.0 or higher
Response profile
lHFP (Hands-Free Profile) Ver. 1.5lDUN (Dial-up Networking Profile) Ver. 1.1lPBAP (Phone Book Access Profile) Ver. 1.0lOPP (Object Push Profile) Ver. 1.1lMAP (Message Access Profile) Ver. 1.0
6-116
Interior Comfort
Bluetooth®
CX-9_8DA3-EA-13G_Edition2 Page388
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 389 of 600

Black plate (389,1)
qComponent Parts
Talk button, Pick-up button and Hang-up button
Microphone
Talk button
Hang-up button Pick-up button
Audio unit
Microphone
Audio unit
The audio unit is used for volume adjustment and touch panel operation. Bluetooth
®
information is displayed in the display. The screen is switched by touching the tab for each
function to be used.
Do not press the panel strongly or press it with a sharp-pointed object.
Microphone (Hands-Free)
The microphone is used for speaking voice commands or exchanging conversation.
Talk button, Pick-Up button and Hang-Up button (Hands-Free)
The basic functions of Bluetooth
®Hands-Free can be used for such things as making calls
or hanging up using the talk button, pick-up button and hang-up button on the steering
wheel.
NOTE
The talk button, pick-up button, and hang-up button are operable with the audio unit turned off.
Volume adjustment
The power/volume dial of the audio unit is used to adjust the volume. Turn the dial to the
right to increase volume, to the left to decrease it.
The volume can also be adjusted using the volume button on the steering wheel.
Interior Comfort
Bluetooth®
6-117
CX-9_8DA3-EA-13G_Edition2 Page389
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
Page 390 of 600

Black plate (390,1)
Conversation volume and the volume of the voice guidance and ringtone can each be set in
advance.
1. Touch the
on-screen tab to display the Bluetooth®setting screen.
2. Touch the
on-screen button to display the volume adjustment screen.
3. (Volume up) Touch the
on-screen button.
(Volume down) Touch the
on-screen button.
4. Prompt: “Phone call will be at this volume. ”or
“ Voice guidance will be at this volume. ”
NOTE
The volume of the audio unit cannot be adjusted while Bluetooth®Hands-Free is being used.
q Bluetooth® Preparation
Device programming (Pairing)
To use Bluetooth
®audio and Hands-Free,
the device equipped with Bluetooth®has
to be programmed to the unit using the
following procedure. A maximum of
seven devices including Bluetooth
®audio
devices and Hands-Free mobile phones
can be programmed.
NOTE
lFor your safety, a device can be
programmed only when the vehicle is
parked. If the vehicle starts to move, the
pairing procedure will end. Park the car in
a safe place before programming.
lThe communication range of a Bluetooth®
equipped device is about 10 meters (32 ft)
or less.
CAUTION
Some Bluetooth®mobile devices are
not compatible with the vehicle.
Consult an Authorized Mazda Dealer,
Mazda's call center or Web support
center for information regarding
Bluetooth
®mobile device
compatibility:
Ø U.S.A.
Phone: 800-430-0153
Web: www.MazdaUSA.com/
bluetooth
Ø Canada
Phone: 800-430-0153
Web: www.mazdahandsfree.ca
Ø Mexico
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.mazdamexico.com.mx
Pairing Procedure
1. Press the phone button (
).
2. Touch the
on-screen tab.
3. Touch the
on-screen
button. The list of pairing devices is
displayed.
6-118
Interior Comfort
Bluetooth®
CX-9_8DA3-EA-13G_Edition2 Page390
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G
