Black plate (460,1)
WARNING
Place the specialized temporary spare
tire in the spare tire carrier correctly:Placing the specialized temporary
spare tire in the spare tire carrier
wrong side up or using any tire other
than the small temporary spare tire
designed for use with this vehicle is
dangerous. It will result in poor
attachment and insufficient ground
clearance in the spare tire carrier and
the danger of the tire falling off. This
could result in someone being badly
injured or even killed.
Always tighten the spare tire carrier
bolt completely tight and make sure
the spare tire is locked in the highest
position: A loose spare tire carrier bolt is
dangerous. The cable could be cut
causing the spare tire to fall off. This
could result in someone being
seriously injured or even killed. Use a
lug wrench to tighten the carrier bolt
and make sure to tighten it until a
click sound is heard.
CAUTION
If you hear rattling from the spare
tire carrier while the vehicle is
moving, the spare tire carrier cable
may be cut.
Have it repaired at an Authorized
Mazda Dealer as soon as possible.
Changing a Flat Tire
NOTE
If the following occurs while driving, it could
indicate a flat tire.
lSteering becomes difficult.lThe vehicle begins to vibrate excessively.lThe vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Be sure to follow the directions for
changing a tire:Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
No person should place any portion
of their body under a vehicle that is
supported by a jack.
Never allow anyone inside a vehicle
supported by a jack: Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury.
CAUTION
(With Tire Pressure Monitoring
System)
The wheels equipped on your Mazda
are specially designed for installation
of the tire pressure sensors. Do not
use non-genuine wheels, otherwise it
may not be possible to install the tire
pressure sensors.
7-8
In Case of an Emergency
Flat Tire
CX-9_8DU1-EA-14H_Edition1 Page460
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (461,1)
NOTElMake sure the jack is well lubricated before
using it.
(With Tire Pressure Monitoring System)
lBe sure to register the tire pressure sensor
ID signal code whenever tires or wheels are
changed (page 5-33).
1. Park on a level surface off the right-of- way and firmly set the parking brake.
2. Shift into Park (P) and turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.
NOTE
When blocking a tire, use rocks or wood blocks
of sufficient size if possible to hold the tire in
place.
qRemoving a Flat Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.
2. Place the jack on the ground.
3. Turn the jack screw in the directionshown in the figure and adjust the jack
head so that it is close to the jack-up
position.
Jack head
In Case of an Emergency
Flat Tire
7-9
CX-9_8DU1-EA-14H_Edition1 Page461
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (467,1)
12. Pull the belt end to secure the flat tire.
13. Check the tire inflation pressure.Refer to Tires on page 10-7.
14. Have the flat tire repaired or replaced as soon as possible.
WARNING
Do not drive with any tires that have
incorrect air pressure:Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-31).
NOTE
To prevent the jack and tool from rattling, store
them properly.
In Case of an Emergency
Flat Tire
7-15
CX-9_8DU1-EA-14H_Edition1 Page467
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (503,1)

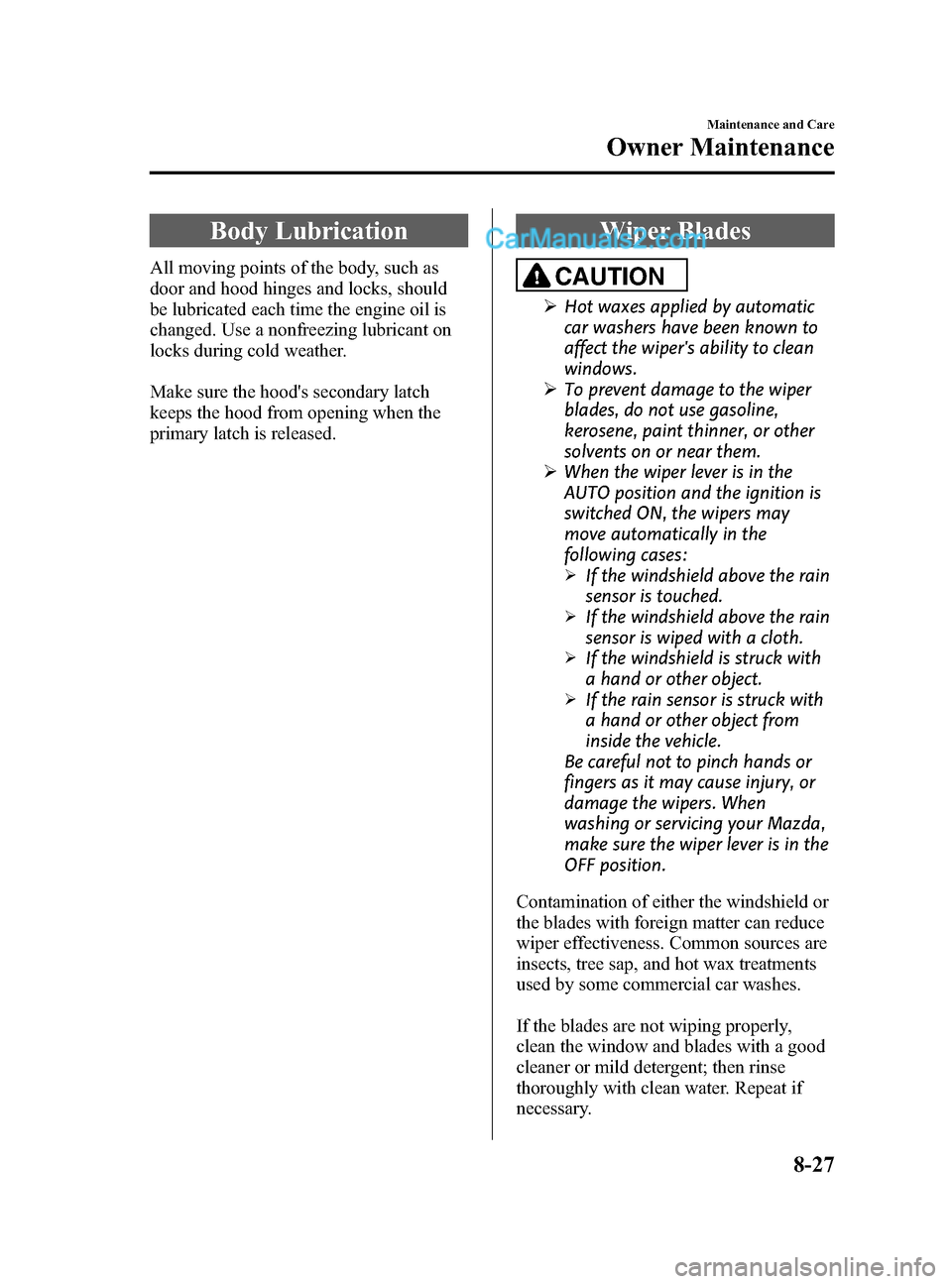

Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Wiper Blades
CAUTION
ØHot waxes applied by automatic
car washers have been known to
affect the wiper's ability to clean
windows.
Ø To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
Ø When the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with
a hand or other object.
ØIf the rain sensor is struck with
a hand or other object from
inside the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When
washing or servicing your Mazda,
make sure the wiper lever is in the
OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Maintenance and Care
Owner Maintenance
8-27
CX-9_8DU1-EA-14H_Edition1 Page503
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (511,1)
During rotation, inspect them for correct
balance.
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:
lIncorrect tire pressurelImproper wheel alignmentlOut-of-balance wheellSevere braking
After rotation, inflate all tire pressures to
specification (page 10-7) and inspect the
lug nuts for tightness.
CAUTION
Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to
rear, not from side to side. Tire
performance will be reduced if
rotated from side to side.
q Replacing a Tire
WARNING
Always use tires that are in good
condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Replace all four tires at the same time: Replacing just one tire is dangerous.
It could cause poor handling and
poor braking resulting in loss of
vehicle control. Mazda strongly
recommends that you replace all four
tires at the same time.
CAUTION
(With Tire Pressure Monitoring
System)
When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.
NOTE
(With Tire Pressure Monitoring System)lWhen tires with steel wire reinforcement in
the sidewalls are used, the system may not
function correctly even with a genuine
wheel.
Refer to System Error Activation on page
5-33.
lBe sure to install the tire pressure sensors
whenever tires or wheels are replaced.
Refer to Tires and Wheels on page 5-33.
Maintenance and Care
Owner Maintenance
8-35
CX-9_8DU1-EA-14H_Edition1 Page511
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (513,1)
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 9-24.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring
System
Ø (With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-33.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset
(inset/outset).
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
8-37
CX-9_8DU1-EA-14H_Edition1 Page513
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (532,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
q Maintaining the Finish
Washing
CAUTION
Ø When the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely ―this is
particularly important when
clearing ice and snow ―when it is
most likely that the engine is left
running.
Ø Do not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems
or damage to electrical parts.
Ø When washing and waxing the
vehicle, be careful not to apply
excessive force to any single area
of the vehicle roof or the antenna.
Otherwise, you could dent the
vehicle or damage the antenna.
8-56
Maintenance and Care
Appearance Care
CX-9_8DU1-EA-14H_Edition1 Page532
Thursday, June 5 2014 4:21 PM
Form No.8DU1-EA-14H

Black plate (598,1)
A
Accessory Socket ............................ 6-175
Add-On Non-Genuine Parts and
Accessories ....................................... 9-19
Advanced Key ..................................... 3-2Advanced key maintenance ......... 3-5
Advanced key suspend
function ...................................... 3-17
Auxiliary key .............................. 3-17
Locking, unlocking with request
switch ........................................... 3-8
Operational range ......................... 3-7
Remote control function ............. 3-13
Service ......................................... 3-7
Warning and beep sounds .......... 3-18
When warning indicator/beep is
activated ..................................... 3-20
Air Bag Systems ............................... 2-54
All-Wheel Drive
(AWD) Operation ............................. 5-18 AWD warning light .................... 5-19
Ambient Temperature Display ........ 6-166
Antenna ............................................. 6-17
Anti-Lock Brake System (ABS) ......... 5-8 Warning light ............................... 5-9
Appearance Care ............................... 8-54
Armrest Box .................................... 6-173
Audio System ................................... 6-17 Audio control switch .................. 6-50
Audio set .................................... 6-29
AUX/USB/iPod Mode ............... 6-52
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-63
Automatic Transaxle Driving tips ................................ 5-17
Manual shift mode ..................... 5-13
Shift-lock system ....................... 5-13
Transaxle ranges ........................ 5-12
B
Battery
Emergency starting .................... 7-18
Maintenance ............................... 8-31
Replacement ............................... 8-32
Specifications ............................. 10-4
Beep Sounds Blind spot monitoring system
warning ...................................... 5-71
Ignition key reminder ................. 5-70
Lights-on reminder ..................... 5-70
Parking brake reminder .............. 5-71
Seat belt warning ........................ 5-70
Tire inflation pressure warning ... 5-71
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
Blind Spot Monitoring
(BSM) System .................................. 5-35 Blind Spot Monitoring (BSM).... 5-37
BSM OFF Indicator Light .......... 5-42
BSM OFF Switch ....................... 5-43
Care of radar sensors .................. 5-43
Rear Cross Traffic Alert
(RCTA) ...................................... 5-39
Warning Light/Beep ................... 5-42
Bluetooth® ...................................... 6-116 Bluetooth® Audio .................... 6-141
Bluetooth® Hands-Free ........... 6-122
Safety Certification .................. 6-149
Troubleshooting ....................... 6-145
Body Lubrication .............................. 8-27
Bottle Holder ................................... 6-171
Brake Fluid ........................................... 8-25
11-2
Index
CX-9_8DU1-EA-14H_Edition1 Page598
Thursday, June 5 2014 4:21 PM
Form No.8DU1-EA-14H

Black plate (601,1)
I
Instrument Cluster ............................. 5-52
Interior Care ...................................... 8-61
Interior Lights ................................. 6-163
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ....................... 3-22
Keys .................................................. 3-21
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-78
Liftgate .............................................. 3-33
Light BulbsReplacement ............................... 8-38
Specifications ............................. 10-6
Lighting Control ............................... 5-72
Lubricant Quality .............................. 10-4
Luggage Compartment Light .......... 6-164
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-18
Owner maintenance schedule ..... 8-17
Scheduled ..................................... 8-4
Map Lights ...................................... 6-164
Mirror Defogger ................................ 5-86
Mirrors Outside mirrors .......................... 3-64
Rearview mirror ......................... 3-66
M
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-50
O
Odometer and Trip Meter .................. 5-53
Outside Mirrors ................................. 3-64
Overhead Console ........................... 6-172
Overhead Lights .............................. 6-163
Overheating ....................................... 7-16
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-54
Parking Brake ..................................... 5-7
Parking in an Emergency .................... 7-2
Parking Sensor System ..................... 5-46Park assist sensor switch ............ 5-48
Parking sensor warning beep ..... 5-50
Sensor detection range ............... 5-48
When warning indicator/beep is
activated ..................................... 5-51
Personalization Features ................... 10-8
Power Door Locks ............................ 3-29
Power Liftgate ................................... 3-35
Power Outlet ................................... 6-177
Power Steering .................................. 5-18 Fluid ........................................... 8-25
Power Windows ................................ 3-40
Push-Starting ..................................... 7-20
R
Rear Coat Hooks ............................. 6-174
Rear Cross Traffic Alert (RCTA) ...... 5-39
Rear Door Child Safety Locks .......... 3-32
Index
11-5
CX-9_8DU1-EA-14H_Edition1 Page601
Thursday, June 5 2014 4:21 PM
Form No.8DU1-EA-14H
