Page 510 of 612
7–26
If Trouble Arises
Emergency Towing
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle. Particularly
when towing an AWD vehicle, where
all the wheels are connected to the drive
train, proper transporting of the vehicle is
absolutely essential to avoid damaging the
drive system. Government and local laws
must be followed.
Wheel dollies
A towed 2WD vehicle should have its
drive wheels (front wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.
When towing a 2WD vehicle with the rear
wheels on the ground, release the parking
brake.
A towed AWD vehicle must have all its
wheels off the ground.
WARNING
Always tow an AWD vehicle with all four
wheels off the ground:
Towing an AWD vehicle with either
the front or rear wheels on the ground
is dangerous as the drive train could
be damaged, or the vehicle could trail
away from the tow truck and cause
an accident. If the drive train has been
damaged, transport the vehicle on a
fl at bed truck.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 511 of 612
7–27
If Trouble Arises
Emergency Towing
CAUTION
¾ Do not tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal damage
to the transaxle.
¾ Do not tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or fl atbed equipment.
Towing Hooks (Mexico)
CAUTION
¾ The towing eyelet should be used in an
emergency (to get the vehicle out of a
ditch or a snow bank, for example).
¾ When using the towing eyelets, always
pull the cable or chain in a straight
direction with respect to the eyelet.
Never apply a sideways force.
N O T E
When towing with chain or cable, wrap
the chain or cable with a soft cloth near
the bumper to prevent damage to the
bumper.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 512 of 612
7–28
If Trouble Arises
Emergency Towing
Towing Hooks
1. Remove the towing eyelet and the lug
wrench from the luggage compartment
(page 7-3 ).
2. Wrap a À athead screwdriver or similar
tool with a soft cloth to prevent damage
to a painted bumper, and open the cap
located on the front or rear bumper.
Front
Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
N O T E
Remove the cap completely and store it so
as not to lose it.
3. Securely install the towing eyelet using
the lug wrench.
Front
Lug wrench
Towing eyelet
Rear
Lug wrench
Towing eyelet
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C

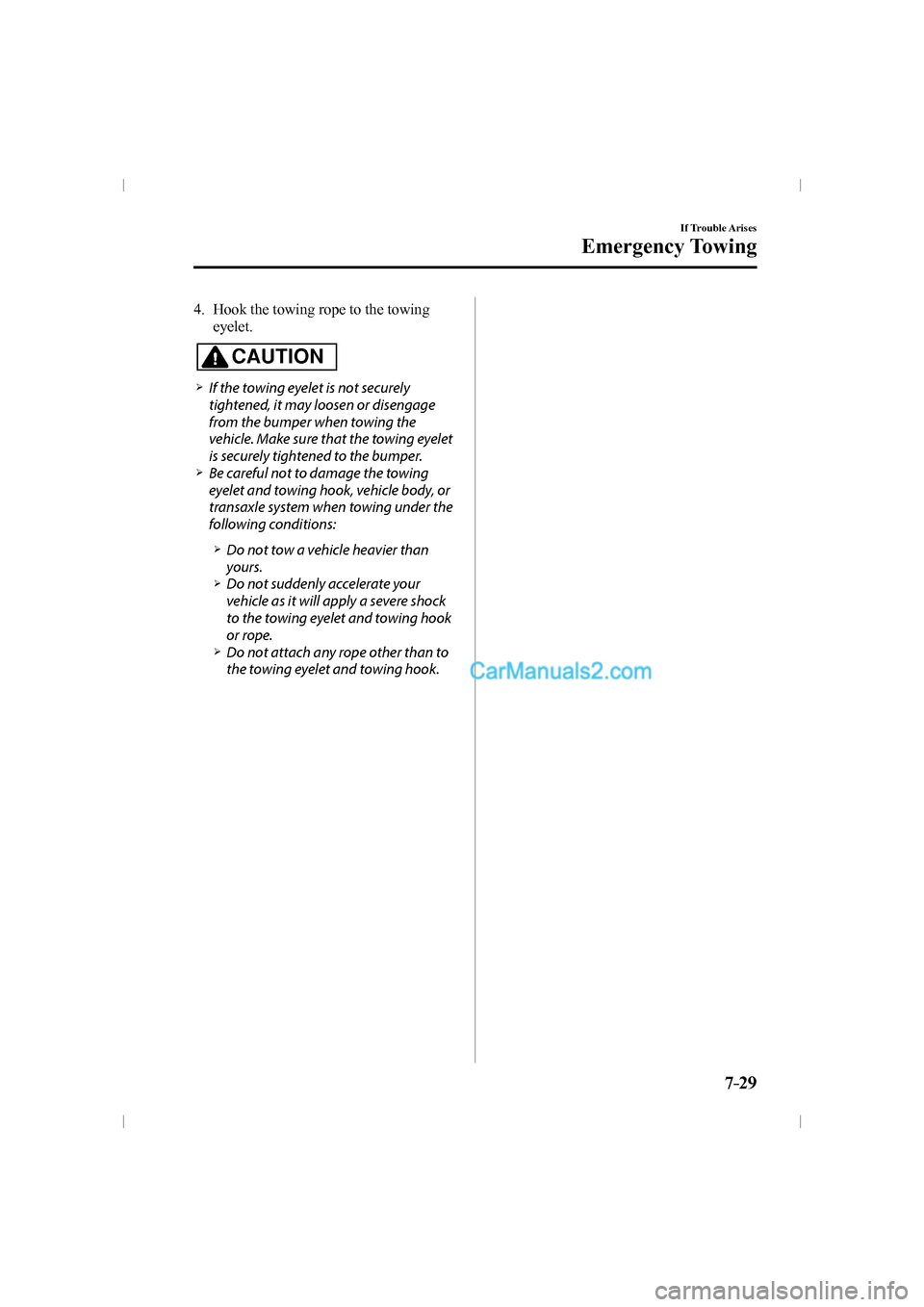

Page 513 of 612
7–29
If Trouble Arises
Emergency Towing
4. Hook the towing rope to the towing
eyelet.
CAUTION
¾ If the towing eyelet is not securely
tightened, it may loosen or disengage
from the bumper when towing the
vehicle. Make sure that the towing eyelet
is securely tightened to the bumper.
¾ Be careful not to damage the towing
eyelet and towing hook, vehicle body, or
transaxle system when towing under the
following conditions:
¾ Do not tow a vehicle heavier than
yours.
¾ Do not suddenly accelerate your
vehicle as it will apply a severe shock
to the towing eyelet and towing hook
or rope.
¾ Do not attach any rope other than to
the towing eyelet and towing hook.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 574 of 612
8–38
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Cargo Weight includes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.
The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the “combination weight of occupants and cargo should never exceed” value on the tire
label.
Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg (849
lbs) for the “combination weight of occupants and cargo should never exceed”:
The cargo weight limit with one occupant is 385 kg (849 lbs) - 68 kg (150 lbs) = 317 kg
(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs) - (68 × 2) kg ( (150 × 2) lbs)
= 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.
GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating) is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certi ¿ cation Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.
GVW
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 576 of 612
8–40
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
GCW
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must
never exceed the GCWR.
Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal
or external), a tongue load of 10-15% (conventional trailer) or king pin weight of 15-25%
( ¿ fth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a
trailer pushes down on a trailer hitch.
Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb ¿ fth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 578 of 612
8–42
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Steps for Determining the Correct Load Limit
Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never exceed
XXX kg or XXX lbs.” on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your
vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting ¿ gure equals the available amount of cargo and luggage load capacity. For
example, if the “XXX” amount equals 1400 lbs. and there will be ¿ ve 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400 - 750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That
weight may not safely exceed the available cargo and luggage load capacity calculated in
Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your
vehicle. Consult this manual to determine how this reduces the available cargo and
luggage load capacity of your vehicle.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 605 of 612
10–3
Index
Child Restraint
Child-restraint precautions ............ 2-29
Child-restraint system installation ... 2-34
Installing child-restraint systems... 2-35
LATCH child-restraint systems ..... 2-44
Child Safety Locks for Rear Doors ..... 3-19
Climate Control System ........................ 5-2
Front Air Conditioner ...................... 5-5
Gas speci ¿ cations ............................ 9-6
Operating tips .................................. 5-2
Rear Air Conditioner ..................... 5-11
Vent Operation (Front) .................... 5-3
Vent operation (Rear) ...................... 5-9
Collision warning ................................ 7-49
Coming Home Light ........................... 4-53
Cruise Control ................................... 4-147
Cruise control switch................... 4-147
Cruise main indication (white)/
cruise set indication (green) ........ 4-148
Cruise Control Set Vehicle Speed
Display ................................................ 4-18
Cup Holder .......................................... 5-88
Customer Assistance ............................. 8-2
D
Dashboard Illumination ...................... 4-17
Daytime Running Lights ..................... 4-54
Defogger
Mirror ............................................ 4-61
Rear window ................................. 4-61
Dimensions ........................................... 9-5
Distance Recognition Support System
(DRSS) ................................................ 4-98
Indication on display ..................... 4-99
Door Locks .......................................... 3-11
Drive Selection .................................... 4-80
Driving In Flooded Area ..................... 3-55 Driving Tips
Automatic transaxle ...................... 4-48
Break-in period.............................. 3-50
Driving in À ooded area.................. 3-55
Driving on uneven road ................. 3-56
Floor mat ....................................... 3-52
Hazardous driving ......................... 3-51
Overloading ................................... 3-55
Rocking the vehicle ....................... 3-52
Saving fuel and protection of the
environment................................... 3-50
Turbocharged vehicles .................. 3-57
Winter driving ............................... 3-53
Driving on Uneven Road .................... 3-56
Dynamic Stability Control (DSC) ....... 4-76
TCS/DSC indicator light ............... 4-76
E
Electric Parking Brake Warning Beep ... 7-49
Electric parking brake ......................... 4-68
Emergency Starting
Push-starting .................................. 7-23
Starting a À ooded engine ............... 7-23
Emergency Towing
Towing description ........................ 7-26
Towing hooks ................................ 7-27
Emission Control System .................... 3-29
Ending Screen Display ........................ 4-79
Engine
Coolant .......................................... 6-29
Engine compartment overview ..... 6-25
Exhaust gas.................................... 3-30
Hood release .................................. 6-23
Oil .................................................. 6-26
Starting ............................................ 4-5
Engine Coolant Temperature
Gauge ......................................... 4-16, 4-24
Essential Information ............................ 6-2
Event Data Recorder ........................... 8-20
Exhaust Gas ........................................ 3-30
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 609 of 612
10–7
Index
P
Parking Sensor System ..................... 4-164
Personalization Features ..................... 9-11
Power Liftgate ..................................... 3-22
Power Liftgate Warning Beep ............. 7-49
Power Steering .................................... 4-84
Power Steering Warning Buzzer ......... 7-49
Power Windows .................................. 3-38
R
Radar Sensor (Front) ......................... 4-140
Radar Sensors (Rear) ........................ 4-145
Rear Coat Hooks ................................. 5-93
Rear Cross Traf ¿ c Alert (RCTA) ...... 4-102
Rear Door Child Safety Locks ............ 3-19
Rear View Monitor............................ 4-155
Displayable range on the screen ... 4-157
Picture quality adjustment ........... 4-163
Rear view monitor operation ....... 4-159
Rear view parking camera
location ........................................ 4-156
Switching to the rear view monitor
display ......................................... 4-156
Variance between actual road conditions
and displayed Image
.................... 4-162
Viewing the display ..................... 4-158
Rear Window Defogger ...................... 4-61
Rear Window Washer .......................... 4-60
Rear Window Wiper ............................ 4-60
Rearview Mirror .................................. 3-35
Recommended Oil .............................. 6-26
Recording of Vehicle Data .................. 8-21
Recreational Towing ........................... 3-66
Registering Your Vehicle in A Foreign
Country ............................................... 8-17 Replacement
Fuse ............................................... 6-56
Key battery .................................... 6-40
Light bulbs .................................... 6-47
Tires ............................................... 6-45
Wheel ............................................ 6-46
Wiper ............................................. 6-33
Request Switch Inoperable Warning Beep
(With the advanced keyless function)
... 7-47
Rocking the Vehicle ............................ 3-52
S
SRS Air Bags
How the SRS air bags work .......... 2-57
Limitations to SRS air bag ............ 2-63
Monitoring..................................... 2-70
Passenger occupant classi ¿ cation
system ............................................ 2-65
SRS air bag deployment criteria ... 2-62
Supplemental restraint system
components ................................... 2-55
Safety Defects, Reporting ................... 8-13
Saving Fuel and Protection of the
Environment ........................................ 3-50
Scheduled Maintenance ........................ 6-4
Seat
Driving position memory ................ 2-8
Seat Belt System ................................. 2-23
3-point type ................................... 2-23
Automatic locking ......................... 2-22
Emergency locking ........................ 2-22
Extender ........................................ 2-27
Pregnant women ............................ 2-22
Seat belt precautions ..................... 2-20
Seat Belt Warning Beep ...................... 7-46
Seats ...................................................... 2-5
Front seat ......................................... 2-5
Head restraint ................................ 2-16
Seat warmer ..................................... 2-7
Second-row seat ............................ 2-10
Third-row seat ............................... 2-15
Second-Row Seat ................................ 2-10
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 610 of 612
10–8
Index
Security System
Immobilizer system ....................... 3-46
Theft-deterrent system .................. 3-48
Shopping Bag Hook ............................ 5-93
Smart Brake Support (SBS) .............. 4-134
Collision warning ........................ 4-136
Stopping the Smart Brake Support
(SBS) system operation ............... 4-136
Smart City Brake Support (SCBS) ... 4-129
Stopping the Smart City Brake Support
(SCBS) system operation ............ 4-133
Spare Tire .............................................. 7-6
Speci ¿ cations ........................................ 9-4
Speedometer ........................................ 4-14
Starting the Engine ................................ 4-5
Steering Wheel .................................... 3-33
Horn............................................... 4-62
Storage Compartments ........................ 5-90
Armrest box ................................... 5-91
Cargo sub-compartment ................ 5-92
Center console ............................... 5-91
Glove compartment ....................... 5-91
Overhead console .......................... 5-91
Rear coat hooks ............................. 5-93
Shopping bag hook ........................ 5-93
Sunshade ............................................. 3-45
Sunshade (Rear door window) ............ 5-93
Sunvisors ............................................. 5-82
T
Tachometer .......................................... 4-15
Theft-Deterrent System ....................... 3-48
Third-Row Seat ................................... 2-15
Three- À ash Turn Signal....................... 4-56
Tire In À ation Pressure Warning Beep ... 7-47
Tire Information .................................. 8-24
Tire Pressure Monitoring System ..... 4-151
Tire Pressure Monitoring System
Initialization ...................................... 4-154 Tires .................................................... 6-43
Flat tire ............................................ 7-3
Replacing a tire ............................. 6-45
Replacing a wheel ......................... 6-46
Snow tires ...................................... 3-53
Speci ¿ cations .................................. 9-9
Temporary spare tire ..................... 6-45
Tire chains ..................................... 3-54
Tire in À ation pressure .................... 6-43
Tire rotation ................................... 6-44
Uniform tire quality grading system
(UTQGS) ....................................... 8-22
Towing
Hook .............................................. 7-27
Recreational towing ...................... 3-66
Trailer towing
(U.S.A. and Canada) ..................... 3-58
Towing Description ............................. 7-26
Traction Control System (TCS) .......... 4-74
TCS/DSC indicator light ............... 4-74
TCS OFF Indicator Light .............. 4-75
TCS OFF Switch ........................... 4-75
Trailer Stability Assist (TSA) ............. 4-77
Transmitter ............................................ 3-4
Trip Computer ..................................... 4-19
Trip Meter .................................. 4-14, 4-23
Trouble
Battery runs out ............................. 7-20
Emergency starting ........................ 7-23
Emergency towing ........................ 7-26
Flat tire ............................................ 7-3
Overheating ................................... 7-24
Parking in an emergency ................. 7-2
When Liftgate Cannot be Opened ... 7-50
Turn Signals ........................................ 4-55
U
USB Power Outlet............................... 5-87
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
