MAZDA MODEL CX-9 2017 Owners Manual (in English)

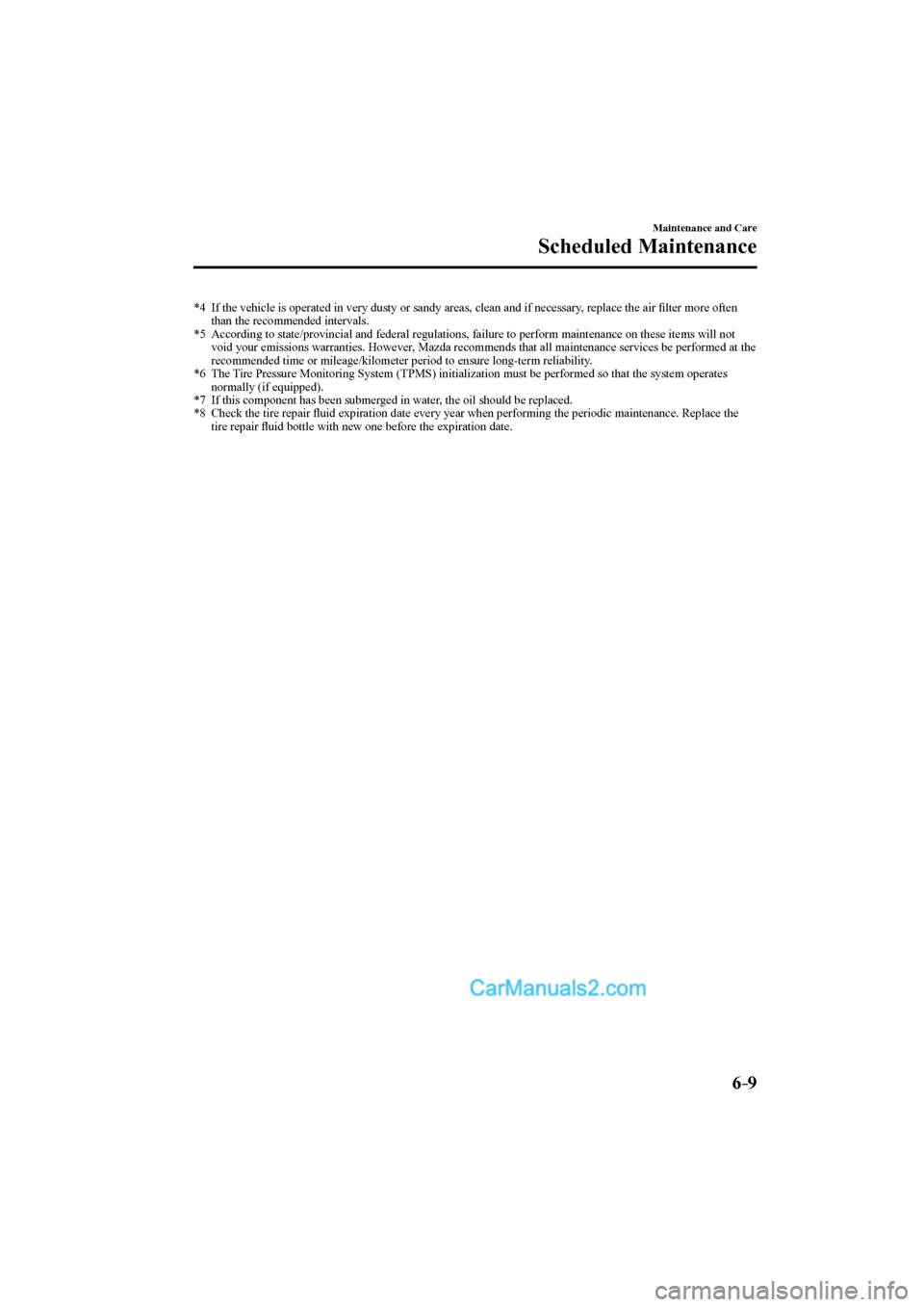

6–9
Maintenance and Care
Scheduled Maintenance
*4 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air fi lter more often
than the recommended intervals.
*5 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*6 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*7 If this component has been submerged in water, the oil should be replaced.
*8 Check the tire repair fl uid expiration date every year when performing the periodic maintenance. Replace the
tire repair fl uid bottle with new one before the expiration date.




CX-9_8FS7-EA-16K_Edition2.indb 9CX-9_8FS7-EA-16K_Edition2.indb 92016/12/15 18:35:552016/12/15 18:35:55

6–10
Maintenance and Care
Scheduled Maintenance
Canada residents
Maintenance Interval Number of months or kilometers (miles), whichever comes fi rst.
Months 6
12 18 24 30 36 42 48 54 60 66 72
×1000 km 8
16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5
10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I I
Engine oil & fi lter
*1 R
R R R R R R R R R R R
COOLING SYSTEM
Engine coolant
*2 Replace at fi rst 192,000 km (120,000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level I
I I I I I I I I I I I
FUEL SYSTEM
Air fi lter I
I I I I I I I I I I I
Replace every 56,000 km (35,000 miles) or 3 years.
Fuel lines and hoses
*3 I I I
Hoses and tubes for emission
*3 I
IGNITION SYSTEM
Spark plugs Replace every 64,000 km (40,000 miles).
ELECTRICAL SYSTEM
Function of all lights I
I I I I I I I I I I I
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fl uid level I
I I I I I I I I I I I
Disc brakes Inspect every 24,000 km (15,000 miles) or 1 years.
Tire (Rotation)
*4 Rotate every 8,000 km (5,000 miles).
Tire infl ation pressure and tire wear *4 I
I I I I I I I I I I I
Steering operation and linkages I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 5 years.
All locks and hinges L
L L L L L L L L L L L
Washer fl uid level I
I I I I I I I I I I I
Emergency fl at tire repair kit (if installed)
*6 Inspect annually.
CX-9_8FS7-EA-16K_Edition2.indb 10CX-9_8FS7-EA-16K_Edition2.indb 102016/12/15 18:35:552016/12/15 18:35:55

6–11
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers (miles), whichever comes fi rst.
Months 6
12 18 24 30 36 42 48 54 60 66 72
×1000 km 8
16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5
10 15 20 25 30 35 40 45 50 55 60
AIR CONDITIONER SYSTEM
Cabin air fi lter Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, fi ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or mileage/kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair fl uid expiration date every year when performing the periodic maintenance. Replace the
tire repair fl uid bottle with new one before the expiration date.


CX-9_8FS7-EA-16K_Edition2.indb 11CX-9_8FS7-EA-16K_Edition2.indb 112016/12/15 18:35:552016/12/15 18:35:55

6–12
Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance (Mexico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions) apply.
 


 Repeated short-distance driving



 Driving in dusty conditions



 Driving with extended use of brakes



 Driving in areas where salt or other corrosive materials are used



 Driving on rough or muddy roads



 Extended periods of idling or low-speed operation



 Driving for long periods in cold temperatures or extremely humid climates



 Driving in extremely hot conditions



 Driving in mountainous conditions continually
If any do apply, follow Schedule 2.
NOTE
For maintenance guidelines beyond the kilometers/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.

CX-9_8FS7-EA-16K_Edition2.indb 12CX-9_8FS7-EA-16K_Edition2.indb 122016/12/15 18:35:562016/12/15 18:35:56

6–13
Maintenance and Care
Scheduled Maintenance
Schedule 1
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 6
12 18 24 30 36 42 48 54 60 66 72
×1000 km 10
20 30 40 50 60 70 80 90
100 110 120
ENGINE
Drive belts I I I
Engine oil & fi lter
*1 R
R R R R R R R R R R R
COOLING SYSTEM
Cooling system I I I
Engine coolant
*2 Replace at fi rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
FUEL SYSTEM
Air fi lter R R R R R R
Fuel lines and hoses I
*3 I *3 I
Hoses and tubes for emission I
*3 I *3 I
Fuel fi lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs I
I I I I I I I I I I I
Replace every 64,000 km
CHASSIS and BODY
Brake lines, hoses and connections I I I I I I
Brake and clutch fl uid level I
I I I I I I I I
Brake fl uid R R R
Disc brakes I
I I I I I I I I I I I
Tire (Rotation)
*4 Rotate every 10,000 km
Tire infl ation pressure and tire wear *4 I
I I I I I I I I I I I
Steering operation and linkages I
I I I I I I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I I I I
Rear differential oil
*5
Transfer oil *5
Driveshaft dust boots I I I I I I
Bolts and nuts on chassis and body T T T T T T
Exhaust system and heat shields I I I I I I
All locks and hinges L
L L L L L L L L L L L
Washer fl uid level I
I I I I I I I I I I I
Emergency fl at tire repair kit (if installed)
*6 Inspect annually.
CX-9_8FS7-EA-16K_Edition2.indb 13CX-9_8FS7-EA-16K_Edition2.indb 132016/12/15 18:35:562016/12/15 18:35:56

6–14
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 6
12 18 24 30 36 42 48 54 60 66 72
×1000 km 10
20 30 40 50 60 70 80 90
100 110 120
AIR CONDITIONER SYSTEM
Cabin air fi lter R R R
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, fi ll up, or replace if necessary.
R : Replace
L : Lubricate
T : Tighten
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair fl uid expiration date every year when performing the periodic maintenance. Replace the
tire repair fl uid bottle with new one before the expiration date.


CX-9_8FS7-EA-16K_Edition2.indb 14CX-9_8FS7-EA-16K_Edition2.indb 142016/12/15 18:35:562016/12/15 18:35:56

6–15
Maintenance and Care
Scheduled Maintenance
Schedule 2
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 3
6 9 12 15 18 21 24 27 30 33 36
×1000 km 5
10 15 20 25 30 35 40 45 50 55 60
ENGINE
Drive belts I
Engine oil & fi lter
*1 R
R R R R R R R R R R R
COOLING SYSTEM
Cooling system I
Engine coolant
*2 Replace at fi rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I
I I I I I I I I I I I
FUEL SYSTEM
Air fi lter C R C R C R
Fuel lines and hoses I
*3
Hoses and tubes for emission I
*3
Fuel fi lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs I I I I I I
Replace every 64,000 km
ELECTRICAL SYSTEM
Function of all lights I
I I I I I I I I I I I
CX-9_8FS7-EA-16K_Edition2.indb 15CX-9_8FS7-EA-16K_Edition2.indb 152016/12/15 18:35:572016/12/15 18:35:57

6–16
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 3
6 9 12 15 18 21 24 27 30 33 36
×1000 km 5
10 15 20 25 30 35 40 45 50 55 60
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fl uid level I I I I I
Brake fl uid R
Disc brakes I I I I I I
Tire (Rotation)
*4 Rotate every 10,000 km
Tire infl ation pressure and tire wear
*4 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hinges L L L L L L
Washer fl uid level I I I I I I
Emergency fl at tire repair kit (if installed)
*6 Inspect annually.
AIR CONDITIONER SYSTEM
Cabin air fi lter R R R
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, fi ll up, or replace if necessary.
R : Replace
L : Lubricate
C : Clean
T : Tighten
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair fl uid expiration date every year when performing the periodic maintenance. Replace the
tire repair fl uid bottle with new one before the expiration date.


CX-9_8FS7-EA-16K_Edition2.indb 16CX-9_8FS7-EA-16K_Edition2.indb 162016/12/15 18:35:572016/12/15 18:35:57

6–17
Maintenance and Care
Scheduled Maintenance
(Cont.)
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 39
42 45 48 51 54 57 60 63 66 69 72
×1000 km 65
70 75 80 85 90 95
100 105 110 115 120
ENGINE
Drive belts I I
Engine oil & fi lter
*1 R
R R R R R R R R R R R
COOLING SYSTEM
Cooling system I I
Engine coolant
*2 Replace at fi rst 200,000 km or 10 years; after that, every
100,000 km or 5 years
Engine coolant level I
I I I I I I I I I I I
FUEL SYSTEM
Air fi lter C R C R C R
Fuel lines and hoses I
*3 I
Hoses and tubes for emission I
*3 I
Fuel fi lter Replace every 60,000 km
IGNITION SYSTEM
Spark plugs I I I I I I
Replace every 64,000 km
ELECTRICAL SYSTEM
Function of all lights I
I I I I I I I I I I I
CX-9_8FS7-EA-16K_Edition2.indb 17CX-9_8FS7-EA-16K_Edition2.indb 172016/12/15 18:35:572016/12/15 18:35:57

6–18
Maintenance and Care
Scheduled Maintenance
Maintenance Interval Number of months or kilometers, whichever comes fi rst
Months 39
42 45 48 51 54 57 60 63 66 69 72
×1000 km 65
70 75 80 85 90 95
100 105 110 115 120
CHASSIS and BODY
Brake lines, hoses and connections I I I
Brake and clutch fl uid level I I I I
Brake fl uid R R
Disc brakes I I I I I I
Tire (Rotation)
*4 Rotate every 10,000 km
Tire infl ation pressure and tire wear
*4 I I I I I I
Steering operation and linkages I I I I I I
Front and rear suspension, ball joints and wheel
bearing axial play I I I
Rear differential oil
*5
Transfer oil *5
Driveshaft dust boots I I I
Bolts and nuts on chassis and body T T T
Exhaust system and heat shields I I I
All locks and hinges L L L L L L
Washer fl uid level I I I I I I
Emergency fl at tire repair kit (if installed)
*6 Inspect annually.
AIR CONDITIONER SYSTEM
Cabin air fi lter R R R
Chart symbols:
I : Inspect: Inspect and clean, repair, adjust, fi ll up, or replace if necessary.
R : Replace
L : Lubricate
C : Clean
T : Tighten
Remarks:
*1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometer period to ensure long-term reliability.
*4 The Tire Pressure Monitoring System (TPMS) initialization must be performed so that the system operates
normally (if equipped).
*5 If this component has been submerged in water, the oil should be replaced.
*6 Check the tire repair fl uid expiration date every year when performing the periodic maintenance. Replace the
tire repair fl uid bottle with new one before the expiration date.

CX-9_8FS7-EA-16K_Edition2.indb 18CX-9_8FS7-EA-16K_Edition2.indb 182016/12/15 18:35:582016/12/15 18:35:58
