MAZDA MODEL MILLENIA 2002 Owners Manual (in English)

6-39
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F

Glove Box
To open the glove box, press the button.
The door has a lock, insert the primary
key and turn it clockwise to lock,
counterclockwise to unlock.

Center Console
To open, pull the lower release catch.Small items can be placed in the tray of
the center console lid.
To open it, pull the upper release catch.

Front-Door Storage
Compartments
To open, press the release button and lift
the cover.
Unlock
Lock
J76Y.book Page 39 Wednesday, March 27, 2002 5:04 PM

6-40
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F

Rear-Armrest Opening
This opening can be used when you need
extra space for transporting long items
(such as skis). You can also place things
through it directly into the trunk.The ignition switch must be in the ACC or
ON position.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
12V—10A.
Accessory Socket
To prevent accessory socket damage or
electrical failure, pay attention to the
following;
•Don’t use accessories that require
more than 12V—10A.
•Don’t use accessories that are not
genuine Mazda accessories or the
equivalent.
•Close the cover when the accessory
socket is not in use.
•Correctly insert the plug into the
accessory socket.
NOTE
To prevent discharging the battery,
don’t use the socket for long periods
with the engine off or idling.
Cover
CAUTION
J76Y.book Page 40 Wednesday, March 27, 2002 5:04 PM

6-41
Interior Comfort
Interior Equipment
Form No. 8Q47-EA-01F
When placing an electrical device (e.g.
cellular phone) in the tray which is
connected with the accessory socket, pass
the plug cord through the slot in the cap.
1. Open the tray by pulling the release
catch.
2. Push the cap from the backside of the
tray and remove it.3. Pass the plug cord through the hole of
the tray and insert the plug in the
socket.
4. Make sure the plug cord is running
through the cap slot; reinstall the cap.
Cap slot, opened Cap slot, closed
Cap
Plug
Plug cord
J76Y.book Page 41 Wednesday, March 27, 2002 5:04 PM

6-42
Form No. 8Q47-EA-01F
J76Y.book Page 42 Wednesday, March 27, 2002 5:04 PM

7-1
Form No. 8Q47-EA-01F
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency
........................................................... 7- 2
Parking in an Emergency ......................................................... 7- 2
Flat Tire
........................................................................................ 7- 3
Spare Tire and Tool Storage .................................................... 7- 3
Changing a Flat Tire ................................................................ 7- 5
Overheating
................................................................................. 7-10
Overheating ............................................................................. 7-10
Emergency Starting
.................................................................... 7-12
Starting a Flooded Engine ....................................................... 7-12
Jump-Starting .......................................................................... 7-12
Push-Starting ........................................................................... 7-14
Emergency Towing
...................................................................... 7-15
Towing Description ................................................................. 7-15
Towing/Tiedown Hooks ........................................................... 7-16
Recreational Towing ................................................................ 7-17
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

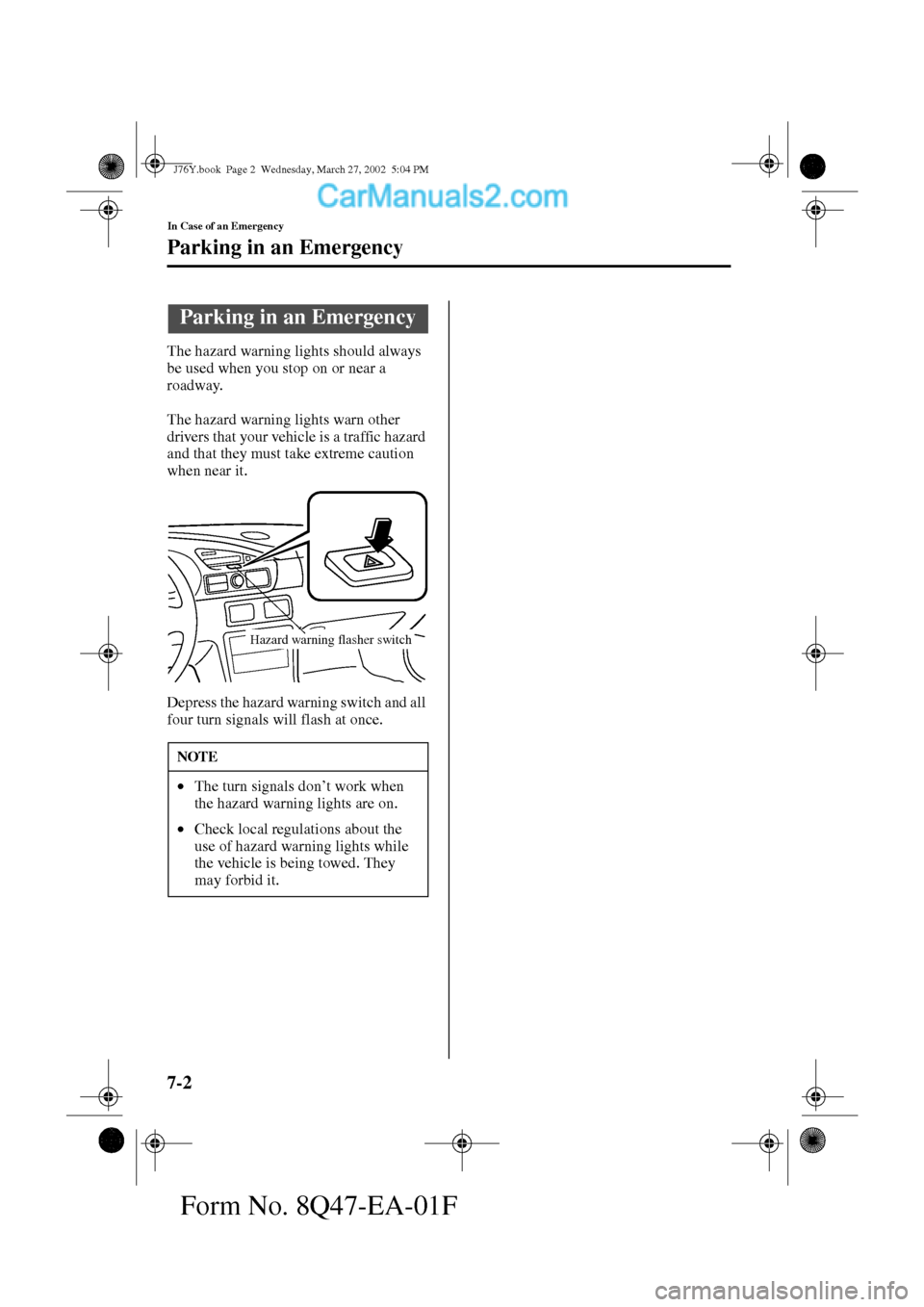

7-2
In Case of an Emergency
Form No. 8Q47-EA-01F
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning switch and all
four turn signals will flash at once.
Parking in an Emergency
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher switch
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

7-3
In Case of an Emergency
Form No. 8Q47-EA-01F
Flat Tire
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare Tire and Tool Storage
Spare tire
Jack handleJack
Lug wrench
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

7-4
In Case of an Emergency
Flat Tire
Form No. 8Q47-EA-01F

Jack
To remove the jack
Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.

Spare Tire
Your Mazda has a temporary spare tire.
It's lighter and smaller than a conventional
tire, and is designed only for emergency
use and should be used only for VERY
short periods. Temporary spares should
NEVER be used for long drives or
extended periods.
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the front
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the rear axle and move a
regular tire to the front.
Jack
Wing bolt
WARNING
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
•Don’t exceed 80 km/h (50 mph).
•Avoid driving over obstacles.
Also, don’t drive through an
automatic car wash. This tire’s
diameter is smaller than a
conventional tire’s, so the ground
clearance is reduced about 25 mm
(1 in).
•Don’t use a tire chain on this tire
because it won’t fit properly.
•Don’t use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
•Use only one temporary spare tire
on your vehicle at the same time.
CAUTION
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

7-5
In Case of an Emergency
Flat Tire
Form No. 8Q47-EA-01F
To remove the spare tire
Turn the tire hold-down bolt
counterclockwise with the lug wrench.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
Lug wrench
Bolt
Tire clamp
Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
•Steering becomes difficult.
•The vehicle begins to vibrate
excessively.
•The vehicle pulls in one direction.
Jacking a Vehicle:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure
someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Ja ck :
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
WARNING
J76Y.book Page 5 Wednesday, March 27, 2002 5:04 PM

7-6
In Case of an Emergency
Flat Tire
Form No. 8Q47-EA-01F
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Shift into Park (P) and turn off the
engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a front
wheel, place the block in front of the
tire. When blocking a rear wheel, place
the block behind the tire.

Removing a Flat Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don’t remove any until the tire has been
raised off the ground.
2. Place the jack under the jacking
position closest to the tire being
changed.
NOTE
Make sure the jack is well lubricated
before using it.
Jacking position
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM
