MAZDA MODEL MILLENIA 2002 Owners Manual (in English)

5-37
Driving Your Mazda
Switches and Controls
Form No. 8Q47-EA-01F
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning switch and all
four turn signals will flash at once.
Hazard Warning Flasher
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher switch
J76Y.book Page 37 Wednesday, March 27, 2002 5:04 PM

5-38
Form No. 8Q47-EA-01F
J76Y.book Page 38 Wednesday, March 27, 2002 5:04 PM

6-1
Form No. 8Q47-EA-01F
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and
audio system.
Climate Control System
.............................................................. 6- 2
Operating Tips ......................................................................... 6- 2
Vent Operation ......................................................................... 6- 3
Full-Automatic Type ............................................................... 6- 5
Audio System
............................................................................... 6-10
Antenna ................................................................................... 6-10
Operating Tips for Audio System ............................................ 6-10
Audio Set ................................................................................. 6-17
Audio Control Switch Operation ............................................. 6-32
Safety Certification .................................................................. 6-33
Interior Equipment
..................................................................... 6-34
Sunvisors ................................................................................. 6-34
Interior Lights .......................................................................... 6-34
Clock ....................................................................................... 6-36
Lighter ..................................................................................... 6-36
Ashtrays ................................................................................... 6-37
Cup Holders ............................................................................. 6-38
Storage Compartments ............................................................ 6-38
Accessory Socket .................................................................... 6-40
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

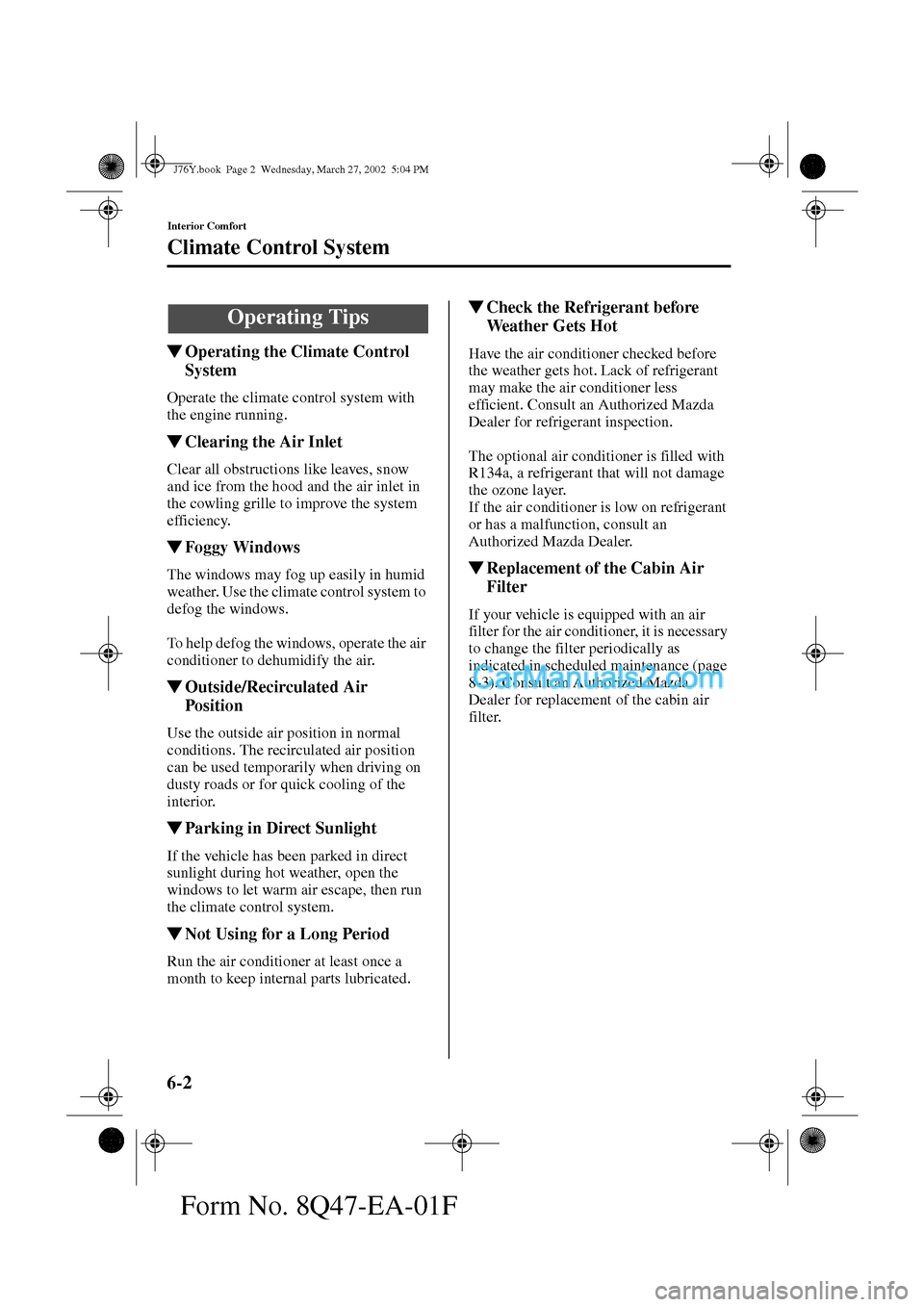

6-2
Interior Comfort
Form No. 8Q47-EA-01F
Climate Control System

Operating the Climate Control
System
Operate the climate control system with
the engine running.

Clearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowling grille to improve the system
efficiency.

Foggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the air
conditioner to dehumidify the air.

Outside/Recirculated Air
Position
Use the outside air position in normal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooling of the
interior.

Parking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

Not Using for a Long Period
Run the air conditioner at least once a
month to keep internal parts lubricated.

Check the Refrigerant before
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The optional air conditioner is filled with
R134a, a refrigerant that will not damage
the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.

Replacement of the Cabin Air
Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
Operating Tips
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

6-3
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F

Adjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
Adjusting the amount of airflow
These vents can be opened by rotating the vertical wheels up or closed by rotating them
down.
Vent Operation
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of
trouble but a result of humid air being suddenly cooled.
KnobOpen
Close
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

6-4
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F

Selecting the Airflow Mode
Dashboard and Floor Vents Defroster Vents
Floor Vents Dashboard Vents Defroster and Floor Vents
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

6-5
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F

Control Switches
AU TO s w i t c h
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
•Airflow temperature
•Amount of airflow•Selection of airflow mode
•Outside/Recirculated air selection
•Air conditioner operation
Full-Automatic Type
AMB
AMB switch
Windshield defroster
switchTemperature control dial OFF switch Air intake selector switch
A/C switch
AUTO switch
Mode selector switchFan switch Rear window defroster
switch
(page 5-36)
AUTO
NOTE
AUTO switch indicator light
•When on, it indicates AUTO
operation, and the system will
function automatically.
•When off, indicates the operation of
other switches such as the mode
selector switch, fan switch, A/C
switch and windshield defroster
switch. Other functions will
continue to operate automatically.
J76Y.book Page 5 Wednesday, March 27, 2002 5:04 PM

6-6
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan switch
The fan has four speeds. The selected
speed will be displayed.Mode selector switch
The desired airflow mode can be selected
(page 6-4).
A/C switch
With the AUTO or fan switch ON, press
the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off. Successively pressing
the switch will display the following:
A/C
→A/C ECON
→off (not displayed)
AUTO
ColdHot
NOTE
With the airflow mode set to
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature will
flow through the central, left and right
vents.
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM

6-7
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F
Air intake selector switch
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position ( )
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position ( )
Use this position for normal conditions
and defogging.AMB (Ambient Temperature) switch
Press the AMB switch. The outside
temperature will be displayed and the
indicator light will illuminate. Press the
switch again, the outside temperature will
disappear and the indicator light will go
off.
NOTE
•Although air conditioning and
defogging ability is reduced, the
A/C ECON function is designed to
economize use of the air
conditioning system.
•The air conditioner may not
function when the outside
temperature approaches 0 °C
(32 °F). (Indicator remains on even
when system is off.) The Recirculated Air Position:
Using the position in cold or
rainy weather will cause the glass to
fog up. Your vision will be hampered,
which could lead to a serious
accident. Do not use the
position in cold or rainy weather.
NOTE
When the air conditioner is operating
and the temperature control is
operated, the display will change to air
conditioner setting temperature.
WARNING
AMB
J76Y.book Page 7 Wednesday, March 27, 2002 5:04 PM

6-8
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F

Standard Use
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
To turn off the system, press the OFF
switch.

Windshield Defrosting and
Defogging
Press the windshield defroster switch.
In this position, the outside air position is
automatically selected, and the air
conditioner automatically turned on. The
air conditioner will direct dehumidified
air to the front windshield and side
windows (page 6-4). Airflow amount will
be increased.
To turn off the system press the
windshield defroster switch again.
NOTE
•First set the temperature to 25.0°C
(77.0°F), then adjust to the desired
temperature.
•Setting the temperature to
maximum high or low will not
provide the desired temperature at a
faster rate.
•To prevent cool air blowing from
the vents when heating right after
starting the engine, the amount of
airflow is reduced until the air
warms up.
AUTO
AUTO
ColdHot
Foggy Windshield:
Using the position with the
temperature control set to the cold
position will cause the outside of the
glass to fog up. Your vision will be
hampered, which could lead to a
serious accident. Set the temperature
control to hot or warm position when
using the position.
WARNING
J76Y.book Page 8 Wednesday, March 27, 2002 5:04 PM
