Trunk Light
The trunk light is on when the lid is open
and off when it’s closed. Your vehicle is equipped with a trunk
release handle that provides a means of
escape for children and adults in the event
they become locked inside the trunk.
No matter how careful adults might be
with keys and locking their cars, parents
should be aware that children may be
tempted to play around vehicles and use
the trunk as a hiding place.
Adults are advised to familiarize
themselves with the operation and
location of the release handle so that all
children can be told about it in an
appropriate way, keeping in mind that
most vehicles don’t have such handles.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is
not running.
Trunk Release Handle
J76Y.book Page 11 Wednesday, March 27, 2002 5:04 PM

3-12
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F

Opening the Trunk Lid from the
Inside
Pull the illuminated "T" shaped handle.
The handle is made of material that will
glow for hours in the darkness of the trunk
following a brief exposure to ambient
light.
The "T" shaped handle is located on the
inside of the trunk lid.Open Trunk Lid and Children:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure. Close the trunk lid and do
not allow children to play inside the
vehicle.
Unattended Children and Pets:
Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
kids who lock themselves in cars or
trunks can die very quickly from heat
prostration. Don’t leave your children
or pets alone in a car at any time.
Don’t leave the car, the trunk
unlocked. Always keep the car from
being a tempting place to play by
locking doors and the trunk, and
keeping the keys where children won’t
play with them.
WARNING
J76Y.book Page 12 Wednesday, March 27, 2002 5:04 PM

3-13
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F
The ignition switch must be in the ON
position for the power windows to
operate. Always keep the handle firmly
attached to the holder and in the
recessed position. Not securing the
handle this way could allow it to snag
luggage in the trunk and open the trunk
lid.
CAUTIONPower Windows
Closing Power Windows:
Closing power windows are
dangerous. A person’s hands, head,
or even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children. Make sure the opening is
clear before closing a window.
To prevent burning out the fuse and
damaging the power window system,
don’t open or close more than two
windows at once.
WARNING
CAUTION
J76Y.book Page 13 Wednesday, March 27, 2002 5:04 PM

3-14
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F

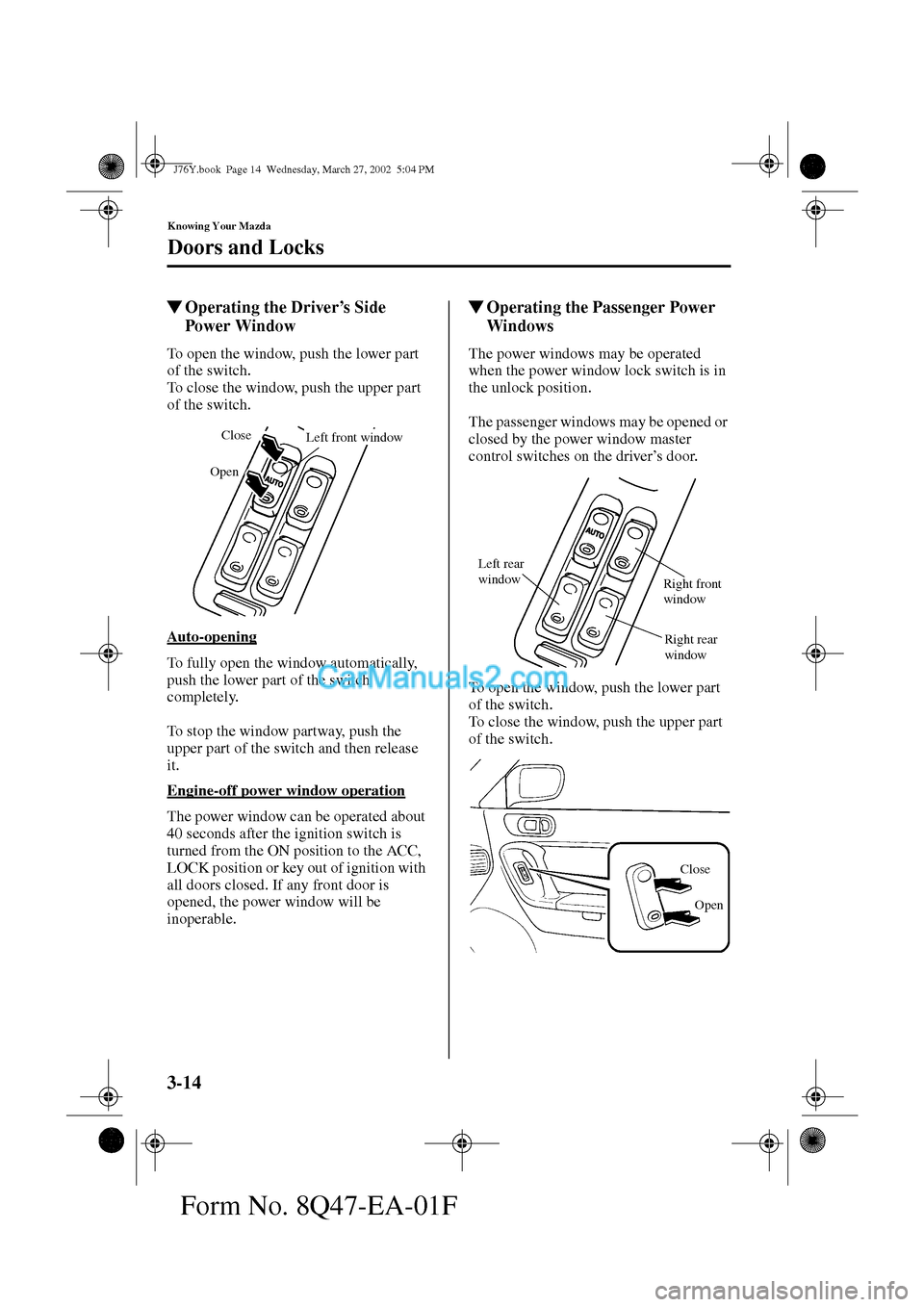

Operating the Driver’s Side
Power Window
To open the window, push the lower part
of the switch.
To close the window, push the upper part
of the switch.
Auto-opening
To fully open the window automatically,
push the lower part of the switch
completely.
To stop the window partway, push the
upper part of the switch and then release
it.
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC,
LOCK position or key out of ignition with
all doors closed. If any front door is
opened, the power window will be
inoperable.

Operating the Passenger Power
Windows
The power windows may be operated
when the power window lock switch is in
the unlock position.
The passenger windows may be opened or
closed by the power window master
control switches on the driver’s door.
To open the window, push the lower part
of the switch.
To close the window, push the upper part
of the switch.
Left front window
OpenClose
Left rear
window
Right front
window
Right rear
window
Close
Open
J76Y.book Page 14 Wednesday, March 27, 2002 5:04 PM

3-15
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC,
LOCK position or key out of ignition with
all doors closed. If any front door is
opened, the power window will be
inoperable.

Power Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver’s side power
window can be operated.
Unintentional Window Operation:
Unintentional window operation is
dangerous. A person’s hands, head,
or neck could be caught by the
window and result in serious injury.
Unless a passenger needs to operate a
window, keep the power window lock
switch in the locked position.
Unlock position
Lock position
WARNING
Fuel-Filler Lid and Cap
Fuel Spray:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
when ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel cap is removed too
quickly. When removing the fuel cap,
loosen the cap slightly and wait for
any hissing to stop. Then remove it.
Fuel Vapor:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries. Before
refueling, stop the engine, and always
keep sparks and flames away from the
filler neck.
Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at Authorized Mazda
Dealers. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
WARNING
CAUTION
J76Y.book Page 15 Wednesday, March 27, 2002 5:04 PM

3-16
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F

Fuel-Filler Lid
To open, push the remote fuel-filler lid
release.

Fuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To replace the filler cap, turn it clockwise
until it clicks.
Remote
fuel-filler
lid release
Open
Close
Make sure the fuel-filler cap is
tightened securely. The check engine
light comes on when the cap isn’t
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
CAUTION
J76Y.book Page 16 Wednesday, March 27, 2002 5:04 PM

3-17
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F

Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
2. Pull the safety catch up and lift the
hood.3. Use the support rod to hold the hood
open.

Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Secure the rod in its clip.
3. Close the hood so that it locks securely.
Hood
Safety catch
Clip
Support rod
J76Y.book Page 17 Wednesday, March 27, 2002 5:04 PM

3-18
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F
The sunroof can be opened or closed
electrically only when the ignition switch
is in the ON position.

Tilt Operation
The rear of the sunroof can be tilted open
to provide more ventilation.
To tilt, push the tilt switch.
To close, pull the tilt switch.

Slide Operation
To open to any position, pull the slide
switch towards the rear.
To close, push the slide switch forward.

Sunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the sunroof is opened, but must be closed
by hand.
Sunroof
Extending the Head or Arms
Through the Sunroof:
Extending the head, arms, or other
parts of the body through the sunroof
is dangerous. The head or arms could
hit something while the vehicle is
moving. This could cause death or
serious injury. Don’t let passengers
stand up or extend anything through
the open sunroof while the vehicle is
moving.
Closing the Sunroof:
A closing sunroof is dangerous. The
hands, head, or even neck of a person
—especially a child— could be
caught in it as it closes, causing
serious injury or even death. Make
sure the opening is clear before
closing the sunroof.
Tilt switch
Slide switch
WARNING
NOTE
After washing your Mazda or after a
rain, wipe the water off the sunroof
before operating it.
Sunshade
J76Y.book Page 18 Wednesday, March 27, 2002 5:04 PM

3-19
Knowing Your Mazda
Doors and Locks
Form No. 8Q47-EA-01F
The sunshade doesn’t tilt. To avoid
damaging the sunshade, don’t push up
on it.
CAUTION
J76Y.book Page 19 Wednesday, March 27, 2002 5:04 PM

3-20
Knowing Your Mazda
Form No. 8Q47-EA-01F
Security System
The theft-deterrent system is designed to
prevent your vehicle or its contents from
being stolen when all the doors, hood, and
trunk lid are locked.
If forcible entry is attempted, the system
sounds the horn and flashes the hazard
warning lights and headlights. It also
makes the starter inoperable.
The system won’t function unless it’s
properly armed. So when you leave the
vehicle, lock all the doors, close all the
windows, take your key, your transmitter,
and make sure the security indicator light
is flashing.

Operation
What turns it on:
•Forcing open a door, the hood or the
trunk lid.
•Unlocking the driver’s door with the
inside door-lock button or door-lock
switch.
•Opening a front or rear passenger’s
door , the hood or the trunk lid by
operating an inside door-lock button ,
the hood release handle or the trunk lid
release button.What it does:
•The horn sounds intermittently and the
hazard warning lights and headlights
flash.
•The starter is bypassed so that the
engine can’t be started.
•The alarm continues for about 3
minutes, then stops.
If the system is triggered again, the lights
and horn will activate and the starter will
not work until a door or the trunk lid is
unlocked with the key or with the
transmitter.

How to Arm the System
1. Remove the key from the ignition
switch.
2. Close the hood and the trunk lid. Then
close all doors and lock them from the
outside using the key in the door. If you
have the keyless entry system, press the
LOCK button on the transmitter.
3. The indicator light comes on for about
10 seconds. Then it flashes once every
3 seconds to indicate that the system is
fully armed. It continues to flash until
the theft-deterrent system is turned off.
Theft-Deterrent System
NOTE
The theft-deterrent system operates
without the keyless entry system
transmitter, as well.
J76Y.book Page 20 Wednesday, March 27, 2002 5:04 PM
