MAZDA MODEL MILLENIA 2002 Owners Manual (in English)

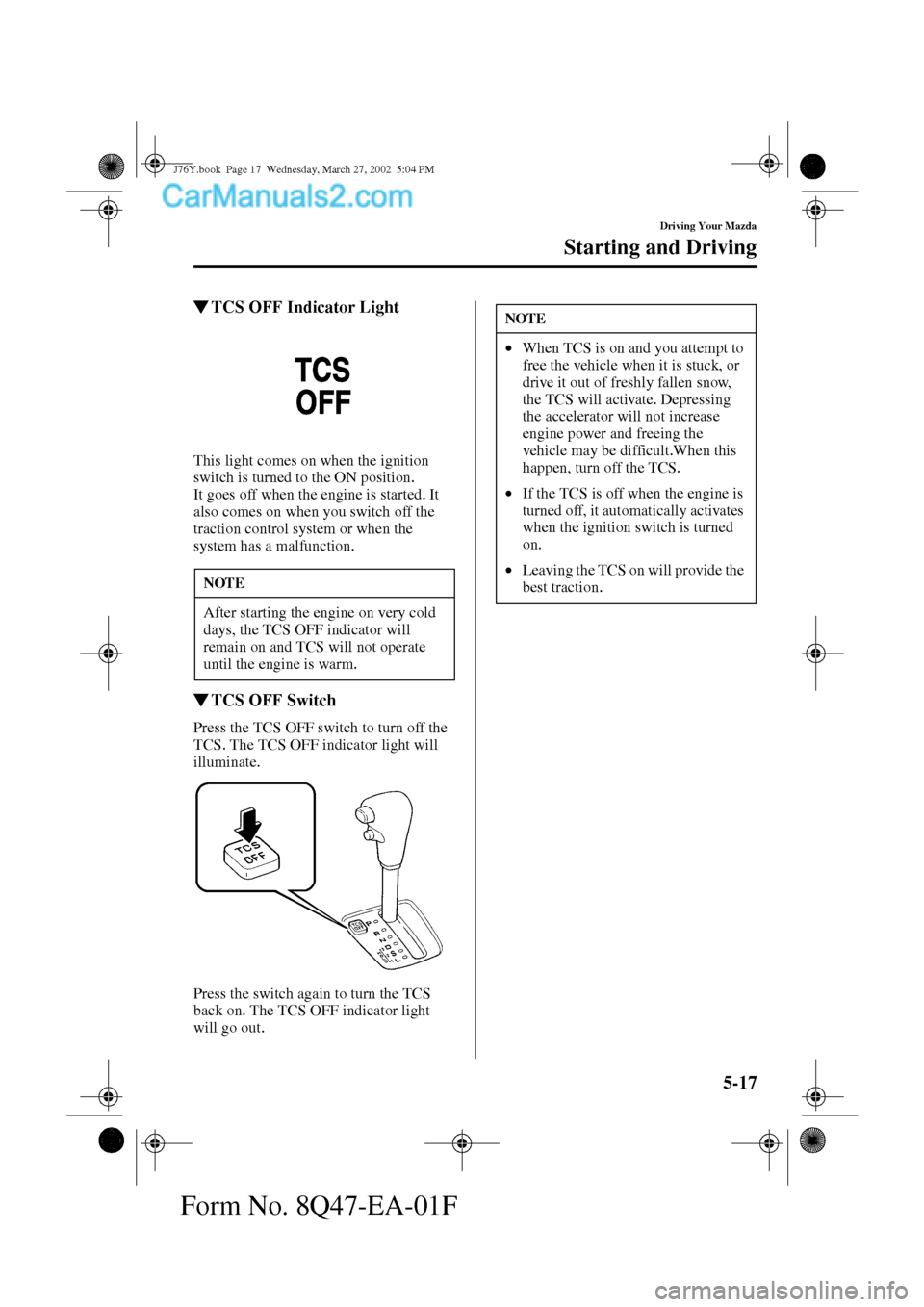

5-17
Driving Your Mazda
Starting and Driving
Form No. 8Q47-EA-01F

TCS OFF Indicator Light
This light comes on when the ignition
switch is turned to the ON position.
It goes off when the engine is started. It
also comes on when you switch off the
traction control system or when the
system has a malfunction.

TCS OFF Switch
Press the TCS OFF switch to turn off the
TCS. The TCS OFF indicator light will
illuminate.
Press the switch again to turn the TCS
back on. The TCS OFF indicator light
will go out.
NOTE
After starting the engine on very cold
days, the TCS OFF indicator will
remain on and TCS will not operate
until the engine is warm.
NOTE
•When TCS is on and you attempt to
free the vehicle when it is stuck, or
drive it out of freshly fallen snow,
the TCS will activate. Depressing
the accelerator will not increase
engine power and freeing the
vehicle may be difficult.When this
happen, turn off the TCS.
•If the TCS is off when the engine is
turned off, it automatically activates
when the ignition switch is turned
on.
•Leaving the TCS on will provide the
best traction.
J76Y.book Page 17 Wednesday, March 27, 2002 5:04 PM

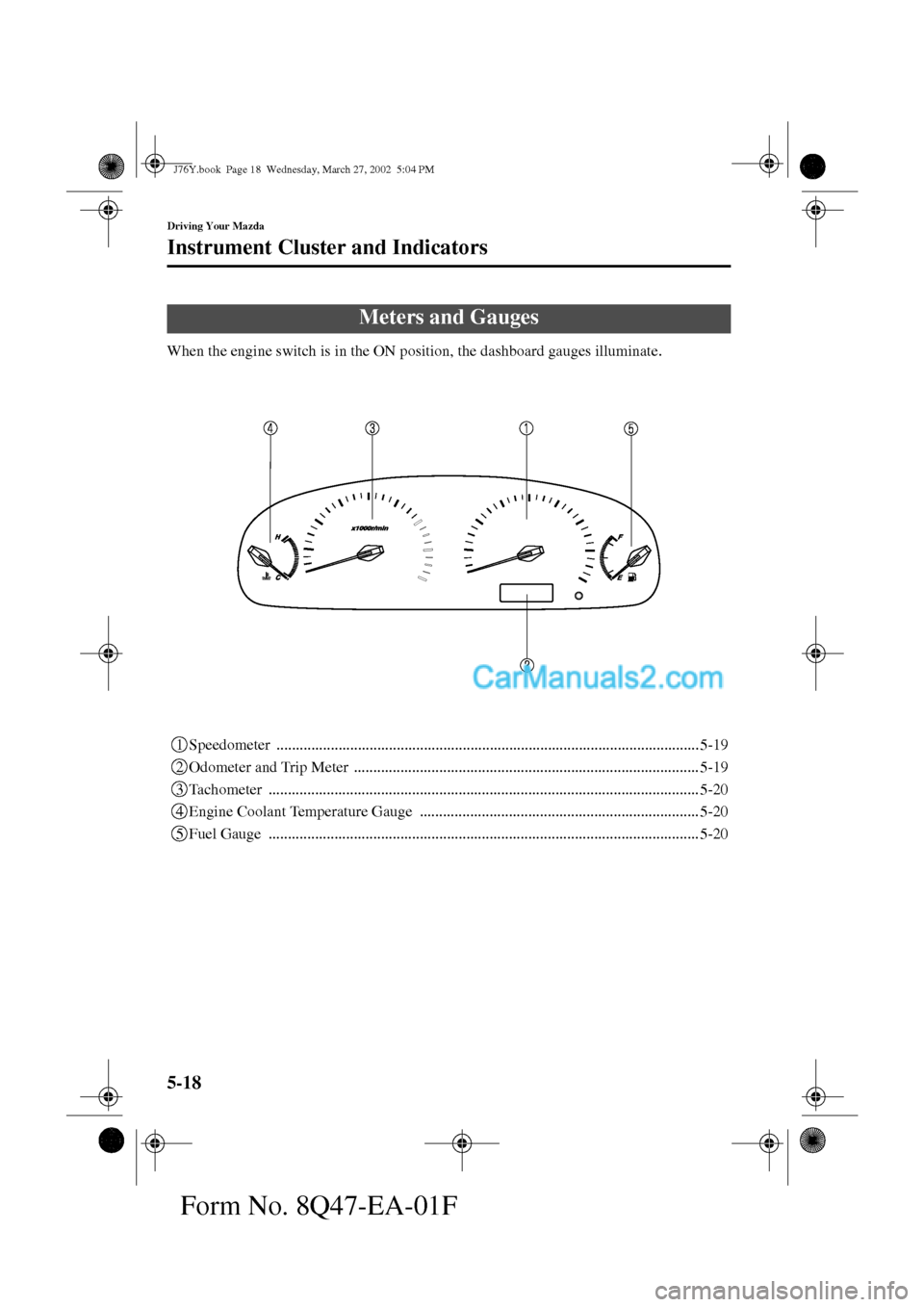

5-18
Driving Your Mazda
Form No. 8Q47-EA-01F
Instrument Cluster and Indicators
When the engine switch is in the ON position, the dashboard gauges illuminate.
1 Speedometer ............................................................................................................. 5-19
2 Odometer and Trip Meter ......................................................................................... 5-19
3 Tachometer ............................................................................................................... 5-20
4 Engine Coolant Temperature Gauge ........................................................................ 5-20
5 Fuel Gauge ............................................................................................................... 5-20
Meters and Gauges
J76Y.book Page 18 Wednesday, March 27, 2002 5:04 PM

5-19
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q47-EA-01F

Speedometer
The speedometer indicates the speed of
the vehicle.

Odometer and Trip Meter
The ignition switch must be in the ON
position.
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector. The selected mode
will be displayed.Odometer
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
A
Selector
B
A
Odometer
Odometer Trip meter A
Press the selector
Press the selector Trip meter B
NOTE
•Only the trip meters record tenths of
kilometers (miles).
•The trip record will be erased when;
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 999.9
km (mile).
J76Y.book Page 19 Wednesday, March 27, 2002 5:04 PM

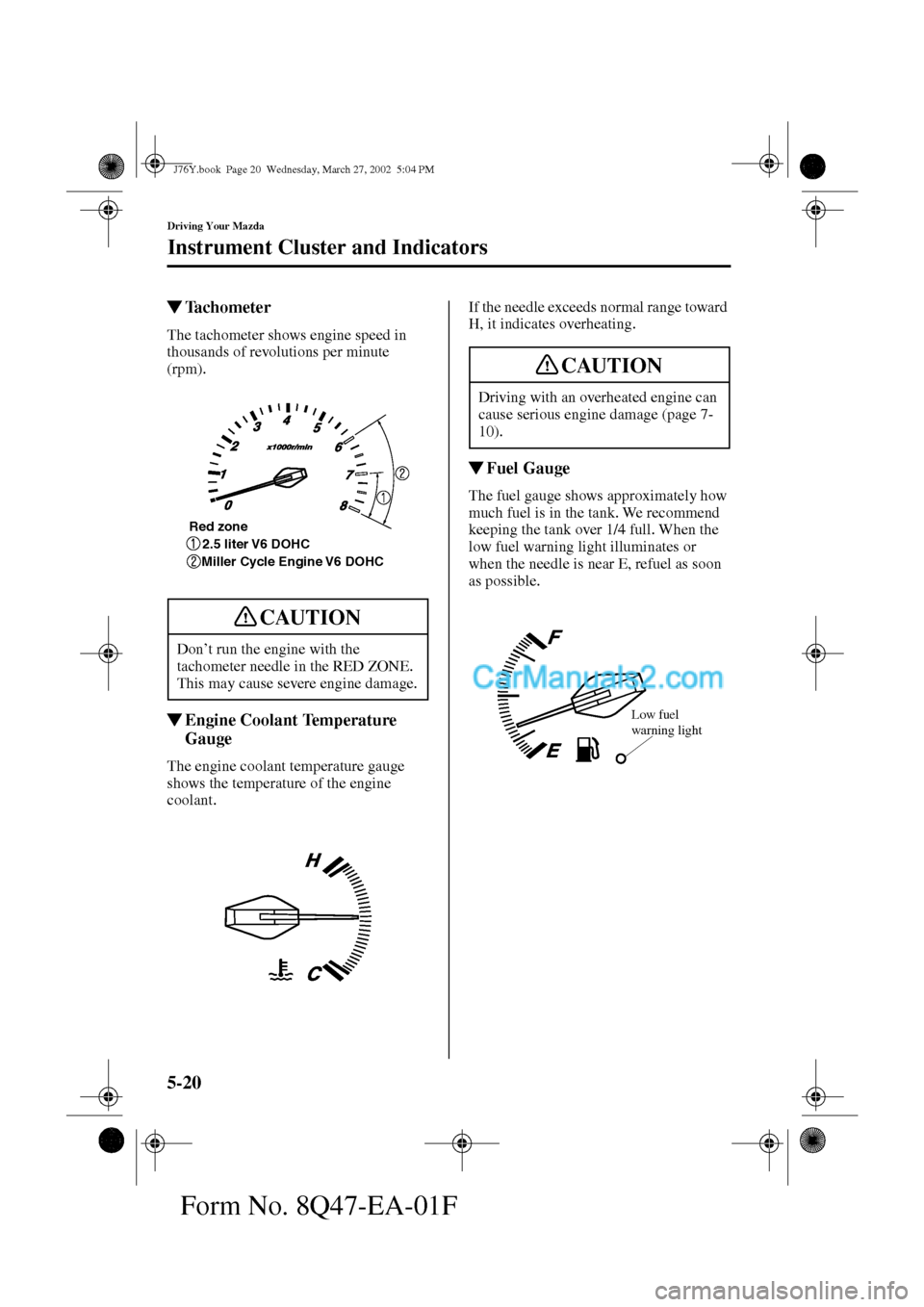

5-20
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q47-EA-01F

Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).

Engine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.If the needle exceeds normal range toward
H, it indicates overheating.

Fuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
Don’t run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
2.5 liter V6 DOHC
Miller Cycle Engine V6 DOHC
Red zone
CAUTION
Driving with an overheated engine can
cause serious engine damage (page 7-
10).
CAUTION
Low fuel
warning light
J76Y.book Page 20 Wednesday, March 27, 2002 5:04 PM

5-21
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q47-EA-01F

Dashboard Illumination
When the ignition switch is in the ON
position, rotate the thumb-wheel to adjust
the brightness of the dashboard lights.
Dim
Bright
J76Y.book Page 21 Wednesday, March 27, 2002 5:04 PM

5-22
Driving Your Mazda
Form No. 8Q47-EA-01F
Warning/Indicator Lights and Beeps
Warning/Indicator Lights
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-24
Charging System Warning Light 5-25
Engine Oil Pressure Warning Light 5-26
Check Engine Light 5-26
ABS Warning Light 5-27
Air Bag System Warning Light 5-27
Low Fuel Warning Light 5-28
Warning/Indicator lights will appear in any of the highlighted areas
J76Y.book Page 22 Wednesday, March 27, 2002 5:04 PM

5-23
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q47-EA-01F
Seat Belt Warning Light 5-28
Door-Ajar Warning Light 5-28
Low Washer Fluid Level Warning Light 5-28
Headlight High-Beam Indicator Light 5-28
Hold Indicator Light 5-28
TCS Indicator Light 5-29
TCS OFF Indicator Light 5-29
Cruise Set Indicator Light 5-29
Light-On Indicator Light 5-29 Signal Warning/Indicator Lights Page
J76Y.book Page 23 Wednesday, March 27, 2002 5:04 PM

5-24
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q47-EA-01F

Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-15).
2. After adding fluid, check the light
again.If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-27).
J76Y.book Page 24 Wednesday, March 27, 2002 5:04 PM

5-25
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q47-EA-01F

Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If the warning light comes on while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, have the brakes
inspected immediately. Don’t drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
Don't continue driving when the
charging system warning light is
illuminated.
CAUTION
J76Y.book Page 25 Wednesday, March 27, 2002 5:04 PM

5-26
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q47-EA-01F

Engine Oil Pressure Warning
Light
This warning light indicates low engine
oil pressure.
If the light comes on while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the
engine oil level (page 8-10). If it’s low,
add oil.
3. Check the light.
If the light remains on even after you add
oil, have your vehicle towed to the nearest
service station or to an Authorized Mazda
Dealer.

Check Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
•The fuel tank level being very low or
approaching empty.
•The engine’s electrical system has a
problem.
•The emission control system has a
problem.
•The fuel-filler cap is missing or not
tightened securely.
If the check engine light flashes
continuously, decrease your speed and
consult an Authorized Mazda Dealer as
soon as possible. Don’t run the engine if oil pressure is
low. It could result in extensive engine
damage.
CAUTION
J76Y.book Page 26 Wednesday, March 27, 2002 5:04 PM
