MAZDA MODEL MILLENIA 2002 (in English) Manual PDF

4-7
Before Driving Your Mazda
Driving Tips
Form No. 8Q47-EA-01F
When driving on ice or in water, snow,
mud, sand, or similar hazard:
•Be cautious and allow extra distance
for braking.
•Avoid sudden braking and quick
steering.
•If your vehicle is not equipped with
ABS, brake with the pedal by using a
light up-down motion. Don’t hold the
pedal down constantly.
If your vehicle is equipped with ABS,
don’t pump the brakes. Continue to
press down on the brake pedal.
•If you get stuck, shift to L or S and
accelerate slowly. Don’t spin the front
wheels.
•For more traction in starting, use sand,
rock salt, chains, carpeting, or other
nonslip material under the front
wheels.If you must rock the vehicle to free it from
snow, sand, or mud, depress the
accelerator slightly and slowly move the
shift lever from D to R.
Hazardous Driving
Downshifting on Slippery Surfaces:
Downshifting into lower gear while
driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident. If it is
necessary to downshift on slippery
surfaces, be very careful.
NOTE
Use snow chains only on the front
wheels.
WARNING
Rocking the Vehicle
Spinning the Wheels:
When the vehicle is stuck, spinning
the wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries. Don’t spin the wheels at
more than 56 km/h (35 mph), and
don’t allow anyone to stand behind a
wheel when pushing the vehicle.
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
WARNING
CAUTION
J76Y.book Page 7 Wednesday, March 27, 2002 5:04 PM

4-8
Before Driving Your Mazda
Driving Tips
Form No. 8Q47-EA-01F
•Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
of sand or salt.
Ask a Mazda dealer to perform the
following precautions:
•Have the proper ratio of antifreeze in
the radiator.
•Inspect the battery and its cables. Cold
reduces battery capacity.
•Use only cold-weather engine oil (page
8-10).
•Inspect the ignition system for damage
and loose connections.
•Use washer fluid made with
antifreeze—but don’t use engine
coolant antifreeze for washer fluid
(page 8-19).
•Don’t use the parking brake in freezing
weather as the parking brake may
freeze. Instead, shift to P and block the
rear wheels.

Snow Tires
l
Your vehicle is originally equipped with
all season radials designed to be used all
year around. In some extreme climates
you may find it necessary to replace them
with snow tires during the winter months
to further improve traction on snow and
ice covered roads.
Use snow tires on all four wheels
Don’t go faster than 120 km/h (75 mph).
Inflate snow tires 28 kPa (0.3 kgf/cm2, 4
psi) more than recommended on the tire
pressure label (driver’s door), but never
more than the maximum cold-tire
pressure shown on the tires.
Winter Driving
Mixing Tire Types:
Using tires different in size or type is
dangerous. Your vehicle’s handling
could be greatly affected and result in
an accident. Use only the same size
and type tires (snow, radial, or non-
radial) on all four wheels.
Check local regulations before using
studded tires.
WARNING
CAUTION
J76Y.book Page 8 Wednesday, March 27, 2002 5:04 PM

4-9
Before Driving Your Mazda
Driving Tips
Form No. 8Q47-EA-01F

Tire Chains
Check local regulations before using tire
chains.
Install the chains on the front tires.
Don’t use chains on the rear tires.
Use only SAE Class "S" chains, and make
sure they fit.
Installing the chains
1. Remove the wheel covers, or the chain
bands will scratch them.
2. Secure the chains on the front tires as
tightly as possible. Always follow the
chain manufacturer’s instructions.
3. Retighten the chains after driving
1/2—1 km (1/4—1/2 mile). •Chains may scratch or chip
aluminum wheels. Install tire chains
on steel wheels only.
•Chains may affect handling.
•Don’t go faster than 50 km/h (30
mph) or the chain manufacturer’s
recommended limit, whichever is
lower.
•Drive carefully and avoid bumps,
holes, and sharp turns.
•Avoid locked-wheel braking.
•Don’t use chains on the temporary
tire; it may result in damage to the
vehicle and to the tire.
•Don’t use chains on roads that are
free of snow or ice. The tires and
chains could be damaged.
CAUTION
Driving In Flooded Area
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance
returns to normal.
Make sure water does not enter the
vehicle interior or the engine area. The
vehicle interior could become wet or
the engine could be damaged.
WARNING
CAUTION
J76Y.book Page 9 Wednesday, March 27, 2002 5:04 PM

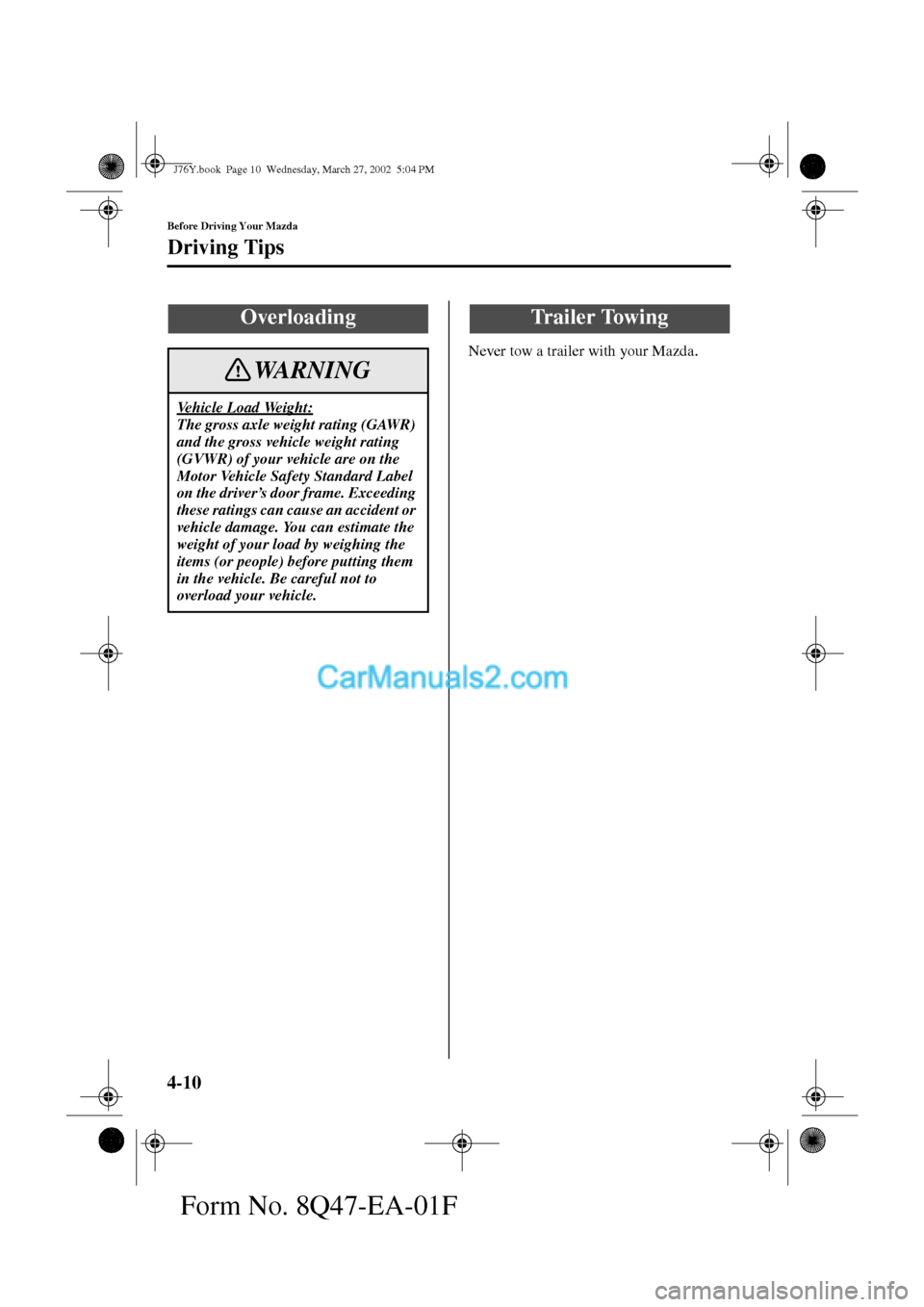

4-10
Before Driving Your Mazda
Driving Tips
Form No. 8Q47-EA-01F
Never tow a trailer with your Mazda.
Overloading
Vehicle Load Weight:
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of your vehicle are on the
Motor Vehicle Safety Standard Label
on the driver’s door frame. Exceeding
these ratings can cause an accident or
vehicle damage. You can estimate the
weight of your load by weighing the
items (or people) before putting them
in the vehicle. Be careful not to
overload your vehicle.
WARNING
Trailer Towing
J76Y.book Page 10 Wednesday, March 27, 2002 5:04 PM

5-1
Form No. 8Q47-EA-01F
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving
................................................................... 5- 2
Ignition Switch ........................................................................ 5- 2
Starting the Engine .................................................................. 5- 3
Brake System ........................................................................... 5- 4
Automatic Transaxle Controls ................................................. 5- 8
Power Steering ......................................................................... 5-12
Cruise Control ......................................................................... 5-12
Traction Control System (TCS) ............................................... 5-16
Instrument Cluster and Indicators
............................................ 5-18
Meters and Gauges .................................................................. 5-18
Warning/Indicator Lights and Beeps
........................................ 5-22
Warning/Indicator Lights ......................................................... 5-22
Beeps ....................................................................................... 5-30
Switches and Controls
................................................................. 5-31
Lighting Control ...................................................................... 5-31
Turn and Lane-Change Signals ............................................... 5-32
Fog Lights ................................................................................ 5-32
Daytime Running Lights ......................................................... 5-33
Windshield Wipers and Washer ............................................... 5-33
Rear Window Defroster ........................................................... 5-36
Horn ......................................................................................... 5-36
Hazard Warning Flasher .......................................................... 5-37
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

5-2
Driving Your Mazda
Form No. 8Q47-EA-01F
Starting and Driving

Ignition Switch Positions
LOCK
The steering wheel locks to protect
against theft. Only in this position can the
key be removed.ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-22).
START
The engine is started in this position. It
will crank until you release the key; then
it returns to the ON position. The brake
warning light can be checked after the
engine is started (page 5-22).

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when the
driver’s door is opened.
Ignition Switch
Removing the Key:
It’s dangerous to remove the key from
the ignition switch while the vehicle is
moving. Removing the key allows the
steering wheel to lock. You will lose
steering control and a serious
accident could occur.
Remove the key only when the vehicle
is parked.
Not Setting the Parking Brake:
Leaving the driver’s seat without
setting the parking brake is
dangerous. Unexpected vehicle
movement could occur if the parking
brake is not set. This could cause an
accident. Before leaving the driver’s
seat, always set the parking brake and
make sure the shift lever is in P.
WARNING
NOTE
If turning the key is difficult, jiggle the
steering wheel from side to side.
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

5-3
Driving Your Mazda
Starting and Driving
Form No. 8Q47-EA-01F
1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4. Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
5. Turn the ignition switch to the START
position and hold (up to 10 seconds at a
time) until the engine starts.
6. After starting the engine, let it idle for
about 10 seconds.
Starting the Engine
NOTE
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
NOTE
The starter will not operate if the shift
lever is not
in P or N.
Don’t try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the
battery.
CAUTION
NOTE
•In extremely cold weather, below
−18
°C (0
°F), or after the vehicle has
stood idle several days, let the
engine warm up without operating
the accelerator.
•Whether cold or warm, the engine
should be started without use of the
accelerator.
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

5-4
Driving Your Mazda
Starting and Driving
Form No. 8Q47-EA-01F

Foot Brake
Your Mazda has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.

Parking Brake
Setting the parking brake
Depress the brake pedal, then pull the
brake handle fully upward.
Brake System
Driving with the Engine Off:
Continuing to drive when the engine
is stalled or turned off is dangerous.
Braking will require more effort, and
the brake’s power-assist could be
depleted if you pump the brake. This
will cause longer stopping distances
or even an accident. Don’t continue
driving when the engine is stalled or
turned off, find a safe place to stop.
Riding the Brakes:
Driving with your foot continuously
on the brake pedal or steadily
applying the brakes for long distances
is dangerous. This causes overheated
brakes, resulting in longer stopping
distances or even total brake failure.
This could cause loss of vehicle
control and a serious accident. Avoid
continuous application of the brakes.
Shift to a lower gear when going
down steep hills.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance is
normal.
Driving with the parking brake on will
cause excessive wear of the brake
linings or pads.
WARNING
CAUTION
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

5-5
Driving Your Mazda
Starting and Driving
Form No. 8Q47-EA-01F
Releasing the parking brake
Depress the brake pedal, then pull the
handle up and press the button. Lower the
handle to the release position while
holding in the button.

Brake System Warning Light
This warning has the following functions:Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-15).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
NOTE
The drum-in disc parking brake system
in your vehicle needs to be bedded by
an Authorized Mazda Dealer whenever
the parking brake shoes or drums are
changed, or there is a reduction in
parking brake performance.
J76Y.book Page 5 Wednesday, March 27, 2002 5:04 PM

5-6
Driving Your Mazda
Starting and Driving
Form No. 8Q47-EA-01F
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-27).
Anti-Lock Brake System (ABS)
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel’s brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don’t
pump the brakes, continue to press down
on the brake pedal.
Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, have the brakes
inspected immediately. Don’t drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don’t rely on ABS as a
substitute for safe driving.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
WARNING
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM
