MAZDA MODEL MILLENIA 2002 (in English) Repair Manual

3-21
Knowing Your Mazda
Security System
Form No. 8Q47-EA-01F

To Tu r n o f f a n A r m e d S y s t e m
An armed system can be turned off by any
one of the following methods:
•Unlock a door with the key.
•Press the UNLOCK button on the
keyless entry system transmitter.
•Insert the key into the ignition switch
and turn it to the ON position.

To Stop an Alarm
A triggered alarm can be turned off by any
one of the following methods:
•Unlock a door with the key.
•Open the trunk lid with the key.
•Press the UNLOCK button or
button on the keyless entry system
transmitter.

Theft-Deterrent Labels
Labels indicating that your vehicle is
equipped with a Theft-Deterrent System
are in the glove box.
Mazda recommends that you affix them to
the lower rear corner of the front door
windows.
NOTE
The trunk lid can be opened with the
key or the transmitter even when the
system is armed. The alarm will not
come on and the system will remain
armed.
NOTE
If you have any problem with the theft-
deterrent system, consult an
Authorized Mazda Dealer.
J76Y.book Page 21 Wednesday, March 27, 2002 5:04 PM

3-22
Knowing Your Mazda
Form No. 8Q47-EA-01F
Steering Wheel and Mirrors

Auto-Tilt Steering Wheel
To change the angle of the steering wheel,
stop the vehicle, put the ignition switch in
the ON position and push the switch to
adjust the steering column up or down.Push in the AUTO button to activate the
auto-tilt function.
When you remove the key from the
ignition, the steering wheel will move up,
away from the driver.
The steering wheel will move back to its
position before the key was removed,
when the key is returned to the ignition.
Steering Wheel
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
WARNING
Up
Down
J76Y.book Page 22 Wednesday, March 27, 2002 5:04 PM

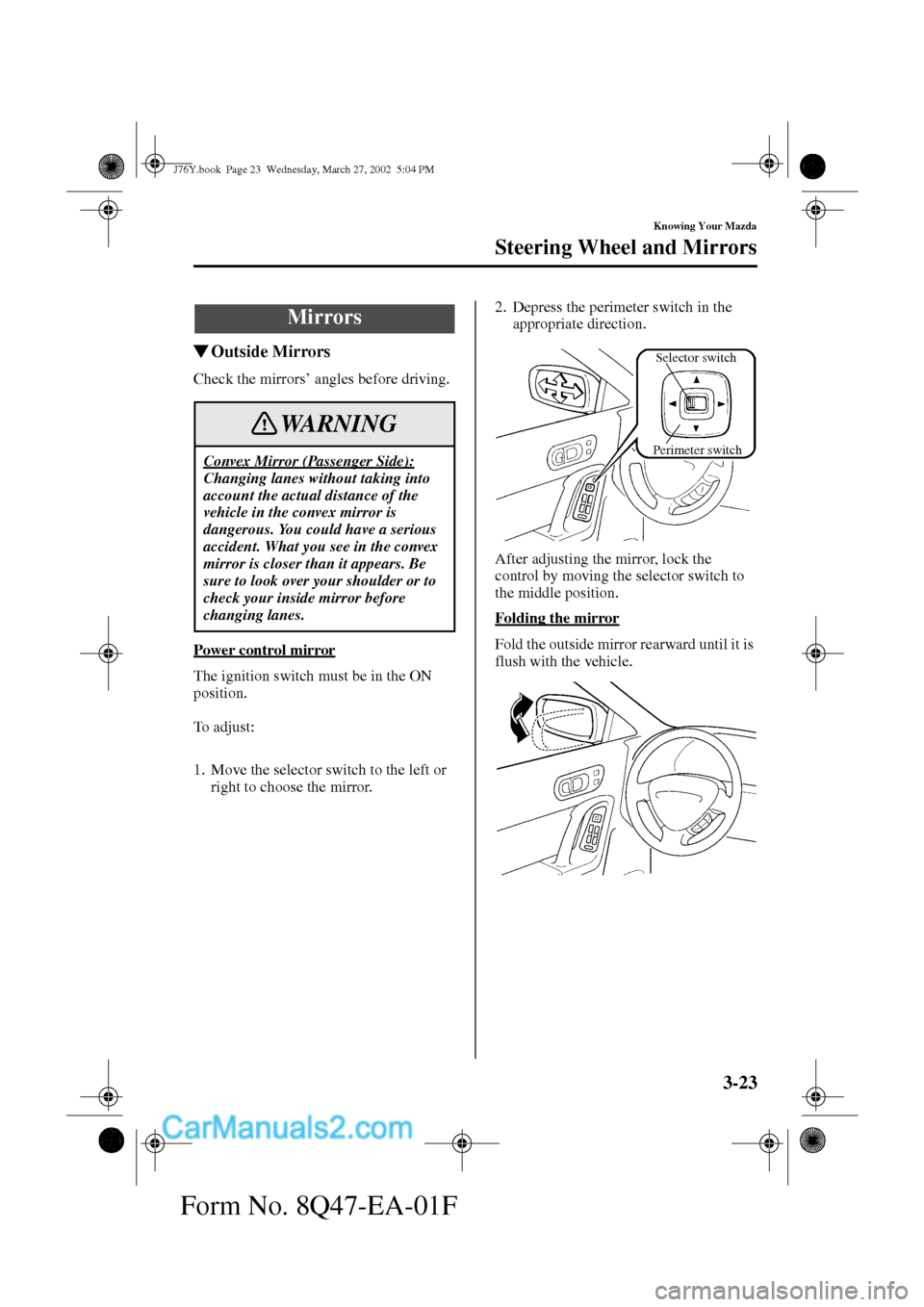

3-23
Knowing Your Mazda
Steering Wheel and Mirrors
Form No. 8Q47-EA-01F

Outside Mirrors
Check the mirrors’ angles before driving.
Power control mirror
The ignition switch must be in the ON
position.
To a d j u s t :
1. Move the selector switch to the left or
right to choose the mirror.2. Depress the perimeter switch in the
appropriate direction.
After adjusting the mirror, lock the
control by moving the selector switch to
the middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
Mirrors
Convex Mirror (Passenger Side):
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder or to
check your inside mirror before
changing lanes.
WARNING
Selector switch
Perimeter switch
J76Y.book Page 23 Wednesday, March 27, 2002 5:04 PM

3-24
Knowing Your Mazda
Steering Wheel and Mirrors
Form No. 8Q47-EA-01F
Mirror defroster
To turn on the mirror defroster, turn the
ignition on and push the rear window
defroster switch (page 5-36).

Rearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the
outside mirrors to the driving position
before you start driving.
WARNING
Day/Night lever
Day
Night
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don’t stack
things higher than the seatbacks.
NOTE
If your forward view is obstructed by
the mirror or the sunvisor hits the
mirror, adjust the mirror stay to the
center-horizontal position.
WARNING
View from above
Side viewStay
Stay
J76Y.book Page 24 Wednesday, March 27, 2002 5:04 PM

4-1
Form No. 8Q47-EA-01F
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions
....................................... 4- 2
Fuel Requirements ................................................................... 4- 2
Emission Control System ........................................................ 4- 3
Engine Exhaust (Carbon Monoxide) ....................................... 4- 4
Before Starting the Engine
......................................................... 4- 5
Before Getting In ..................................................................... 4- 5
After Getting In ....................................................................... 4- 5
Driving Tips
................................................................................. 4- 6
Break-In Period ....................................................................... 4- 6
Money-Saving Suggestions ..................................................... 4- 6
Hazardous Driving ................................................................... 4- 7
Rocking the Vehicle ................................................................. 4- 7
Winter Driving ......................................................................... 4- 8
Driving In Flooded Area ......................................................... 4- 9
Overloading ............................................................................. 4-10
Trailer Towing ......................................................................... 4-10
J76Y.book Page 1 Wednesday, March 27, 2002 5:04 PM

4-2
Before Driving Your Mazda
Form No. 8Q47-EA-01F
Fuel and Engine Exhaust Precautions
Vehicles with catalytic converters must use ONLY UNLEADED FUEL, which will reduce
exhaust emissions and keep spark plug fouling to a minimum.
Fuel with a lower rating could cause the emission control system to lose effectiveness. It
could also cause engine knocking and serious engine damage.
Your Mazda will perform best with fuel listed in the table.
*U.S. federal law requires that octane ratings be posted on gasoline station pumps.
2.5 liter V6 DOHC
You may use a regular unleaded fuel with Octane Rating from 87 to 90 (91 to 95 RON) but
this will slightly reduce performance.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name "Gasohol".
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
•Gasohol containing more than 10% ethanol.
•Gasoline or gasohol containing methanol.
•Leaded fuel or leaded gasohol.
Fuel Requirements
Fuel Octane Rating* (Anti-knock index)
Premium unleaded fuel 91 [ (R+M)/2 method] or above (96 RON or above)
•USE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter. The lead will accumulate on the
oxygen sensor and the catalyst inside the converter. This will result in a malfunction
of the emission control system, causing poor performance.
•Your vehicle can only use oxygenated fuels containing no more than 10% ethanol by
volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of any
kind if your vehicle engine is performing poorly.
•Never add fuel system additives. Never add cleaning agents other than those specified
by Mazda. Other cleaning agents and additives may damage the system. Consult an
Authorized Mazda Dealer.
CAUTION
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

4-3
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8Q47-EA-01F
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
Emission Control System
Parking Over Things That Burn:
Parking over or near anything inflammable, such as dry grass, is dangerous. Even
with the engine turned off, the exhaust system could ignite it because the exhaust
system gets very hot during normal use. A resulting fire could cause serious injury or
death. Never park over or near anything inflammable.
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.
•USE ONLY UNLEADED FUEL.
•Don’t drive your Mazda with any sign of engine malfunction.
•Don’t coast with the ignition switch turned off.
•Don’t descend steep grades in gear with the ignition switch turned off.
•Don’t operate the engine at high idle for more than 5 minutes.
•Don’t tamper with the emission control system. All inspections and adjustments must
be made by a qualified technician.
•Don’t try to push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control
system before the first sale and registration of a vehicle is subject to penalties. In some
states, such modification made on a used vehicle is also subject to penalties.
WARNING
CAUTION
J76Y.book Page 3 Wednesday, March 27, 2002 5:04 PM

4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Form No. 8Q47-EA-01F
Engine Exhaust (Carbon Monoxide)
Carbon Monoxide:
Engine exhaust is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness
and death. If you smell exhaust gas inside your vehicle, keep all windows fully open
and contact an Authorized Mazda Dealer immediately.
Exhaust Gas in Enclosed Area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss of
consciousness or even death could occur. Don’t run the engine when inside an
enclosed area.
Idling with the Windows Closed:
Exhaust gas is dangerous. When your vehicle is stopped with the windows closed and
the engine running for a long time in an open area, exhaust gas, which contains
poisonous carbon monoxide, could enter the cabin. Loss of consciousness or even
death could occur. Open the windows or adjust the heating or cooling system to draw
fresh air.
Snow Blocking the Exhaust Gas:
Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust
pipe could be blocked by the snow, allowing exhaust gas to enter the cabin. Because
exhaust gas contains poisonous carbon monoxide, anyone in the cabin could be
injured or killed. Clear the snow from underneath and around your vehicle before
starting the engine.
WARNING
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

4-5
Before Driving Your Mazda
Form No. 8Q47-EA-01F
Before Starting the Engine
•Be sure the windows, outside mirror(s),
and outside lights are clean.
•Inspect inflation pressures and
condition of tires.
•Look under the vehicle for any sign of
a leak.
•If you plan to back up, make sure
nothing will be in your way.•Are all doors closed and locked?
•Are the inside and outside mirrors
adjusted?
•Is everyone’s seat belt fastened?
•Do all the lights work?
•Check all gauges.
•Check all warning lights when the
ignition switch is turned to the ON
position.
•Release the parking brake and make
sure the brake warning light goes off.
Always be thoroughly familiar with your
Mazda.
Before Getting In
NOTE
Engine oil, engine coolant, brake fluid,
washer fluid, and other fluid levels
should be inspected daily, weekly, or at
refueling, depending on the fluid. See
Maintenance, Section 8.
After Getting In
J76Y.book Page 5 Wednesday, March 27, 2002 5:04 PM

4-6
Before Driving Your Mazda
Form No. 8Q47-EA-01F
Driving Tips
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
•Don’t race the engine.
•Don’t maintain one constant speed for
long.
•Don’t drive constantly at full-throttle or
high engine rpm for extended periods
of time.
•Avoid unnecessary hard stops.
•Avoid full-throttle starts.How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
•Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
•Avoid fast starts.
•Keep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
•Use the air conditioner only when
necessary.
•Slow down on rough roads.
•Keep the tires properly inflated.
•Don’t carry unnecessary weight.
•Don’t rest your foot on the brake pedal
while driving.
•Keep the wheels in correct alignment.
•Keep windows closed at high speeds.
•Slow down when driving in crosswinds
and headwinds.
Break-In PeriodMoney-Saving Suggestions
Coasting:
Turning off the engine to coast down
a hill is dangerous. This causes the
loss of power steering and power
brake control. Any loss of steering or
braking control could cause an
accident. Never turn off the engine
and coast down a hill.
WARNING
J76Y.book Page 6 Wednesday, March 27, 2002 5:04 PM
