audio MAZDA MODEL MPV 2003 (in English) User Guide

6-25
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
Changing the display mode
The display on the unit can be changed by
pressing the clock button ( ). This
alternates the display between time and
audio. When the clock mode has been
selected, the time will be displayed.
NOTE
If audio operation is selected while the
time mode is on, the selected audio
mode will be displayed for 10 seconds,
then the display will revert to the time
mode.
J16L_8R21-EA-02G.book Page 25 Saturday, June 8, 2002 11:16 AM

6-38
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Adjusting the Volume
To increase the volume, press volume
button ( ).
To decrease the volume, press volume
button ( ).

Changing the Source
Press the mode switch ( ) to change
the audio source (AM radio>FM1
radio>FM2 radio>Cassette tape player or
MD player>CD player or CD
changer>cyclical).
Audio Control Switch
Operation
NOTE
Mazda installed this system to help
you avoid being too distracted using
audio controls on the dashboard.
Always make safe driving your first
priority.
J16L_8R21-EA-02G.book Page 38 Saturday, June 8, 2002 11:16 AM

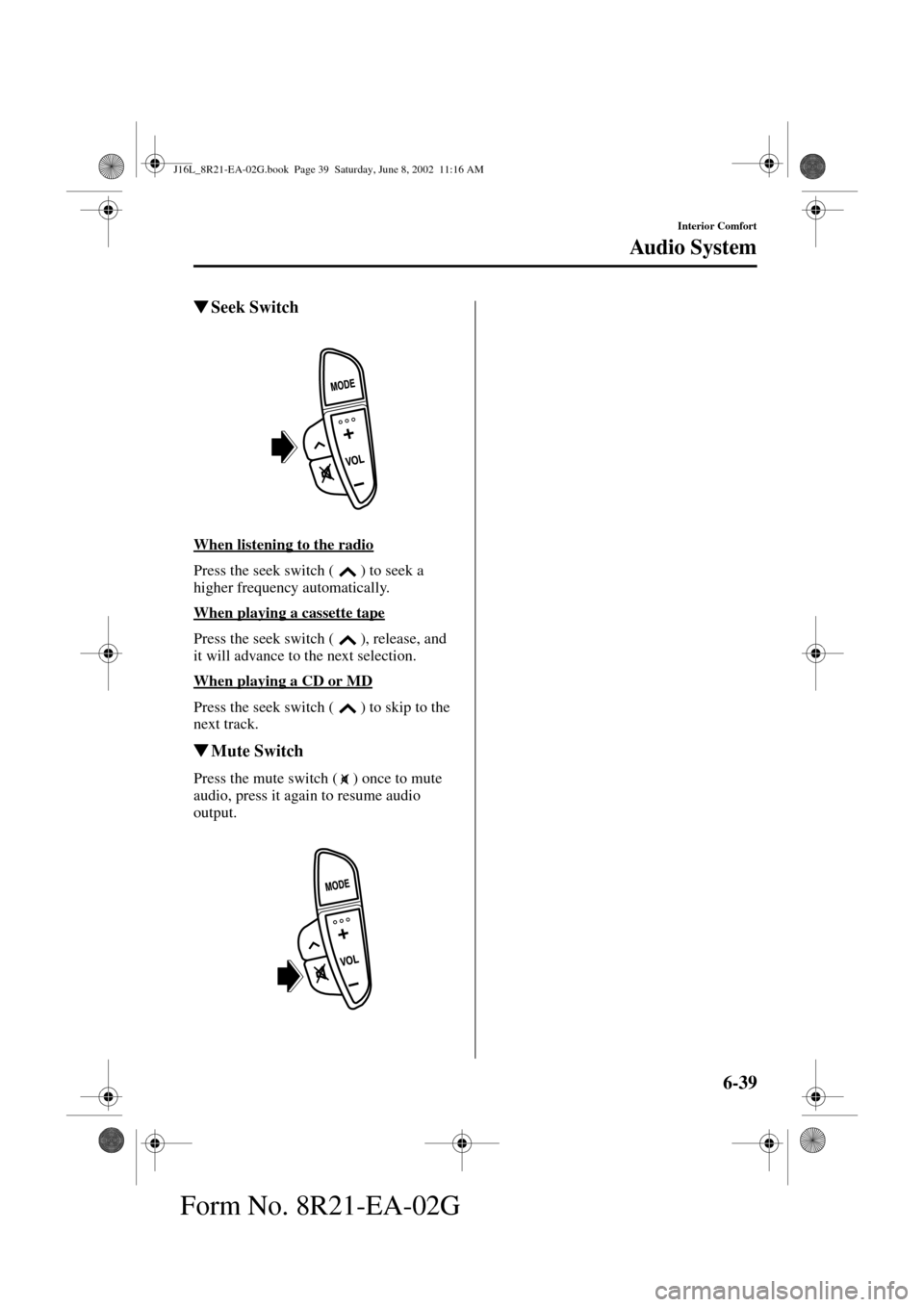

6-39
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Seek Switch
When listening to the radio
Press the seek switch ( ) to seek a
higher frequency automatically.
When playing a cassette tape
Press the seek switch ( ), release, and
it will advance to the next selection.
When playing a CD or MD
Press the seek switch ( ) to skip to the
next track.

Mute Switch
Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.
J16L_8R21-EA-02G.book Page 39 Saturday, June 8, 2002 11:16 AM

8-33
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
Yo u r v e h i c l e’s electrical system is
protected by fuses.
If any lights, accessories, or controls don’t
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

Fuse Replacement
If the electrical system doesn’t work, first
inspect fuses on the driver’s side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.3. Pull the fuse straight out with the fuse
puller provided on the fuse panel.
4. Inspect it and replace if it’s blown.
5. Push in a new fuse of the same rating,
and make sure it fits tightly. If it
doesn’t, have an Authorized Mazda
Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO circuit.
Fuses
Fuse panel cover
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Fuse puller
Normal Blown
CAUTION
J16L_8R21-EA-02G.book Page 33 Saturday, June 8, 2002 11:16 AM

8-36
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
Fuse block (Driver’s side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1
P. W I N D30APower windows,
For protection of
various circuits
2
WIPER20AWi n ds h i e l d
wipers and washer
3SUN ROOF15ASunroof,
For protection of
various circuits
4
R.WIP10ARear window
wiper and washer
5
SEAT20AFor protection of
various circuits
6
M.DEF10AMirror defroster,
For protection of
various circuits
7
A/C10AAir conditioner,
For protection of
various circuits
8
DRL10AFor protection of
various circuits
9
———
10
H/CLEAN20AFor protection of
various circuits
11—— —
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
12 HAZARD 10AHazard warning
flashers
13 ROOM 15AOverhead lights,
Map lights,
Luggage
compartment light
14
AU X
POWER25A Accessory socket
15
CLOSER
LH20AFor protection of
various circuits
16
AUDIO10AAudio system, For
protection of
various circuits
17
D.LOCK30APower door locks,
For protection of
various circuits
18
P/SEAT30A Power seat
19
ENGINE10AEngine control
system
20
METER10A Instrument cluster
21
STOP15A Brake lights
22
CLOSER
RH20AFor protection of
various circuits
J16L_8R21-EA-02G.book Page 36 Saturday, June 8, 2002 11:16 AM

11-2
Form No. 8R21-EA-02G
Index
A
Accessory Sockets ........................... 6-51
Add-On Non-Genuine Parts and
Accessories
...................................... 9-11
Air Bag Systems
.............................. 2-50
Air Filter
.......................................... 8-17
Antenna
............................................ 6-14
Anti-Lock Brake System (ABS)
........ 5-7
Warning light
.............................. 5-7
Appearance Care
.............................. 8-38
Ashtray
............................................. 6-44
Audio System
................................... 6-14
Audio control switch
................ 6-38
Audio set
................................... 6-21
Operating tips for audio
system
....................................... 6-14
Safety certification
.................... 6-40
Automatic Transaxle
Driving tips
............................... 5-11
Fluid
.......................................... 8-15
Overdrive
.................................. 5-11
Shift-lock override
.................... 5-10
Shift-lock system
...................... 5-10
Transaxle ranges
......................... 5-9
B
Battery
Emergency starting
................... 7-17
Maintenance
............................. 8-22
Specifications
........................... 10-4
Beeps
Ignition key reminder
............... 5-31
Lights-on reminder
................... 5-31
Power sliding door buzzer
........ 5-31
Seat belt warning beep
.............. 5-31
Before Starting the Engine
................. 4-6
After getting in
........................... 4-6
Before getting in
......................... 4-6
B
Body Lubrication ............................. 8-17
Bottle Holder
.................................... 6-47
Brake
Fluid
.......................................... 8-13
Brakes
Anti-lock brake system (ABS)
....5-7
Foot brake
................................... 5-4
Pad wear indicator
...................... 5-8
Parking brake
.............................. 5-5
Warning light
.............................. 5-5
Break-In Period
.................................. 4-7
Bulb Replacement
............................ 8-27
C
Capacities ......................................... 10-5
Carbon Monoxide
.............................. 4-5
Cargo Securing Loops
...................... 6-50
Catalytic Converter
............................ 4-3
Cell Phones
...................................... 9-12
Child Restraint
Child restraint precautions
........ 2-37
Installing child-restraint
systems
...................................... 2-40
LATCH child-restraint
systems
...................................... 2-47
Child Safety Locks for Rear
Door
................................................. 3-11
Cigarette Lighter
.............................. 6-44
Climate Control System
.....................6-2
Gas specifications
..................... 10-5
Courtesy Lights
................................ 6-43
Cruise Control
.................................. 5-13
Cup Holder
....................................... 6-46
Customer Assistance
.......................... 9-2
