Illuminated Entry System*
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position), the luggage
compartment light (switch is in the ON
position) and the courtesy lights turn on
for:
•About 30 seconds after the driver’s
door is unlocked and the ignition key is
removed.
•About 15 seconds after all doors are
closed.
•About 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
•The ignition switch is turned to the ON
position and all doors are closed.
•The driver’s door is locked.

Overhead Lights
Front
Interior Lights
NOTE
If any door is left opened, the light
goes out after about 5 minutes.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
DOOR
OFF
Without moonroof
(with overhead console)
DOOR
OFF
Without moonroof
(without overhead console)
DOOR
OFF
With moonroof
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 42 Wednesday, July 9, 2003 4:19 PM

6-43
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H
Rear

Map Lights
The map lights are switched on or off by
pressing the switches.
OFF Light off
DOOR•
Light on when any door or the
liftgate is open
•(With illuminated entry
system)

Light on or off when the
illuminated entry system is on
OFF Light off
DOOR•
Light on when any door or the
liftgate is open
•(With illuminated entry
system)

Light on or off when the
illuminated entry system is on
ON Light on
OFF
DOORON
DOOR
OFF
Map light
Without moonroof
(with overhead console)
Map light
Map light
Without moonroof
(without overhead console)
Map light
Map light
With moonroof
J16R_8S06-EA-03H_Edition1.book Page 43 Wednesday, July 9, 2003 4:19 PM

6-44
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Luggage Compartment Light

Courtesy Lights
Turns on when any door is open or the
illuminated entry system is on.The ignition switch must be in the ACC or
ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.
OFF Light off
ON•
Light on when any door or the
liftgate is open
• (With illuminated entry
system)

Light on or off when the
illuminated entry system is on
OFFON
Courtesy
Light
Lighter*
•Don’t touch the metal part of the
lighter, you may burn yourself.
•Don’t hold the lighter in because it
will overheat.
•Don’t use the lighter socket for
plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.
•If the lighter doesn’t pop out within
30 seconds, remove it to prevent
overheating.
CAUTION
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 44 Wednesday, July 9, 2003 4:19 PM

6-45
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Front
To open, pull the tray out and open the
cover.
To remove, open and pull up the ashtray.

Rear
Ty p e A
To remove, open the cover and pull the
ashtray upward.
Ashtray*
Don’t use the ashtray for trash. You
might start a fire.
CAUTION
Using Ashtray Removed from its
Fixed Position:
Using an ashtray removed from its
fixed position or not completely
inserted is dangerous. Cigarettes
could roll around or spill out of the
ashtray into the vehicle and start a
fire. Moreover, cigarette stubs will not
extinguish themselves completely
even if the ashtray lid is closed. Only
use a rear ashtray in its fixed position,
and make sure it is completely
inserted.
WARNING
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 45 Wednesday, July 9, 2003 4:19 PM

6-46
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H
Ty p e B
To remove, open and push down on the
lock spring.Cup Holder
Using Cup Holder:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.
Don’t Put Anything Other Than Cups
or Drink cans in Cup Holder:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
Using Cup Holder as Ashtray:
Using a cup holder as an ashtray is
dangerous because it could cause a
fire or damage the cup holder.
Be sure the removable ashtray is in
place before smoking and never use
the cup holder as an ashtray.
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
WARNING
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 46 Wednesday, July 9, 2003 4:19 PM

6-47
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Front
To use, pull the tray out.

Rear
Second seat (Passenger seat only)
The cup holder is located on the outboard
side of the right second-row seats. To use
the cup holder, pull it out.Seat side table
To use the cup holder
1. Raise the table (page 2-6)(page 2-11).
2. Pull the cup holder end to extend it
rearwards.
To collapse the table
1. Push the cup holder back into the table.
2. Pull the lever under the table, then
lower it (page 2-6)(page 2-11). After
the table is collapsed, press the table
surface to lock it in place.NOTE
Replacement ashtrays are available
from an Authorized Mazda Dealer if
they are missing.
J16R_8S06-EA-03H_Edition1.book Page 47 Wednesday, July 9, 2003 4:19 PM

6-48
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

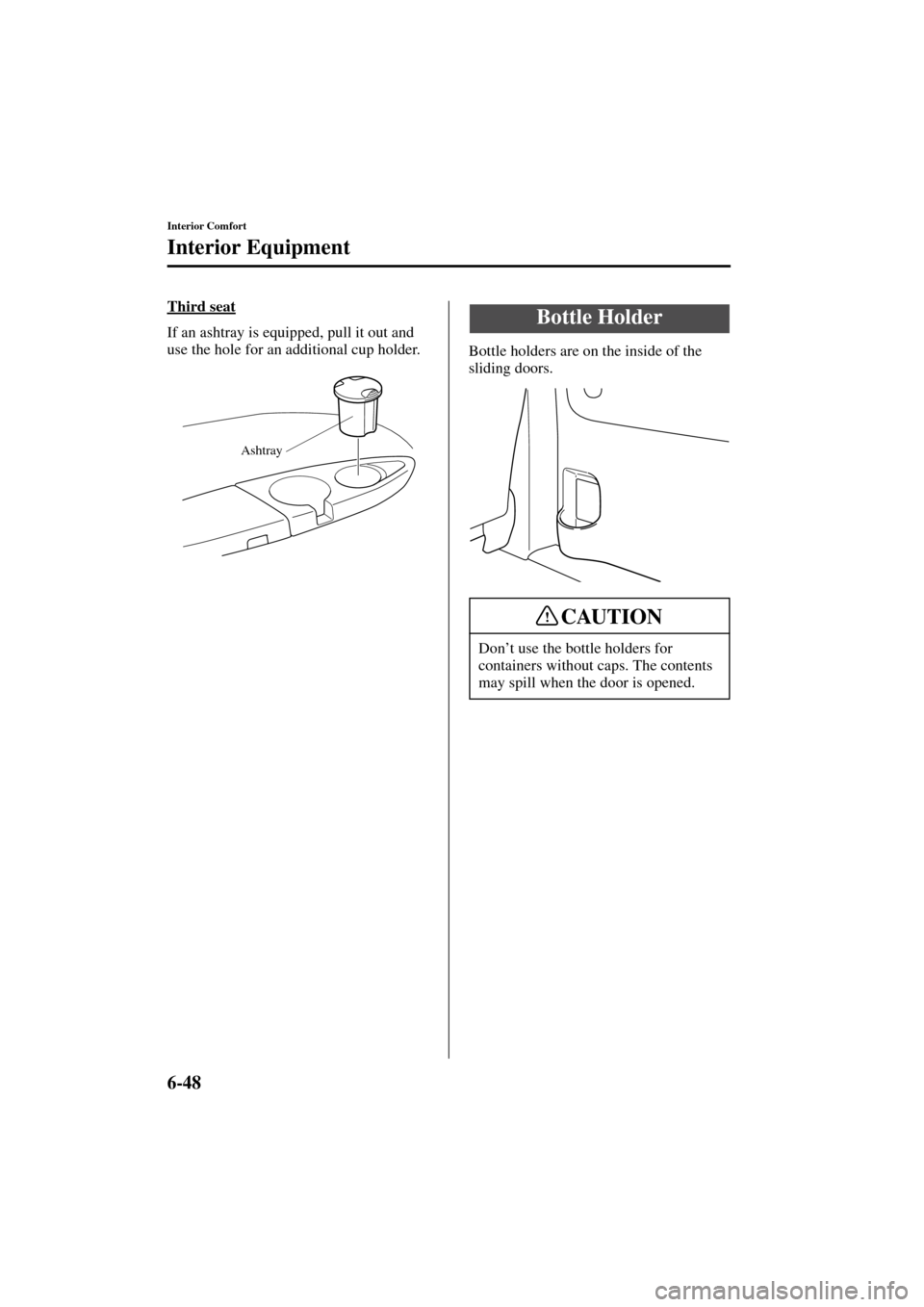

Third seat
If an ashtray is equipped, pull it out and
use the hole for an additional cup holder.
Bottle holders are on the inside of the
sliding doors.
Ashtray
Bottle Holder
Don’t use the bottle holders for
containers without caps. The contents
may spill when the door is opened.
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 48 Wednesday, July 9, 2003 4:19 PM

6-49
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Overhead Console*
This console box is designed to store a
garage door opener or other accessories.
Push and release to open.
To store the garage door opener:
1. Open the console box.2. Take out the urethane spacer.
3. Open the cap by pushing it from inside
the box.
4. Store the garage door opener by
adjusting the thickness with the
urethane spacers.

Eyeglass Holder*
Push the lid to open.
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
Don’t leave eyeglasses or lighters in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
WARNING
CAUTIONCap
*Some models.
J16R_8S06-EA-03H_Edition1.book Page 49 Wednesday, July 9, 2003 4:19 PM

6-50
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H

Glove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.

Front Console
Pull the latch to open.

Under Seat Tray (Front
Passenger Seat Only)
Lift the latch and pull the tray forward.

Storage Box (In Seat Side Table)
To use the storage box
1. Raise the table (page 2-6)(page 2-11).
2. Push the button to open.
Unlock
Lock
Button
J16R_8S06-EA-03H_Edition1.book Page 50 Wednesday, July 9, 2003 4:19 PM

6-51
Interior Comfort
Interior Equipment
Form No. 8S06-EA-03H
To collapse the table
1. Close the lid on the storage box.
2. Pull the lever under the table, then
lower it (page 2-6)(page 2-11). After
the table is collapsed, press the table
surface to lock it in place.

Rear Console*
Push the knob and open the cover.

Cargo Securing Loops
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as they could move or be
crushed in sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
WARNING
Floor
