MAZDA MODEL MPV 2004 Owners Manual (in English)

7-18
In Case of an Emergency
Emergency Starting
Form No. 8S06-EA-03H
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
Jump-Starting
Follow These Precautions Carefully
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Eye Protection:
Working without eye protection is dangerous. Battery fluid contains SULFURIC
ACID which could cause blindness if splashed into in your eyes. Also, hydrogen gas
produced during normal battery operation, could ignite and cause the battery to
explode. Always wear eye protection when working near the battery.
Spilled Battery Fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets
in eyes, skin or clothing. If this happens, immediately flush your eyes with water for
15 minutes or wash your skin thoroughly and get medical attention. Wear eye
protection and protective gloves to prevent contact with battery fluid.
Children and Batteries:
Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin. Always keep batteries out of the
reach of children.
WARNING
J16R_8S06-EA-03H_Edition1.book Page 18 Wednesday, July 9, 2003 4:19 PM

7-19
In Case of an Emergency
Emergency Starting
Form No. 8S06-EA-03H
Keep Flames Away:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells. When working near a battery, do
not allow metal tools to contact the positive ( ) or negative ( ) terminal of the
battery. Do not allow the positive ( ) terminal to contact the vehicle body.
Battery-Related Explosion:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames, including
cigarettes, and sparks away from open battery cells.
Low Fluid Level or Frozen Battery:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Don’t jump-start a frozen battery or one with a low fluid level.
Connecting to Negative Terminal:
Connecting the end of the second cable to the negative ( ) terminal of the discharged
battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Connect the cable to a point away from the battery.
Connecting Jumper Cable to Moving Parts:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury. Never
connect a jumper cable to or near any part that moves.
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
WARNING
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 19 Wednesday, July 9, 2003 4:19 PM

7-20
In Case of an Emergency
Emergency Starting
Form No. 8S06-EA-03H
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
2. If the booster battery is in another
vehicle, don’t allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
•Connect one end of a cable to the
positive terminal on the discharged
battery (1).
•Attach the other end to the positive
terminal on the booster battery (2).
•Connect one end of the other cable
to the negative terminal of the
booster battery (3).
•Connect the other end to a solid,
stationary, exposed metallic point
(for example, the engine hanger)
away from the discharged battery
(4).4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
5. When finished, carefully disconnect
the cables in the reverse order
described in Step 3.
Jumper
cables
Discharged
battery
Connect cables in
numerical order and
disconnect in reverse
order.Booster battery
J16R_8S06-EA-03H_Edition1.book Page 20 Wednesday, July 9, 2003 4:19 PM

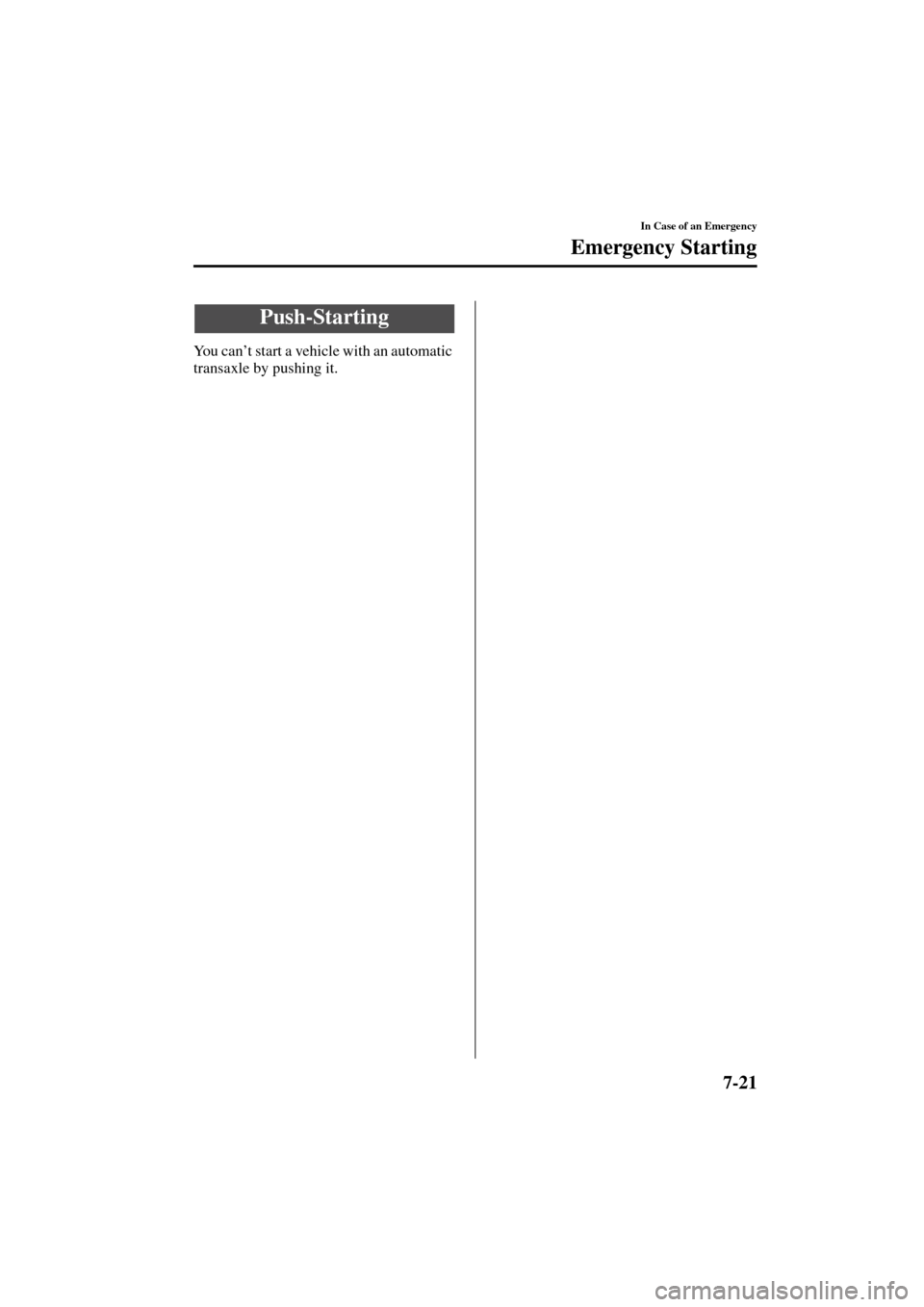

7-21
In Case of an Emergency
Emergency Starting
Form No. 8S06-EA-03H
You can’t start a vehicle with an automatic
transaxle by pushing it.
Push-Starting
J16R_8S06-EA-03H_Edition1.book Page 21 Wednesday, July 9, 2003 4:19 PM

7-22
In Case of an Emergency
Form No. 8S06-EA-03H
Emergency Towing
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
When towing with the rear wheels on the
ground, release the parking brake.
Towing Description
Wheel dollies
Don’t tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
Don’t tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
CAUTION
CAUTION
J16R_8S06-EA-03H_Edition1.book Page 22 Wednesday, July 9, 2003 4:19 PM

7-23
In Case of an Emergency
Emergency Towing
Form No. 8S06-EA-03H

Tiedown Hooks-Front

Tiedown Hook-Rear
An example of “ recreational towing ” is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ” (page 7-22) and
“ Tiedown Hooks ” (page 7-23) and
carefully follow the instructions.
Tiedown Hooks
Don’t use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it’s being
transported. Using them for towing
will damage the bumper.
CAUTION
Recreational Towing
J16R_8S06-EA-03H_Edition1.book Page 23 Wednesday, July 9, 2003 4:19 PM

7-24
Form No. 8S06-EA-03H
J16R_8S06-EA-03H_Edition1.book Page 24 Wednesday, July 9, 2003 4:19 PM

8-1
Form No. 8S06-EA-03H
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance
................................................................ 8-3
Scheduled Maintenance ............................................................. 8-3
Owner Maintenance
...................................................................... 8-7
Owner Maintenance Schedule ................................................... 8-7
Owner Maintenance Precautions ............................................... 8-8
Engine Compartment Overview ................................................ 8-9
Engine Oil ................................................................................ 8-10
Engine Coolant ........................................................................ 8-12
Brake Fluid .............................................................................. 8-15
Power Steering Fluid ............................................................... 8-16
Automatic Transaxle Fluid (ATF) ........................................... 8-16
Washer Fluid ............................................................................ 8-18
Body Lubrication ..................................................................... 8-19
Air Filter .................................................................................. 8-19
Wiper Blades ........................................................................... 8-20
Battery ..................................................................................... 8-24
Tires ......................................................................................... 8-27
Light Bulbs .............................................................................. 8-31
Fuses ........................................................................................ 8-38
Appearance Care
......................................................................... 8-43
How to Minimize Environmental Paint Damage ..................... 8-43
Exterior Care ........................................................................... 8-45
Interior Care ............................................................................ 8-48
J16R_8S06-EA-03H_Edition1.book Page 1 Wednesday, July 9, 2003 4:19 PM

8-2
Maintenance and Care
Form No. 8S06-EA-03H
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you’re unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda’s original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Introduction
J16R_8S06-EA-03H_Edition1.book Page 2 Wednesday, July 9, 2003 4:19 PM

8-3
Maintenance and Care
Form No. 8S06-EA-03H
Scheduled Maintenance
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
•Repeated short-distance driving
•Driving in dusty conditions
•Driving with extended use of brakes
•Driving in areas where salt or other corrosive materials are being used
•Driving on rough or muddy roads
•Extended periods of idling or low-speed operation
•Driving for long periods in cold temperatures or extremely humid climates
•Towing a trailer
Scheduled Maintenance
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
J16R_8S06-EA-03H_Edition1.book Page 3 Wednesday, July 9, 2003 4:19 PM
