Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
Mazda MPV_8T50-EA-04G_Edition1 Page9
Monday, June 28 2004 3:58 PM
Form No.8T50-EA-04G

Black plate (68,1)
Supplemental Restraint Systems (SRS) Precautions
The front and side supplemental restraint systems (SRS) include up to 4 air bags (verify
“SRS AIRBAG”location indicator marks).
They are located in:
lThe steering wheel hub (driver air bag)
lThe front passenger dashboard (front passenger air bag)
lThe outboard sides of the front seatbacks (side air bags)í
These systems operate independently depending on the type of accident encountered; if
you have side air bags, the side air bags are not likely to deploy on both sides in the same
accident because a vehicle is not often hit from both sides. The side air bags and the frontal
air bag system will not normally deploy during the same type of accident unless a
combination of frontal and side impacts occur.
The air bag supplemental restraint systems are designed to provide supplemental protection
only in the front seats in certain situations, so seat belts are always important in the
following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
lKeep the occupant from being thrown into an inflating air bag.
lReduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
lReduce the possibility of injuries in frontal or side collisions that are not severe enough
to activate the air bags.
lReduce the possibility of being thrown from your vehicle.
lReduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
lHold the driver in a position which allows better control of the vehicle.
Small children should be protected by a child-restraint system. In certain regions, larger
children must use a child-restraint system (page 2-41).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
2-56
Essential Safety Equipment
íSome models.
SRS Air Bags
Mazda MPV_8T50-EA-04G_Edition1 Page68
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (69,1)
WARNING
Air Bags without Seat Belts:
Depending only on the air bags for protection during an accident is dangerous. Alone,
air bags may not prevent serious injuries. The appropriate air bags can be expected to
inflate only in collisions with frontal, near frontal or side forces that are at least
moderate. Vehicle occupants should always wear seat belts.
Child in the Front Seat:
Placing a child, 12 years or under, in the front seat is dangerous. The child could be
hit by a deploying air bag and be seriously injured or even killed. Even if the front
passenger air bag deactivation indicator light illuminates, always move the front
passenger seat as far back as possible. A sleeping child is more likely to lean against
the door and be hit by the side air bag in a moderate, right-side collision. Whenever
possible, always secure a child 12 years and under on the rear seats with an
appropriate child-restraint system for the child's age and size.
Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems on the front seat are particularly dangerous.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child. Even though you may feel
assured that the front passenger air bag will not deploy based on the fact that the front
passenger air bag deactivation indicator light illuminates, NEVER use a rear-facing
child-restraint system in the front seat with an air bag that could deploy even in a
moderate collision.
Seating Position with Front Air Bags:
Sitting too close to the air bag modules or placing hands or feet on them is extremely
dangerous. Front air bags inflate with great force and speed. Serious injuries could
occur if someone is too close. The driver should always hold onto only the rim of the
steering wheel. The front seat passenger should keep both feet on the floor. Front seat
occupants should adjust their seats as far back as possible and always sit upright
against the seatbacks with seat belts worn properly.
Essential Safety Equipment
SRS Air Bags
2-57
Mazda MPV_8T50-EA-04G_Edition1 Page69
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (70,1)
WARNING
Seating Position with Side Air Bags:
Sitting too close to the side air bag modules or placing hands on them is extremely
dangerous. A side air bag inflates with great force and speed directly out of the
outboard shoulder of the front seat and expands along the front door on the side the
car is hit.
Serious injury could occur if someone is sitting too close to the door or leaning
against a window in the front seats or if rear seat occupants grab the sides of the front
seatbacks. Furthermore, sleeping up against the door or hanging out the driver's-side
window while driving could block the side air bag and eliminate the advantages of
supplemental protection. Give the side airbags room to work by sitting in the center of
the seat while the vehicle is moving with seat belts worn properly.
Front Air Bag Modules located in the steering wheel hub and the dashboard:
Attaching an object to the front air bag modules or placing something in front of them
is dangerous. In an accident, the object could interfere with front air bag inflation and
injure the occupants.
Always keep the front air bag modules free of objects.
Side Air Bag Modules:
Attaching things to the front seat in such a way as to cover the outboard side of the
seat in any way is dangerous. In an accident the object could interfere with the side air
bag, which inflates from the outboard side of the front seats, impeding the added
protection of the side air bag system or redirecting the air bag in a way that is
dangerous. Furthermore, the bag could be cut open spewing exhaust.
Do not hang net bags, map pouches or backpacks with side straps on the front seats.
Never use seat covers on the front seats. Always keep the side air bag modules in your
front seats free to deploy in the event of a side collision.
Hot Air Bag Inflators:
Hot air bag inflators are dangerous. Immediately after inflation, the inflators in the
steering wheel, dashboard or the seatbacks are very hot. You could get burned. Don't
touch the internal components of the air bag modules after the bags have inflated.
Installation of Front-End Equipment:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar, bull
bar, push bar, etc.), snowplow, or winches, is dangerous. The air bag crash sensor
system could be affected. This could cause air bags to inflate unexpectedly, or it could
prevent the air bags from inflating during an accident. Front occupants could be
seriously injured. Never install any front-end equipment to your vehicle.
2-58
Essential Safety Equipment
SRS Air Bags
Mazda MPV_8T50-EA-04G_Edition1 Page70
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (72,1)
Supplemental Restraint System Components
The supplemental restraint systems (SRS) have two basic subsystems:
lThe air bag system with inflators and air bags.
lThe electrical system with crash sensors and diagnostic module.
The air bags are mounted in the following locations:
lThe steering wheel hub
lThe front passenger dashboard
lThe outboard sides of the front seatbacksí
The air bags are out of sight until activated.
2-60
Essential Safety Equipment
íSome models.
SRS Air Bags
Mazda MPV_8T50-EA-04G_Edition1 Page72
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (75,1)
How the Air Bags Work
qHow the Front Air Bags Work
When air bag crash sensors detect a frontal impact of greater than moderate force, an
electrical current is sent to the inflators.
Gases are produced to inflate the front air bags and after the inflation, the front air bags
quickly deflate.
The front air bags will function only once. After that,the front air bags will not work
again and must be replaced.
Only an Authorized Mazda Dealer can replace the system components.
The front, dual stage air bags control air bag inflation in two energy stages. During an
impact of moderate severity the front air bags deploy with lesser energy, whereas during
more severe impacts, they deploy with more energy. Deployment of the front air bags may
differ between the driver and the front passenger depending on the driver seat position,
front passenger weight and front seat belt usage, which allow for further controlling of the
system.
The front air bags will deploy only
in a frontal or frontal offset impact.
Driver seat slide position sensor
Your vehicle is equipped with a driver seat slide sensor as a part of the supplemental
restraint system. The sensor is located under the driver seat. The sensor determines whether
the driver seat is fore or aft of a reference position and sends the seat position to the crash
sensors and diagnostic module (SAS unit). The sensor is also designed to control the
deployment of the driver air bag depending on how close the driver seat is to the steering
wheel.
The air bag/front seat belt pretensioner system warning light flashes if the sensor has a
possible malfunction (page 2-71).
Essential Safety Equipment
SRS Air Bags
2-63
Mazda MPV_8T50-EA-04G_Edition1 Page75
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (82,1)
Side air bag activationí
Greater than moderate impact to one side
of the vehicle (driver or passenger side
areas) will cause a side air bag to inflate,
but it will not normally deploy the front
air bags.
Limitations to side air bag activationí
Depending on the severity of impact, a
side air bag may not inflate in the
following cases:
lFrontal offset impact may not provide
enough side impact to deploy the side
air bags.
lSide impacts involving trees or poles
can cause severe cosmetic damage but
may not have enough impact force to
activate the side air bags.
lVehicle roll-over may not provide
enough side force to deploy the side air
bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side air bags.
Non-activation of side air bagí
A side air bag will not normally inflate in
the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
2-70
Essential Safety Equipment
íSome models.
SRS Air Bags
Mazda MPV_8T50-EA-04G_Edition1 Page82
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (84,1)
lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to“Front passenger
seat weight sensors (page 2-63)”.
WARNING
Damaged Air Bag System
Components:
Driving with damaged air bag system
components is dangerous. A collision,
even one not strong enough to inflate
the air bags, could damage the system
components. If there was a subsequent
collision, a damaged component
would not inflate the air bags. Always
have an Authorized Mazda Dealer
inspect the air bag systems after a
collision.
Removing Interior Parts:
Removing any components such as the
front seats (if side air bags are
equipped), front dashboard, the
steering wheel or parts containing air
bag parts or sensors is dangerous.
These parts contain essential air bag
components. The air bag could
accidentally activate and cause serious
injuries. Always have an Authorized
Mazda Dealer remove these parts.
WARNING
Air Bag Disposal:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to“Customer Assistance
(U.S.A.)”(page 9-2).
2-72
Essential Safety Equipment
SRS Air Bags
Mazda MPV_8T50-EA-04G_Edition1 Page84
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (85,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ........................................................................... 3-2
Keys .......................................................................................... 3-2
Keyless Entry System
í............................................................ 3-3
Door Locks ............................................................................... 3-8
Liftgate .................................................................................... 3-17
Power Windows
í................................................................... 3-18
Rear Quarter Windows ............................................................ 3-21
Fuel-Filler Lid and Cap ........................................................... 3-22
Hood ....................................................................................... 3-23
Moonroof
í............................................................................. 3-24
Security System ........................................................................... 3-27
Immobilizer System
í............................................................. 3-27
Theft-Deterrent Systemí........................................................ 3-29
Steering Wheel and Mirrors ...................................................... 3-31
Steering Wheel ........................................................................ 3-31
Mirrors .................................................................................... 3-31
3-1íSome models.
Mazda MPV_8T50-EA-04G_Edition1 Page85
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (115,1)

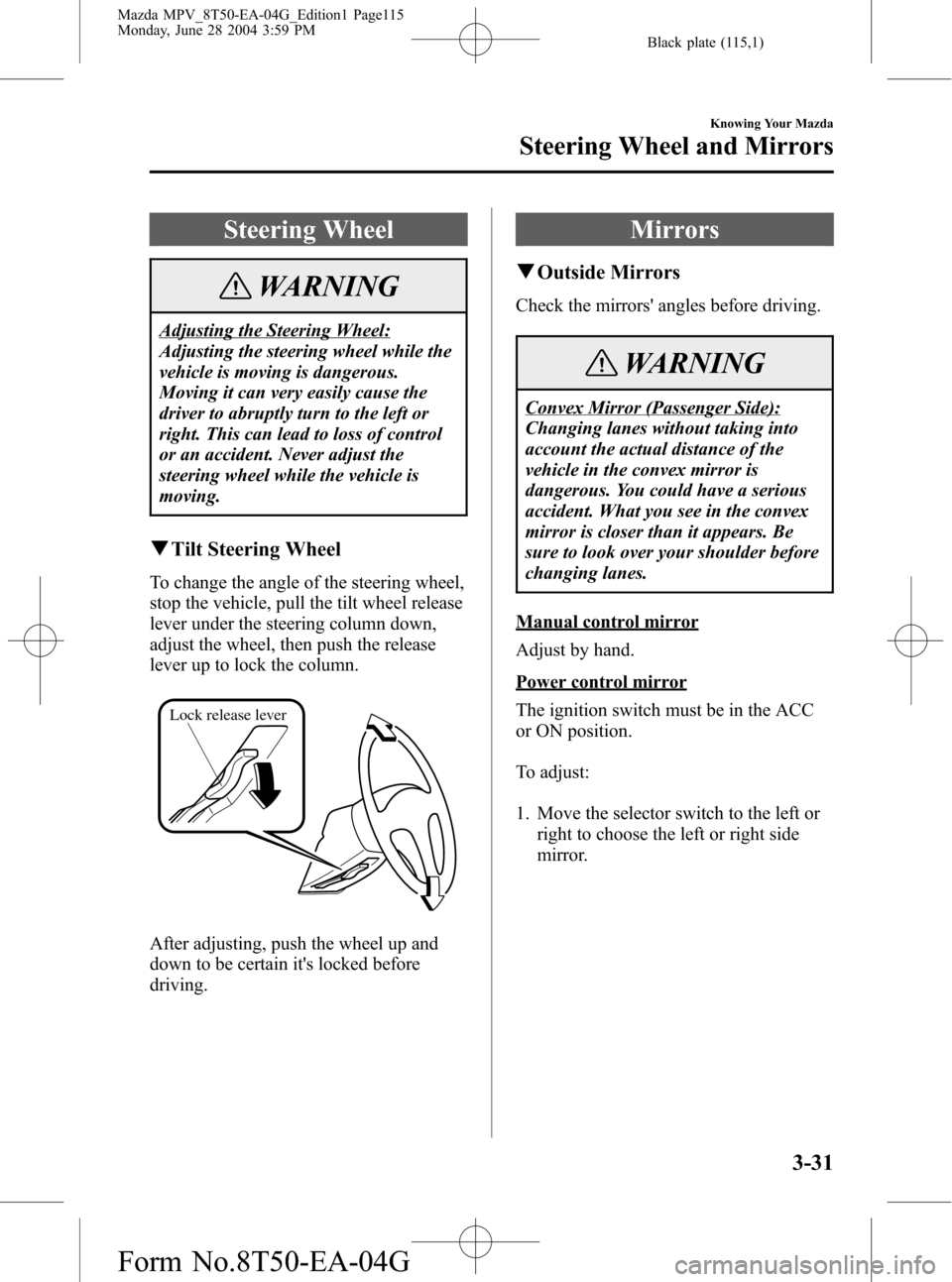

Steering Wheel
WARNING
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
qTilt Steering Wheel
To change the angle of the steering wheel,
stop the vehicle, pull the tilt wheel release
lever under the steering column down,
adjust the wheel, then push the release
lever up to lock the column.
Lock release lever
After adjusting, push the wheel up and
down to be certain it's locked before
driving.
Mirrors
qOutside Mirrors
Check the mirrors' angles before driving.
WARNING
Convex Mirror (Passenger Side):
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
Manual control mirror
Adjust by hand.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Move the selector switch to the left or
right to choose the left or right side
mirror.
Knowing Your Mazda
Steering Wheel and Mirrors
3-31
Mazda MPV_8T50-EA-04G_Edition1 Page115
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G
