MAZDA MODEL MPV 2006 Owners Manual (in English)

Black plate (131,1)
Driving In Flooded Area
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance returns to normal.
CAUTION
Make sure water does not enter the
vehicle interior or the engine area.
Interior materials could get moldy, and
many electronic devices in the cabin
and the engine could be damaged.
Overloading
WARNING
Vehicle Load Weight:
The gross axle weight rating (GAWR)
and the gross vehicle weight rating
(GVWR) of your vehicle are on the
Motor Vehicle Safety Standard Label
on the driver's door frame. Exceeding
these ratings can cause an accident or
vehicle damage. You can estimate the
weight of your load by weighing the
items (or people) before putting them
in the vehicle. Be careful not to
overload your vehicle.
Before Driving Your Mazda
Driving Tips
4-11
Mazda MPV_8U61-EA-05G_Edition1 Page131
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (132,1)
Trailer Towing
Your Mazda was designed and built primarily to carry passengers and cargo.
If you must tow a trailer, follow these instructions because driver and passenger safety
depends on proper equipment and safe driving habits. Towing a trailer will affect handling,
braking, durability, performance, and economy.
Never overload vehicle or trailer. Consult an Authorized Mazda Dealer if you need further
details.
CAUTION
Don't tow a trailer during the first 1,000 km (600 miles) of your new Mazda. If you do,
you may damage the engine, transaxle, differential, wheel bearings, and other power
train components.
qWeight Limits
TTW and GCWR
The total trailer weight (TTW), gross combined weight rating (GCWR), gross axle
weight rating (GAWR), trailer load, and trailer tongue load must be within the
prescribed limits.
lThe total trailer weight (TTW) is the sum of the weights of the trailer load (trailer
weight plus cargo), trailer hitch, vehicle passengers, and vehicle load. Never allow
the total trailer weight (TTW) to exceed specifications in the Trailer Towing-Load
Table.
lThe maximum GCWR is the combined weight of the trailer and load plus the
towing vehicle (including trailer hitch, vehicle passengers, and load). It must not
exceed specifications in the load table.
GAWR and GVWR
Don't exceed front and rear GAWR (gross axle weight rating) and GVWR (gross vehicle
weight rating). If you do, vehicle handling, braking, and performance will be affected.
These values are also on the Motor Vehicle Safety Certification Label posted on the driver's
door.
High-altitude operation
In a high-altitude operating environment, a gasoline engine loses power at a rate of 3% to
4% per 304 m (1,000 ft) of elevation. In these conditions, a reduction in gross vehicle
weight and gross combined weight is recommended.
4-12
Before Driving Your Mazda
Towing
Mazda MPV_8U61-EA-05G_Edition1 Page132
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (133,1)
TRAILER TOWING-LOAD TABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
ItemModel
With 4-Seasons
PackageWithout 4-Seasons
Package
MAX. FRONTAL
AREA
2.97 m2(32 ft2)
MAX. TTWAdd trailer's weight, load and hitch; vehicle
passengers and vehicle load
*
* i.e. baggage, food, camp gear1,361 kg (3,000 lb) 907 kg (2,000 lb)
MAX. GCWR
3,324 kg (7,328 lb) 2,871 kg (6,329 lb)
MAX. GAWR
Front 1,189 kg (2,621 lb)
Rear 1,218 kg (2,685 lb)
MAX. GVWR
2,386 kg (5,260 lb)
TRAILER-TON-
GUE LOADTongue load
Tongue load/
Trailer load × 100 = 10% to 15%
Trailer load
DISTRIBUTION
OF TRAILER
LOADFront 60%
Rear 40%
The optional 4-Seasons Package: Including among others, automatic transaxle oil cooler. Vehicles with the 4-
Seasons Package can tow a heavier trailer and carry more cargo weight than standard-equipped vehicles.
GCWR: Gross Combined Weight Rating (sum of TTW, vehicle weights and 2 passengers)
GAWR: Gross Axle Weight Rating
GVWR: Gross Vehicle Weight Rating
Before Driving Your Mazda
Towing
4-13
Mazda MPV_8U61-EA-05G_Edition1 Page133
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (134,1)
WARNING
Tow Loads:
Attempting to tow loads greater than those specified is dangerous as it may cause
serious handling and performance problems that could result in personal injury or
vehicle damage, or both. Always keep tow loads within specified limits in the Trailer
Towing-Load Table.
Trailer Loading:
Loading the trailer with more weight in the rear than in the front is dangerous. Doing
so could cause you to lose control. The trailer tongue load must be 10%―15% of the
total trailer load (sum of the weights of the trailer and cargo). Try to load the trailer
with the weight about 60% toward the front and 40% toward the rear.
Determining Total Trailer Weight and Tongue Load:
Attempting to tow loads without determining the total trailer weight and tongue load is
dangerous. Trailer sway from crosswinds, rough roads or other causes could result in
loss of control and a serious accident. Always have the total trailer weight and tongue
load determined prior to departure.
CAUTION
The total trailer weight and tongue load can be determined by weighing the trailer on
platform scales at a highway weight station or a trucking company.
qTrailer Hitch
Use only a hitch ball recommended by the trailer manufacturer that conforms to the gross
trailer weight requirement.
When not towing a trailer, remove the trailer hitch (if detachable) to reduce the possibility
of damage as a result of the vehicle being rear-ended.
When the trailer load is more than 907 kg (2,000 lb), use a frame-mounted weight-
distributing hitch.
4-14
Before Driving Your Mazda
Towing
Mazda MPV_8U61-EA-05G_Edition1 Page134
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (135,1)
WARNING
Unsecured Hitch:
An unsecured trailer hitch is dangerous as it causes greater trailer sway from
crosswinds, rough roads or other causes, resulting in loss of control and a serious
accident.
Examine all trailer-hitch mounting bolts regularly and tighten any that are loose. If
the hitch is removed, seal any open mounting holes to prevent exhaust, dust, water,
dirt and other foreign elements from filtering in, possibly endangering personal safety
and damaging your vehicle.
Don't install a hitch that stiffens the bumper as it will reduce the bumper's
performance. Always make sure the hitch is securely attached before departure.
Exhaust System Modifications:
Modifying your vehicle exhaust system is dangerous. Exhaust gas entering the vehicle
could kill you.
When mounting the trailer hitch, make no modifications to the vehicle exhaust system.
Make sure there are no exhaust gas leaks into the passenger compartment if any
mounting bolts are connected to the body.
CAUTION
lMake all hitch adjustments with actual loads. Don't load and unload vehicle while
adjusting hitch. This action will change the vehicle height.
lDon't use an axle-mounted hitch. This may damage the axle and related parts.
qTires
When towing a trailer, make sure all tires are inflated to the recommended cold-tire
pressure, as indicated on the tire pressure chart on the driver's door. Trailer tire size, load
rating, and inflation pressures should conform to tire manufacturer specifications.
WARNING
Using a Temporary Spare Tire when Towing:
Using a temporary spare tire on your vehicle when towing a trailer is dangerous as it
could result in tire failure, loss of control, and injury to vehicle occupants. Never use a
temporary spare when towing.
Before Driving Your Mazda
Towing
4-15
Mazda MPV_8U61-EA-05G_Edition1 Page135
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (136,1)
qSafety Chains
Safety chains must be used as a precautionary measure should the trailer become
unintentionally unhitched. They should cross under the trailer tongue and attach to the
hitch. Leave enough slack to allow full turns. Consult literature published by your trailer or
hitch manufacturer for more details.
WARNING
Towing Without Safety Chain:
Towing a trailer without using a safety chain securely attached to both the trailer and
the vehicle is dangerous. If damage occurs to the coupling unit or hitch ball, the
trailer could wander into another lane and cause a collision. Make sure the safety
chain is securely attached to both the trailer and the vehicle prior to departure.
qTrailer Lights
Trailer lights must comply with all federal, state, and local regulations. Equip your trailer
as required before towing it day or night.
CAUTION
Don't connect a trailer lighting system directly to the lighting system of your Mazda.
This may damage your vehicle's electrical system and lighting systems. Have a
recreational vehicle dealer or trailer rental agency connect the system, and inspect the
brake lights and turn signals yourself before each trip.
qTrailer Brakes
If the total trailer weight exceeds 450 kg (1,000 lb), trailer brakes are required. If your
trailer has brakes, make sure they comply with all federal, state, and local regulations.
WARNING
Hydraulic Trailer-Brake System:
Connecting a hydraulic trailer-brake system directly to the vehicle brake system is
dangerous and will result in inadequate braking and possible injury. Don't connect a
hydraulic trailer-brake system to your vehicle's brake system.
4-16
Before Driving Your Mazda
Towing
Mazda MPV_8U61-EA-05G_Edition1 Page136
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (137,1)
qTrailer Towing Tips
lVerify that your Mazda maintains a near-normal attitude when a loaded or unloaded
trailer is connected. Don't drive if it has an abnormal front-up or front-down position.
Inspect for incorrect tongue load, worn suspension parts, and trailer overloading.
lMake sure the trailer is properly loaded and the cargo is secure to prevent it from
shifting.
lMake sure the mirrors conform to all government regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
The three main causes of vehicle-trailer accidents are driver error, excessive speed, and
improper trailer loading.
Before driving
lHave your cooling and braking system checked by an Authorized Mazda Dealer.
lBefore starting out, inspect the operation of all vehicle and trailer lights and all vehicle-
to-trailer connections. Stop and re-inspect all lights and connections after driving a short
distance.
Driving
lYour Mazda will handle differently with a trailer in tow, so practice turning, backing,
and stopping in a traffic-free area.
lTake time to get accustomed to the extra weight and length.
lAllow more room between your vehicle and the one in front because braking distance
increases with a trailer. For each 16 km/h (10 mph) of speed, allow at least one vehicle
and trailer length between your Mazda and the vehicle ahead.
lAvoid jerky starts or sudden acceleration.
lAvoid sudden braking. It may cause loss of control and result in jackknifing, especially
so on wet or slippery roads.
lUse the following positions when towing a trailer in hilly terrain or when heavily
loaded.
lOD (overdrive) offlShift lever in D
These positions will allow operating the vehicle without frequent shifting.
Lane changes and turning
Avoid quick lane changes, sudden turns, and tight turns. Slow down before turning to
avoid the need of sudden braking.
A turning trailer will make a tighter arc than the tow vehicle. Compensate with turns that
are larger than normal.
Before Driving Your Mazda
Towing
4-17
Mazda MPV_8U61-EA-05G_Edition1 Page137
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (138,1)
Passing
Plan well ahead to pass other vehicles, and provide plenty of room before changing lanes.
Crosswinds from passing vehicles, especially larger ones, and the effects of rough roads
will affect handling.
If swaying occurs, firmly grip the steering wheel and reduce speed immediately, but
gradually.
Steer straight ahead. If no extreme correction of steering or braking is made, the
combination of less speed and firm steering will result in stability.
Backing up
Backing a vehicle with a trailer requires practice and patience. Back slowly, and have a
helper outside at the rear of the trailer to reduce the risk of an accident.
To turn the trailer, place your hand at the bottom of the steering wheel and turn it in the
direction you want the trailer to go. Make only slight movements to prevent sharp or
prolonged turning.
Ascending a hill
Shift into a lower gear to reduce the possibility of overloading or overheating the engine, or
both.
Descending a hill
Shift into a lower gear and use engine compression as a braking effect.
WARNING
Over Use of the Brake Pedal:
Holding the brake pedal down too long or too frequently is dangerous as it could
cause the brakes to overheat and lose power, resulting in loss of control and a serious
accident. Use lower gears (1st and 2nd) to help reduce speed. Pull off the road and
allow brakes to cool down whenever braking performance feels reduced. Always use
lower gears to reduce speed.
Overheated engine
The extra weight of the trailer may strain the engine on hot days and on long or steep
upgrades.
If the temperature gauge indicates overheating, turn off the air conditioner, drive safely to
the side of the road, park off the right-of-way and wait for engine to cool. Refer to
Overheating (page 7-16).
Parking
Always make sure the tires of the trailer and the tow vehicle are blocked while parked.
Apply the parking brake firmly and put the transaxle in P.
4-18
Before Driving Your Mazda
Towing
Mazda MPV_8U61-EA-05G_Edition1 Page138
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

Black plate (139,1)
Avoid parking on an incline, but if you must, follow these instructions:
1. Depress and hold down the brake pedal.
2. Have a helper put wheel blocks against the downhill side of all vehicle and trailer tires.
3. Then release the brake pedal slowly until the blocks bear the load.
lIf the grade is downhill, turn the steering wheel so that the front of the front tires face
the curb.
lIf it is uphill, face the rear of the front tires against the curb.
4. Firmly apply the parking brake.
5. Shift the transaxle into P, and stop the engine.
To restart after parking on an incline:
1. With the transaxle in P, start the engine. (Be sure to depress and hold the brake pedal.)
2. Shift into gear.
3. Release the parking brake (also the foot brake) and pull away from the wheel blocks.
Stop; apply the parking brake and shift into P.
4. Have a helper retrieve the wheel blocks.
Fuel consumption
Trailer towing causes higher fuel consumption.
Maintenance
If you tow a trailer frequently, have your vehicle serviced as shown in Scheduled
Maintenance (page 8-3).
Before Driving Your Mazda
Towing
4-19
Mazda MPV_8U61-EA-05G_Edition1 Page139
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G

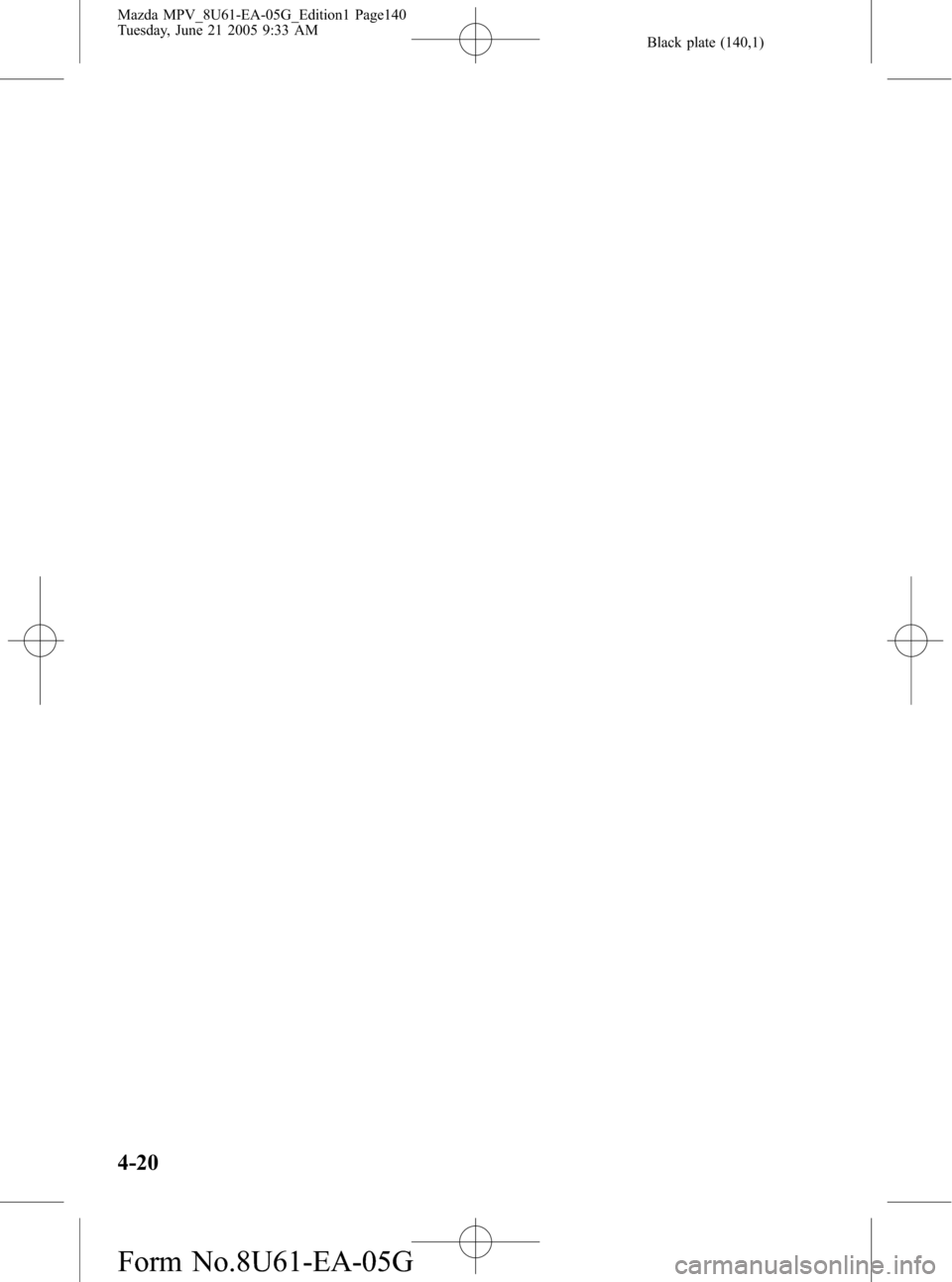

Black plate (140,1)
4-20
Mazda MPV_8U61-EA-05G_Edition1 Page140
Tuesday, June 21 2005 9:33 AM
Form No.8U61-EA-05G
