MAZDA MODEL MX-30 EV 2022 Owners Manual

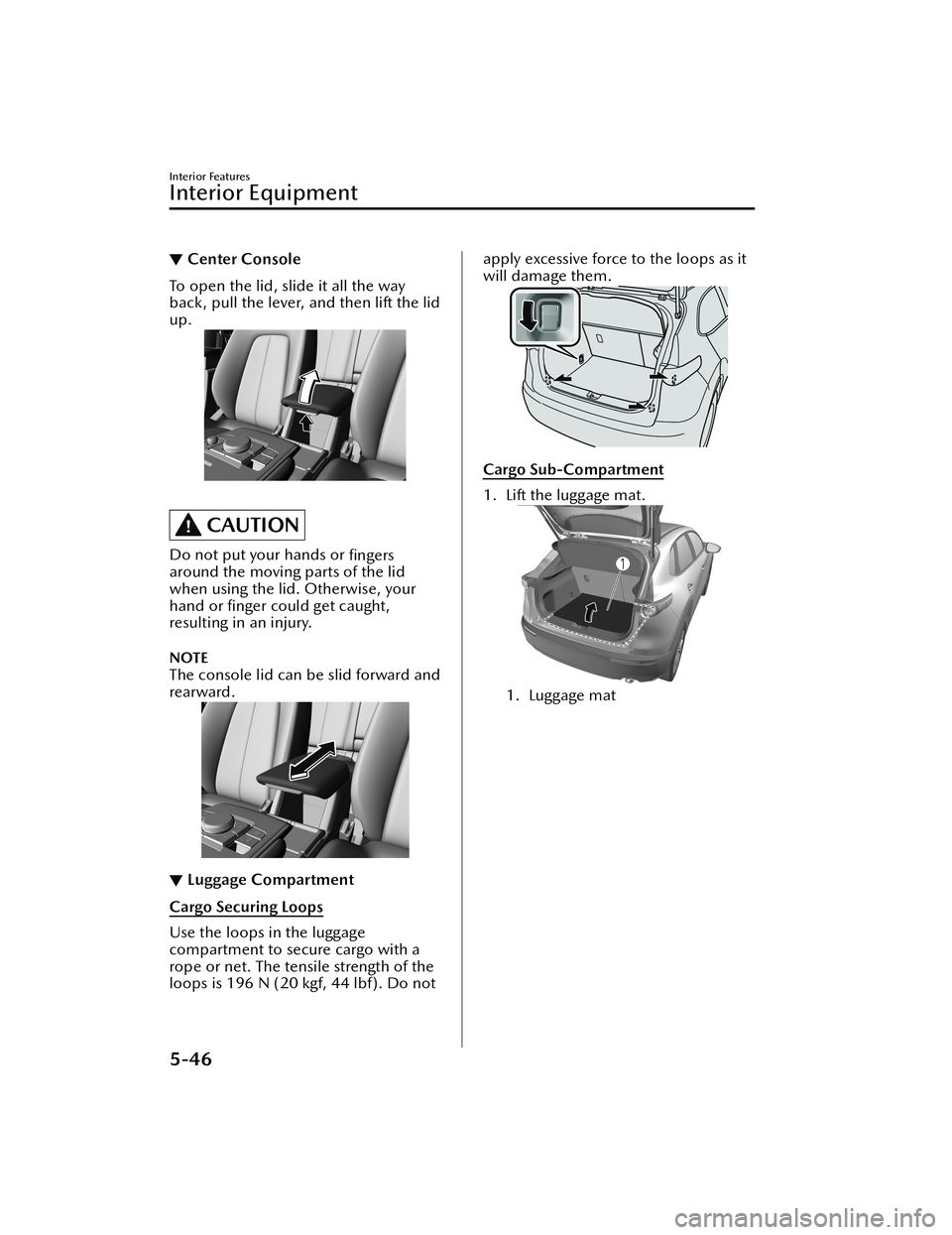

▼Center Console
To open the lid, slide it all the way
back, pull the lever, and then lift the lid
up.

CAUTION
Do not put your hands or
fingers
around the moving parts of the lid
when using the lid. Otherwise, your
hand or finger could get caught,
resulting in an injury.
NOTE
The console lid can be slid forward and
rearward.
▼ Luggage Compartment
Cargo Securing Loops
Use the loops in the luggage
compartment to secure cargo with a
rope or net. The tensile strength of the
loops is 196 N (20 kgf, 44 lbf). Do not
apply excessive force to the loops as it
will damage them.
Cargo Sub-Compartment
1. Lift the luggage mat.
1. Luggage mat

Interior Features
Interior Equipment
5-46
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information................. 6-2 Introduction.......................... 6-2
Scheduled Maintenance............ 6-4 Scheduled Maintenance......... 6-4
Owner Maintenance................. 6-7 Owner Maintenance
Precautions........................... 6-7
Hood.................................... 6-8
Motor Compartment
Overview............................ 6-10
Coolant.............................. 6-11
Brake Fluid.......................... 6-12
Washer Fluid....................... 6-13
Lubrication system............... 6-14
Wiper Blades....................... 6-14
Lead-acid Battery................. 6-19
Key Battery Replacement...... 6-21
Tires.................................... 6-23
Light Bulbs...........................6-26
Fuses.................................. 6-27
Appearance Care.................... 6-34 Exterior Care....................... 6-34
Interior Care........................ 6-40
6-1
MX-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Introduction
▼Introduction
Be careful not to hurt yourself when
inspecting your vehicle, replacing a
tire, or doing some kind of
maintenance such as car washing. In
particular, wear thick work gloves such
as cotton gloves when touching areas
that are
difficult to see while inspecting
or working on your vehicle. Doing
inspections or procedures with your
bare hands could cause injury.

If you are unsure about any procedure
this manual describes, we strongly urge
you to have a reliable and qualified
service shop perform the work,
preferably an Authorized Mazda
Dealer.

Factory-trained Mazda technicians and
genuine Mazda parts are best for your
vehicle. Without this expertise and the
parts that have been designed and
made especially for your Mazda,
inadequate, incomplete, and
insu fficient servicing may result in
problems. This could lead to vehicle
damage or an accident and injuries.

For expert advice and quality service,
consult an Authorized Mazda Dealer.

To continue warranty eligibility and to
protect your investment, it is your
responsibility to properly maintain your
vehicle according to factory
recommended schedules outlined in
this manual. As part of this you must
keep your maintenance records,
receipts, repair orders and any other
documents as evidence this
maintenance was performed. You must
present these documents, should any
warranty coverage disagreement occur.
Failure to do so can result in your
warranty being voided either in whole
or in part.

This evidence may consist of the
following:
The Mazda Scheduled Maintenance
Record, refer to the Warranty
Booklet, must be completely filled
out showing mileage, repair order
number, date for each service, and
signed by a qualified automotive
service technician who service
vehicles.
Original copies of repair orders or
other receipts that include the
mileage and date the vehicle was
serviced. Each receipt should be
signed by a qualified automotive
service technician.
For self maintenance, a statement
that you completed the maintenance
yourself, displaying mileage and the
date the work was performed. Also,
receipts for the replacement parts ( fl uid, filters, etc.) indicating the date
and mileage must accompany this
statement.

NOTE
If you elect to perform maintenance
yourself or have your vehicle serviced
at a location other than an Authorized
Mazda Dealer, Mazda requires that all
fl uids, parts and materials must meet
Mazda standards for durability and
performance as described in this
manual.

Claims against the warranty resulting
from lack of maintenance, as opposed
to defective materials or authorized
Maintenance and Care
Essential Information
6-2
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Mazda workmanship, will not be
honored.

Any auto repair shop using parts
equivalent to your Mazda's original
equipment may perform maintenance.
But we recommend that it always be
done by an Authorized Mazda Dealer
using genuine Mazda parts.
Selecting “Vehicle Status Monitor”
enables the system to notify you of
your vehicle's approaching inspection/
servicing period. Refer to the
Information section in the Mazda
Connect Owner's Manual.

The malfunction diagnosis connector is
designed exclusively for connecting the
specially designed device to perform
on-board diagnosis.
Do not connect any devices other than
the specially designed malfunction
diagnosis devices for servicing. If any
device other than the malfunction
diagnosis device is connected, it may
aff ect the vehicle's electrical devices or
lead to damage such as lead-acid
battery depletion.
1. Malfunction diagnosis connector
Maintenance and Care
Essential Information
6-3
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Scheduled Maintenance
▼Scheduled Maintenance (U.S.A.)
Vehicles utilizing the vehicle status monitor feature:
The vehicle status monitor feature alerts you of maintenance needs by turning on the
wrench indicator light or displaying a message in the instrument panel, or both.
Every maintenance must be done when the display/wrench indication comes on.
The display/wrench indication will come
on before reaching the maximum interval
of 16,000 km (10,000 miles), or 12 mont hs (after the previous maintenance).
Refer to the Information section in the Mazda Connect Owner's Manual. Please
contact an Authorized Mazda Dealer if necessary.
Reset Service Interval when the maintenance was performed regardless of the mes-
sage/wrench indicator light display.
USA Residents
Maintenance Item Number of times, maintenance was performed.
12345678
ELECTRIC VEHICLE SYSTEM
Coolant level IIIIIIII
Coolant
*1Replace at first 192,000 km (120,000 miles) or 180
months; after that, every 96,000 km (60,000 miles) or 60 months.
OTHER THAN ENGINE AND ELECTRIC VEHICLE SYSTEM
Brake lines, hoses and connections I I I I
Brake and clutch fl uid level IIIIIIII
Brake fluid RRR R
Disc brakes IIIIIIII
Steering operation and linkages III I
Front and rear suspension, ball joints and
wheel bearing axial play IIII
Driveshaft dust boot III I
Bolts and nuts on chassis and body TT TT
Cabin air filter Replace every 48,000 km (30,000 miles) or 24 months.
Tire rotation Rotate every 16,000 km (10,000 miles).
Tire in flation pressure and tire wear
*2IIIIIIII
Emergency flat tire repair kit (if equipped)
*3Inspect annually.
Function of all lights IIIIIIII
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
Maintenance and Care
Scheduled Maintenance
6-4
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

R: Replace
T: Tighten
Remarks:
*1Use of FL-22 is recommended when replacing coolant. Using coolant other than
FL-22 may cause
serious damage to the engine and cooling system.
*2 Inspect a spare tire if equipped.*3Check the tire repair fl uid expiration date every year when performing the periodic maintenance.
Replace the tire repair fluid bottle with a new one before the expiration date.
▼Scheduled Maintenance (Canada)
Vehicles utilizing the vehicle status monitor feature:
The vehicle status monitor feature alerts you of maintenance needs by turning on the
wrench indicator light or displaying a message in the instrument panel, or both.
The display/wrench indication will come on before reaching the maximum interval
of 16,000 km (10,000 miles), or 12 mont
hs (after the previous maintenance).
Refer to the owner's manual section of mazda.ca for the Mazda Connect owner's
manual or contact an Authorized Mazda Dealer if necessary.
Reset Service Interval when the maintena nce was performed regardless of the mes-
sage/wrench indicator light display.
Canada residents
Maintenance Interval Number of months or kilomete
rs (miles), whichever comes first.
Months 12 24 36 48 60 72
×1000 km 16 32 48 64 80 96
×1000 miles 10 20 30 40 50 60
ELECTRIC VEHICLE SYSTEM
Coolant level IIIIII
Coolant
*1Replace at first 192,000 km (120,000 miles) or 180
months; after that, every 96,000 km (60,000 miles) or 60 months.
OTHER THAN ENGINE AND ELECTRIC VEHICLE SYSTEM
Brake lines, hoses and connections I I I
Brake fluid RRR
Disc brakes IIIIII
Steering operation and linkages I I I
Front and rear suspension, ball joints and
wheel bearing axial play III
Driveshaft dust boot I I I
Bolts and nuts on chassis and body T T T
Maintenance and Care
Scheduled Maintenance
6-5
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Maintenance IntervalNumber of months or kilometers (miles), whichever comes
first.
Months 12 24 36 48 60 72
×1000 km 16 32 48 64 80 96
×1000 miles 10 20 30 40 50 60
Body condition inspection for rust, corro-
sion and perforation IIIIII
Cabin air filter Replace every 40,000 km (25,000 miles) or 24 months.
Tire rotation Rotate every 16,000 km (10,000 miles).
Tire in flation pressure and tire wear
*2IIIIII
Emergency flat tire repair kit (if equipped)
*3Inspect annually.
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R : Replace
T: Tighten
Remarks:
*1Use of FL-22 is recommended when replacing coolant. Using coolant other than
FL-22 may cause
serious damage to the engine and cooling system.
*2 Inspect a spare tire if equipped.*3Check the tire repair fluid expiration date every year when performing the periodic maintenance.
Replace the tire repair fluid bottle with a new one before the expiration date.
Maintenance and Care
Scheduled Maintenance
6-6
MX
-30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

Owner MaintenancePrecautions
▼Owner Maintenance Precautions
The owner or a qualifi
ed service
technician should make these vehicle
inspections at the indicated intervals to
ensure safe and dependable
operation.

Bring any problem to the attention of
an Authorized Mazda Dealer or
quali fied service technician as soon as
possible.
When Charging the Vehicle
Brake fluid level (page 6-12)Coolant level (page 6-11)Washer fluid level (page 6-13)Lead-acid Battery Maintenance
(page 6-20)
At Least Monthly
Tire in flation pressures (page 6-23)
At Least Twice a Year (For Example,
Every Spring and Fall)
You can do the following scheduled
maintenance items if you have some
mechanical ability and a few basic
tools and if you closely follow the
directions in this manual.
Coolant (page 6-11)

Improper or incomplete service may
result in problems. This section gives
instructions only for items that are easy
to perform.

As explained in the Introduction (page
6-2), several procedures can be done
only by a quali fied service technician
with special tools.

Improper owner maintenance during
the warranty period may a ffect
warranty coverage. Refer to
Introduction (page 6-2) for owner's
responsibility in protecting your
investment. For details, read the
separate Mazda Warranty statement
provided with the vehicle. If you are
unsure about any servicing or
maintenance procedure, have it done
by an Authorized Mazda Dealer.

There are strict environmental laws
regarding the disposal of waste fluids.
Please dispose of your waste properly
and with due regard to the
environment.

We recommend that you entrust the
fl uid changes of your vehicle to an
Authorized Mazda Dealer.
WARNING
Do not perform maintenance work if
you lack suffi cient knowledge and
experience or the proper tools and
equipment to do the work. Have
maintenance work done by a
quali fied technician:
Performing maintenance work on a
vehicle is dangerous if not done
properly. You can be seriously injured
while performing some maintenance
procedures.
Maintenance and Care
Owner Maintenance
6-7
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

If you must run the EV system while
working under the hood, make
certain that you remove all jewelry
(especially rings, bracelets, watches,
and necklaces) and all neckties,
scarves, and similar loose clothing
before getting near the cooling fan
which may turn on unexpectedly:
Working under the hood with the EV
system operating is dangerous. It
becomes even more dangerous when
you wear jewelry, loose clothing or
have long hair or a long beard.
Either can become entangled in
moving parts and result in injury.
Pull over to a safe location, then
switch the power switch o ff and make
sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running inde finitely even if
the EV system has stopped and the
motor compartment temperature is
high. You could be hit by the fan and
seriously injured.
Do not leave items in the motor
compartment:
After you have finished checking or
doing servicing in the motor
compartment, do not forget and leave
items such as tools or rags in the motor
compartment.
Tools or other items left in the motor
compartment could cause EV system
damage or a fire leading to an
unexpected accident.
Hood
▼ Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and securely
locked is dangerous as it could
fly open
while the vehicle is moving and block
the driver's vision which could result in
a serious accident.
▼ Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.

2. Insert your hand into the hoodopening, slide the latch lever in the
direction of the allow as shown in
the illustration, and lift up the
hood.


Maintenance and Care
Owner Maintenance
6-8
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07

3. Grasp the support rod in thepadded area and secure it in the
support rod hole indicated by the
arrow to hold the hood open.

1. Pad
2. Support rod
▼Closing the Hood
1. Check under the hood area to
make certain all filler caps are in
place and all loose items (e.g.
tools, oil containers, etc.) have
been removed.
2. Lift the hood, grasp the padded area on the support rod, and secure
the support rod in the clip. Verify
that the support rod is secured in
the clip before closing the hood.

1. Clip

3. Lower the hood slowly to a heightof about 20 cm (7.9 in) above its
closed position and then let it drop.
CAUTION
When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
Maintenance and Care
Owner Maintenance
6-9
MX -30_8JD4-EA -21G_Edition2_new 2021-5-18 14:38:07
