MAZDA MODEL MX-5 RF 2017 (in English) Owner's Manual

2–1*Some models.2–1
2Essential Safety Equipment
Important information about safety equipment, including seats, seat belt
system, child-restraint systems and SRS air bags.
Seats ..................................................................................................... 2-2
Seat Precautions ............................................................................ 2-2
Seat ................................................................................................ 2-5
Head Restraints ............................................................................. 2-8
Seat Belt Systems ................................................................................ 2-9
Seat Belt Precautions .................................................................... 2-9
Seat Belt ...................................................................................... 2-12
Seat Belt Warning Systems ......................................................... 2-13
Seat Belt Pretensioner and Load Limiting Systems .................... 2-14
Child Restraint ................................................................................. 2-16
Child-Restraint Precautions ........................................................ 2-16
Child-Restraint System Installation ............................................ 2-21
Child-Restraint System Suitability for Various Seat Positions
Table ............................................................................................ 2-26
Installing Child-Restraint Systems ............................................. 2-29
SRS Air Bags .................................................................................... 2-33
Supplementary Restraint System (SRS) Precautions .................. 2-33
Supplementary Restraint System Components ........................... 2-39
How the SRS Air Bags Work ...................................................... 2-41
SRS Air Bag Deployment Criteria .............................................. 2-44
Limitations to SRS Air Bag ........................................................ 2-45
Passenger Occupant Classi¿ cation System
* ................................ 2-47
Constant Monitoring ................................................................... 2-52
Active Bonnet ................................................................................... 2-53
Active Bonnet precautions
* ......................................................... 2-53
How the Active Bonnet Works .................................................... 2-55
/:A(.'',A'FKVKQPKPFD

2–2
Essential Safety Equipment
Seats
Seat Precautions
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden
stop or collision, the seat or seatback could move, causing injury. Make sure the
adjustable components of the seat are locked in place by attempting to slide the seat
forward and backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a
child's hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving
the seatback unlocked is dangerous as it can allow passengers to be ejected or thrown
around and baggage to strike occupants in a sudden stop or collision, resulting in
severe injury. After adjusting the seatback at any time, even when there are no other
passengers, rock the seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could
lose control of the vehicle and have an accident.
Do not modify or replace the seats:
Modifying or replacing the seats such as replacing the upholstery or loosening any
bolts is dangerous. The seats contain air bag components essential to the supplementary
restraint system. Such modi¿ cations could damage the supplementary restraint system
and result in serious injury. Consult an Authorised Mazda Repairer if there is any need
to remove or reinstall the seats.
Do not drive with damaged seats:
Driving with damaged seats, such as seat cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to inÀ ate the air bags,
could damage the seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always
have an Authorised Mazda Repairer inspect the seats, seat belt pretensioners and air
bags after a collision.
/:A(.'',A'FKVKQPKPFD

2–3
Essential Safety Equipment
Seats
WARNING
Do not drive with either seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do
not get the full protection from seat belts. During sudden braking or a collision, you can
slide under the lap belt and suffer serious internal injuries. For maximum protection,
sit well back and upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, which could result in a serious accident,
injury or death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be ¿ xed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During
sudden braking or a collision, objects can À y around and become projectiles that may
hit and injure passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during
sudden braking or a collision and cause injury.
Always leave your car locked and keep the car keys safely away from children:
Leaving your car unlocked or the keys in reach of children is dangerous. Children who
¿ nd their way into the boot through an open boot can become accidentally locked in the
boot. This could result in death or brain damage from heat prostration, particularly in
the summer. Always lock the doors and the boot.
/:A(.'',A'FKVKQPKPFD

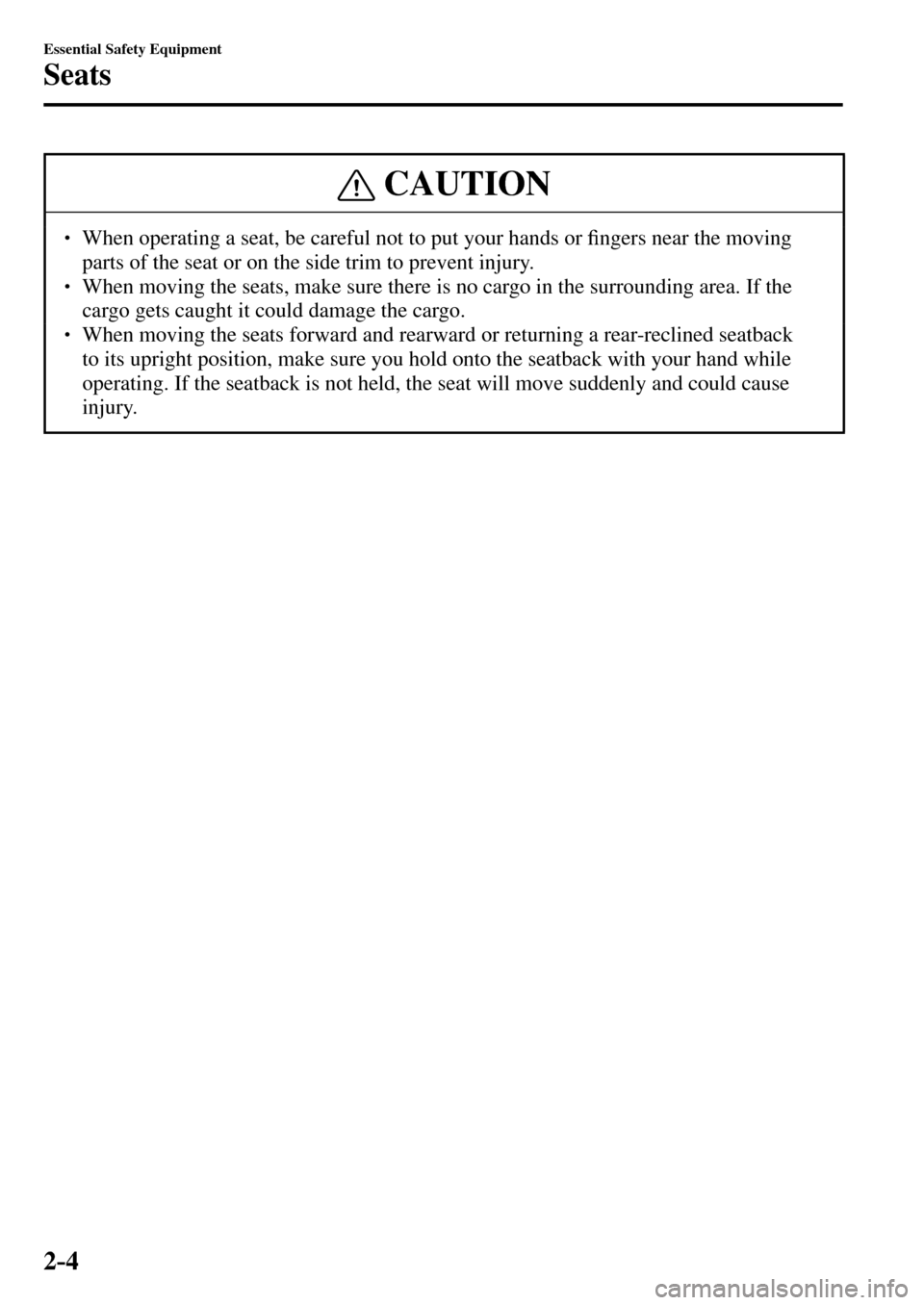

2–4
Essential Safety Equipment
Seats
CAUTION
  When operating a seat, be careful not to put your hands or ¿ ngers near the moving
parts of the seat or on the side trim to prevent injury.
  When moving the seats, make sure there is no cargo in the surrounding area. If the
cargo gets caught it could damage the cargo.
  When moving the seats forward and rearward or returning a rear-reclined seatback
to its upright position, make sure you hold onto the seatback with your hand while
operating. If the seatback is not held, the seat will move suddenly and could cause
injury.
/:A(.'',A'FKVKQPKPFD

2–5
Essential Safety Equipment
Seats
Seat
Seat Operation
Seat Slide
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
Height Adjustment for Front Edge of Seat Bottom (Driver's Seat)
To adjust the height for front edge of the seat bottom, rotate the dial to the desired position.
Seat Recline
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
/:A(.'',A'FKVKQPKPFD

2–6
Essential Safety Equipment
Seats
*Some models.
Seat Warmer *
The seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
Low Mid High OFF
WARNING
Be careful when using the seat
warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
as follows, and could cause a low-
temperature burn.

 Infants, small children, elderly
people, and physically challenged
people
  People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
/:A(.'',A'FKVKQPKPFD

2–7
Essential Safety Equipment
Seats
CAUTION
Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
  If the ignition is switched off while
the seat warmer is operating (High,
Mid or Low) and then switched
ON again, the seat warmer will
automatically operate at the
temperature set before switching off
the ignition.
  Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine
not running could cause the battery
power to be depleted.
  The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
/:A(.'',A'FKVKQPKPFD

2–8
Essential Safety Equipment
Seats
Head Restraints
Non-Adjustable Head Restraints
Your vehicle is equipped with non-adjustable head restraints on the driver's and passenger's
seatbacks. The non-adjustable head restraints consist of a trimmed foam covering over the
upper structure of the seatbacks and are intended to help protect you and the passenger from
neck injury. Adjust the seatbacks to their upright, on-road positions so that the head restraint
is positioned as close as possible to the back of your head.
WARNING
Make sure the seatbacks are properly adjusted to their upright, on-road positions before
the vehicle is driven:
Driving with the seatbacks not adjusted properly is dangerous. With no support behind
your head, your neck could be seriously injured in a collision.
/:A(.'',A'FKVKQPKPFD

2–9
Essential Safety Equipment
Seat Belt Systems
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and passengers always wear seat belts.
All the seats have lap/shoulder belts. These belts have retractors with inertia locks that keep
them out of the way when not in use. The locks allow the belts to remain comfortable on
users, but they will lock in position during a collision.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not available
to absorb the impact. This puts more force on the bones beneath the belt, which could
cause serious injury or death. So, if your seat belt is twisted, you must straighten the
seat belt to remove any twists and to allow the full width of the belt to be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could
be crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an expert repairer, we recommend an Authorised Mazda Repairer
inspect all seat belt systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has been
expended:
Always have an expert repairer, we recommend an Authorised Mazda Repairer
immediately inspect the seat belt pretensioners and air bags after any collision. Like the
air bags, the seat belt pretensioners and load limiters will only function once and must
be replaced after any collision that caused them to deploy. If the seat belt pretensioners
and load limiters are not replaced, the risk of injury in a collision will increase.
/:A(.'',A'FKVKQPKPFD

2–10
Essential Safety Equipment
Seat Belt Systems
WARNING
Positioning the Shoulder Portion of the Seat Belt:
Improper positioning of the shoulder portion of the seat belt is dangerous. Always make
sure the shoulder portion of the seat belt is positioned across your shoulder and near
your neck, but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury.
Wear the lap portion of the belt snugly and as low as possible.
Instructions for Use of Seat Belt Assemblies:
Seatbelts are designed to bear upon the bony structure of the body, and should be worn
low across the front of the pelvis or the pelvis, chest and shoulders, as applicable;
wearing the lap section of the belt across the abdominal area must be avoided.
Seatbelts should be adjusted as ¿ rmly as possible, consistent with comfort, to provide
the protection for which they have been designed. A slack belt will greatly reduce the
protection afforded to the wearer.
Care should be taken to avoid contamination of the webbing with polishes, oils and
chemicals, and particularly battery acid. Cleaning may safely be carried out using mild
soap and water. The belt should be replaced if webbing becomes frayed, contaminated
or damaged.
It is essential to replace the entire assembly after it has been worn in a severe impact
even if damage to the assembly is not obvious.
Belts should not be worn with straps twisted.
Each belt assembly must only be used by one occupant; it is dangerous to put a belt
around a child being carried on the occupant's lap.
No modi¿ cations or additions should be made by the user which will either prevent
the seat belt adjusting devices from operating to remove slack, or prevent the seat belt
assembly from being adjusted to remove slack.
/:A(.'',A'FKVKQPKPFD
