Black plate (71,1)
qAdvanced Key Maintenance
CAUTION
Ø Make sure the battery is installed
with the correct pole facing
upward. Battery leakage could
occur if it is not installed correctly.
Ø When replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also
be careful not to get dirt in the
transmitter as it could be
damaged.
Ø There is the danger of explosion if
the battery is not correctly
replaced.
Ø Replace only with the same type
battery (CR2025 or equivalent).
Ø Dispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire or water.
ØNever deform or crush.
The following conditions indicate that the
battery power is low:
lThe KEY indicator light (green) flashes
in the instrument cluster when the
engine is turned off.
lThe system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
lThe system's operational range is
reduced. Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the advanced key. If replacing
the battery by yourself, follow the
instruction below.
Replacing the advanced key battery
1. Pull out the auxiliary key.
2. Release the cap using a small flathead
screwdriver, then rotate and remove the
cap.
Cap
CAUTION
Do not turn the cap excessively. The
cap may be damaged.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-5
RX-8_8Z09-EA-08C_Edition3 Page71
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (72,1)
3. Insert a small flathead screwdriver intothe crack and press the battery out.
4. Insert the new battery (CR2025 or
equivalent) with the positive pole (
)
facing the (
) mark on the cap.
5. Rotate and close the cap.
Cap
6. Reinsert the auxiliary key.
q Service
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
3-6
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8Z09-EA-08C_Edition3 Page72
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (73,1)
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate.
Locking, unlocking the doors
The operational range for locking/
unlocking the doors is an area of up to 80
cm (2.6 ft) from the center of the front
door handles.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are too
close to the windows, door handles.
Opening the trunk lid
The operational range for opening the
trunk lid is an area of up to 80 cm (2.6 ft)
from the center of the trunk lid.
Exterior transmitter
Operational range
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area.
Interior transmitter
O
perational range
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
RX-8_8Z09-EA-08C_Edition3 Page73
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

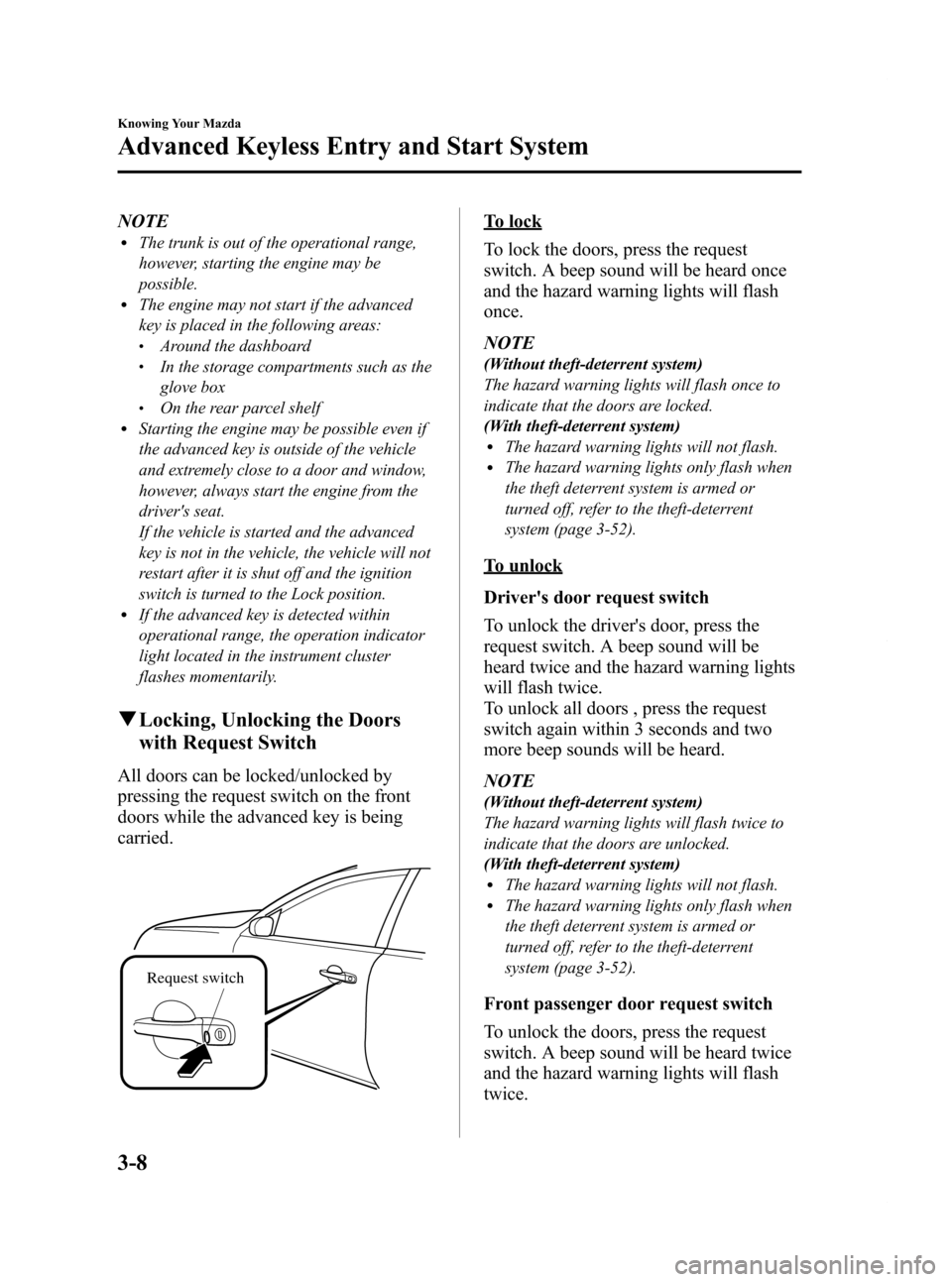

Black plate (74,1)
NOTElThe trunk is out of the operational range,
however, starting the engine may be
possible.
lThe engine may not start if the advanced
key is placed in the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
lOn the rear parcel shelflStarting the engine may be possible even if
the advanced key is outside of the vehicle
and extremely close to a door and window,
however, always start the engine from the
driver's seat.
If the vehicle is started and the advanced
key is not in the vehicle, the vehicle will not
restart after it is shut off and the ignition
switch is turned to the Lock position.
lIf the advanced key is detected within
operational range, the operation indicator
light located in the instrument cluster
flashes momentarily.
qLocking, Unlocking the Doors
with Request Switch
All doors can be locked/unlocked by
pressing the request switch on the front
doors while the advanced key is being
carried.
Request switch
To lock
To lock the doors, press the request
switch. A beep sound will be heard once
and the hazard warning lights will flash
once.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that the doors are locked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-52).
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors , press the request
switch again within 3 seconds and two
more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that the doors are unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not flash.lThe hazard warning lights only flash when
the theft deterrent system is armed or
turned off, refer to the theft-deterrent
system (page 3-52).
Front passenger door request switch
To unlock the doors, press the request
switch. A beep sound will be heard twice
and the hazard warning lights will flash
twice.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8Z09-EA-08C_Edition3 Page74
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

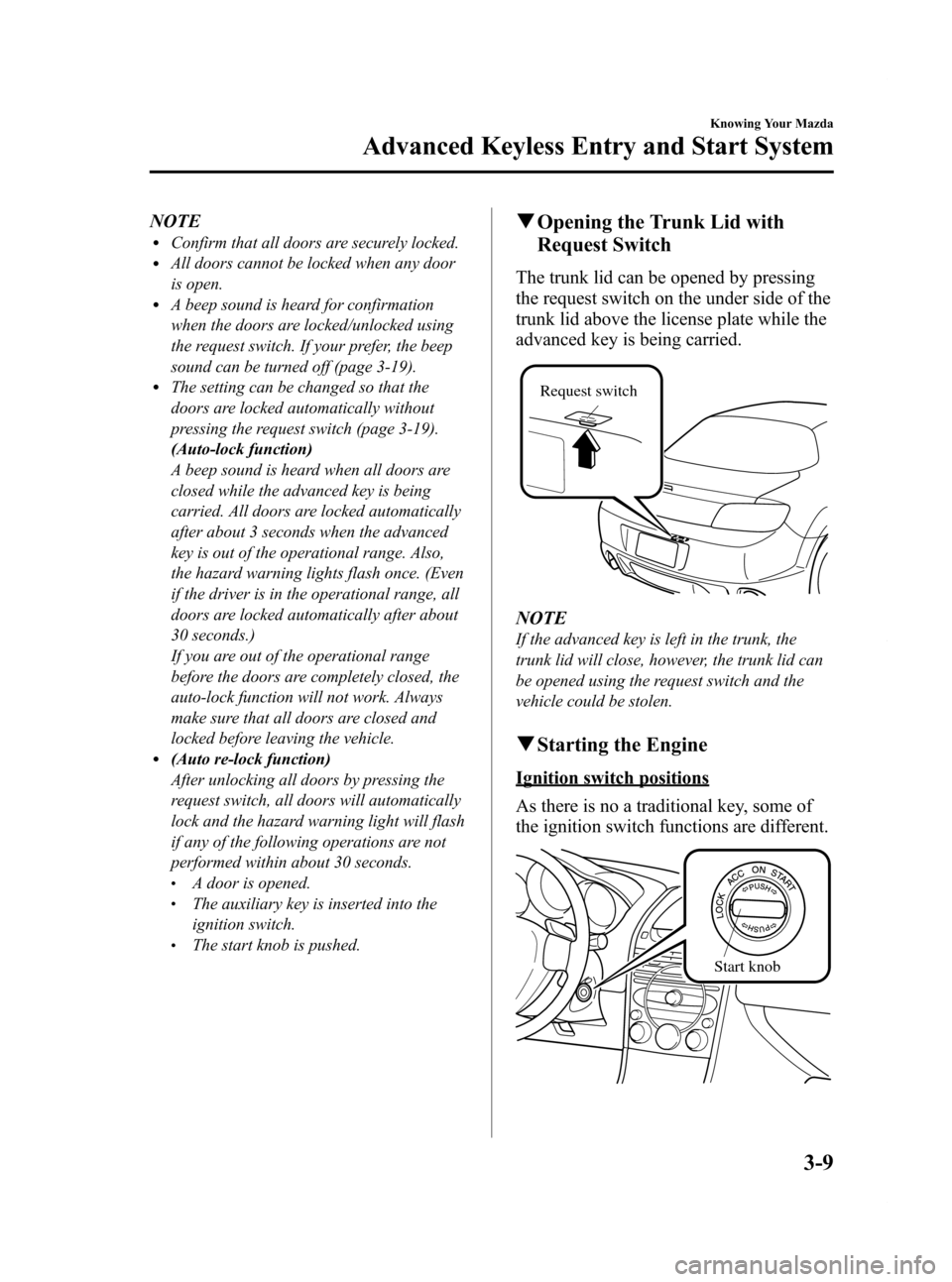

Black plate (75,1)
NOTElConfirm that all doors are securely locked.lAll doors cannot be locked when any door
is open.
lA beep sound is heard for confirmation
when the doors are locked/unlocked using
the request switch. If your prefer, the beep
sound can be turned off (page 3-19).
lThe setting can be changed so that the
doors are locked automatically without
pressing the request switch (page 3-19).
(Auto-lock function)
A beep sound is heard when all doors are
closed while the advanced key is being
carried. All doors are locked automatically
after about 3 seconds when the advanced
key is out of the operational range. Also,
the hazard warning lights flash once. (Even
if the driver is in the operational range, all
doors are locked automatically after about
30 seconds.)
If you are out of the operational range
before the doors are completely closed, the
auto-lock function will not work. Always
make sure that all doors are closed and
locked before leaving the vehicle.
l(Auto re-lock function)
After unlocking all doors by pressing the
request switch, all doors will automatically
lock and the hazard warning light will flash
if any of the following operations are not
performed within about 30 seconds.
lA door is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pushed.
qOpening the Trunk Lid with
Request Switch
The trunk lid can be opened by pressing
the request switch on the under side of the
trunk lid above the license plate while the
advanced key is being carried.
Request switch
NOTE
If the advanced key is left in the trunk, the
trunk lid will close, however, the trunk lid can
be opened using the request switch and the
vehicle could be stolen.
qStarting the Engine
Ignition switch positions
As there is no a traditional key, some of
the ignition switch functions are different.
Start knob
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
RX-8_8Z09-EA-08C_Edition3 Page75
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (76,1)
LOCK (Released)
The steering wheel locks to help protect
against theft.
LOCK (Depressed)
The ignition switch can be turned to the
ACC position when the KEY indicator
light (green) illuminates in the instrument
cluster.
WARNING
Before leaving the driver's seat, always
put the key or start knob to LOCK
position, set the parking brake and
make sure the shift lever is in P with an
automatic transmission or in 1 or R
with a manual transmission:It is important to place the key or
start knob in the LOCK position even
if you are not removing the key from
the ignition or leaving the vehicle.
Leaving the key in other positions
will disable some of the vehicle
security systems and run the battery
down.
Leaving the driver's seat without
putting the ignition switch in LOCK
position, setting the parking brake
and shifting the shift lever to P with
an automatic transmission, or to 1 or
R with a manual transmission is
dangerous. Unexpected vehicle
movement could occur. This could
cause an accident. NOTE
lIf turning the ignition switch is difficult,
jiggle the steering wheel from side to side.
l(Automatic transmission)
The ignition switch cannot be turned from
the ACC position to the LOCK position
when the shift lever is not in P.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
NOTE
The Advanced Keyless Entry System does not
function in the ACC position, and the doors
will not lock/unlock using the transmitter or
request switches even if the advanced key is
carried away from the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-40).
NOTE
When the ignition switch is turned to the ON
position, the sound of the fuel pump motor
operating near the fuel tank can be heard. This
does not indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-40).
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8Z09-EA-08C_Edition3 Page76
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (77,1)
Starting the engine
NOTE
lEngine-starting is controlled by the spark
ignition system.
This system meets all Canadian
Interference-Causing Equipment Standard
requirements regulating the impulse
electrical field strength of radio noise.
lThe advanced key must be carried because
the advanced key carries an immobilizer
chip that must communicate with the engine
controls at short range.
lWhen starting the engine, be sure the start
knob is securely attached before trying to
operate it. If the knob becomes detached
from the ignition switch, re-attach it by
pushing it on to the ignition switch.
1. Make sure the advanced key is beingcarried.
2. Occupants should fasten their seat belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal. 5.
(Manual transmission)
Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate if the clutch pedal
is not depressed all the way.
(Automatic transmission)
The starter will not operate if the shift lever is
not in P or N.
6. Push the start knob slowly all the way in.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
RX-8_8Z09-EA-08C_Edition3 Page77
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (78,1)
7. Verify that the KEY indicator light(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine using the Advanced Keyless
System. You may have to use the
auxiliary key instead (page 3-20).
NOTE
In the following cases, the KEY warning light
(red) illuminates and the engine will not start.
lThe advanced key battery is dead.lThe advanced key is out of operational
range.
lThe advanced key is placed in areas where
it is difficult for the system to detect the
signal (page 3-7).
lA key from another manufacturer similar to
the advanced key is in the operational
range.
8. Turn the ignition switch to the ACC
position while pushing the start knob
in.
9. Turn the ignition switch from the ACCposition to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
CAUTION
Do not try the starter for more than
10 seconds at a time. If the engine
stalls or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
10. After starting the engine, let it idle for about 15 seconds.Then perform the
shift operation.
NOTE
lIn extremely cold weather (below 0°C
(32°F)) or after the vehicle has not been
driven in several days, let the engine warm
up without operating the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
lThe display of the variable red zone in the
tachometer changes according to the
temperature of the engine coolant. To
protect the engine, when the engine coolant
temperature is low, the engine does not run
at high speeds. The fuel supply will be cut
at an rpm lower than the red zone.
Refer to Tachometer on page 5-37.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-18).
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8Z09-EA-08C_Edition3 Page78
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (79,1)
Turning off the engine
NOTE
For improved engine starting performance the
next time you start the engine after only
driving the vehicle a short distance, turn off
the engine after 1 or more of the variable red
zone lamps in the tachometer have turned off.
1. Move the shift lever to the P position(Automatic transmission).
2. Turn the ignition switch from the ON position to the ACC position.
NOTE
When the engine is turned off and the ignition
switch it turned from the ACC position to the
LOCK position, the KEY indicator light
(green) flashes in the instrument cluster for
about 30 seconds if the battery power of the
advanced key is low. Replace the battery with a
new one.
Refer to Battery Replacement (page 3-6).
3. Push in the start knob from the ACC position and turn it to the LOCK
position.
CAUTION
When leaving the vehicle, make sure
the ignition switch is turned to the
LOCK position. NOTE
lWhen turning the ignition switch to the
LOCK position, the ignition switch has to
be pushed in from the ACC position and
turned. Without being pushed in, the
ignition switch stops at the ACC position
and the vehicle battery may be discharged
if the ignition switch is left in the ACC
position. When leaving the vehicle, make
sure the ignition switch is turned to the
LOCK position.
lIf the vehicle is left with the ignition switch
not in the LOCK position, a beep sound is
heard and the indicator light flashes to
notify the driver.
Refer to Warning Beep (page 3-17).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-13
RX-8_8Z09-EA-08C_Edition3 Page79
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C

Black plate (80,1)
Operation Using Advanced
Key Functions
qKeyless Entry System
This system uses the more traditional key
buttons to remotely lock and unlock the
doors and opens the trunk lid, and opens
the power windows.
It can also help you signal for attention.
Press the buttons slowly and carefully.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system does not operate when the
ignition switch is not in the LOCK position
or the start knob is pushed in.
lWith the start knob installed in the LOCK
position, the system is fully operational. If
the ignition switch is not in the LOCK
position or the start knob is pushed in, the
system does not operate.
lAll doors cannot be locked by pressing the
lock button while any door is open. The
hazard warning lights will also not flash.
lIf the transmitter does not operate when
pressing a button or the operational range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
Transmitter
Panic button
Unlock button Lock button
Trunk button
NOTEl(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
l(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
NOTE
The unlock button can be used to open the
power windows. Refer to Opening the Power
Windows from Outside (page 3-38).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors, press the lock button. A
beep sound will be heard once and the
hazard warning lights will flash once.
3-14
Knowing Your Mazda
Advanced Keyless Entry and Start System
RX-8_8Z09-EA-08C_Edition3 Page80
Thursday, July 3 2008 2:22 PM
Form No.8Z09-EA-08C
