MAZDA MODEL RX 8 2011 Owners Manual (in English)

Black plate (141,1)
Trailer Towing
The Mazda RX-8 is not designed for
towing. Never tow a trailer with your
Mazda RX-8.
Before Driving Your Mazda
Towing
4-13
RX-8_8BQ7-EA-10H_Edition1 Page141
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

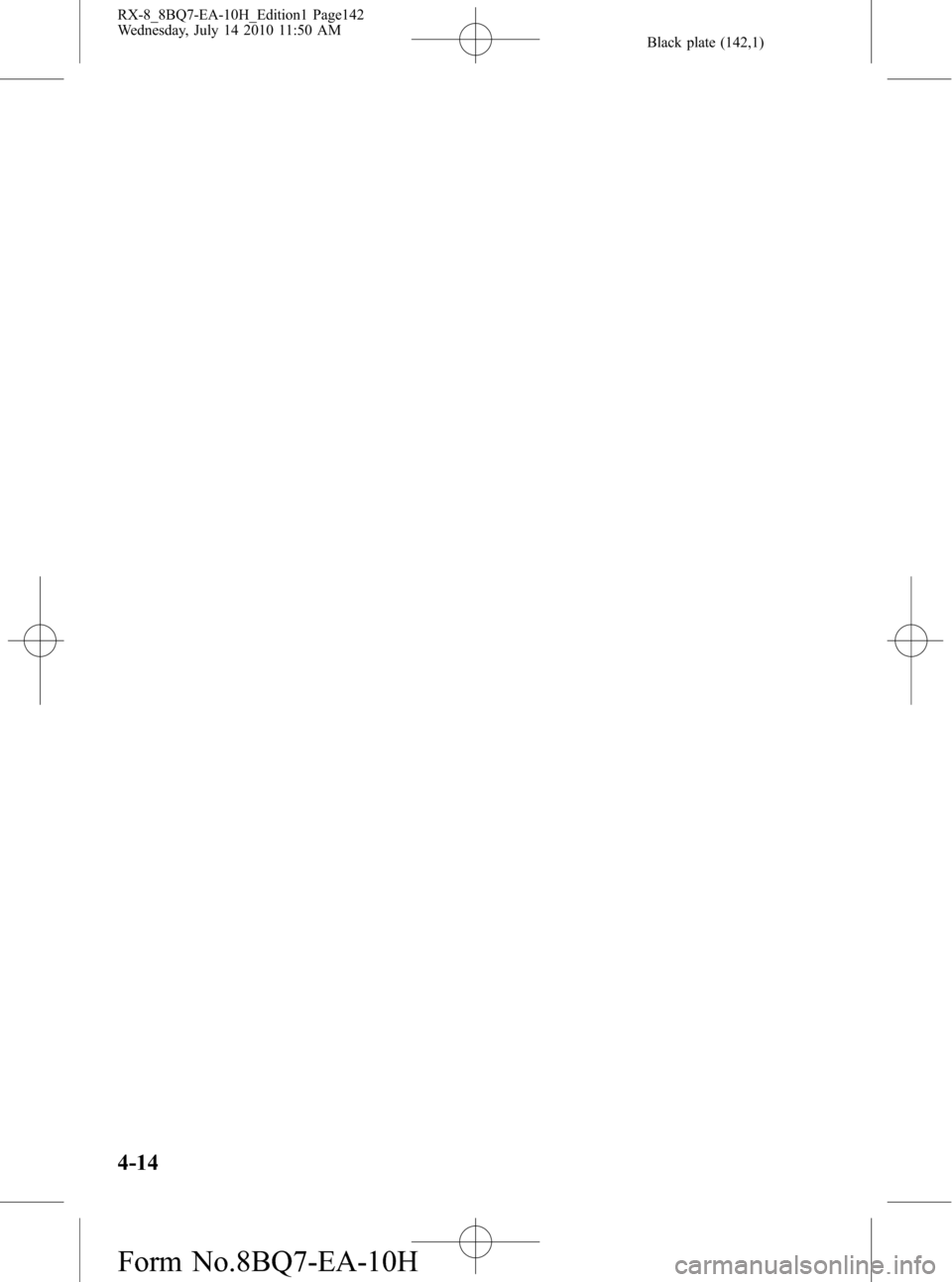

Black plate (142,1)
4-14
RX-8_8BQ7-EA-10H_Edition1 Page142
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (143,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-4
Turning the Engine Off ............................................................. 5-5
Brake System ............................................................................ 5-6
Manual Transmission Operation ............................................. 5-11
Automatic Transmission Controls ........................................... 5-14
Power Steering ........................................................................ 5-22
Cruise Control ......................................................................... 5-23
Traction Control System (TCS)
í........................................... 5-26
Dynamic Stability Control (DSC)í........................................ 5-27
Tire Pressure Monitoring Systemí......................................... 5-30
Instrument Cluster and Indicators ............................................ 5-36
Meters and Gauges .................................................................. 5-36
Warning/Indicator Lights and Beep Sounds ............................ 5-41
Warning/Indicator Lights ........................................................ 5-41
Beep Sounds ........................................................................... 5-57
Switches and Controls ................................................................ 5-59
Lighting Control ..................................................................... 5-59
Turn and Lane-Change Signals ............................................... 5-63
Fog Lights
í............................................................................ 5-63
Windshield Wipers and Washer .............................................. 5-64
Headlight Washer
í................................................................. 5-68
Rear Window Defroster ........................................................... 5-68
Horn ........................................................................................ 5-69
Hazard Warning Flasher .......................................................... 5-70
HomeLink Wireless Control System
í.................................... 5-70
5-1íSome models.
RX-8_8BQ7-EA-10H_Edition1 Page143
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (144,1)
Ignition Switch
Auxiliary key (with advanced key)
NOTE
When starting the engine using the advanced
key, refer to Starting the Engine (page 3-9).
When starting the engine with the
auxiliary key, perform the following
procedure.
1. Remove the auxiliary key from the
advanced key (page 3-16).
2. Make sure the start knob is in OFF/
LOCK position.
3. Remove the start knob by pulling it
outward while pressing the buttons on
both the left and right sides.
4. Insert the auxiliary key in the ignition
switch.
qIgnition Switch Positions
With advanced
key
Without advanced
key
The engraved mark (LOCK) indicated in
the illustration may differ from that
indicated on the actual vehicle (it may
read OFF).
OFF/LOCK
The power supply to electrical devices is
turned off. Only in this position can the
key be removed.
Manual transmission
To switch the ignition from ACC to OFF/
LOCK, push the key in at the ACC
position, then turn it to the OFF/LOCK
position.
Push the key
5-2
Driving Your Mazda
Starting and Driving
RX-8_8BQ7-EA-10H_Edition1 Page144
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (145,1)
Automatic transmission
To switch the ignition from ACC to OFF/
LOCK, the shift lever must be in the P
position.
Shift lever
engaged in P
(park)
WARNING
Remove the key only when the vehicle
is parked (with steering lock
mechanism):
Removing the key from the ignition
switch while the vehicle is moving is
dangerous. Removing the key allows
the steering wheel to lock. You will
lose steering control and a serious
accident could occur. (For vehicles
equipped with the advanced key, the
steering wheel locks when the starter
knob is turned to the OFF/LOCK
position.)
Before leaving the driver's seat, always
switch the ignition to OFF/LOCK, set the
parking brake and make sure the shift
lever is in P with an automatic
transmission or in 1 or R with a manual
transmission:
It is important to switch the ignition
to OFF/LOCK even if you are not
removing the key from the ignition or
leaving the vehicle. Leaving the key
in other positions will disable some of
the vehicle security systems and run
the battery down.
Leaving the driver's seat without
switching the ignition to OFF/LOCK,
setting the parking brake and
shifting the shift lever to P with an
automatic transmission, or to 1 or R
with a manual transmission is
dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
Driving Your Mazda
Starting and Driving
5-3
RX-8_8BQ7-EA-10H_Edition1 Page145
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (146,1)
NOTE
If turning the key is difficult, jiggle the steering
wheel from side to side.
Leaving the key or start knob in any position
but the OFF/LOCK position also disables
some of the security features and may run the
battery down.
ACC (Accessory)
In this position, some electrical
accessories will operate.
ON
This is the normal running position after
the engine is started. Some indicator
lights/warning lights should be inspected
before the engine is started (page 5-41).
NOTE
When the ignition is switched ON, the sound of
the fuel pump motor operating near the fuel
tank can be heard. This does not indicate an
abnormality.
START
The engine is started in this position. It
will crank until you release the key. It
then returns to the ON position.
qIgnition Key Reminder
If the ignition is switched off or the
ignition is switched to ACC with the key
inserted, a continuous beep sound will be
heard when the driver's door is opened.
Starting the Engine
NOTE
Engine-starting is controlled by the spark
ignition system.
This system meets all Canadian Interference-
Causing Equipment Standard requirements
regulating the impulse electrical field strength
of radio noise.
1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4.(Manual transmission)
Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
(Automatic transmission)
Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
(Manual transmission)
The starter will not operate unless the clutch is
depressed sufficiently.
(Automatic transmission)
The starter will not operate if the shift lever is
notin P or N.
5. Switch the ignition to START and hold
(up to 10 seconds at a time) until the
engine starts.
CAUTION
Do not try the starter for more than
10 seconds at a time. If the engine
stalls or fails to start, wait 10 seconds
before trying again. Otherwise, you
may damage the starter and drain
the battery.
5-4
Driving Your Mazda
Starting and Driving
RX-8_8BQ7-EA-10H_Edition1 Page146
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (147,1)
6. After starting the engine, let it idle for
about 15 seconds. Then perform the
shift operation.
NOTE
lIn extremely cold weather (below 0°C
(32°F)) or after the vehicle has not been
driven in several days, let the engine warm
up without operating the accelerator.
lWhether the engine is cold or warm, it
should be started without use of the
accelerator.
lThe display of the variable red zone in the
tachometer changes according to the
temperature of the engine coolant. To
protect the engine, when the engine coolant
temperature is low, the engine does not run
at high speeds. The fuel supply will be cut
at an rpm lower than the red zone.
Refer to Tachometer on page 5-38.
lIf the engine does not start the first time,
refer to Starting a Flooded Engine under
Emergency Starting. If the engine still does
not start, have your vehicle inspected by an
Authorized Mazda Dealer (page 7-19).
Turning the Engine Off
1. Stop the vehicle completely.
2.(Manual transmission)
Shift into neutral.
(Automatic transmission)
Shift the shift lever to the P position.
3. Switch the ignition from ON to OFF/
LOCK.
WARNING
Do not stop the engine while the
vehicle is moving:
Stopping the engine while the vehicle
is moving for any reason other than
in an emergency is dangerous.
Stopping the engine while the vehicle
is moving will result in reduced
maneuverability and braking ability
due to the loss of power steering and
power braking, which could cause an
accident and serious injury.
CAUTION
When leaving the vehicle, make sure
the ignition is switched off.
NOTE
The electrical fan in the engine compartment
could turn on for a few minutes after the
ignition is switched from ON to OFF, whether
or not the A/C is on or off, to cool the engine
compartment quickly.
Driving Your Mazda
Starting and Driving
5-5
RX-8_8BQ7-EA-10H_Edition1 Page147
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (148,1)
Brake System
qFoot Brake
Your Mazda has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.
WARNING
Do not coast with the engine stalled or
turned off, find a safe place to stop:
Coasting with the engine stalled or
turned off is dangerous. Braking will
require more effort, and the brake's
power-assist could be depleted if you
pump the brake. This will cause
longer stopping distances or even an
accident.
Shift to a lower gear when going down
steep hills:
Driving with your foot continuously
on the brake pedal or steadily
applying the brakes for long
distances is dangerous. This causes
overheated brakes, resulting in
longer stopping distances or even
total brake failure. This could cause
loss of vehicle control and a serious
accident. Avoid continuous
application of the brakes.
Dry off brakes that have become wet
by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
5-6
Driving Your Mazda
Starting and Driving
RX-8_8BQ7-EA-10H_Edition1 Page148
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (149,1)
CAUTION
ØDo not drive with your foot held
on the clutch pedal or brake pedal,
or hold the clutch pedal depressed
halfway unnecessarily. Doing so
could result in the following:
ØThe clutch and brake parts will
wear out more quickly.
ØThe brakes can overheat and
adversely affect brake
performance.
ØAlways depress the brake pedal
with the right foot. Applying the
brakes with the unaccustomed left
foot could slow your reaction time
to an emergency situation
resulting in insufficient braking
operation.
ØWear shoes appropriate for driving
in order to avoid your shoe
contacting the brake pedal when
depressing the accelerator pedal.
qParking Brake
WARNING
Before leaving the driver's seat, always
switch the ignition to OFF/LOCK, set the
parking brake and make sure the shift
lever is in P with an automatic
transmission or in 1 or R with a manual
transmission:
It is important to switch the ignition
to OFF/LOCK even if you are not
removing the key from the ignition or
leaving the vehicle. Leaving the key
in other positions will disable some of
the vehicle security systems and run
the battery down.
Leaving the driver's seat without
switching the ignition to OFF/LOCK,
setting the parking brake and
shifting the shift lever to P with an
automatic transmission, or to 1 or R
with a manual transmission is
dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
CAUTION
Driving with the parking brake on
will cause excessive wear of the brake
linings or pads.
NOTE
For parking in snow, refer to Winter Driving
(page 4-9) regarding parking brake use.
Driving Your Mazda
Starting and Driving
5-7
RX-8_8BQ7-EA-10H_Edition1 Page149
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H

Black plate (150,1)
Setting the parking brake
Depress the brake pedal and then firmly
pull the parking brake lever fully upwards
with sufficient force to hold the vehicle in
a stationary position.
Releasing the parking brake
Depress the brake pedal and pull the
parking brake lever upwards, then press
the release button. While holding the
button, lower the parking brake lever all
the way down to the released position.
qBrake System Warning Light
This warning has the following functions:
Brake system warning
Illuminates when there is a malfunction in
the brake switch.
Parking brake warning
The light illuminates when the parking
brake is applied with the ignition switched
to START or ON. It turns off when the
parking brake is fully released.
Low brake fluid level warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
You may notice that the pedal is harder to
depress or that it may go closer to the
floor. In either case, it will take longer to
stop the vehicle.
1. With the engine stopped, open the
hood and check the brake fluid level
immediately, and then add fluid if
required (page 8-16).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
5-8
Driving Your Mazda
Starting and Driving
RX-8_8BQ7-EA-10H_Edition1 Page150
Wednesday, July 14 2010 11:50 AM
Form No.8BQ7-EA-10H
