•If tar or grease spots are present, use Extra Strength Tar and Road Oil
Remover (0000–77–410E-01), available at your authorized Mazda
dealer.
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellant
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Ultra-Clear Spray Glass Cleaner
(0000–77–400E-01 and 0000–77–400E-02), available from your
authorized Mazda dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or a
windshield washer concentrate. This washer fluid concentrate contains
a special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
INSTRUMENT PANEL / INTERIOR TRIM AND CLUSTER LENS
Clean the interior trim areas and instrument panel with a damp cloth,
then with a clean, dry cloth, or use Mazda Deluxe Leather and Vinyl
Cleaner (0000-77-430E-15).
•Avoid cleaners or polish that increase the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
•Do not use household or glass cleaners, as these may damage the
finish.
•Do not allow air fresheners and hand sanitizers to spill on interior
surfaces. If a spill occurs,wipe off immediately.Damage may not be
covered by your warranty.
Cleaning
261
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

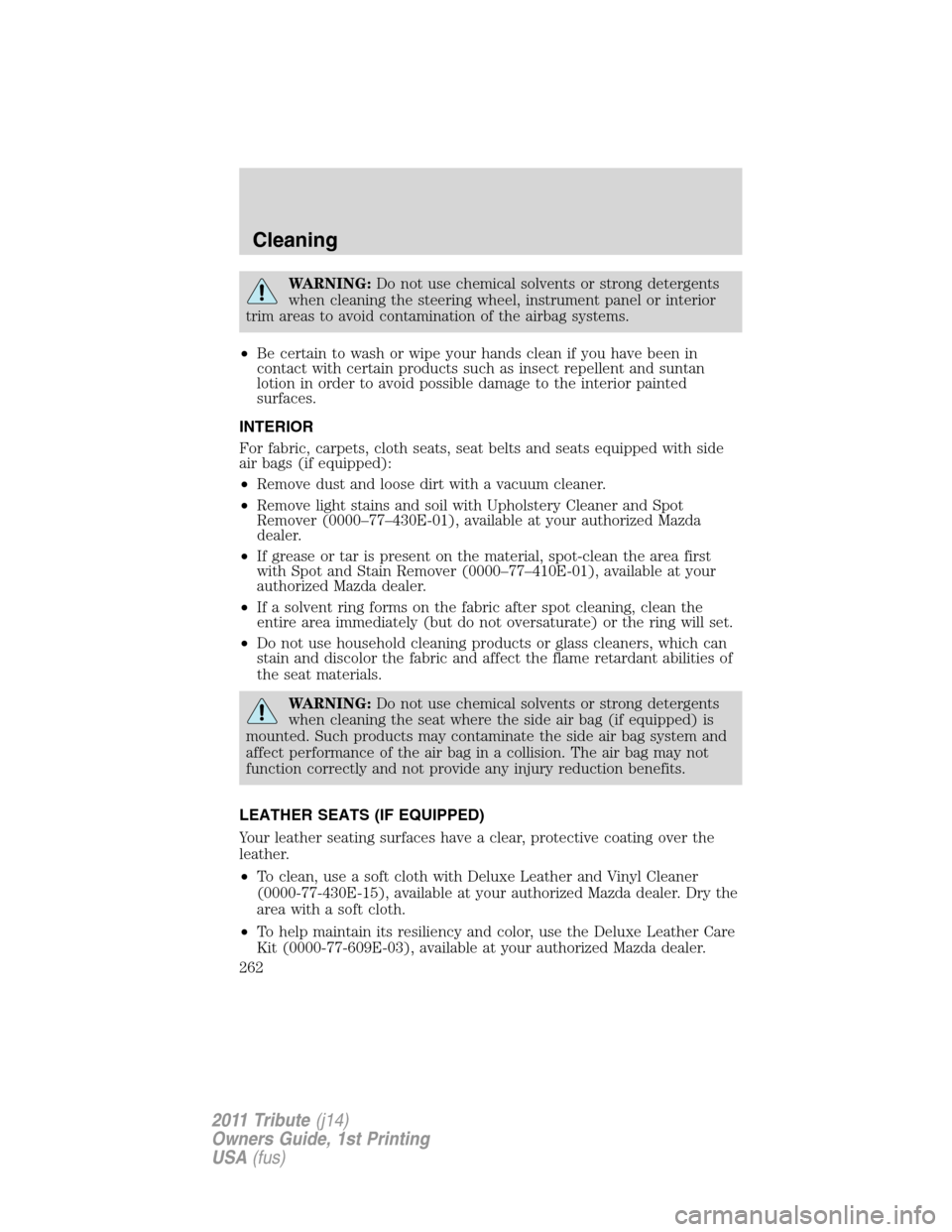

WARNING:Do not use chemical solvents or strong detergents
when cleaning the steering wheel, instrument panel or interior
trim areas to avoid contamination of the airbag systems.
•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the interior painted
surfaces.
INTERIOR
For fabric, carpets, cloth seats, seat belts and seats equipped with side
air bags (if equipped):
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with Upholstery Cleaner and Spot
Remover (0000–77–430E-01), available at your authorized Mazda
dealer.
•If grease or tar is present on the material, spot-clean the area first
with Spot and Stain Remover (0000–77–410E-01), available at your
authorized Mazda dealer.
•If a solvent ring forms on the fabric after spot cleaning, clean the
entire area immediately (but do not oversaturate) or the ring will set.
•Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
WARNING:Do not use chemical solvents or strong detergents
when cleaning the seat where the side air bag (if equipped) is
mounted. Such products may contaminate the side air bag system and
affect performance of the air bag in a collision. The air bag may not
function correctly and not provide any injury reduction benefits.
LEATHER SEATS (IF EQUIPPED)
Your leather seating surfaces have a clear, protective coating over the
leather.
•To clean, use a soft cloth with Deluxe Leather and Vinyl Cleaner
(0000-77-430E-15), available at your authorized Mazda dealer. Dry the
area with a soft cloth.
•To help maintain its resiliency and color, use the Deluxe Leather Care
Kit (0000-77-609E-03), available at your authorized Mazda dealer.
Cleaning
262
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

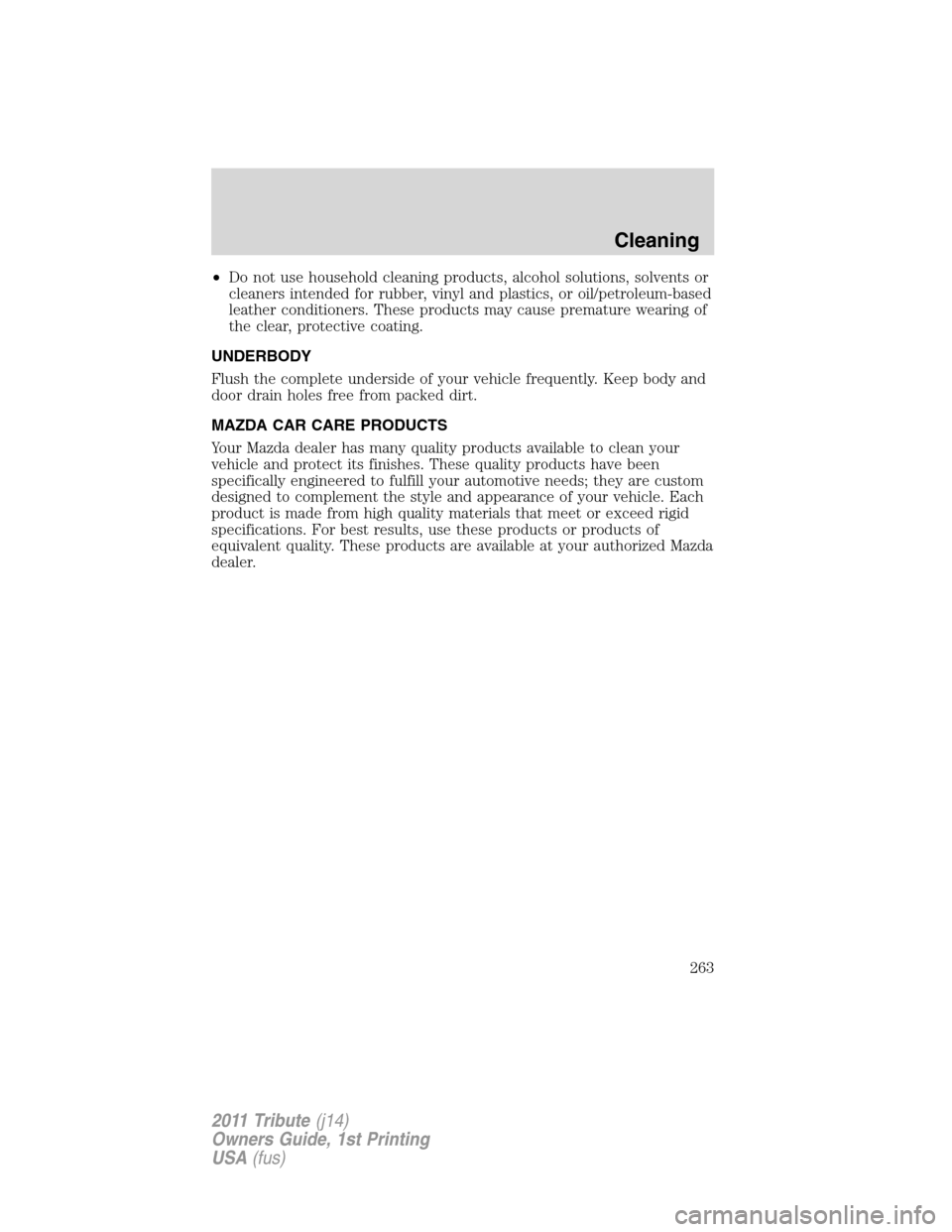

•Do not use household cleaning products, alcohol solutions, solvents or
cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based
leather conditioners. These products may cause premature wearing of
the clear, protective coating.
UNDERBODY
Flush the complete underside of your vehicle frequently. Keep body and
door drain holes free from packed dirt.
MAZDA CAR CARE PRODUCTS
Your Mazda dealer has many quality products available to clean your
vehicle and protect its finishes. These quality products have been
specifically engineered to fulfill your automotive needs; they are custom
designed to complement the style and appearance of your vehicle. Each
product is made from high quality materials that meet or exceed rigid
specifications. For best results, use these products or products of
equivalent quality. These products are available at your authorized Mazda
dealer.
Cleaning
263
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

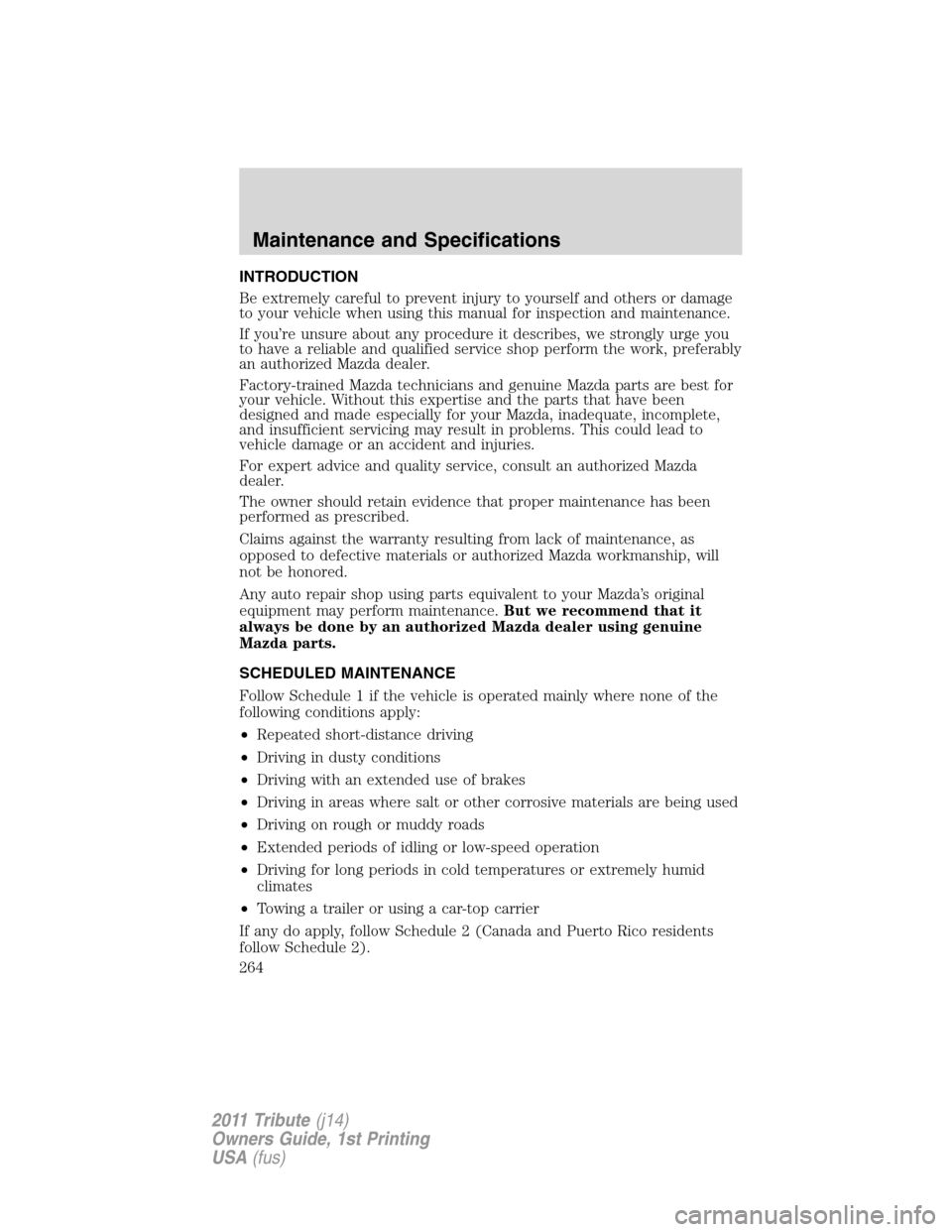

INTRODUCTION
Be extremely careful to prevent injury to yourself and others or damage
to your vehicle when using this manual for inspection and maintenance.
If you’re unsure about any procedure it describes, we strongly urge you
to have a reliable and qualified service shop perform the work, preferably
an authorized Mazda dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for
your vehicle. Without this expertise and the parts that have been
designed and made especially for your Mazda, inadequate, incomplete,
and insufficient servicing may result in problems. This could lead to
vehicle damage or an accident and injuries.
For expert advice and quality service, consult an authorized Mazda
dealer.
The owner should retain evidence that proper maintenance has been
performed as prescribed.
Claims against the warranty resulting from lack of maintenance, as
opposed to defective materials or authorized Mazda workmanship, will
not be honored.
Any auto repair shop using parts equivalent to your Mazda’s original
equipment may perform maintenance.But we recommend that it
always be done by an authorized Mazda dealer using genuine
Mazda parts.
SCHEDULED MAINTENANCE
Follow Schedule 1 if the vehicle is operated mainly where none of the
following conditions apply:
•Repeated short-distance driving
•Driving in dusty conditions
•Driving with an extended use of brakes
•Driving in areas where salt or other corrosive materials are being used
•Driving on rough or muddy roads
•Extended periods of idling or low-speed operation
•Driving for long periods in cold temperatures or extremely humid
climates
•Towing a trailer or using a car-top carrier
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents
follow Schedule 2).
Maintenance and Specifications
264
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

NOTE:After the described period, continue to follow the described
maintenance at the recommended intervals.
SCHEDULE 1
I:Inspect and repair, clean, adjust, or replace if necessary
(Oil-permeated air filter cannot be cleaned using the air-blow method)
R:Replace
L:Lubricate
Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Miles x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Km x 1,000) (12) (24) (36) (48) (60) (72) (84) (96) (108) (120) (132) (144)
ENGINE
Engine oil and filter1RRRRRRRRRRRR
Engine valve clearance (2.5L) Audible inspection every 75,000 miles (120,000 km);
adjust as necessary
Drive belt tension 2.5L I I
3.0L I I I
IGNITION SYSTEM
Spark plugs 2.5L Replace every 75,000 miles (120,000 km)
3.0L Replace every 90,000 miles (144,000 km)
FUEL SYSTEM
Air cleaner filter R R
Fuel tank Fill with a full tank of regular unleaded fuel every
3,000 miles (5,000 km) when use of E85 is 50% of the
time or greater
Fuel lines and hoses
2II I
Emission tubes and hoses2I
ENGINE COOLING SYSTEM
Engine coolant level I I I I I I I IIIII
Engine cooling system and hosesII I
Engine coolant Replace at 100,000 miles (160,000 km) or 72 months;
every 50,000 miles (80,000 km) or 36 months
thereafter
Maintenance and Specifications
265
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 6 12 18 24 30 36 42 48 54 60 66 72
Miles x 1,000 7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90
(Km x 1,000) (12) (24) (36) (48) (60) (72) (84) (96) (108) (120) (132) (144)
CHASSIS AND BODY
Brake lines, hoses and
connectionII I
Disc brakes I I I I I I
Drum brakes I I I
Rear differential fluid (4WD
only)
3Replace every 150,000 miles (240,000 km)
Rotate tires, check wheel lug
nut torque
4Rotate tires every 7,500 miles (12,000 km)
Tire inflation and wear I I I I I I I IIIII
Steering operation and linkages I I I
Power steering fluid level I I I I I I I IIIII
Manual transmission fluid Replace every 100,000 miles (160,000 km)
Automatic transmission fluid Replace every 150,000 miles (240,000 km)
Front and rear suspension ball
jointsII I
Driveshaft dust boots I I I
Bolts and nuts on chassis and
bodyII I
Exhaust system heat shields I I I
Locks and hingesLLLLLLLLLLLL
Washer fluid level I I I I I I I IIIII
1Change engine oil and replace oil filter every 5,000 miles (8,000 km) or
6 months when use of E85 is 50% of the time or greater.
2According to state and federal regulations, failure to perform
maintenance on these items will not void your emissions warranties.
However, Mazda recommends that all maintenance services be performed
at the recommended time or miles (kilometers) period to ensure
long-term reliability.
3If this component has been submerged in water, the oil should be
changed.
Maintenance and Specifications
266
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

4The wheel lug nuts must be retightened to the proper specifications at
500 miles (800 km) of new vehicle operation, at any wheel change, or at
any other time the wheel lug nuts have been loosened. Refer toWheel
lug nut torque specificationsin theTires, Wheels and Loading
chapter for the proper lug nut torque specification.
SCHEDULE 2
I:Inspect and repair, clean, adjust, or replace if necessary
(Oil-permeated air filter cannot be cleaned using the air-blow method)
R:Replace
L:Lubricate
Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
Milesx1,000 5 1015202530354045505560
(Km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
ENGINE
Engine oil and filter (except Puerto
Rico)
1RRRRRRRRRRRR
Engine oil and filter (Puerto Rico)
1Replace every 3,000 miles (5,000 km) or 3 months
Engine valve clearance (2.5L) Audible inspection every 75,000 miles
(120,000 km); adjust as necessary
Drive belt tension 2.5L I
3.0L I I
IGNITION SYSTEM
Spark plugs 2.5L US engine Replace every 60,000 miles (96,000 km)
3.0L US engine Replace every 75,000 miles (120,000 km)
All others
2Replace every 75,000 miles (120,000 km)
FUEL SYSTEM
Air cleaner filter Puerto Rico R R
All others R
Fuel tank Fill with a full tank of regular unleaded fuel every
3,000 miles (5,000 km) when use of E85 is 50%
of the time or greater
Fuel lines and hoses
3II
Emission tubes and hoses3I
Maintenance and Specifications
267
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Maintenance ItemMaintenance Interval (Months or miles [km], whichever
comes first)
Months 4 8 12 16 20 24 28 32 36 40 44 48
Miles x 1,000 5 10 15 20 25 30 35 40 45 50 55 60
(Km x 1,000) (8) (16) (24) (32) (40) (48) (56) (64) (72) (80) (88) (96)
ENGINE COOLING SYSTEM
Engine coolant level IIIIIIIIIIII
Engine cooling system and hoses I I
Engine coolant Replace at 100,000 miles (160,000 km) or 72 months; every 50,000 miles (80,000 km) or36 months thereafter
ELECTRICAL SYSTEM
Function of all lights IIIIIIIIIIII
CHASSIS AND BODY
Brake lines, hoses and connection II
Disc brakes IIII
Drum brakes II
Rear differential fluid (4WD only)
4Replace every 100,000 miles (160,000 km)
Rotate tires, check wheel lug nut
torque
5Rotate tires every 5,000 miles (8,000 km)
Tire inflation and wear IIIIIIIIIIII
Steering operation and linkages I I
Power steering fluid level IIIIIIIIIIII
Manual transmission fluid Replace every 100,000 miles (160,000 km)
Automatic transmission fluid Replace every 30,000 miles (48,000 km)
Front and rear suspension ball joints I I
Driveshaft dust boots I I
Bolts and nuts on chassis and body I I I I
Exhaust system heat shields I I
Locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
Maintenance and Specifications
268
2011 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)

1Change engine oil and replace oil filter every 3,000 miles (5,000 km) or
three months when use of E85 is 50% of the time or greater.
2If the vehicle is operated under any of the following conditions, change
the spark plugs every 60,000 miles (96,000 km) or shorter:
a) Repeated short-distance driving.
b) Extended periods of idling or low-speed operation.
c) Driving for long periods in cold temperatures or extremely humid
climates.
3According to state and federal regulations, failure to perform
maintenance on these items will not void your emissions warranties.
However, Mazda recommends that all maintenance services be performed
at the recommended time or miles (kilometers) period to ensure
long-term reliability.
4If this component has been submerged in water, the oil should be
changed.
5The wheel lug nuts must be retightened to the proper specifications at
500 miles (800 km) of new vehicle operation, at any wheel change, or at
any other time the wheel lug nuts have been loosened. Refer toWheel
lug nut torque specificationsin theTires, Wheels and Loading
chapter for the proper lug nut torque specification.
OWNER MAINTENANCE SCHEDULE
The owner or a qualified service technician should make these vehicle
inspections at the indicated intervals to ensure safe and dependable
operation.
Bring any problem to the attention of an authorized Mazda dealer or
qualified service technician as soon as possible.
When refueling
•Brake and clutch fluid level
•Engine coolant level
•Engine oil level
•Washer fluid level
At least monthly
•Tire inflation pressures
At least twice a year (for example, every Spring and Fall)
•Automatic transmission fluid level
•Power steering fluid level
Maintenance and Specifications
269
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)

Retightening lug nuts
•Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
•Refer toWheel lug nut torque specificationsin theTires, Wheels
and Loadingchapter for the proper lug nut torque specification.
SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide necessary parts and service. Check your Warranty Information to
find out which parts and services are covered.
Use only recommended fuels, lubricants, fluids and service parts
conforming to specifications. Genuine Mazda parts are designed and built
to provide the best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
WARNING:A hot engine is dangerous. If the engine has been
running, parts of the engine compartment can become very hot.
You could be burned. Don’t inspect the coolant system or add coolant
when the engine is hot.
•Do not work on a hot engine.
•Make sure that nothing gets caught in moving parts.
•Do not work on a vehicle with the engine running in an enclosed
space, unless you are sure you have enough ventilation.
•Keep all open flames and other lit material away from the battery and
all fuel related parts.
Working with the engine off
1. For vehicles equipped with an automatic transmission, set the
parking brake and shift to P (Park). For vehicles equipped with a
manual transmission, set the parking brake, press and hold the
clutch pedal, place the gearshift in 1 (First), and release the clutch
pedal.
2. Turn off the engine and remove the key.
3. Block the wheels.
Maintenance and Specifications
270
2011 Tribute(j14)
Owners Guide, 1st Printing
USA(fus)
