Page 251 of 514
Fig. 2: Checking Alternator Serpentine Belt Tension (Millenia, 2.3L)
Courtesy of MAZDA MOTORS CORP.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 3 © 2005 Mitchell Repair Information Company, LLC.
Page 252 of 514

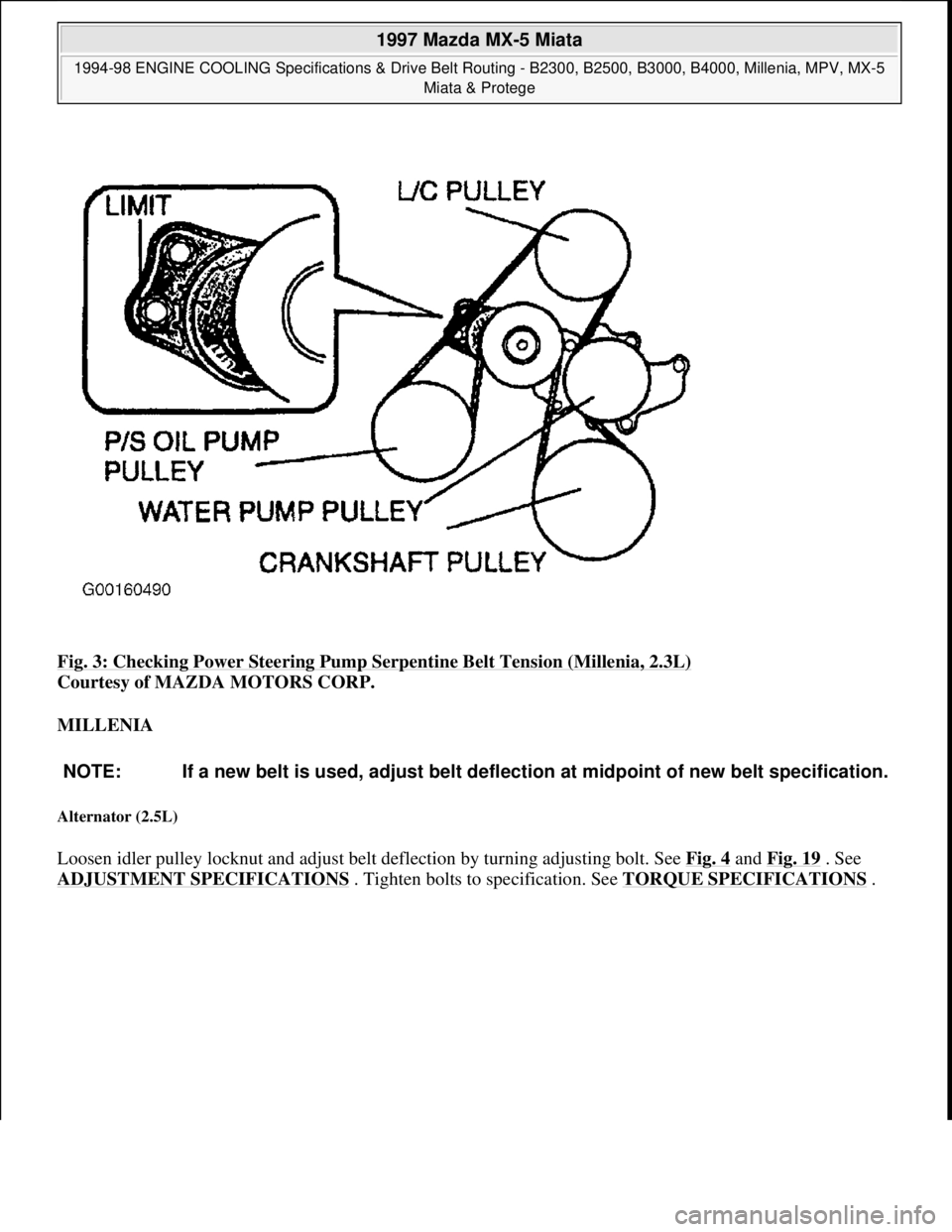

Fig. 3: Checking Power Steering Pump Serpentine Belt Tension (Millenia, 2.3L)
Courtesy of MAZDA MOTORS CORP.
MILLENIA
Alternator (2.5L)
Loosen idler pulley locknut and adjust belt deflection by turning adjusting bolt. See Fig. 4 and Fig. 19 . See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
NOTE: If a new belt is used, adjust belt deflection at midpoint of new belt specification.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 4 © 2005 Mitchell Repair Information Company, LLC.
Page 253 of 514

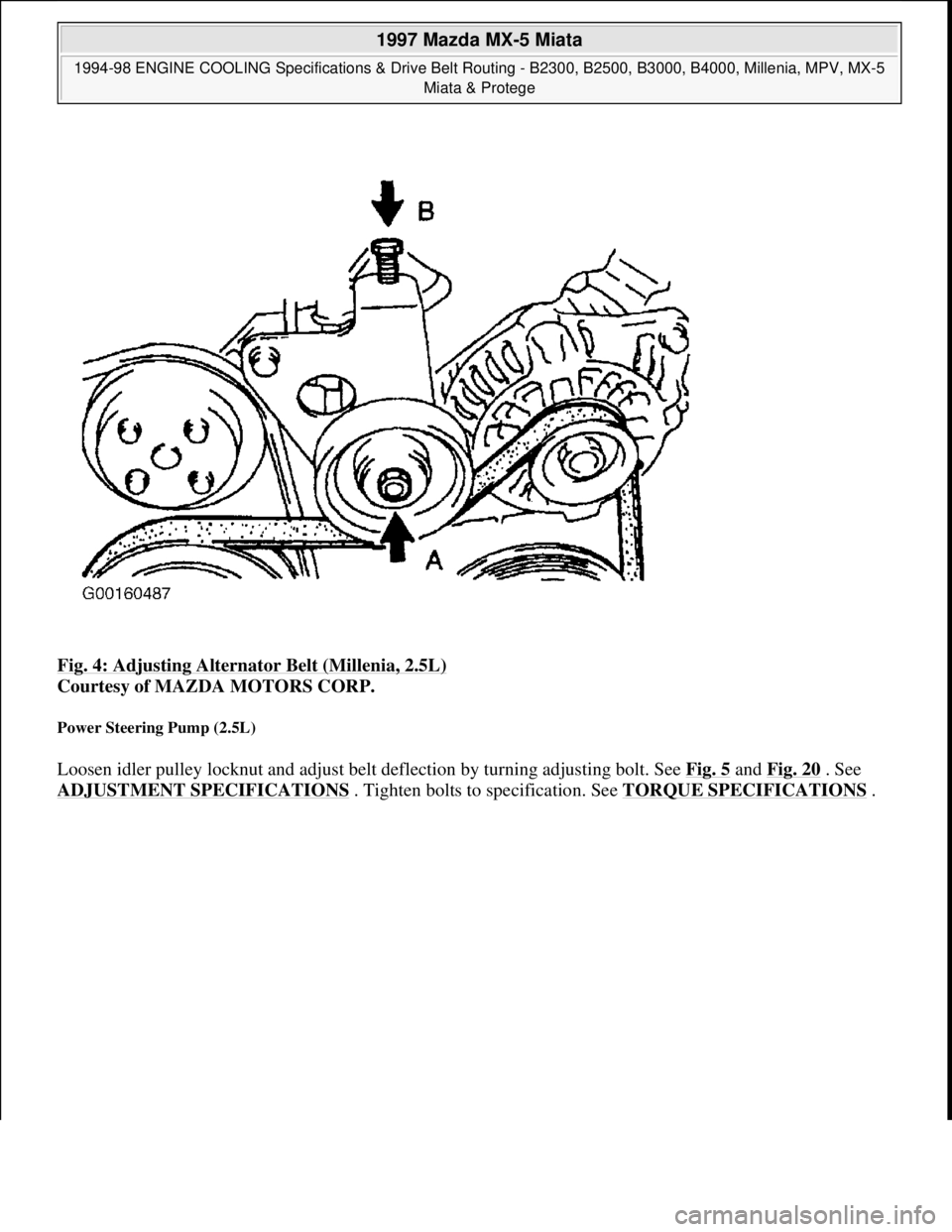

Fig. 4: Adjusting Alternator Belt (Millenia, 2.5L)
Courtesy of MAZDA MOTORS CORP.
Power Steering Pump (2.5L)
Loosen idler pulley locknut and adjust belt deflection by turning adjusting bolt. See Fig. 5 and Fig. 20 . See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 5 © 2005 Mitchell Repair Information Company, LLC.
Page 254 of 514

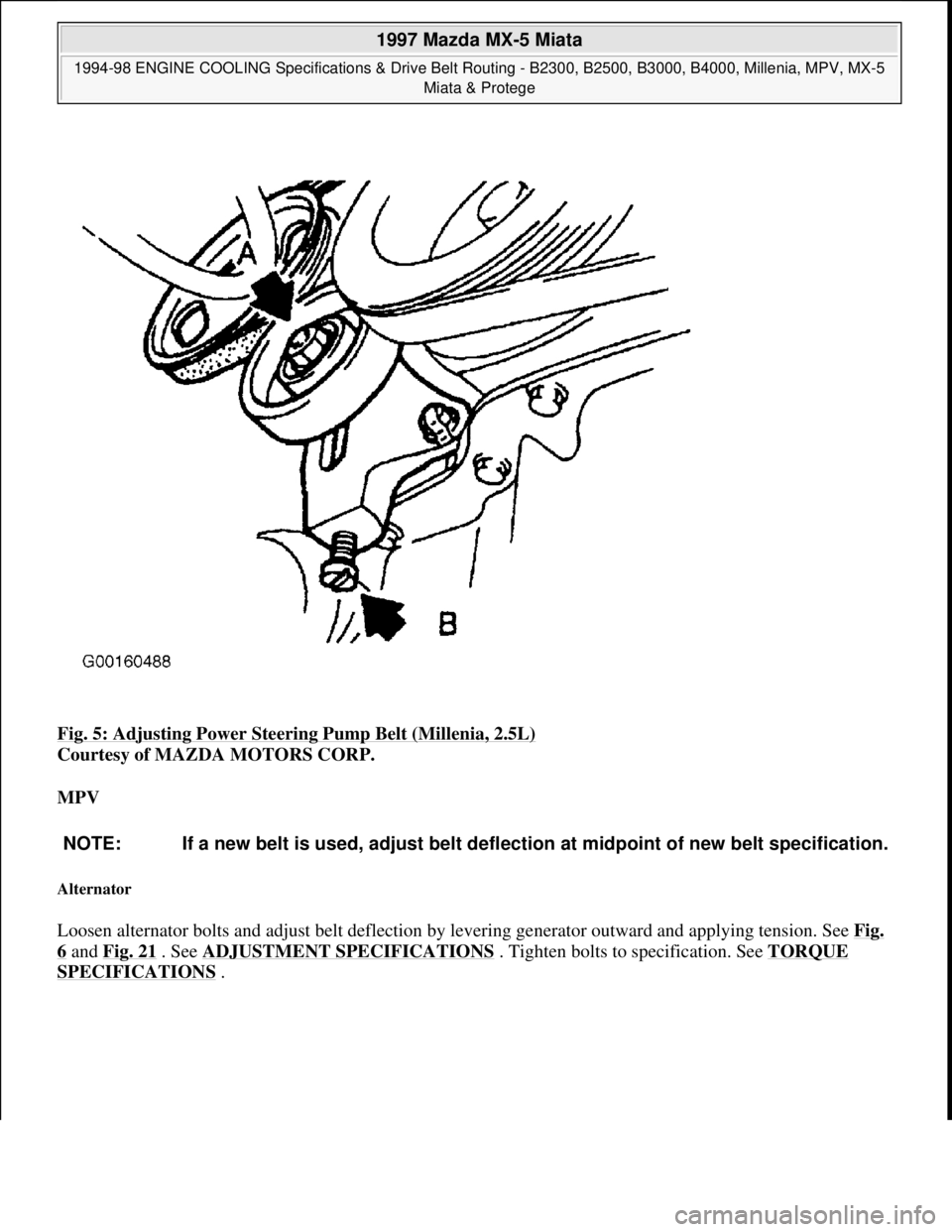

Fig. 5: Adjusting Power Steering Pump Belt (Millenia, 2.5L)
Courtesy of MAZDA MOTORS CORP.
MPV
Alternator
Loosen alternator bolts and adjust belt deflection by levering generator outward and applying tension. See Fig.
6 and Fig. 21 . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE
SPECIFICATIONS .
NOTE: If a new belt is used, adjust belt deflection at midpoint of new belt specification.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 6 © 2005 Mitchell Repair Information Company, LLC.
Page 255 of 514

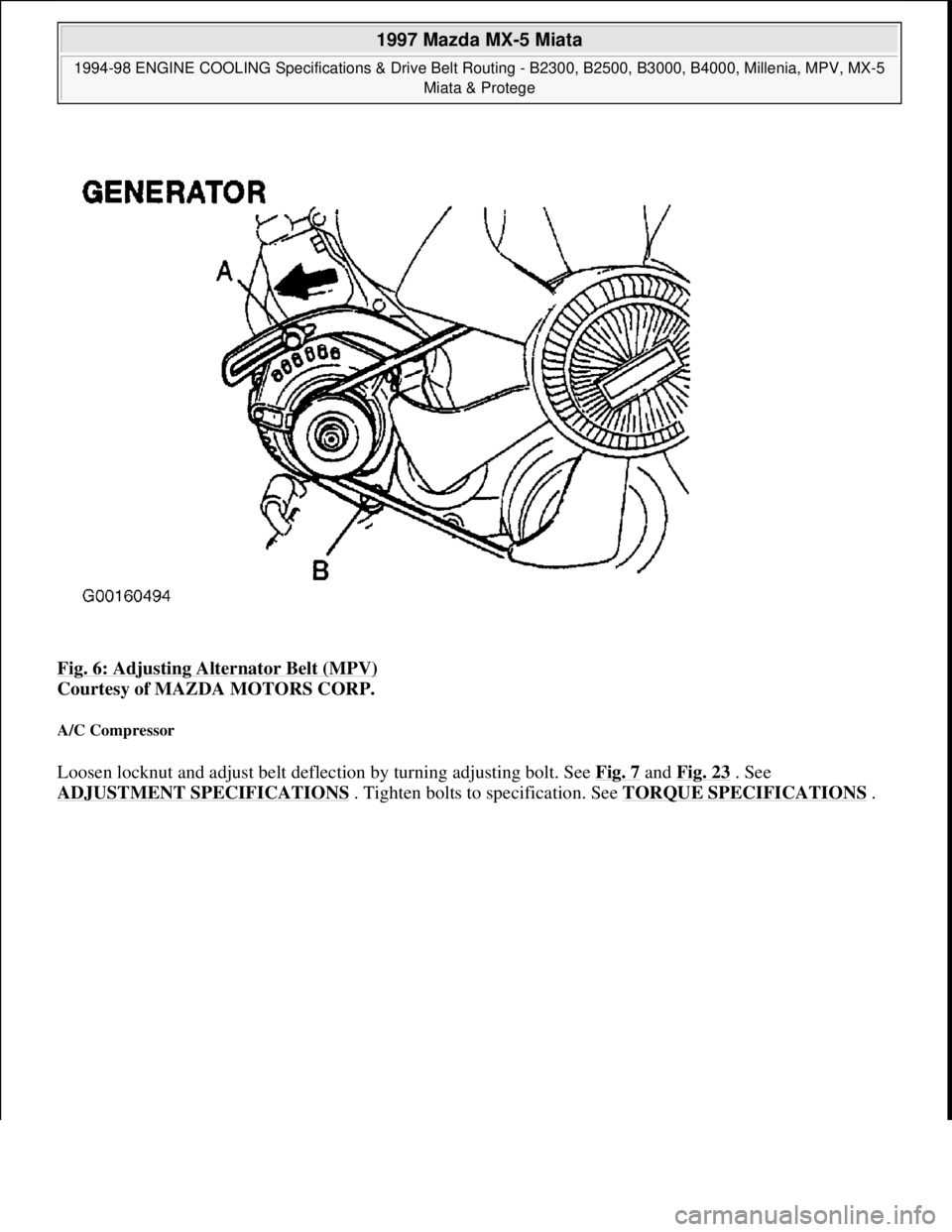

Fig. 6: Adjusting Alternator Belt (MPV)
Courtesy of MAZDA MOTORS CORP.
A/C Compressor
Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig. 7 and Fig. 23 . See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 7 © 2005 Mitchell Repair Information Company, LLC.
Page 256 of 514

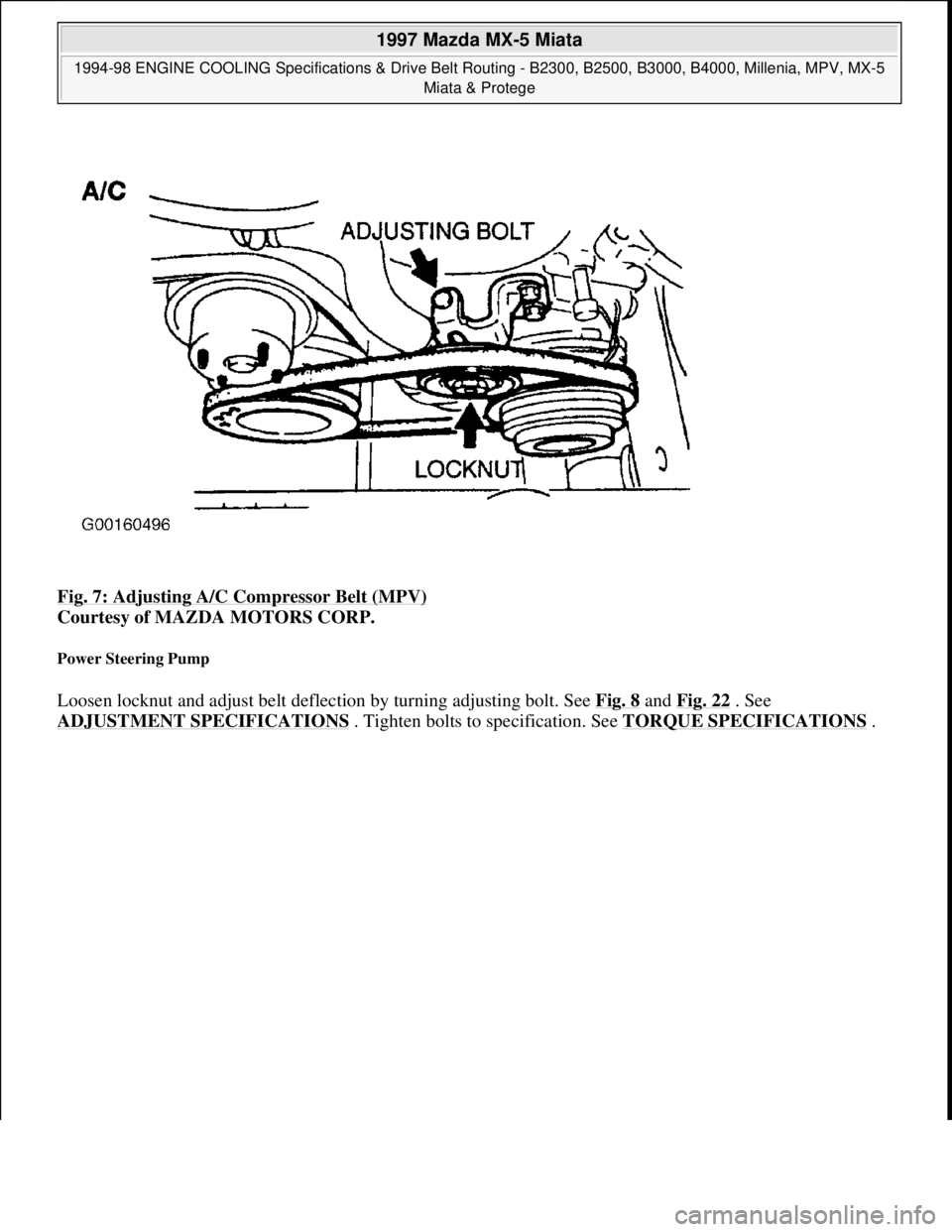

Fig. 7: Adjusting A/C Compressor Belt (MPV)
Courtesy of MAZDA MOTORS CORP.
Power Steering Pump
Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig. 8 and Fig. 22 . See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 8 © 2005 Mitchell Repair Information Company, LLC.
Page 257 of 514

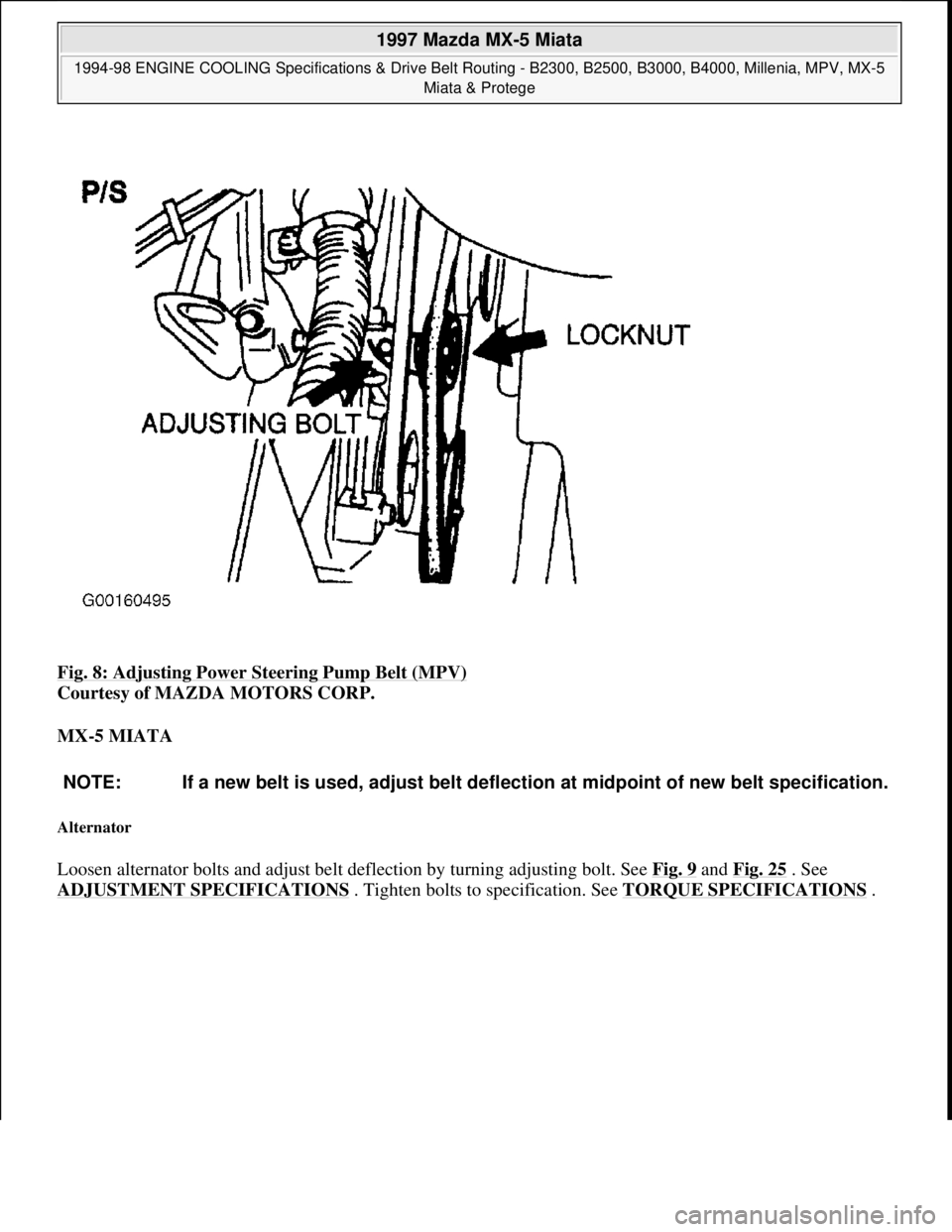

Fig. 8: Adjusting Power Steering Pump Belt (MPV)
Courtesy of MAZDA MOTORS CORP.
MX-5 MIATA
Alternator
Loosen alternator bolts and adjust belt deflection by turning adjusting bolt. See Fig. 9 and Fig. 25 . See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
NOTE: If a new belt is used, adjust belt deflection at midpoint of new belt specification.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 9 © 2005 Mitchell Repair Information Company, LLC.
Page 258 of 514

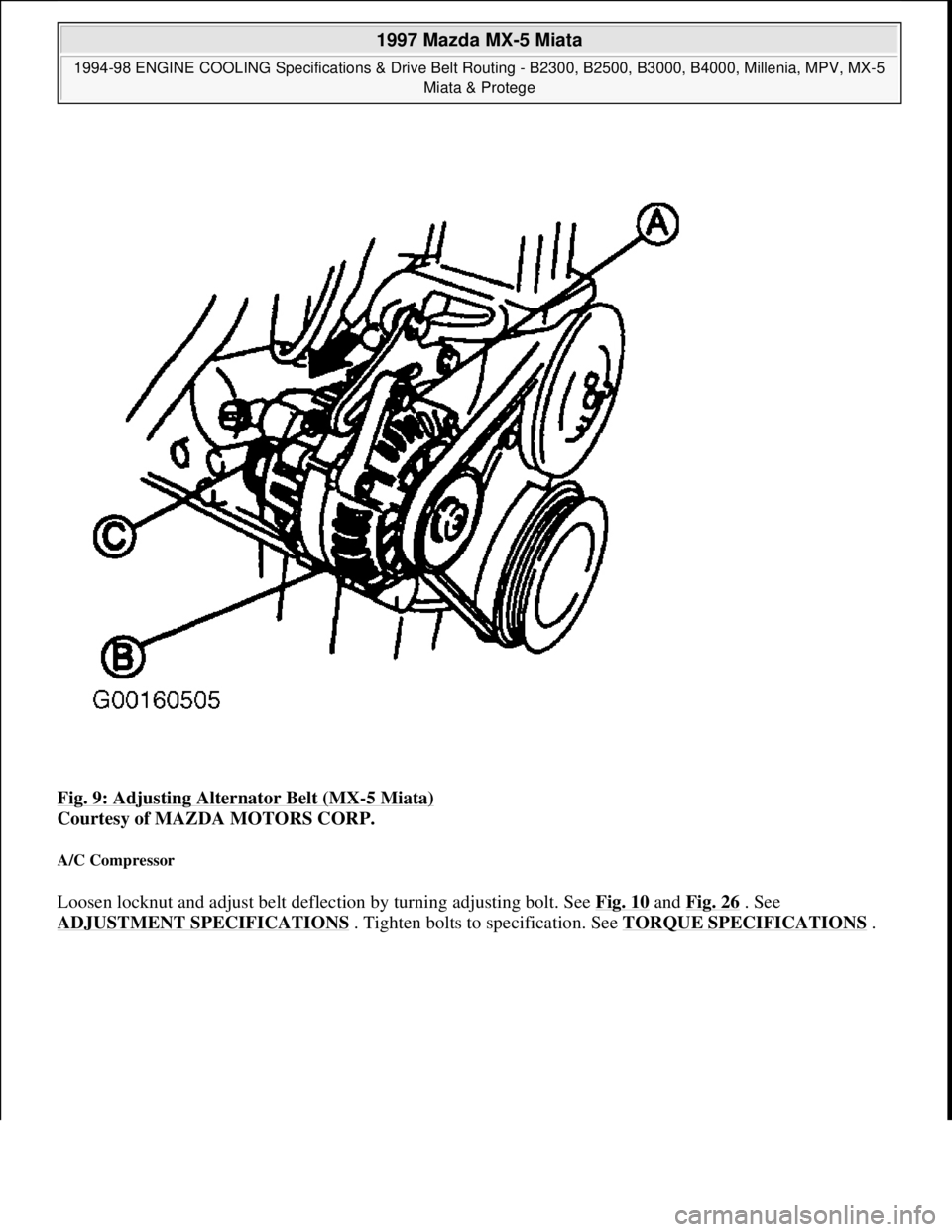

Fig. 9: Adjusting Alternator Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.
A/C Compressor
Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig. 10 and Fig. 26 . See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 10 © 2005 Mitchell Repair Information Company, LLC.
Page 259 of 514

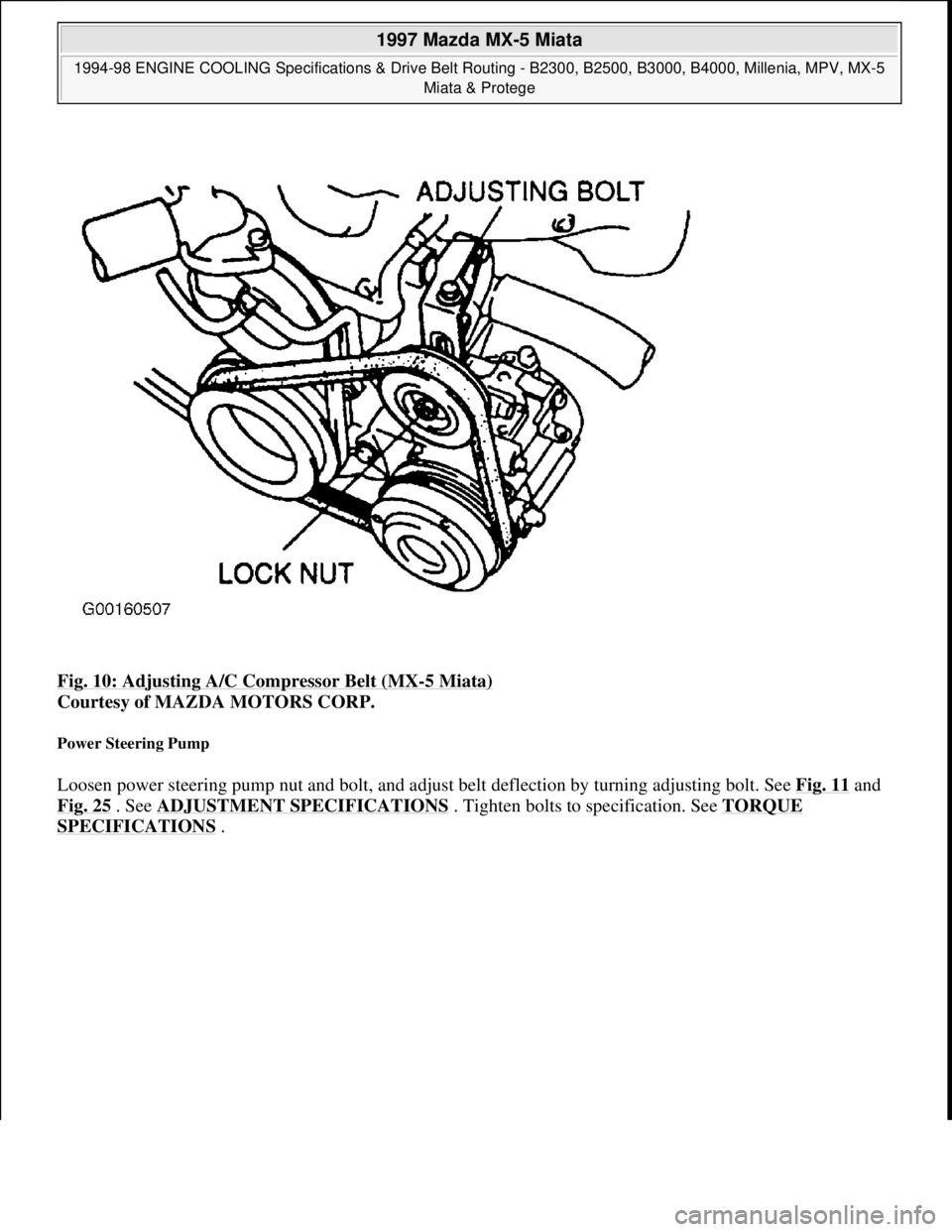

Fig. 10: Adjusting A/C Compressor Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.
Power Steering Pump
Loosen power steering pump nut and bolt, and adjust belt deflection by turning adjusting bolt. See Fig. 11 and
Fig. 25
. See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE
SPECIFICATIONS .
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 11 © 2005 Mitchell Repair Information Company, LLC.
Page 260 of 514

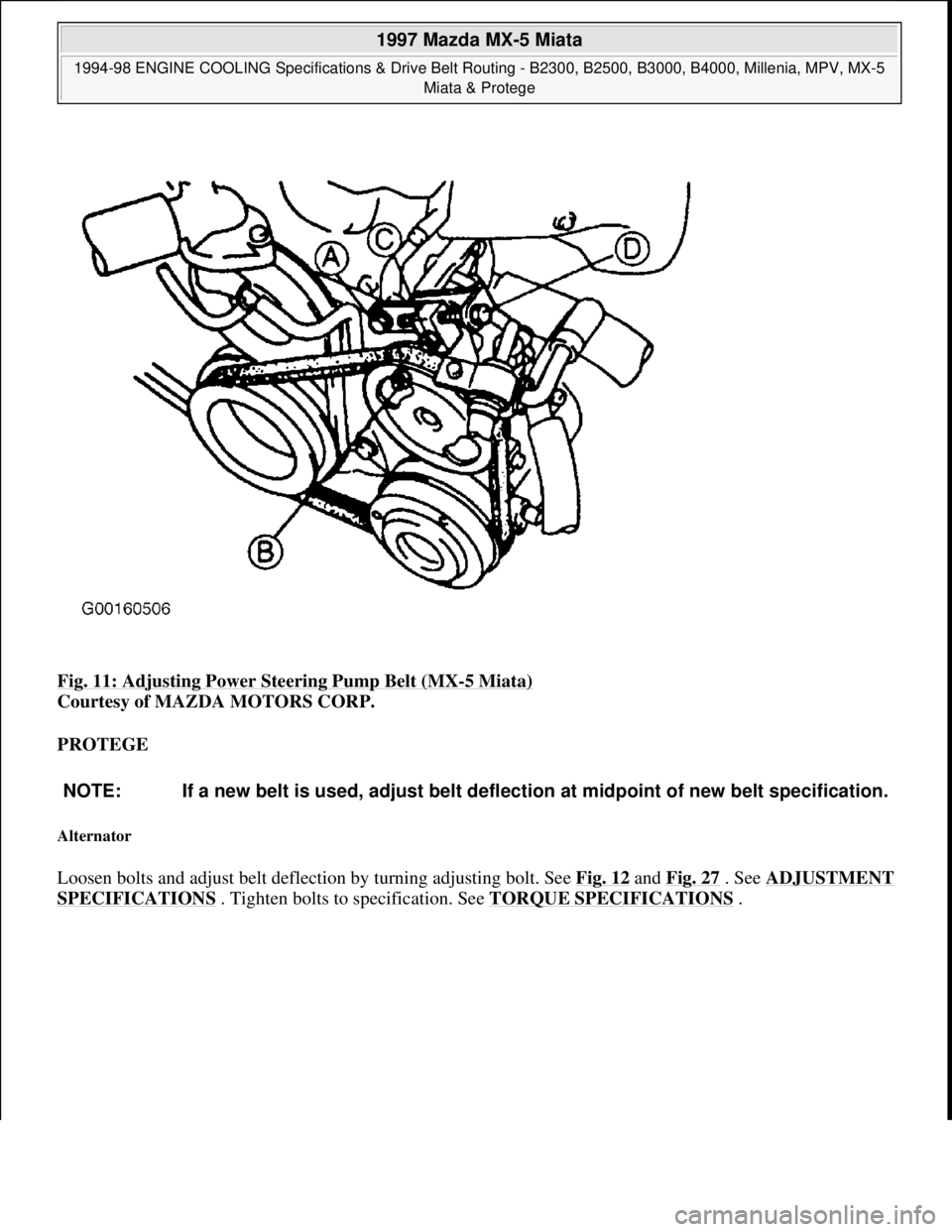

Fig. 11: Adjusting Power Steering Pump Belt (MX-5 Miata)
Courtesy of MAZDA MOTORS CORP.
PROTEGE
Alternator
Loosen bolts and adjust belt deflection by turning adjusting bolt. See Fig. 12 and Fig. 27 . See ADJUSTMENT
SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .
NOTE: If a new belt is used, adjust belt deflection at midpoint of new belt specification.
1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege
Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 12 © 2005 Mitchell Repair Information Company, LLC.
