MAZDA MX-5 1997 Factory Repair Manual

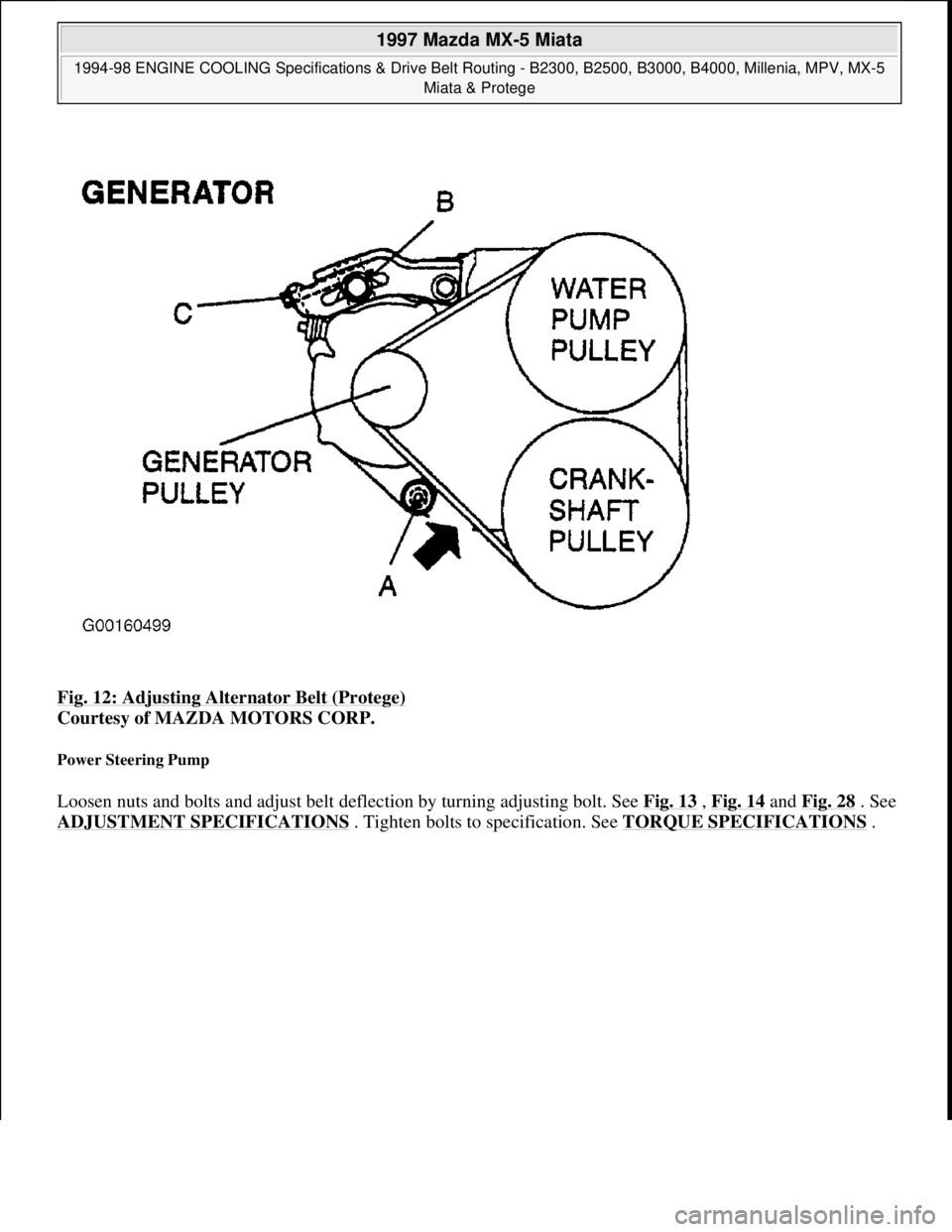

Fig. 12: Adjusting Alternator Belt (Protege)
Courtesy of MAZDA MOTORS CORP.
Power Steering Pump
Loosen nuts and bolts and adjust belt deflection by turning adjusting bolt. See Fig. 13 , Fig. 14 and Fig. 28. See
ADJUSTMENT SPECIFICATIONS
. Tighten bolts to specification. See TORQUE SPECIFICATIONS.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 13 © 2005 Mitchell Repair Information Company, LLC.

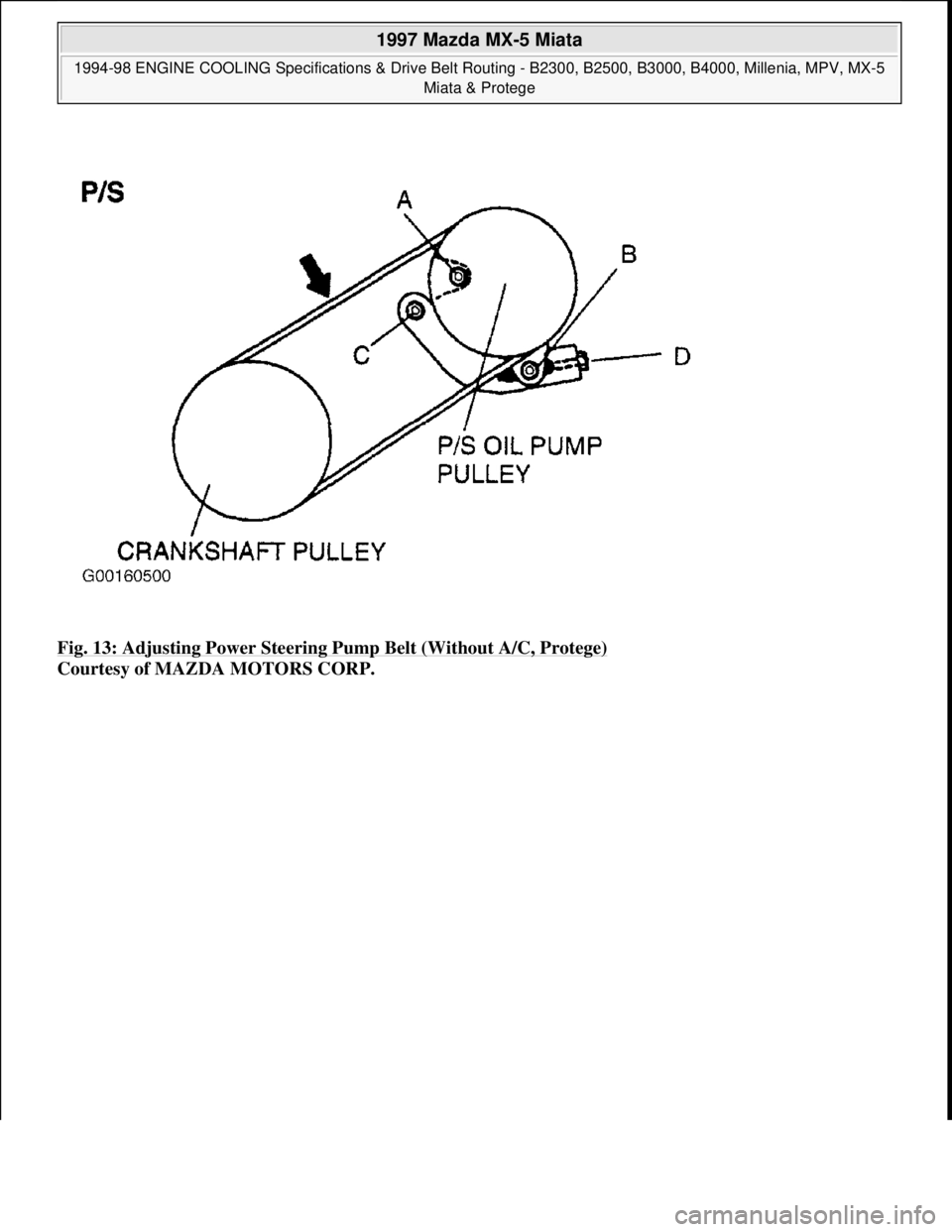

Fig. 13: Adjusting Power Steering Pump Belt (Without A/C, Protege)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 14 © 2005 Mitchell Repair Information Company, LLC.

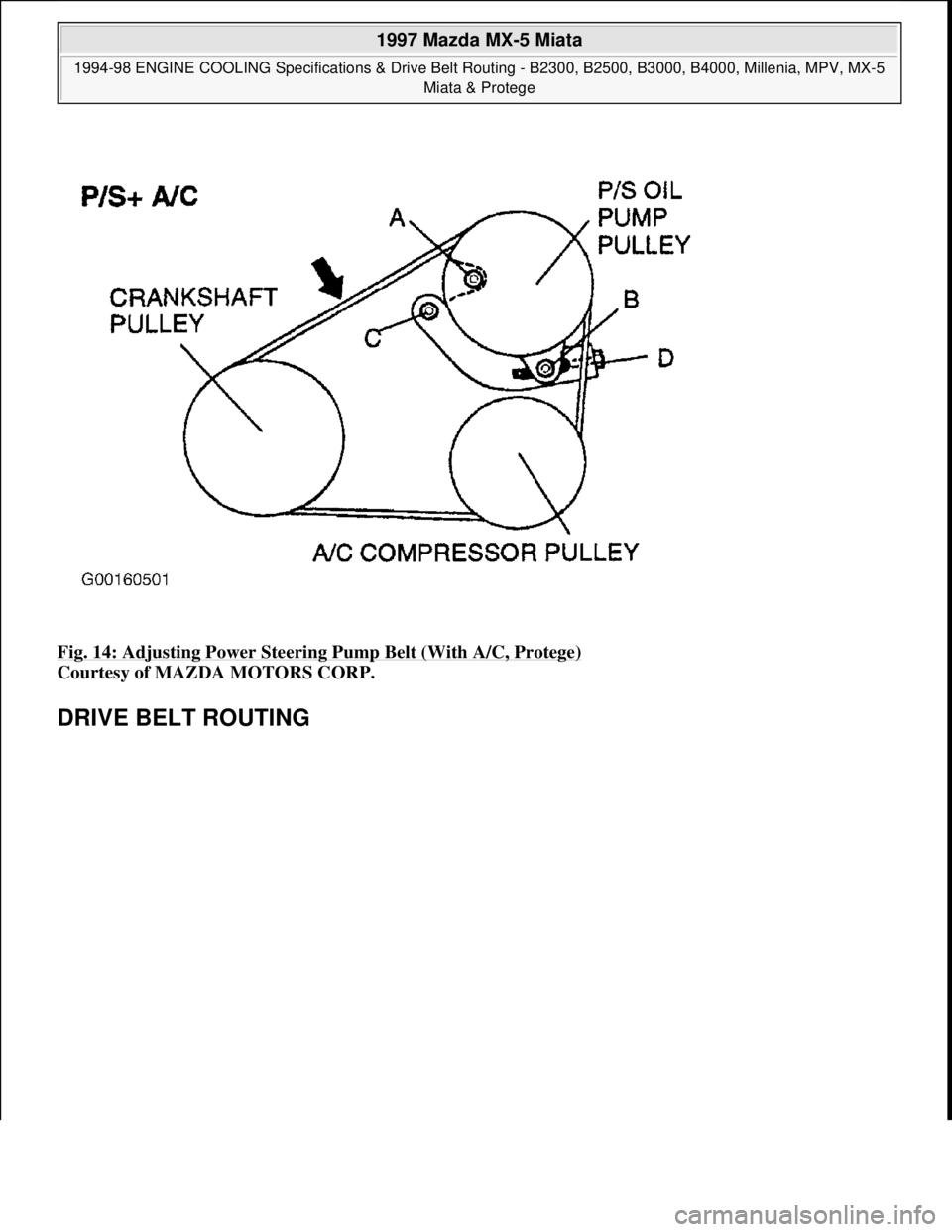

Fig. 14: Adjusting Power Steering Pump Belt (With A/C, Protege)
Courtesy of MAZDA MOTORS CORP.
DRIVE BELT ROUTING

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.

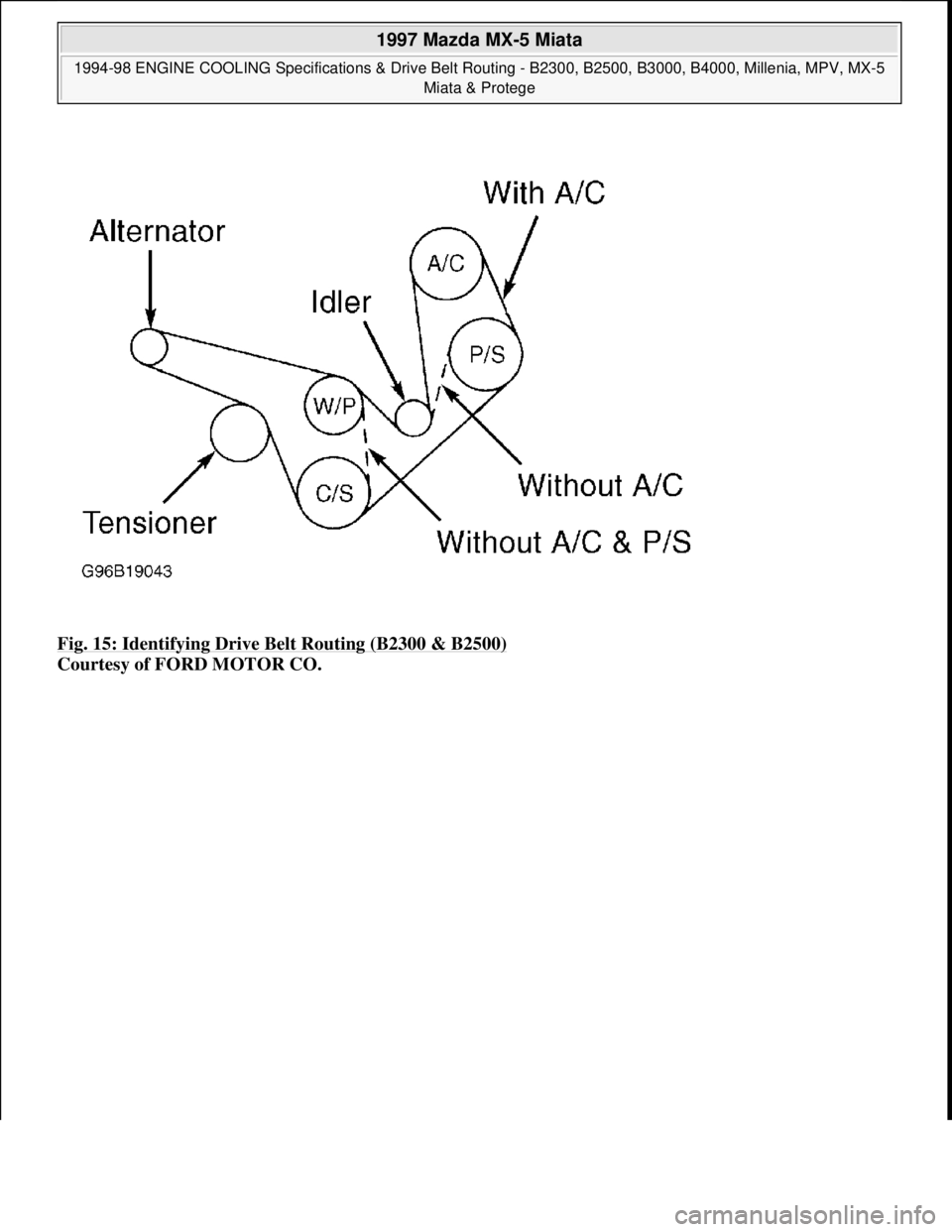

Fig. 15: Identifying Drive Belt Routing (B2300 & B2500)
Courtesy of FORD MOTOR CO.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.

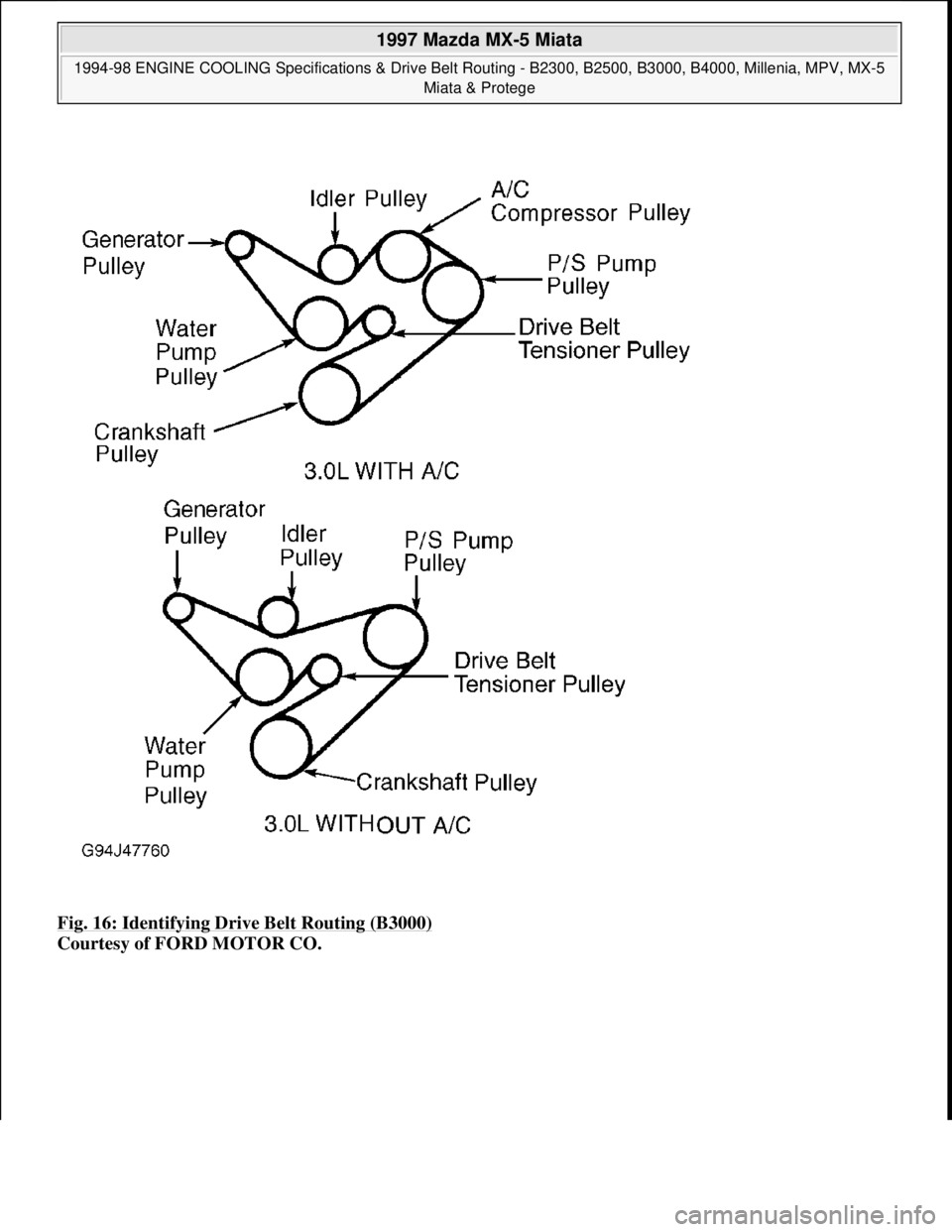

Fig. 16: Identifying Drive Belt Routing (B3000)
Courtesy of FORD MOTOR CO.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 17 © 2005 Mitchell Repair Information Company, LLC.

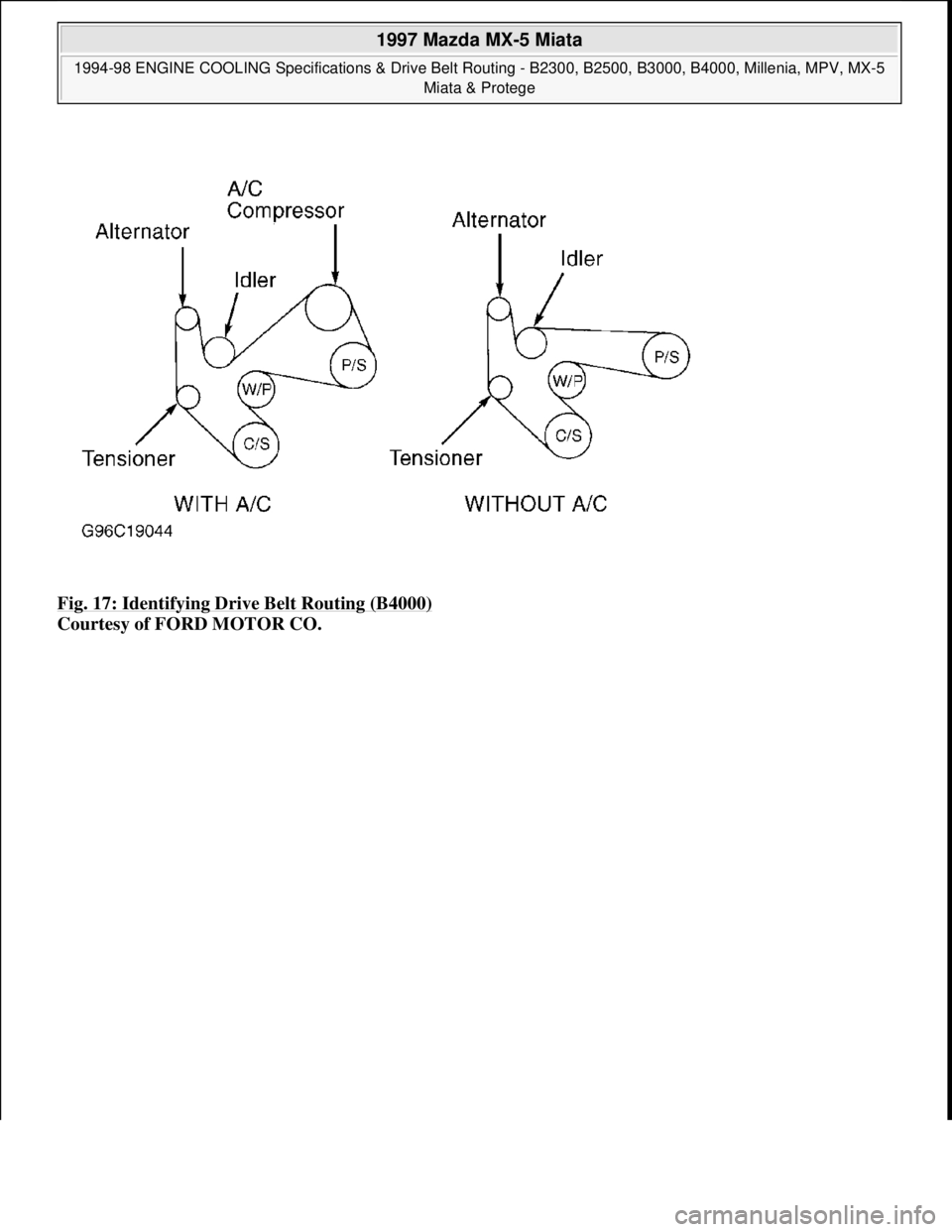

Fig. 17: Identifying Drive Belt Routing (B4000)
Courtesy of FORD MOTOR CO.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 18 © 2005 Mitchell Repair Information Company, LLC.

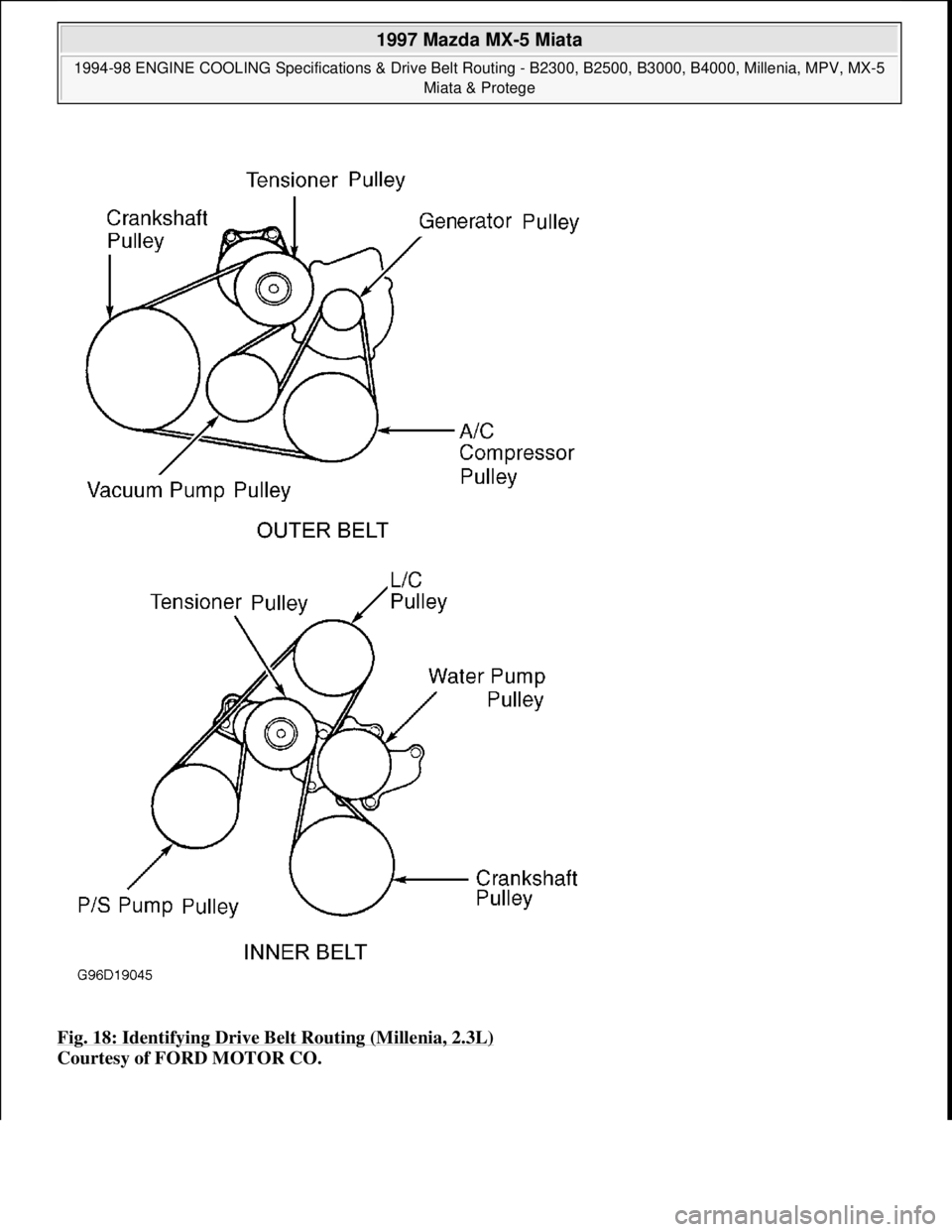

Fig. 18: Identifying Drive Belt Routing (Millenia, 2.3L)
Courtesy of FORD MOTOR CO.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 19 © 2005 Mitchell Repair Information Company, LLC.

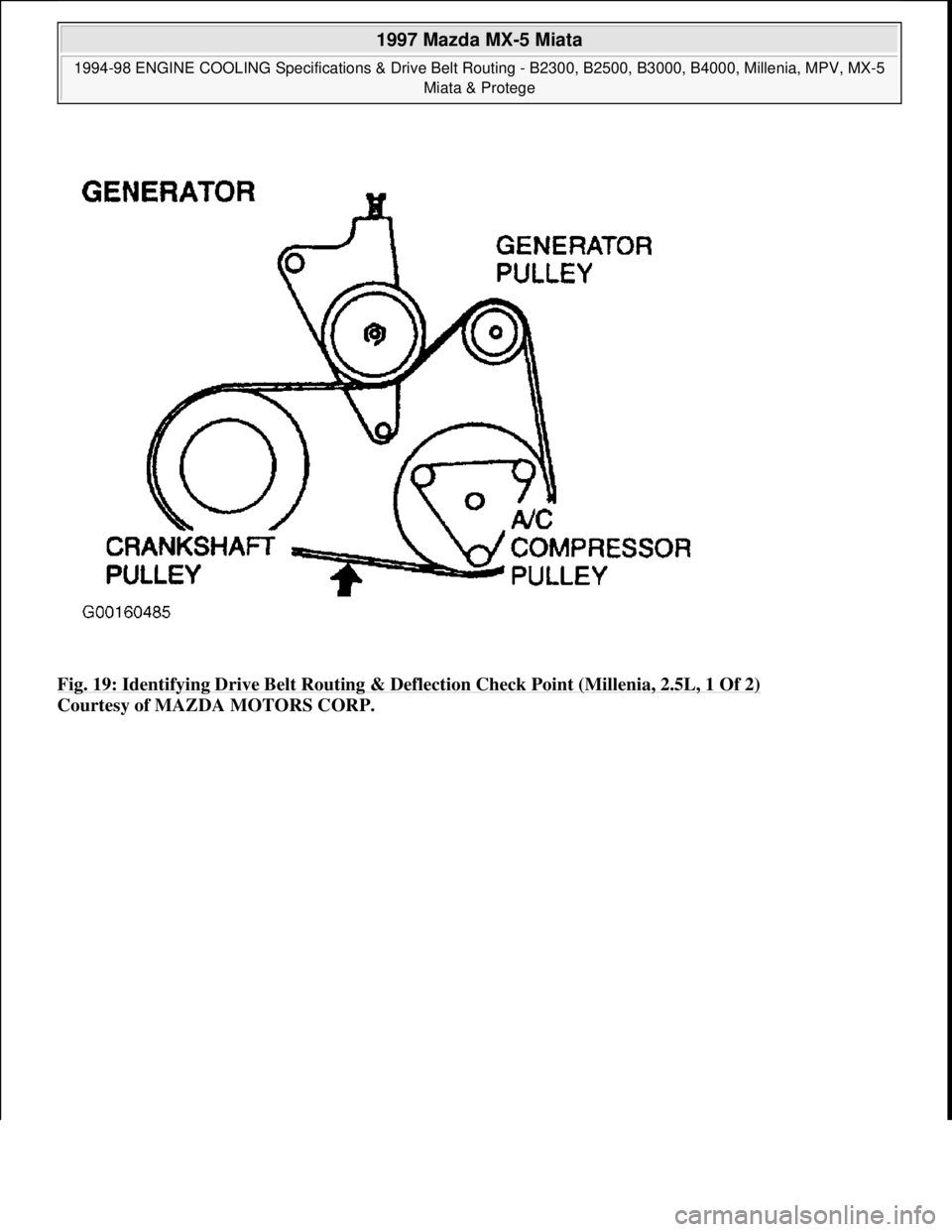

Fig. 19: Identifying Drive Belt Routing & Deflection Check Point (Millenia, 2.5L, 1 Of 2)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 20 © 2005 Mitchell Repair Information Company, LLC.

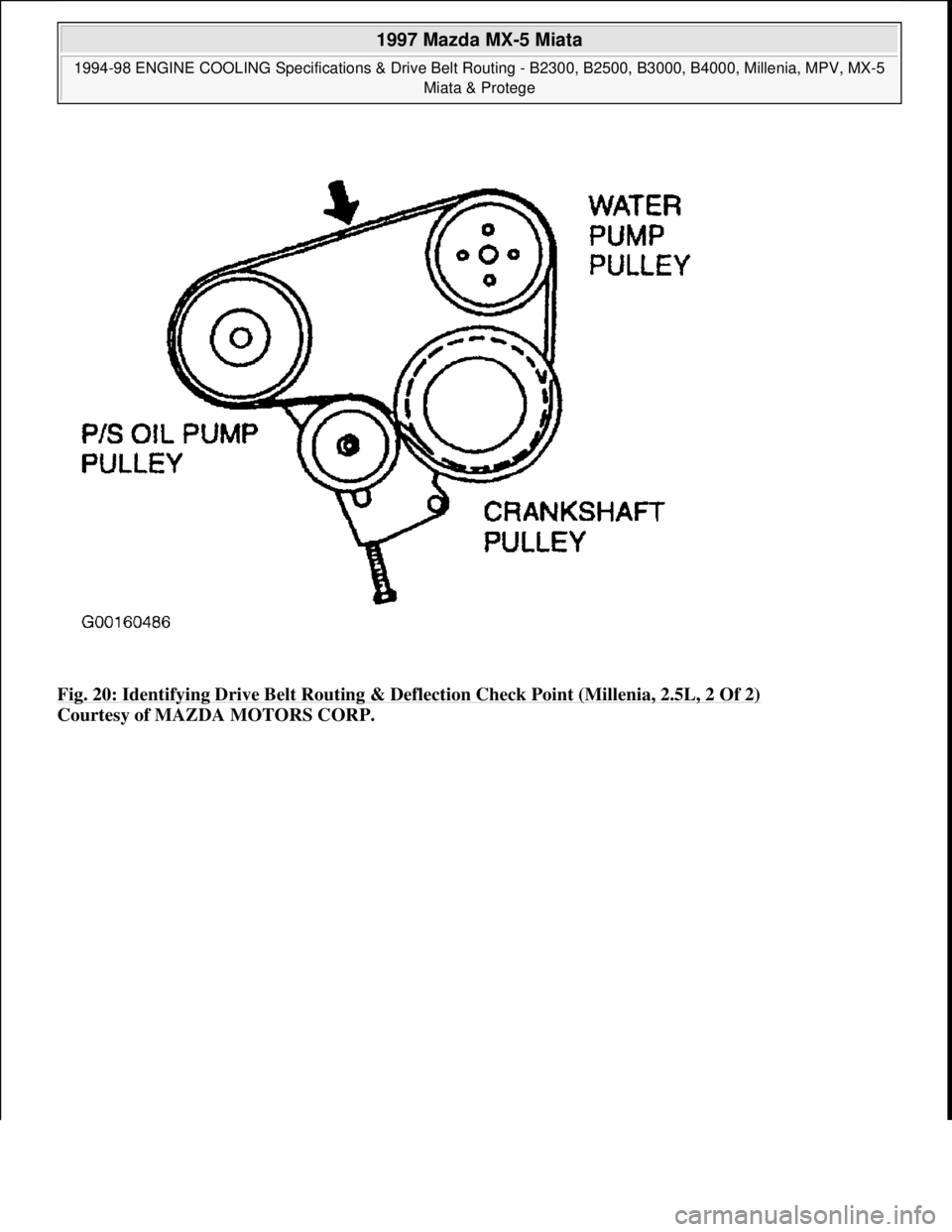

Fig. 20: Identifying Drive Belt Routing & Deflection Check Point (Millenia, 2.5L, 2 Of 2)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.

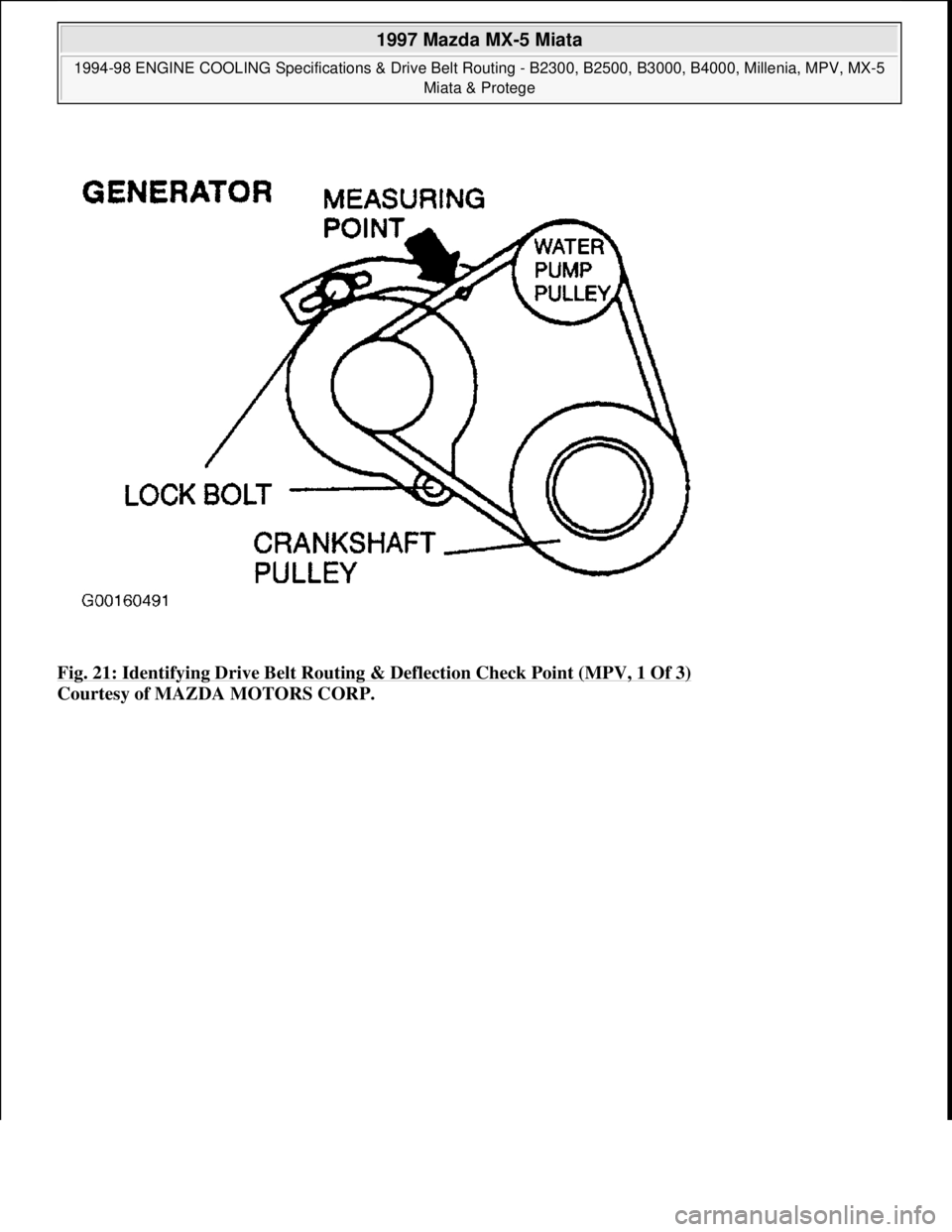

Fig. 21: Identifying Drive Belt Routing & Deflection Check Point (MPV, 1 Of 3)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
1994-98 ENGINE COOLING Specifications & Drive Belt Routing - B2300, B2500, B3000, B4000, Millenia, MPV, MX-5
Miata & Protege

Microsoft
Sunday, July 05, 2009 1:57:32 PMPage 22 © 2005 Mitchell Repair Information Company, LLC.
