MAZDA MX-5 1997 Factory Repair Manual

Manufacturer: MAZDA, Model Year: 1997, Model line: MX-5, Model: MAZDA MX-5 1997
Pages: 514, PDF Size: 17.89 MB
MAZDA MX-5 1997 Factory Repair Manual MX-5 1997 MAZDA MAZDA https://www.carmanualsonline.info/img/28/57070/w960_57070-0.png MAZDA MX-5 1997 Factory Repair Manual
Search: (wiper fluid, steering, oil viscosity, tyre pressure, clock setting, oil temperature)
Trending: coolant level, wipers, air filter, fuel pressure, turn signal, window, relay
Jump to page (1-514):

Page 471 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 22 © 2005 Mitchell Repair Information Company, LLC.

Page 472 of 514

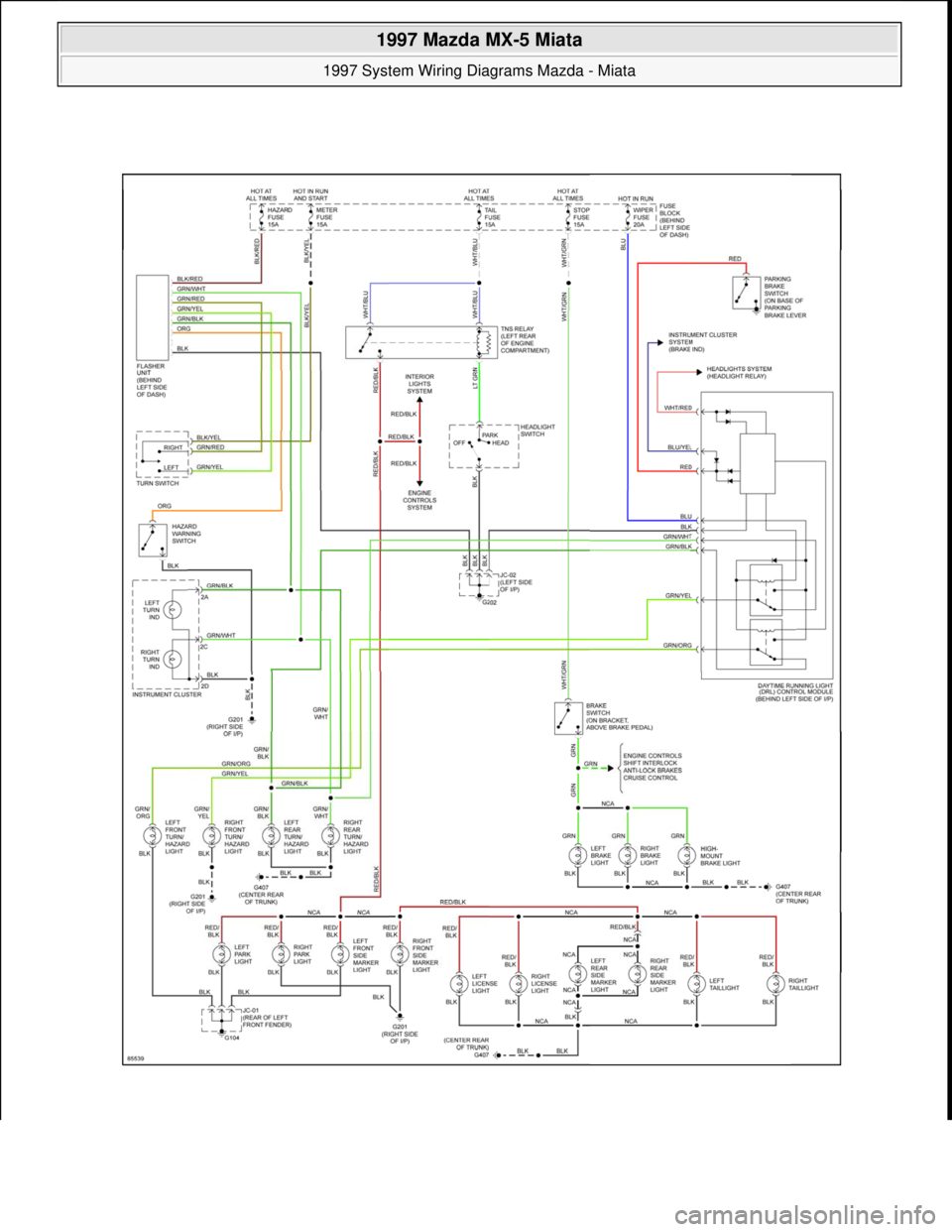

MAZDA MX-5 1997 Factory Repair Manual Fig. 11: Exterior Lamps Circuit, W/ DRL 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 23 © 2005 Mitchell Repair Information Com

Page 473 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 24 © 2005 Mitchell Repair Information Company, LLC.

Page 474 of 514

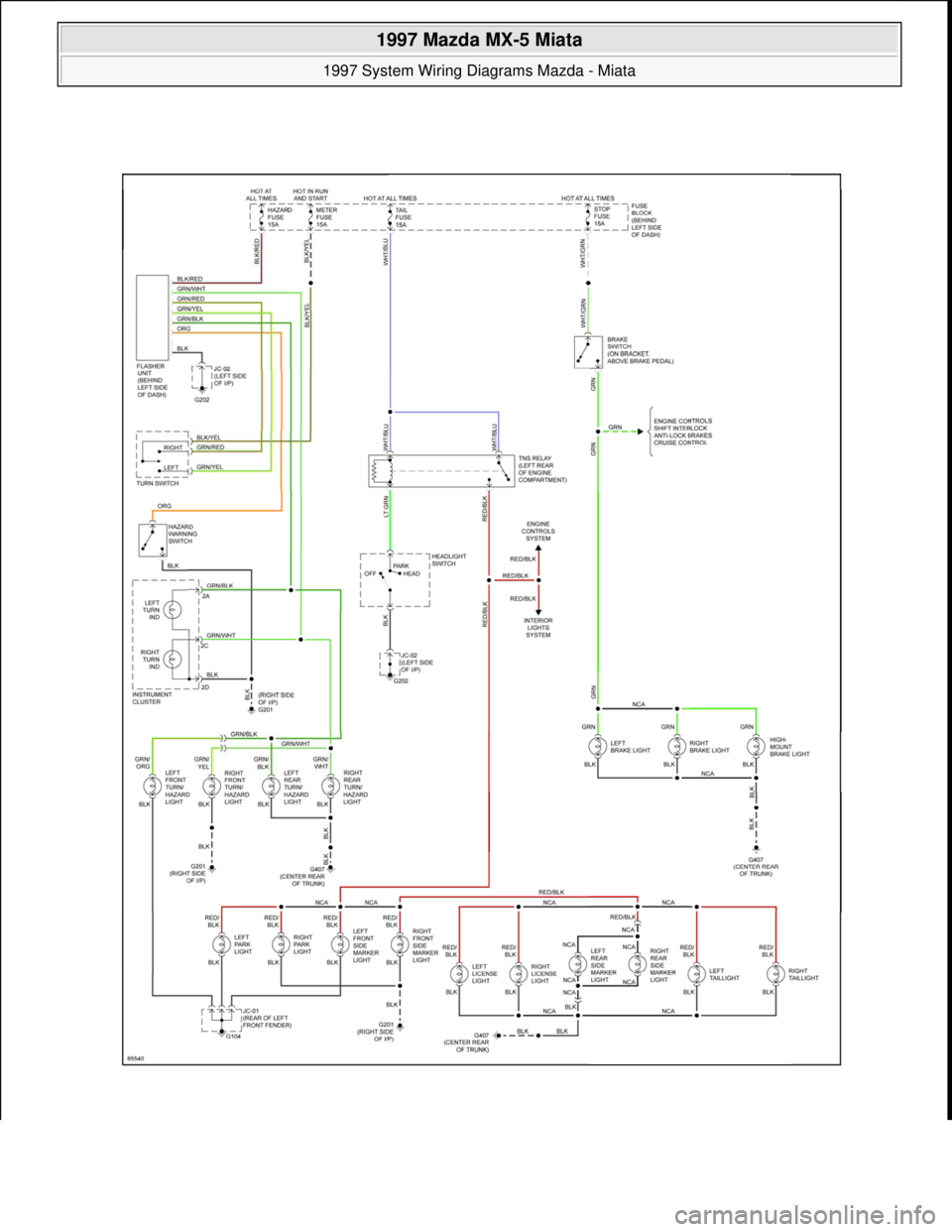

MAZDA MX-5 1997 Factory Repair Manual Fig. 12: Exterior Lamps Circuit, W/O DRL GROUND DISTRIBUTION 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 25 © 2005 Mitchell

Page 475 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 26 © 2005 Mitchell Repair Information Company, LLC.

Page 476 of 514

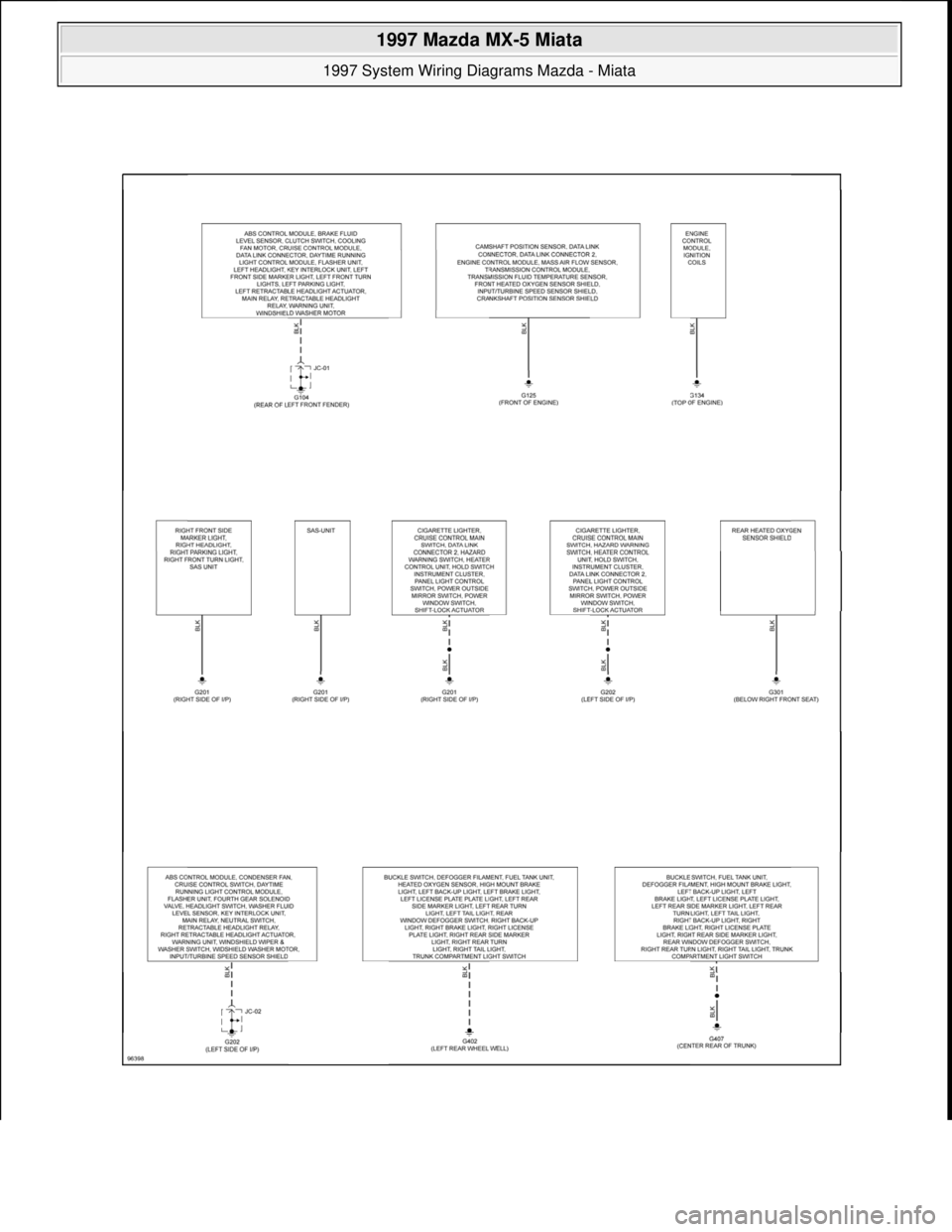

MAZDA MX-5 1997 Factory Repair Manual Fig. 13: Ground Distribution Circuit HEADLIGHTS 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 27 © 2005 Mitchell Repair Infor

Page 477 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 28 © 2005 Mitchell Repair Information Company, LLC.

Page 478 of 514

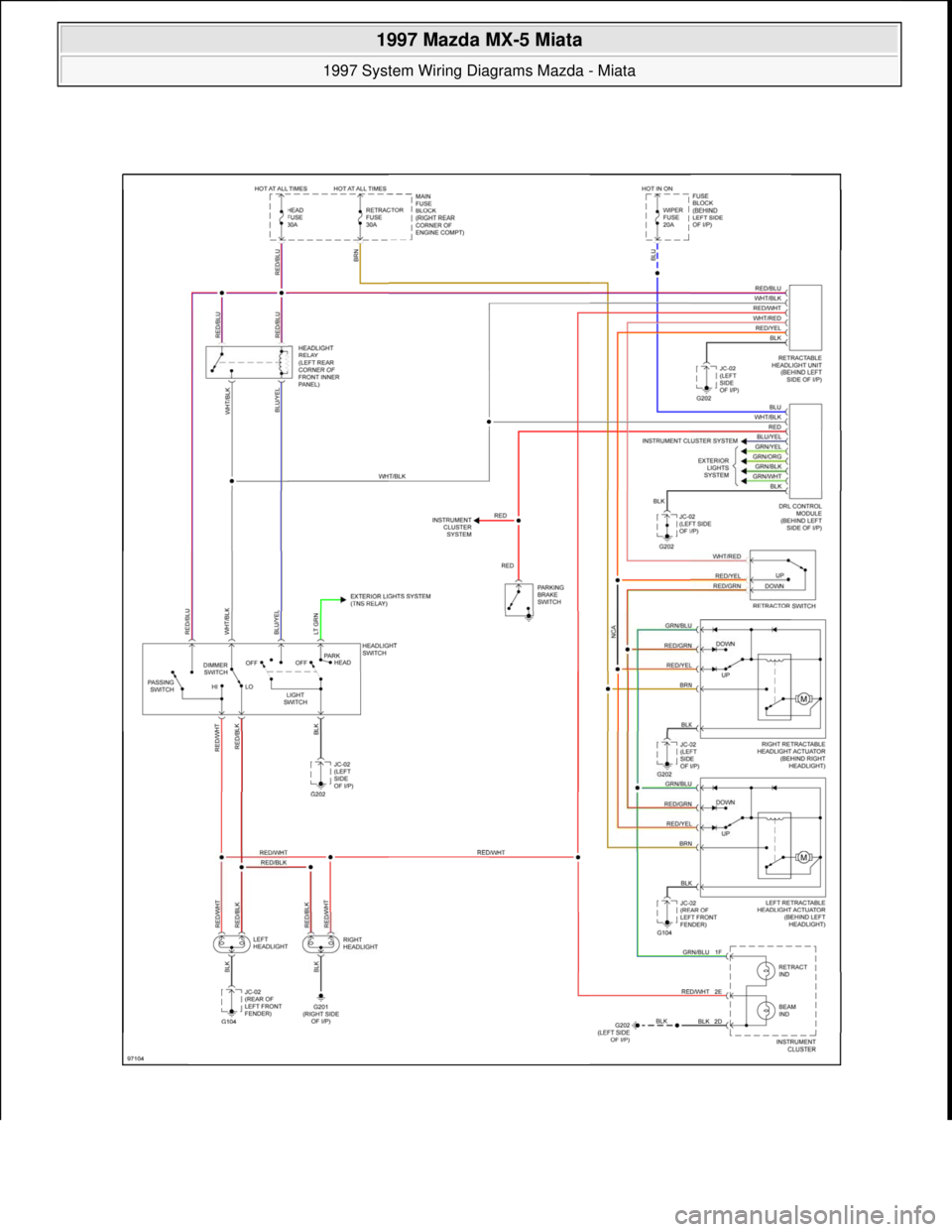

MAZDA MX-5 1997 Factory Repair Manual Fig. 14: Headlight Circuit, W/ DRL 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 29 © 2005 Mitchell Repair Information Company

Page 479 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 30 © 2005 Mitchell Repair Information Company, LLC.

Page 480 of 514

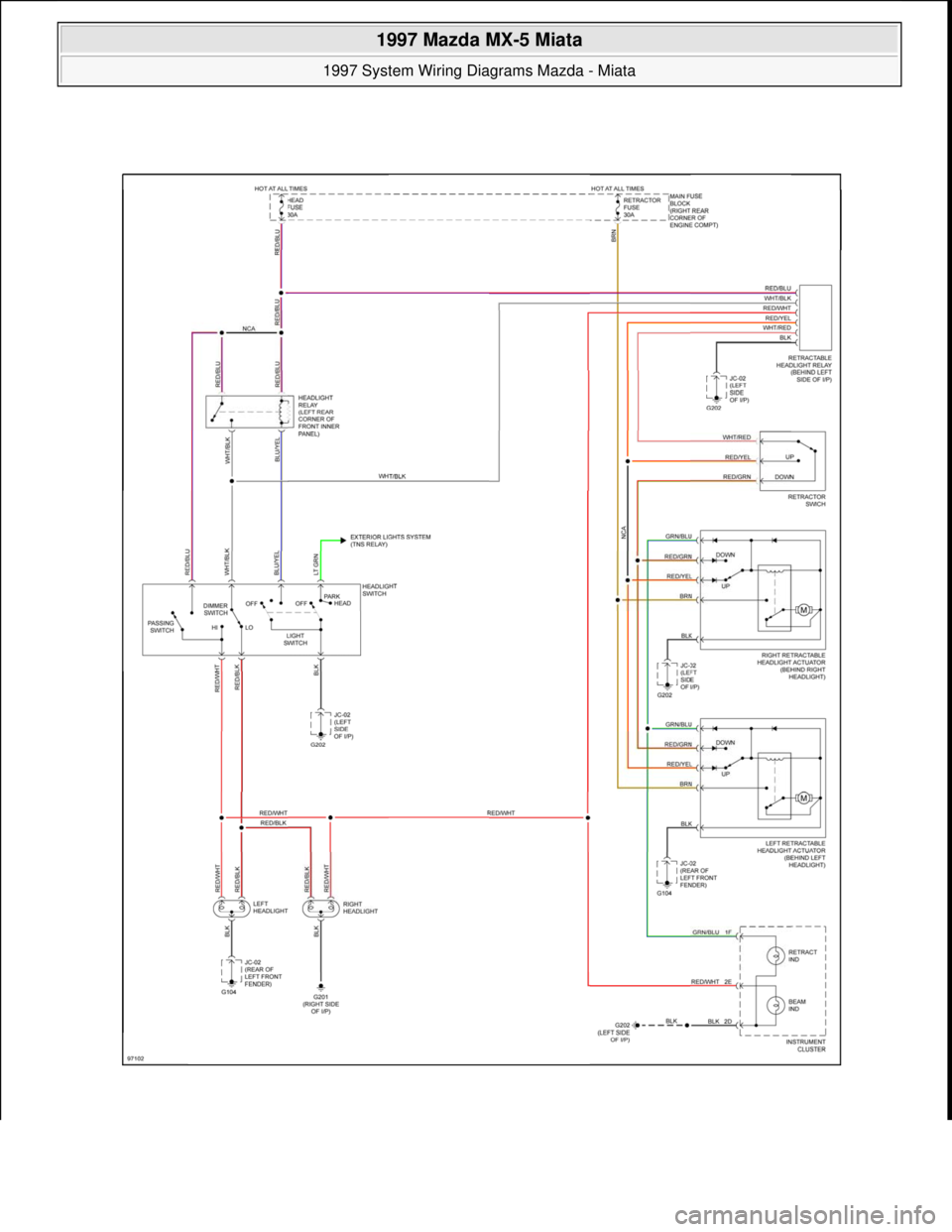

MAZDA MX-5 1997 Factory Repair Manual Fig. 15: Headlight Circuit, W/O DRL HORN 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 31 © 2005 Mitchell Repair Information
