Page 461 of 514
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 12 © 2005 Mitchell Repair Information Company, LLC.
Page 462 of 514

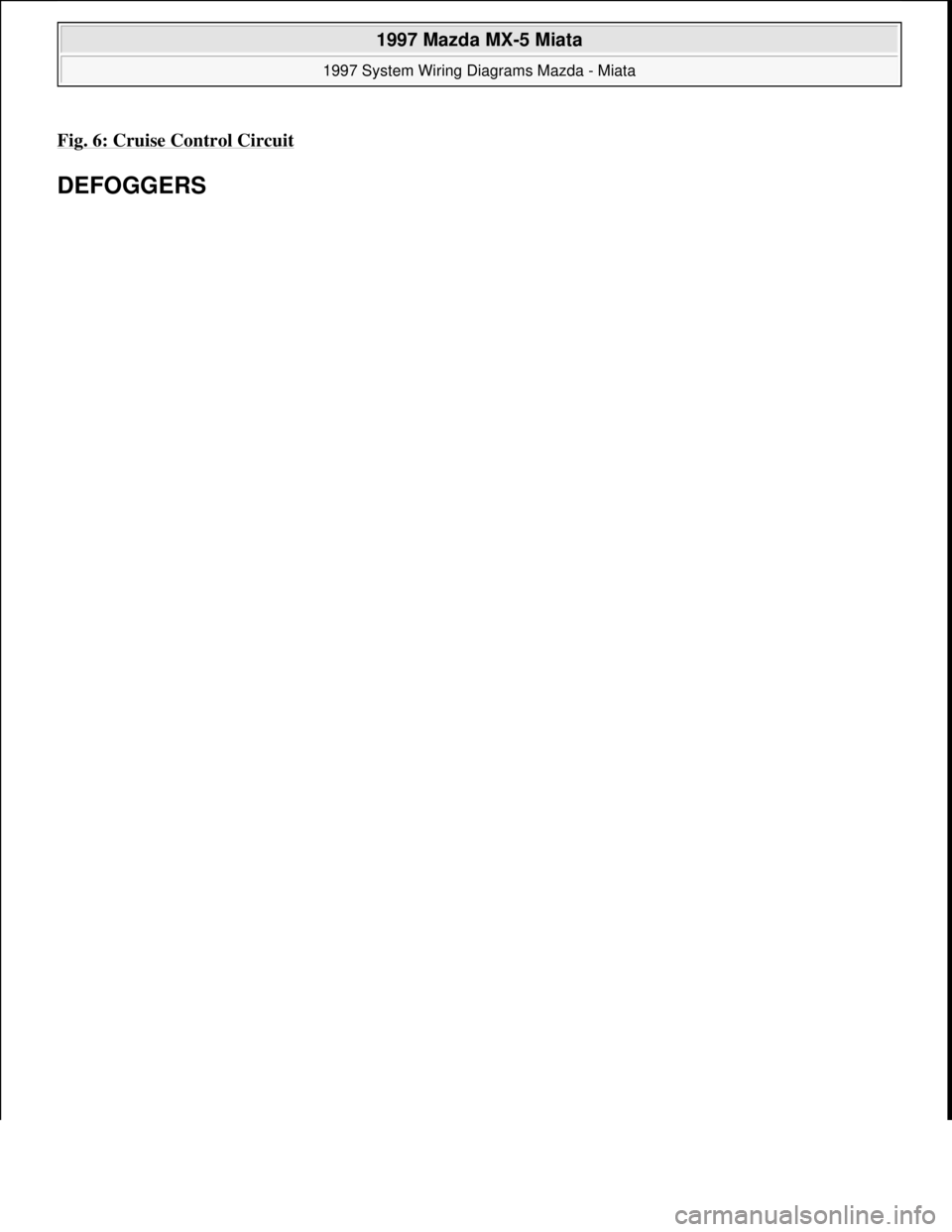

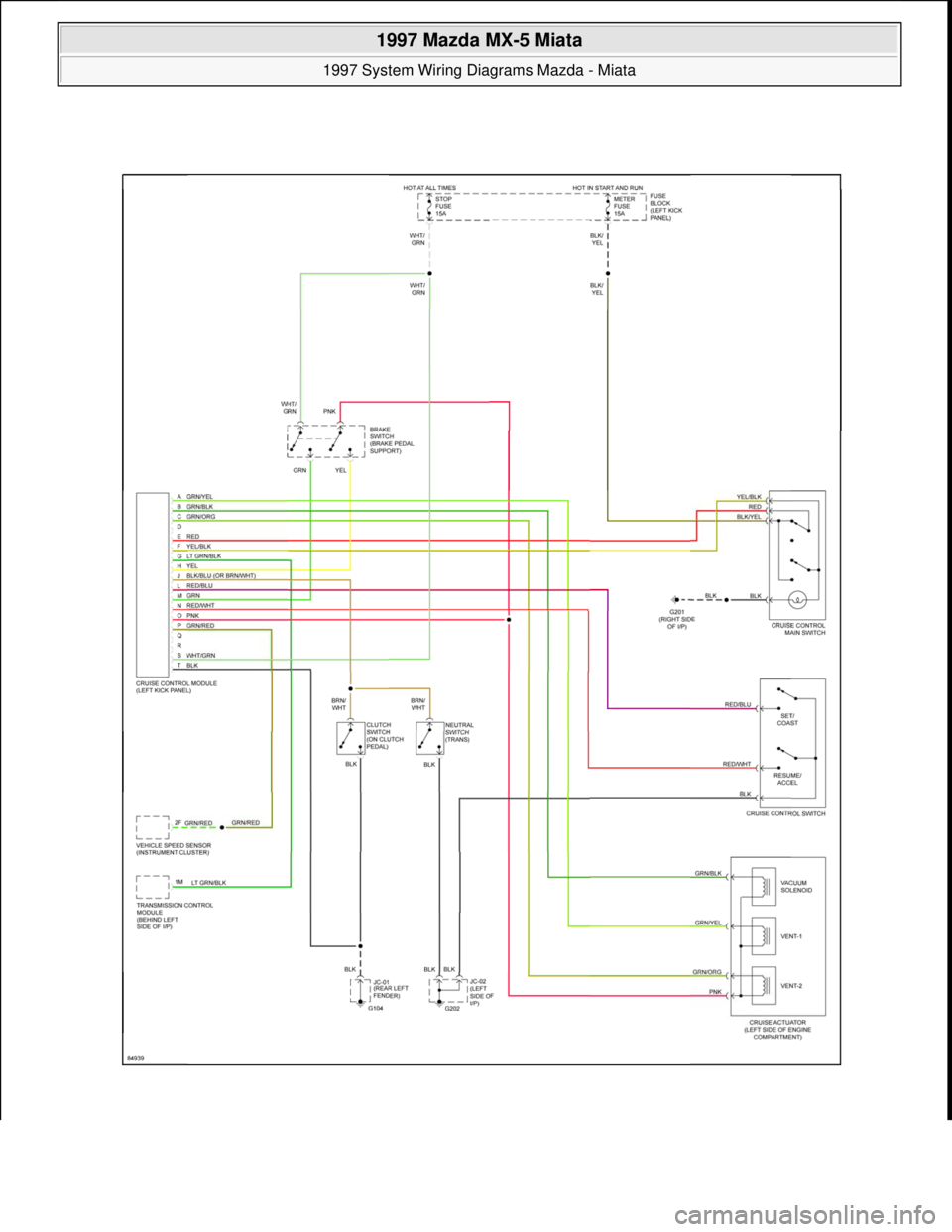

Fig. 6: Cruise Control Circuit
DEFOGGERS
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 13 © 2005 Mitchell Repair Information Company, LLC.
Page 463 of 514
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 14 © 2005 Mitchell Repair Information Company, LLC.
Page 464 of 514

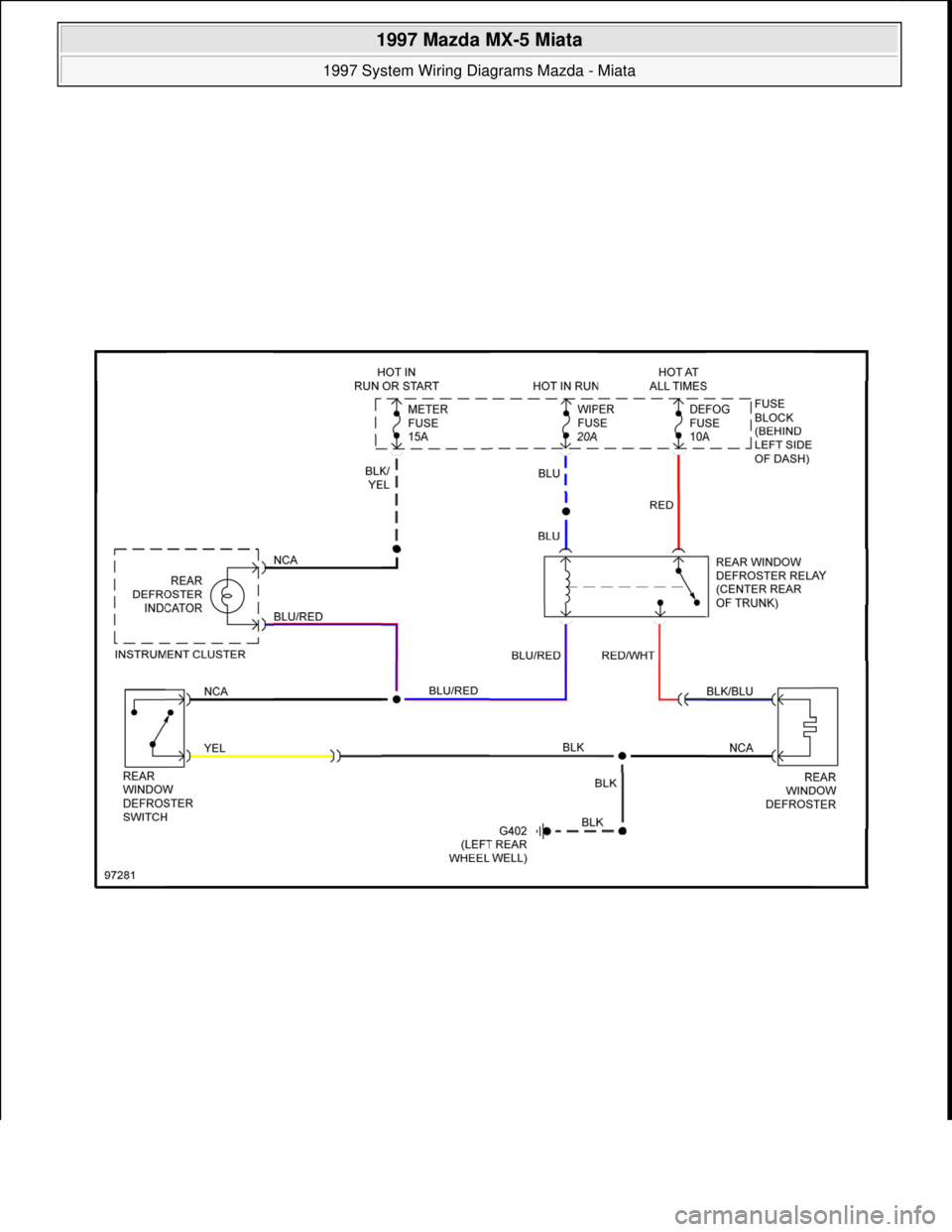

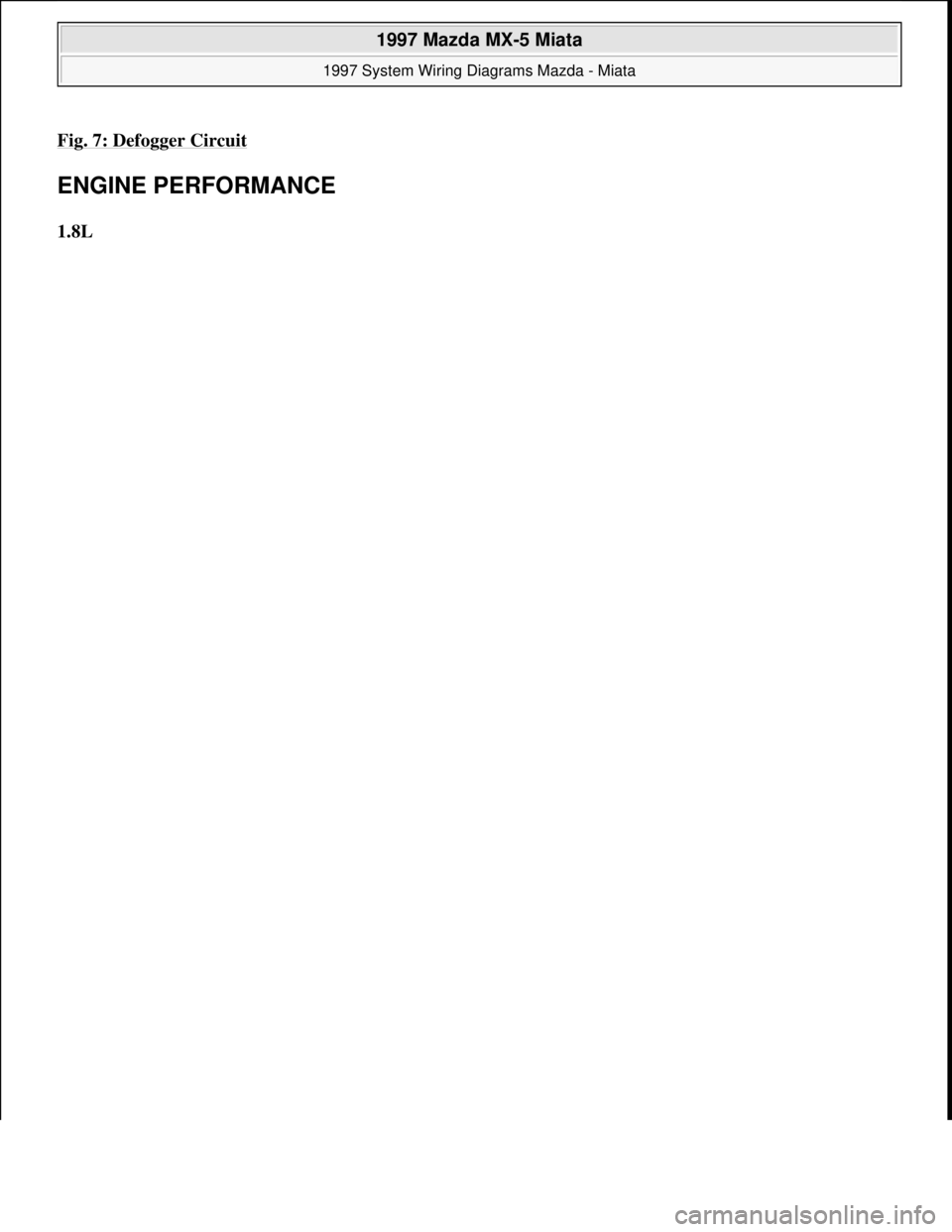

Fig. 7: Defogger Circuit
ENGINE PERFORMANCE
1.8L
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 15 © 2005 Mitchell Repair Information Company, LLC.
Page 465 of 514
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 16 © 2005 Mitchell Repair Information Company, LLC.
Page 466 of 514

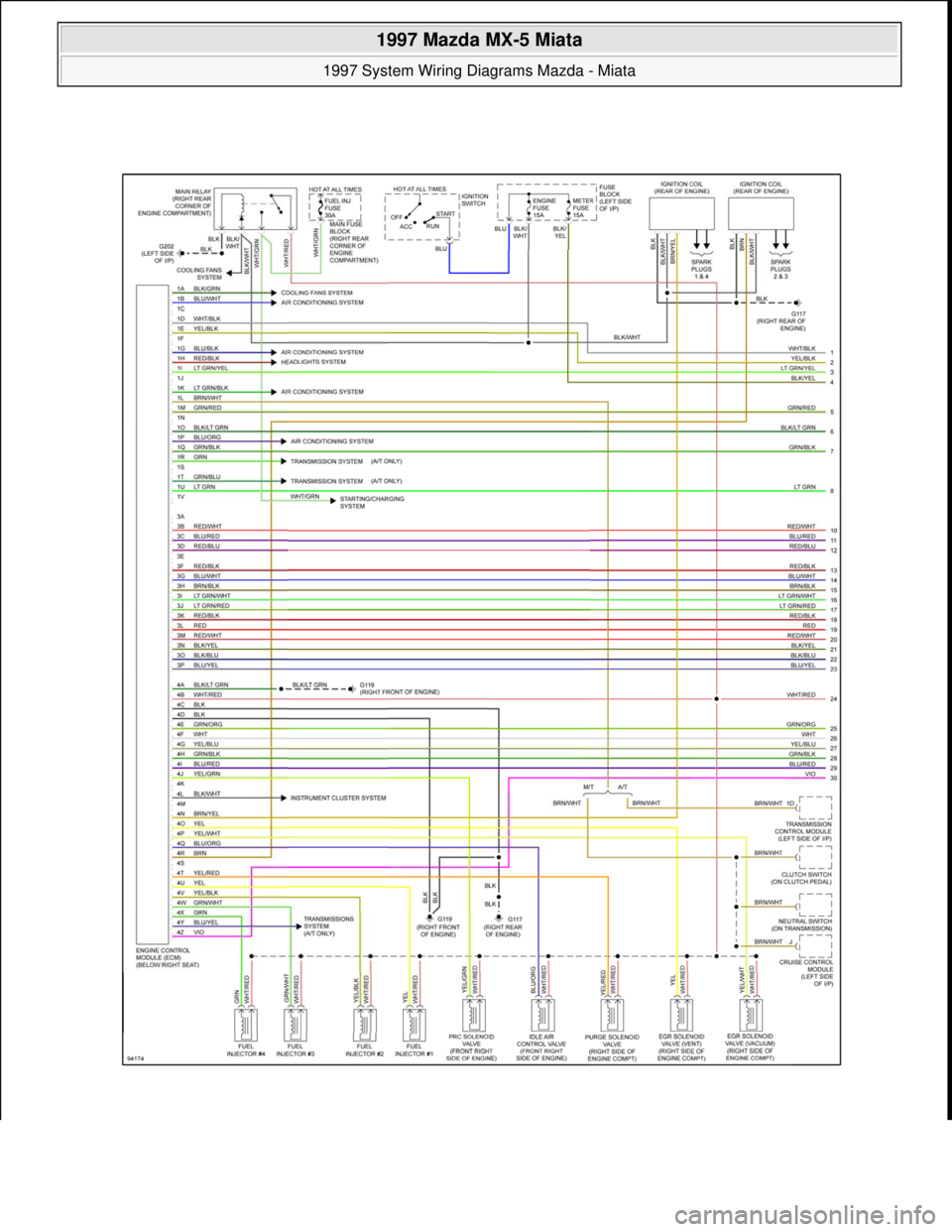

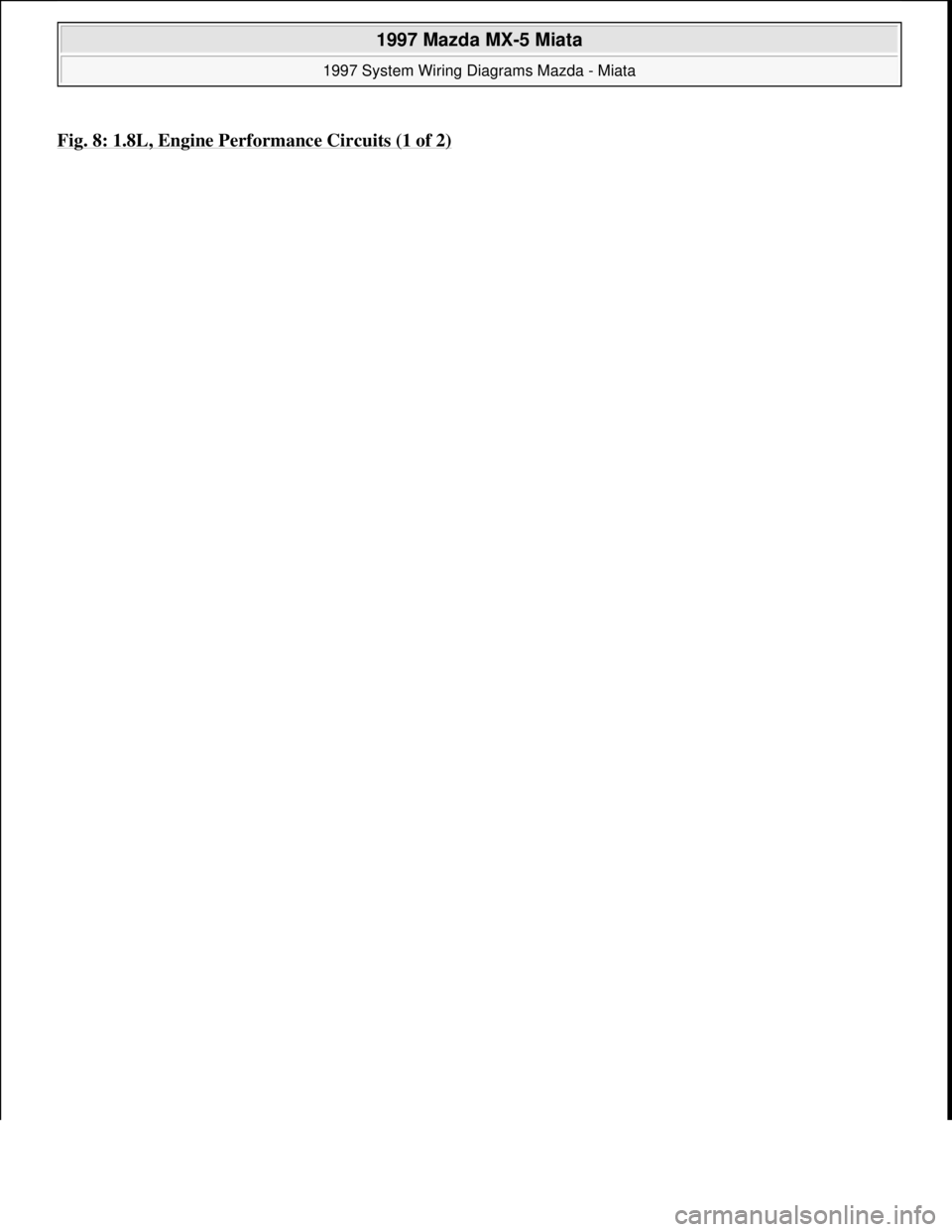

Fig. 8: 1.8L, Engine Performance Circuits (1 of 2)
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 17 © 2005 Mitchell Repair Information Company, LLC.
Page 467 of 514
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 18 © 2005 Mitchell Repair Information Company, LLC.
Page 468 of 514

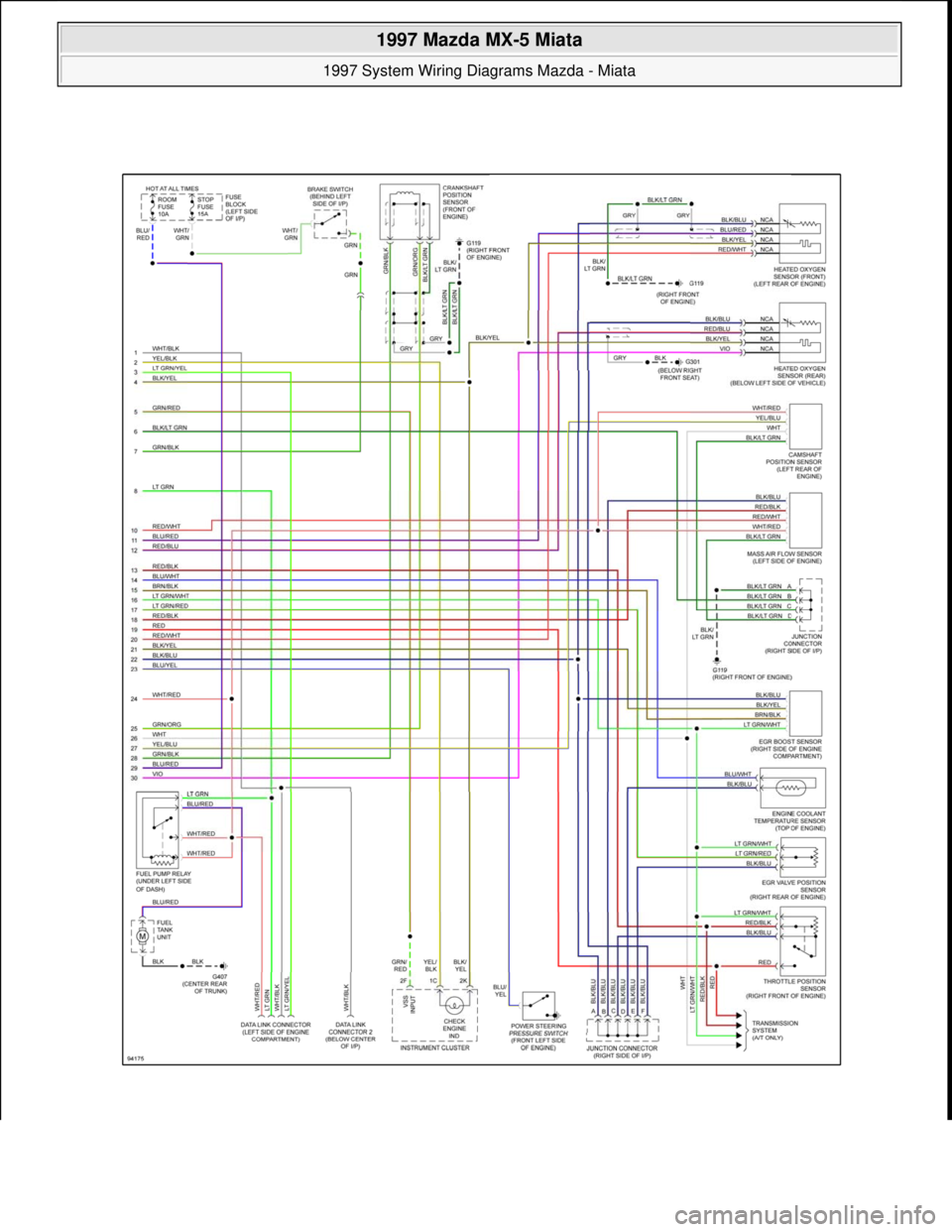

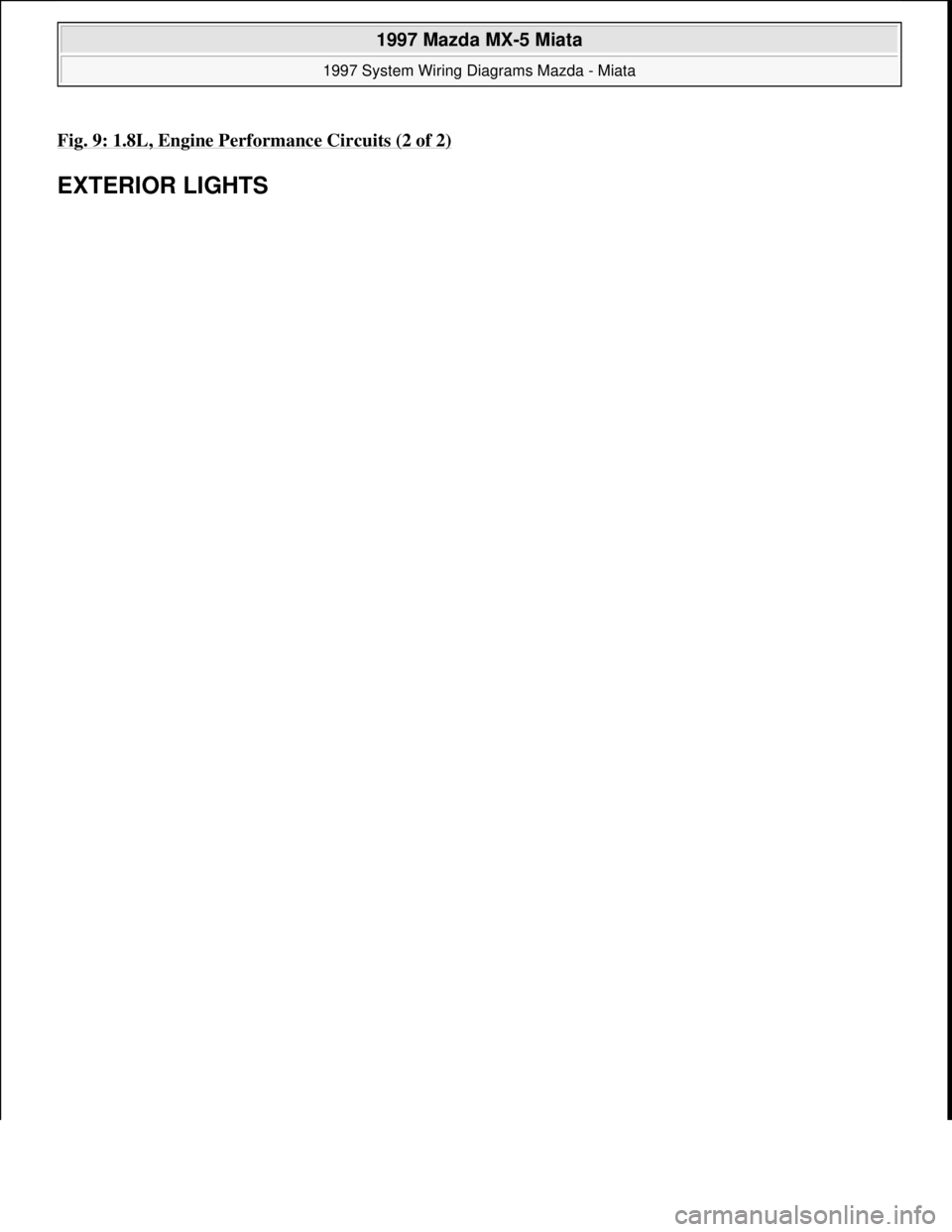

Fig. 9: 1.8L, Engine Performance Circuits (2 of 2)
EXTERIOR LIGHTS
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 19 © 2005 Mitchell Repair Information Company, LLC.
Page 469 of 514
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 20 © 2005 Mitchell Repair Information Company, LLC.
Page 470 of 514

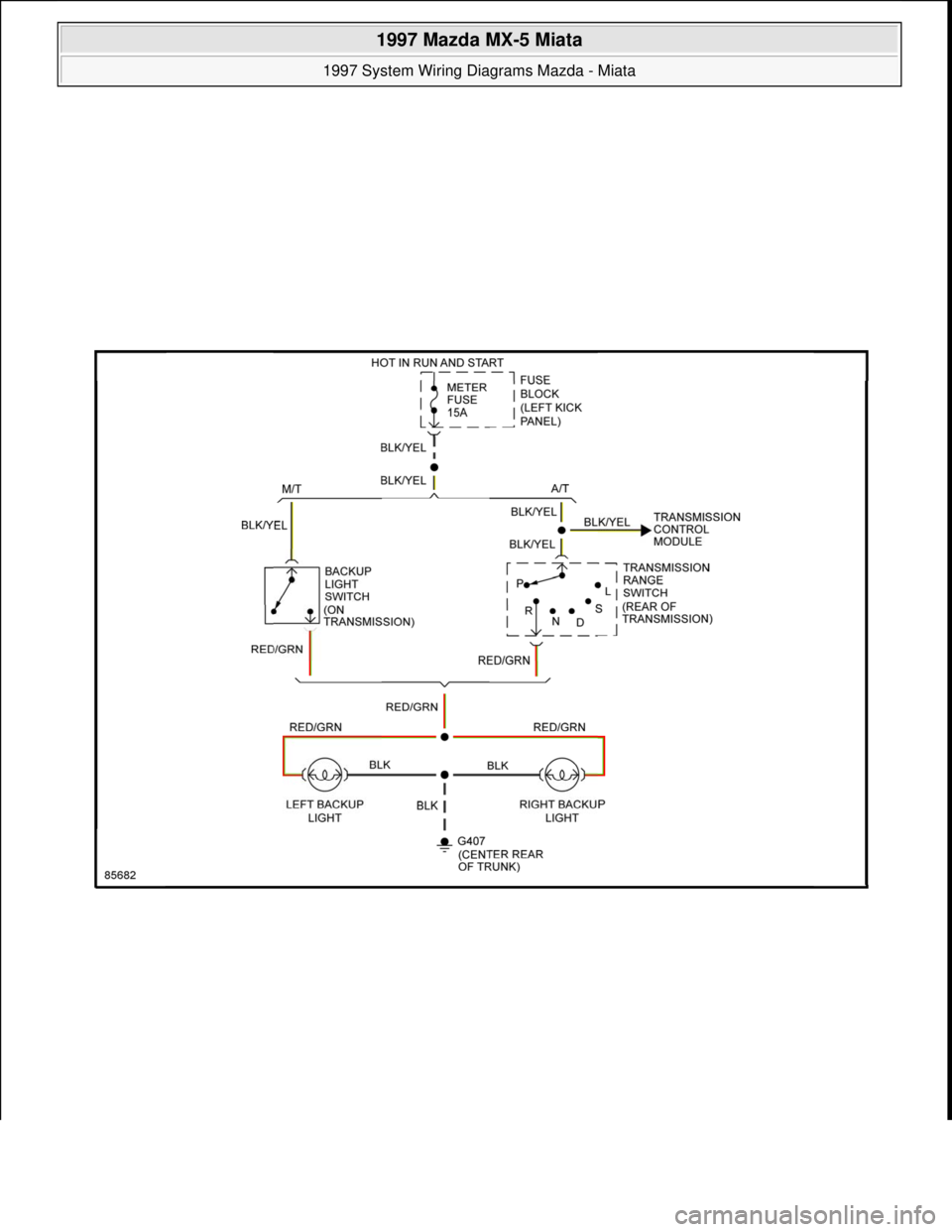

Fig. 10: Back-up Lamps Circuit
1997 Mazda MX-5 Miata
1997 System Wiring Diagrams Mazda - Miata
Microsoft
Sunday, July 05, 2009 1:31:52 PMPage 21 © 2005 Mitchell Repair Information Company, LLC.
