Page 491 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 42 © 2005 Mitchell Repair Information Company, LLC.

Page 492 of 514

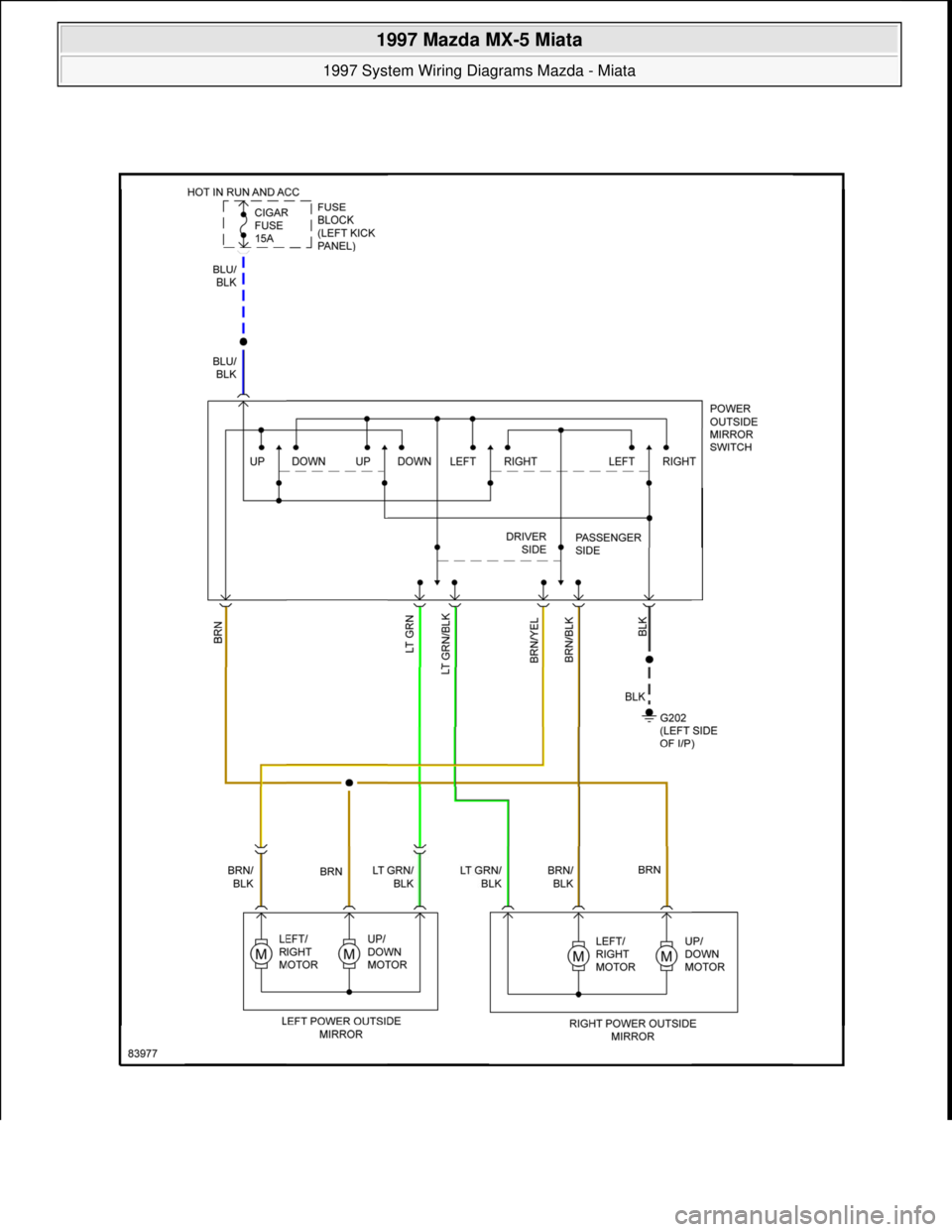

MAZDA MX-5 1997 Factory Repair Manual Fig. 21: Power Mirror Circuit POWER WINDOWS 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 43 © 2005 Mitchell Repair Informati

Page 493 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 44 © 2005 Mitchell Repair Information Company, LLC.

Page 494 of 514

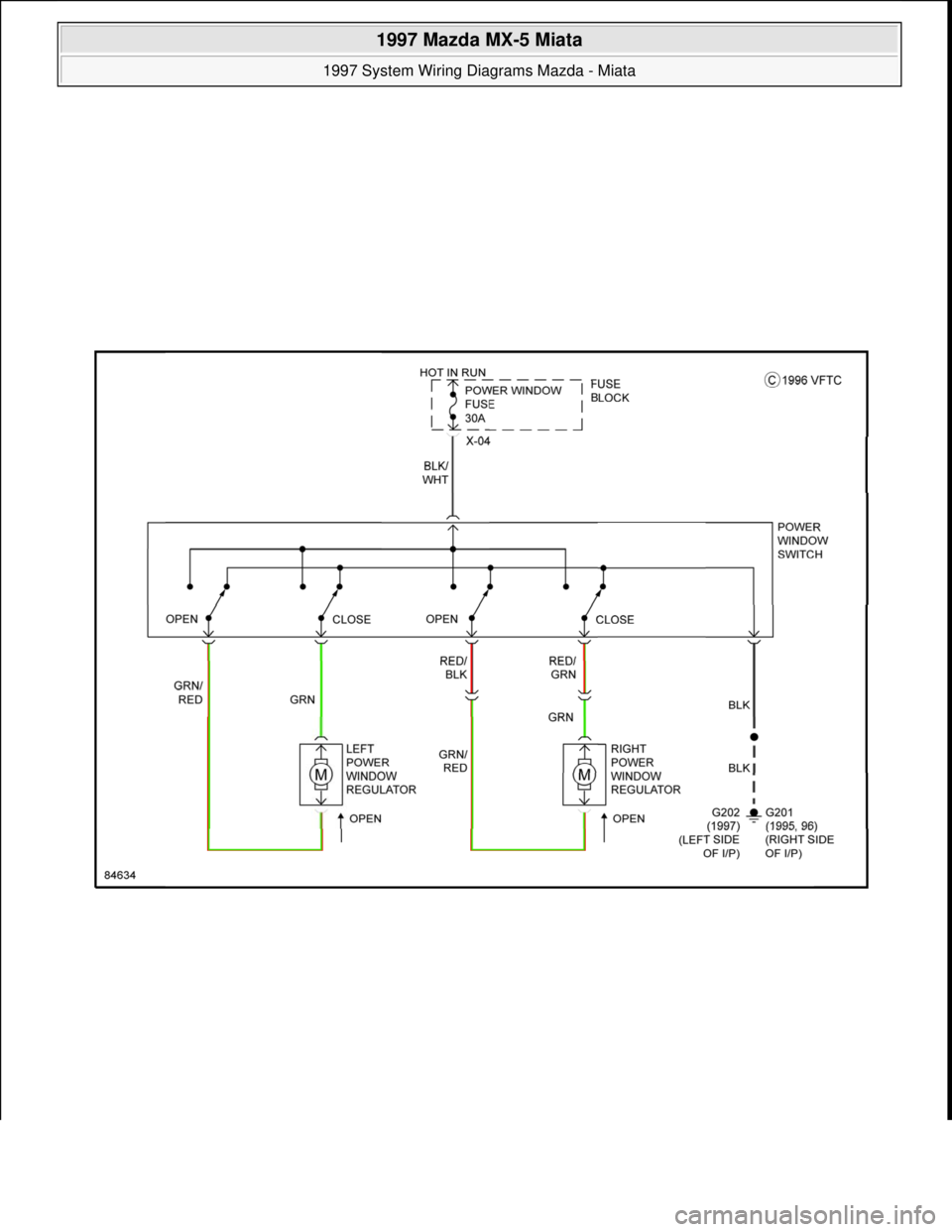

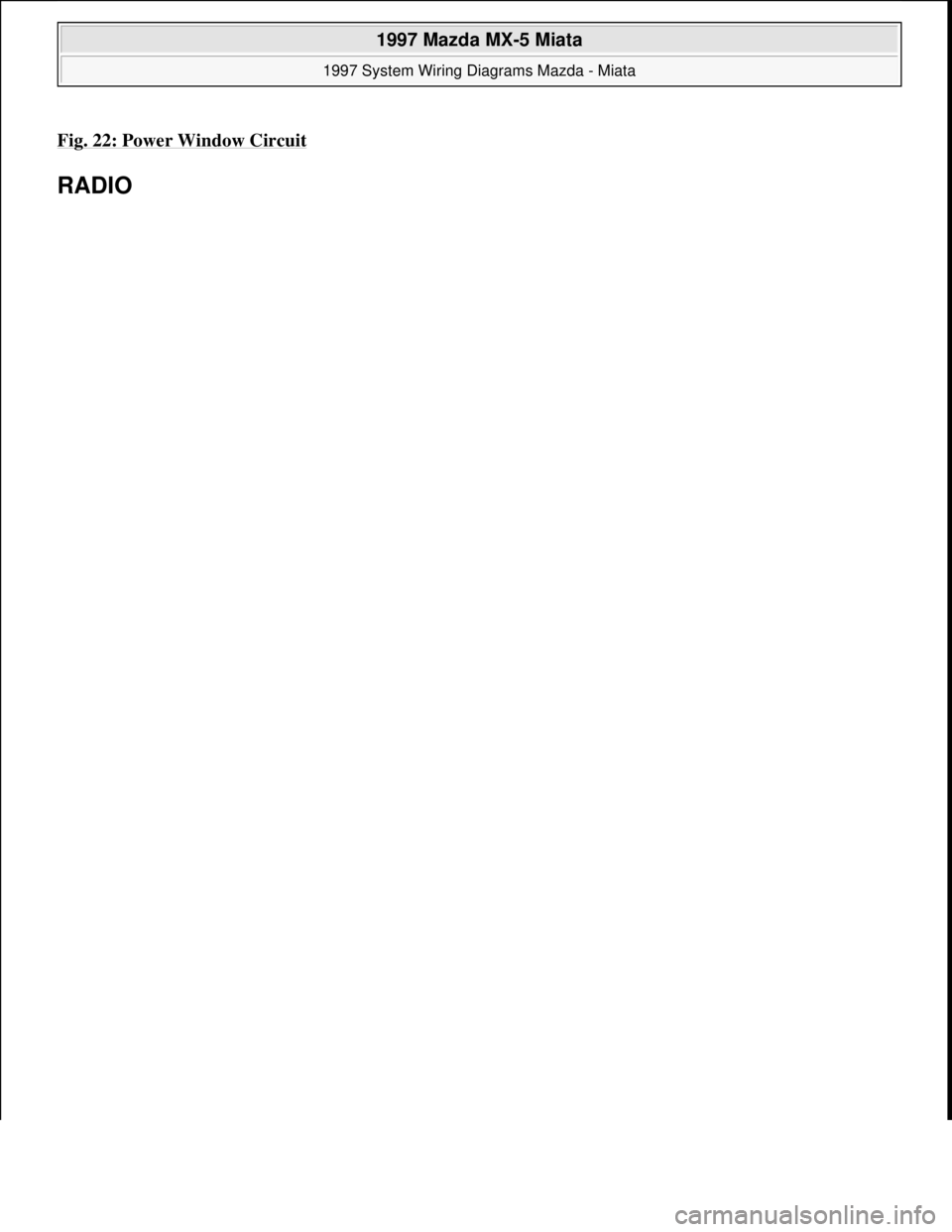

MAZDA MX-5 1997 Factory Repair Manual Fig. 22: Power Window Circuit RADIO 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 45 © 2005 Mitchell Repair Information Compa

Page 495 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 46 © 2005 Mitchell Repair Information Company, LLC.

Page 496 of 514

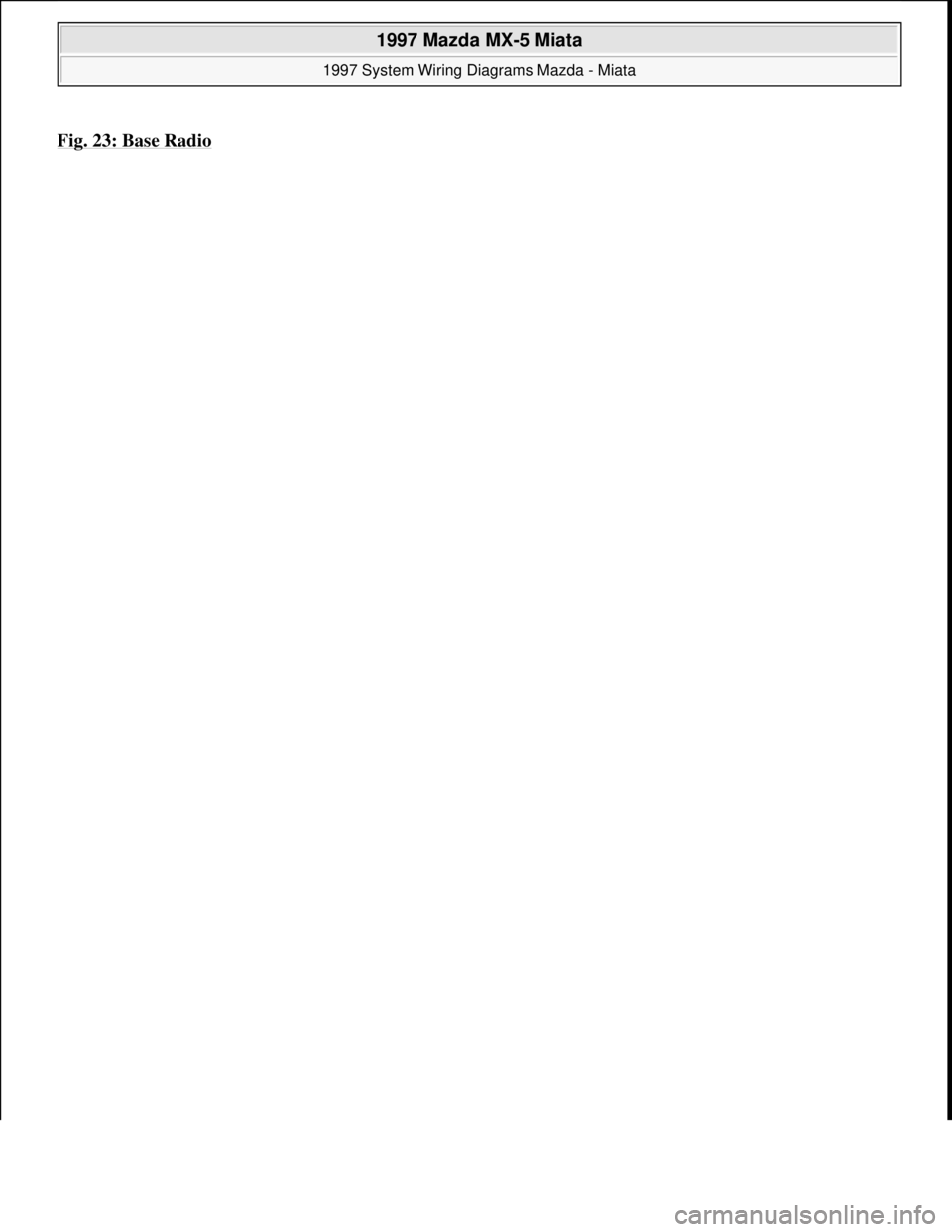

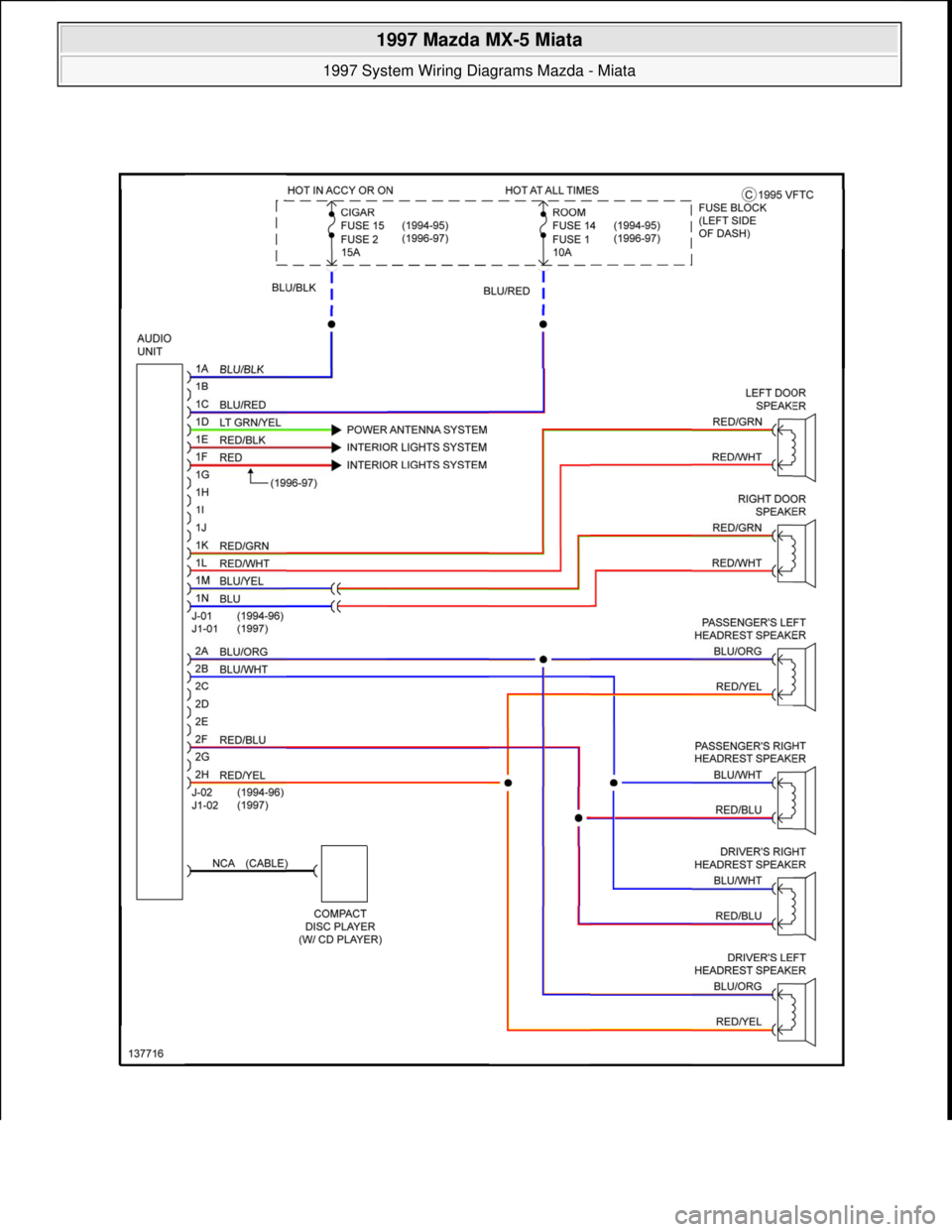

MAZDA MX-5 1997 Factory Repair Manual Fig. 23: Base Radio 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 47 © 2005 Mitchell Repair Information Company, LLC.

Page 497 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 48 © 2005 Mitchell Repair Information Company, LLC.

Page 498 of 514

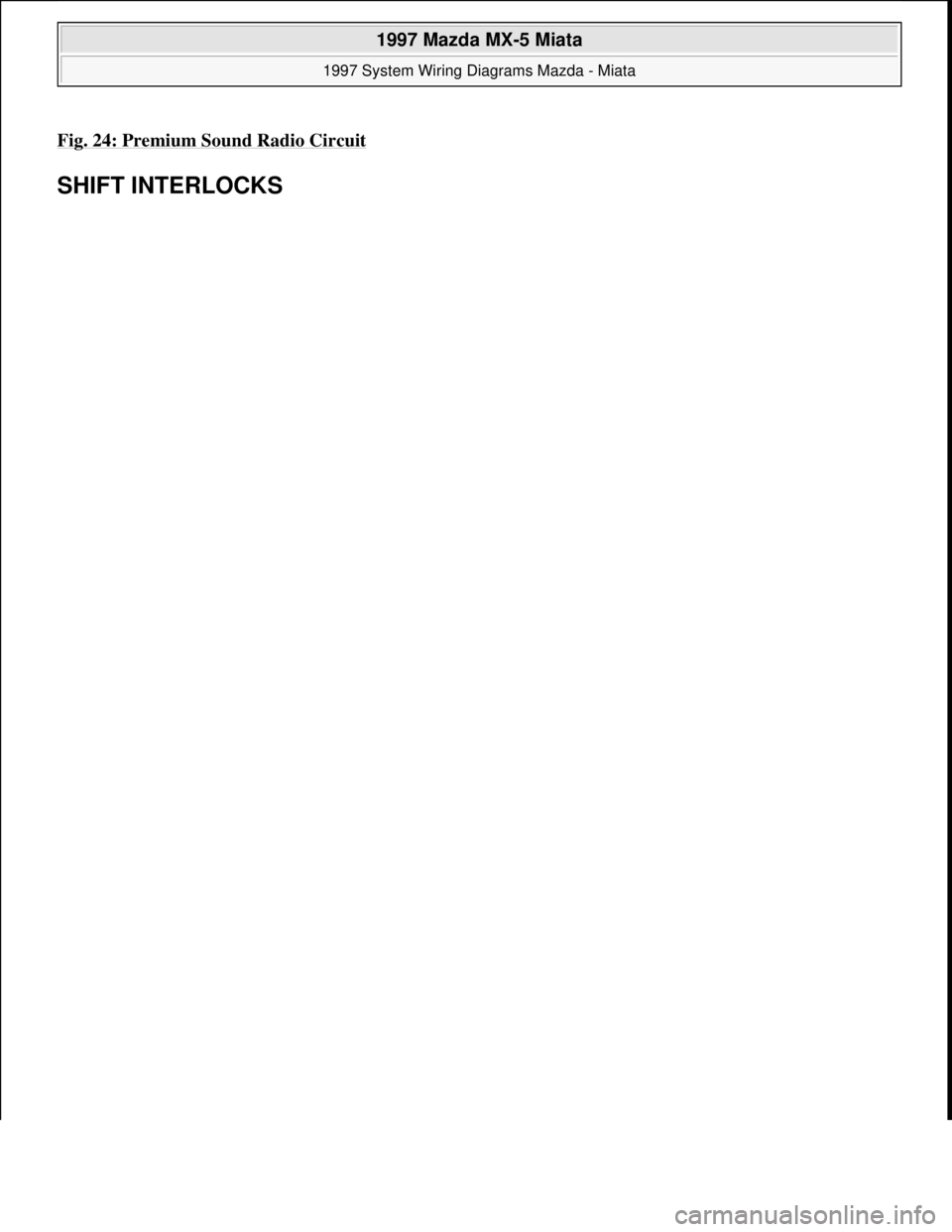

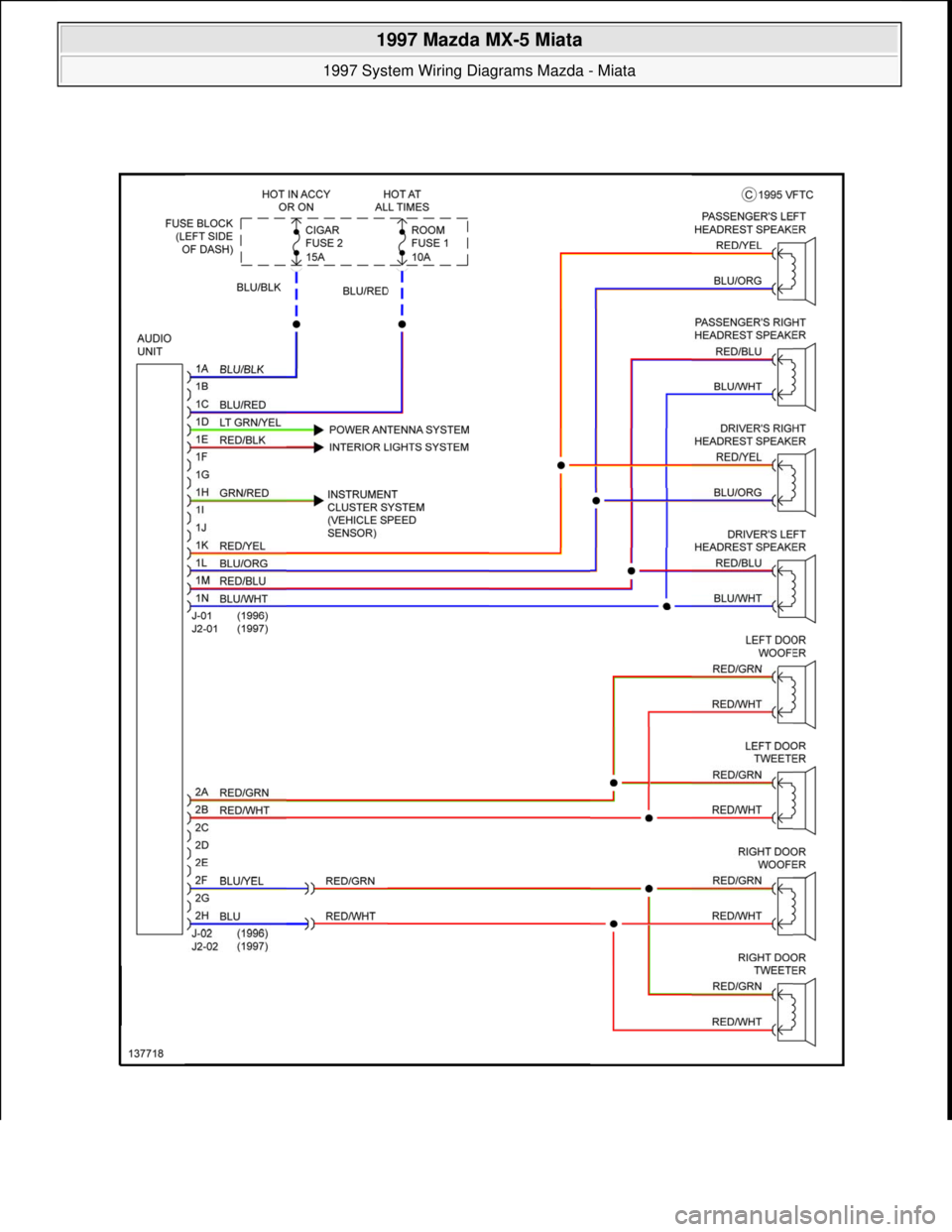

MAZDA MX-5 1997 Factory Repair Manual Fig. 24: Premium Sound Radio Circuit SHIFT INTERLOCKS 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 49 © 2005 Mitchell Repair

Page 499 of 514

MAZDA MX-5 1997 Factory Repair Manual 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 50 © 2005 Mitchell Repair Information Company, LLC.

Page 500 of 514

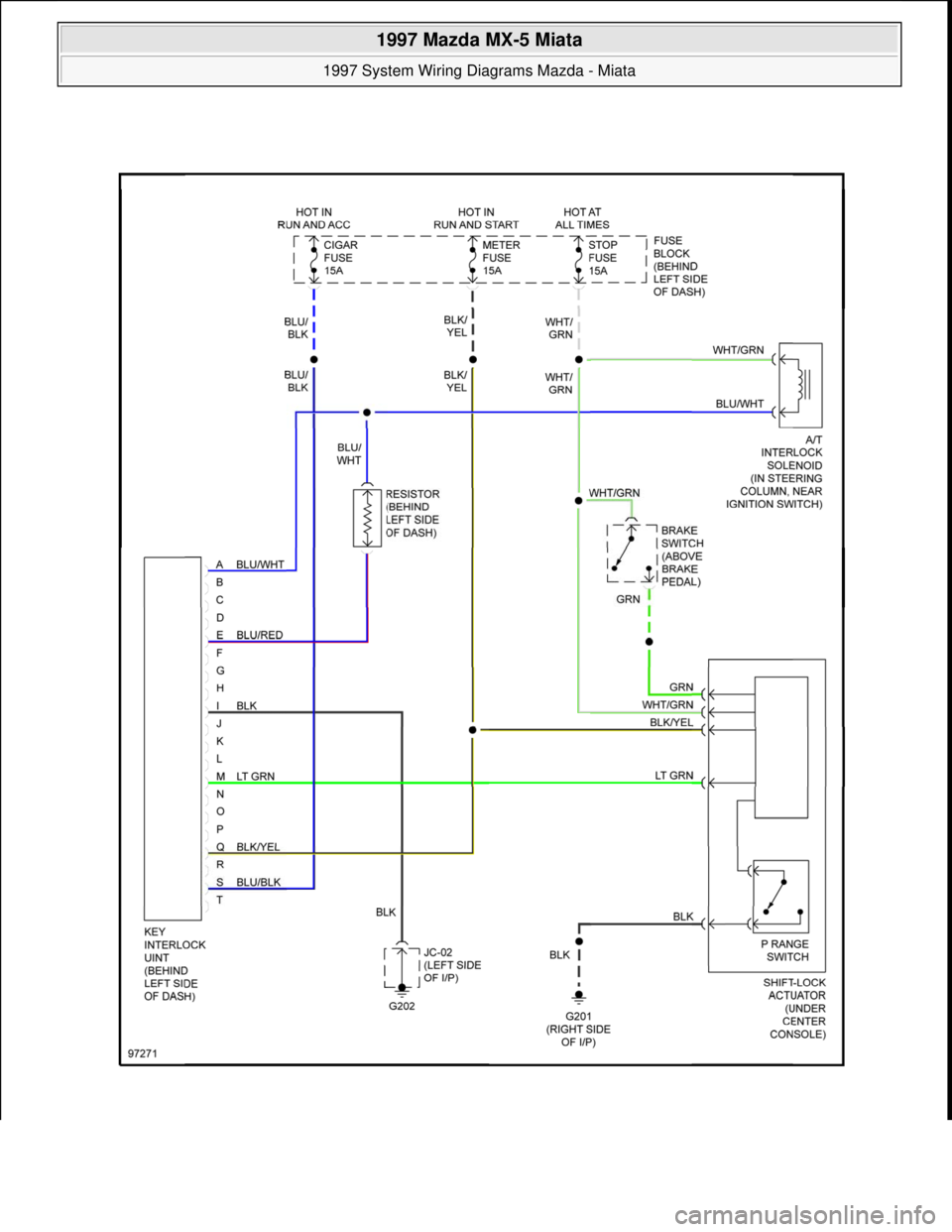

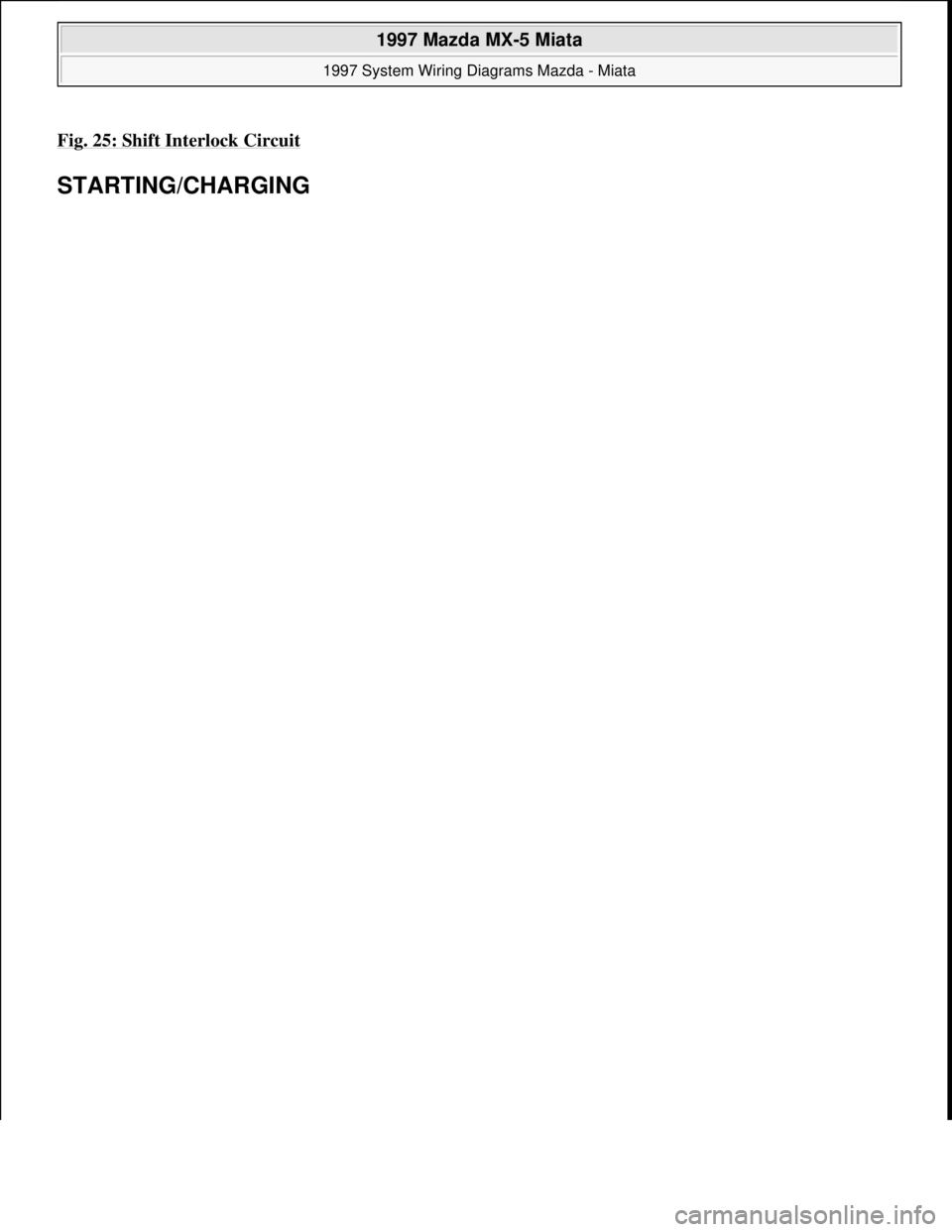

MAZDA MX-5 1997 Factory Repair Manual Fig. 25: Shift Interlock Circuit STARTING/CHARGING 1997 Mazda MX-5 Miata 1997 System Wiring Diagrams Mazda - Miata Microsoft Sunday, July 05, 2009 1:31:52 PMPage 51 © 2005 Mitchell Repair In
