Page 4 of 290
Index
....................................................... 4Digital Operator's Manual
..................21
Introduction .......................................... .21
Operation ............................................... 21 Introduction
......................................... 22
Protecting the environment ...................22
Genuine Mercedes-Benz parts .............. .22
Operator's Manual ................................. 23
Service and vehicle operation ................23
Operating safety .................................... 24
QR codes for the rescue card ................28
Data stored in the vehicle ...................... 28
Information on copyright ....................... 29 At a glance
........................................... 31
Cockpit .................................................. 31
Instrument cluster ................................. 32
Multifunction steering wheel ................. 33
Center console ...................................... 34
Door control panel ................................. 36
Overhead control panel ........................ .37Safety
................................................... 38
Panic alarm ............................................ 38
Occupant safety .................................... 38
Children in the vehicle ........................... 52
Pets in the vehicle ................................. 58
Driving safety systems ........................... 58
Protection against theft .........................64 Opening and closing
...........................66
SmartKey ............................................... 66
Doors ..................................................... 72
Cargo compartment ...............................74
Side windows ......................................... 75 Seats, steering wheel and mirrors
....79
Correct driver's seat position ................ 79
Seats ..................................................... 79
Steering wheel ....................................... 83
Mirrors ................................................... 83
Memory function ................................... 85 Lights and windshield wipers
............87
Exterior lighting ..................................... 87
Interior lighting ...................................... 89
Replacing bulbs ..................................... 90
Windshield wipers .................................. 95 Climate control
.................................... 99
Overview of climate control systems ..... 99
Operating the climate control sys-
tems .................................................... 100
Air vents .............................................. 106 Driving and parking
..........................108
Notes on breaking-in a new vehicle ..... 108
Driving ................................................. 108
Transmission ....................................... 111
High-voltage battery ............................ 117
Parking ................................................ 128
Driving tips .......................................... 131
Driving systems ................................... 136 On-board computer and displays
....152
Important safety notes ........................ 152
Displays and operation ........................ 152
Menus and submenus ......................... 156
Display messages ................................ 167
Warning and indicator lamps in the
instrument cluster ............................... 190 Multimedia system
...........................201
General notes ...................................... 201
Important safety notes ........................ 201
Function restrictions ............................ 201
Operating system ................................ 202 Stowage and features
......................207
Loading guidelines ............................... 207
Stowage areas ..................................... 207
Features .............................................. 216 Maintenance and care
......................231
Engine compartment ........................... 231
ASSYST PLUS ...................................... 233
Care ..................................................... 234 2
Contents
Page 7 of 290
AUTO lights
Display message ............................ 180
see Lights
Automatic car wash (care) ...............234
Automatic headlamp mode ................ 87
Automatic transmission
Display message ............................ 186 B
Back button ....................................... 202
Backup lamp
Display message ............................ 179
Replacing bulbs ............................... 93
Bag hook ............................................ 212
BAS (Brake Assist System) ................. 59
Battery (SmartKey)
Checking .......................................... 69
Important safety notes .................... 68
Replacing ......................................... 69
Battery (vehicle)
Charging ........................................ 248
Display message ............................ 181
Important safety notes .................. 246
Jump starting ................................. 249
Belt
see Seat belts
Blind Spot Assist
Activating/deactivating (on-
board computer) ............................ 163
Display message ............................ 183
Notes/function .............................. 150
Blootooth ®
Connecting a different mobile
phone ............................................ 206
Bluetooth ®
Searching for a mobile phone ....... .205
see also Digital Operator's Man-
ual ................................................. .201
Telephony ...................................... 204
Brake Assist
see BAS (Brake Assist System)
Brake fluid
Display message ............................ 173
Notes ............................................. 284
Brake force distribution
see EBD (electronic brake force
distribution) Brake lamps
Display message ............................ 178
Brake system
Driving safety systems ..................... 64
Brakes
ABS ................................................. .59
BAS .................................................. 59
Brake fluid (notes) ......................... 284
Braking assistance appropriate to
the situation ..................................... 61
Display messag e............................ 168
EBD .................................................. 63
Hill start assist ............................... 111
HOLD function ............................... 138
Important safety notes .................. 133
Maintenance .................................. 134
Parking brake ................................ 130
Riding tips ...................................... 133
Warning lamp ................................. 192
Braking assistance appropriate to
the situation
Function/note s................................ 61
Breakdown
Towing away .................................. 251
Where will I find...? ........................ 241
see Flat tire
Buttons on the steering wheel ......... 154 C
California Important notice for retail cus-
tomers and lessees .......................... 23
Calling up a malfunction
see Display messages
Car
see Vehicle
Care
Car wash ........................................ 234
Carpets .......................................... 240
Display ........................................... 238
Exterior lights ................................ 237
Gear or selector lever .................... 239
Interior ........................................... 238
Matte finish ................................... 236
Notes ............................................. 234
Paint .............................................. 235
Plastic trim .................................... 238 Index
5
Page 10 of 290
Display
High-voltage battery charge level
(instrument cluster) ...................... .153
Display messages
ASSYST PLUS ................................ 233
Calling up (on-board computer) ..... 167
Drive system .................................. 181
Driving systems ............................ .182
General notes ................................ 167
Hiding (on-board computer) ........... 167
Lights ............................................. 178
Safety systems .............................. 168
SmartKey ....................................... 189
Tires ............................................... 185
Vehicle .......................................... .186
Displaying electrical consumption
(on-board computer) ......................... 158
Displaying energy consumption
(on-board computer) ......................... 158
Distance recorder .............................156
Distance warning (warning lamp) .... 199
Distance warning function
Function/notes ................................ 60
Warning lamp ................................. 199
Doors
Automatic locking (on-board com-
puter) ............................................. 166
Automatic locking (switch) .............. .73
Central locking/unlocking
(SmartKey) ...................................... .66
Control panel .................................. .36
Display message ............................ 187
Emergency locking ........................... 73
Emergency unlocking ....................... 73
Important safety note s.................... 72
Opening (from inside) ...................... 72
Drinking and driving ......................... 132
Drive system
Jump-starting ................................. 249
Starting with the SmartKey ............ 111
Starting with the Start/Stop but-
ton ................................................. 110
Switching off .................................. 129
Driver's door
see Doors
Driving abroad
Mercedes-Benz Service ................. 234 Driving on flooded roads
.................. 135
Driving safety system
Active Brake Assist .......................... 60
Braking assistance appropriate tothe situation ..................................... 61
Driving safety systems
ABS (Anti-lock Braking System) ....... 59
ADAPTIVE BRAK E............................. 64
BAS (Brake Assist System) .............. 59
Distance warning function ............... 60
EBD (electronic brake force distri- bution) ............................................. 63
ESP ®
(Electronic Stability Pro-
gram) ............................................... 62
Important safety information ........... 58
Overview .......................................... 58
STEER CONTROL ............................. 64
Driving system
Parking assist PARKTRONIC .......... 139
Parking Pilo t.................................. 142
Driving systems
ATTENTION ASSIST ........................ 148
Blind Spot Assist ............................ 150
Cruise control ................................ 136
Display message ............................ 182
HOLD function ............................... 138
Rear view camera .......................... 145
Driving tips
Brakes ........................................... 133
Break-in period .............................. 108
Checking brake lining thickness .... 134
Downhill gradient ........................... 133
Drinking and driving ....................... 132
Driving in winter ............................. 135
Driving on flooded roads ................ 135
Driving on wet roads ...................... 135
Energy ........................................... 132
General .......................................... 131
Hydroplaning ................................. 135
Icy road surfaces ........................... 135
Limited braking efficiency on sal-
ted roads ....................................... 134
Snow chains .................................. 259
Wet road surface ........................... 134
DVD video
Operating (on-board computer) ..... 160
see also Digital Operator's Man-
ual .................................................. 201 8
Index
Page 11 of 290
E
E ‑CELL display .................................. .152
EBD (electronic brake force distri-
bution)
Display message ............................ 170
Function/notes ................................ 63
ECO display
Function/notes ............................ .132
On-board computer ....................... 156
Electric motor number ......................283
Electrical energy generated
(COMAND) .......................................... 120
Electronic Stability Program
see ESP ®
(Electronic Stability Program)
Emergency
Automatic measures after an acci-
dent ................................................. 52
Emergency release
Driver's door ................................... .73
Vehicle .............................................73
Emergency Tensioning Devices
Activation ........................................ .50
Emergency unlocking
Tailgat e............................................ 75
Energy
Driving tips .................................... 132
Energy flow display ........................... 157
Entering an address
see also Digital Operator's Man-
ual.................................................. 201
ESP ®
(Electronic Stability Pro-
gram)
Activating/deactivating (on-
board computer) ............................ 162
Characteristics ................................. 63
Deactivating/activating (notes) ....... 63
Display message ............................ 168
Function/note s................................ 62
General notes .................................. 62
Important safety information ........... 62
Warning lamp ................................. 195
ETS/4ETS (Electronic Traction Sys-
tem) ...................................................... 62
Exhaustive discharging (high-volt-
age battery) ....................................... 248
Exterior lighting
Cleaning ......................................... 237 see Lights
Exterior mirrors
Adjusting ......................................... 84
Dipping (automatic) ......................... 84
Out of position (troubleshooting) ..... 84
Storing settings (memory func-
tion) ................................................. 86
Storing the parking position ............. 85
Eyeglasses compartment ................. 208 F
Favorites Overview ........................................ 203
Flat tire
MOExtended tire s.......................... 242
Preparing the vehicle ..................... 241
TIREFIT kit ...................................... 243
Floormats ........................................... 229
Folding table ...................................... 209
Frequencies
Mobile phone ................................. 281
Two-way radio ................................ 281
Front-passenger seat
Folding the backrest forward/
back ............................................... 210
Fuel
Fuel gaug e....................................... 32
Fuses
Allocation chart ............................. 256
Before changing ............................. 255
Fuse box in the engine compart-
ment .............................................. 255
Fuse box in the front-passenger
footwell .......................................... 256
Important safety notes .................. 254 G
Garage door opener Clearing the memory ..................... 228
General notes ................................ 226
Important safety notes .................. 226
Opening/closing the garage doo r..2 28
Problems when programming ....... .228
Programming (button in the rear-
view mirror) ................................... 226
Synchronizing the rolling code ....... 227 Index
9
Page 13 of 290

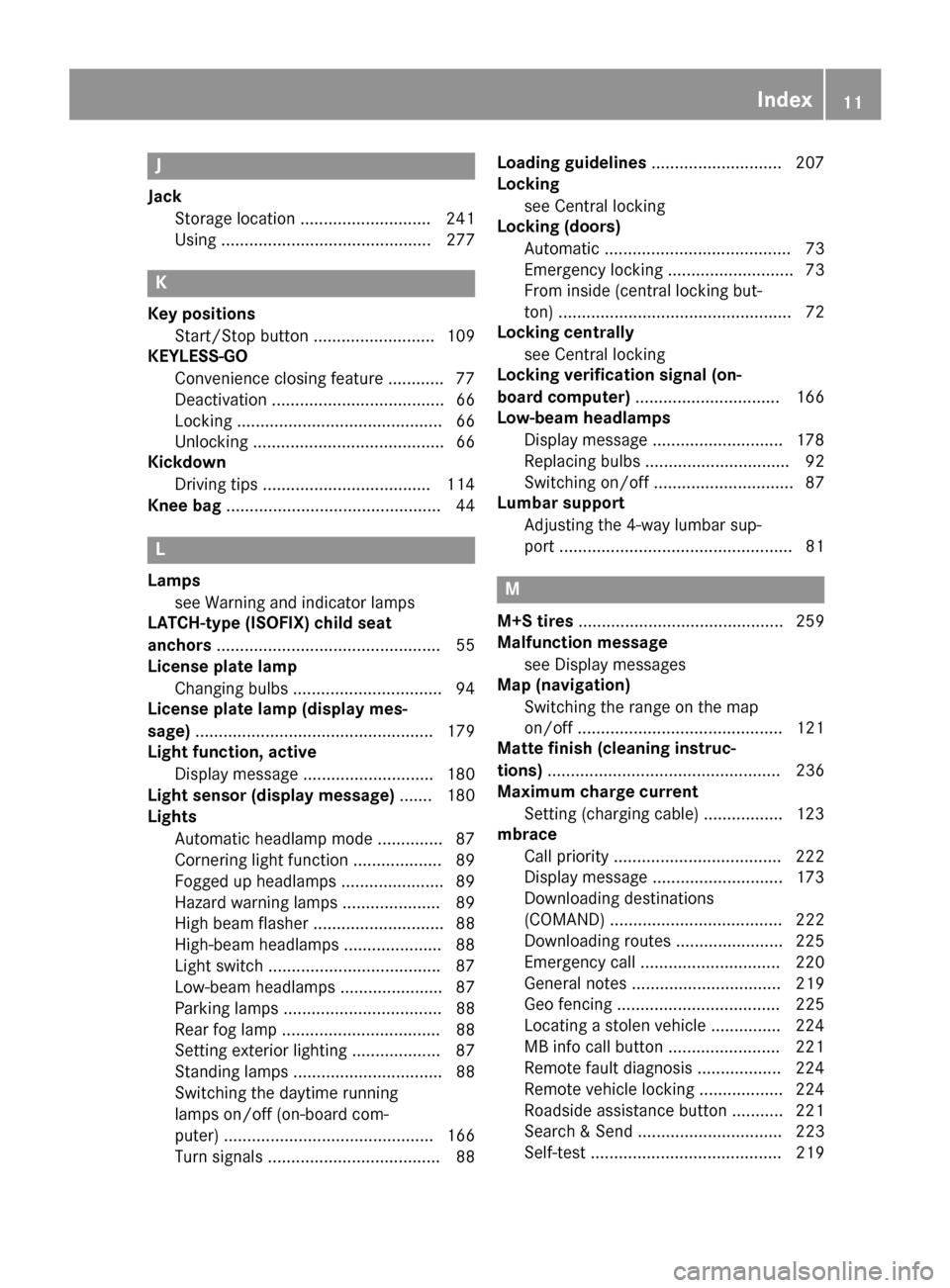

J
Jack Storage location ............................2 41
Using ............................................. 277 K
Key positions Start/Stop button .......................... 109
KEYLESS-GO
Convenience closing feature ............ 77
Deactivation ..................................... 66
Locking ............................................ 66
Unlocking ......................................... 66
Kickdown
Driving tips ................................... .114
Knee bag .............................................. 44 L
Lamps see Warning and indicator lamps
LATCH-type (ISOFIX) child seat
anchors ................................................ 55
License plate lamp
Changing bulbs ................................ 94
License plate lamp (display mes-
sage) ................................................... 179
Light function, active
Display message ............................ 180
Light sensor (display message) ....... 180
Lights
Automatic headlamp mode .............. 87
Cornering light function ................... 89
Fogged up headlamps ..................... .89
Hazard warning lamps ..................... 89
High beam flasher ............................ 88
High-beam headlamps ..................... 88
Light switch .................................... .87
Low-beam headlamps ...................... 87
Parking lamps .................................. 88
Rear fog lamp .................................. 88
Setting exterior lighting ................... 87
Standing lamps ................................ 88
Switching the daytime running
lamps on/off (on-board com-
puter) ............................................. 166
Turn signals ..................................... 88 Loading guidelines
............................ 207
Locking
see Central locking
Locking (doors)
Automatic ........................................ 73
Emergency locking ........................... 73
From inside (central locking but-
ton) .................................................. 72
Locking centrally
see Central locking
Locking verification signal (on-
board computer) ............................... 166
Low-beam headlamps
Display message ............................ 178
Replacing bulb s............................... 92
Switching on/of f.............................. 87
Lumbar support
Adjusting the 4-way lumbar sup-
port .................................................. 81 M
M+S tires ............................................ 259
Malfunction message
see Display messages
Map (navigation)
Switching the range on the map
on/of f............................................ 121
Matte finish (cleaning instruc-
tions) .................................................. 236
Maximum charge current
Setting (charging cable) ................. 123
mbrace
Call priority .................................... 222
Display message ............................ 173
Downloading destinations
(COMAND) ..................................... 222
Downloading routes ....................... 225
Emergency call .............................. 220
General notes ................................ 219
Geo fencing ................................... 225
Locating a stolen vehicle ............... 224
MB info call button ........................ 221
Remote fault diagnosi s.................. 224
Remote vehicle locking .................. 224
Roadside assistance button ........... 221
Search & Send ............................... 223
Self-test ......................................... 219 Index
11
Page 16 of 290
Protection against theft
ATA (Anti-Theft Alarm system) ......... 65
Immobilizer ...................................... 64
Protection of the environment
General notes ..................................22
Pulling away
General notes ................................ 111
Hill start assist ...............................1 11Q
QR code Mercedes-Benz Guide App ................. 1
Rescue card ..................................... 28
Qualified specialist workshop ........... 27R
Radio Selecting a station ......................... 160
see separate operating instructions
Radio mode
see also Digital Operator's Man-
ual ................................................. .201
Radio-wave reception/transmis-
sion in the vehicle
Declaration of conformity ................ 26
Range
RANGE PLUS ................................. 120
RANGE PLUS
charge .......................................... .164
Range ............................................ 120
Reading lamp ....................................... 89
READY indicator ................................ 152
Rear compartment
Setting the air vents ..................... .106
Rear fog lamp
Display message ............................ 179
Replacing bulbs ............................... 93
Switching on/off .............................. 88
Rear lamps
see Lights
Rear seats
Folding the backrest forwards/
back ............................................... 211
Rear view camera
"Reverse parking" function ............ 147
Cleaning instructions ..................... 238 Display in the multimedia system .. 146
Function/notes ............................
.145
General notes ................................ 145
Switching on/off ........................... 146
Rear window defroster
Problem (malfunction) ................... 103
Switching on/off ........................... 103
Rear window wiper
Replacing the wiper blade ................ 97
Switching on/off .............................. 95
Rear-view mirror
Anti-glare (manual) .......................... 83
Dipping (automatic) ......................... 84
Recharging statistics (COMAND)
Generated electricity ..................... 120
Recuperative Brake System
Driving safety systems ..................... 64
Refrigerant (air-conditioning sys-
tem)
Important safety notes .................. 285
Refueling
Fuel gauge ....................................... 32
Remote control
Garage door opener ....................... 226
Programming (garage door
opener) .......................................... 226
Replacing bulbs
Backup lamp ................................... .93
High-beam headlamps ..................... 92
Important safety notes .................... 90
Installing/removing the cover
(front wheel arch) ............................ 92
License plate lamp ........................... 94
Low-beam headlamps ...................... 92
Overview of bulb types .................... 91
Parking lamps ................................. .92
Rear fog lamp .................................. 93
Standing lamps ................................ 92
Turn signals (front) .......................... .93
Reporting safety defects .................... 27
Rescue card ......................................... 28
Reserve
High-voltage battery ...................... 199
Restraint system
Display message ............................ 175
Introduction ..................................... 38
Warning lamp ................................. 198
Warning lamp (function) ................... 39 14
Index
Page 41 of 290
Restraint system warning lamp
The functions of the restraint system are
checked after the ignition is switched on and at
regular intervals while the drive system is run-
ning. Therefore, malfunctions can be detected in good time.
The 0075 restraint system warning lamp in the
instrument cluster lights up when the ignition is
switched on. It goes out no later than a few sec- onds after the vehicle is started. The compo-
nents of the restraint system are in operational
readiness.
A malfunction has occurred if the 0075restraint
system warning lamp:
R does not light up after the ignition is switched
on
R does not go out after a few seconds with the
drive system running
R lights up again while the drive system is run-
ning G
DANGER
If the restraint system is malfunctioning,
restraint system components may be trig-
gered unintentionally or may not deploy as
intended during an accident. This can affect
for example the Emergency Tensioning
Device or the air bag. Furthermore, in the
event of an accident, the vehicle's high-volt-
age electrical system may not be deactivated as intended. You may be electrocuted if you
touch the damaged components of the vehi-
cle's high-voltage electrical system. This
poses an increased risk of injury or even fatal
injury.
Have the restraint system checked and
repaired in a qualified specialist workshop as soon as possible. After an accident, switch offthe ignition immediately and remove the key
from the ignition lock. PASSENGER AIR BAG indicator lamp
PASSENGER AIR BAG ON indicator lamp
0043and
PASSENGER AIR BAG OFF indicator lamp 0044are
part of the Occupant Classification System
(OCS).
The indicator lamps display the status of the
front-passenger front air bag.
R PASSENGER AIR BAG ON lights up for 60 sec-
onds, subsequently both indicator lamps are
off (PASSENGER AIR BAG ON and OFF): the
front-passenger front air bag is able to deploy in the event of an accident.
R PASSENGER AIR BAG OFF lights up: the front-
passenger front air bag is deactivated. It will
then not be deployed in the event of an acci-
dent.
If the PASSENGER AIR BAG ON indicator lamp is
off, only the PASSENGER AIR BAG OFF indicator lamp shows the status of the front-passenger
front air bag. The PASSENGER AIR BAG OFF
indicator lamp may be lit continuously or be off.
Depending on the person in the front-passenger seat, the front-passenger front air bag must
either be deactivated or enabled; see the fol-
lowing points. You must make sure of this both
before and during a journey.
R Children in a child restraint system:
whether the front-passenger front air bag is
enabled or deactivated depends on the instal- led child restraint system, and the age and
size of the child. Therefore, be sure to observe
the notes on the "Occupant Classification
System (OCS)" (Y page 45) and on "Chil-
dren in the vehicle" (Y page 52). There you
will also find instructions on rearward and
forward-facing child restraint systems on the
front-passenger seat.
R All other persons: depending on the classi-
fication of the person in the front-passenger
seat, the front-passenger front air bag is ena- Occupant safety
39Safety Z
Page 44 of 290
Seat belts are only intended to secure and
restrain vehicle occupants. Always observe the
"Loading guidelines" for securing objects, lug-
gage or loads (Y page 207).
Fastening and adjusting the seat belts Observe the safety notes on the seat belt
(Y
page 40 )and the notes on correct use of seat
belts (Y page 41).
If the center rear seat belt is being used, also
observe the information about the seat belt for
the center rear seat (Y page 42).Basic illustration
X Adjust the seat (Y page 79).
The seat backrest must be in an almost ver-
tical position.
X Pull the seat belt smoothly from the belt out-
let.
X Engage seat belt tongue 0044in belt buckle 0043.
X If necessary, pull upwards on the shoulder
section of the seat belt to tighten the belt
across your body.
The shoulder section of the seat belt must
always be routed across the center of the shoul- der. Adjust the belt outlet if necessary.
X To raise: slide the belt outlet upwards.
The belt outlet will engage in various posi-
tions.
X To lower: hold belt outlet release 0087and slide
belt outlet downwards.
X Let go of belt outlet release 0087in the desired
position and make sure that the belt outlet
engages.
All seat belts except the driver's seat belt are
equipped with a special seat belt retractor to
securely fasten child restraint systems in the
vehicle. Further information can be found under "Special seat belt retractor" (Y page 53).Seat belt for the center rear seat If the left-hand rear seat backrest is folded down
and back up again, the rear center seat belt may lock. The seat belt can then not be pulled out.
X To release the rear center seat belt: pull
the seat belt out approximately 1 in (25 mm)
at the belt outlet on the backrest and then
release it again.
The seat belt is retracted and released.
Releasing seat belts !
Make sure that the seat belt is fully rolled up.
Otherwise, the seat belt or belt tongue will be
trapped in the door or in the seat mechanism. This could damage the door, the door trim
panel and the seat belt. Damaged seat belts
can no longer fulfill their protective function
and must be replaced. Visit a qualified spe-
cialist workshop.
X Press the release button in the belt buckle,
hold the belt tongue firmly and guide the belt
back.
Belt warning for the driver and front
passenger The
0076 seat belt warning lamp in the instru-
ment cluster is a reminder that all vehicle occu- pants must wear their seat belts. It may light up
continuously or flash. In addition, there may be
a warning tone.
Regardless of whether the driver's seat belt has
already been fastened, the 0076seat belt warn-
ing lamp lights up for six seconds each time the
drive system is started. If the front doors are
closed and the driver or front-passenger seat
belt has not been fastened, the 0076seat belt
warning lamp lights up again after the
six seconds. As soon as the driver's and front-
passenger seat belts are fastened or a front door is opened again, the 0076seat belt warning
lamp goes out.
If the driver's seat belt is not fastened after the drive system is started, an additional warning
tone will sound. The warning tone switches off
after six seconds or once the driver's seat belt is
fastened.
If the vehicle's speed exceeds 15 mph
(25 km/h) once and the driver's and front-
passenger seat belts are not fastened, a warning
tone sounds. A warning tone also sounds with 42
Occupant safetySafety
Page 48 of 290
Requirements
To be classified correctly, the front passenger
must sit:
R with the seat belt fastened correctly
R in an almost upright position with their back
against the seat backrest
R with their feet resting on the floor, if possible
If the front passenger does not observe these
conditions, OCS may produce a false classifica- tion, e.g. because the front passenger:
R transfers their weight by supporting them-
selves on a vehicle armrest
R sits in such a way that their weight is raised
from the seat cushion
If it is absolutely necessary to install a child
restraint system on the front-passenger seat, be
sure to observe the correct positioning of the
child restraint system. Never place objects
under or behind the child restraint system, e.g. a
cushion. The entire base of the child restraint
system must always rest on the seat cushion of
the front-passenger seat. The backrest of the
forward-facing child restraint system must lie as flat as possible against the backrest of the front-
passenger seat.
The child restraint system must not touch the
roof or be subjected to a load by the head
restraint. Adjust the angle of the seat backrest
and the head restraint position accordingly.
Only then can OCS be guaranteed to function
correctly. Always observe the child restraint sys-
tem manufacturer's installation and operating
instructions.
Operation of Occupant Classification
System (OCS) 0043
PASSENGER AIR BAG ON indicator lamp
0044 PASSENGER AIR BAG OFF indicator lamp The indicator lamps inform you whether the
front-passenger front air bag is deactivated or
enabled.
X Press the Start/Stop button once or twice, or
turn the SmartKey to position 1or 2in the
ignition lock.
The system carries out self-diagnostics.
The PASSENGER AIR BAG OFF and PASSENGER
AIR BAG ON indicator lamps must light up simul- taneously for approximately six seconds.
The indicator lamps display the status of the
front-passenger front air bag.
R PASSENGER AIR BAG ON lights up for 60 sec-
onds, subsequently both indicator lamps are
off (PASSENGER AIR BAG ON and OFF): the
front-passenger front air bag is able to deploy in the event of an accident.
R PASSENGER AIR BAG OFF lights up: the front-
passenger front air bag is deactivated. It will
then not be deployed in the event of an acci-
dent.
If the PASSENGER AIR BAG ON indicator lamp is
off, only the PASSENGER AIR BAG OFF indicator lamp shows the status of the front-passenger
front air bag. The PASSENGER AIR BAG OFF
indicator lamp may be lit continuously or be off.
If the status of the front-passenger front air bag
changes while the vehicle is in motion, an air bag display message appears in the instrument clus-
ter (Y page 176). When the front-passenger
seat is occupied, always pay attention to the
PASSENGER AIR BAG OFF indicator lamp. Be
aware of the status of the front-passenger front air bag both before and during the journey. G
WARNING
If the PASSENGER AIR BAG OFF indicator
lamp is lit, the front-passenger front air bag is disabled. It will not be deployed in the event of
an accident and cannot perform its intended
protective function. A person in the front-
passenger seat could then, for example, come
into contact with the vehicle's interior, espe-
cially if the person is sitting too close to the
dashboard. This poses an increased risk of
injury or even fatal injury.
When the front-passenger seat is occupied,
always ensure that:
R the classification of the person in the front-
passenger seat is correct and the front- 46
Occupant safetySafety
Page 49 of 290
passenger front air bag is enabled or disa-
bled in accordance with the person in the
front-passenger seat
R the front-passenger seat has been moved
back as far back as possible.
R the person is seated correctly.
Make sure, both before and during the jour-
ney, that the status of the front-passenger
front air bag is correct. G
WARNING
If you secure a child in a rearward-facing child
restraint system on the front-passenger seat
and the PASSENGER AIR BAG OFF indicator
lamp is off, the front-passenger front air bag
may deploy in the event of an accident. The
child could be struck by the air bag. This poses an increased risk of injury or even fatal injury.
Make sure that the front-passenger front air
bag has been disabled. The PASSENGER AIR
BAG OFF indicator lamp must be lit.
If the PASSENGER AIR BAG OFF indicator lamp
stays off, do not install a rearward-facing child
restraint system on the front-passenger seat.
You can find more information on OCS under
"Problems with the Occupant Classification Sys-
tem" (Y page 49). G
WARNING
If you secure a child in a forward-facing child
restraint system on the front-passenger seat
and you position the front-passenger seat too close to the dashboard, in the event of an
accident, the child could:
R come into contact with the vehicle's inte-
rior if the PASSENGER AIR BAG OFF indi-
cator lamp is lit, for example
R be struck by the air bag if the PASSENGER
AIR BAG OFF indicator lamp is off
This poses an increased risk of injury or even fatal injury.
Always move the front-passenger seat as far
back as possible and fully retract the seat
cushion length. Always make sure that the
shoulder belt strap is correctly routed from
the vehicle belt sash guide to the shoulder belt guide on the child restraint system. The
shoulder belt strap must be routed forwards
and downwards from the vehicle belt sash
guide. If necessary, adjust the vehicle belt
sash guide and the front-passenger seat
accordingly. Always observe the child
restraint system manufacturer's installation
instructions.
If OCS determines that:
R the front-passenger seat is unoccupied, the
PASSENGER AIR BAG OFF indicator lamp
lights up after the system self-test and
remains lit. This indicates that the front-
passenger front air bag is deactivated.
R the front-passenger seat is occupied by a
child of up to twelve months old, in a standard
child restraint system, the PASSENGER AIR
BAG OFF indicator lamp lights up after the
system self-test and remains lit. This indi-
cates that the front-passenger front air bag is deactivated.
But even in the case of a twelve-month-old
child, in a standard child restraint system, the
PASSENGER AIR BAG OFF indicator lamp can
go out after the system self-test. This indi-
cates that the front-passenger front air bag is activated. The result of the classification is
dependent on, among other factors, the child
restraint system and the child's stature. It is
recommended that you install the child
restraint system on a suitable rear seat.
R the front-passenger seat is occupied by a per-
son of smaller stature (e.g. a teenager or
small adult), the PASSENGER AIR BAG OFF
indicator lamp lights up and remains lit after
the system self-test depending on the result
of the classification or, alternatively, goes out.
- If the PASSENGER AIR BAG OFF indicator
lamp is off, move the front-passenger seat
as far back as possible. Alternatively, a per-
son of smaller stature can sit on a rear seat.
- If the PASSENGER AIR BAG OFF indicator
lamp is lit, a person of smaller stature
should not use the front-passenger seat.
R the front-passenger seat is occupied by an
adult or a person of adult stature, the
PASSENGER AIR BAG OFF indicator lamp
goes out after the system self-test. This indi-
cates that the front-passenger front air bag is
activated. Occupant safety
47Safety Z
